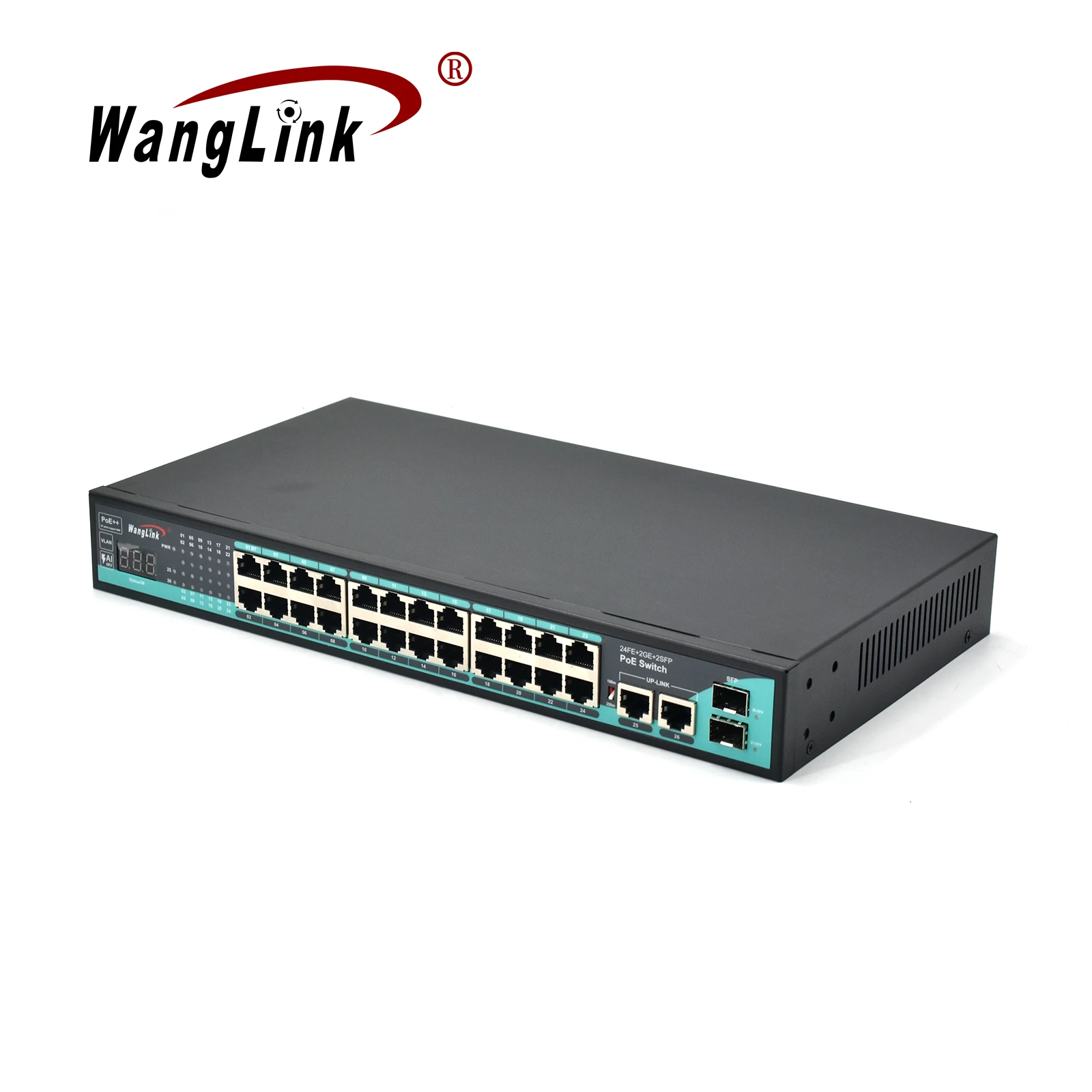

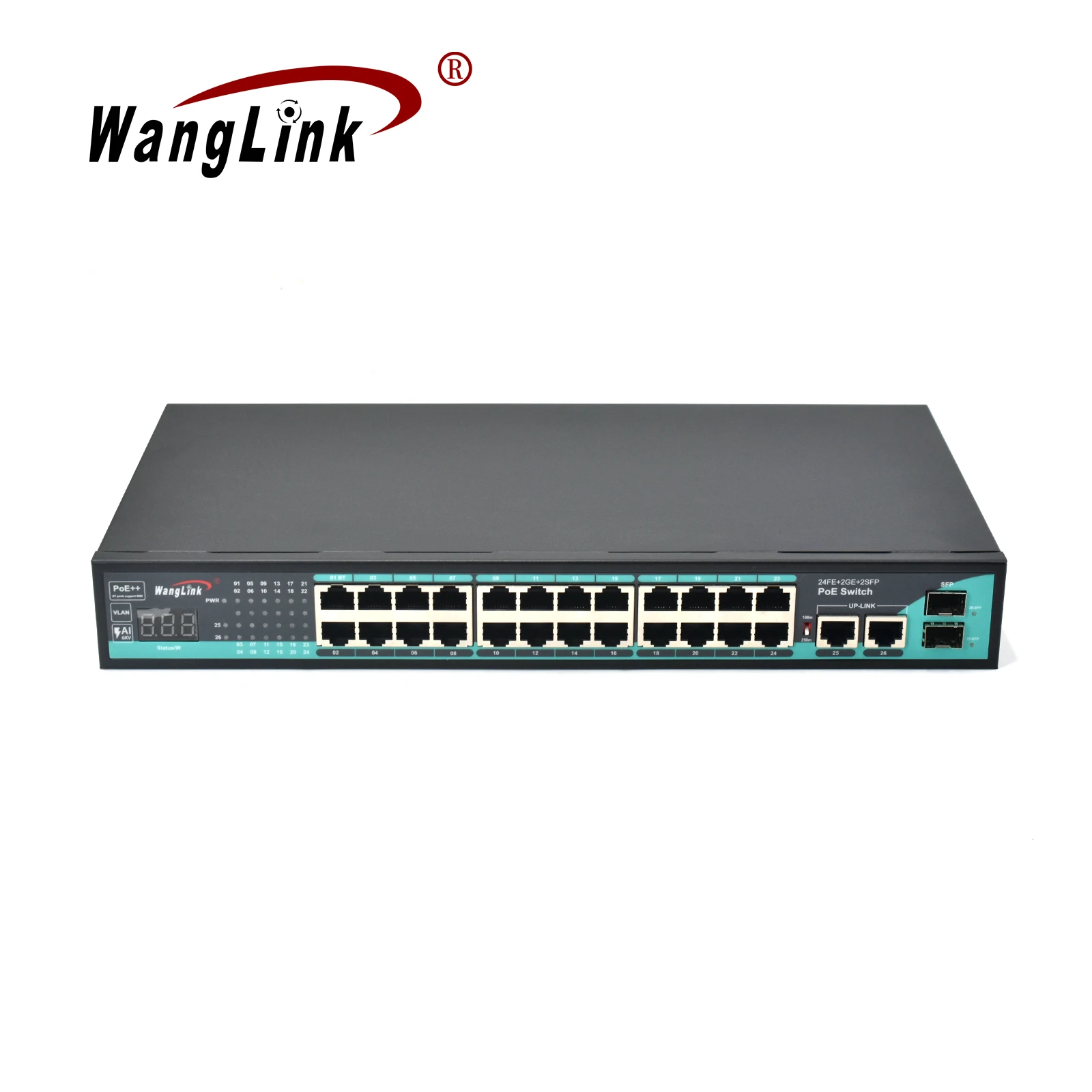

Wanglink PoE Ethernet Switch 24 10/100M PoE Ports 2 GE RJ45 Uplink 2 GE SFP Slot Switch PoE with VLAN and Digital Display
- Category: >>>
- Supplier: Shenzhen Wangguang Technology Co. Ltd.
Share on (1601205809726):
Product Overview
Description
Recommend Products
Products Description
This PoE switch has 24 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports and 2 1000Base-X SFP slot. 23 ethernet port support IEEE802.3 af/at Ethernet power supply standards for PoE power supply, with a maximum power supply of 25.4W per port. And 1 supports IEEE 802.3BT（PoE++）Ethernet power supply standards, with a maximum power supply of 60W. As a PoE power supply device, this switch can automatically detect whether the powered device supports PoE power supply. It only supplies power to compliant powered devices, effectively preventing damage to non-PoE powered devices.

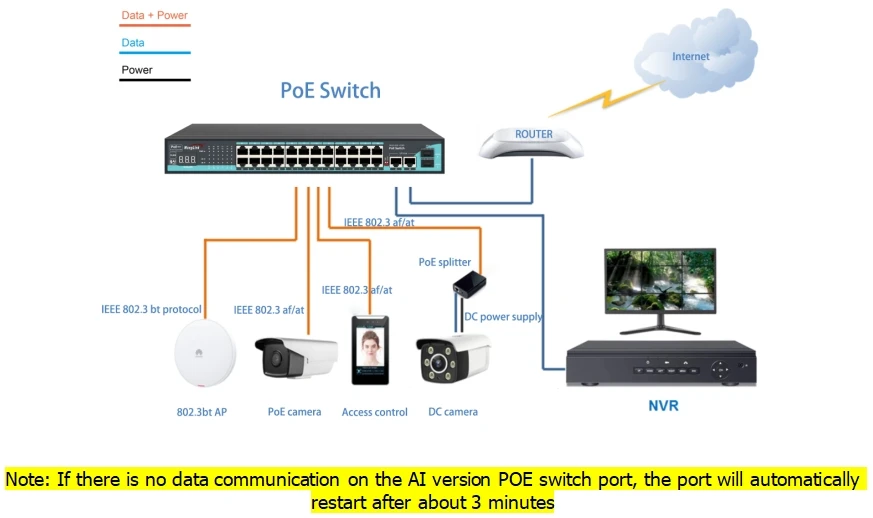

This PoE switch can force ports 1-24 to operate at 10M by DIP switch, allowing transmission up to 250m through existing twisted pair cables. Ports 1 to 24 are isolated from each other but can communicate with the upstream ports (25-28), which can effectively isolate collision domains and broadcast domains, reduce broadcast storms, and improve network communication efficiency. It is an ideal choice for video surveillance networks in hotels, shops, supermarkets, residential homes, and small and medium-size enterprises.
Products Feature
* 24 10/100Base-T PoE ports, 2 10/100/1000Base-T uplink port, and 2 1000Base-X SFP uplink
* Ethernet port support IEEE802.3 BT/af/at protocol
* It supports one-key switching to VLAN mode and 250m long-distance transmission mode.
* Supports digital tube to dynamically display POE online utilization rate;
* All ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions;
* All ethernet ports support line-speed forwarding, making transmission smoother;
* Support desktop and wall-mounted installation;
* Plug and play, simple operation, no configuration required;
* Metal shell and built-in power supply design, it has excellent heat dissipation and ensures stable operation of the product for a long time.
* Extra option: 6KV commo mode/4KV differential mode surge protection function;
* Extra option: AI network self-healing (watchdog) function;
* Ethernet port support IEEE802.3 BT/af/at protocol
* It supports one-key switching to VLAN mode and 250m long-distance transmission mode.
* Supports digital tube to dynamically display POE online utilization rate;
* All ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions;
* All ethernet ports support line-speed forwarding, making transmission smoother;
* Support desktop and wall-mounted installation;
* Plug and play, simple operation, no configuration required;
* Metal shell and built-in power supply design, it has excellent heat dissipation and ensures stable operation of the product for a long time.
* Extra option: 6KV commo mode/4KV differential mode surge protection function;
* Extra option: AI network self-healing (watchdog) function;
Specification
Model | WOR-SL2422P-V2 |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at/bt Power Over Ethernet IEEE 802.1p tagged frames IEEE 802.3x flow control | |
Single-mode SFP: 2 1000Base-X SFP optical ports (uplink port) | |
Transmission rate: 1.25 | |
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
Downstream ethernet port: 24 10/100M Base-T ports (supports POE, POE+, POE++) | |
Uplink ethernet port: 1 10/100/1000M Base-T ports (uplink ports) | |
10/100/1000Mbps adaptive | |
10Base-T: ≤250m (CAT3,4,5 UTP) | |
100Base-TX: ≤100m (CAT3,4,5 UTP) | |
1000Base-T: ≤100m (CAT3,4,5 UTP) | |
Mechanical properties | Shell material: metal shell |

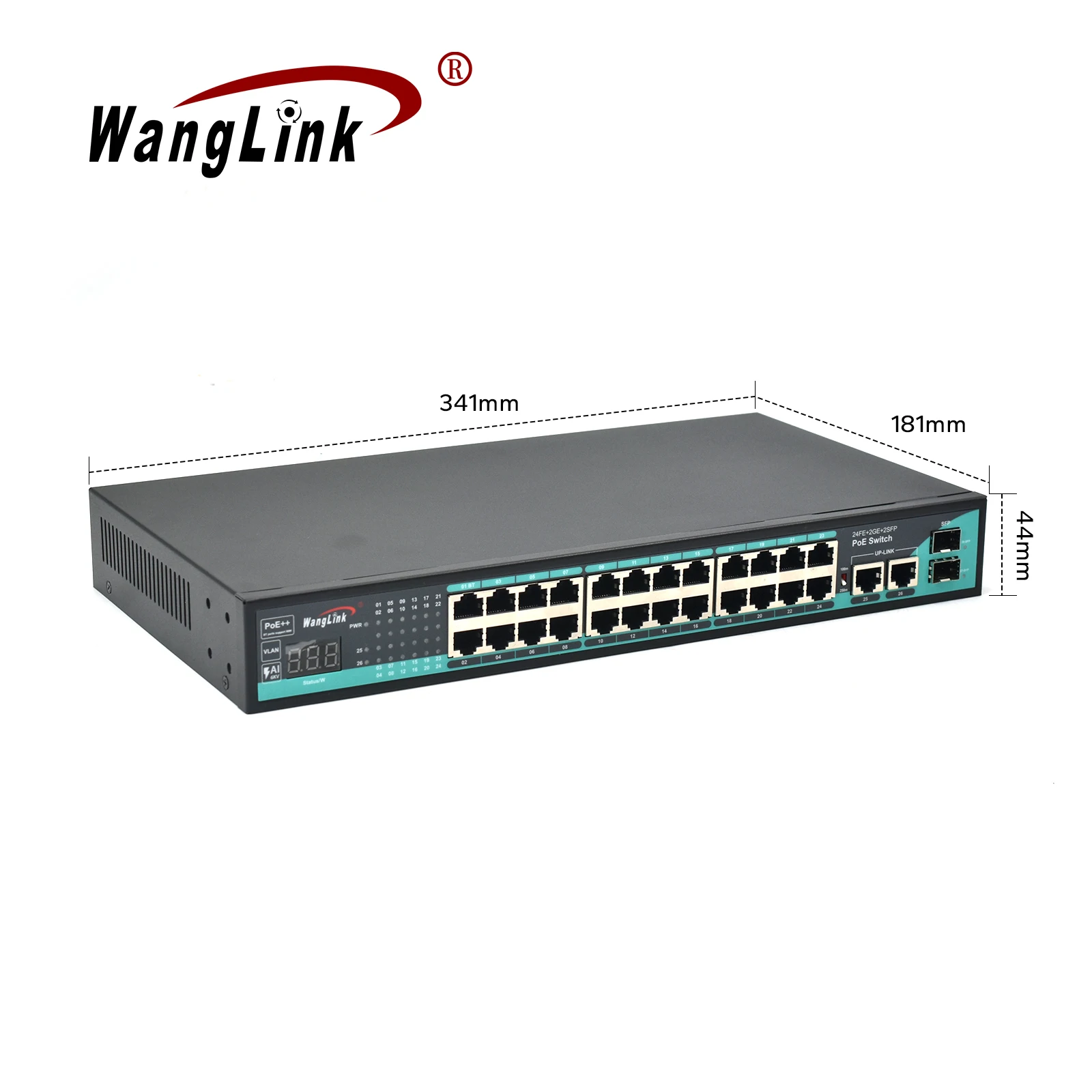

Appearance dimensions (length*depth*height):341×181×44mm | |
Installation method: Desktop | |
Heat dissipation method: natural cooling, no fan | |
P.W.: 1.5KG, G.W.:1.8KG | |
Environmental properties | Working temperature: -20℃～+60℃ |
Storage temperature: -20℃～+85℃ | |
Relative humidity: 5% ~ 95% (non-condensing) | |
Bandwidth:12.8Gbps | |
Packet forwarding rate (whole machine) : 9.6Mpps | |
Exchange method: store-and-forward | |
MAC table : 2K | |
Case space : 1m | |
Jumbo frame: 9k | |
Input voltage: AC100~240V，50Hz | |
Power consumption: < 10W, full load: ≤300W | |
PoE pin | 802.3AF/AT/BT(1/2+，3/6-) |
Indicator | Ethernet port (fluctuation switch control): Ø Link/Act: Green(10/100/1000M) Ø Vlan off: 100m transmission distance, all ports can communicate with each other. Ø Vlan on, 250m transmission distance, port 1-16 can communicate with port 17-20, but isolate with each other. |
Fiber port: Green(Port 27-28)) | |
PWR: Green | |
Warranty | 3 year |
