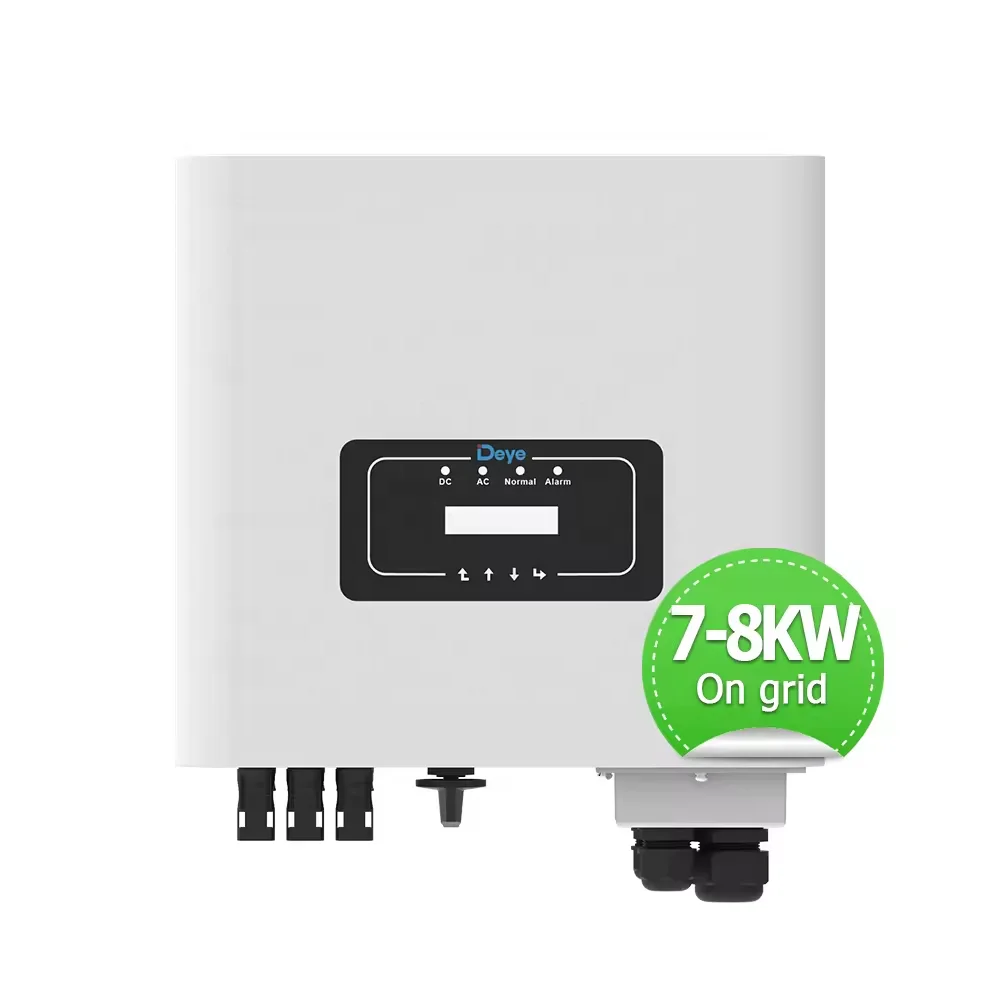

Deye 1-10kw on grid solar inverter
Higher yields / Safe & Reliable / Smart / User-friendly

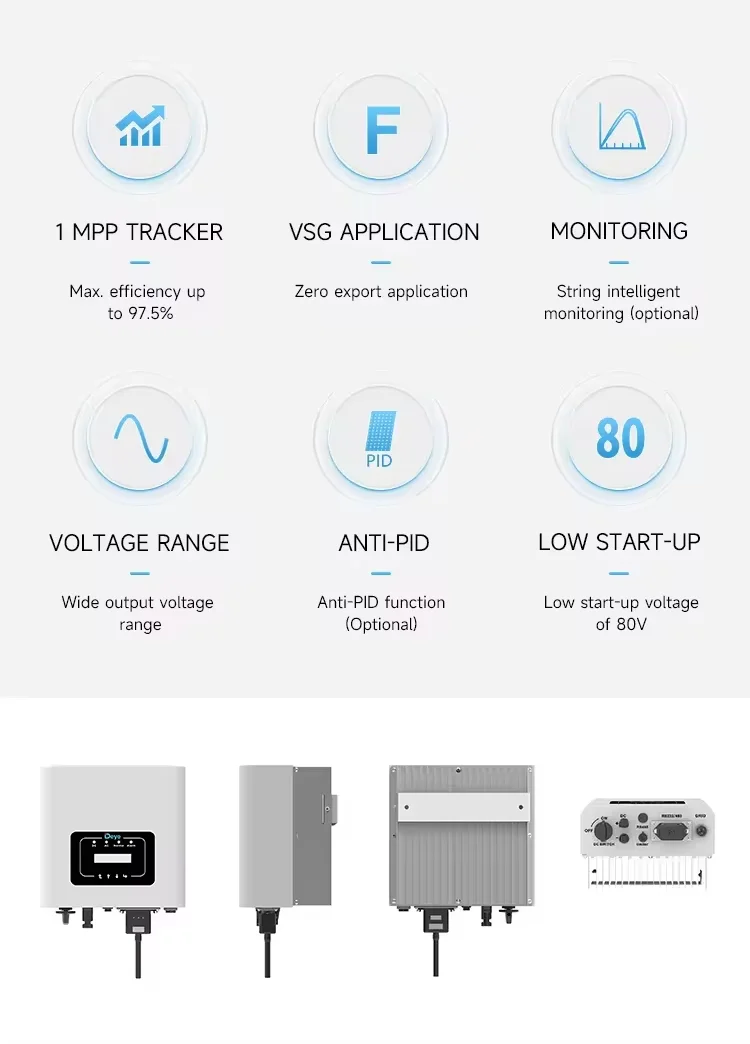

* 2 MPP tracker, Max. efficiency up to 97.5%
* Zero export application, VSG application
* String intelligent monitoring (optional)
* Wide output voltage range
* Anti-PID function (Optional)
* Low start-up voltage of 80V

The single-phase inverter is one of the best options for residential application thanks to its smaller size and local LCD display,
buttons. Also, with built-in zero-export function (external CT is needed), it offers true ease and comfort for PV system operators
and installers.





Specification




Deye On Grid Inverter 2-10kw Deye Grid Tied Solar Inverter
On Grid Inverter
SUN-2K-G04P1-EU-AM1
SUN-3K-G04P1-EU-AM1
SUN-3.6K-G04
SUN-5K-G04
SUN-6K-G04
Max Input Power
2600W
3900W
4700W
6500W
7800W
Max DC Input Voltage
550V
550V
550V
550V
550V
Start-up Voltage
80V
80V
80V
80V
80V
Grid Voltage Range
50/60Hz,±5Hz
Grid Connection
220/230 0.85Un-1.1Un
Efficiency
97.3%
97.5%
97.3%
97.5%
97.5%
MPPT Voltage Range
70V-500V
MPPT Efficiency
>99%
Protection
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short
Circuit Protection, Thermal Protection, Overvoltage Load Drop Protection
Certificate
IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1, IEC/EN 62109-2
Dimension (mm)
280*310*184mm
305×280×180mm
Weight
6.35KG
7.7KG
Communication Interface
GPRS/WIFI/Bluetooth/4G/LAN(optional)

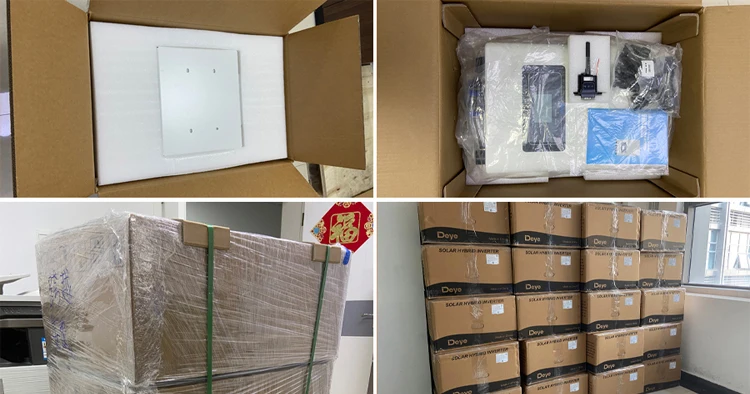

Packing & Delivery




Professional Packing: Carton, Wooden Pallet and Wooden Box.
By Express
TNT, DHL, FedDex, UPS available
By Air
Shenzhen/Shanghai or other Designated Airport
By Sea
Shenzhen, Shanghai, Ningbo or other Designated Port in China

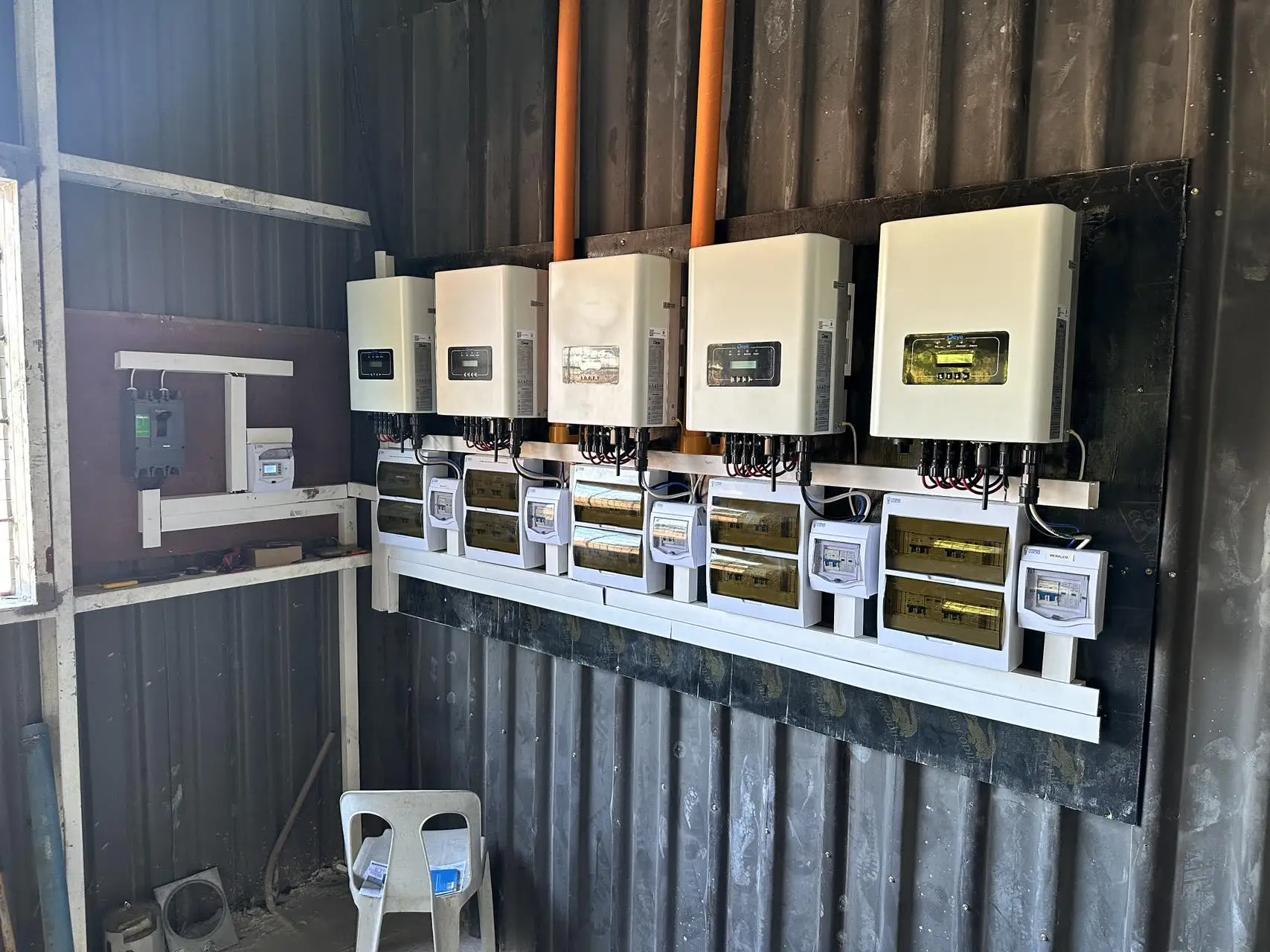

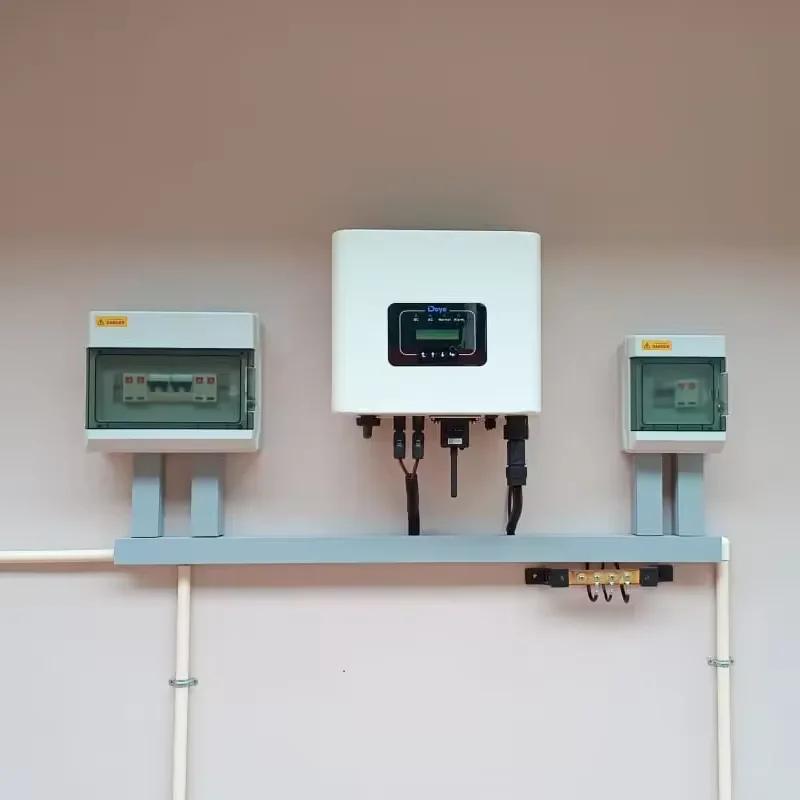

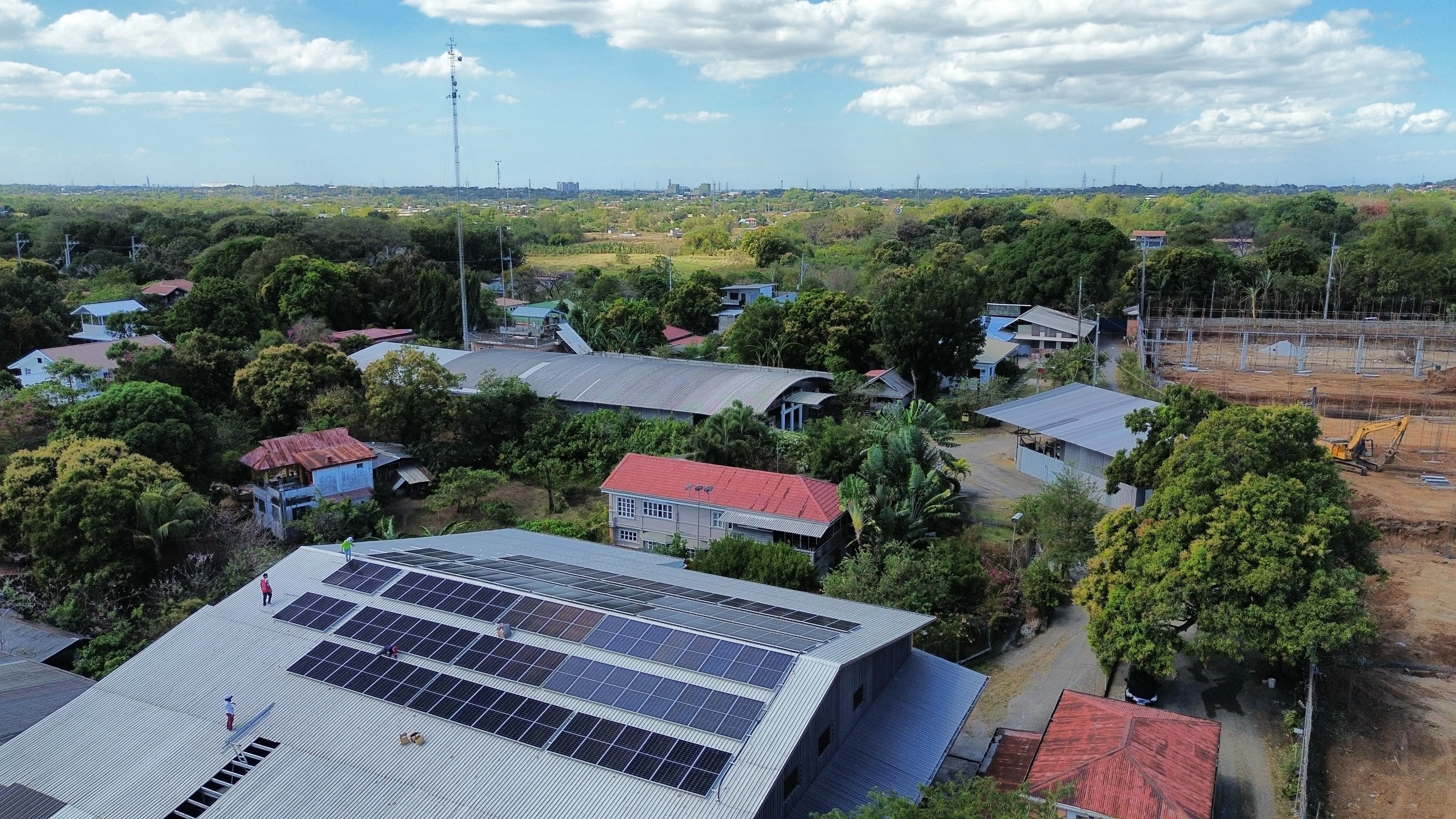

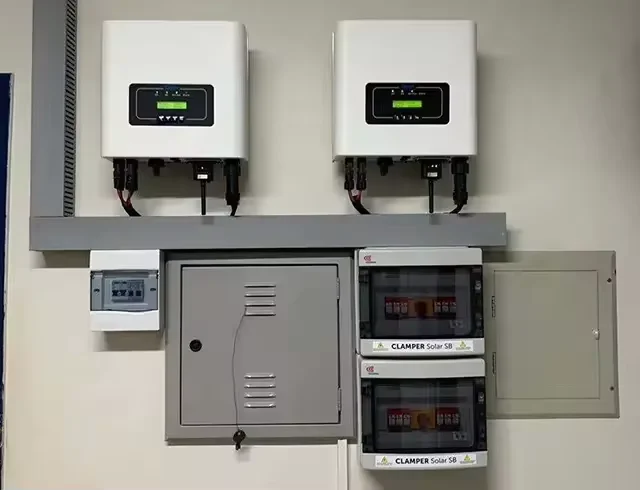

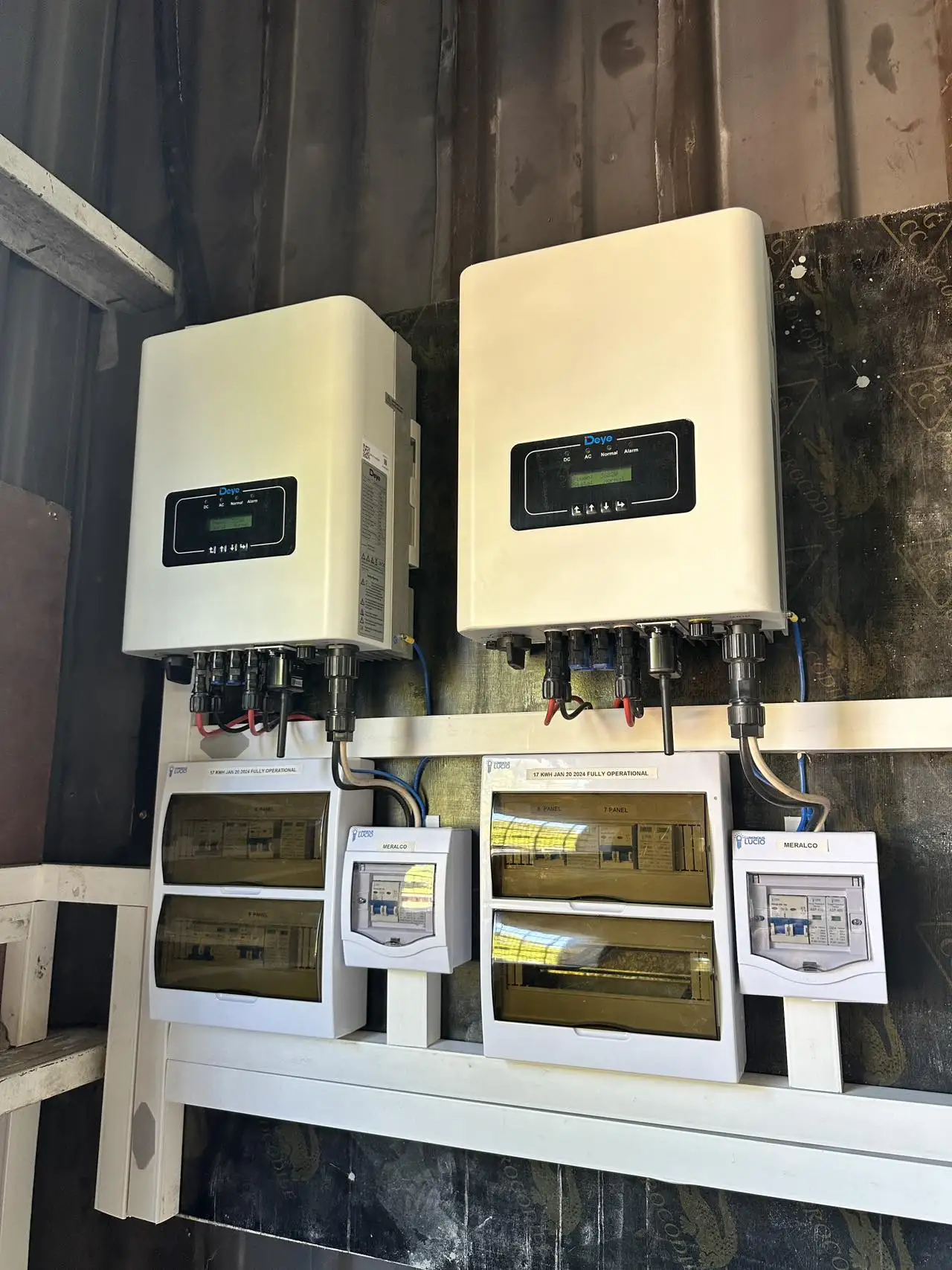

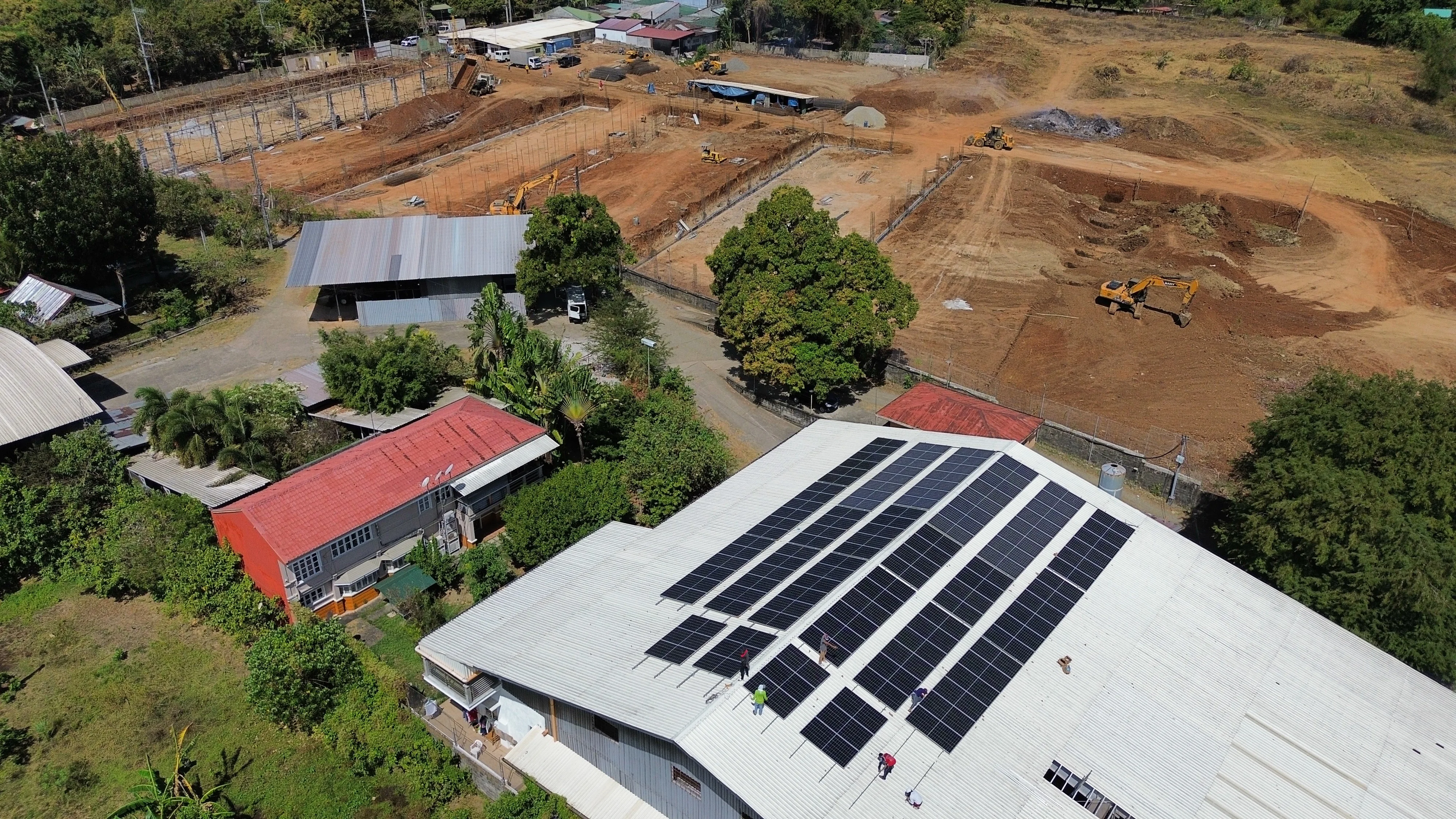

Project
