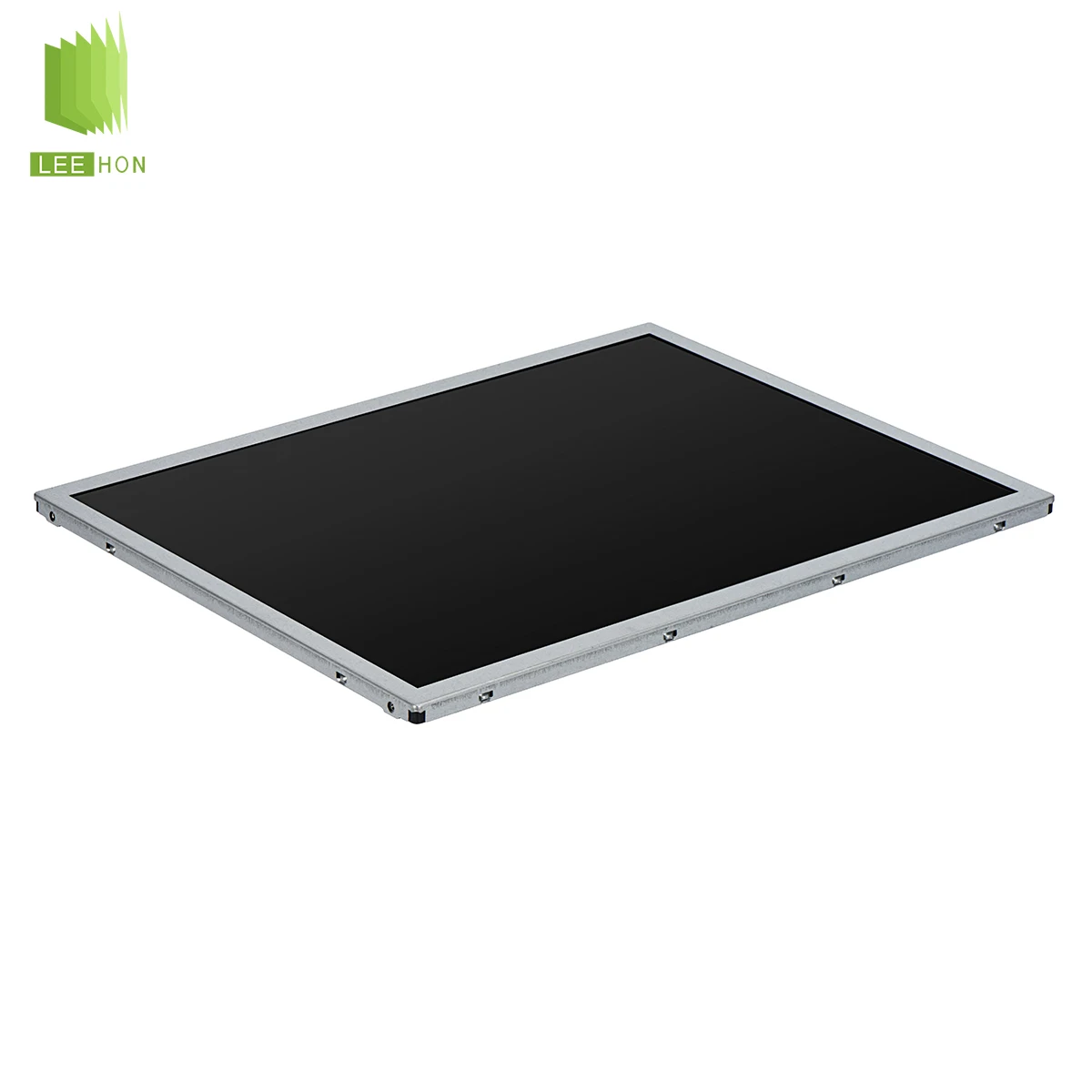

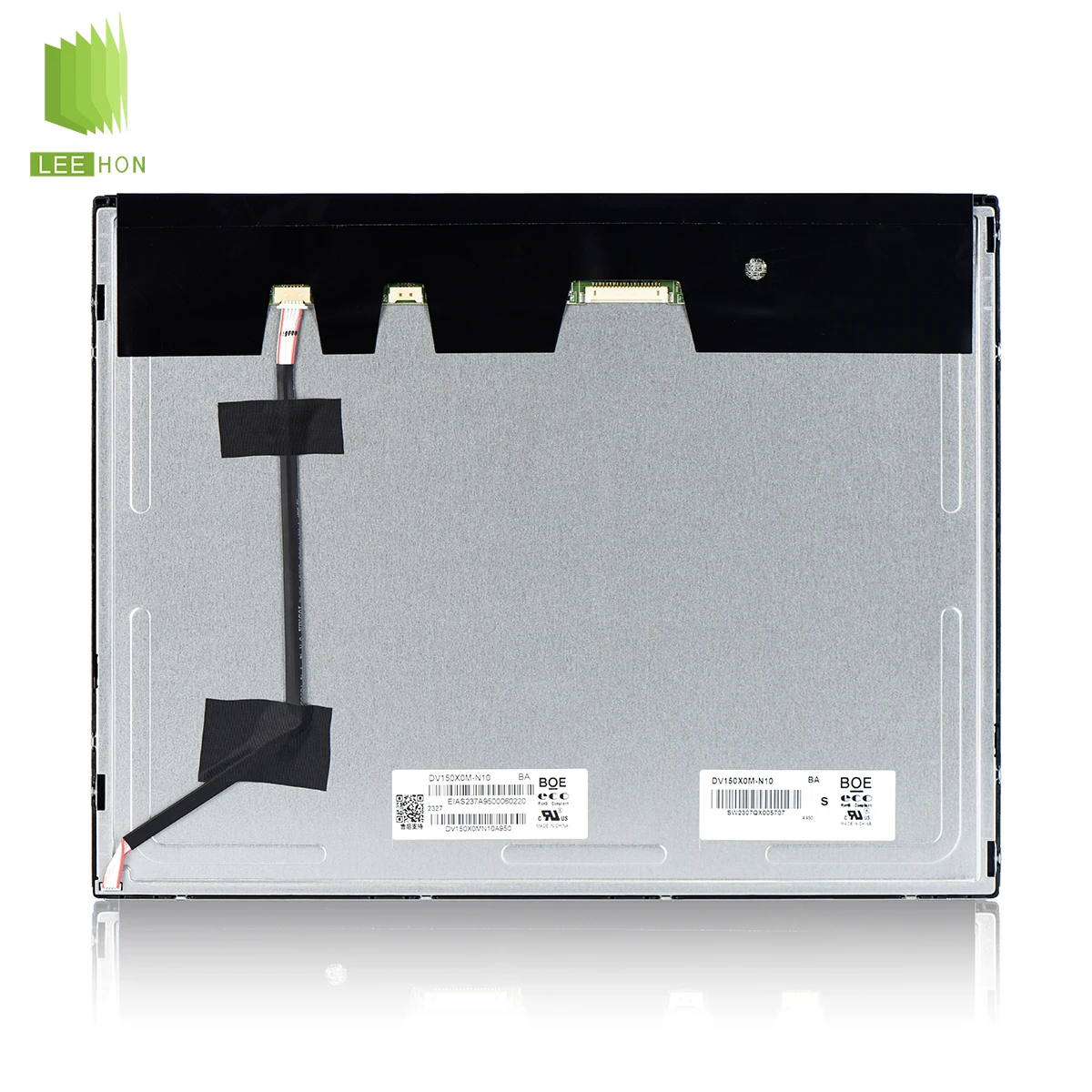

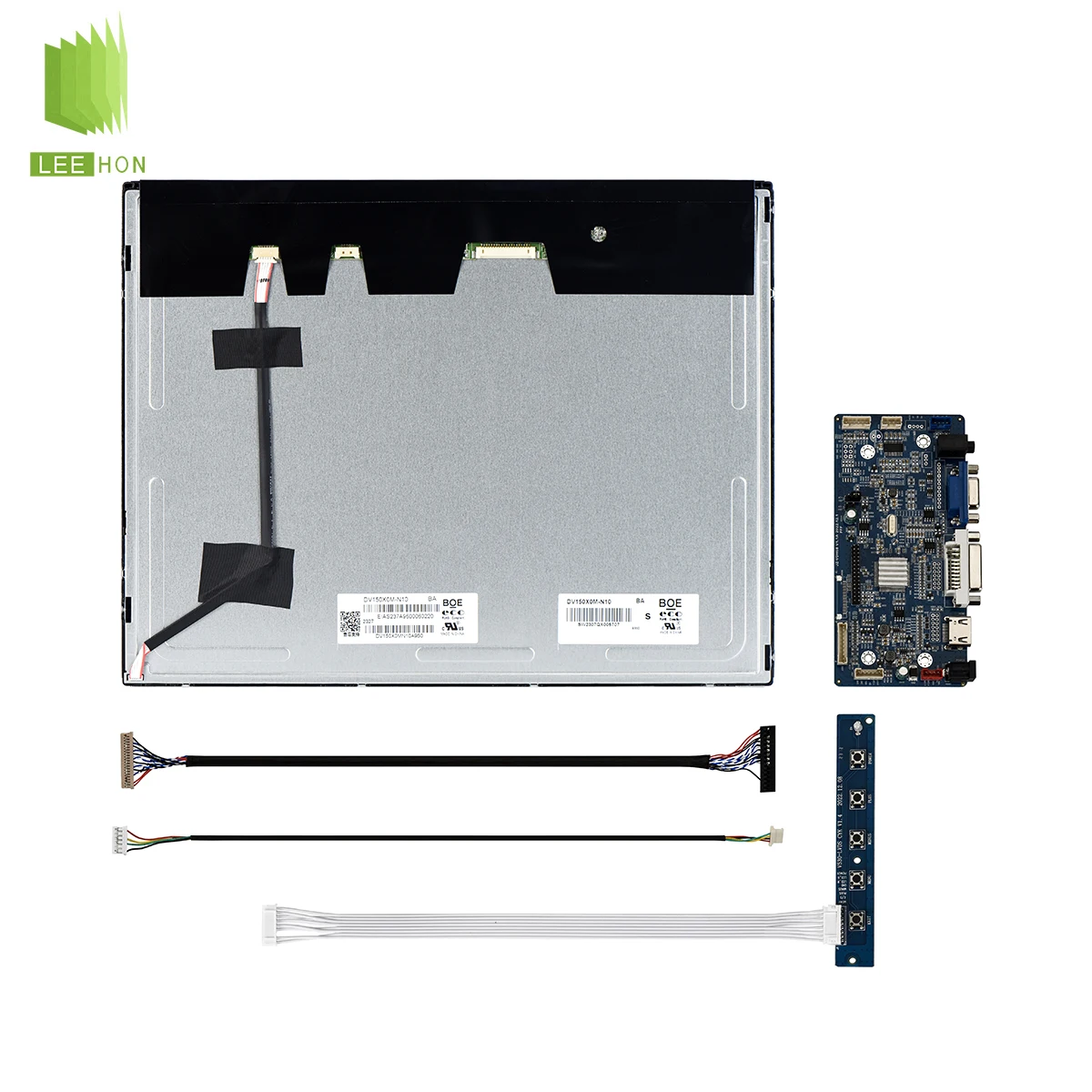

15 Inch 1024(RGB)x768 XGA Industrial PC LCD Display LCD Panel 15 inch LVDS 20 Pins LCD Module
- Category: >>>
- Supplier: Hangzhou Leehon Technology Co. Ltd.
Share on (1601205868345):
Product Overview
Description
Product Paramenters
15 inch IPS LCD Basic detail | ||||||
LCD Modules Brand | BOE | Model | DV150X0M-N10 | |||
Power consumption | Max.10.8W | Pixel Arrangement | Pixels RGB stripe arrangement | |||

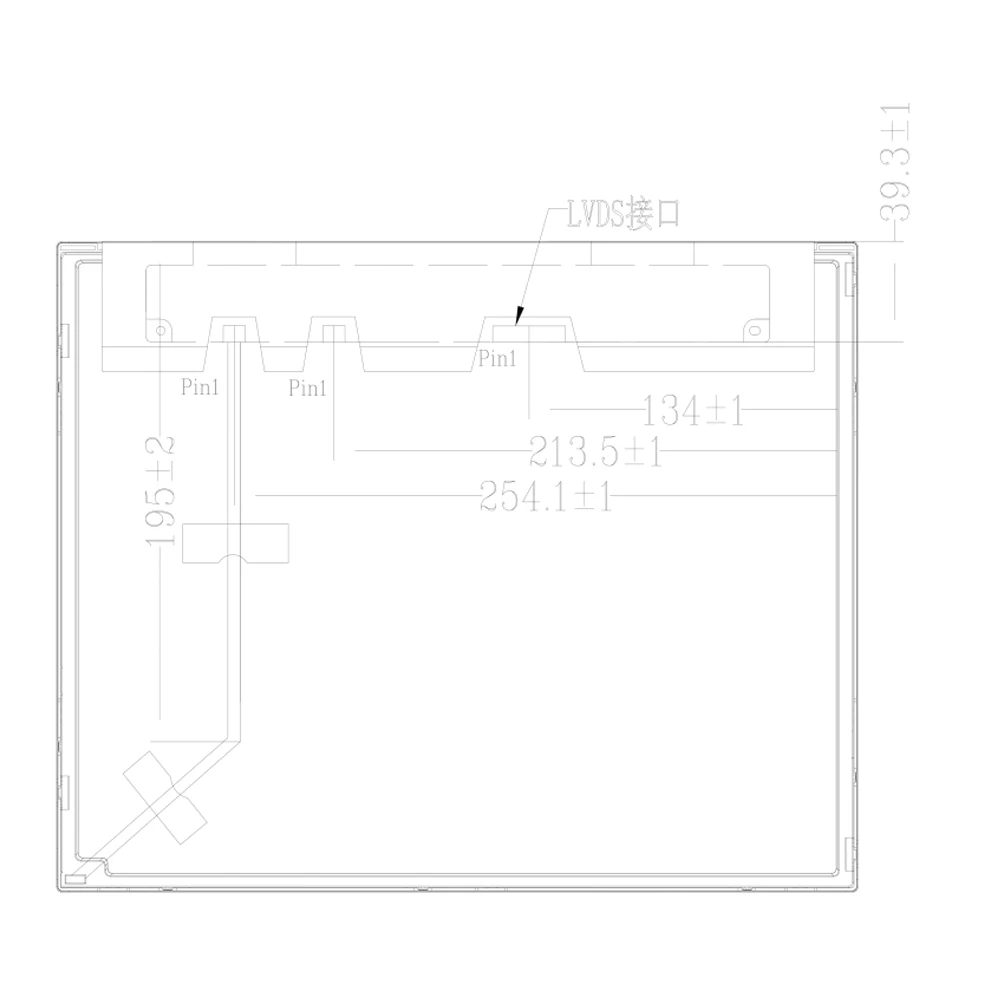

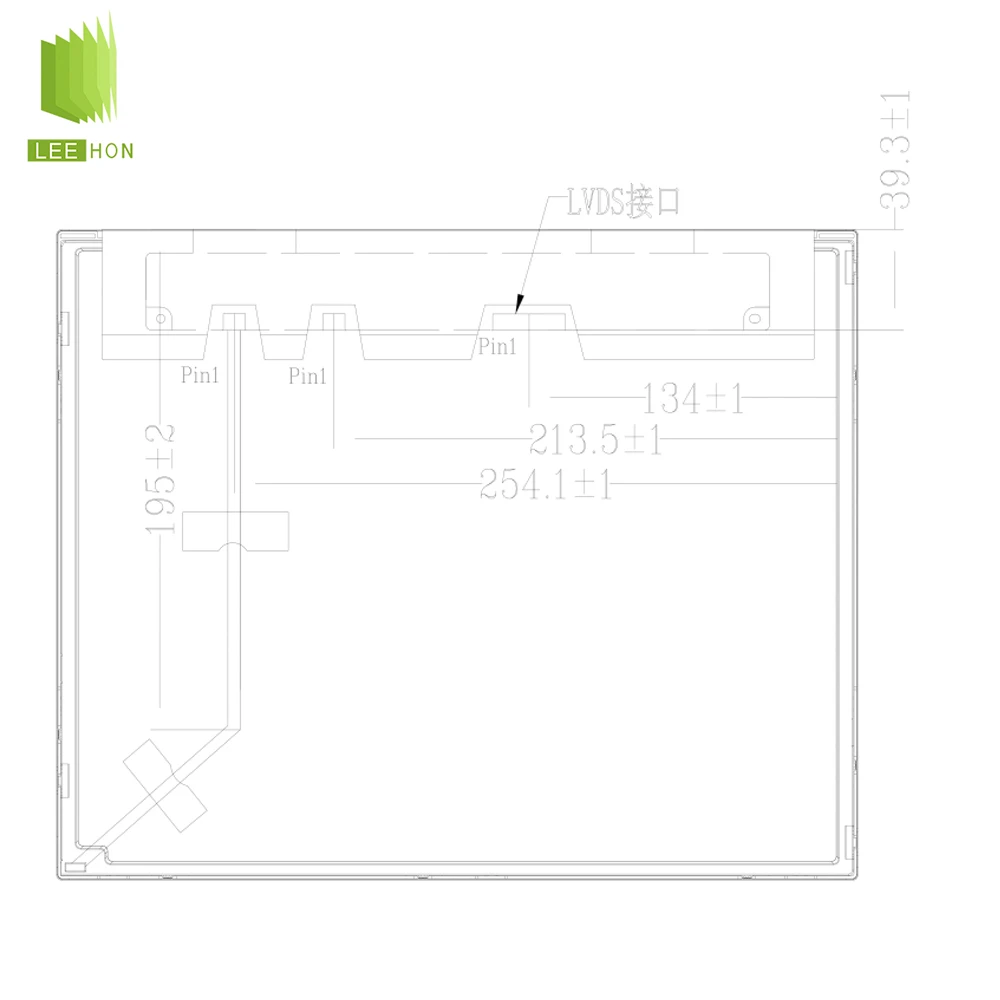

Interface | LVDS (1 ch, 8-bit) , 20 pins Connector | Outline Thickness | 10mm | |||
Brightness | 350 cd/m² | Touch screen | It Can be matched with capacitive and resistive touch screens | |||

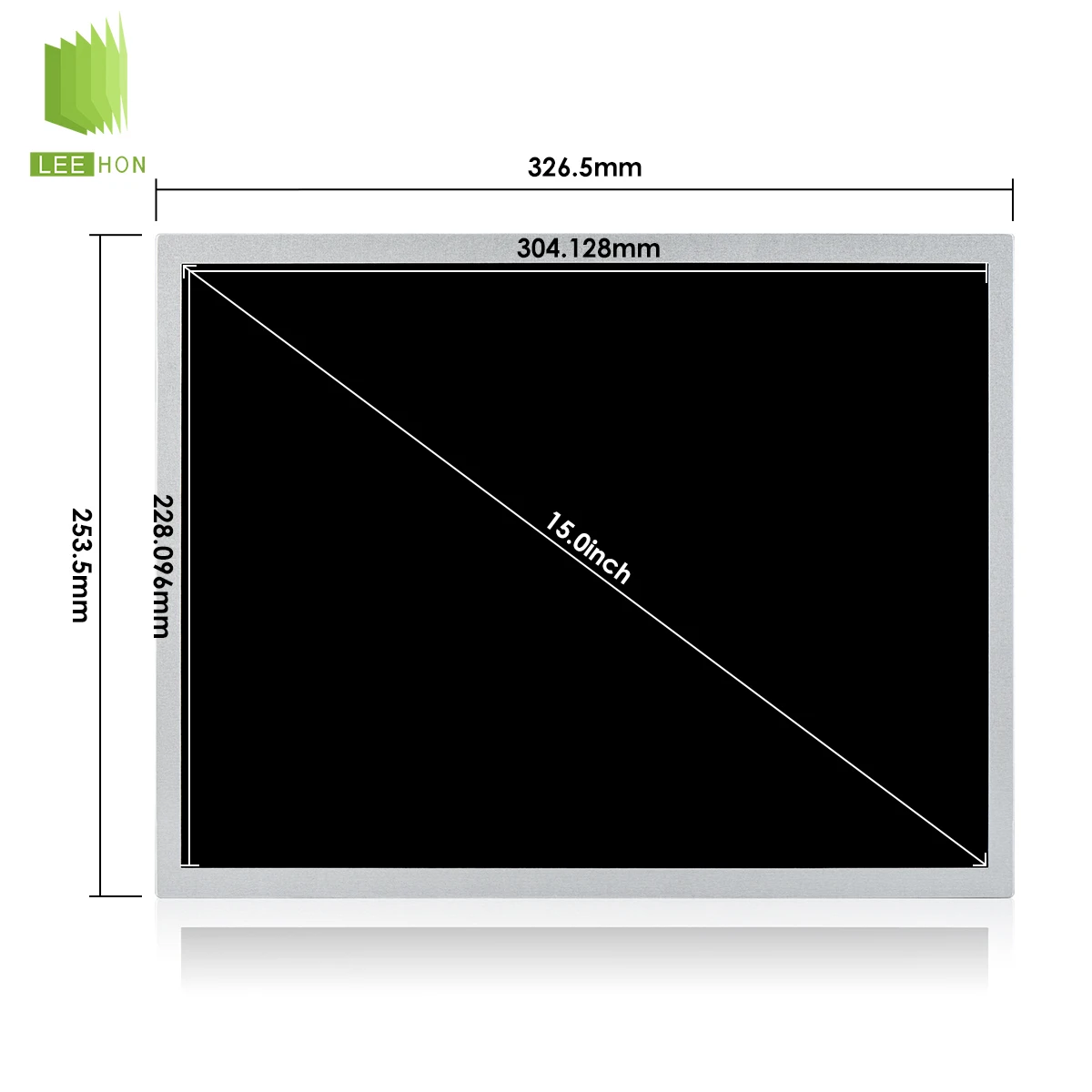

Active Area (mm) | 304.128(W)×228.096(H) mm | Aspect Ratio | 4:3 (H:V) | |||
Contrast | 1000 : 1 | Pixel Pitch | 0.297×0.297 mm [85PPI] | |||
View Angle | 89/89/89/89 | Display Orientation | Landscape Only | |||

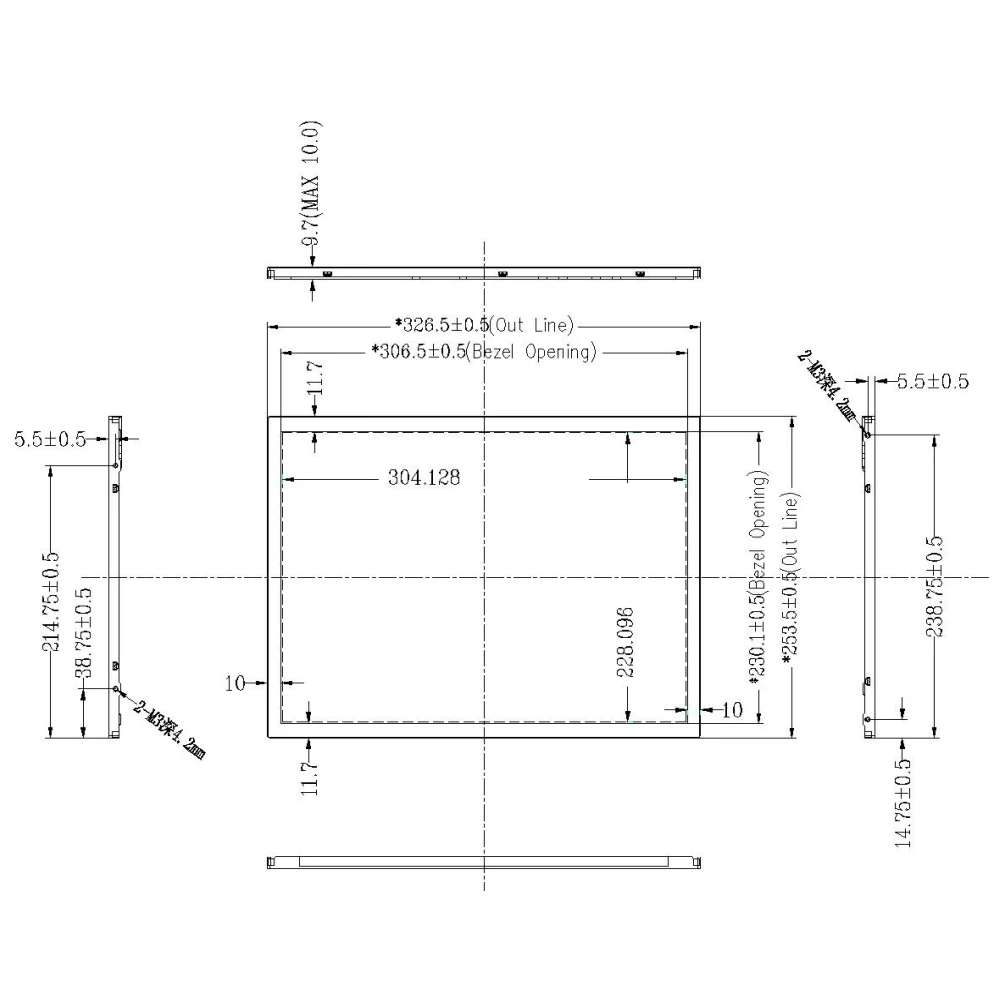

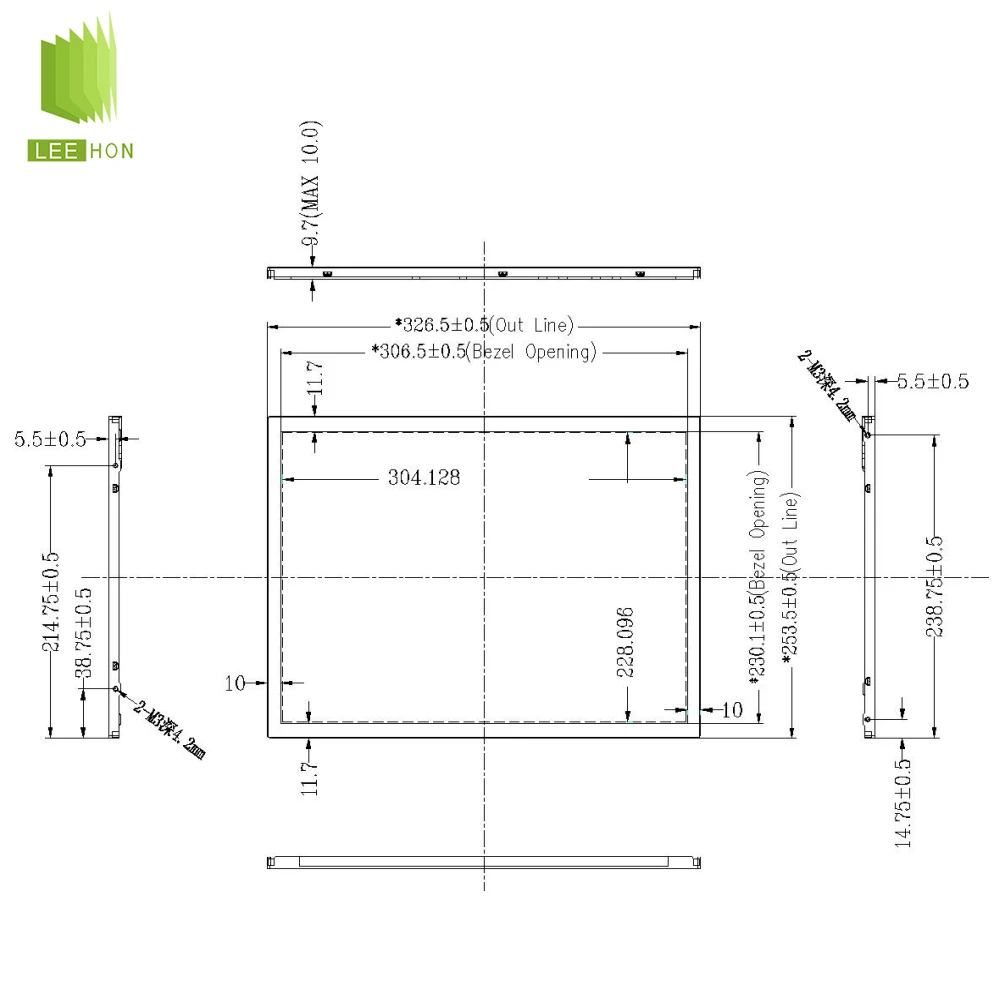

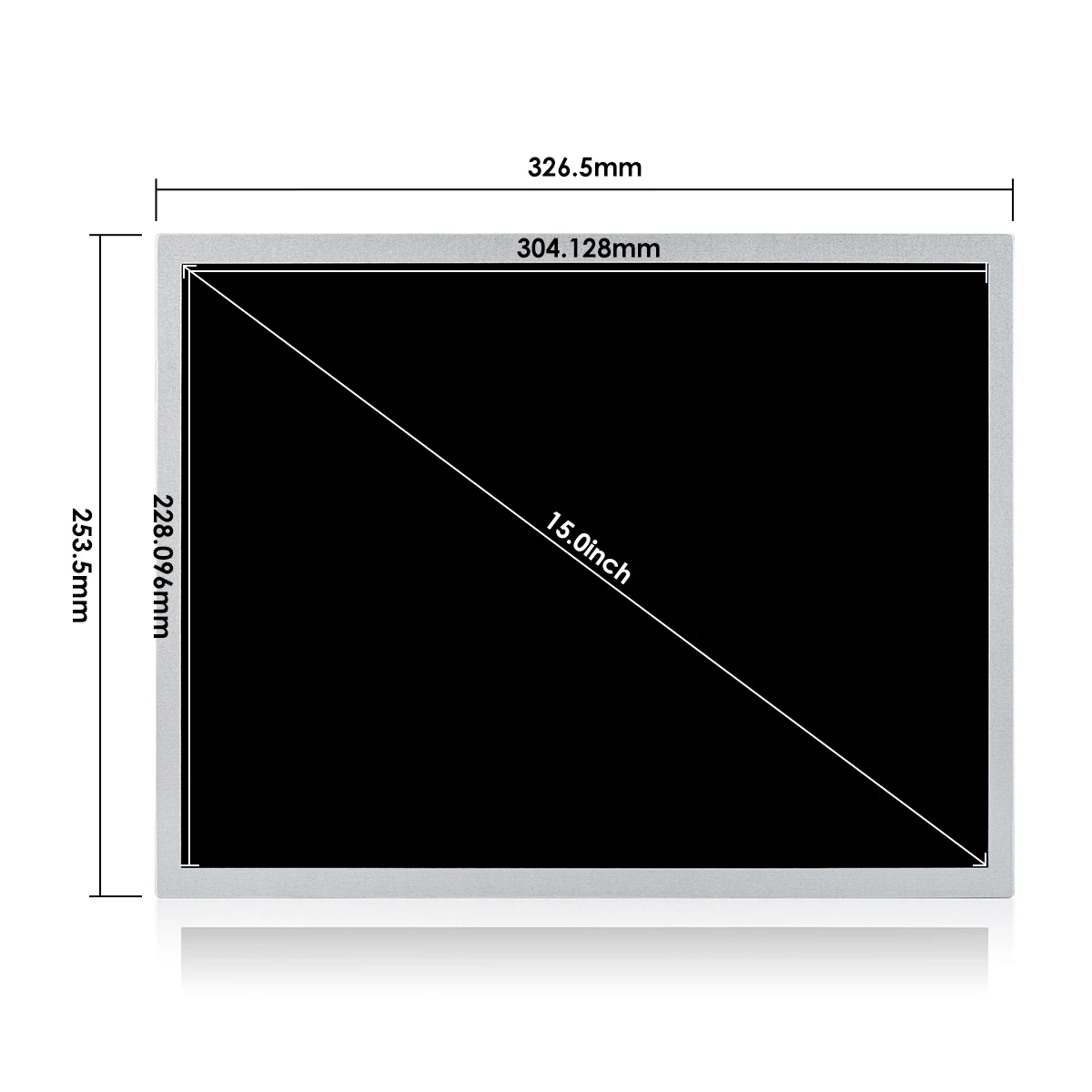

Outline Dimension | 326.5(W)×253.5(H)×10(D) mm | Color Gamut | 16.7M 72% NTSC | |||
Resolution | 1024(RGB)×768, XGA 85PPI | Response Time | 30 ms | |||
Work Temperature | -20 ~ 70 °C | Storage Temp | -20 ~ 70 °C | |||

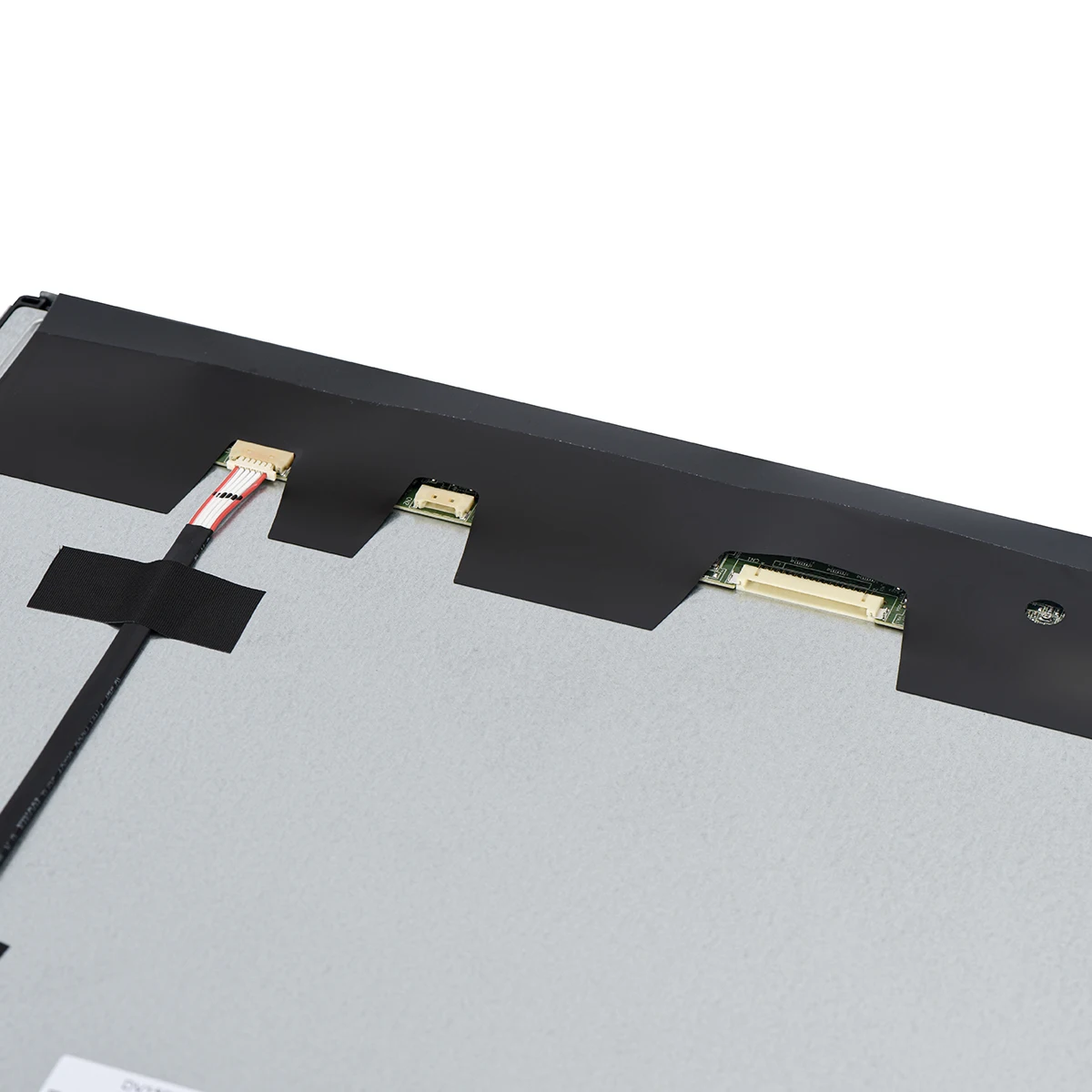

Details Images
Popular Size
Popular Size
Size | Resolution | Model | Interface | Brightness | Contrast | View Angle | Active Area | Work Temp |
15" | 1024*768 XGA | G150XTN06 V0 | LVDS | 450 | 800:1 | 80/80/70/80 | 304.128×228.096 | -30/85 |
15" | 1024*768 XGA | G150XTN03 V5/G150XTN03.5 | LVDS | 350 | 800:1 | 80/80/70/80 | 304.128×228.096 | -20/65 |
15" | 1024*768 XGA | G150XTN06.A | LVDS | 1800 | 800:1 | 80/80/70/80 | 304.128×228.096 | -30/70 |
15" | 1024*768 XGA | G150XTN06.0（常规） | LVDS | 450 | 800:1 | 80/80/70/80 | 304.128(W)×228.096(H) mm | -30/85 |
15" | 1024*768 XGA | DV150X0M-N10 | LVDS | 350 | 1000:1 | 89/89/89/89 | 304.128×228.096 | -20/70 |
15" | 1024*768 XGA | DV150X0M-N12 | EDP | 350 | 1000:1 | 89/89/89/89 | 304.128×228.096 | -20/70 |
15" | 1024*768 XGA | G150XNE-L01 | LVDS | 500 | 2500:1 | 88/88/88/88 | 304.128×228.096 | -30/80 |
15" | 1600*1200 WXGA | TM150XDHG01 | LVDS | 1000 | 1000:1 | 80/80/80/80 | 304.8×228.6 | -30/70 |

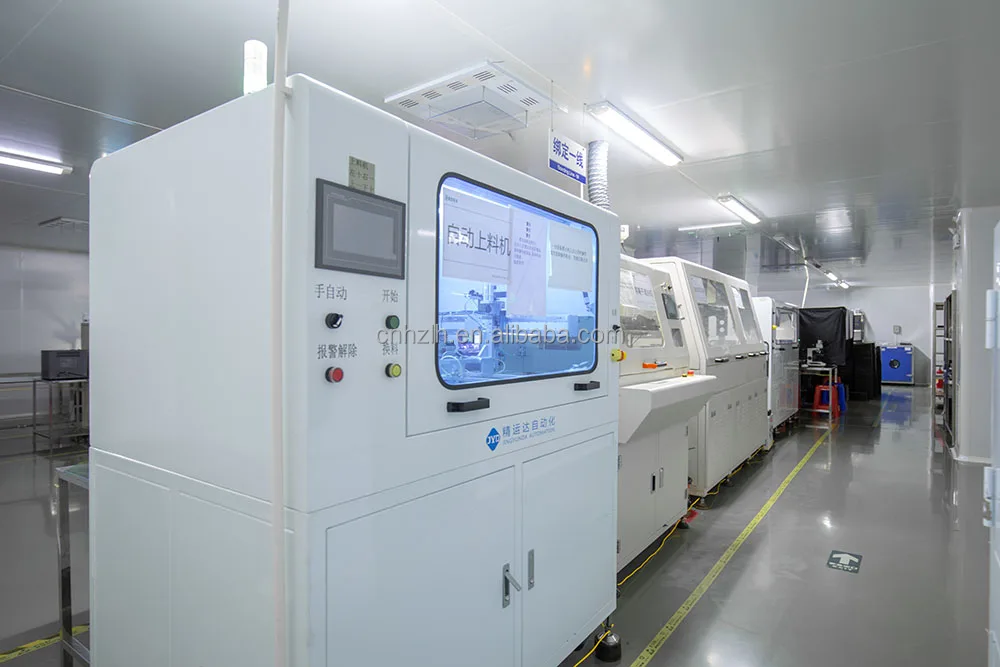

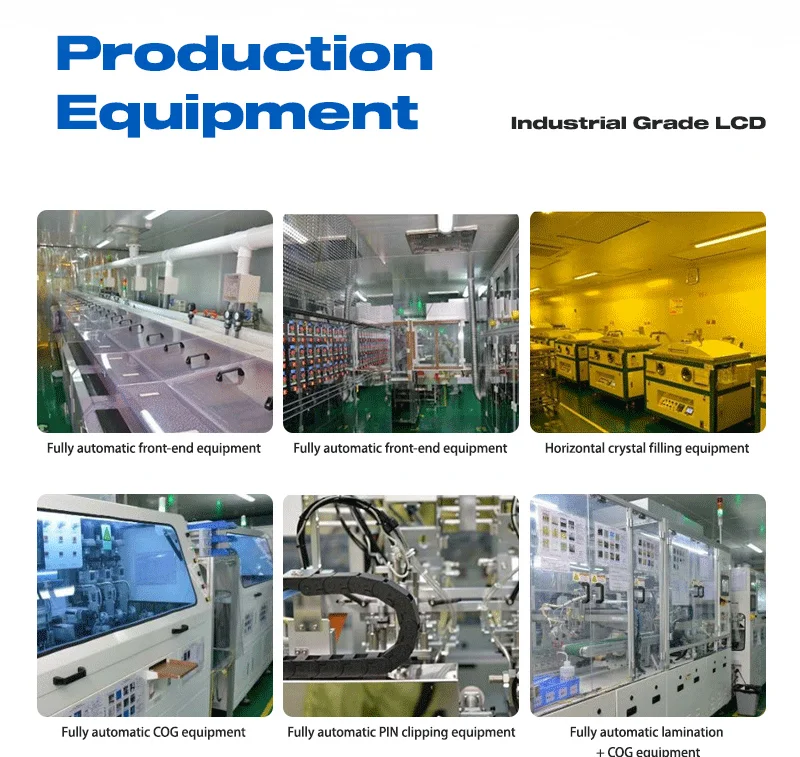

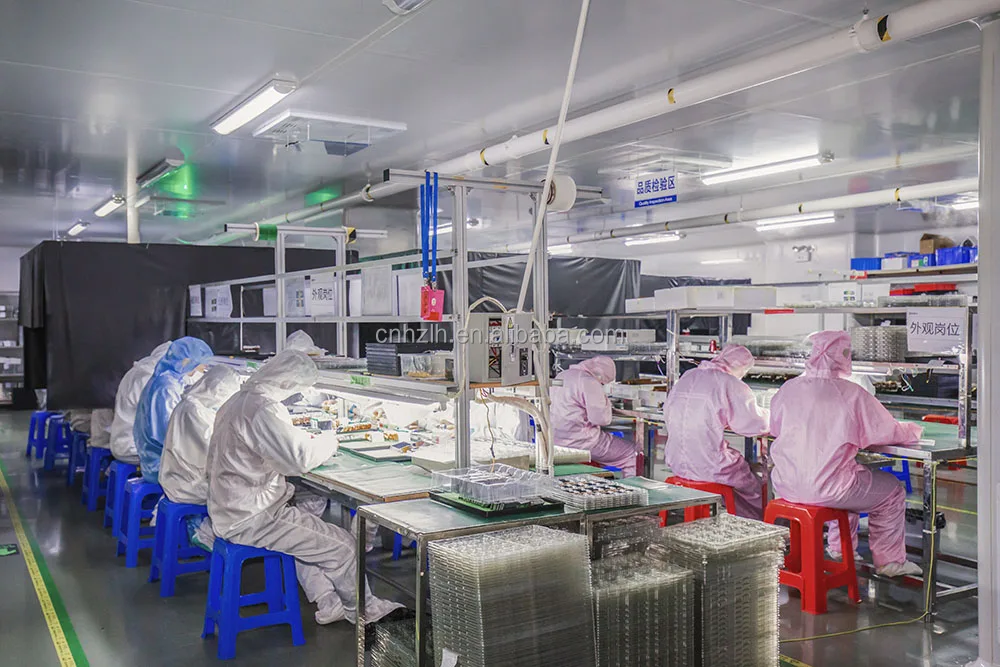

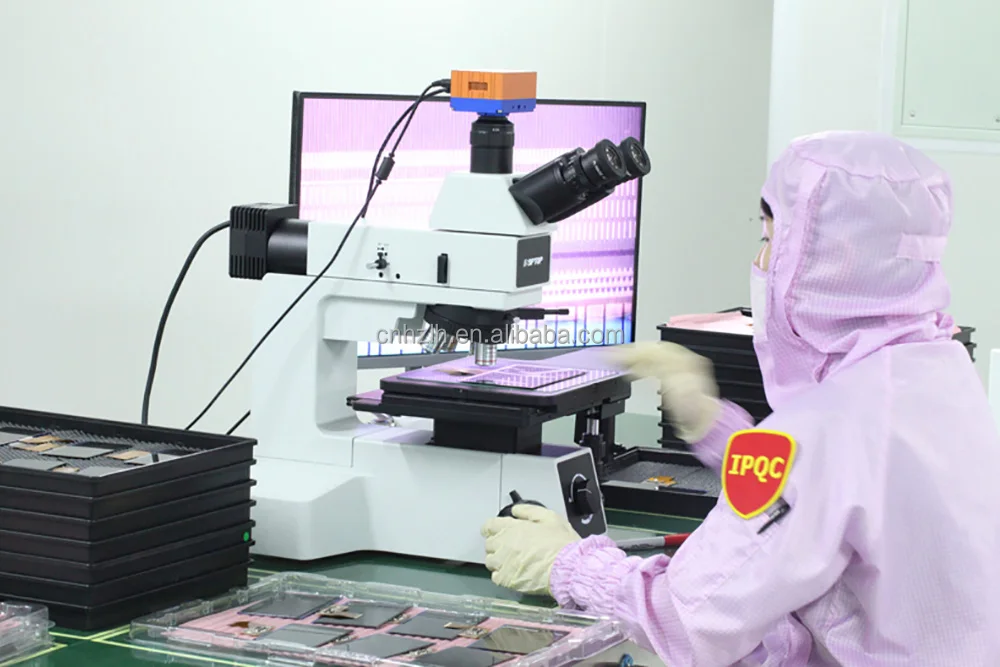

Our Factory

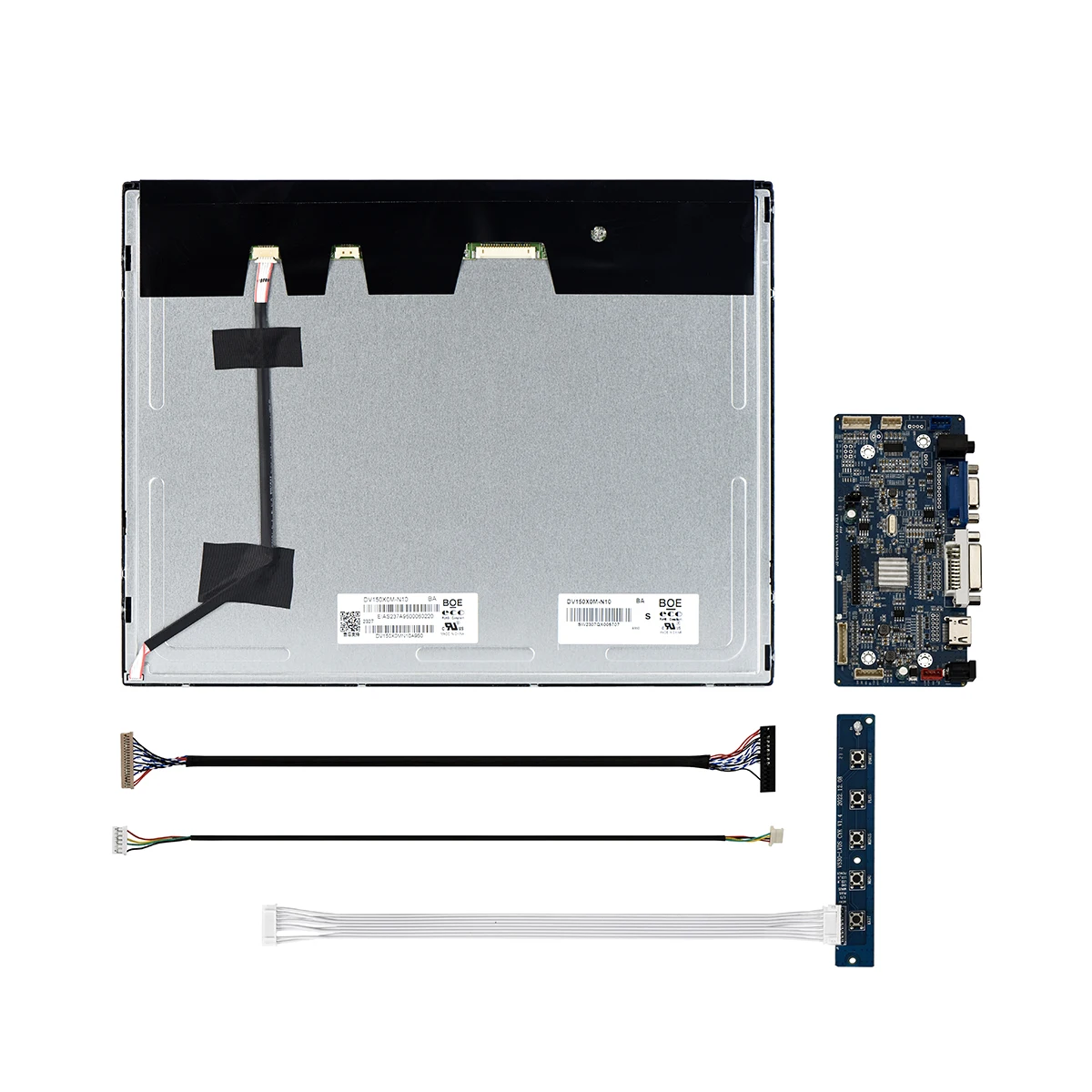

Hangzhou Leehon Technology Co., Ltd. established in 2009, it is a professional LCD display, Touch panel and Display touch integrate solutions manufacturer who specializes in R&D, manufacturing and marketing standard and customized LCD and touch products. Our products include TFT LCD panel, TFT LCD module with capacitive and resistive touchscreen (support optical bonding and air bonding), and LCD controller board and touch controller board, industrial display, medical display solution, industrial PC solution, custom display solution, PCB board and controller board solution
Our features are:
1.Original quality guarantee.
2.NO MOQ（1 PCS order accepted）
service;https://cnhzlh.en.alibaba.com/company_profile.html
3.The most competitive prices here can provide;
4.Offer 12 months of warranty;
5.Experienced staff can help you to solve your problem anytime.
1.Original quality guarantee.
2.NO MOQ（1 PCS order accepted）
service;https://cnhzlh.en.alibaba.com/company_profile.html
3.The most competitive prices here can provide;
4.Offer 12 months of warranty;
5.Experienced staff can help you to solve your problem anytime.
We can provide you with complete specifications and high cost-effective products and Custom services.
With a diverse range of Our LCD module types including TN, VA, STN, FSTN, COB, COG, TFT, and OLED,
totaling over a thousand varieties, The main products include COG monochrome LCD display modules
with dot matrix configurations of 12864, 240128, 320240, LCD break code screens, TFT color screens,
OLED LCD screens, and wide temperature and wide viewing angle LCD screens designed for different customers.
and Our product range caters to various requirements in fields such as military, healthcare, power, aviation,
electronic instruments, automotive, and communications.
With a diverse range of Our LCD module types including TN, VA, STN, FSTN, COB, COG, TFT, and OLED,
totaling over a thousand varieties, The main products include COG monochrome LCD display modules
with dot matrix configurations of 12864, 240128, 320240, LCD break code screens, TFT color screens,
OLED LCD screens, and wide temperature and wide viewing angle LCD screens designed for different customers.
and Our product range caters to various requirements in fields such as military, healthcare, power, aviation,
electronic instruments, automotive, and communications.
We welcome new and old customers from all walks of life to contact us forfuture business relationships
and achieving mutual success!
and achieving mutual success!

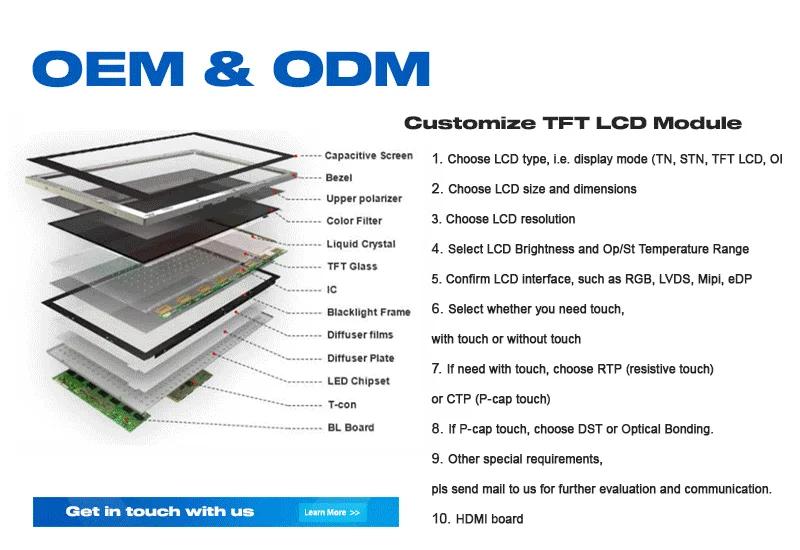

OEM & ODM
Product packaging

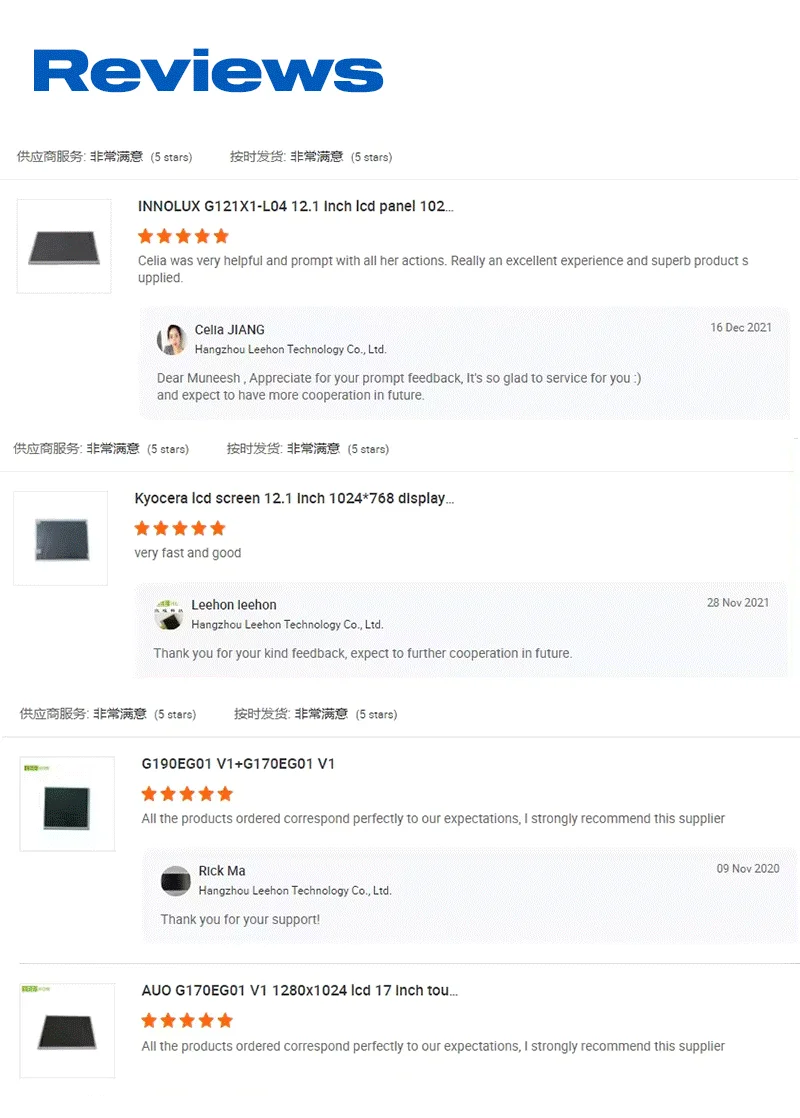

Reviews

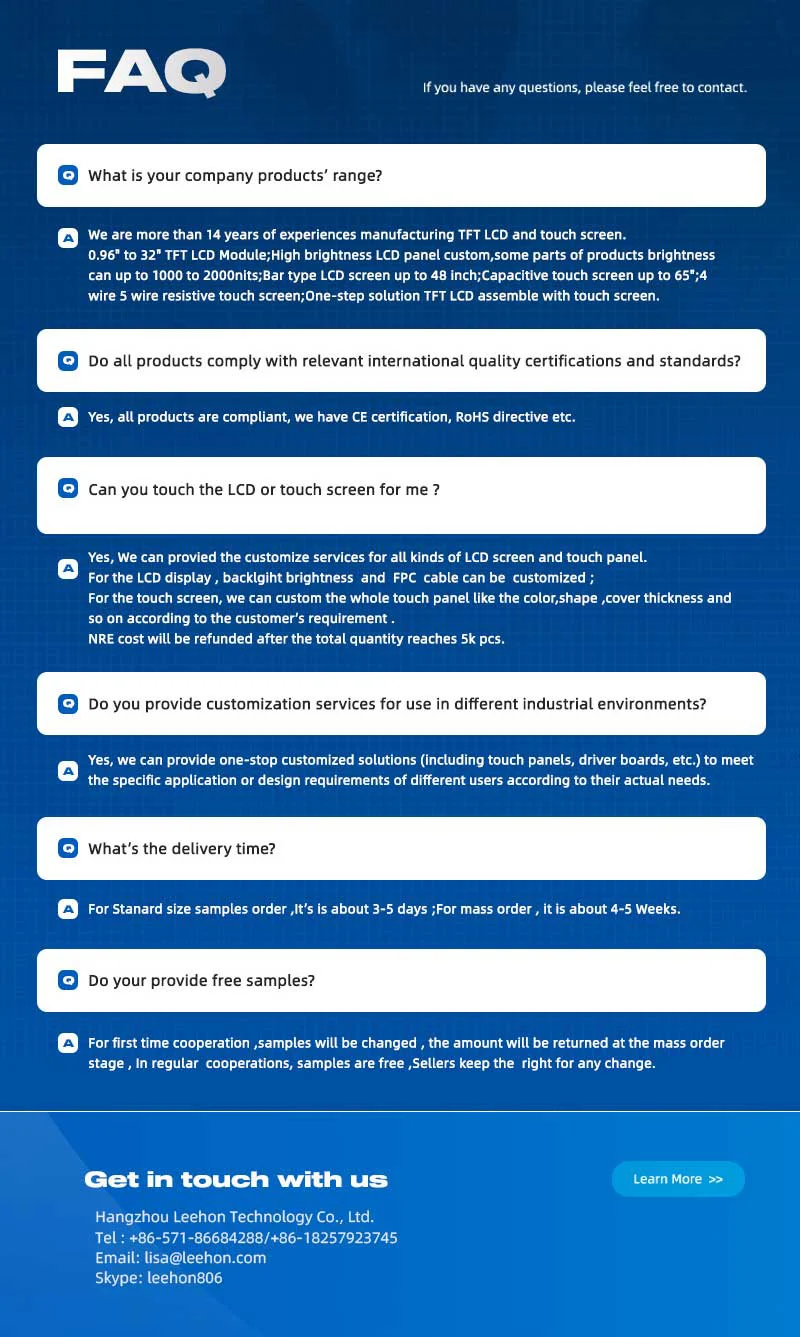

FAQ
