Waste treatment plant single beam double beam lifting supporting loose sand and domestic waste coal grabbing 4 rope grab bucket
- Category: >>>
- Supplier: Zhengzhou Balance Crane Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601205876377):
Product Overview
Description
Company Profile
company profile:
Zhengzhou Balance Crane Machinery Co.,Ltd Professional industrial crane manufacturer and supplier who has been dedicated to supplying an extensive range of complex industrial crane systems and crane kits available in varied configurations for over 26 years.
More than 35 professional experts and 11,500 square meters manufacturing factory.
Innovative high quality products and solutions include double girder bridge crane, single girder bridge crane, gantry crane, jib crane, overhead crane kits, crane spare parts etc.
handling capacity ranges from 0.5 to more than 300 tons. passed the international certificates.
Hope to be your business partner and welcome you to visit our factory in zhengzhou city, Henan province!
Innovative high quality products and solutions include double girder bridge crane, single girder bridge crane, gantry crane, jib crane, overhead crane kits, crane spare parts etc.
handling capacity ranges from 0.5 to more than 300 tons. passed the international certificates.
Hope to be your business partner and welcome you to visit our factory in zhengzhou city, Henan province!
Products Description

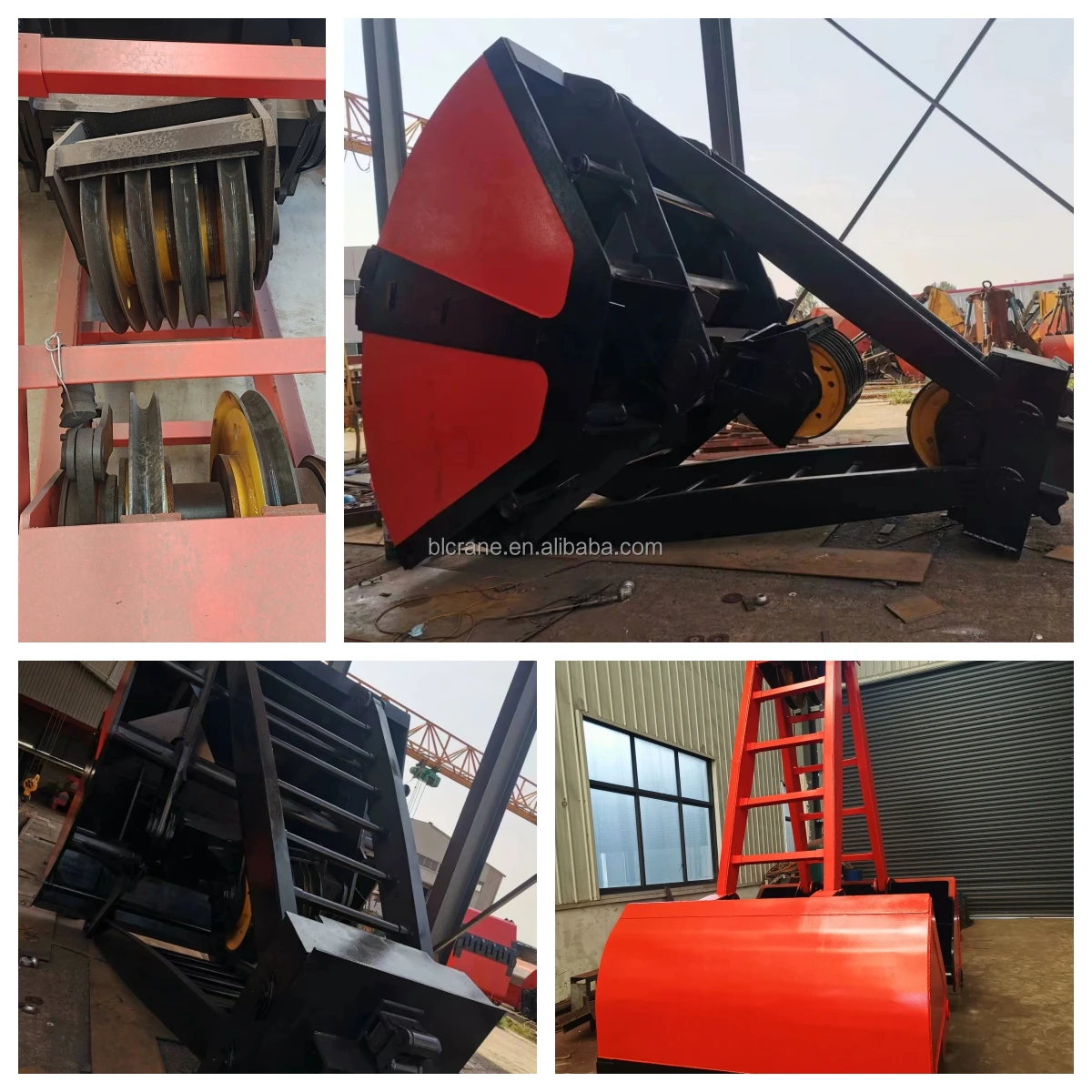

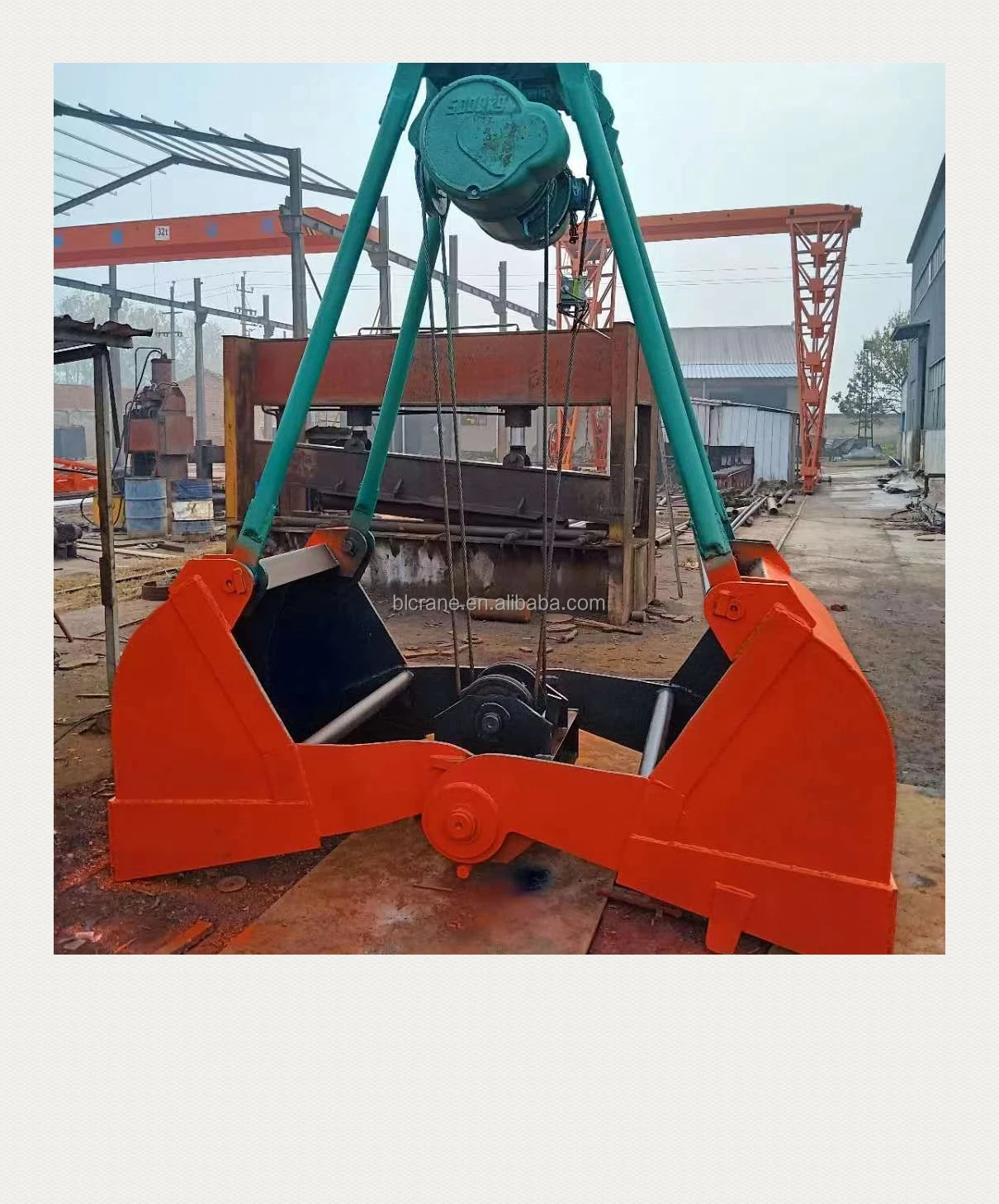

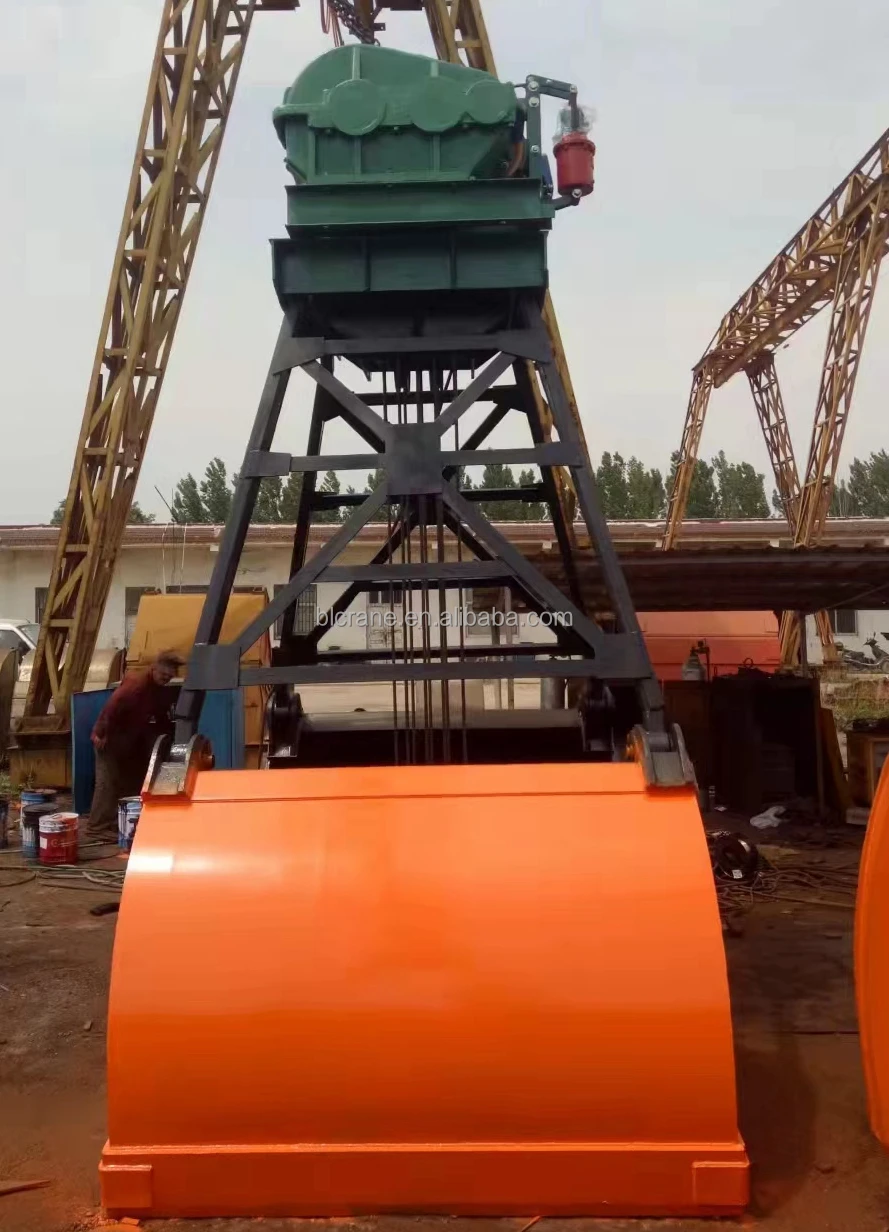

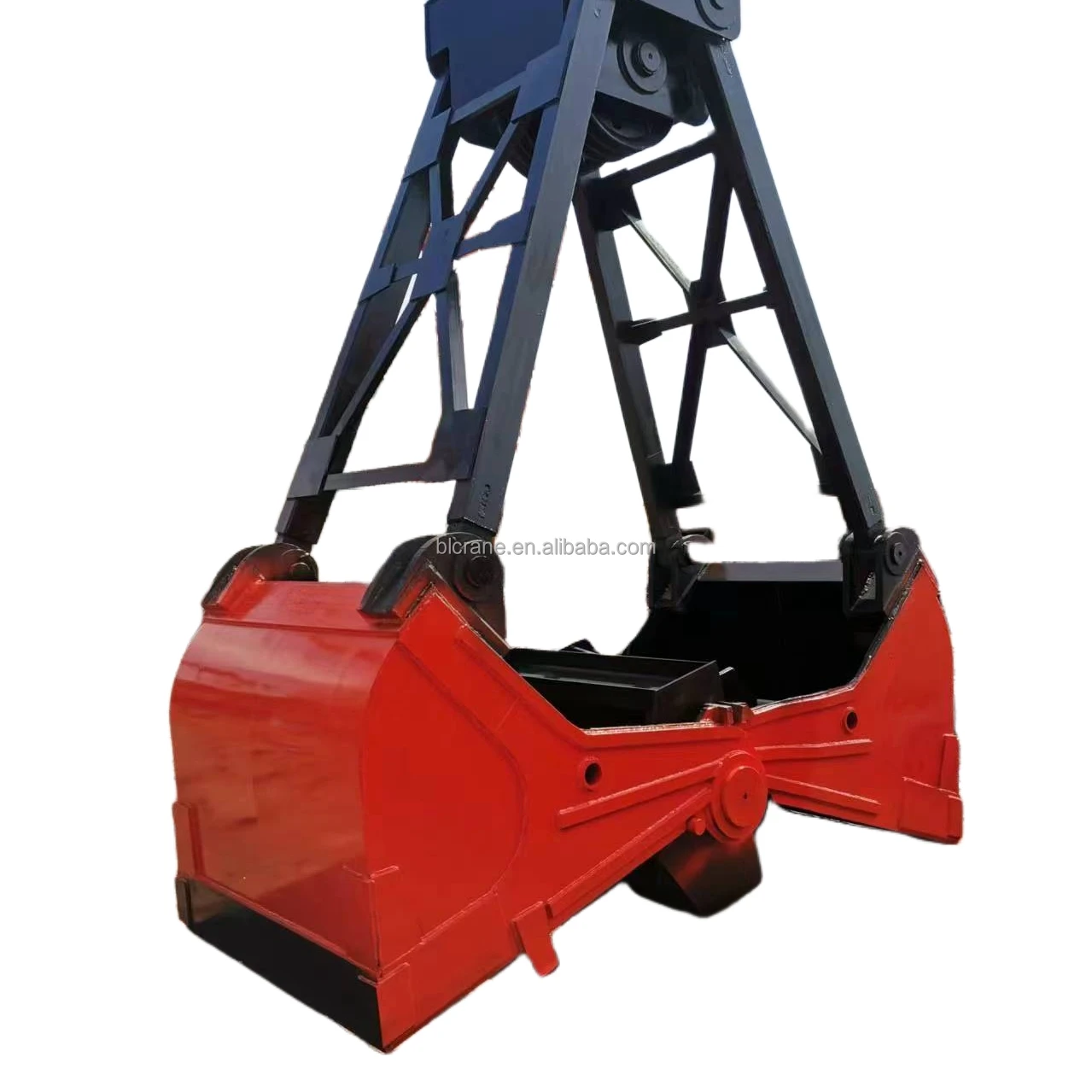

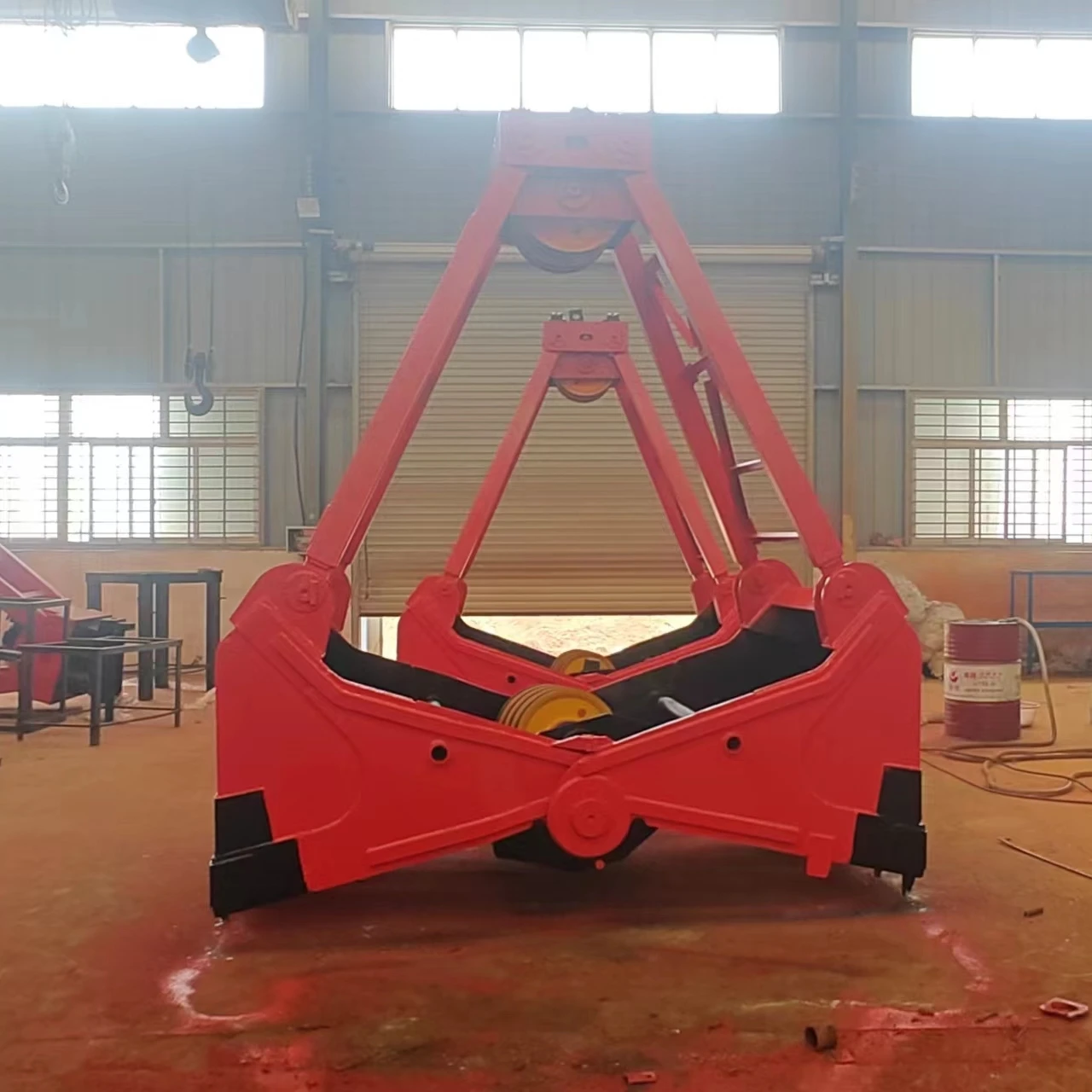

Grapple
Four ropes ore bulk grab is an efficient tool for loading and unloading sands, coal, mineral powder and bulk chemical fertilizer.The mechanical structure for opening & closing is succinct and original. It is easy to use and can work under any circumstances in order. The grab is equipped for the crane which has two hoisting drums and used for grabbing bulk materials. Now the grabs are widely used in ports, electricity, vessel, metallurgy, preservation and transportation, and are exported in batches.Using 3D Virtual Design, by Collision and Interference Checking and taking Dynamic Simulation Test, the products can be showed in the stage of design Intuitively, which can secure the product's quality and outward appearance.
The four-rope grab is coordinated by thelifting and opening and closing mechanisms.Itis mainly used with the bridge typeand the Gantry crane
type withtwo lifting mechanisms for loading.unloading,stacking and feeding.
type withtwo lifting mechanisms for loading.unloading,stacking and feeding.

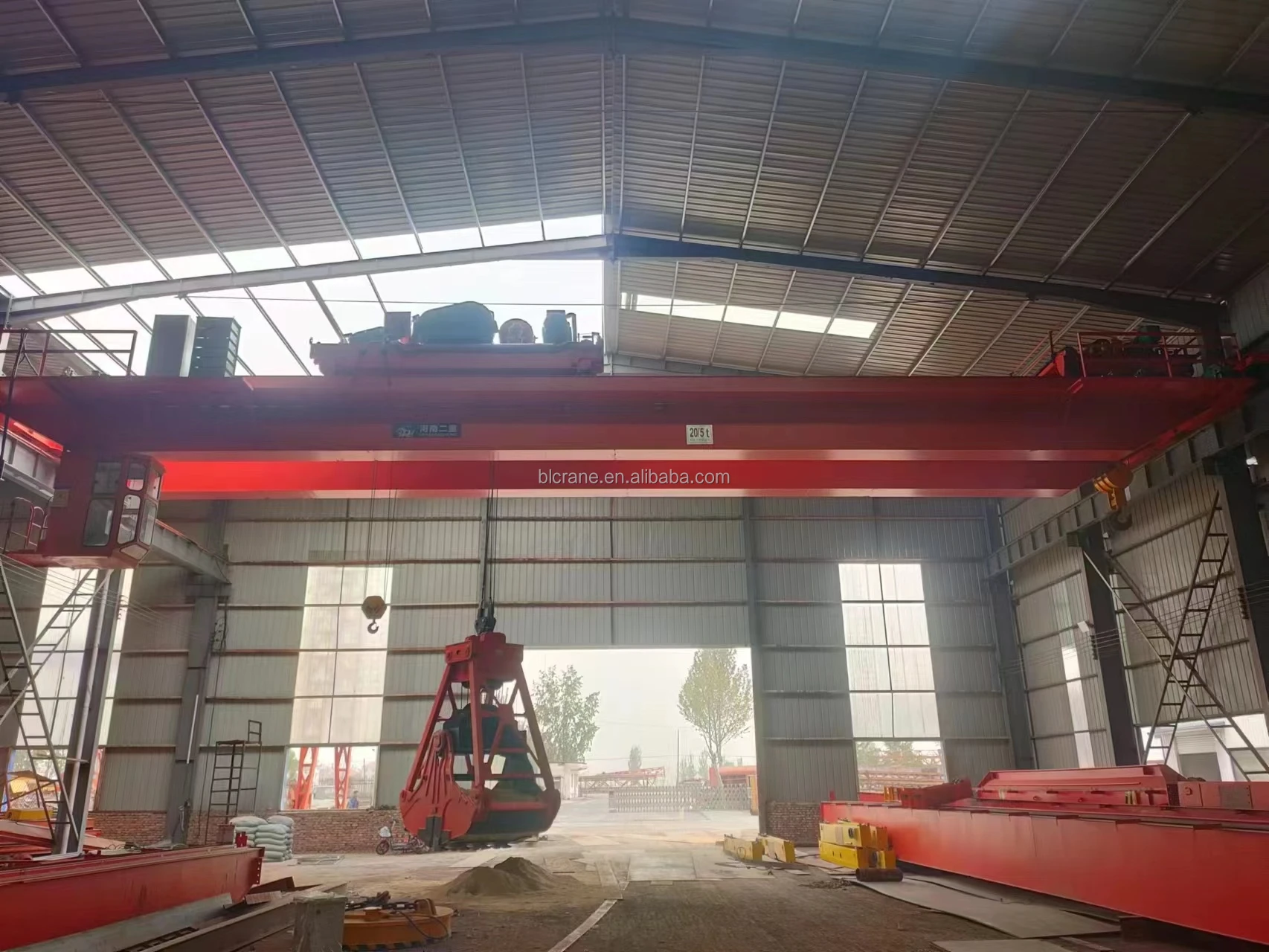

On the bridge crane,there are two groups of motor hoists(.e.electic hoists),each group of hoists leads out two wire ropes,two of whicharefixed in a group at both ends of the grab balance frame for support
the other group of steel wirerope passes through the pulley of the upper crossbeamandthe pulley of the lower crossbeam to form the pulley group,which acts as the
openingandclosing bucket part
Product Paramenters
Advantages and features of grab:
1、The wide opening width enables outstanding performance in handling the iron bar and light weight enables
2、operation efficiency. Unlimited clockwise and anti-clockwise 360 degree rotatable
3、Special designed swing bearing for durability and big cylinder for more power
4、Check valve is embedded for better safety in case of shock, value enclosed for better safety from damage.
5、Wear resistant special solid steel is used and no extra reinforcement is required.
6、Flexible choices dependent on job environment
3、Special designed swing bearing for durability and big cylinder for more power
4、Check valve is embedded for better safety in case of shock, value enclosed for better safety from damage.
5、Wear resistant special solid steel is used and no extra reinforcement is required.
6、Flexible choices dependent on job environment
7、Rotating speed controlable.
8、Versatile applications including handling of stone and wood, scrap handling, landscaping works, sorting and cleaningup.
8、Versatile applications including handling of stone and wood, scrap handling, landscaping works, sorting and cleaningup.
Crane Capacity (t) | Volume (m³) | Cargo Density (t/m³) | Cargo Weight (t) | Grab Weight (t) | Grab Model (EH) |
10 | 4-6m³ | 1.25-0.83 | 5 | 5 | RC10-6-5 |
12 | 4-6m³ | 1.63-1.08 | 6.5 | 5.5 | RC12-6-5.5 |
16 | 5-8m³ | 1.9-1.19 | 9.5 | 6.5 | RC16-8-6.5 |
20 | 5-8m³ | 2.5-1.56 | 12.5 | 7.5 | RC20-8-7.5 |
20 | 6-10m³ | 2.0-1.2 | 12 | 8 | RC20-10-8 |
24 | 6-12m³ | 2.5-1.25 | 15 | 9 | RC24-12-9 |
25 | 6-10m³ | 2.67-1.6 | 16 | 9 | RC25-10-9 |
25 | 8-12m³ | 2.58-1.29 | 15.5 | 9.5 | RC25-12-9.5 |
25 | 6-15m³ | 2.5-1.0 | 15 | 10 | RC25-15-10 |
28 | 6-15m³ | 2.83-1.13 | 17 | 11 | RC28-15-11 |
36 | 8-20m³ | 2.81-1.13 | 22.5 | 13.5 | RC36-20-13.5 |
36 | 10-25m³ | 2.2-0.88 | 22 | 14 | RC36-25-14 |
40 | 10-30m³ | 2.35-0.78 | 23.5 | 16.5 | RC40-30-16.5 |
50 | 12-30m³ | 2.63-1.05 | 31.5 | 18.5 | RC50-30-18.5 |
Manufacturing Technique
Product packaging

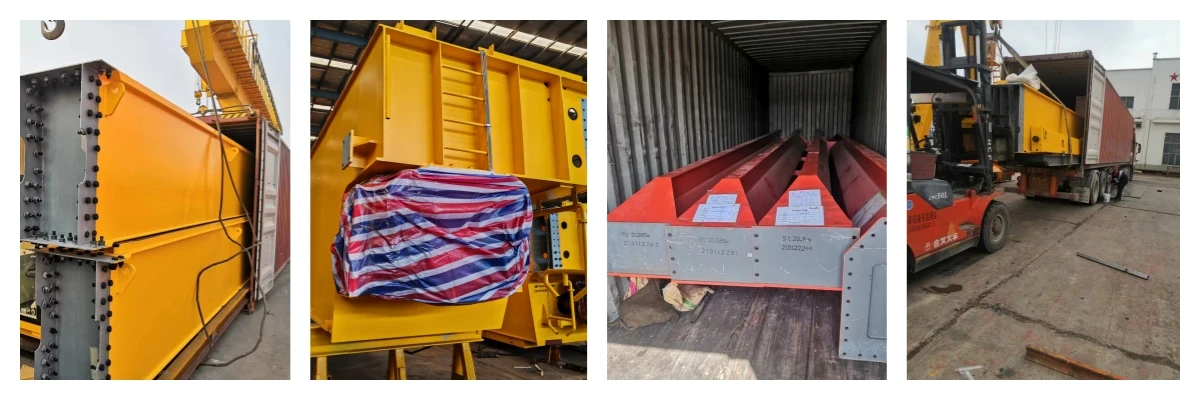

Safe container transport
According to the needs of customers, most of our products are shipped in containers, if the width of the main beam is more than 13 meters, we will scientifically disconnect, convenient packing.
Customer Photos
Why Choose Us
Quality assurance of products and services：
Before sale: We will provide you the price quotation offer with actural & quality products details pictures, spare parts list & pictures, videos, 3D product design, help you to check shipping freight etc.
During sale: Update your order process is our responsibility, and send you production pictures, videos etc., just like you are here with yourorder production.
After sale: Send you loading container pictures, follow up & update you container process, try our best to help you make the customsclearance.
During sale: Update your order process is our responsibility, and send you production pictures, videos etc., just like you are here with yourorder production.
After sale: Send you loading container pictures, follow up & update you container process, try our best to help you make the customsclearance.
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: span C: lift height
D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat)
control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! Q.How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can
visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat)
control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! Q.How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can
visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
