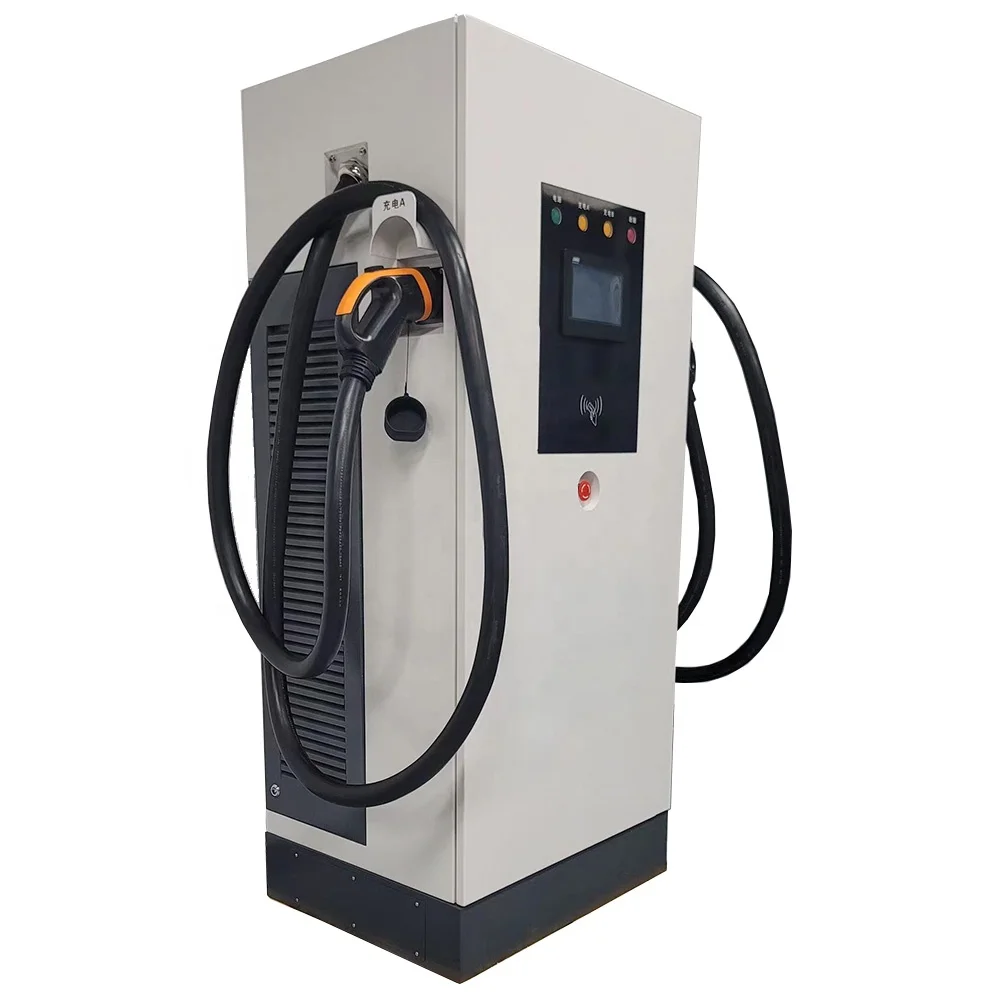

Green Energy High Quality 180kw Three Gun DC EV Smart Charger Plug and Play Energy Vehicle Charging Station
- Category: >>>
- Supplier: Jiujiang Beihai Fiberglass Co. Ltd.
Share on (1601205960786):
Product Overview
Description
Products Description

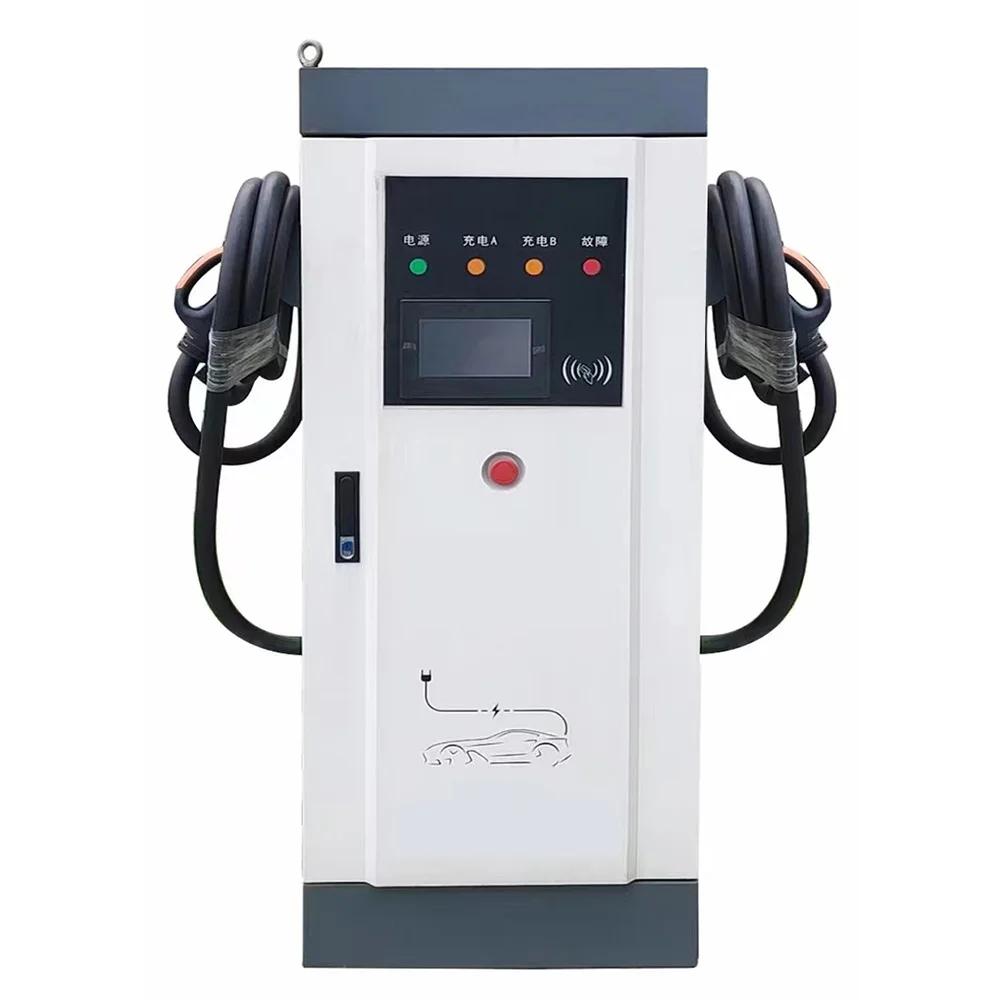

DC EV Charging Pile
DC charging piles are known for their high power charging capability. Common DC charging piles on the market have various power levels, including 40kW, 60kW, 80kW, 120kW 160kw and even 240kW. These high-power charging piles can quickly replenish electric vehicles with electricity in a short period of time, greatly reducing charging time. For example, a DC charging post with a power of 100kW charging station, under ideal conditions, charge an electric vehicle's battery to full capacity in about half an hour to an hour. The supercharging technology even increases the charging power to more than 200kW, further shortening the charging time and bringing great convenience to EV users.
Product Parameters
Model Name | BHDC-40KW-2 | BHDC-60KW-2 | BHDC -80KW-2 | BHDC-120KW-2 | BHDC-160KW-2 | BHDC -180KW-2 | ||||||
AC Nominal Input | ||||||||||||
Voltage(V) | 380±15% | |||||||||||
Frequency（Hz） | 45-66 Hz | |||||||||||
Input power factor | ≥0.99 | |||||||||||
Qurrent Harmonics（THDI） | ≤5% | |||||||||||
DC output | ||||||||||||
Efficiency | ≥96% | |||||||||||
Voltage（V） | 200~750V | |||||||||||
power | 40KW | 60KW | 80KW | 120KW | 160KW | 180KW | ||||||
Current | 80A | 120A | 160A | 240A | 320A | 360A | ||||||
Charging port | 2 | |||||||||||
Cable Length | 5M | |||||||||||
Technical Parameter | ||||
Other Equipment Information | Noise（dB） | ＜65 | ||
Precision of steady current | ≤±1% | |||
Voltage regulation accuracy | ≤±0.5% | |||
Output current error | ≤±1% | |||
Output voltage error | ≤±0.5% | |||
Average current imbalance degree | ≤±5% | |||
Screen | 7 Inch industrial screen | |||
Chaiging Operation | Swipiing Card | |||
Energy Meter | MID certified | |||
LED Indicator | Green/yellow/red color for different status | |||
communication mode | ethernet network | |||
Cooling method | Air cooling | |||
Protection Grade | IP 54 | |||
BMS Auxiliary Power Unit | 12V/24V | |||
Reliability（MTBF） | 50000 | |||
Installation Method | Pedestal installation | |||
Environmental Index | Working Altitude | <2000M | ||
Operating temperature | -20~50 | |||
Working humidity | 5%~95% | |||

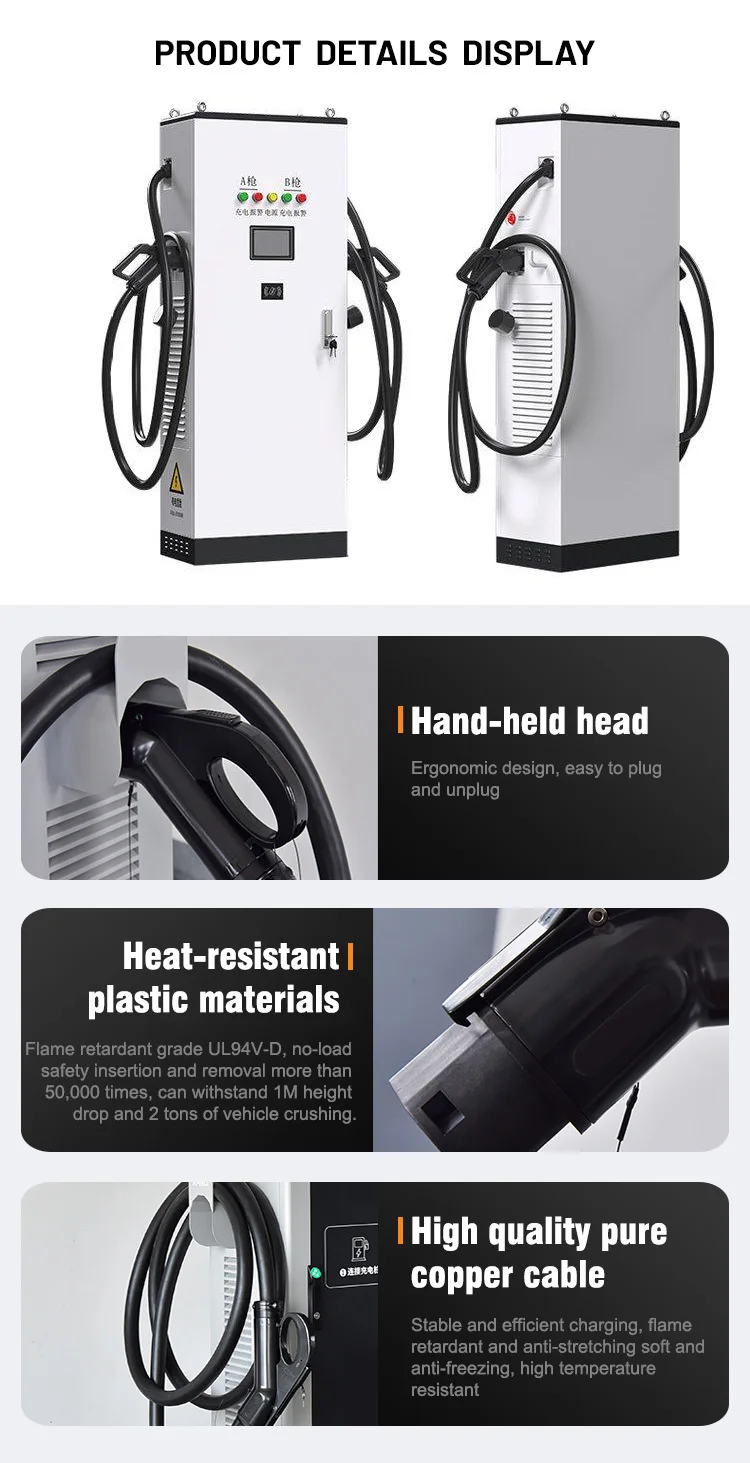

Product Feature

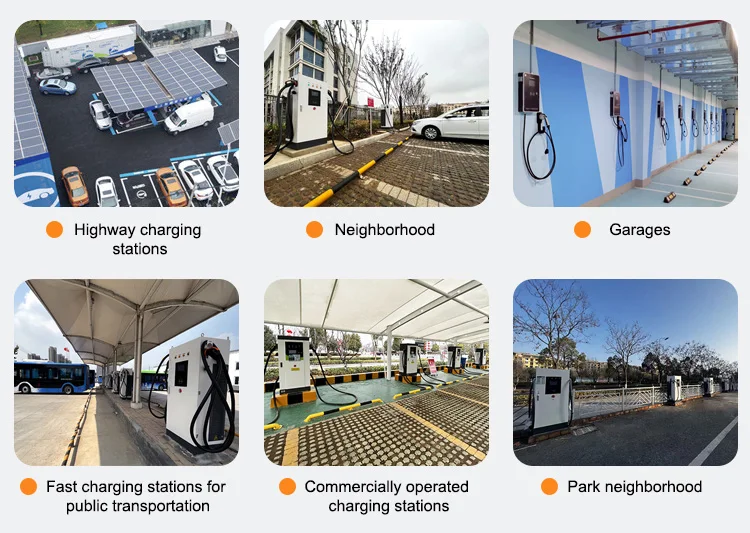

Application
DC charging piles are widely used in the field of electric vehicle charging, and their application scenarios include but are not limited to the following:
Public charging piles: set up in public places such as public car parks, petrol stations and commercial centres in cities to provide charging services for EV owners.
Highway charging stations: Charging stations are set up on highways to provide fast charging services for EVs travelling long distances and improve the range of EVs.
Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles.
Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles.
Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or customers, and enhance the corporate image.
Public charging piles: set up in public places such as public car parks, petrol stations and commercial centres in cities to provide charging services for EV owners.
Highway charging stations: Charging stations are set up on highways to provide fast charging services for EVs travelling long distances and improve the range of EVs.
Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles.
Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles.
Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or customers, and enhance the corporate image.
