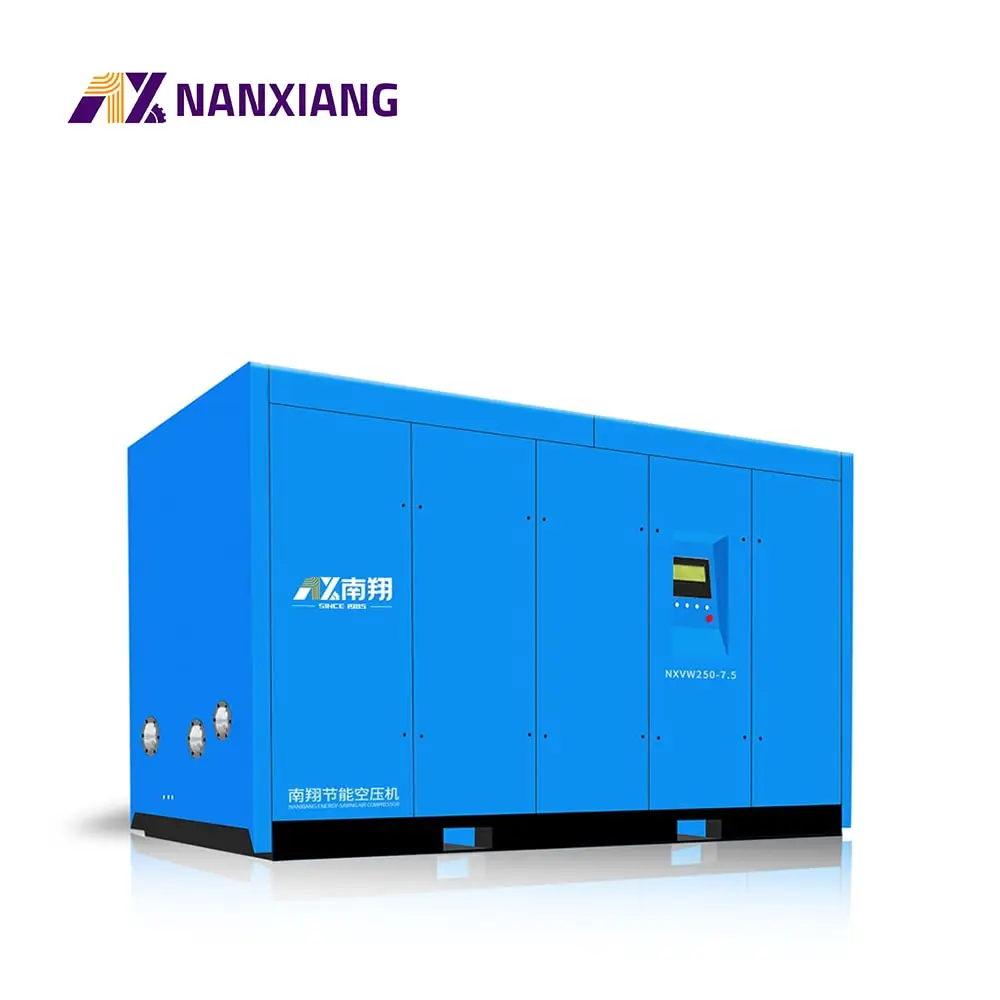

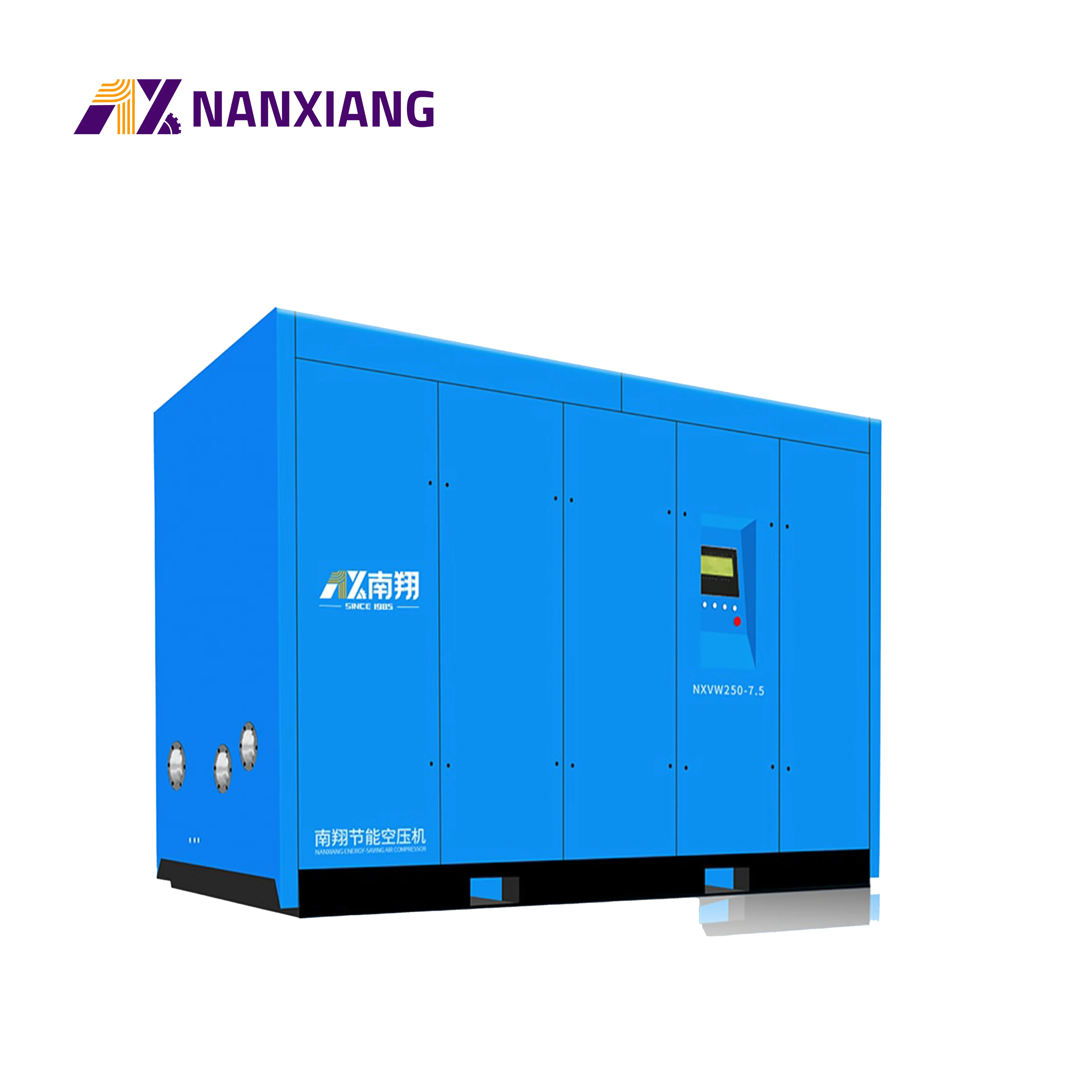

China Super Silent Compressor 271cfm Oil Free Screw Type Air Compressor 45kw 60ph Two Stage Screw Air Compressor
- Category: >>>
- Supplier: Jiangxi Nanxiang Air Compressor Co. Ltd.
Share on (1601205999514):
Product Overview
Description
Product Details
Mode | NXGW-45V |
Free Air Delivery(m³/min) | 5.1-7.7 |
Noise(dB) | 60 |
Motor Power(kw/hp) | 45 / 60 |
Starting Mode | Variable frequency |
Working pressure(bar） | 7-10 |
Dimension(mm) | 2500*1600*2080 (A) |
Weight(kg) | 2600 |
About this item
●The air seals, reverse labyrinth seals, and oil discharge seals, the compression chamber inside and outside the compressor head are completely separated with no leaks, ensuring the production of Class 0 green oil-free compressed air.
● The coupling connection further enhances energy efficiency.
● Multiple noise reduction features and a balanced design for low-noise operation.
Products Application
Our Services
Pre sale:
1. Professional technical personnel, 24*7 online services
2. Customize your compressor based on your specs
After sales:
1. Before shipping each machine, we will test it out
2. Free maintenance parts within 1 year
3. Warranty of the air end for 5-10 years
4. Customizable languages
1. Professional technical personnel, 24*7 online services
2. Customize your compressor based on your specs
After sales:
1. Before shipping each machine, we will test it out
2. Free maintenance parts within 1 year
3. Warranty of the air end for 5-10 years
4. Customizable languages
Specification
Model | KW/HP | Capacity | Pressure | Dimension (mm) | Weight | Air Outlet Pipe Diameter |
NXGW-45V | 45 / 60 | 5.1-7.7 | 7-10 | 2500*1600*2080 (A) | 2600 | DN50 |
NXGW-55V | 55 / 75 | 7.78-9.6 | 7-10 | 2500*1600*2080 (A) | 2600 | DN50 |
NXGW-75V | 75 / 100 | 11.1-12.12 | 7-10 | 2500*1600*2080 (A) | 2800 | DN50 |
NXGW-90V | 90 / 120 | 13-13.13 | 7-10 | 2800*1800*1860 (A) | 2800 | DN50 |
NXGW-110V | 110 / 150 | 16-19.5 | 7-10 | 2800*1800*1860 (A) | 3000 | DN65 |
NXGW-132V | 132 / 175 | 19.44-23 | 7-10 | 2800*1800*1860 (A) | 3300 | DN65 |
NXGW-160V | 160 / 215 | 23-26.3 | 7-10 | 2800*1800*1860 (A) | 3400 | DN65 |
NXGW-185V | 185 / 250 | 26.23-29.17 | 7-10 | 2800*1800*1860 (A) | 3600 | DN65 |
NXGW-200V | 200 / 270 | 29.05-35 | 7-10 | 3100*1900*2200 (W) | 4400 | DN100 |
NXGW-220V | 220 / 300 | 32.39-37.63 | 7-10 | 3100*1900*2200 (W) | 4600 | DN100 |
NXGW-250V | 250 / 335 | 37.32-45.2 | 7-10 | 3400*1900*2200 (W) | 4700 | DN100 |
NXGW-280V | 280 / 335 | 41.56-45.5 | 7-10 | 3400*1900*2200 (W) | 4900 | DN100 |
NXGW-315V | 315 / 420 | 45.37-50.9 | 7-10 | 3400*1900*2200 (W) | 5100 | DN100 |
Note:
Standard voltage is 380V/50HZ/3P, other voltages are available for customization.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
