ANON mini 8 rows high efficiency garlic combine harvester garlic harvesting machinery
(1): The company's independent research and development, automatic straw cutting, automatic bag filling, automatic garlic whisker cutting, and simple operation.
(2): Cut garlic straw length: 4 cm (adjustable between 4-5 cm);
(3): Power: 100 horsepower Fuel consumption: 9 liters per hour;
(4): The best suitable row spacing type: 18cm/20cm/22cm/24cm (17-19-20-21-23-25 row spacing is also available, other row spacing can be customized), 8 rows can be harvested at one time;
(5): Geological requirements: the drier the geology, the harder the better, the second gear should be used on dry ground and the first gear on wet ground. Too wet will affect the harvesting effect; wetlands will affect the harvesting effect.
(2): Cut garlic straw length: 4 cm (adjustable between 4-5 cm);
(3): Power: 100 horsepower Fuel consumption: 9 liters per hour;
(4): The best suitable row spacing type: 18cm/20cm/22cm/24cm (17-19-20-21-23-25 row spacing is also available, other row spacing can be customized), 8 rows can be harvested at one time;
(5): Geological requirements: the drier the geology, the harder the better, the second gear should be used on dry ground and the first gear on wet ground. Too wet will affect the harvesting effect; wetlands will affect the harvesting effect.
Specification
ANON mini 8 rows high efficiency garlic combine harvester garlic harvesting machinery
Machine Model | AN4DS-8DXA |
Type | Mini Harvester |
Drive Type | Gear Drive |
Usage | garlic , onion |
Place of Origin | China |
Brand Name | ANON |
Cutting width | 1470mm |
Working rows | 8 rows |
Dimension(L*W*H) | 6100x2300x2800mm |
Weight | 2500kg |
Warranty | 1 Year |
Product name | garlic harvester |
Productivity | 0.2-0.3 hm2/h |
Engine | 73.5KW（100hp） |
Color | Red |
ANON mini 8 rows high efficiency garlic combine harvester garlic harvesting machinery

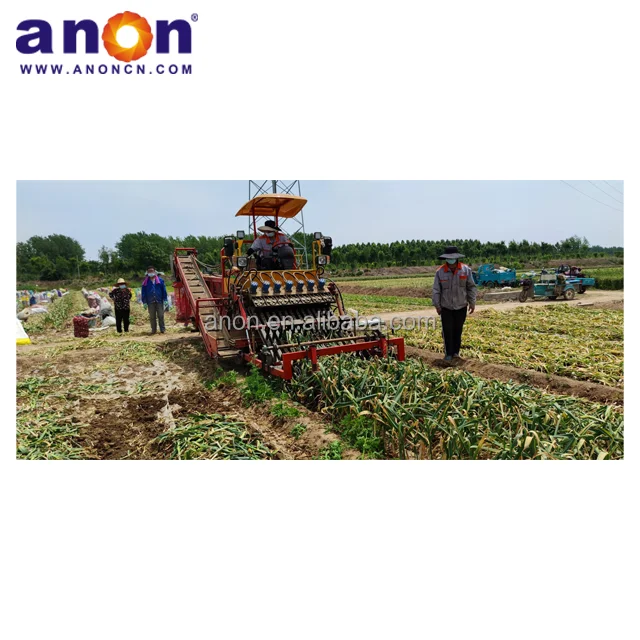

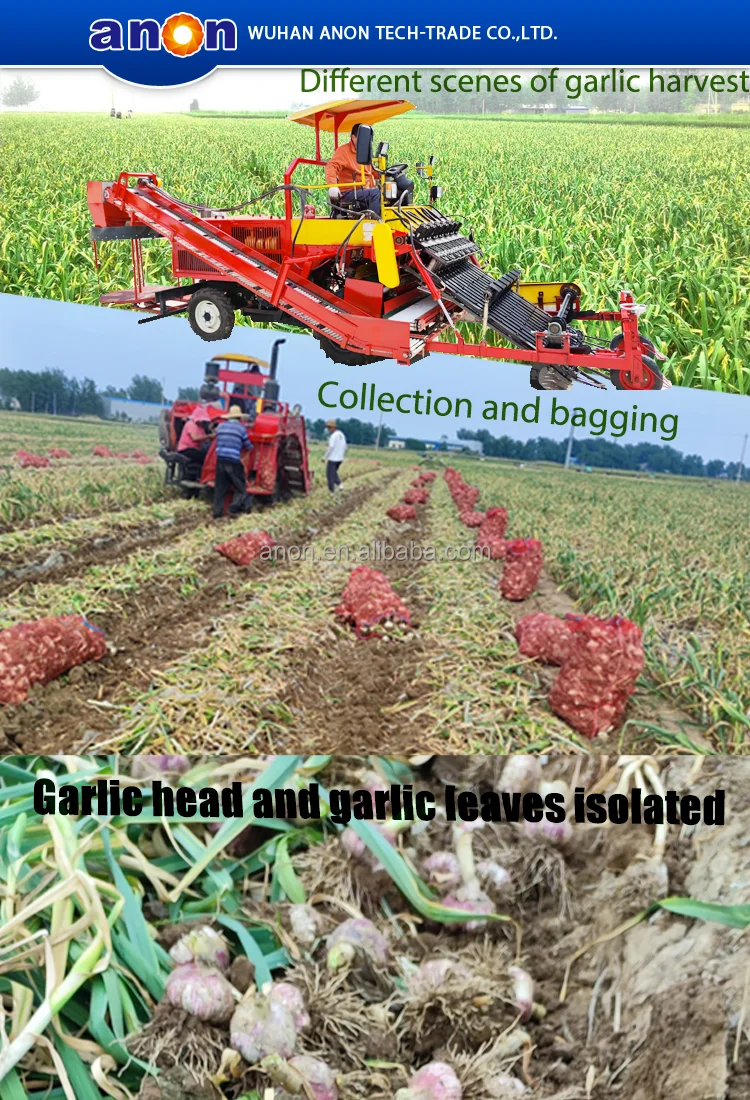

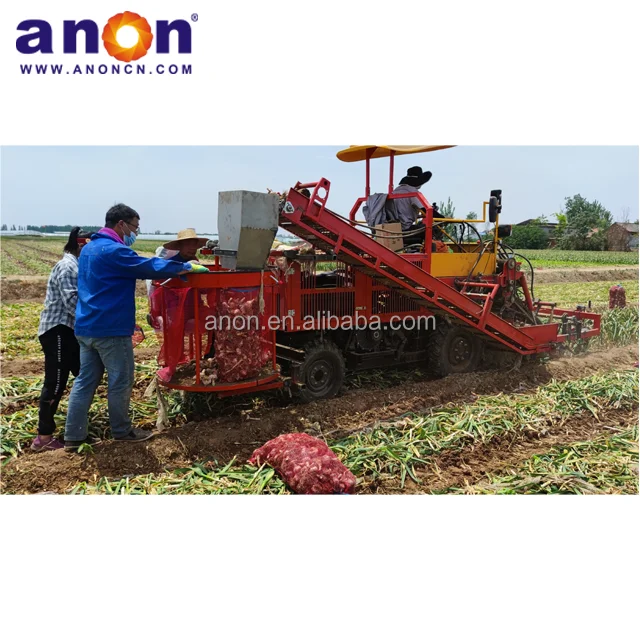

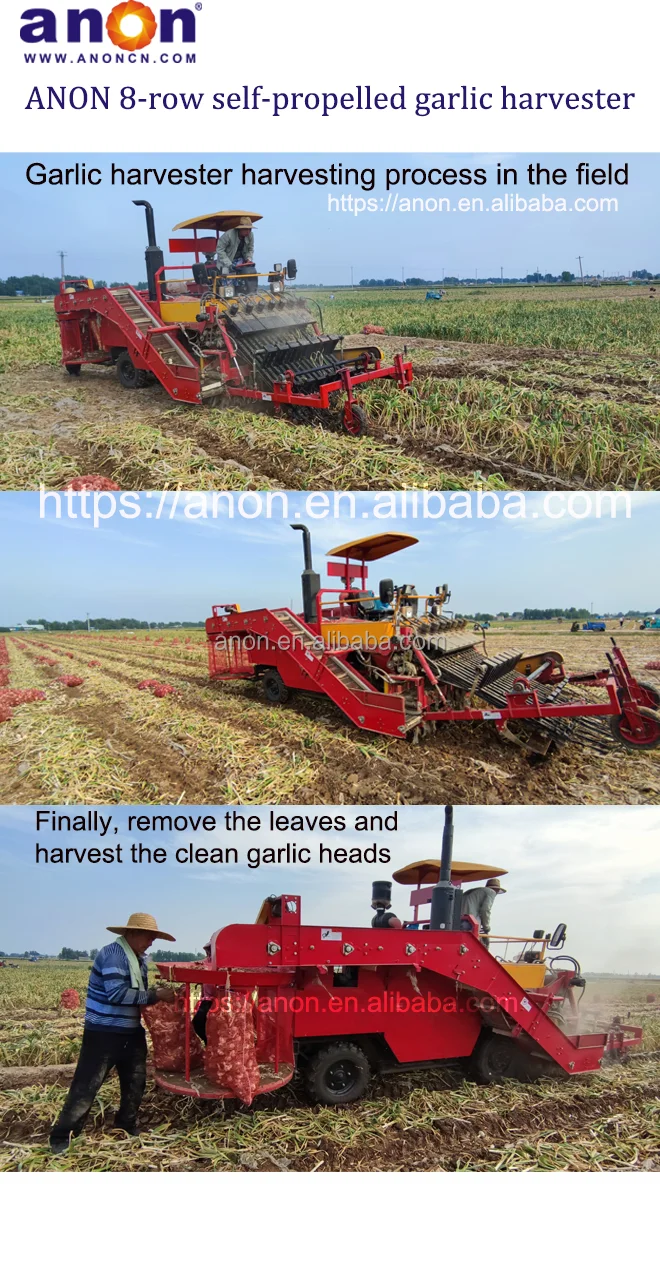

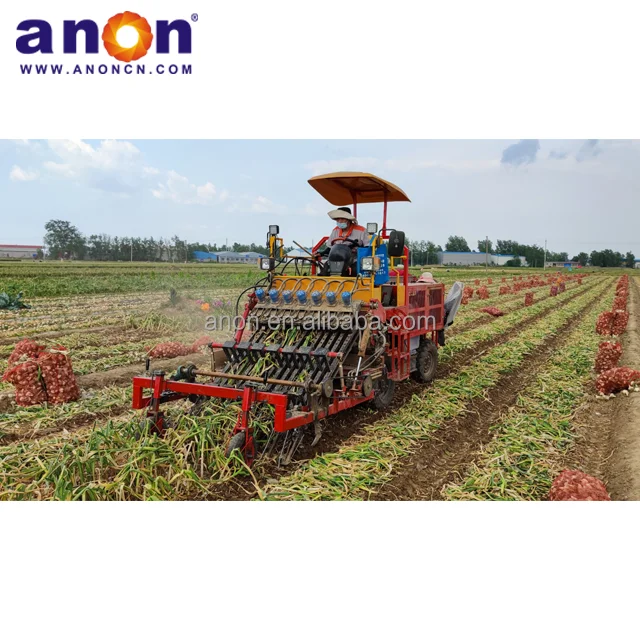

This product is suitable for farms that grow garlic in a large area. Garlic combine harvester is a professional equipment for harvesting garlic. The wheels at the bottom can walk freely on hard ground, and it will not be affected when there are ridges. The power output is 100 horsepower, which is powerful.High automation rate: self-propelled, integrated harvesting, from excavation to clamping and extraction, flexible conveying, straw cutting, straw returning to the field, automatic bagging of garlic heads, all completed by one machine.
High operating efficiency: harvest 8 rows at one time, harvest 0.015--0.3 mu of garlic in one hour, only 3 people are needed for one machine operation, 0.5-1 hectare of garlic can be harvested in one day, and more than 100 laborers can be used, and the equipment is economical Sexuality fully manifested.
High clean rate of operation: the harvest rate of machinery reaches more than 99%, ensuring that the fruits of hard work go back to the warehouse.
Low rate of garlic injury during operation: the digging depth can be adjusted within the range of 0-26 cm, the soil is removed by vibration, the action is gentle, the garlic digging, garlic whisker cutting, garlic straw cutting and bagging are integrated, and the garlic head is broken and damaged less.

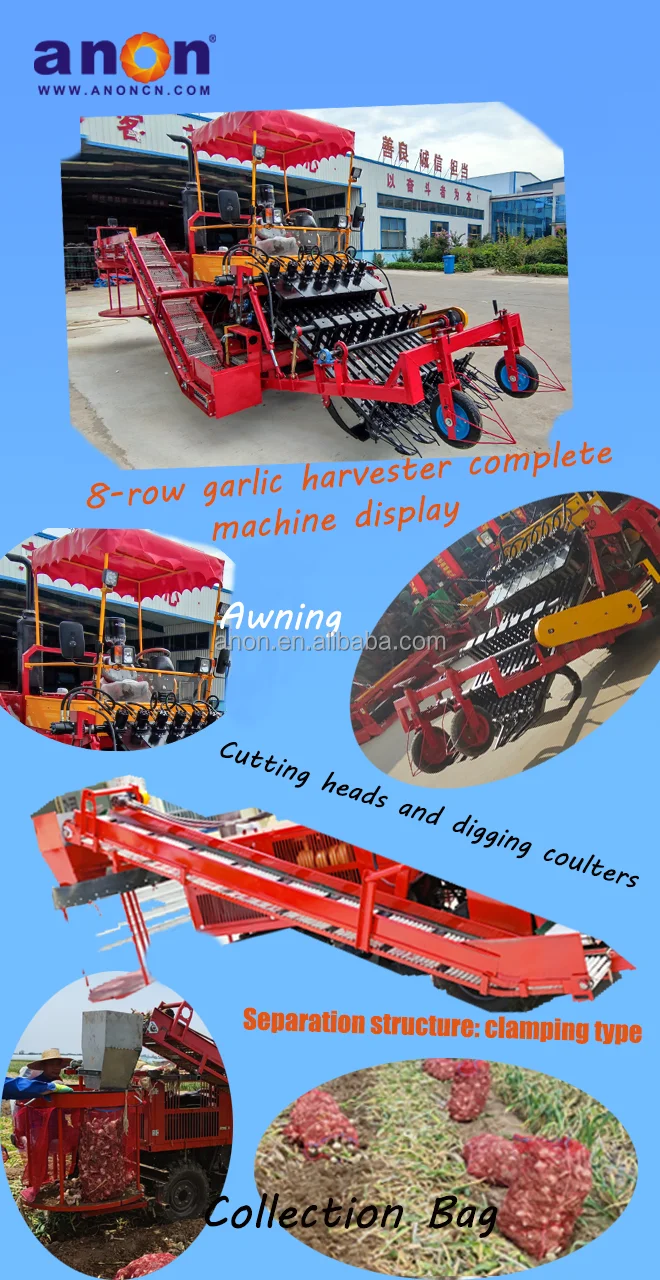

Details Images

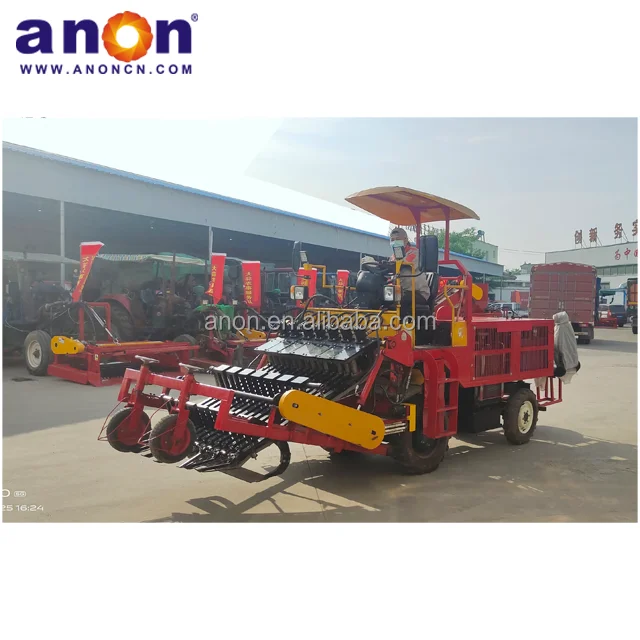

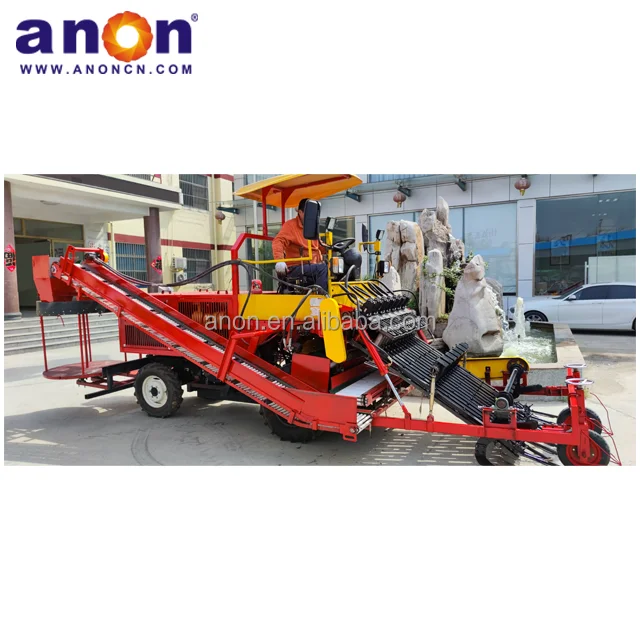

ANON mini 8 rows high efficiency garlic combine harvester garlic harvesting machinery
ANON mini 8 rows high efficiency garlic combine harvester garlic harvesting machinery
