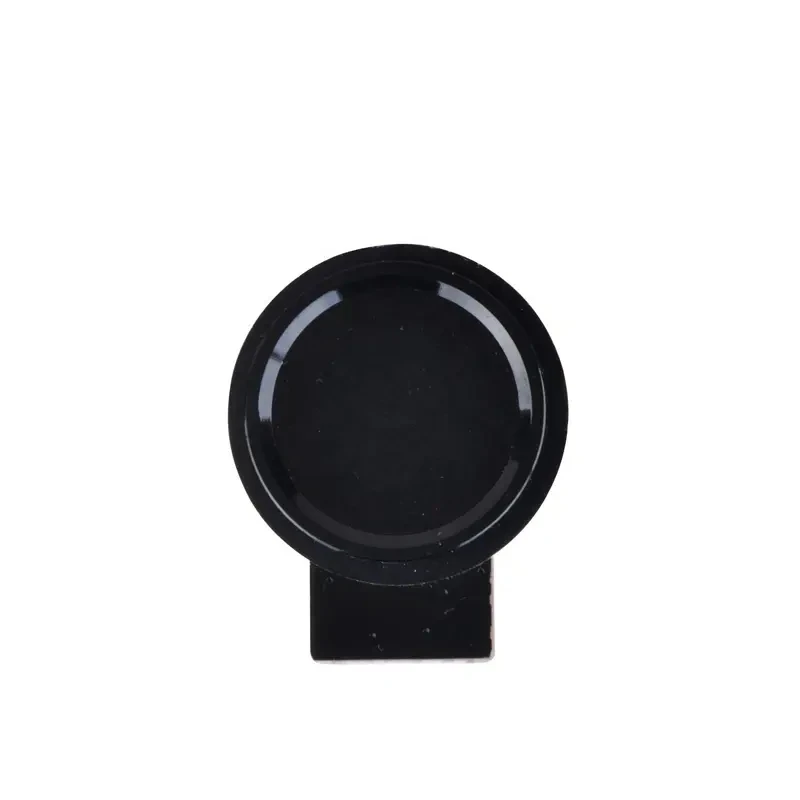

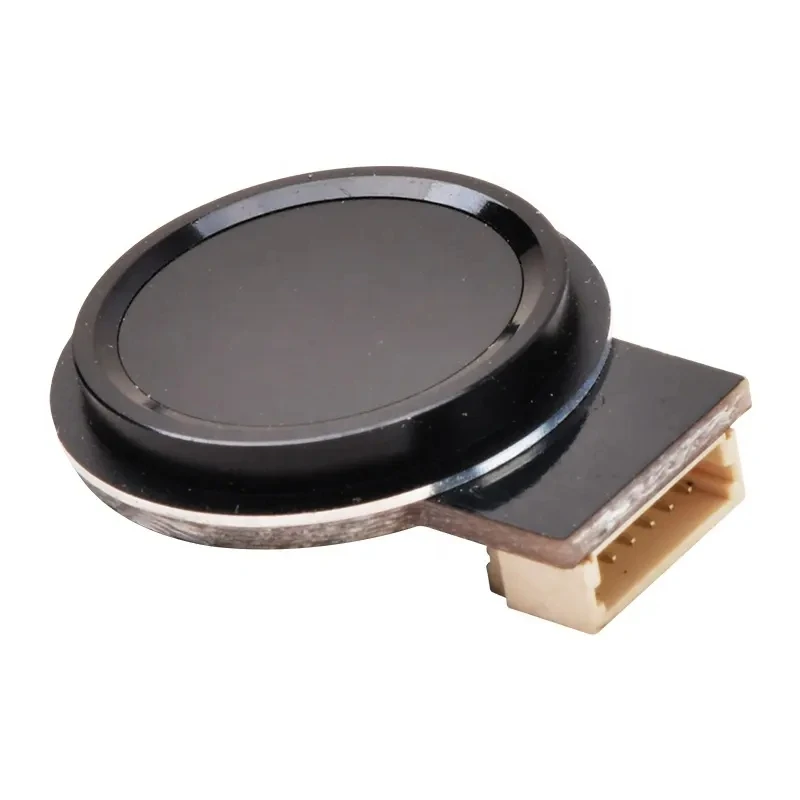

AM160 YYH540J bluetooth app aluminum ring fingerprint slim electronic smart door handle use lock module
- Category: >>>
- Supplier: Brmicro Electronic Technology Co. Ltd
Share on (1601206083751):
Product Overview
Description
Products Description
Products Description
Pixel array | 160*160 |
Module Size | 33.3*20.2mm |
Window Size | 11*14mm |
Operating current: Sampling mode | 3.3V <30mA |
Acquisition speed | 30 fps |
Fingerprint template capacity | 100 pieces |
Data connect | USART |
Power on time | Less than 100ms |
Interface | RS232 TTL(6pin, 1.0mm pitch) |
Baud rate | 115200bps |
Storage temperature | -40℃ - 85℃ |
Operation temperature | -20℃ - 55℃ |
Relative humidity | 0% - 85% |
FAR | <0.001% |
FRR | <=1.5% |
Fingerprint feature extraction time | 300ms |
1:N Compare Time | <500ms |
Touch Effective output level | Low effective |
Supported operating system | Embedded Android,Linux,WinCE and Windows OS |
,
More Products
More Products
Company Profile
Company Profile

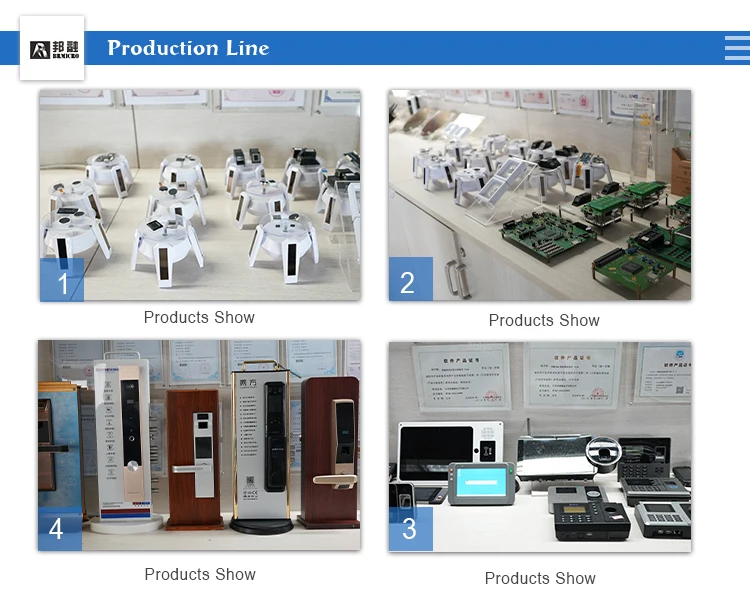

Production Line
Production Line
Transportation & Packaging
Transportation & Packaging
FAQ
FAQ
1: Are you factory or only company?
We are a chip design company(fabless), chip packaging testing and module OEM are in a large famous factory with quality assurance.
2: Why we can choose you?
1): Reliable--We design chips and module that are good enough, and we keep iterating
2): Professional--We are a derivative enterprise of institute of Microelectronics of Chinese Academy of Sciences, with high technical support and a large number of highly educated talents. More than 100 intellectual property rights and invention patents
3: How about the shipping cost?
We can send goods to you via express, such as FEDEX, DHLEMS,TNT,etc. we can also send to you via sea or air, we can quote the price base on FOB. CIF &CNF as you like.More details will be discussed
4:How about the price? Can you make it cheaper?
The price depends on the item your demand(Shape, size, quantity) Final quotation accoring to receving full description of the item you want. More details will be discussed
5:How about the sample time?
Sample time:3-10days after e-proof confirmed. More details will be discussed
We are a chip design company(fabless), chip packaging testing and module OEM are in a large famous factory with quality assurance.
2: Why we can choose you?
1): Reliable--We design chips and module that are good enough, and we keep iterating
2): Professional--We are a derivative enterprise of institute of Microelectronics of Chinese Academy of Sciences, with high technical support and a large number of highly educated talents. More than 100 intellectual property rights and invention patents
3: How about the shipping cost?
We can send goods to you via express, such as FEDEX, DHLEMS,TNT,etc. we can also send to you via sea or air, we can quote the price base on FOB. CIF &CNF as you like.More details will be discussed
4:How about the price? Can you make it cheaper?
The price depends on the item your demand(Shape, size, quantity) Final quotation accoring to receving full description of the item you want. More details will be discussed
5:How about the sample time?
Sample time:3-10days after e-proof confirmed. More details will be discussed
