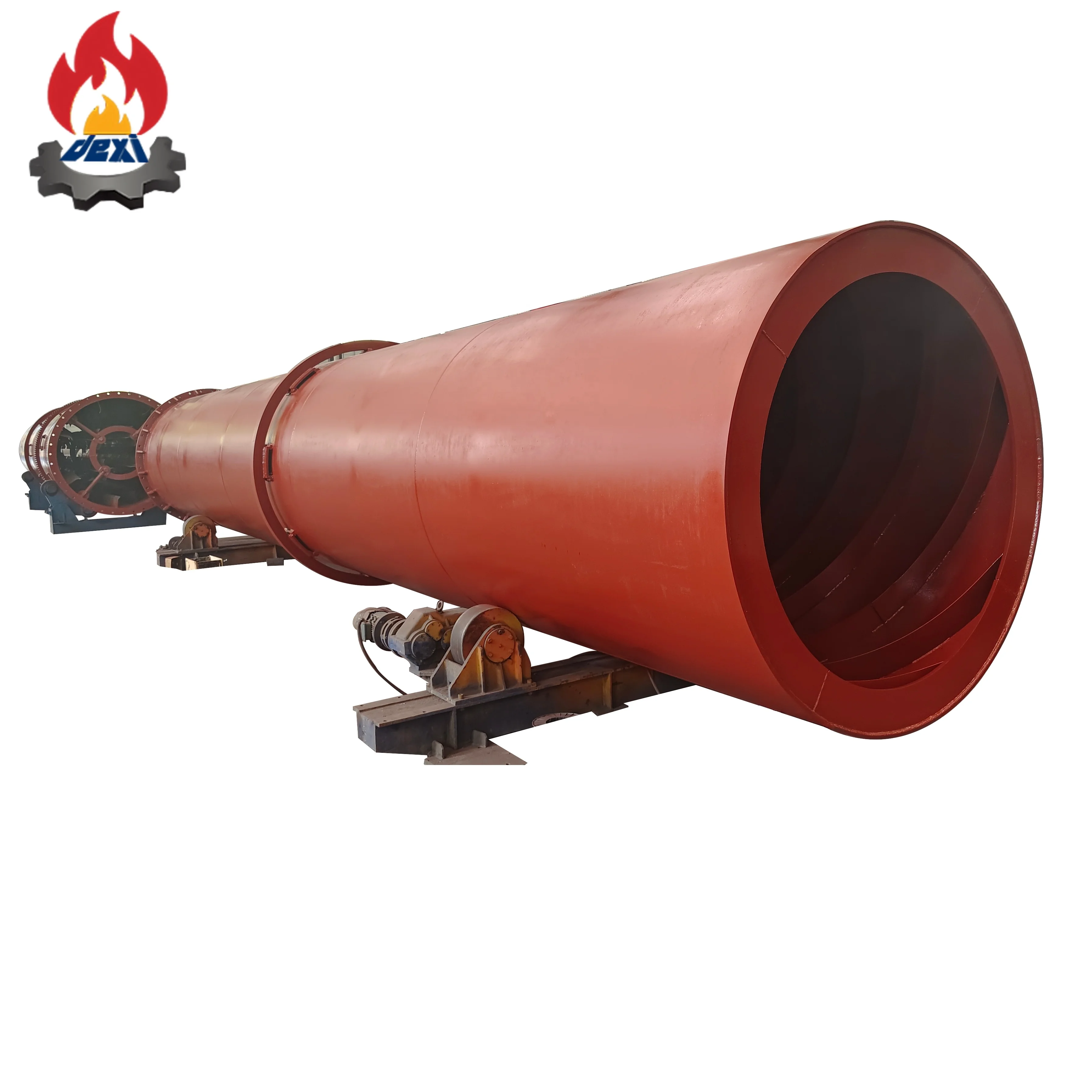

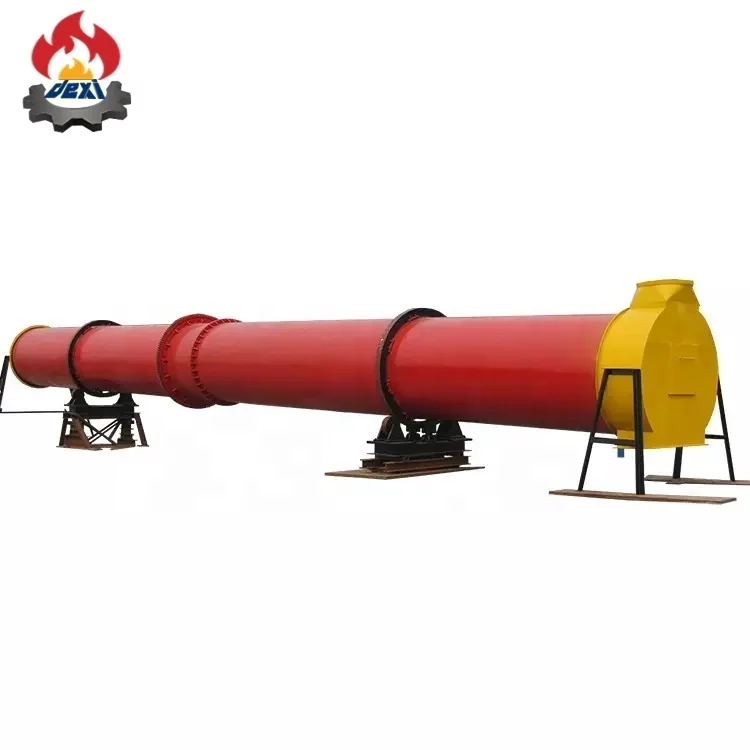

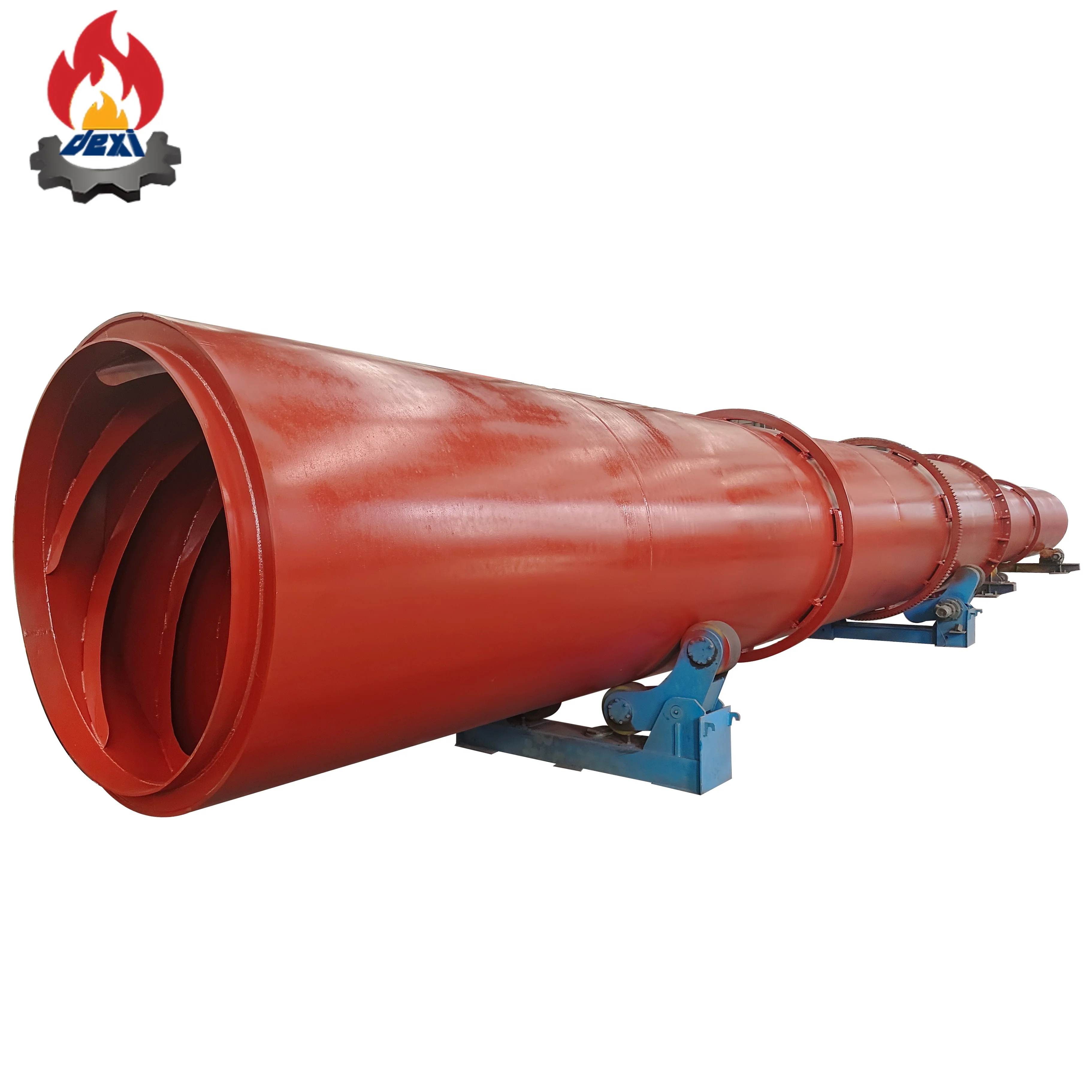

Rotary Dryer Bagasse Sawdust Dryer Machine Alfalfa Drying Machine
- Category: >>>
- Supplier: Shandong Dexi Machine Co. Ltd.
Share on (1601206100252):
Product Overview
Description
Product overview & Product details
Evaporation Capacity 1-1.5 T/H Hot Selling Drum Wood Shaving Sawdust Dryer for Sale

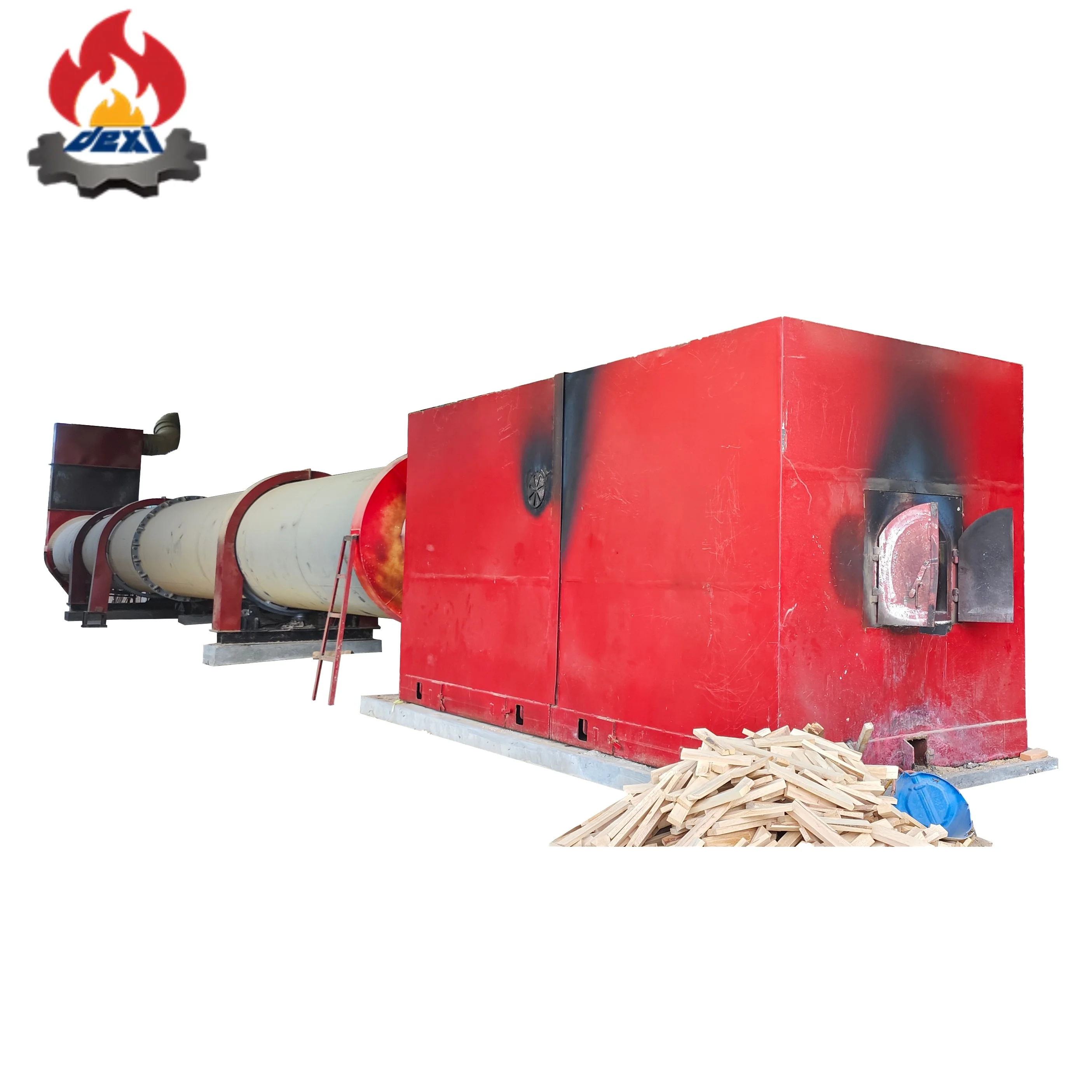

1、GHG dryer with heating furnace, feed port, rotating drum/ cyclic nodes, delivery pipe,dust collector and discharge port.
2、Wet material is continuously sent to the drum tube by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating drum / cyclic nodes.
3、The dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc.
2、Wet material is continuously sent to the drum tube by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating drum / cyclic nodes.
3、The dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc.
Product specifications & Machine parameters
Applicable to:

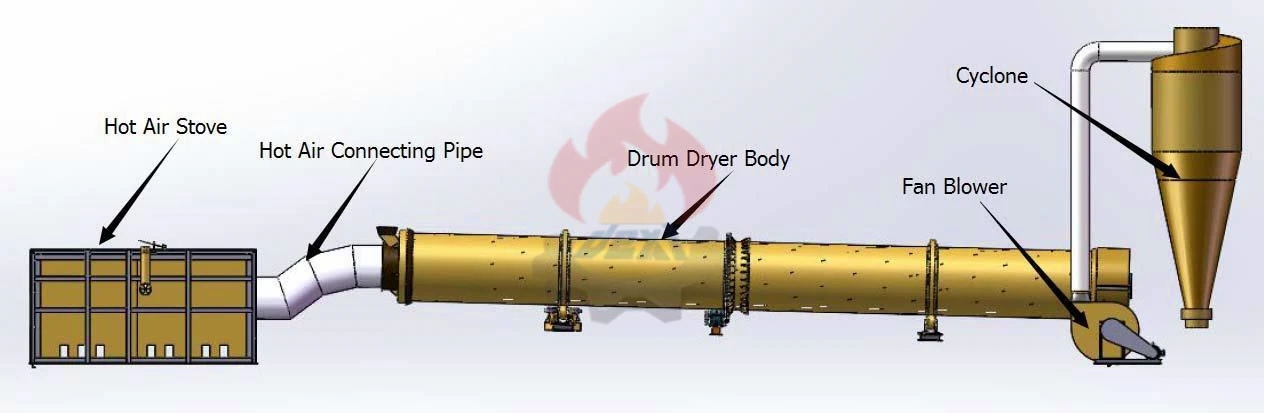

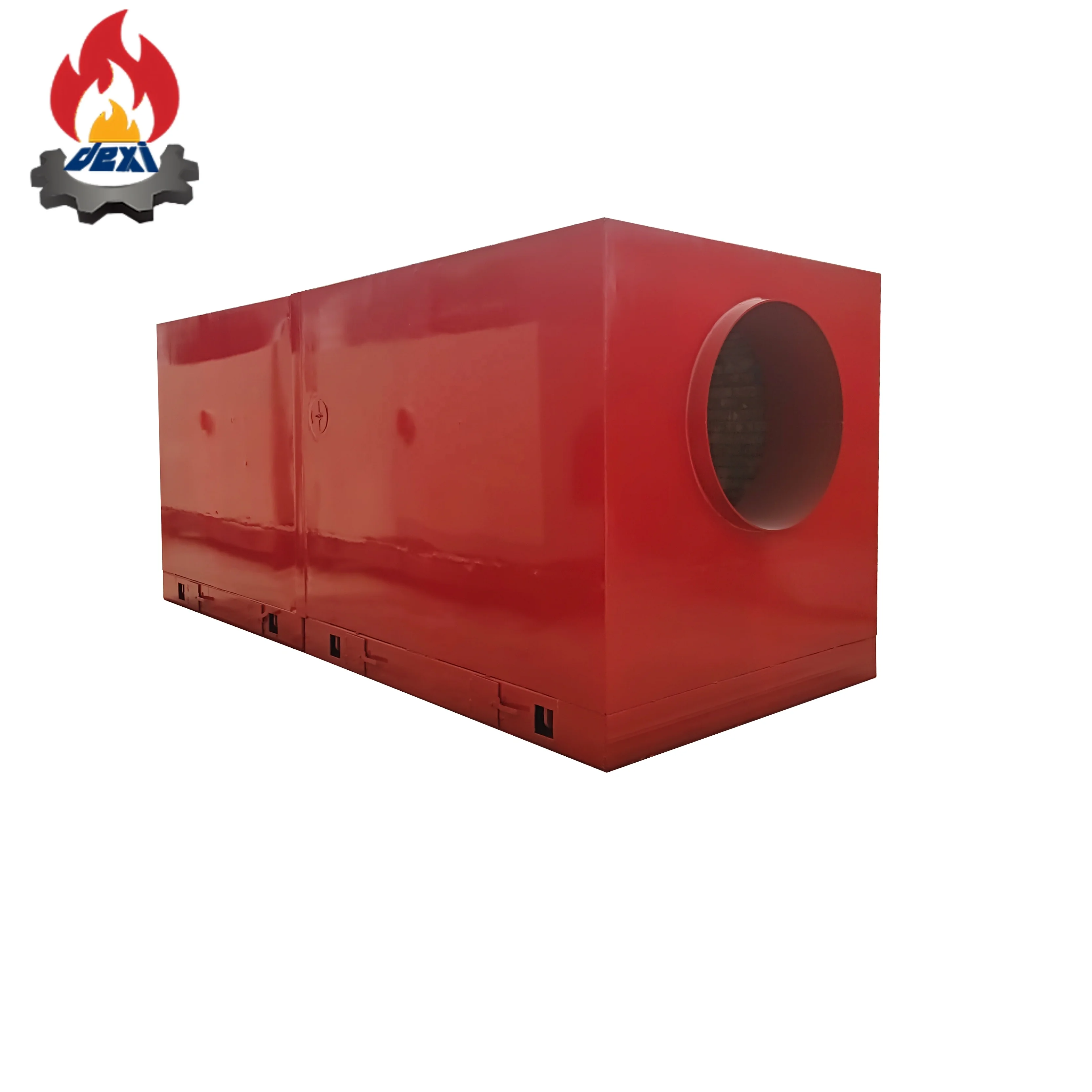

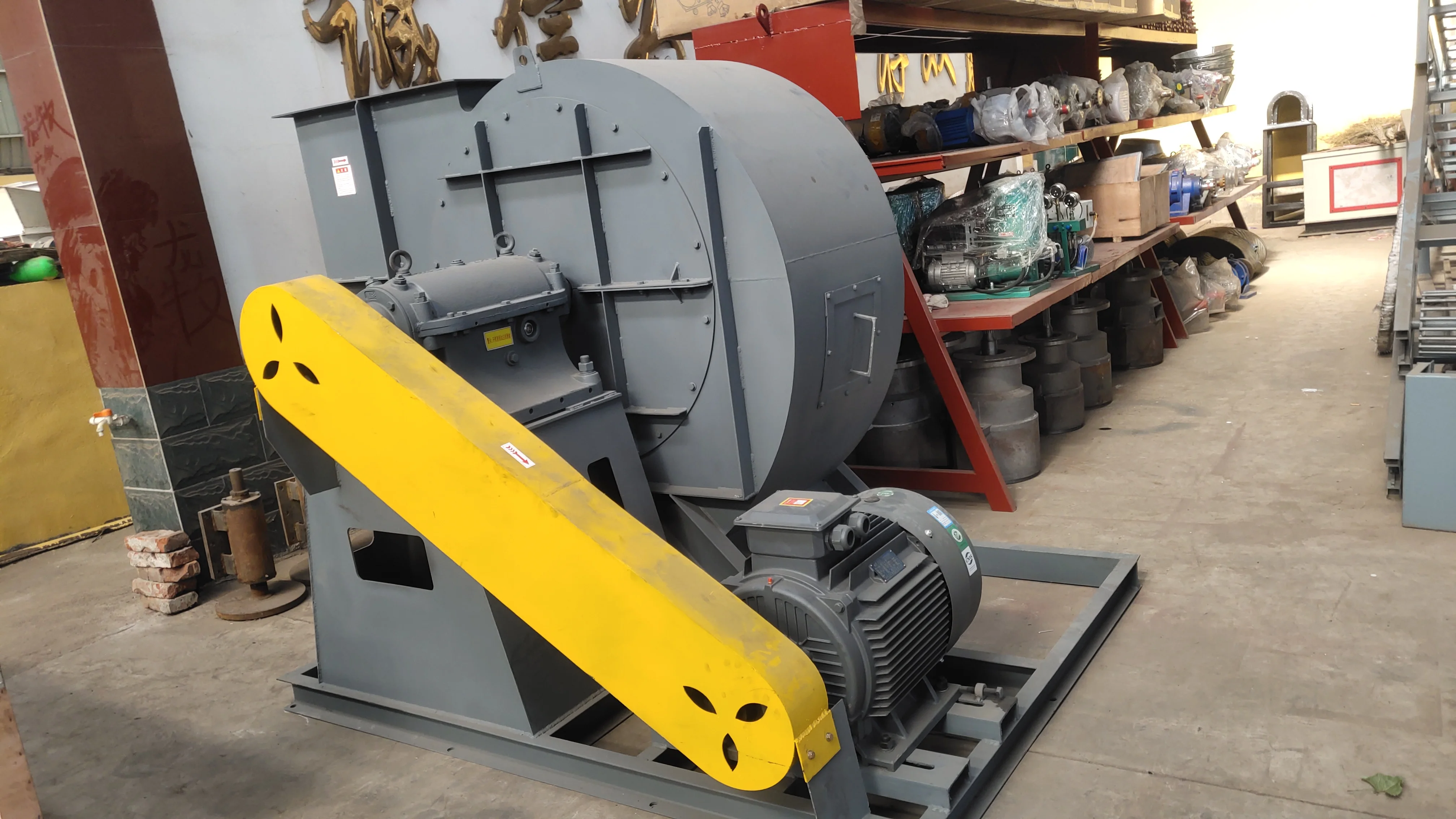

The rotary dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%.
Size Chart of This Design:
Model | Powel (kw) | Evaporation (kgs/h) | Fan blower (KW) | Drum diameter (M) | Length of drum (M) |
GHG1.0x8x1 | 5.5 | 150-250 | 5.5 | 1.0 | 12 |
GHG1.0x12x1 | 5.5 | 180-280 | 5.5 | 1.0 | 12 |
GHG1.2x12x1 | 5.5 | 200-400 | 5.5 | 1.2 | 12 |
GHG1.4x12x1 | 7.5 | 300-500 | 11 | 1.4 | 12 |
GHG1.5x12x1 | 11 | 500-700 | 15 | 1.5 | 12 |
GHG1.5x18x1 | 11 | 600-800 | 15 | 1.5 | 18 |
GHG1.6x12x1 | 11 | 700-900 | 18.5 | 1.6 | 12 |
GHG1.6x18x1 | 11 | 800-1200 | 18.5 | 1.6 | 18 |
GHG1.8x15x1 | 15 | 1000-1500 | 22 | 1.8 | 15 |
GHG1.8x24x1 | 15 | 1200-1800 | 22 | 1.8 | 24 |
GHG2.0x18x1 | 15 | 1600-2500 | 22 | 2.0 | 18 |
GHG2.0x24x1 | 18.5 | 1800-3000 | 22 | 2.0 | 24 |
GHG2.2x18x1 | 18.5 | 1800-3000 | 22 | 2.2 | 18 |
GHG2.2x24x1 | 18.5 | 2000-3200 | 30 | 2.2 | 24 |
GHG25x20x1 | 22 | 2200-3500 | 37 | 2.5 | 20 |
GHG2.5x24x1 | 22 | 2500-3800 | 37 | 2.5 | 24 |
GHG2.8x20x1 | 22 | 2600-4000 | 55 | 2.8 | 20 |
GHG2.8x24x1 | 22 | 2800-4200 | 55 | 2.8 | 24 |
GHG3.0x20x1 | 30 | 3000-4200 | 30+30 | 3.0 | 20 |
GHG3.0x28x1 | 30 | 3500-5000 | 30+30 | 3.0 | 28 |
GHG3.5x24x1 | 37 | 4500-6000 | 55+55 | 3.5 | 24 |
GHG3.5x28x1 | 37 | 5000-6500 | 55+55 | 3.5 | 28 |
GHG2.5x12x3 | 18.5 | 1800-2500 | 75 | 2.5 | 12 |
GHG2.8x12x3 | 22 | 2200-3000 | 75 | 2.8 | 12 |
GHG3.0x12x3 | 30 | 2500-4000 | 75 | 3.0 | 12 |
GHG3.5x12x3 | 30 | 3500-5000 | 110 | 3.5 | 12 |

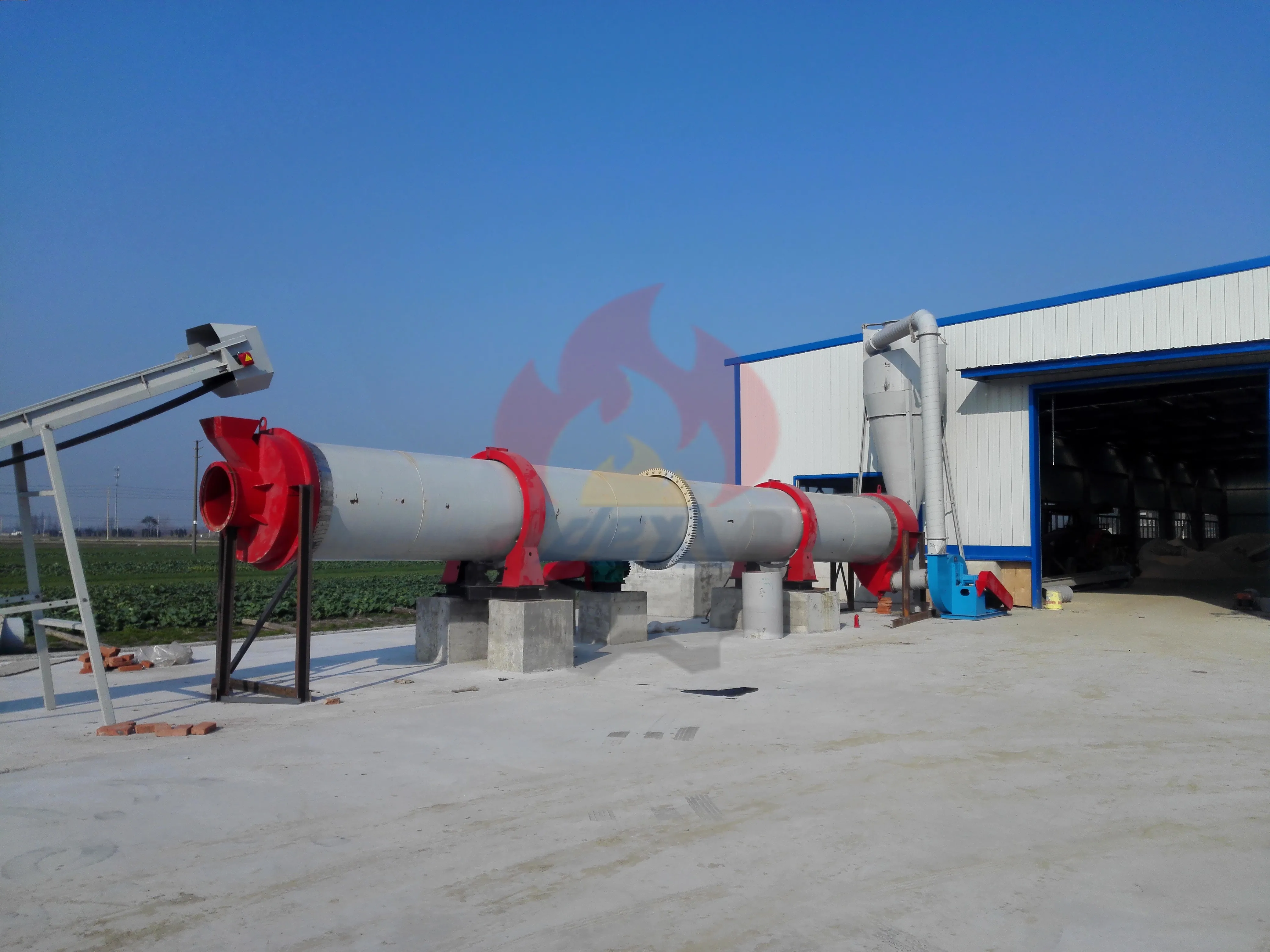

Product Pictures & Working video
Product features & Machine structure

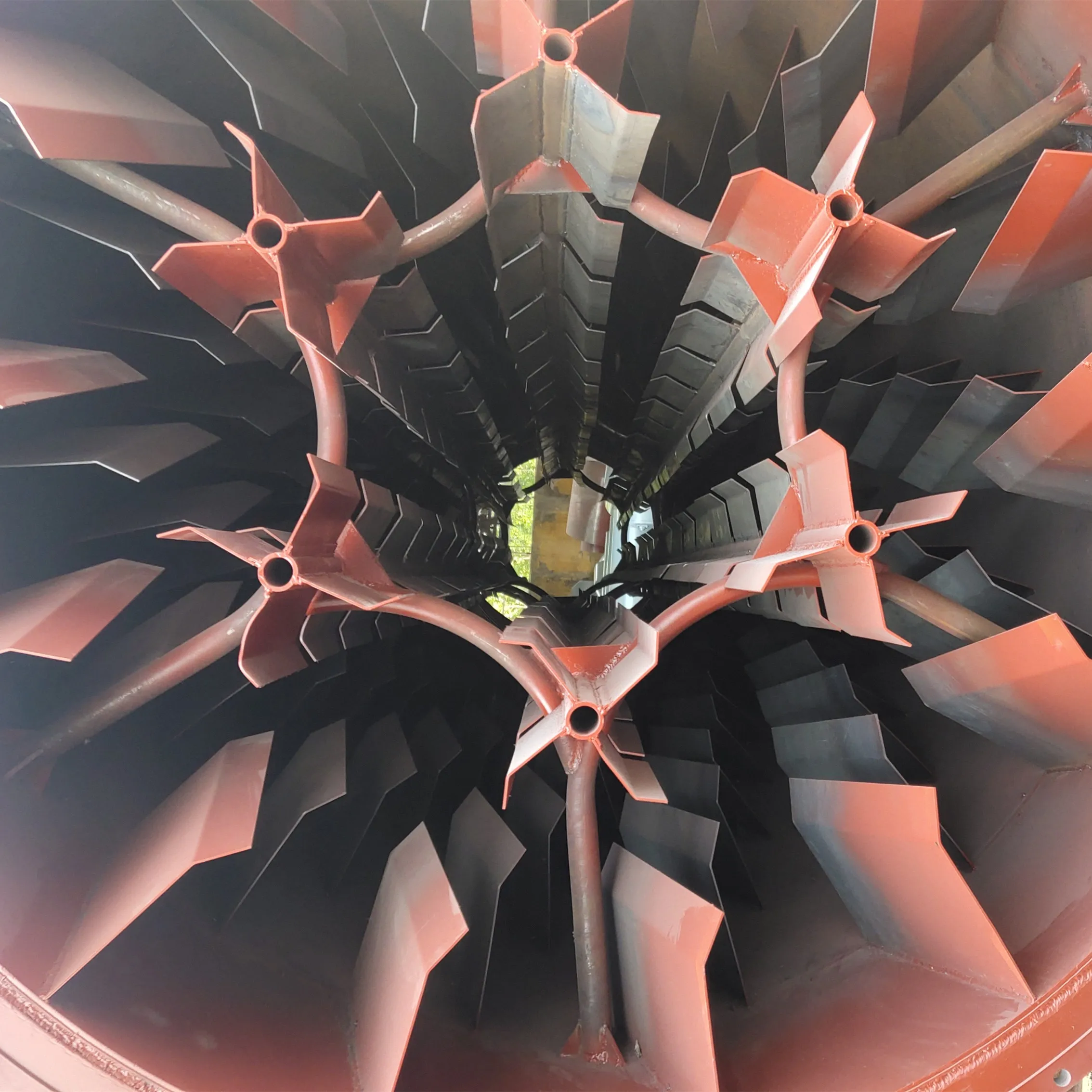

Add 6 lifting plates

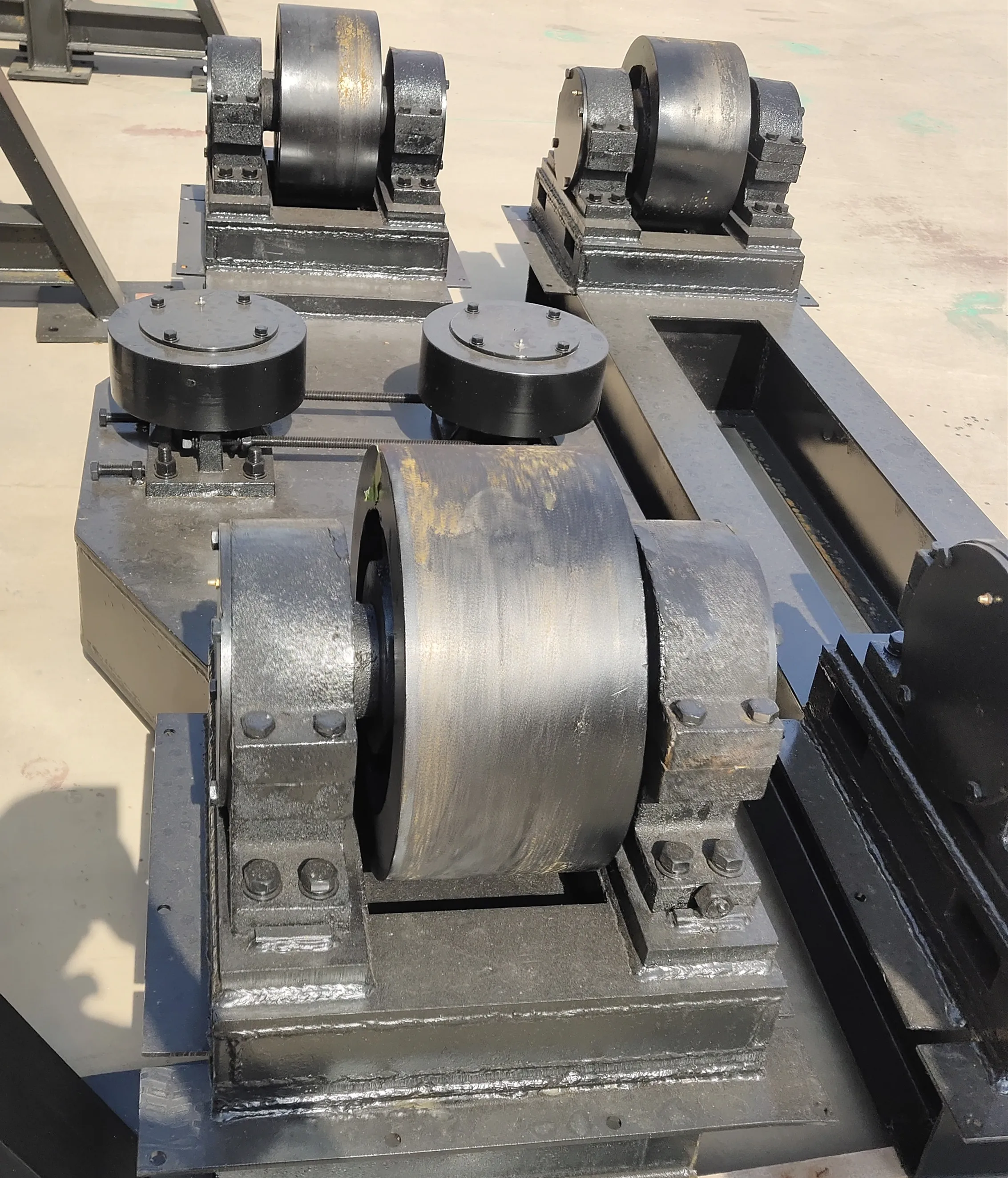

Fixed dryer drum wheel
Feducer for doffer
Product Advantages

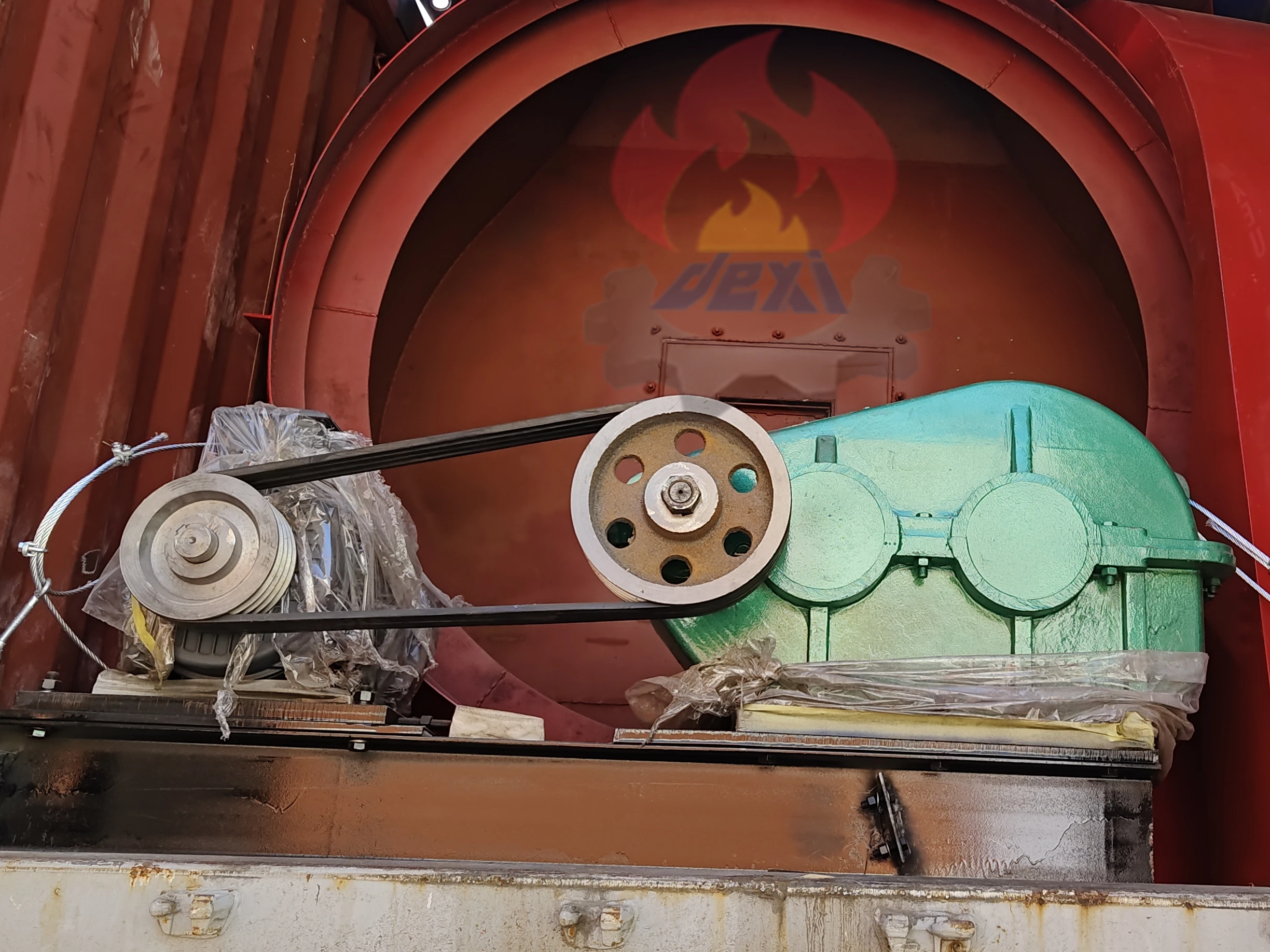

2.The driving device drivers drying body rotating through the ring gear.
Product Advantages
1.The drying body is composed of cylinder body, ring gear and rolling ring.
2.The drying body is on the tug rolling device and block rolling device supported by front and back rolling ring.
Product Advantages
2.The drivinghas two forms.left driving and right driving. Method of distinction: look at from the direction.
Product Advantages

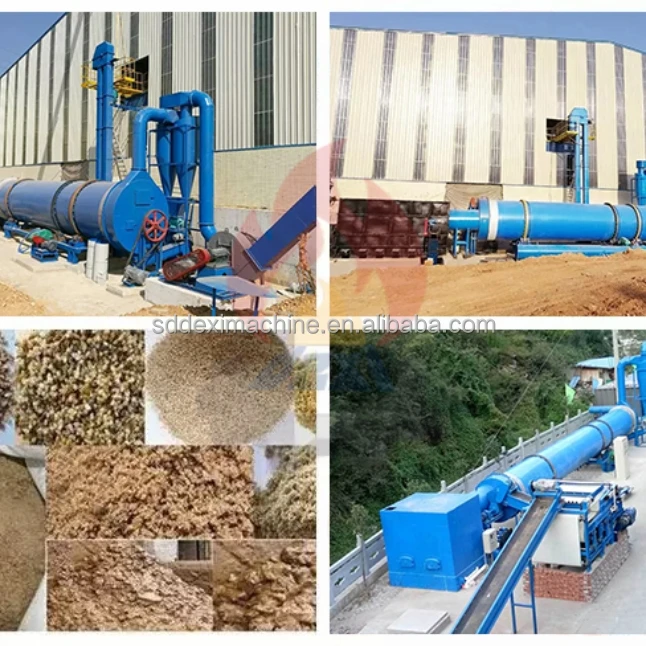

1.GHG dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc.
2.The applicable materials are wood powder, wood shavings, sawdust,wood chips, straws,grass,etc
Raw Material
1.Drum rotary dryer is also widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc.
2.The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)

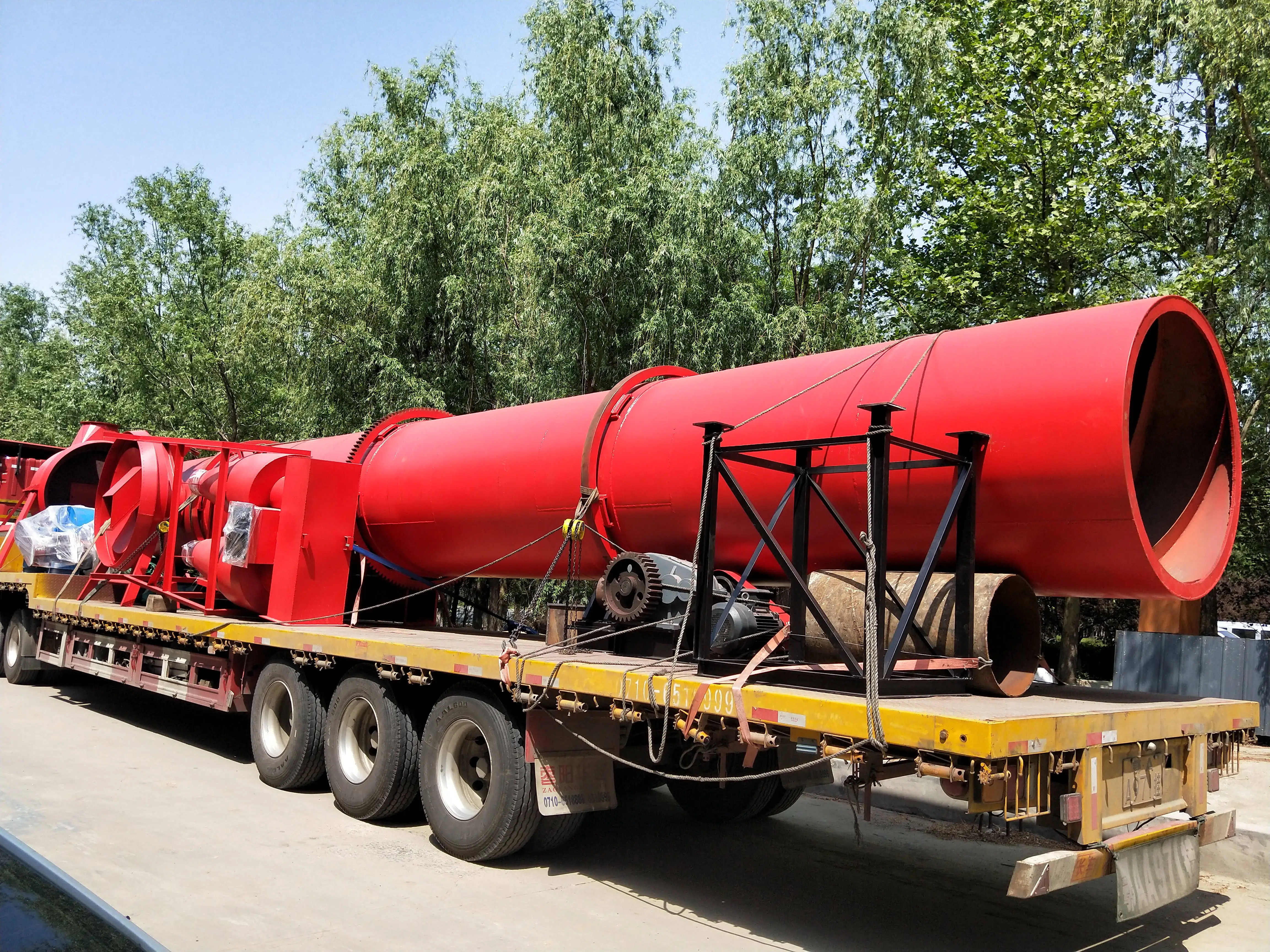

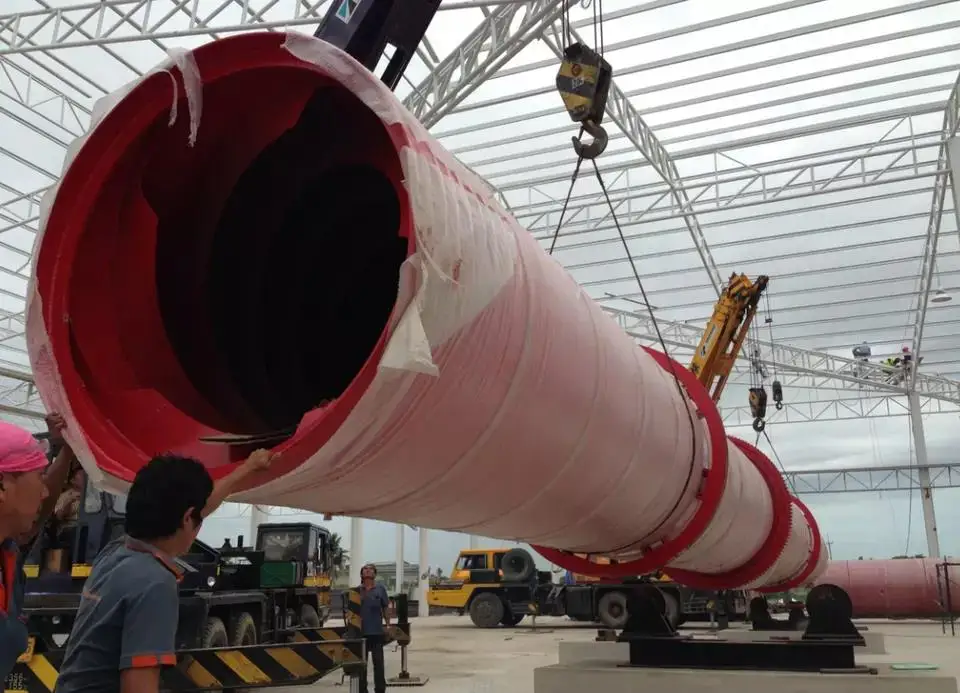

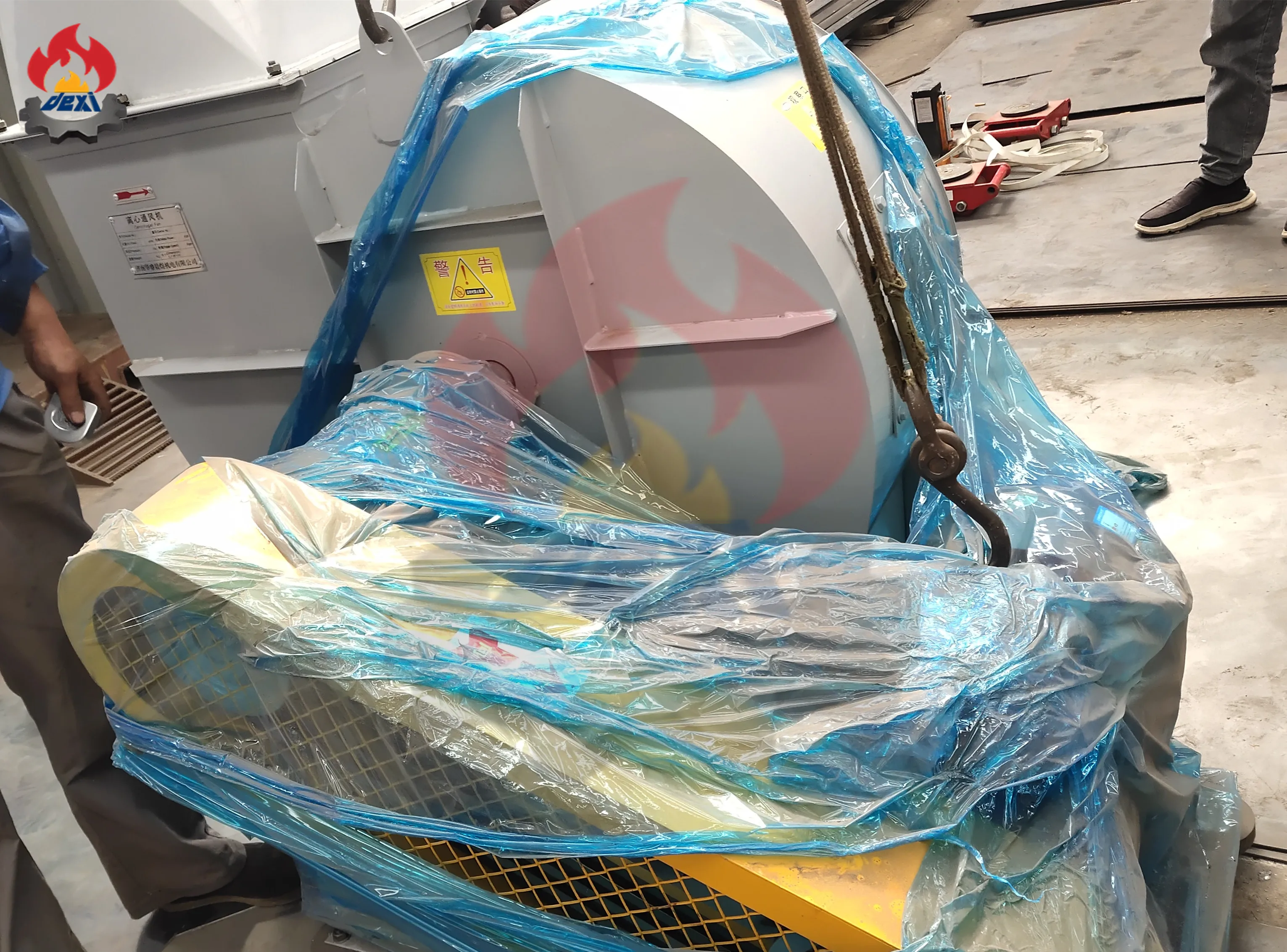

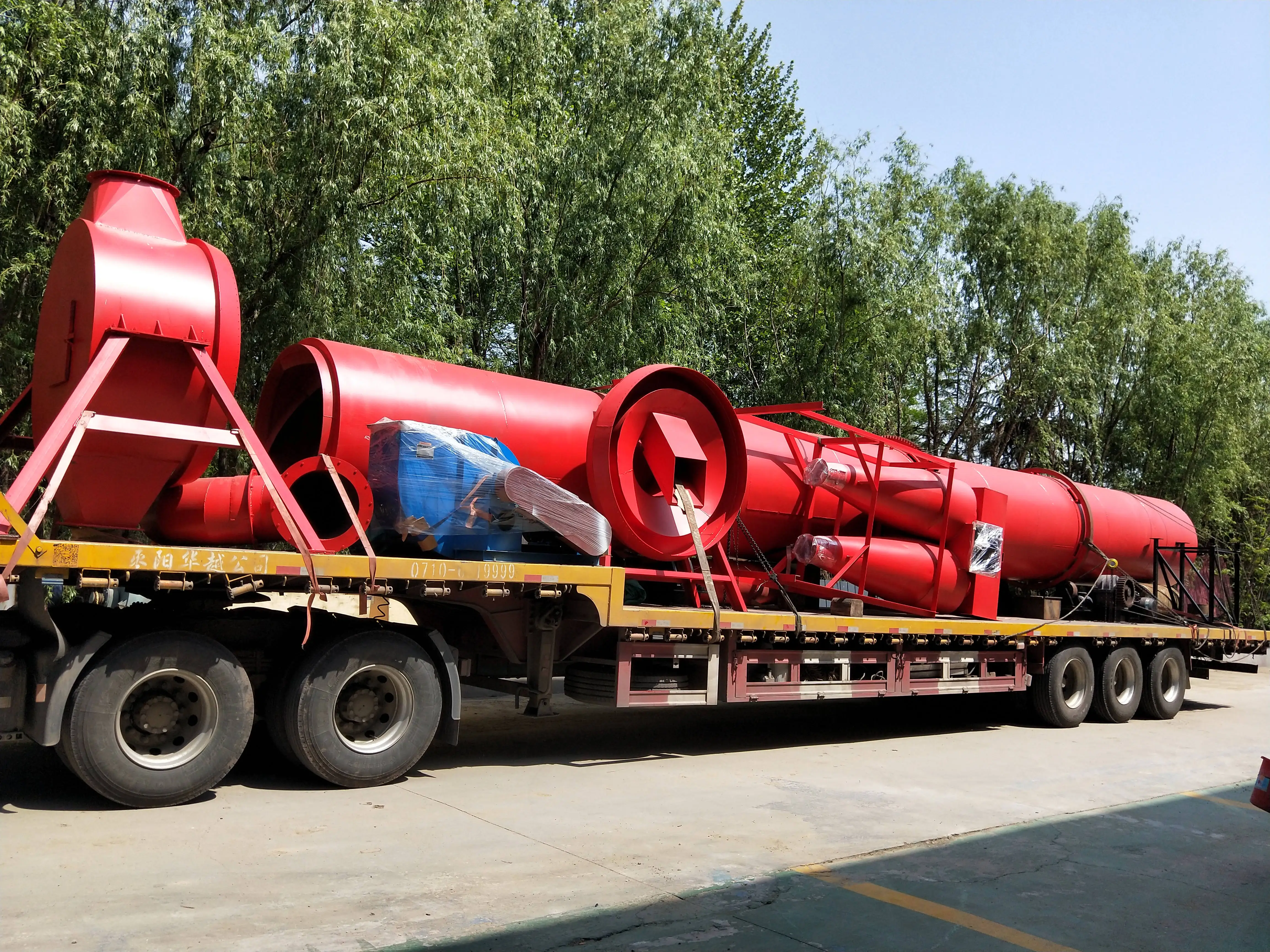

Packing Delivery & Transport
1.The drying body is composed of cylinder body, ring gear and rolling ring. The drying body is on the tug rolling device and block rolling device supported by front and back rolling ring.
2.It can control axial direction traversing of drying body by adjusting tug rolling device and block rolling device. The driving device drives drying body rotating through the ring gear.
3.Electric motor (frequent) as the power can achieve stepless speed adjusting and meet the demand of different rotating speed.
Related Products
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Company Profile & Certifications & Personal contact information

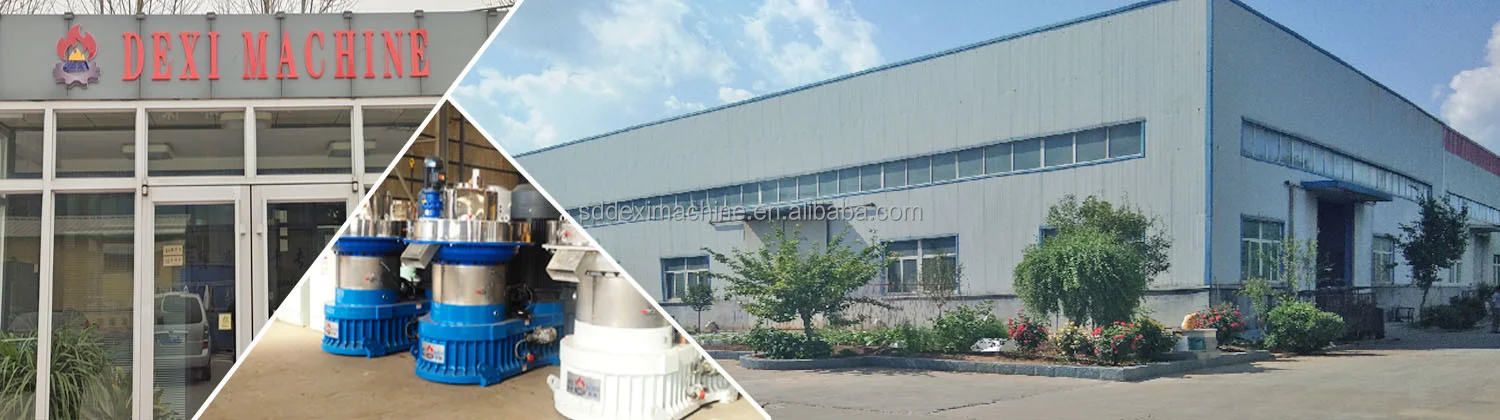

Shandong Dexi Machine Co., LTD
