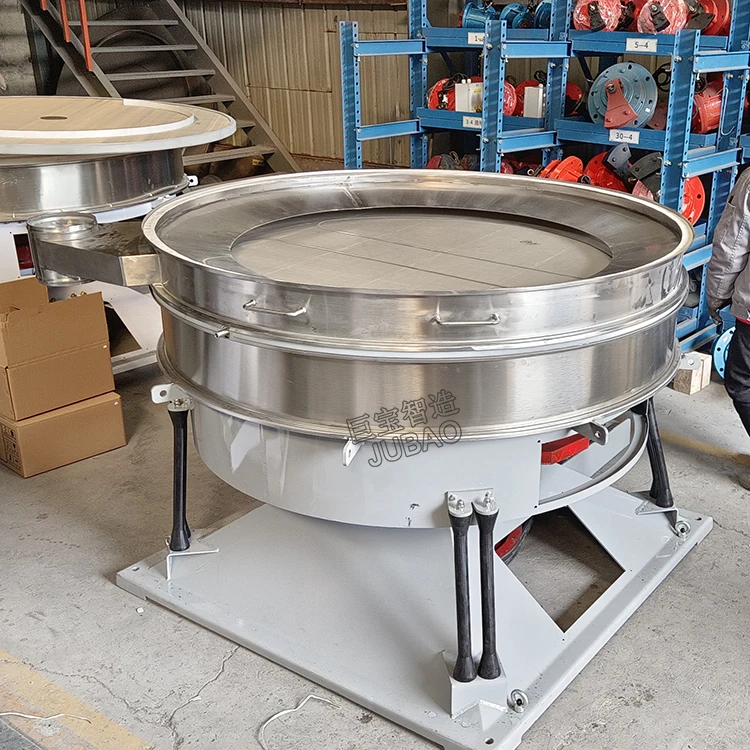

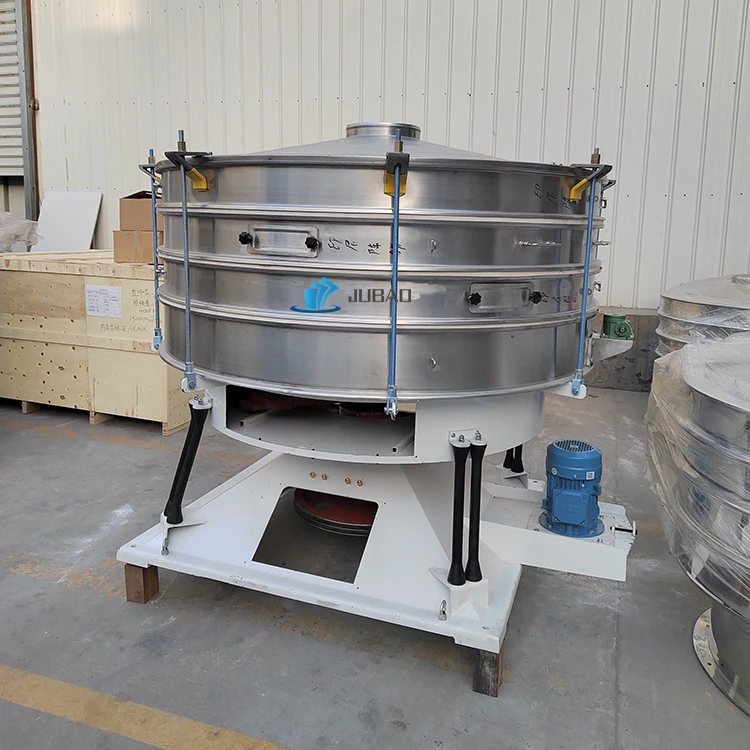

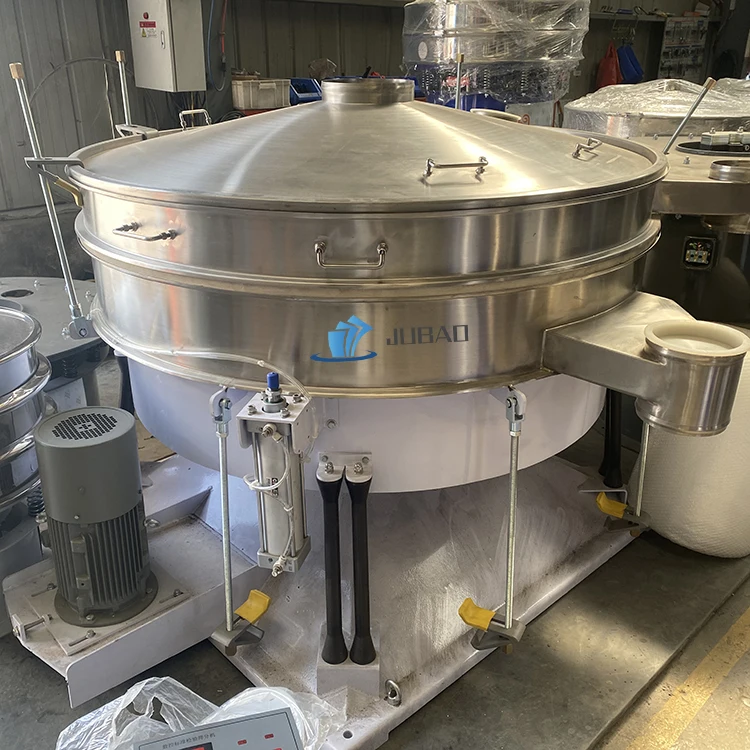

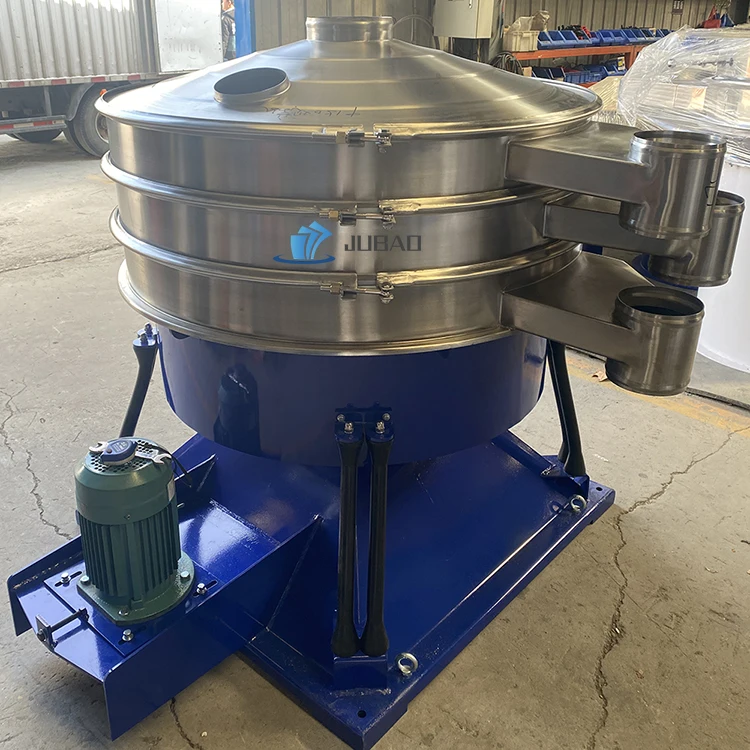

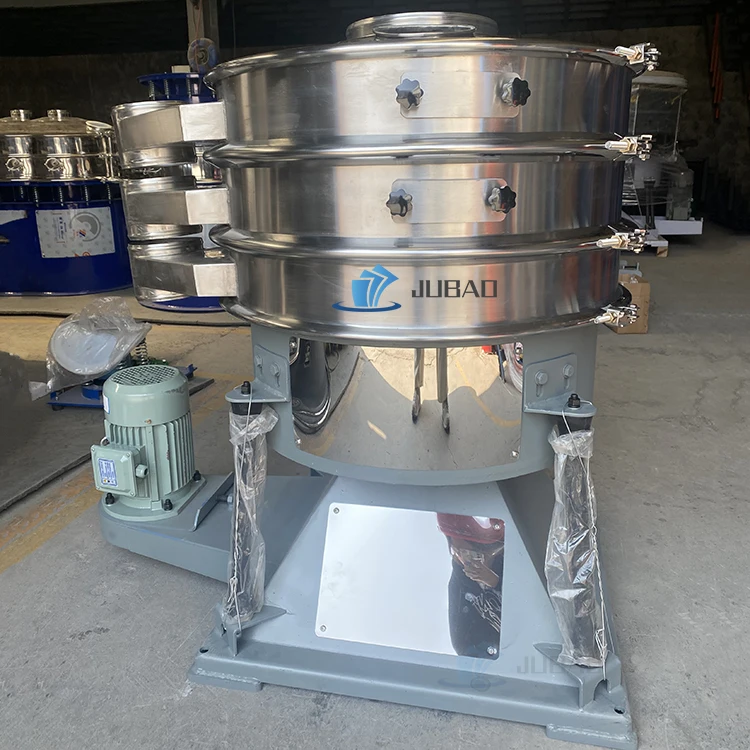

Rubber particle screening vibration equipment manufacturer all 304 material swinging screen machine
- Category: >>>
- Supplier: Xinxiang Jubao Intelligent Manufacturing Co. Ltd.
Share on (1601206100322):
Product Overview
Description
Products Description
Electric tumbler screen rice tumbler
sieve industrial swing sieve for granules
Electric tumbler screen is a kind of high-precision fine sieve separator, also called circular swinging screen, designed with advanced technology to bring more efficiency and accuracy in the screening process. It is widely used in mass production and for precision screening of materials from 6~60T/H with 1~5 layers. This Electric tumbler screen features fully automatic operation, allowing for fast and efficient screening with accuracy. With the combination of high performance and long-term durability, it ensures the highest throughput rate with minimum maintenance cost. It is the perfect choice for mass production and precision screening.
Working Principle
The Electric tumbler screen is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly. The sieve is ususlly installed horizontally or with tiny angle. The principle is:when you start the machine, the vibrating part ---the screen box takes circling motion under the influence of the vibrating force.The screen box drive the sieve to take circling motion periodicity,so the material on screen surface take bounce motion, meanwhile, the material less than the aperture drop to the next deck,and the oversize are discharged by the outlet.Finally ,the screening work is completed.
Model | Diameter（mm） | Screen area(m) | Leaning angle of screen(degree) | Layer | Power(kw) | |||||
YS-1000 | 1000 | 0.66 | 0-10 | 1-5 | 1.5 | |||||
YS-1200 | 1200 | 0.98 | 0-10 | 1-5 | 2.2 | |||||
YS-1600 | 1600 | 1.81 | 0-10 | 1-5 | 4 | |||||
YS-2000 | 2000 | 2.8 | 0-10 | 1-5 | 4 | |||||
YS-2400 | 2400 | 4.15 | 0-10 | 1-5 | 5.5 | |||||
YS-2600 | 2600 | 5.31 | 0-10 | 1-5 | 5.5 | |||||
Machine can be customized based on your need | ||||||||||

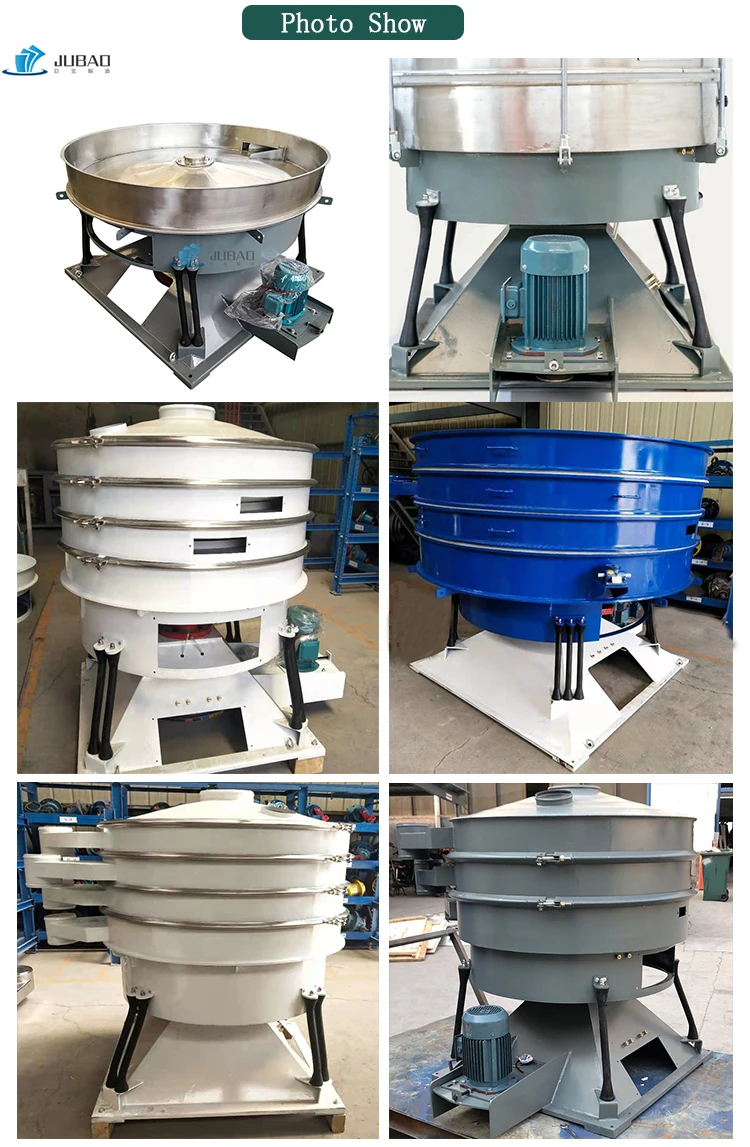

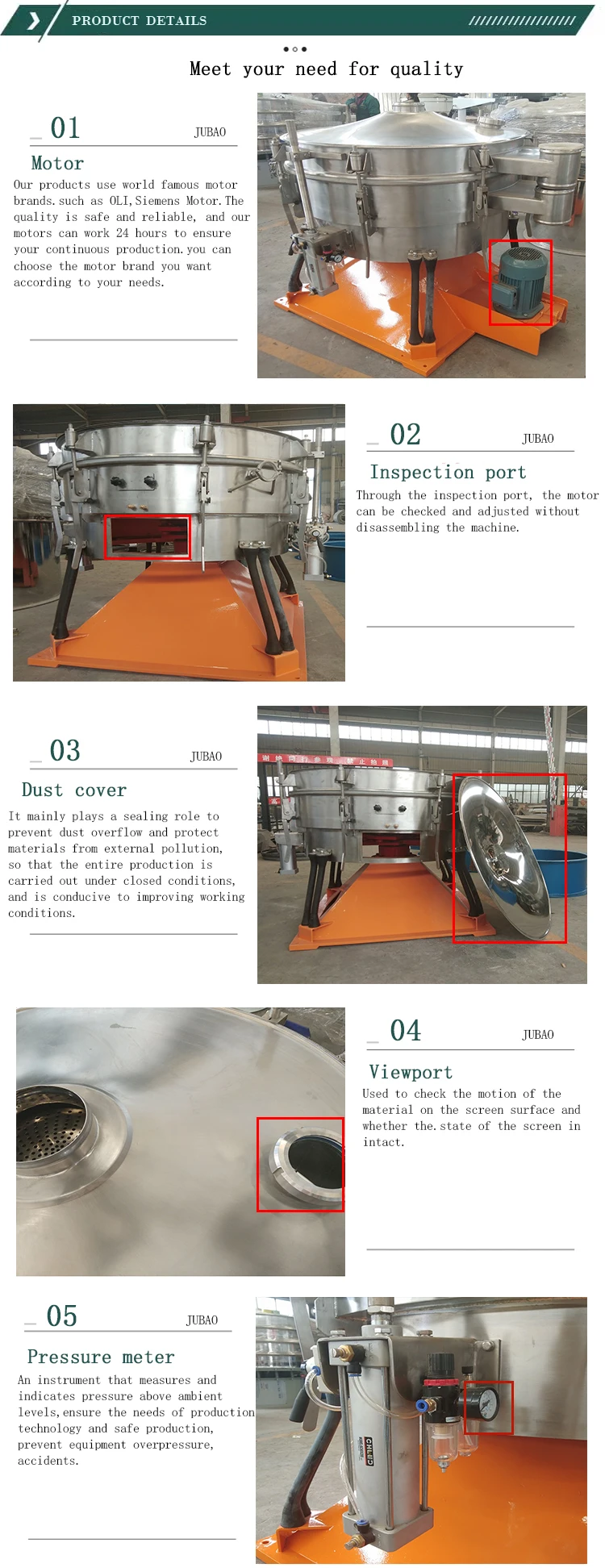

Detail display
Application

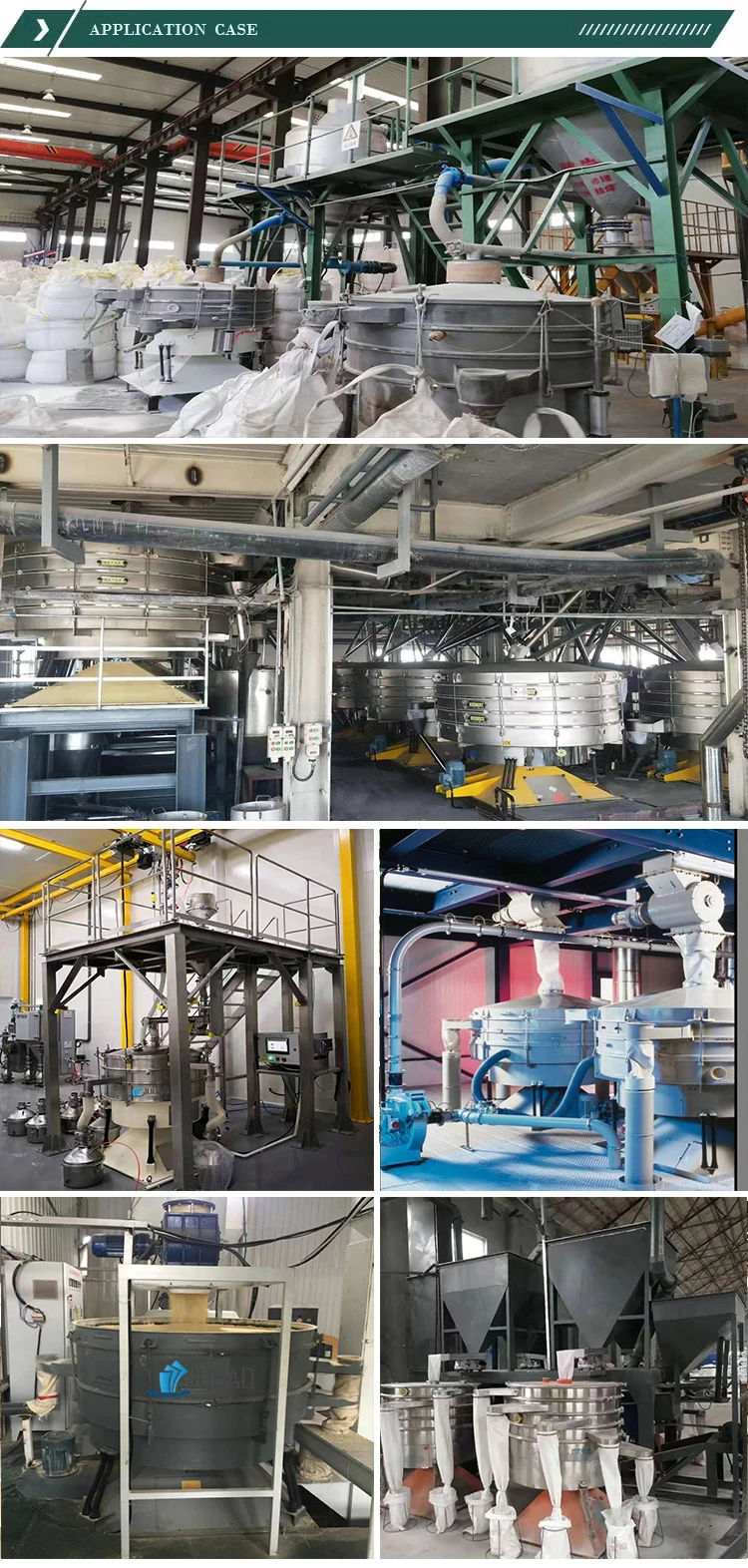

* The figure above shows some customer applications of our Tumbler Sieve Separator Machine .Our products are widely used in various industries, suitable for spherical, cylindrical, sheet, and even irregular shape easily blocked mesh and need precision screening materials.If you want to know more about product application, or consult smart powder solutions, please contact us.
Company Profile
Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co., Ltd. has become a leading enterprise in screening industry after over 10 years’fast developmentEvery year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers around the world,such as the United States, the United Kingdom, Germany, Russia, Greece, Singapore and other countries and regions.
Our equipment is widely used in chemical, abrasive, ceramics, ceramics, paper making, mining, paint, metallurgy, geology, national defense, electronics and other industries. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao, Jubao intelligent manufacturing -your excellent option for sieving,dust-free conveying and intelligent integrated.
* Contact us for a free video tour of our factory.
Service and Ordering
Our service
1. 24 hours online chat
2. Customization Acceptable
3. CE & ISO9001 Certification
4. Complete sales & Service system
5. Fast delivery ,Strictly check
6. 12 months warranty
