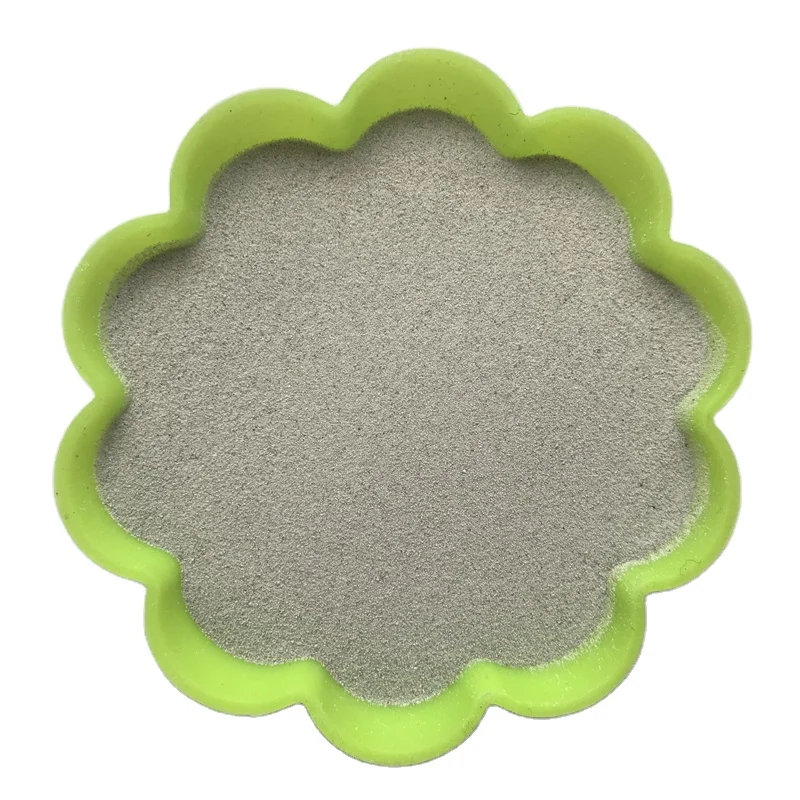

20 40mesh Hollow glass microspheres Cenosphere for Refractory paints
- Category: >>>
- Supplier: Shijiazhuang Cairui building materials Co. Ltd
Share on (1601206175141):
Product Overview
Description
20-40mesh Hollow glass microspheres Cenosphere for Refractory paints
The advantages of our Ceramic Hollow Microspheres
· High refractoriness of Ceramic Hollow Microspheres: 1610 degree min.
· Light weight, Low thermal conductivity, excellent thermal insulation.
· Excellent electrical insulation
· Small grain size
· Hardness, and high strength: 6-7 Moh’s hardness
· High refractoriness of Ceramic Hollow Microspheres: 1610 degree min.
· Light weight, Low thermal conductivity, excellent thermal insulation.
· Excellent electrical insulation
· Small grain size
· Hardness, and high strength: 6-7 Moh’s hardness
Cenosphere
Censopsheres a lightweight non-metallic multifunctional powder material. It has a diameter of 50-850 microns and its main
component is composed of silicon dioxide (SiO2) and aluminum oxide (Al2O3). Its appearance is grayish white or gray, loose and
good in fluidity. Under the microscope is a transparent silver-white spherical body, hollow, with a hard outer shell, a small amount of inert gas of N2 or CO2 inside the ball! It has fine particles, hollow, light weight, high strength, wear resistance, high temperature resistance,thermal insulation, Insulation and flame retardant and other functions, widely used in oil cementing, engineering plastics, paint coatings, insulation risers, etc.
component is composed of silicon dioxide (SiO2) and aluminum oxide (Al2O3). Its appearance is grayish white or gray, loose and
good in fluidity. Under the microscope is a transparent silver-white spherical body, hollow, with a hard outer shell, a small amount of inert gas of N2 or CO2 inside the ball! It has fine particles, hollow, light weight, high strength, wear resistance, high temperature resistance,thermal insulation, Insulation and flame retardant and other functions, widely used in oil cementing, engineering plastics, paint coatings, insulation risers, etc.
Specification
Cenosphere Benefits
Improves strength, durability, reduces weight.
Provide Buoyancy, better insulation, less
Spherical shape reduces resistance to impact, provides stability.
Cenospheres are completely renewable
Provide Buoyancy, better insulation, less
shrinkage.
Spherical shape reduces resistance to impact, provides stability.
Cenospheres are completely renewable
1) High refractoriness
2) Qualitative light
3) High hardness and high strength
4) Insulated non-conductive
5) Particle size and large specific surface area
2) Qualitative light
3) High hardness and high strength
4) Insulated non-conductive
5) Particle size and large specific surface area
function of Cenosphere powder
Low Density: Density ranging from 0.50 g/cm3 to 0.80 g/cm3. Compared to most ground minerals and other resins,Cenospheres are 30-85% lighter.
Low resin demand/High loading potential: spheres have the lowest surface area to volume achievable with their spherical shape,cenospheres produce less viscosity.
High Compressive Strength: Cenospheres can greatly improve the weariness properties of the end products.
Low Shrinkage: Cenospheres are one of the few products in the filler industry today that can meet the the requirements for low shrinkage.
Low Thermal,Electrical and sound Conductivity: Cenospheres are extremely resistant to heat and typically have a melting point in excess of 13000c.
As cenospheres are hollow they have a relatively low co-efficient of thermal conductivity,typically 0.09w/mu
Inertness: Cenospheres can be utilized in solvents,organic chemicals water,acids and alkalies while maintaining their integrity.
Thermal stability: As cenospheres are formed in the boilers ,they are thermally stable in temperature exceeding 10000C
Insulation: Cenospheres can be used in electric filling and sealing materials ,instruments boards, switches etc.
Cost effectiveness : Cenospheres are 50-200% less expensive than man made hollow glass speheres,in comparison to less expensive fillers.
Low resin demand/High loading potential: spheres have the lowest surface area to volume achievable with their spherical shape,cenospheres produce less viscosity.
High Compressive Strength: Cenospheres can greatly improve the weariness properties of the end products.
Low Shrinkage: Cenospheres are one of the few products in the filler industry today that can meet the the requirements for low shrinkage.
Low Thermal,Electrical and sound Conductivity: Cenospheres are extremely resistant to heat and typically have a melting point in excess of 13000c.
As cenospheres are hollow they have a relatively low co-efficient of thermal conductivity,typically 0.09w/mu
Inertness: Cenospheres can be utilized in solvents,organic chemicals water,acids and alkalies while maintaining their integrity.
Thermal stability: As cenospheres are formed in the boilers ,they are thermally stable in temperature exceeding 10000C
Insulation: Cenospheres can be used in electric filling and sealing materials ,instruments boards, switches etc.
Cost effectiveness : Cenospheres are 50-200% less expensive than man made hollow glass speheres,in comparison to less expensive fillers.
Specification | T20 | T25 | T32 | T40 | T46 | T60 | ||
Appearance | White powder | White powder | White powder | White powder | White powder | White powder | ||
Ture density | 0.20g/cm3 | 0.25g/cm3 | 0.32g/cm3 | 0.40g/cm3 | 0.46g/cm3 | 0.60g/cm3 | ||
FRA | 10 th% | 32 | 30 | 30 | 20 | 22 | 18 | |
50 th% | 68 | 65 | 56 | 45 | 45 | 40 | ||
90 th% | 106 | 100 | 74 | 70 | 65 | 60 | ||
Crush Strength psi/Mpa | 550/4 | 750/5 | 2000/14 | 4000/28 | 6000/41 | 10000/69 | ||
Melting point | 625℃ | 625℃ | 625℃ | 625℃ | 625℃ | 625℃ | ||

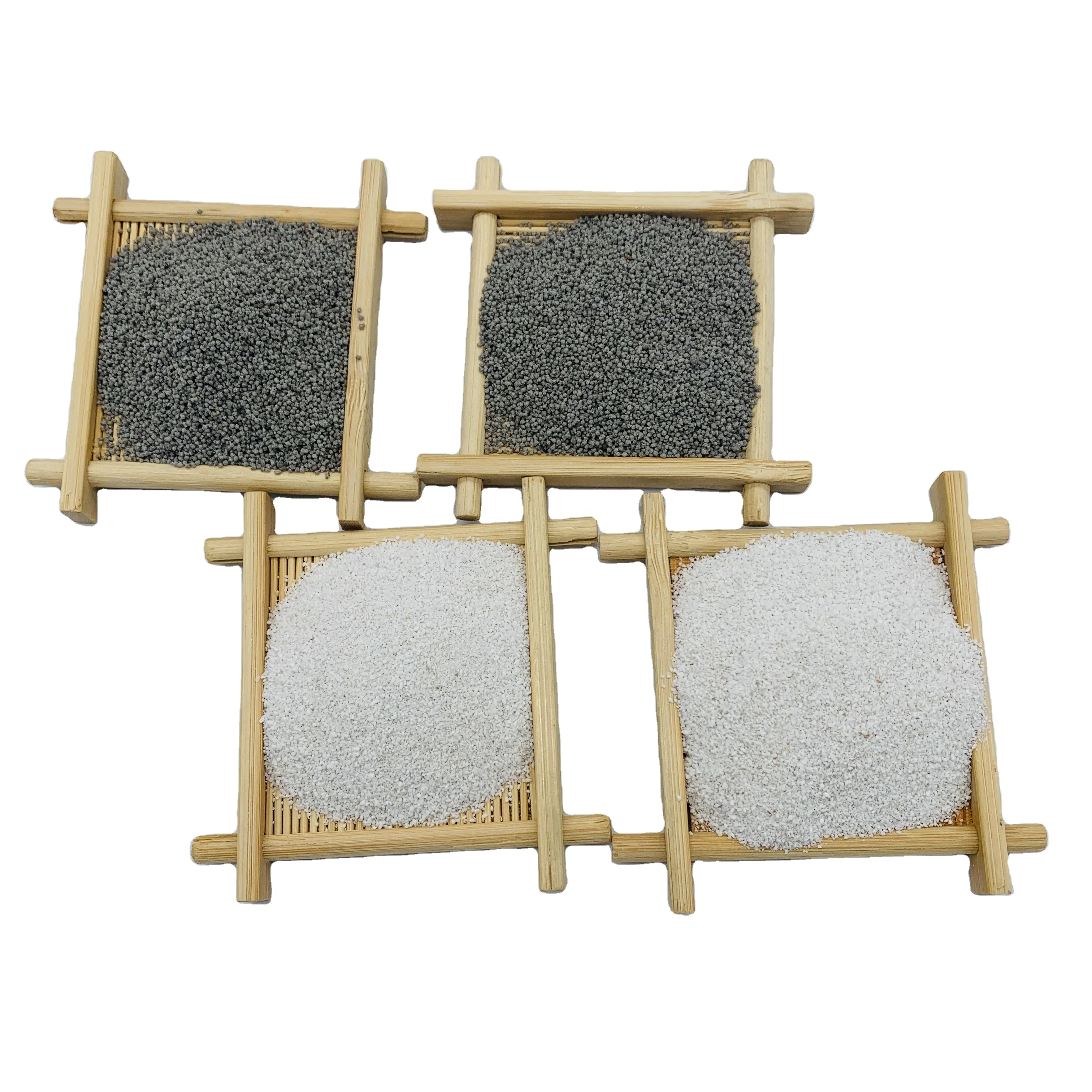

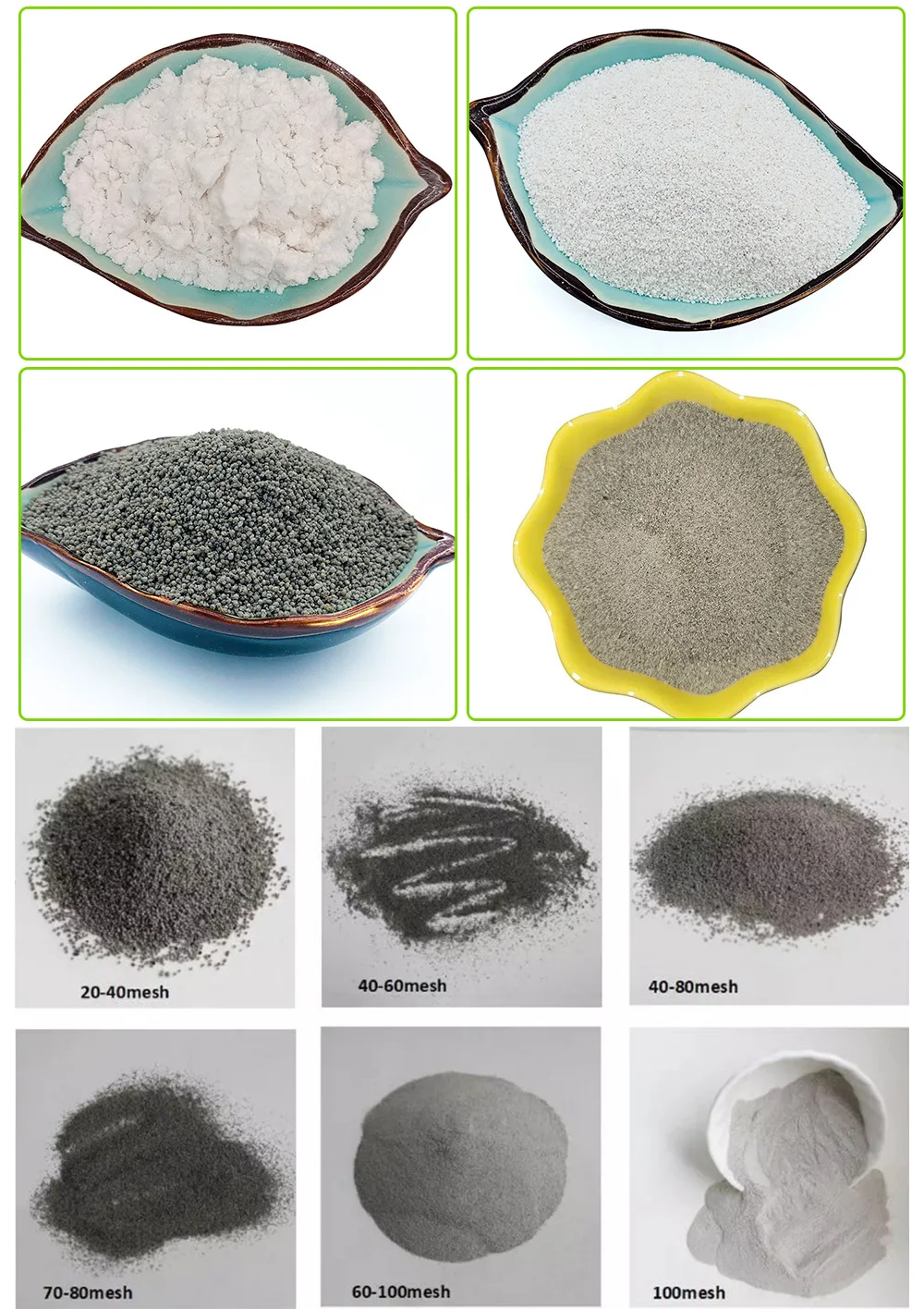

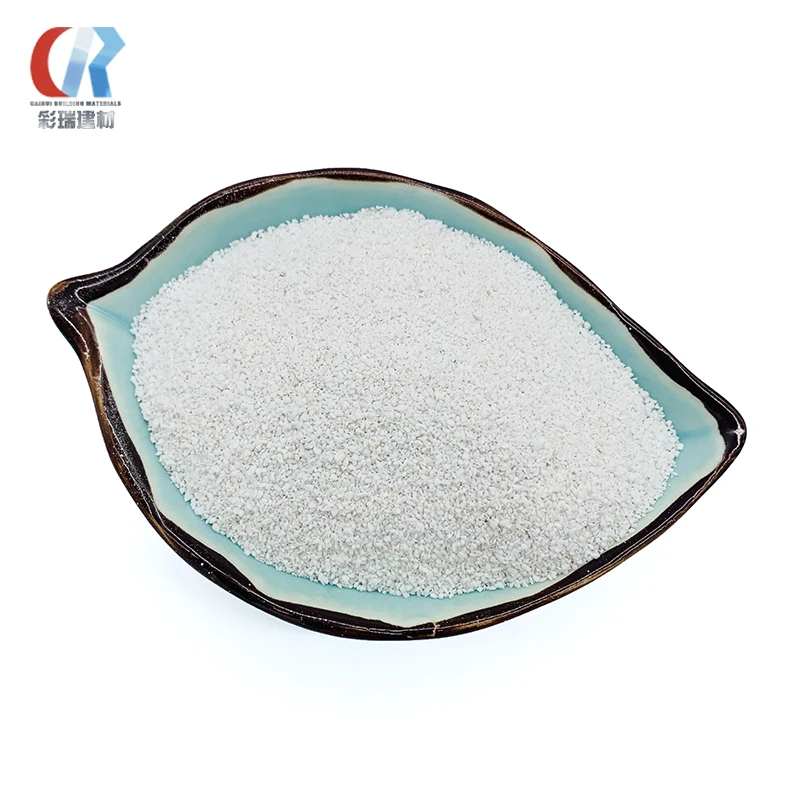

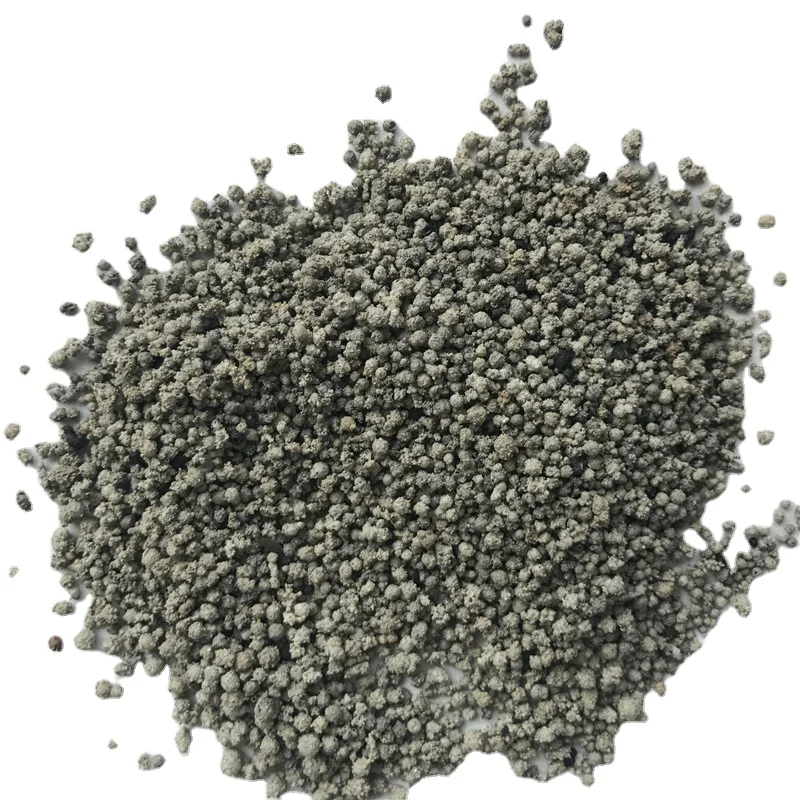

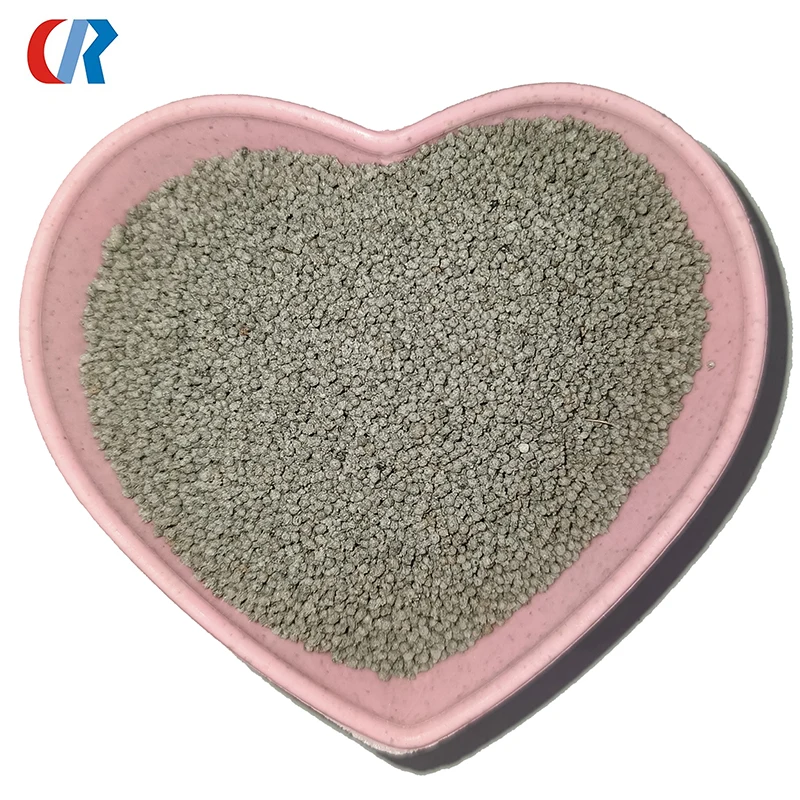

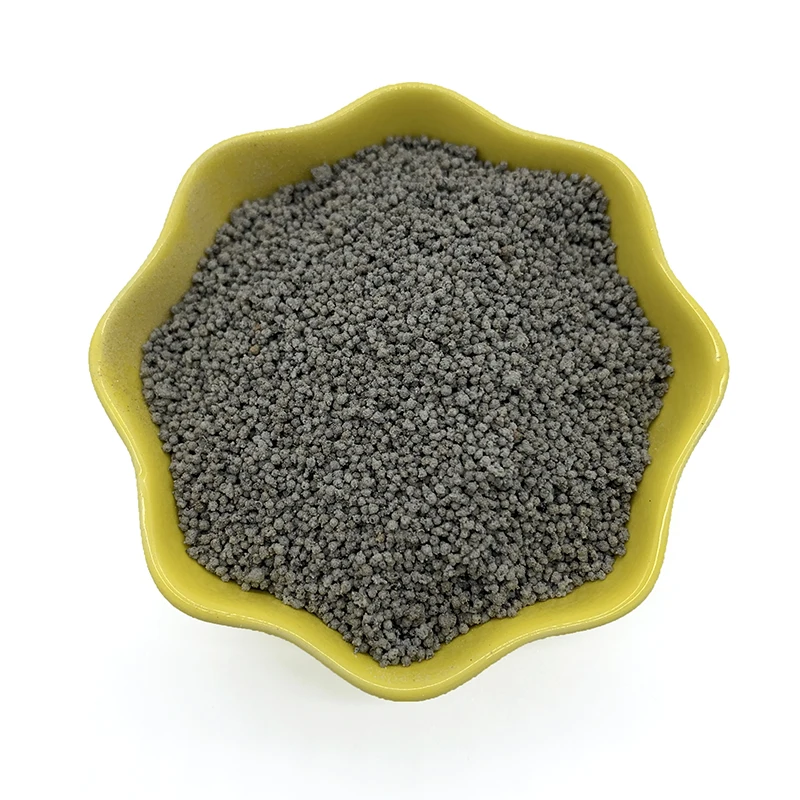

Product display
Application
Applications | Auto mobiles | 1.Fabrication of composite polymeric putties. | ||||||||||
Oil Field | 1. Cenospheres are used in oil drilling to decrease the slurry density without increasing the water content 2. Which provides good compressive strength to cement | |||||||||||
Plastic | 1. Cenospheres are an excellent lightweight filler for plastics and continue to grow in popularity and use. 2. Not only do they reduce the cost of the composite but Cenospheres often impart performance improvements that might otherwise not have been achieved. 3. It is used in all types of Moulding, Nylon,Low Density Polyethylene and Polypropylene. | |||||||||||
Paint&Coating | Cenospheres are special additives that both chemists and formulators in the paints and coatings industry are using to enhance their products. A sphere has the lowest surface area of any shape. As a result, the hollow ceramic microspheres reduces resin demand and increase volume loading capacity. | |||||||||||
Ceramic | Refractories, Tiles, Fire bricks | |||||||||||

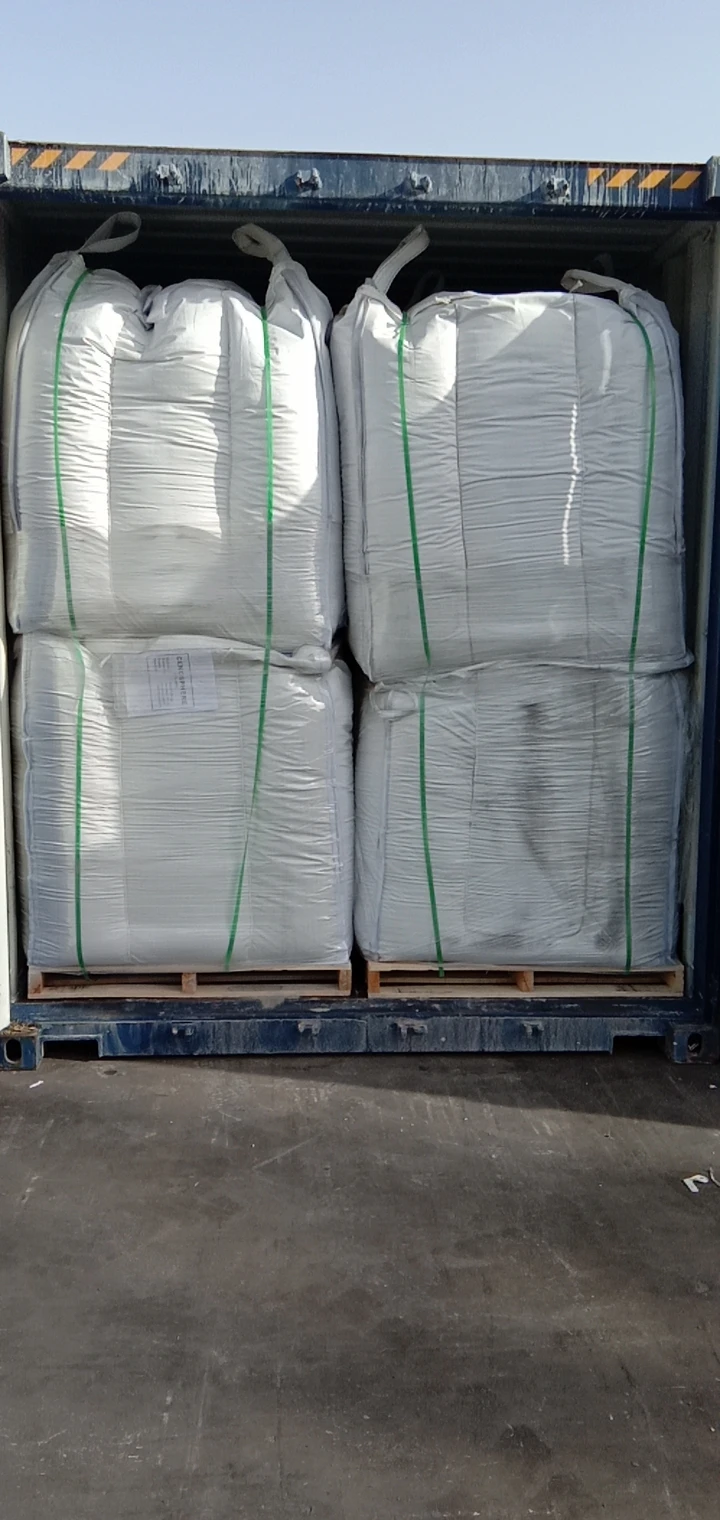

Packing & Delivery
Packaging Details:

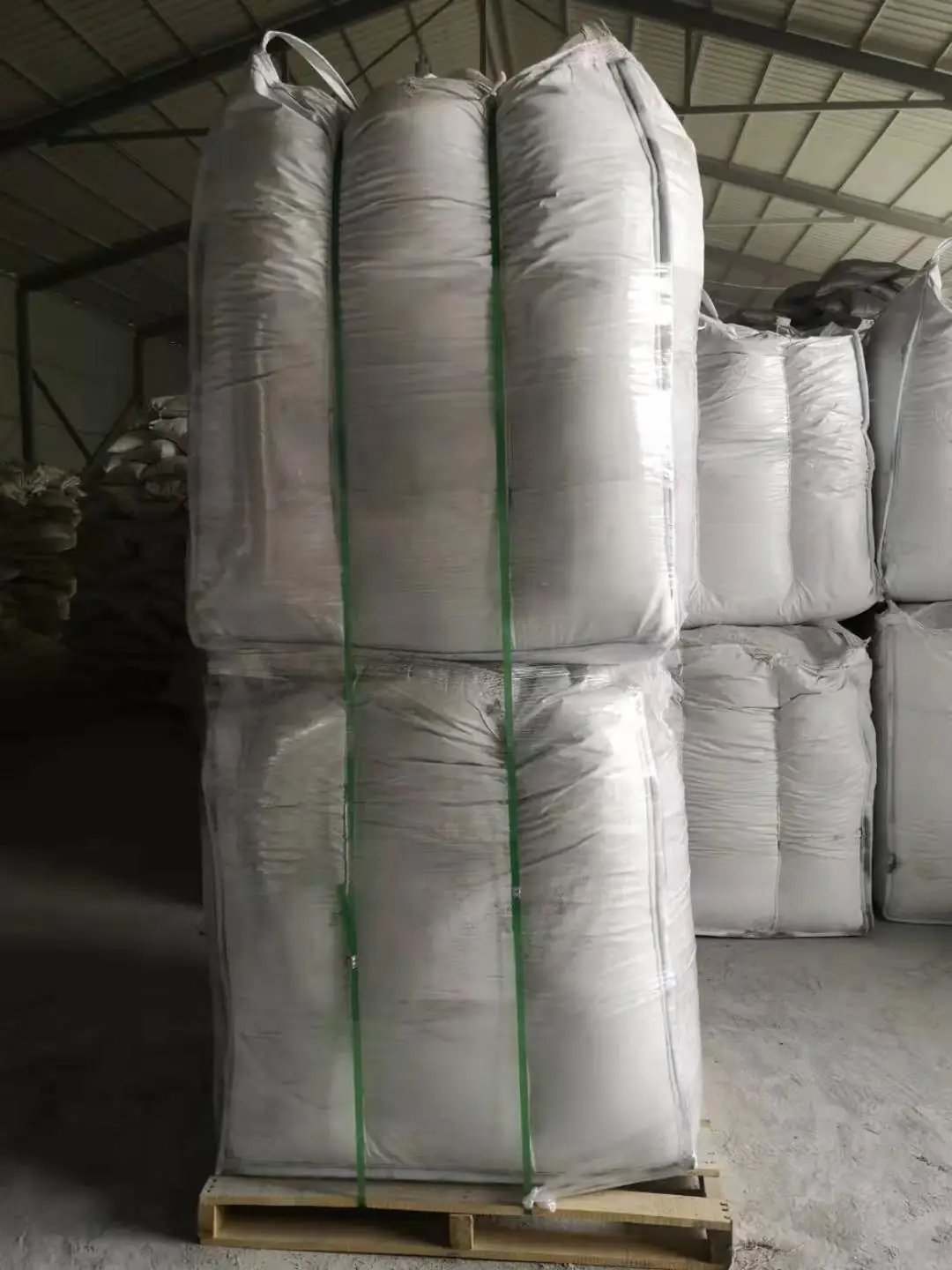

25kg bag, 500/550/600kg jumno bag or as your requirement.
Delivery Detail:
within 15 days delivery after receipt of advance payment.
25kg bag, 500/550/600kg jumno bag or as your requirement.
Delivery Detail:
within 15 days delivery after receipt of advance payment.
