Portable Magnetic Asset / Container / Car Gps Tracker Tracking Device For Car Android Ios App Real Time Tracking
- Category: >>>
- Supplier: Shenzhen Daovay Technology Co. Ltd.
Share on (1601206180082):
Product Overview
Description
Portable Magnetic Asset / Container / Car Gps Tracker Tracking Device For Car Android Ios App Real-Time Tracking
Product Paramenters
Y3Y is a wireless vehicle positioning terminal that supports 4G and 2G networks with stable performance, strong signal, strong magnetic adsorption, and simple installation. It supports multiple positioning technologies including WIFI, GPS, Beidou, and base station positioning, making positioning faster and more accurate. Mostly used for fleet management, logistics transportation, car sharing, financial car loans.
The terminal combines wireless simple installation scenarios with functions such as multiple positioning, overspeed alarm, multiple abnormal alarm, and driving behavior analysis to standardize driver driving behavior, improve the enterprise's level of vehicle or asset safety management, save operating costs, increase output value, and provide big data support for future operations.
Specification content | Specification parameters |

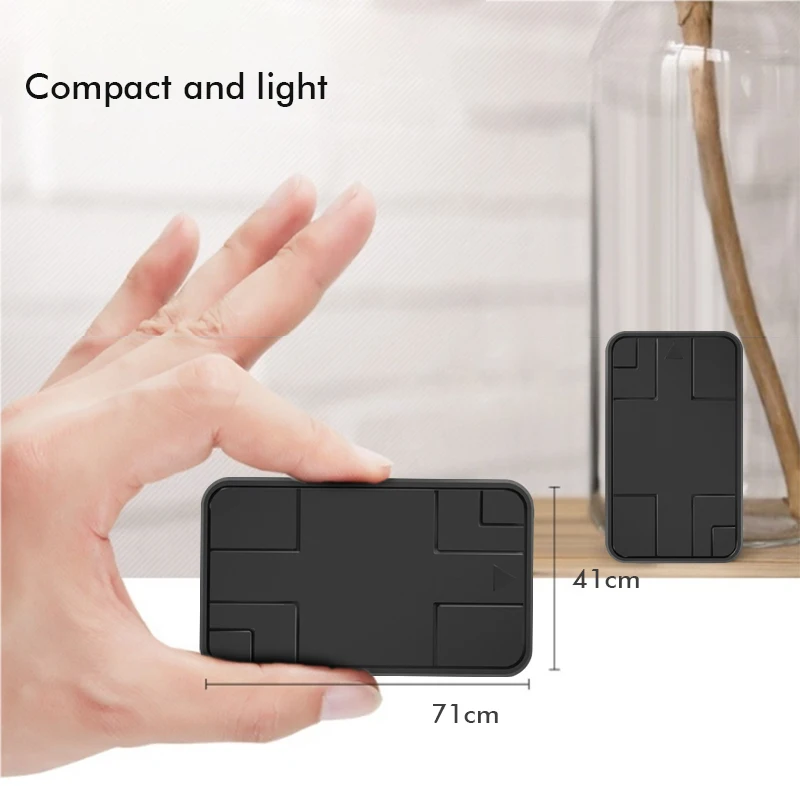

Size | 75*42*30mm |
Working voltage | DC 3V |
Working current | 75-100mA |
Standby current | 2uA |
Built in battery | cylindrical lithium manganese dry battery |
Battery working time | The brand new battery can be used continuously for 3 years |
Working temperature | -25 ℃ to+80 ℃ |
Storage temperature | -25 ° C to+85 ° C |
Communication network | 4G full network connectivity |
Capture sensitivity | -143dB |
Tracking sensitivity | -159dB |
Cold start time | -38s |
Hot start time | -2s |
GSM antenna | built-in |
GPS antenna | built-in |
LED indicator lights | power, indicating status |
Transmission protocol | UDP/TCP is determined by the communication protocol |
Positioning method | WIFI+GPS positioning+Beidou+base station positioning+EPO |
Anti disassembly method | Light sensitive anti disassembly version |
Product Information
Basic product functions | ||||
Functional details | Function Description | Parameter settings | ||
Alarm mode | Set one or more wake-up times per day (up to 4 sets of wake-up times), automatically wake up at the set time, and sleep after sending location data | Support platform, APP, SMS settings, and device serial port | ||
Timer mode | Timed return, return location data according to the set time | Support platform, APP, SMS settings, and device serial port | ||
Week mode | You can set a time point and choose one or several days of the week to send location data before going to sleep | Support platform, APP, SMS settings, and device serial port | ||
GPS positioning+WIFI+base station positioning | First GPS-WIFI - base station wakes up daily WiFi - base station GPS-WIFI base station for car chasing (priority level from left to right) | Support platforms, apps | ||
Timing | There is an RTC clock inside the device | Automatic device timing and support for SMS timing | ||
Anti dismantling alarm | The equipment automatically detects the brightness from dark to bright and immediately reports a dismantling alarm to the platform | Controllable switch on and off (program default on) | ||
Product Details
Product features：
1) 4G built-in antenna with full network connectivity and high integration design
2) Intelligent power-saving, sleep power consumption as low as 2ua
3) Support multiple positioning of WIFI+GPS+Beidou+base station positioning
4) Strong resistance to lowtemperatures -25 degrees Celsius
5) Anti-counterfeiting base station detection
6) Fast online speed, wakes up and works normally every day for over 30 seconds to complete the online action
7) Multiple protection of software and hardware to prevent machinemalfunctions
3) Support multiple positioning of WIFI+GPS+Beidou+base station positioning
4) Strong resistance to lowtemperatures -25 degrees Celsius
5) Anti-counterfeiting base station detection
6) Fast online speed, wakes up and works normally every day for over 30 seconds to complete the online action
7) Multiple protection of software and hardware to prevent machinemalfunctions
8) Light sensing dismantling alarm
9) Three working mode options, flexible switching
10) Strong magnetic adsorption, wiring free installation
11) Support remote parameter settings on SMS platforms and apps
12) Support remote query of detailed working status and abnormal data analysis of devices every time they go online
13) Cylindrical super lithium manganese dry battery, using a brand new battery, reporting one sustainable work report every day for three years
14) International version available for selection
10) Strong magnetic adsorption, wiring free installation
11) Support remote parameter settings on SMS platforms and apps
12) Support remote query of detailed working status and abnormal data analysis of devices every time they go online
13) Cylindrical super lithium manganese dry battery, using a brand new battery, reporting one sustainable work report every day for three years
14) International version available for selection
Management System
4g Gps Tracker Is Compatible With Any Smartphone, Tablet, Computer, Etc. You Can Log Into Your Account And Track Your Car On Google Maps Anytime, Anywhere With Our Free Tracking Platform. Never Worry About Where Your Car, Teen Or Loved Ones Are. It Can Monitor Whether They Are Safe Or Not.
Customer Feedback
Company Culture
Shenzhen daovay Technology Co.,Ltd. is a one-stop industrial IoT solution operation service provider. It takes "location"
and"temperature" IoT applications as its product business direction, provides integrated software and hardware development and delivery services, and creates a stable and mature IoT-PaaS platform. The current business involves fleet operation, asset management, cargo tracking, food cold chain, IoT platform and other industry sectors. It has established two operation centers in Shenzhen and Xi'an, China. It has also ventured into international business. It has established co-operating companies in Africa and Southeast Asia, occupying an important position in the industry in the local market. In addition to the characteristics of personalized customization and technical development services in place, more importantly, we position ourselves as a "system integrator" at the technical level of our products. As a one-stop industrial IoT solution operator and service provider, it needs to have strong and flexible integration and integration capabilities. Based on IoT applications such as "location" and"temperature", it builds the digital infrastructure of the industries it serves.
and"temperature" IoT applications as its product business direction, provides integrated software and hardware development and delivery services, and creates a stable and mature IoT-PaaS platform. The current business involves fleet operation, asset management, cargo tracking, food cold chain, IoT platform and other industry sectors. It has established two operation centers in Shenzhen and Xi'an, China. It has also ventured into international business. It has established co-operating companies in Africa and Southeast Asia, occupying an important position in the industry in the local market. In addition to the characteristics of personalized customization and technical development services in place, more importantly, we position ourselves as a "system integrator" at the technical level of our products. As a one-stop industrial IoT solution operator and service provider, it needs to have strong and flexible integration and integration capabilities. Based on IoT applications such as "location" and"temperature", it builds the digital infrastructure of the industries it serves.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer of GPS trackers in China
Q2. What is your sample policy?
We can provide samples, but customers have to pay the sample fee and courier fee, sorry for this
Q3. How is your delivery time?
The exact delivery time depends on the item and quantity you ordered.
Q4. Can you provide GPS tracking system and APP?
Yes, we have our GPS tracking software/system and APP. We also offer protocols for integration into your system.
Q5: Does the GPS tracker need a SIM card?
1. It depends on the model. Most of our GPS tracking devices require a SIM card, please communicate with our product manager indetail before ordering.
2. Generally, 4G devices are compatible with 3G and 2G networks, so a 4G SIM card is required. 2G/3G SIM cards cannot be used on 4G devices.NB-IOT devices require NB-IOT network, please confirm with your operator whether your area is covered by stable NB-IOT network.
3. We can also customize e-SIM solutions. Please feel free to contact us if needed.
Q6: What is the shipping method?
It can be shipped by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Q7: How about quality control and warranty?
All products go through strict quality inspection before packing.
Yes, we are a manufacturer of GPS trackers in China
Q2. What is your sample policy?
We can provide samples, but customers have to pay the sample fee and courier fee, sorry for this
Q3. How is your delivery time?
The exact delivery time depends on the item and quantity you ordered.
Q4. Can you provide GPS tracking system and APP?
Yes, we have our GPS tracking software/system and APP. We also offer protocols for integration into your system.
Q5: Does the GPS tracker need a SIM card?
1. It depends on the model. Most of our GPS tracking devices require a SIM card, please communicate with our product manager indetail before ordering.
2. Generally, 4G devices are compatible with 3G and 2G networks, so a 4G SIM card is required. 2G/3G SIM cards cannot be used on 4G devices.NB-IOT devices require NB-IOT network, please confirm with your operator whether your area is covered by stable NB-IOT network.
3. We can also customize e-SIM solutions. Please feel free to contact us if needed.
Q6: What is the shipping method?
It can be shipped by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Q7: How about quality control and warranty?
All products go through strict quality inspection before packing.
