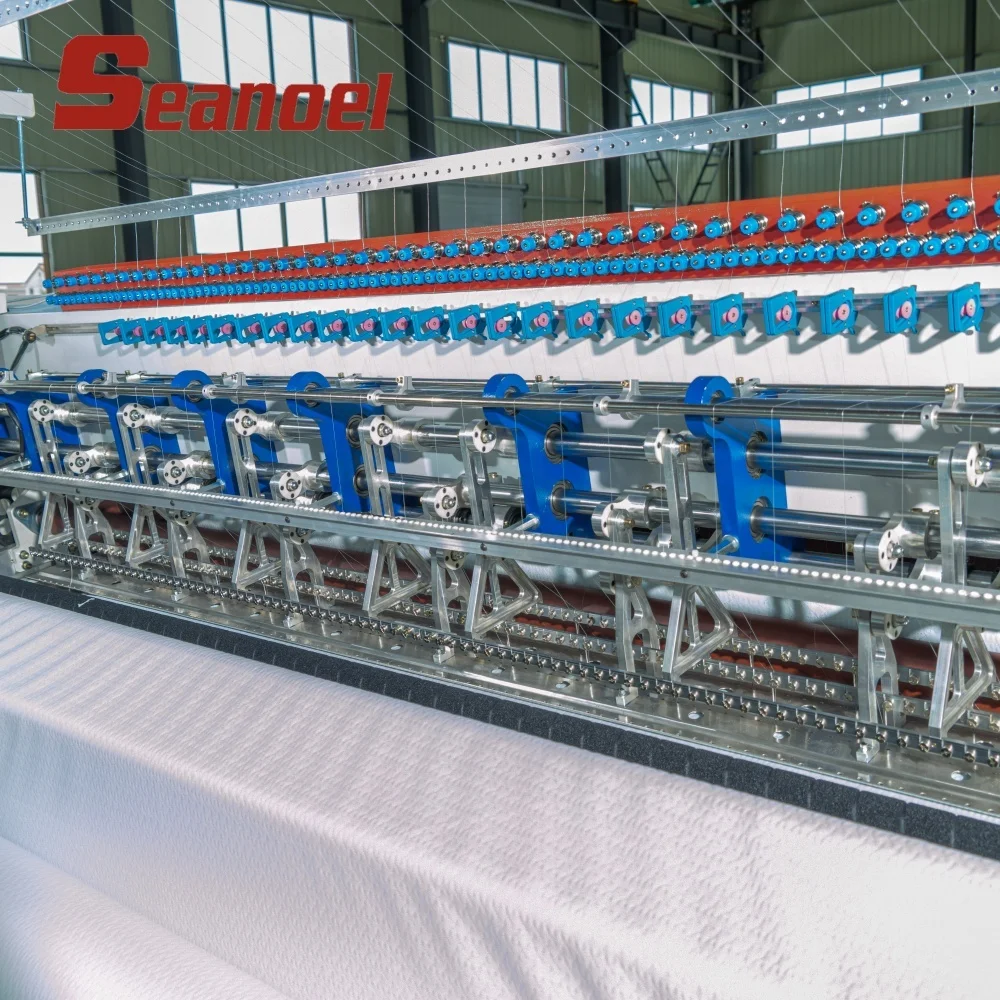

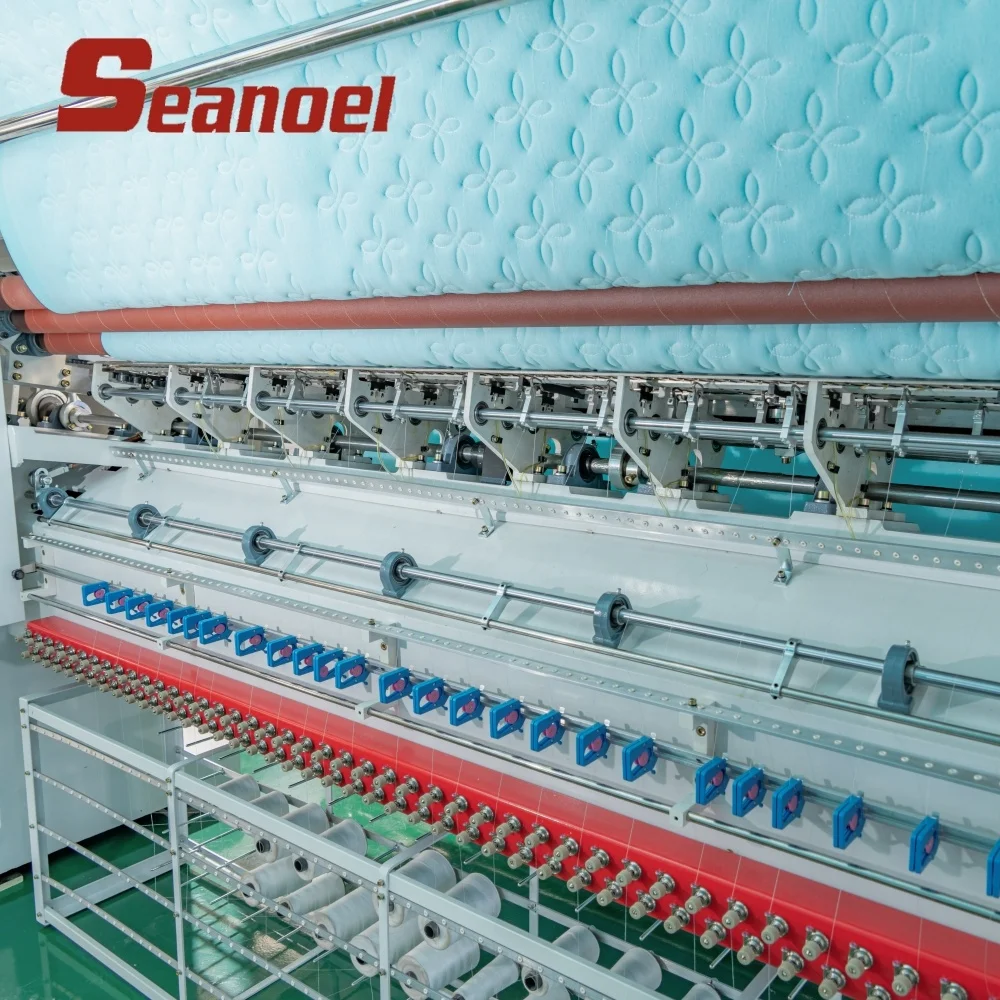

Automatic industrial quilting machine home textile fabric sewing quilting machine
- Category: >>>
- Supplier: Qingdao Seanoel Industry And Trade Co. Ltd.
Share on (1601206186142):
Product Overview
Description
- 1.Computer Chain Stitch Multi Needle Quilting Machine For Mattress
- 2.Adopting chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.

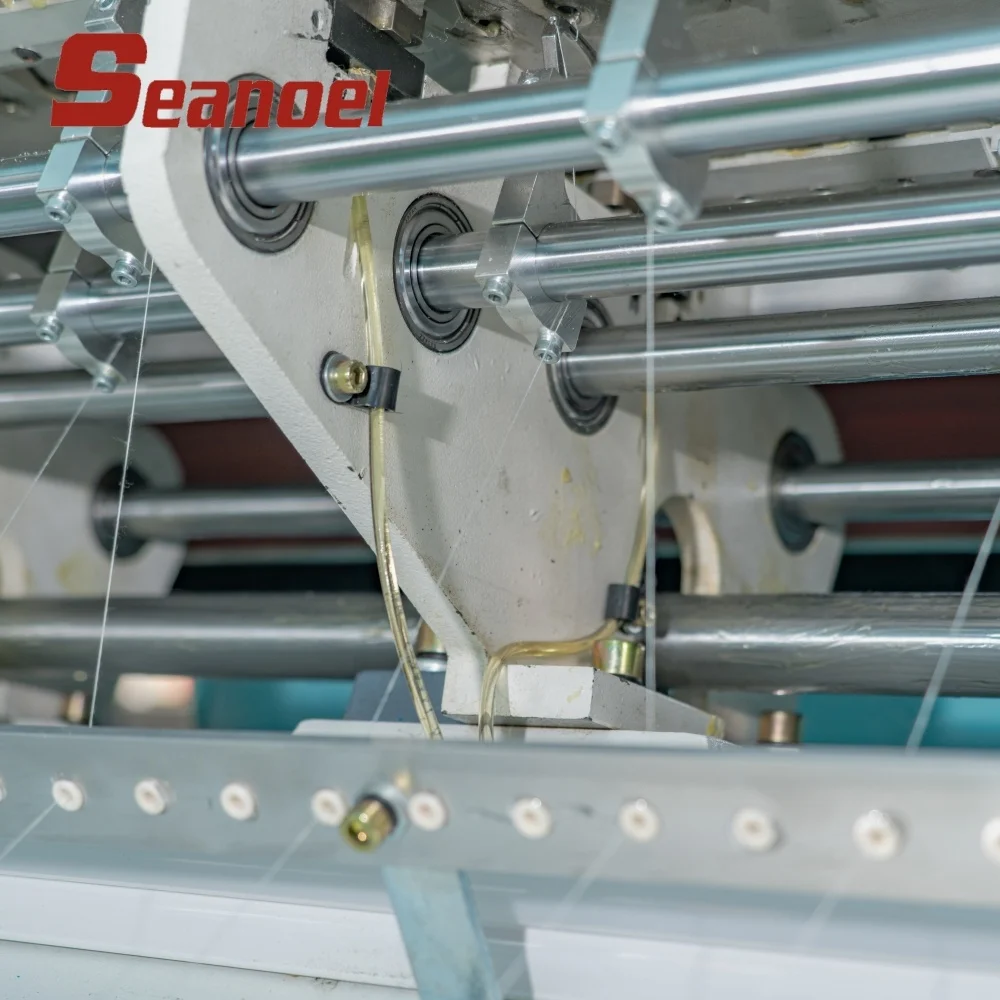

- 3.Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
- 4.Automatic stop motion control in case the top thread or the bottom thread breaks，automatic needle-lifting and CNC speed adjustment

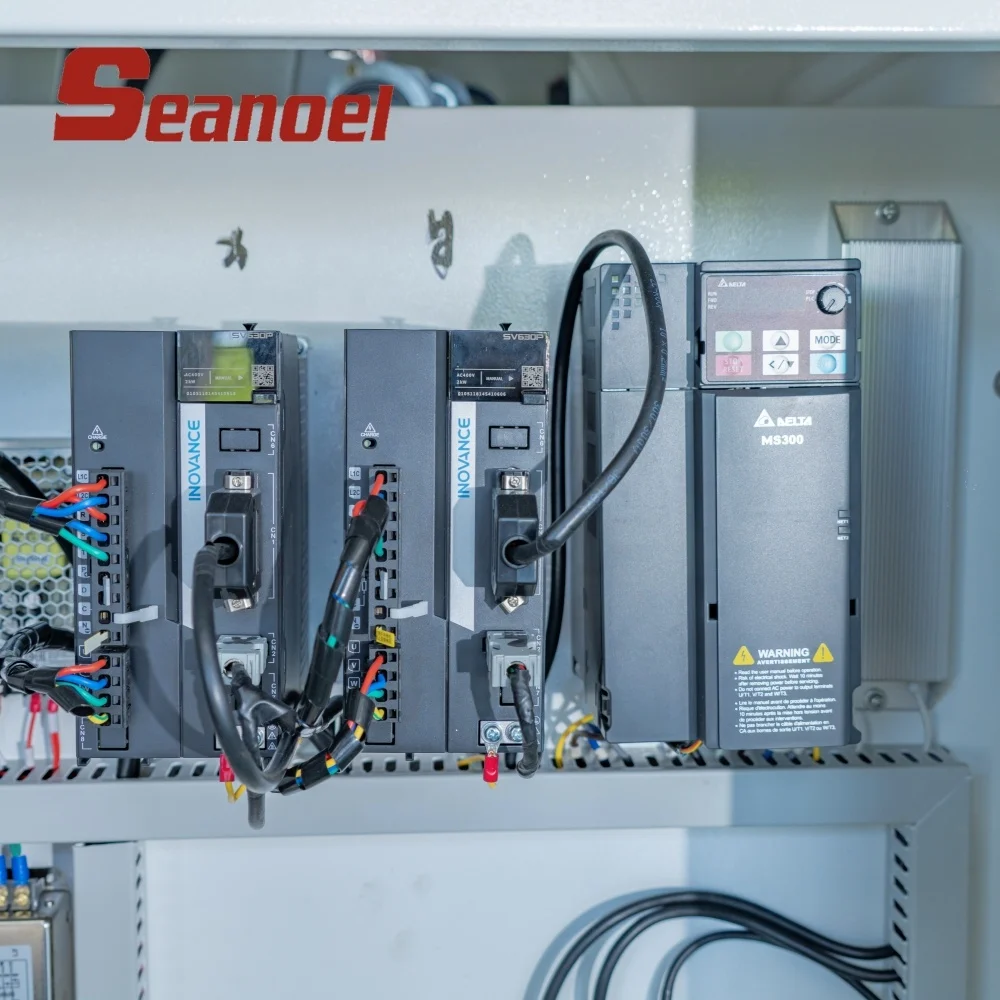

- 5.CNC precision control system, no need to adjust the press plate's position when the thickness of quilting material varies
- 6.Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
- 7.Fault detection function for ease of determining the running state of the machine at any given time
- 8.Easy preparation of CAD drawings extremely precise
- 9.Multi span and independent patterns(360°and 180°patterns are available)
- 10.Language can be customized, All kinds of language
Warranty
1.All parts are guaranteed one year for non-human-made damage
2.After one year, all parts was provide without profit
3.Before buying, our businessman online 12 hours every working day to answer your questions
4.During production,the production pictures and videos are available any time
5.After buying,our engineer online 10 hours every working day to help you use machine correctly
6.We provide details machine installation & user’s guide and maintenance manual
7.Overseas installation, maintenance, and debugging are all free of charge
2.After one year, all parts was provide without profit
3.Before buying, our businessman online 12 hours every working day to answer your questions
4.During production,the production pictures and videos are available any time
5.After buying,our engineer online 10 hours every working day to help you use machine correctly
6.We provide details machine installation & user’s guide and maintenance manual
7.Overseas installation, maintenance, and debugging are all free of charge

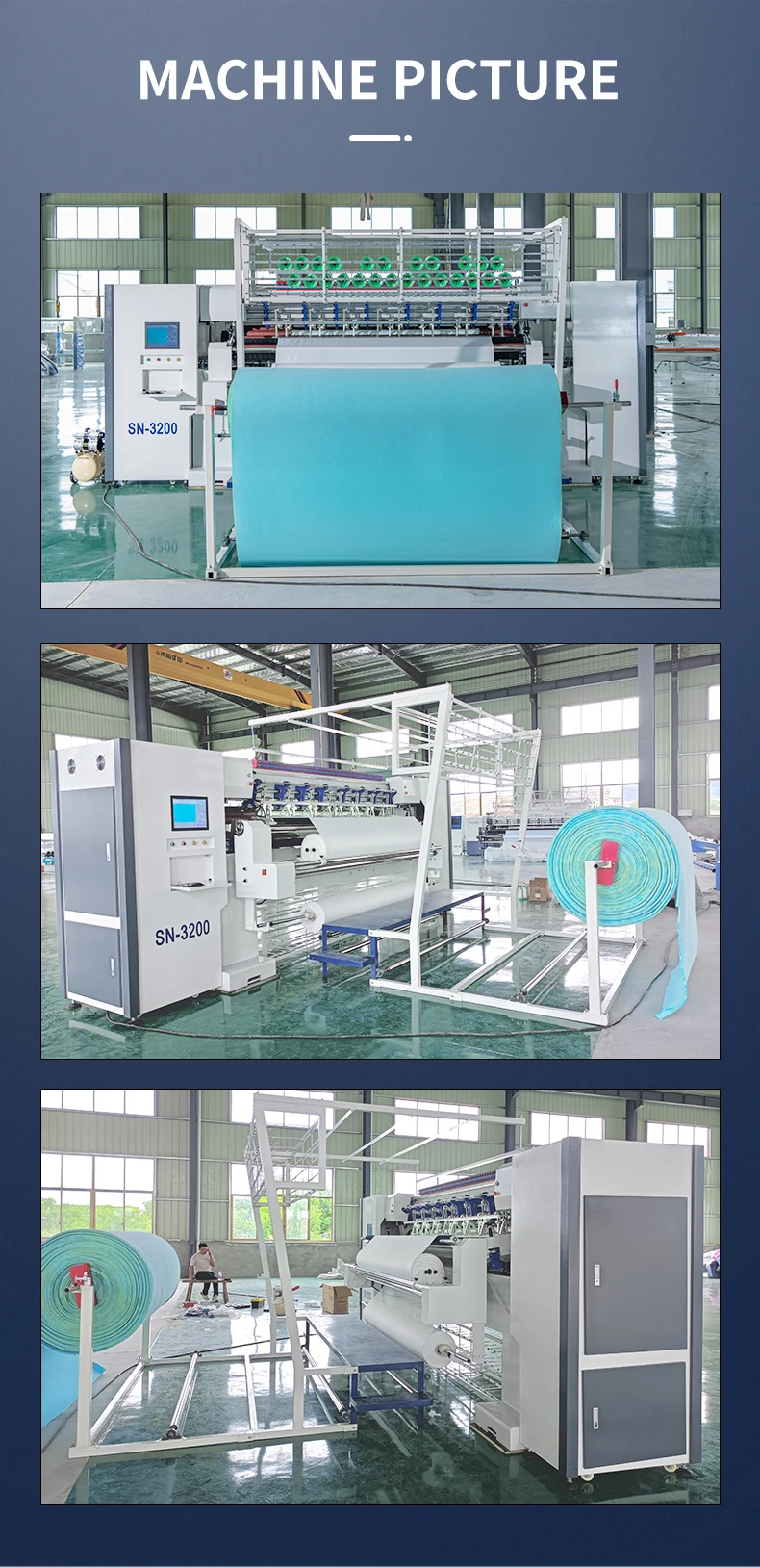

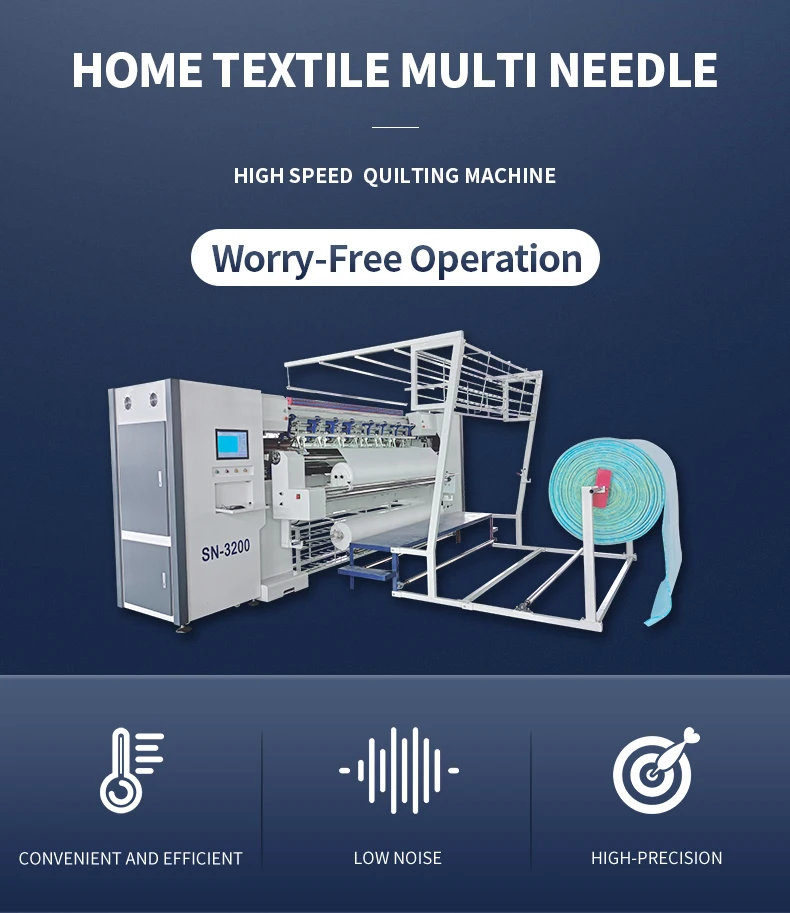

Model | SN-2700 | SN-3200 | SN-3700 | ||
Installation Size (L×W×H) | 5400*4700*2500 | 5500*4700*2500 | 5600*4700*2500 | ||
Quilting width | 2450 | ||||
Space between needle rows | ( 50.8,76.2,127)5"、 (76.2,76.2,152.4)6" | ( 50.8,76.2,127)5" 、 (76.2,76.2,152.4)6" | |||
Space between needles | 25.4 | 25.4 | 12.7 / 25.4 | ||
X-axis movement stroke | 308.4 | 308.4 | 308.4 | ||
Max Thickness of quilting | 70MM | 80MM | 80MM | ||
Stitch length | 3-8MM | ||||
Speed of operation | 60-230M/H | 60-300MM | 80-330M/H | ||
Model of needle | 24/180 23/160 22/140 21/130 | ||||
Quilting speed | 1000RPM | 1200RPM | 1500RPM | ||
Total power | 7KW | 7KW | 11KW | ||
Voltage | 220/380V,50/60HZ | ||||
Gross weight | 4000KG | 4500KG | 5000KG | ||
FAQ
Q1: Warranty,Quality and Service
A:We provide one year warranty,within one year,If machine damaged,we provide parts free;
And we provide fast online guidance when received your questions,lifetime service.
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with 20 years experience,Our engineer online every day,we will give best guide before buying and after sale service
Q3: Trust and Safety
A:The boss and his family members all working in this market,and this is the only means of making a living of this family and company,we must do our best because there is no way of escape,no matter when you have troubles,no matter it is 10 years or 20 years,you can find us always
Q4: Advantage and Why choose us
A:We have rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
A:We provide one year warranty,within one year,If machine damaged,we provide parts free;
And we provide fast online guidance when received your questions,lifetime service.
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with 20 years experience,Our engineer online every day,we will give best guide before buying and after sale service
Q3: Trust and Safety
A:The boss and his family members all working in this market,and this is the only means of making a living of this family and company,we must do our best because there is no way of escape,no matter when you have troubles,no matter it is 10 years or 20 years,you can find us always
Q4: Advantage and Why choose us
A:We have rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
