Factory Hot Sale High Output Ldpe Hdpe Lldpe Plastic Product Automatic Film Blowing Machine
- Category: >>>
- Supplier: Ruian Nuosheng Machine Co. Ltd.
Share on (1601206194342):
Product Overview
Description
Product Category
Products Description

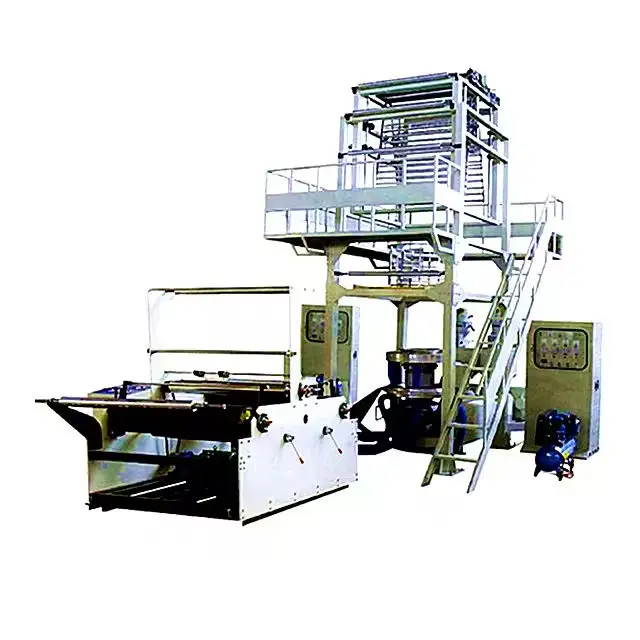

Double- Layer Co-Extrusion Rotary Die Blowing Machine(2SJ-1300)

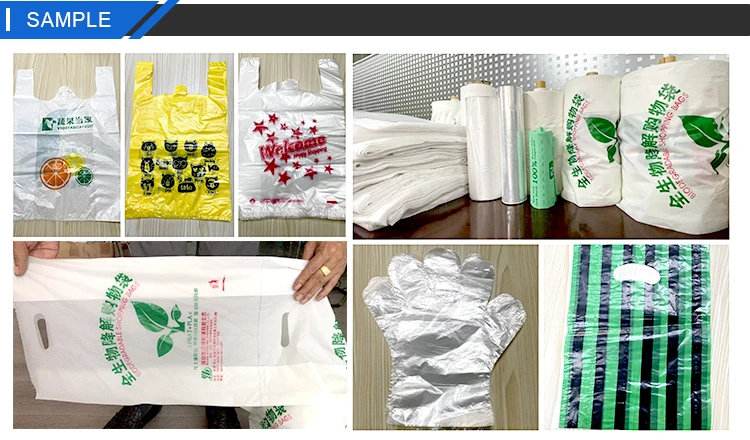

It is used for blowing the plastic laminated film of low density polyethylene(LDPE),high density polyethylene (HDPE)and linear low density polyethylene (LLDPE)etc .Which are widely used for packing liquid,printed base material,products for export and industrial products,etc.
Model | 2SJ-1000 | 2SJ-1300 | 2SJ-1700 |
Max.Layflat Width | 1100mm | 1200mm | 1600mm |
Film Thickness | 0.012-0.2mm | 0.012-0.2mm | 0.012-0.2mm |
Film Layers | 2 | 2 | 2 |
Max.Output | 80kg/h | 100kg/h | 120kg/h |
Raw Material | MLLDPE/LLDPE/LDPE/EVA | MLLDPE/LLDPE/LDPE/EVA | MLLDPE/LLDPE/LDPE/EVA |
Screw Diameter | 50*2mm | 55*2mm | 65*2mm |
Screw L/D Ration L/D | 28/30:1 | 28/30:1 | 28/30:1 |
Screw Max.Rotation Speed | 100r/min | 100r/min | 100r/min |
Extruder Driving Power | 11*2kw | 15*2kw | 22*2kw |
The way of screen changing of extruder | Hydraulic/pneumatic/manual twin-station changing screen qucikly | Hydraulic/pneumatic/ manual twin-station changing screen qucikly | Hydraulic/pneumatic/ manual twin-station changing screen qucikly |

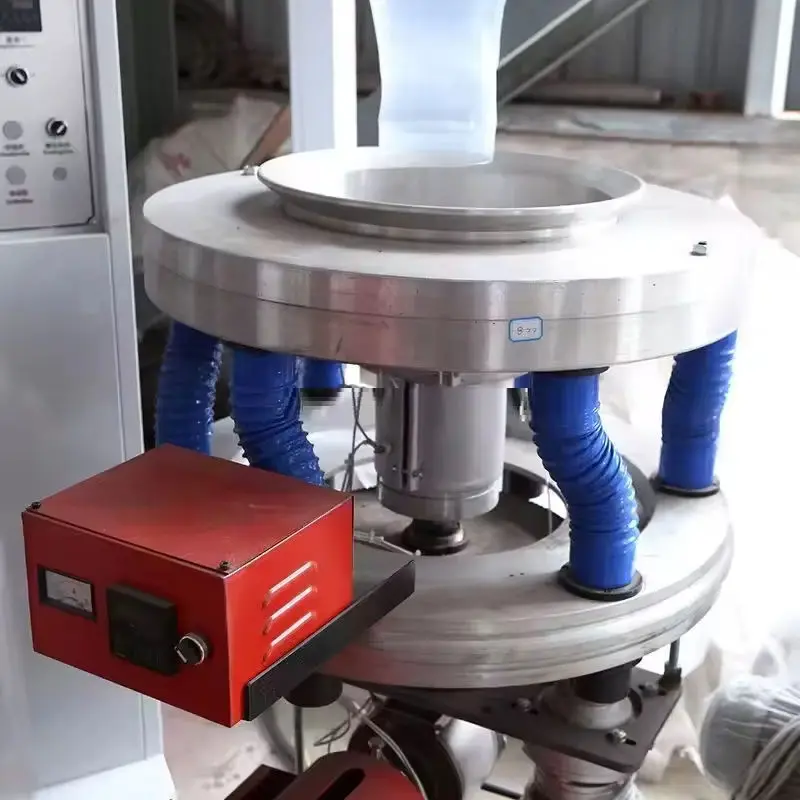

Die Structure | With or without IBC(Internal Bibble Cooling System) | With or without IBC(Internal Bibble Cooling System) | With or without IBC(Internal Bibble Cooling System) |
Air-ring Structure | Double Tuyere/Single Tuyere | Double Tuyere/Single Tuyere | Double Tuyere/Single Tuyere |
Rotation Method | Head Rotation/Up Rotation | Head Rotation/Up Rotation | Head Rotation/Up Rotation |
Heating Power | 85kw | 110kw | 140kw |
Overal Dimension(L*W*H) | 10000*4000*6000mm | 10000*4000*6000mm | 11000*5000*7000mm |
Weight | 2600kg | 2800kg | 5000kg |
Feature:
1. Double-layer co extrusion laminated film can prolong the length for preservation of liquid package.
1. Double-layer co extrusion laminated film can prolong the length for preservation of liquid package.

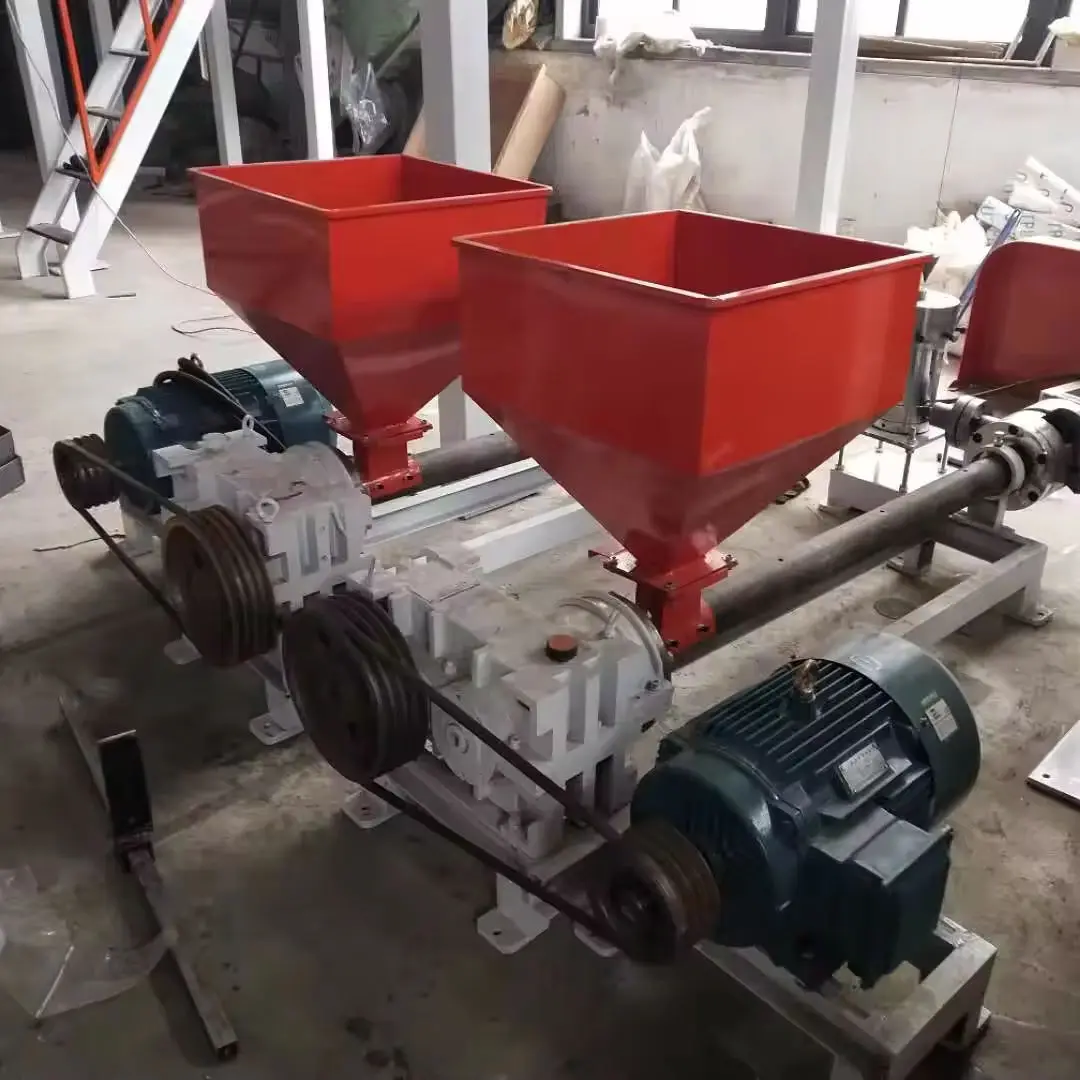

2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable serivce after precision finishing and nitrogen treatment.
3.The auxiliary machine has a plattform working table for making operation easy and is equipped with bubble stabilizing ring .
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll
changing easy.
3.The auxiliary machine has a plattform working table for making operation easy and is equipped with bubble stabilizing ring .
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll
changing easy.
Optional Equipment:
1) Auto Loader
2) Castalum Heat
3)Air Shaft
4)Rotary Die Device
5)Bouble Sides Winder
6)Upand Down
7)Pneumatic Device
1) Auto Loader
2) Castalum Heat
3)Air Shaft
4)Rotary Die Device
5)Bouble Sides Winder
6)Upand Down
7)Pneumatic Device
Recommend Products

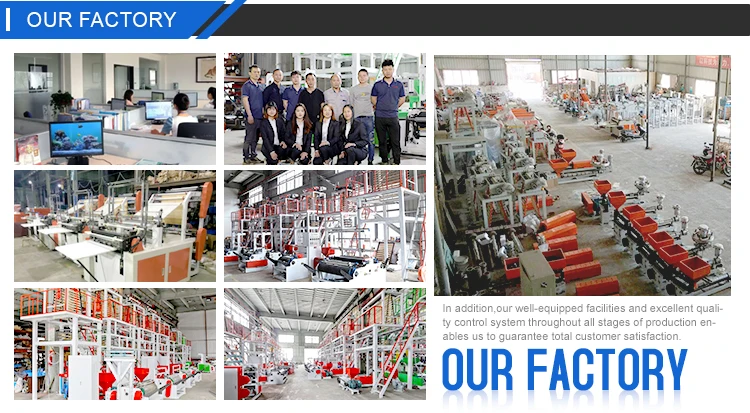

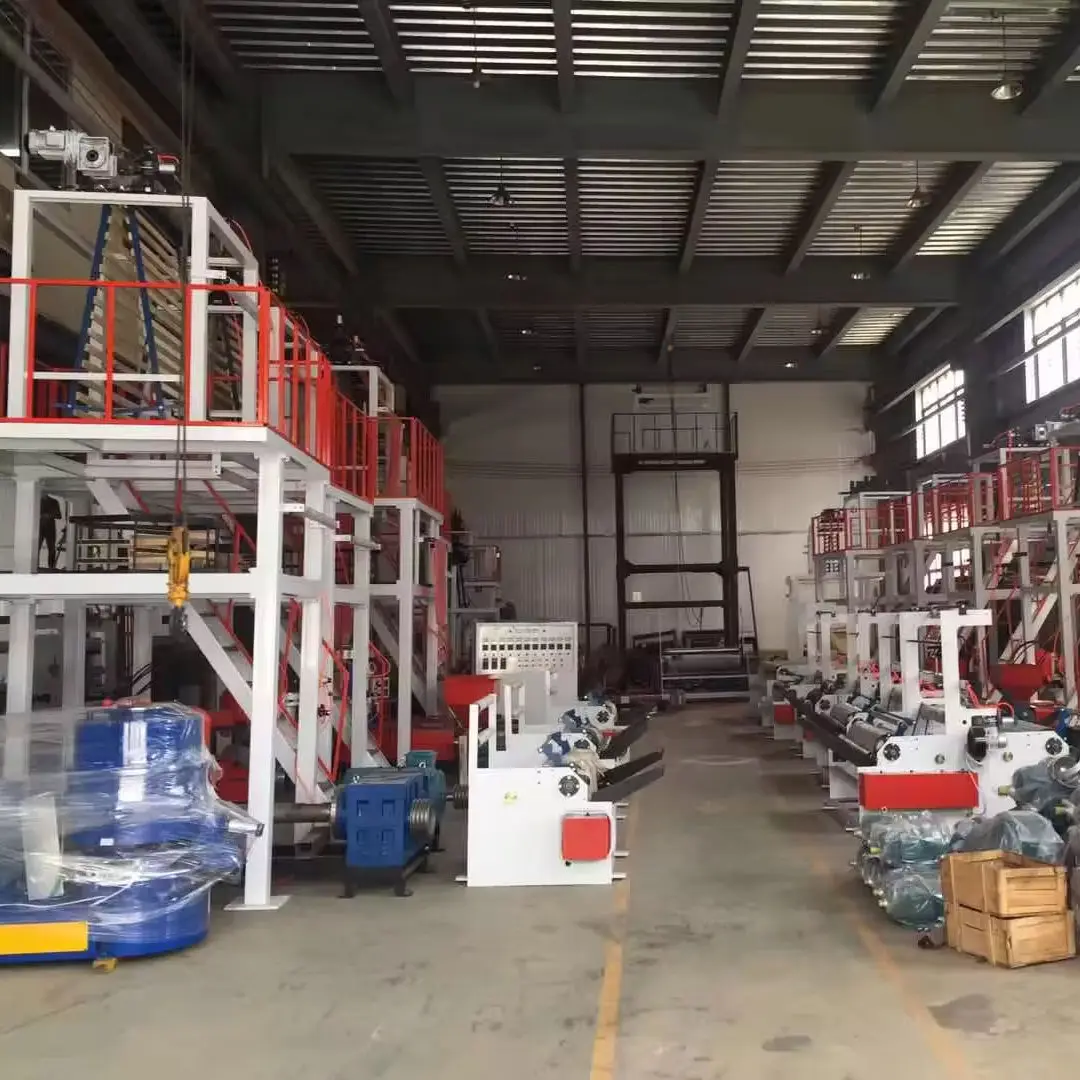

Company Profile

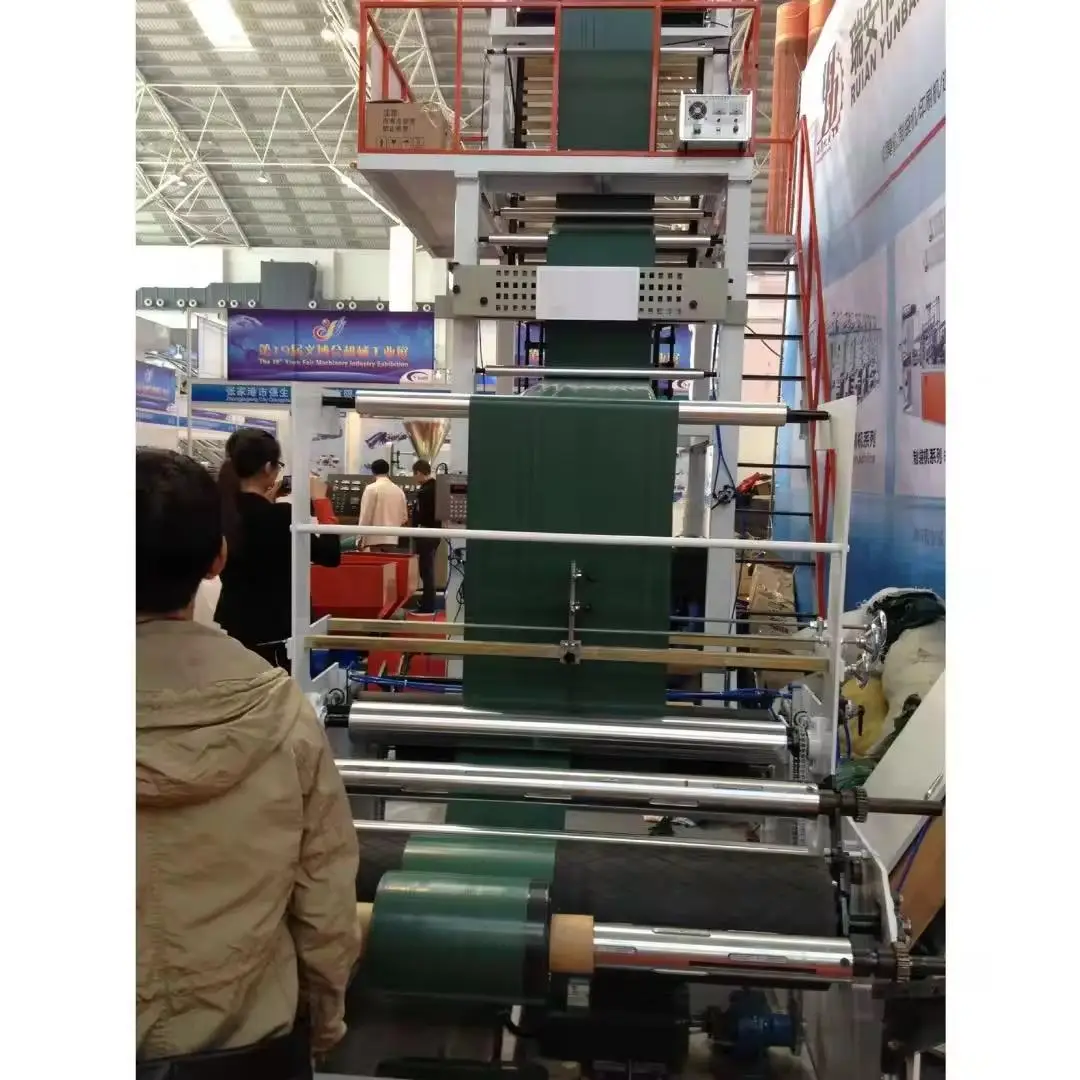

Exhibition
Certifications
Packing&Transport
Q1:Can you provide installation and commissioning services for the machine?
A1：Yes, we not only help our customers with the installation service, but also assist our customers in successful operation. Customers can use their own formulas, and we can also provide some free film formulas for novice customers.
Q2: Where is your factory?
A2:Our factory is located in the scenic East China Sea-Ruian City, Zhejiang Province, China. Warmly welcome domestic and foreign customers to visit us.
Q3: How about after-sales service? How long is the machine warranty
A3: Once you buy our machine, we guarantee lifetime after-sale service, you can call us or send us an email to ask any questions about the machine. One-year warranty for the five parts of the film blowing machine (motor, inverter, gear box, blower, die head).
Q4: How does your factory do regarding quality control?
A4: All the products will be 100% checked before the shipment.48 hours running without stop to confirm no problem.
Q5:How long is your delivery time and how many machines can you produce per month?
A5:Normally delivered within 15-20 days.We can produce up to one hundred machines per month.
Q6:How long can your machine work continuously?
A6:Our machines can work 24 hours a day without stopping, which not only increases production but also saves energy.
