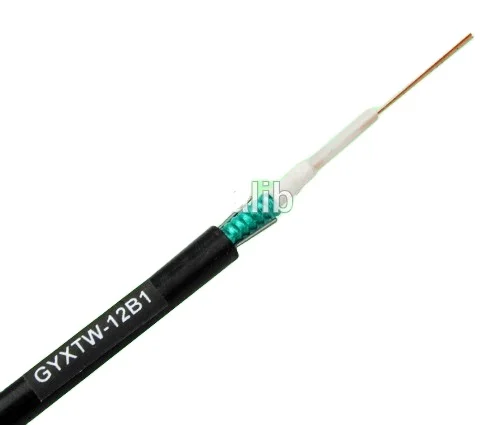

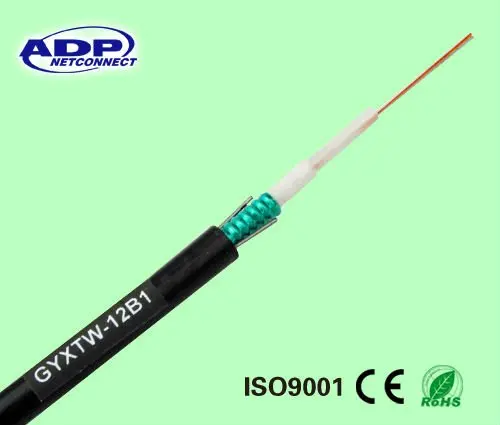

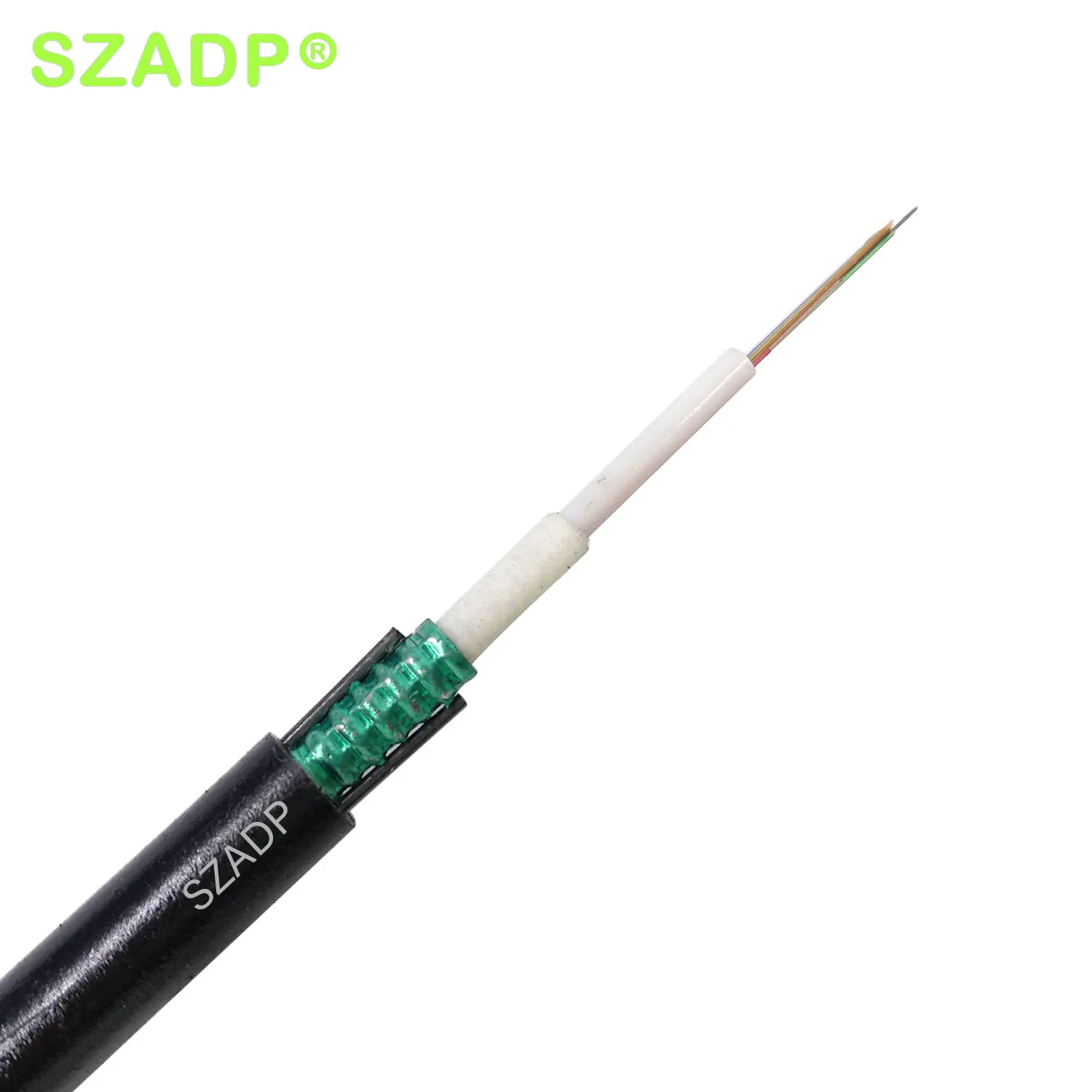

SZADP factory GYXTW/GYFTW/GYTS/GYTA/GYXTC8S/ADSS single armored outdoor fiber optic cable(G652D)
- Category: >>>
- Supplier: Guangzhou Adp Communication Technology Co. Ltd.
Share on (1601206200339):
Product Overview
Description
Product Details
Product Informations:
1. recommended laying methods:Aerial

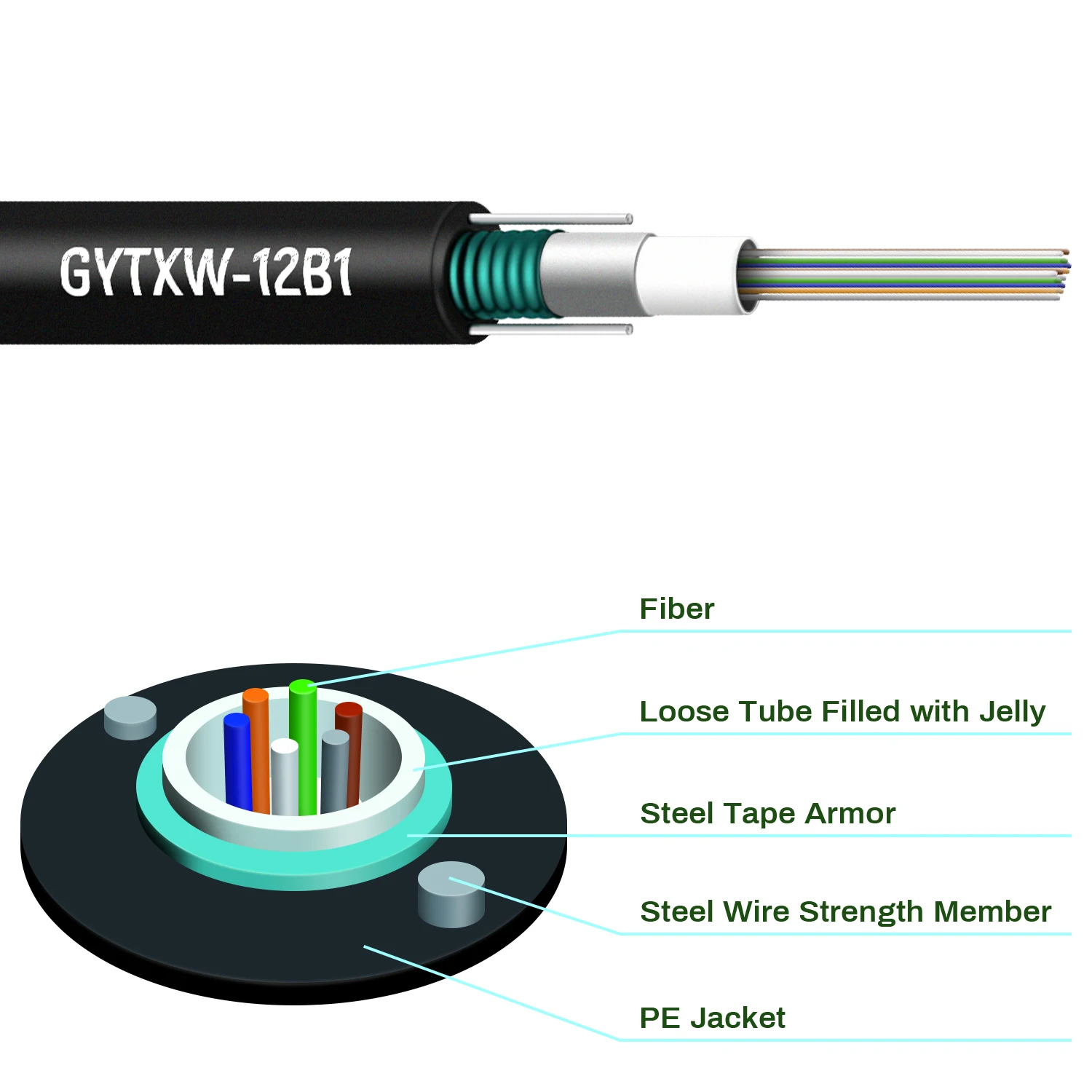

2. Structure Characters:
a) Water proofing layer between the steel tape and cable core
b)Double coated PE corugated steel
tape under PE sheath
c) Parallel double steel wires as
strengthen member
3. Properties:
a)Water proofing layer providing
strong water-resistance
performance.
b)Steel tape with PE outer sheath
and metallic strengthen member
enhancing anti-crush and tensile
property of cable
4. Applicable fields:
Long distance communication and LAN
2. Structure Characters:
a) Water proofing layer between the steel tape and cable core
b)Double coated PE corugated steel
tape under PE sheath
c) Parallel double steel wires as
strengthen member
3. Properties:
a)Water proofing layer providing
strong water-resistance
performance.
b)Steel tape with PE outer sheath
and metallic strengthen member
enhancing anti-crush and tensile
property of cable
4. Applicable fields:
Long distance communication and LAN

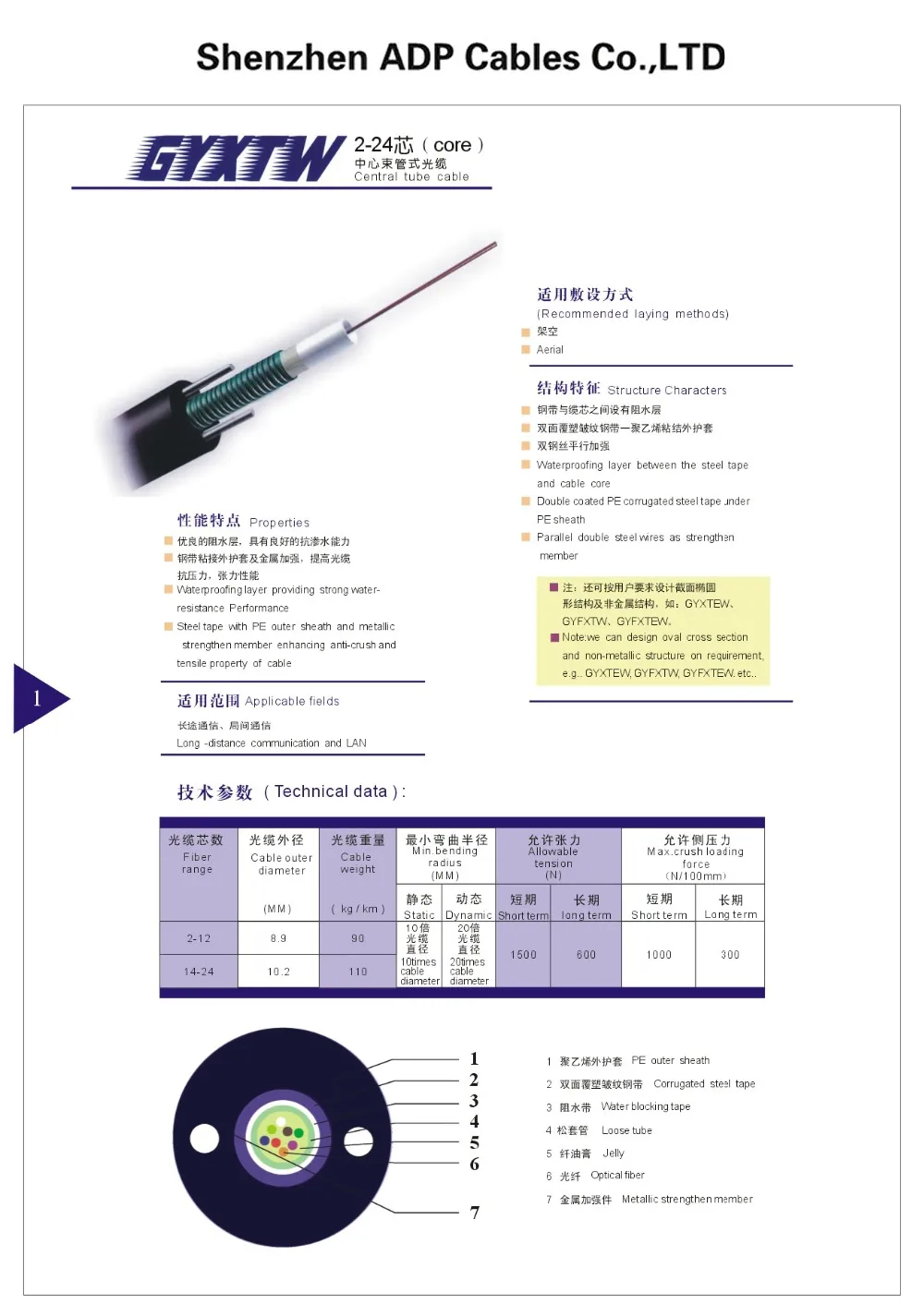

Product Specification
Fiber range | Cable outer diameter | Cable weight (kg/km) | Min. Bending radius(MM) | Allowable tension(N) | Max. Crus loading force (N/1000mm) | ||||||
Static | Dynamic | Short term | Long term | Short term | Long term | ||||||
2-12 | 8.9 | 90 | 10 times cable diameter | 20 times cable diameter | 1500 | 600 | 1000 | 300 | |||
12-24 | 10.2 | 110 | |||||||||
