High quality Helical gps gnss uav antenna
$19.00-26.00

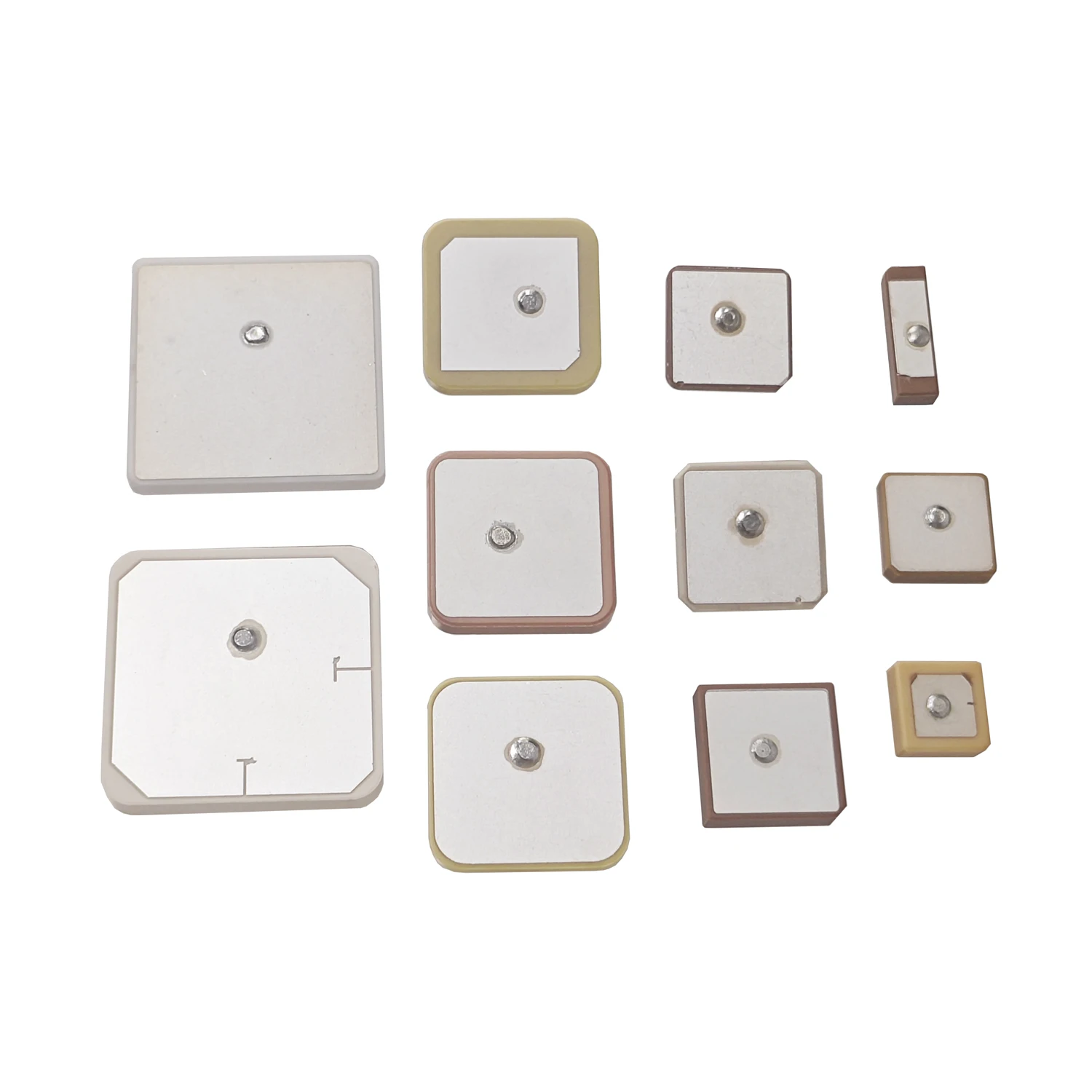

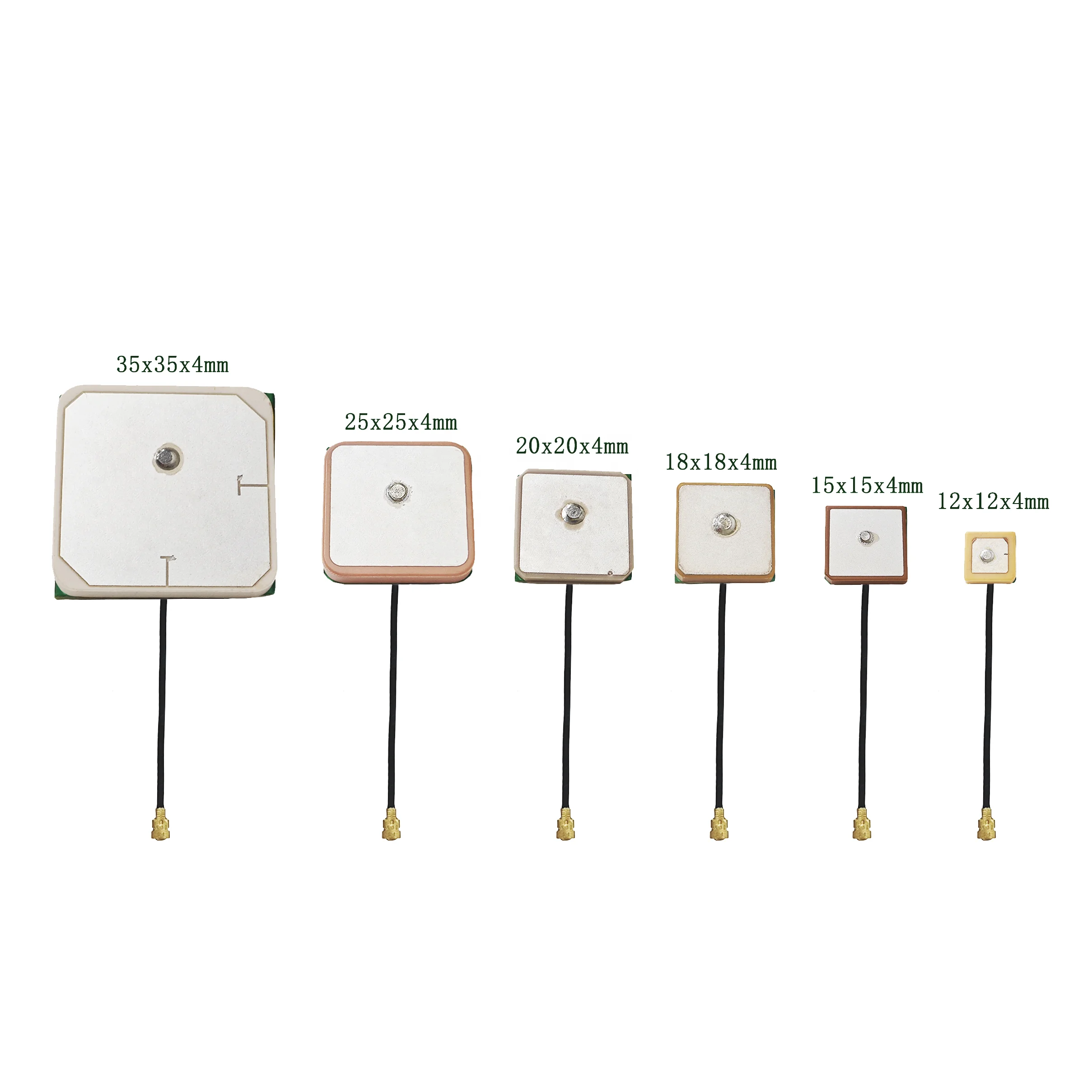

internal antenna gps mini tracker camera gps ceramic antenna 12*12 15*15 18*18 20*20 25*25 patch gnss antenna
- Category: >>>
- Supplier: Shenzhen Ruida Yongli Technology Co. Ltd.
Share on (1601206239604):
Product Overview
Description
Products Description
20*6*7
Frequency: 1561-1610MHz
Gain: 20 / 28dBi
Gain: 20 / 28dBi
V.S.W.R: ≤1.5
25*25*7
Frequency: 1560-1610MHz
Gain: 28 dBiV.S.W.R: ≤1.5
45*45*3
Frequency: 1560-1602MHz
Gain: 20 / 28dBi
V.S.W.R: ≤1.5
Gain: 20 / 28dBi
V.S.W.R: ≤1.5

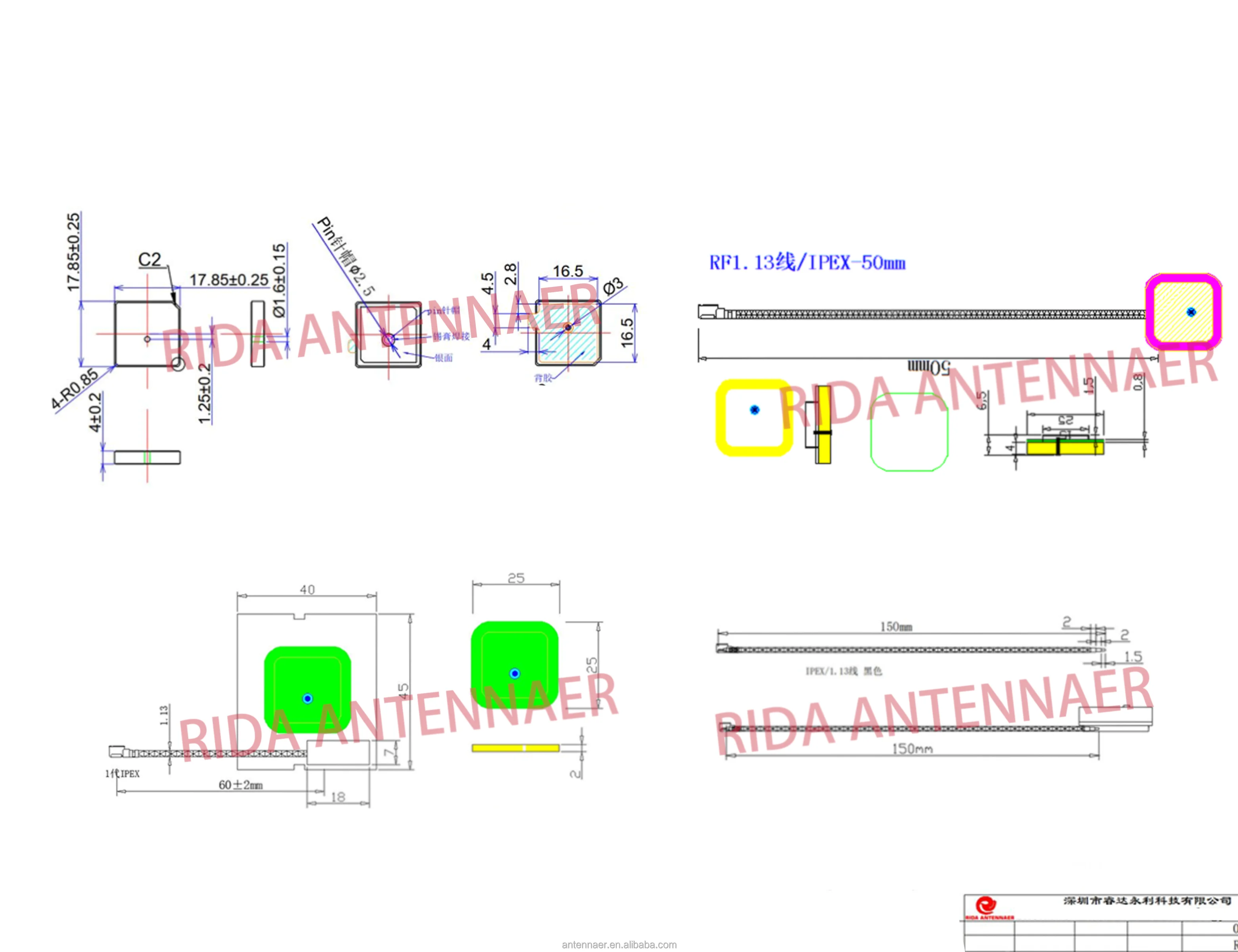

Structural Dimensions & Performance Diagrams
Please contact us for detailed antenna specifications!（ Accept OEM/ODM）

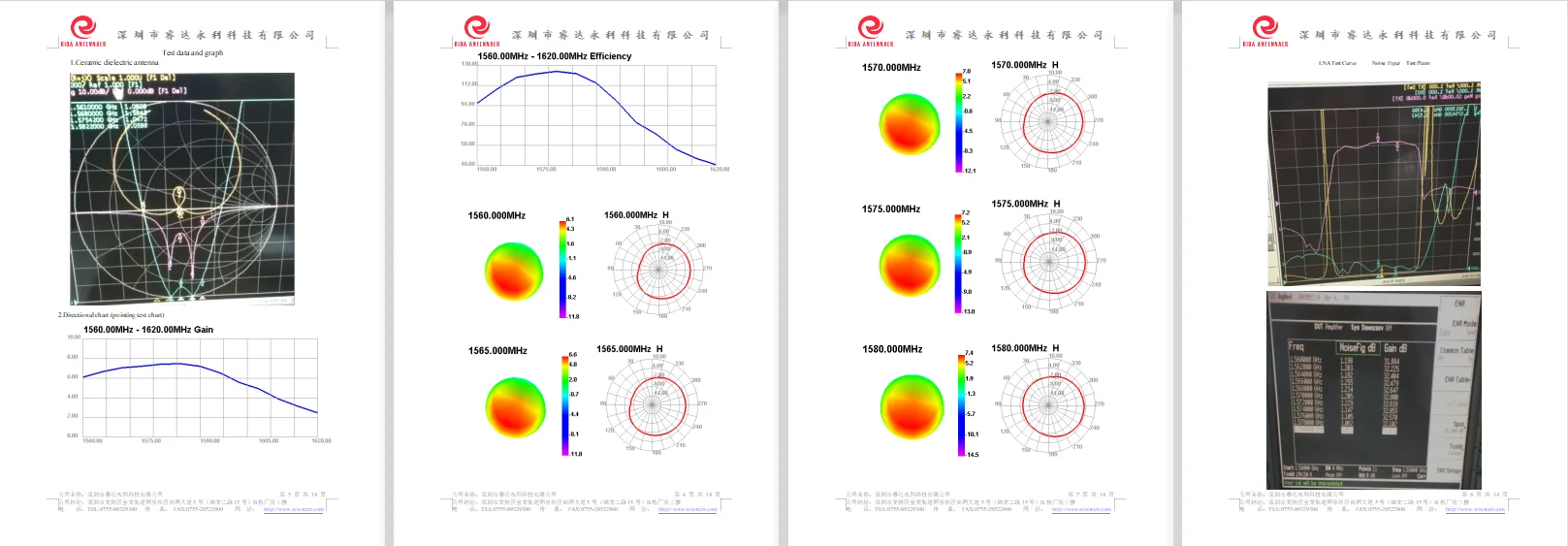

Detailed antenna test reports can be provided with each shipment.
333

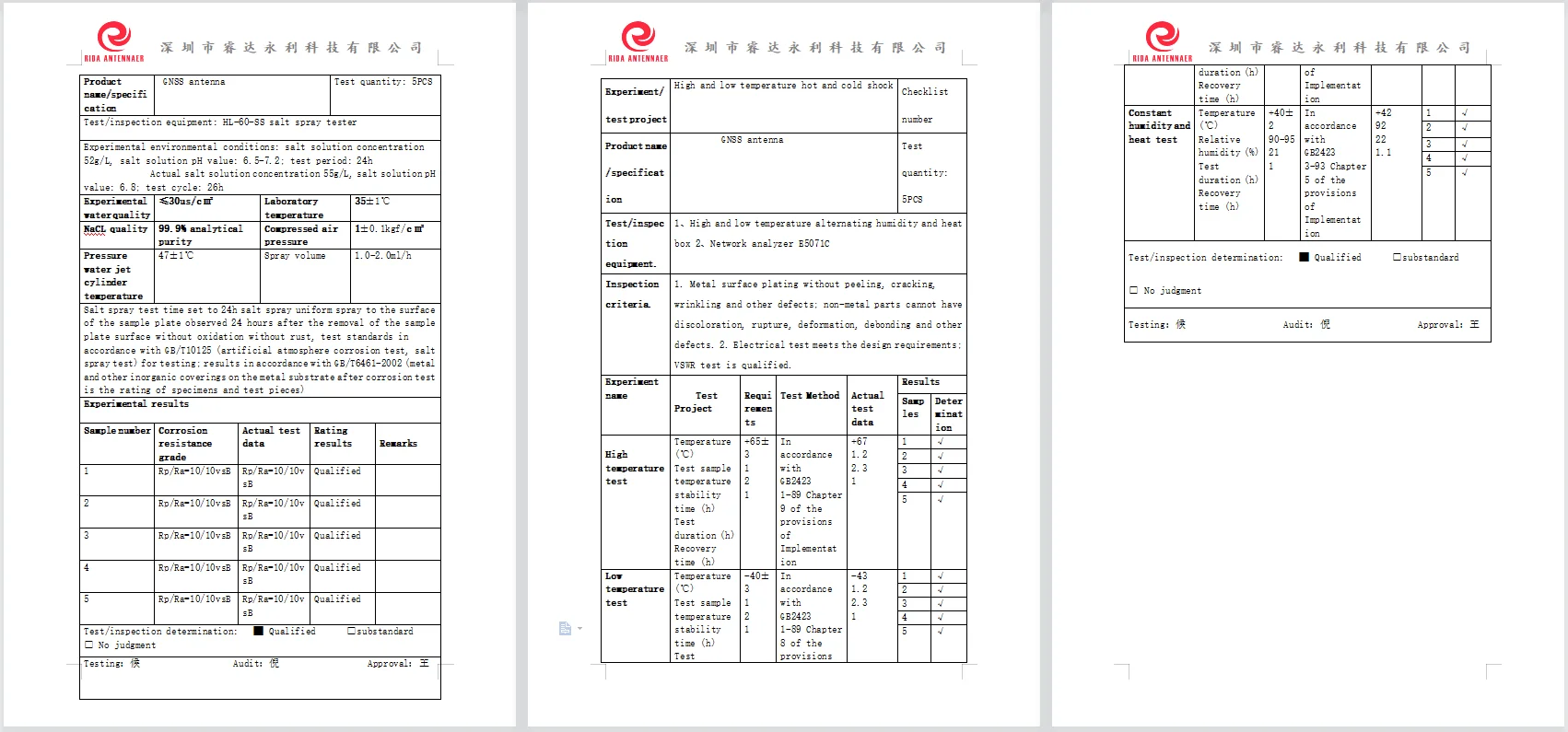

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Guarantee the normal use of the products in harsh environments.（For more test reports, please contact）
Product Parameters & Customizable Range
Customizable options are marked with an asterisk ( * )
Frequency range(MHz) * | 1560-1610MHz (1575.42MHz /1561MHz /1602MHz) / GNSS Dual-Band / GNSS Tri-Band |
Impedance | 50Ω |
V.S.W.R | ≤1.5 |
LNA Gain * | 28 dBi or other |
Polarization type | RHCP |
Power Capacity | 50W |
Connector * | IPEX or U.FL or MCX or others |
AxialRatio@fc | Subject to product |
ReturnLoss[dB]@fc | -15dBmin (Subject to product) |
Cable length * | 150mm |
Material Science | Tinplate |
Working Temp(°C) | -40°C~+85°C |
Company Profile
More Product
FAQ
Q1: Can I get one sample?
A: Yes, If the product is in-stock, it is free.
Q2: Are you a manufacturer or a trading company?
A: We are an antenna manufacturer with a RF antenna laboratory and production plant, executing everything from R&D to production to sales on our own.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
A: Yes, If the product is in-stock, it is free.
Q2: Are you a manufacturer or a trading company?
A: We are an antenna manufacturer with a RF antenna laboratory and production plant, executing everything from R&D to production to sales on our own.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
Q5: Are all your antennas in stock?
A: Not all antennas are in stock, please contact us for details.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
A: Not all antennas are in stock, please contact us for details.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
