2024 China Famous Brand Factory Hot Sale Granite Crusher River Pebble Vertical Shaft Impact Sand Making Machine
- Category: >>>
- Supplier: Zhengzhou Huaye Heavy Industry & Machinery Co. Ltd.
Share on (1601206307065):
Product Overview
Description
Product Overview

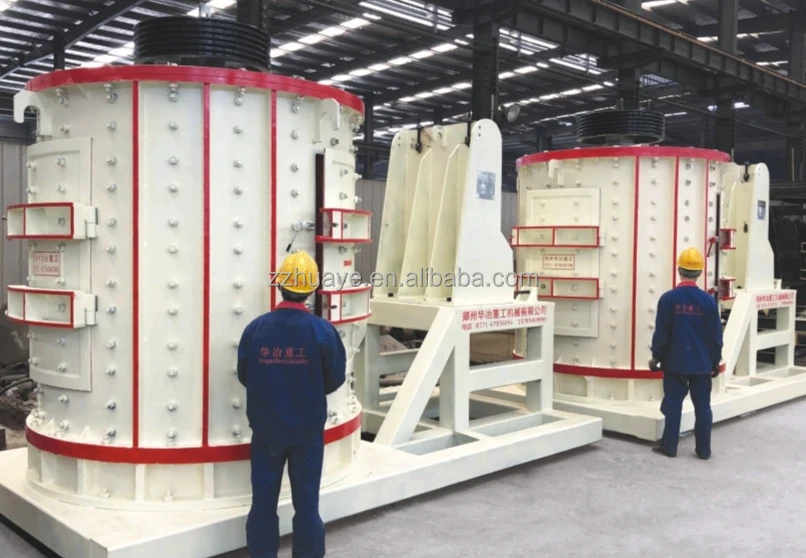

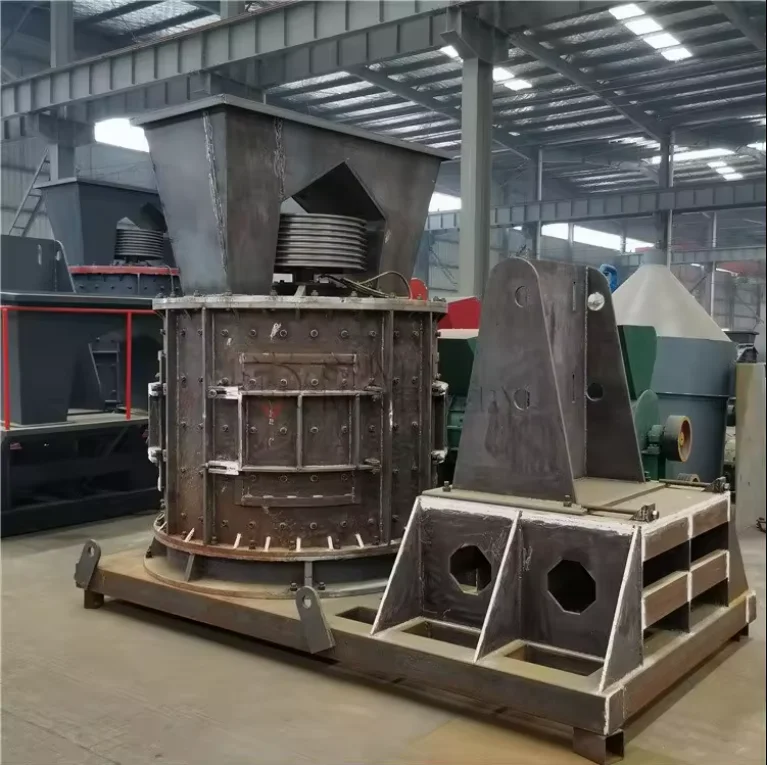

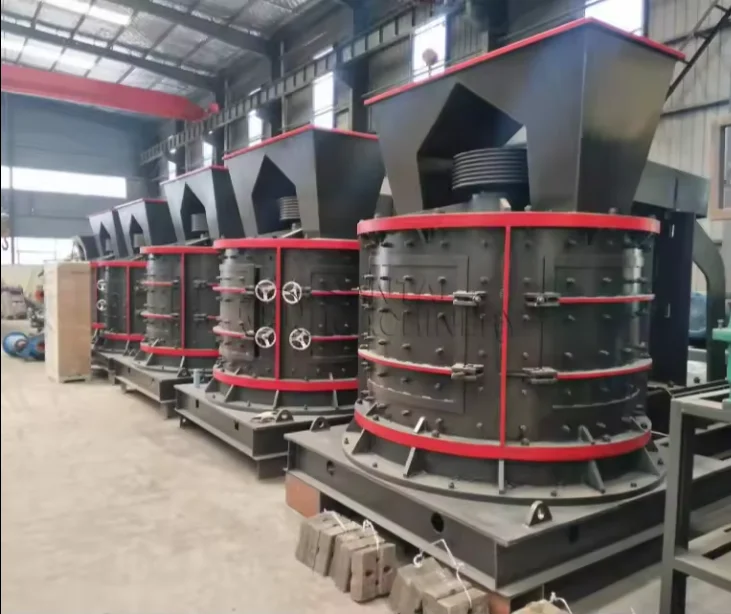

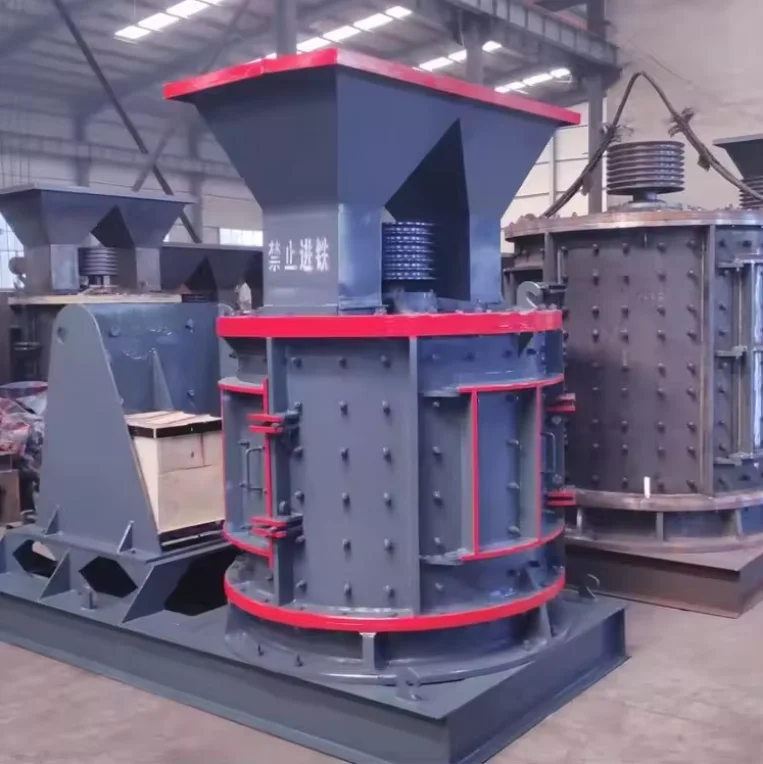

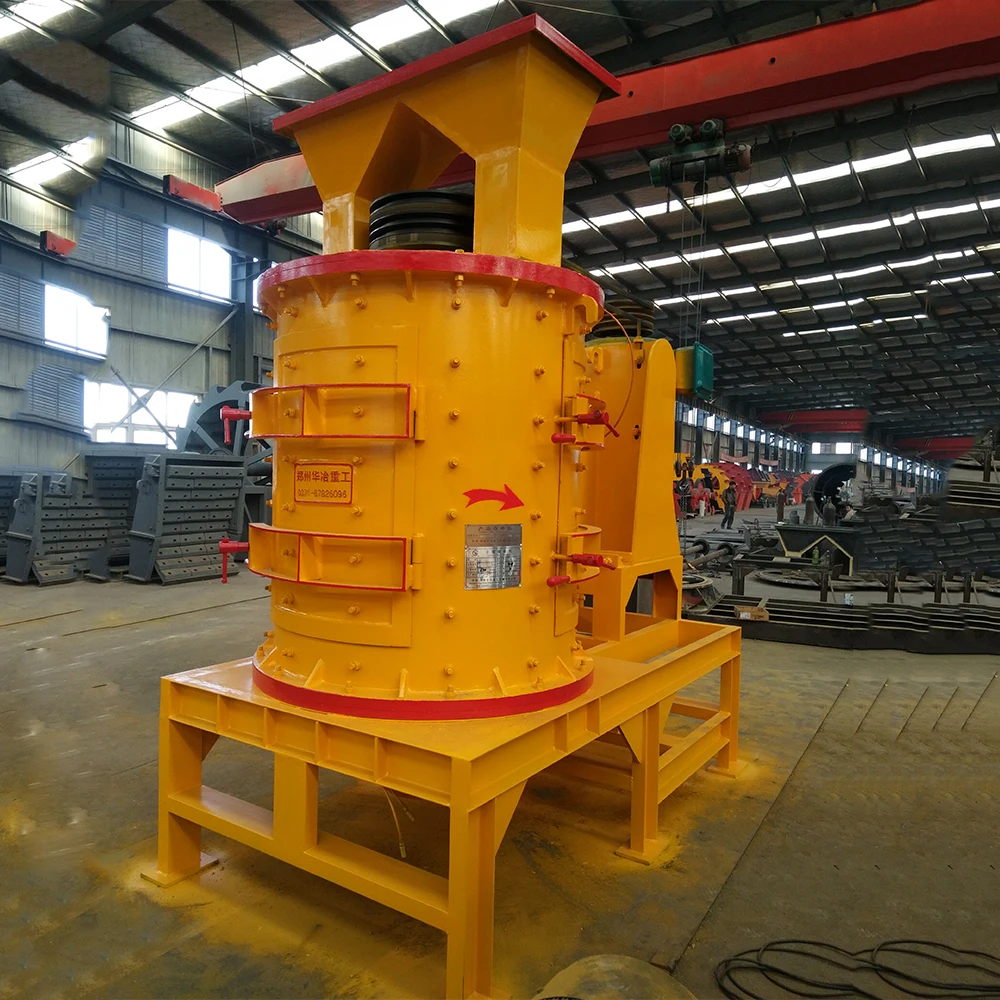

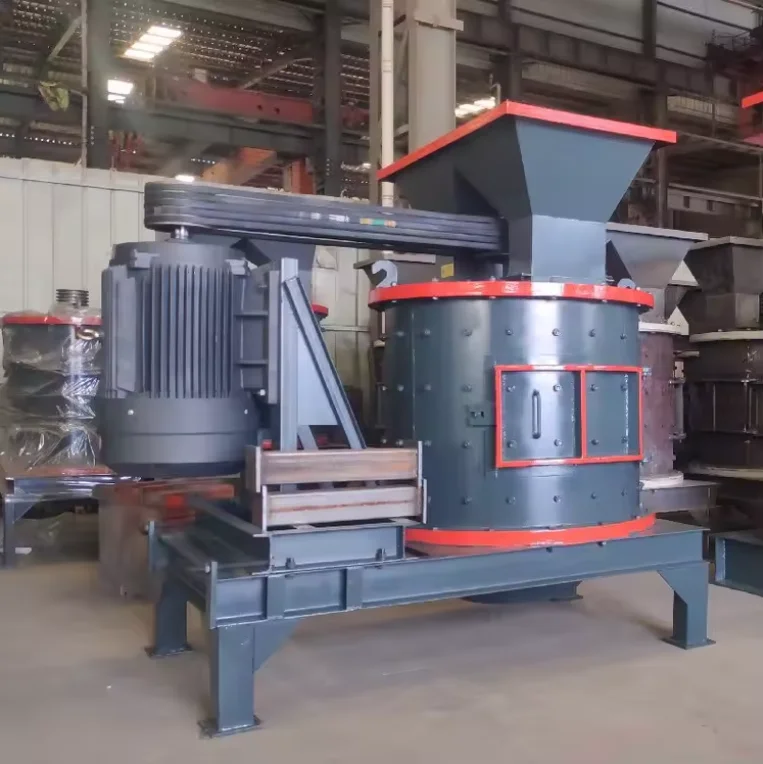

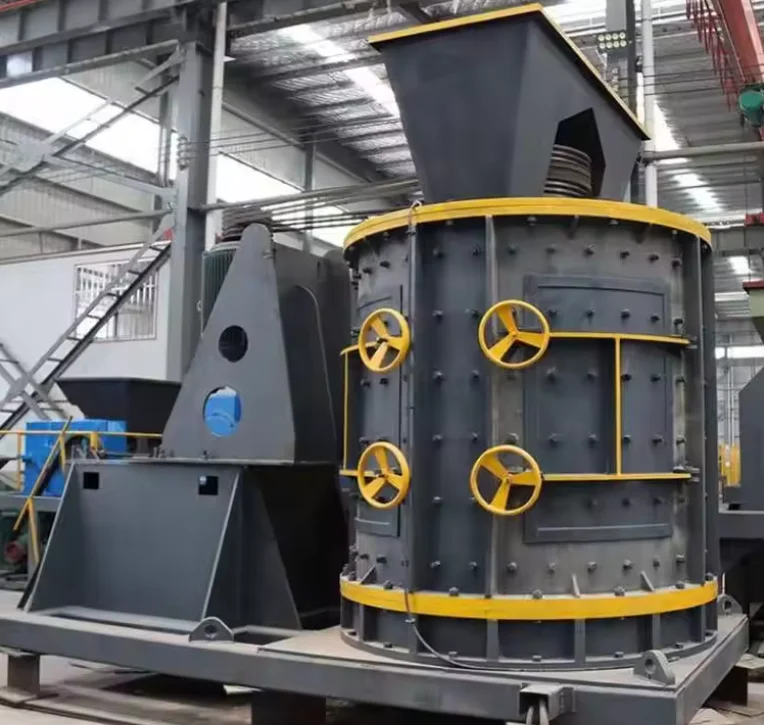

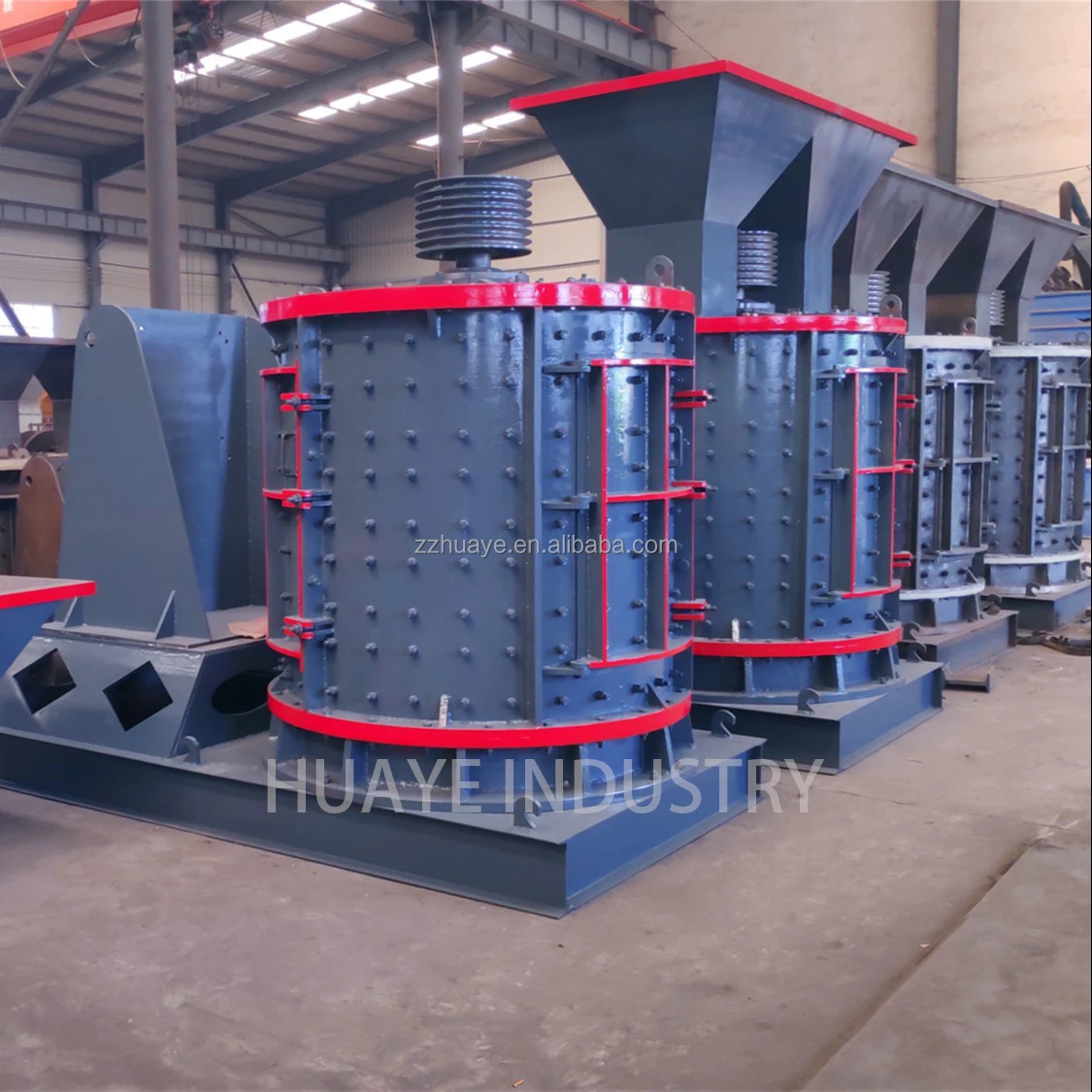

HEAVY SHAFT CRUSHER

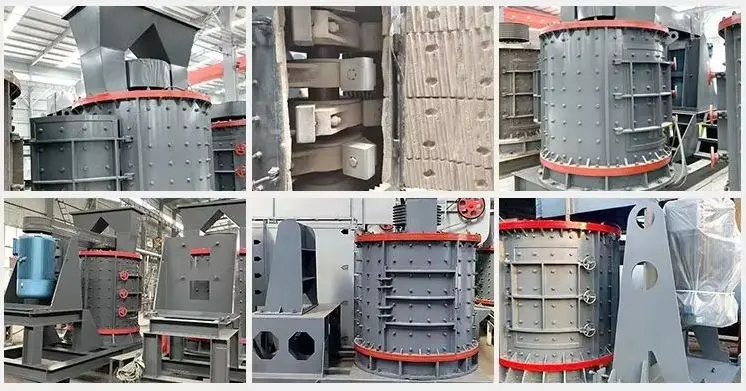

The new vertical shaft crusher is a heavy-duty vertical shaft crusher upgraded and renovated by the company on the basis of the original plate hammer composite crusher, mainly used in material crushing and sand making machine technology. The main components include the rotor, hammer head, lining plate, feeding port, discharging port, electric motor, etc. The difference from ordinary composite crushers is that the new plate hammer composite crusher does not have a bracket. Suitable materials include river pebbles, limestone, pebbles, granite, etc., mainly for crushing quartz sand.
FEATURES AT A GLANCE
1. The crushing ratio is high, with a maximum feed particle size of 40-100mm, and over 95% of the discharge particle size is less than 3mm (of which
30% to 60% are 1-2mm, and the diameter of the discharge particle size can be adjusted;2. Without a grate, the material can be struck both dry and wet. The hammer head is a multifunctional hammer that can be used in four directions.
3. Automatic lubrication system for bearings and self lifting hooks for vulnerable parts.
4. High utilization rate of finished products, with a unit power consumption of 1.29KW.h/t;
5. When used in conjunction with a ball mill, it can increase the mill output by 30% to 40% and reduce system power consumption by 20% to 30%;
6. Wearable parts are made of high wear-resistant alloy materials, which have low wear and long service life;
7. Balanced operation, good sealing performance, low dust, and low noise;
8. Simple structure, convenient operation, small footprint, convenient installation and maintenance.
PRODUCT SPECIFICATIONS
Model | Feed size (mm) | Discharge size(mm) | Capacity(t/h) | Spindle speed (r/min) | Motor Power (kw) | Dimension (mm) |
1000 | <50 | <3mm | 20-40 | 860 | 45-55 | 2573x1170x2827 |
1250 | <70 | <3mm | 40-60 | 760 | 75-90 | 2722x1550x3180 |
1500 | <80 | <3mm | 80-100 | 660 | 132-160 | 2841x2306x4555 |
1750 | <80 | <3mm | 100-150 | 550 | 160-200 | 4533x2370x5205 |
2000 | <100 | <3mm | 150-200 | 480 | 200-250 | 5040x2870x5741 |
