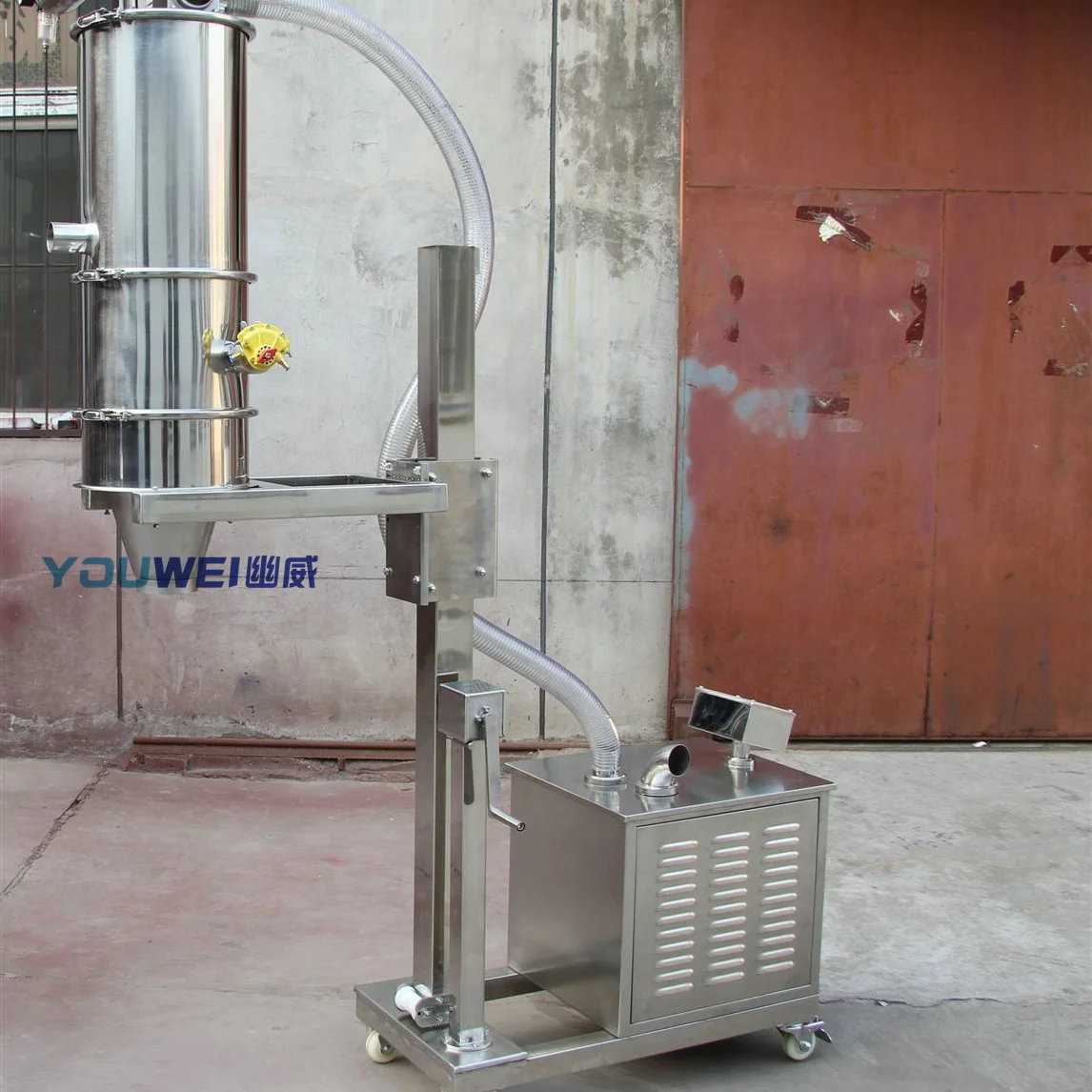

Packing Machine Rice Husk Biomass Pneumatic Vacuum Conveyor with Scale
- Category: >>>
- Supplier: Shanghai Youwei Powder Equipment Co. Ltd
Share on (1601206376018):
Product Overview
Description
Product Description

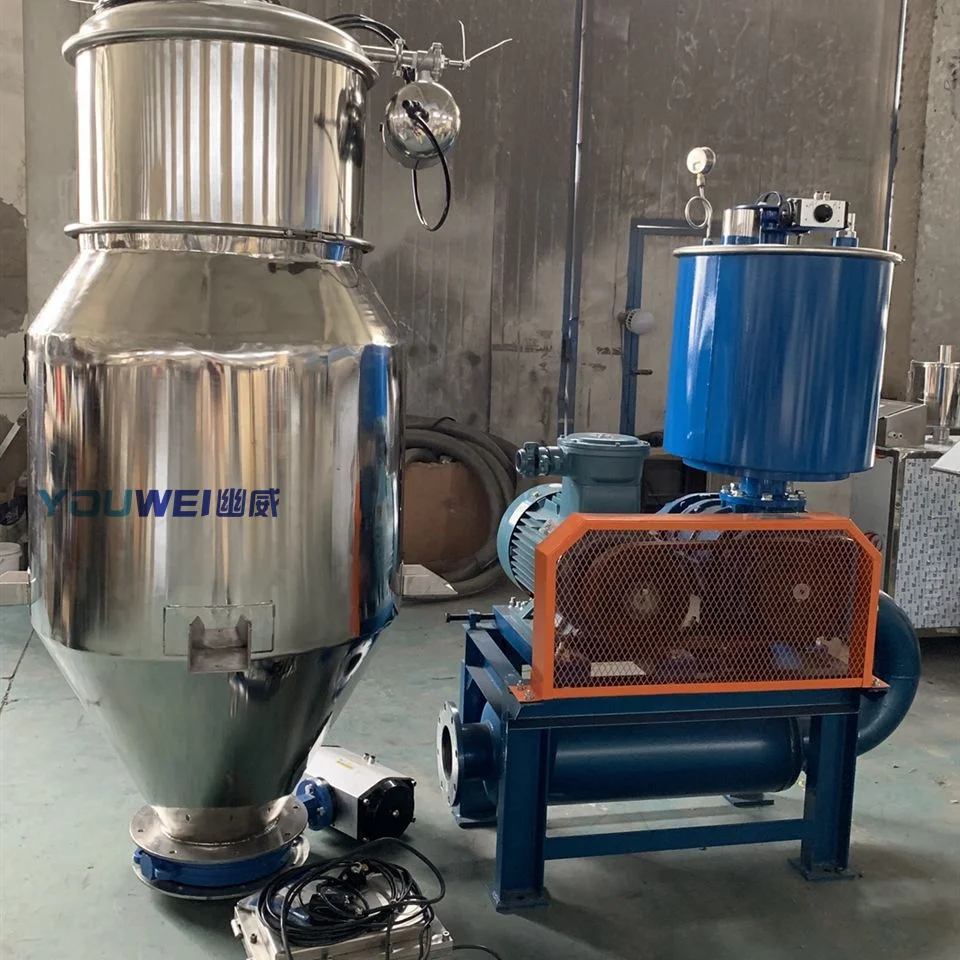

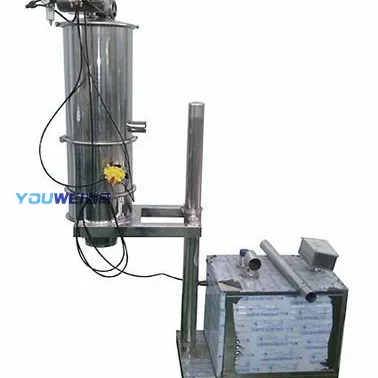

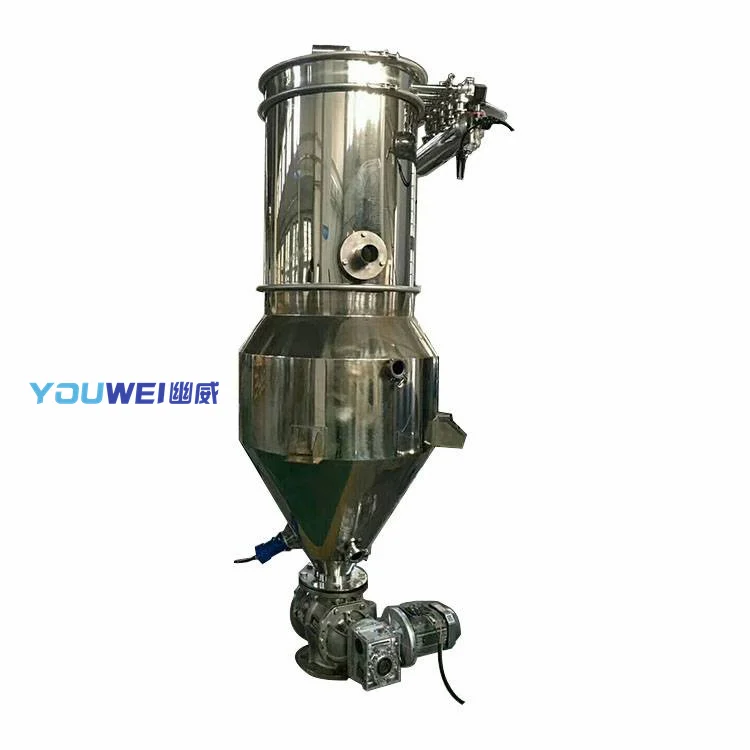

Shanghai YouWei Powder Equipent CO.,LTD VACUUM CONVEYOR
A vacuum conveyor is a type of material handling system that uses air pressure to transport bulk materials, such as powders,granules, and pellets, through a sealed pipe or tube. It's a versatile and efficient way to move materials over long distances orto challenging locations.
Working principal:
The vacuum feeder uses the negative pressure airflow generated by the vacuum equipment to suck the material from the feed port.
The air and materials are then separated in the filter chamber of the vacuum feeder. The materials fall automatically due to
gravity and are collected in the silo. Our cyclones prevent fine powder from entering the filter to increase filter efficiency.
When the silo is filled with materials, the vacuum pump automatically shuts down and the pressure in the conveying equipmentreaches equilibrium. The discharge valve opens, and the material flows out through the discharge port and falls directly into thestorage container. When discharging, the filter element is automatically cleaned by the back-flushed air bag. If the material isrelatively viscous, we can install a special vibrator to assist in unloading. After unloading, the discharging chamberautomatically closes and the entire conveying process starts again
The air and materials are then separated in the filter chamber of the vacuum feeder. The materials fall automatically due to
gravity and are collected in the silo. Our cyclones prevent fine powder from entering the filter to increase filter efficiency.
When the silo is filled with materials, the vacuum pump automatically shuts down and the pressure in the conveying equipmentreaches equilibrium. The discharge valve opens, and the material flows out through the discharge port and falls directly into thestorage container. When discharging, the filter element is automatically cleaned by the back-flushed air bag. If the material isrelatively viscous, we can install a special vibrator to assist in unloading. After unloading, the discharging chamberautomatically closes and the entire conveying process starts again

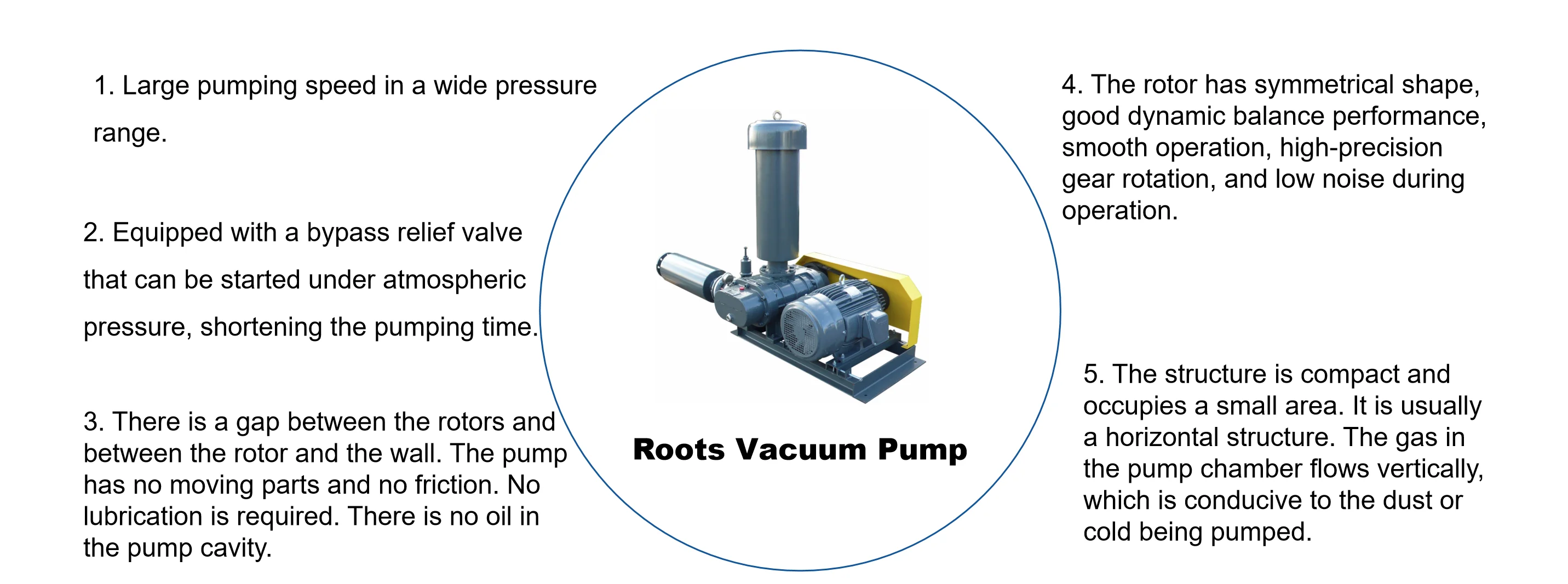

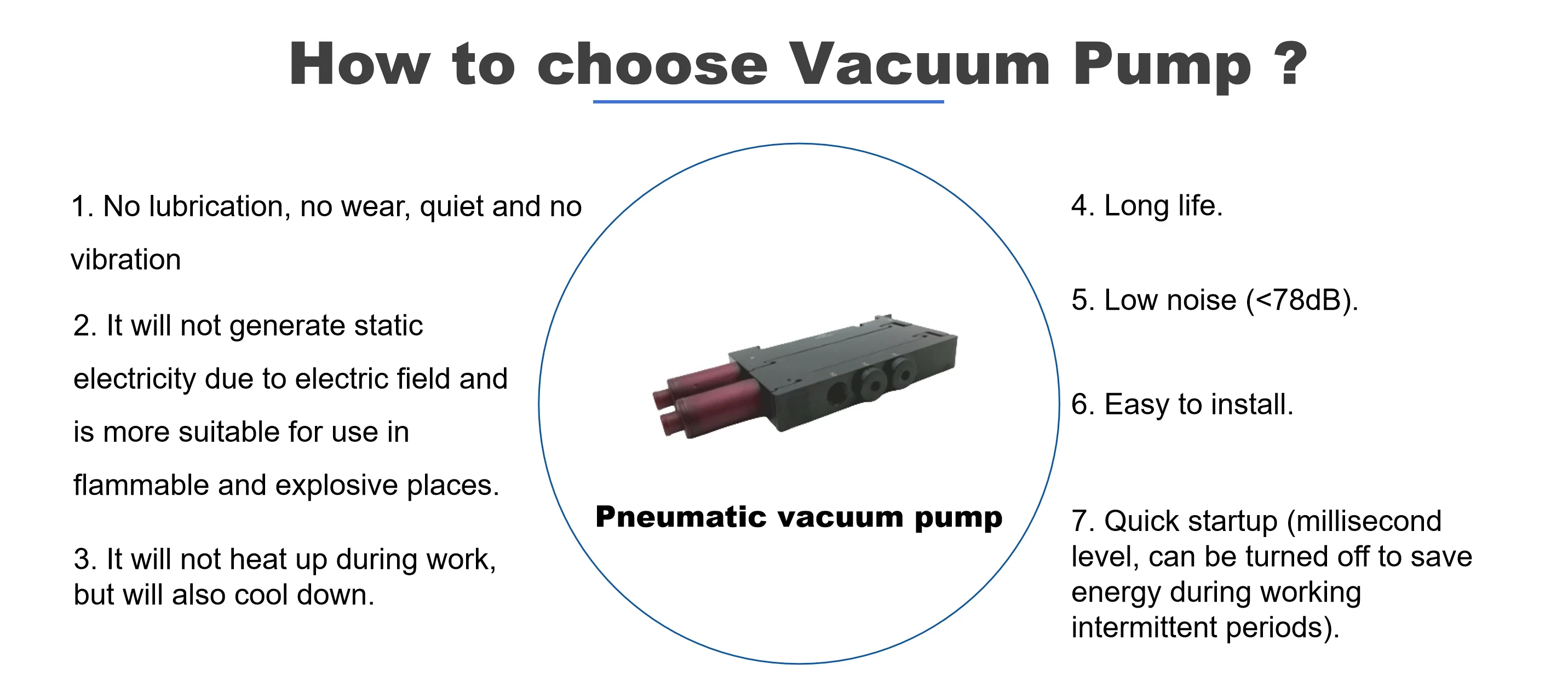

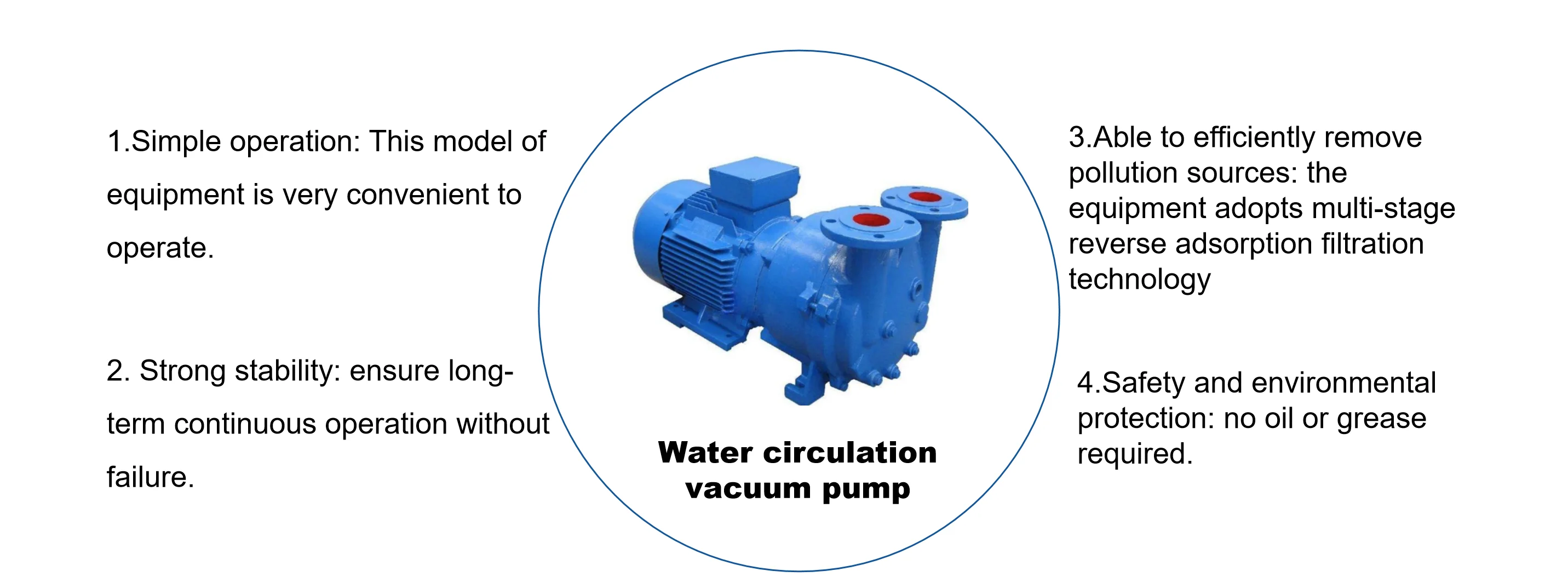

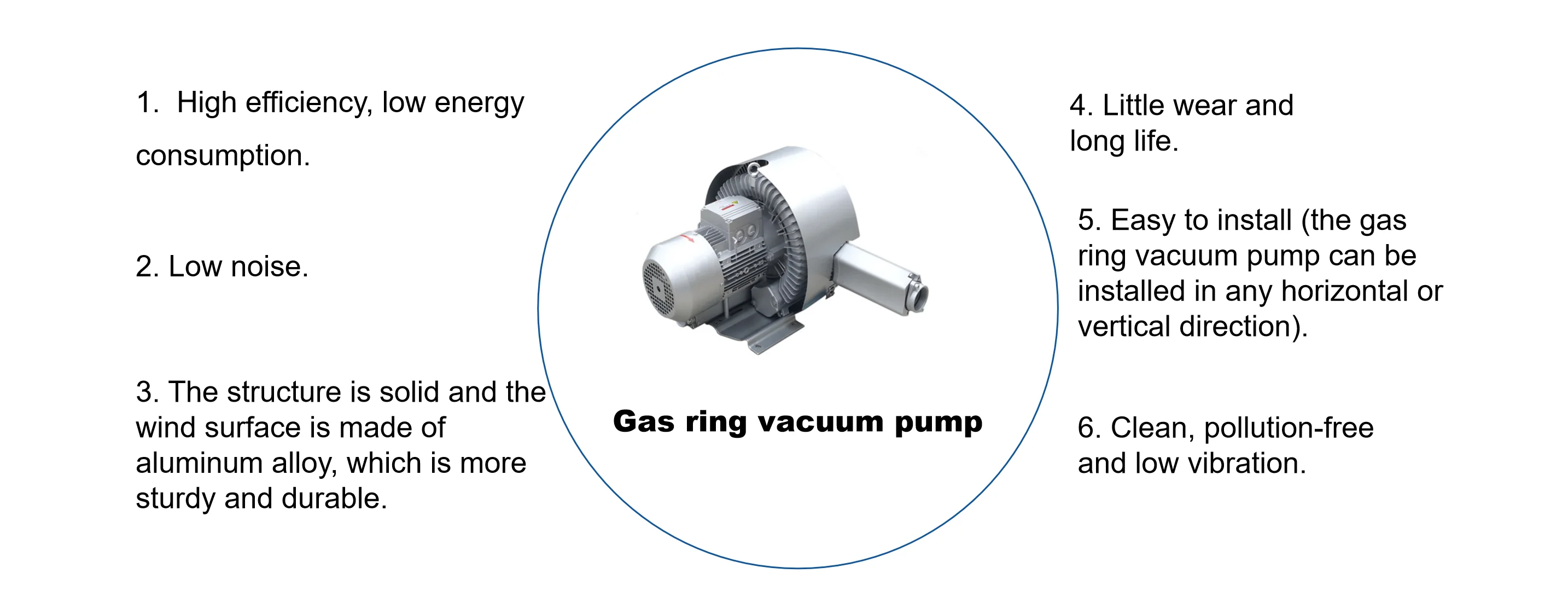

Composition accessories
* Gentle handling: Ideal for fragile materials like food, powders, and chemicals.
* Enclosed transport: Minimizes dust and spills, improving safety and cleanliness.
* Flexible routing: Pipes can navigate complex layouts and reach to Receiving bin.
* Wide range of materials: Handles bulk solids, liquids, and slurries.
* Enclosed transport: Minimizes dust and spills, improving safety and cleanliness.
* Flexible routing: Pipes can navigate complex layouts and reach to Receiving bin.
* Wide range of materials: Handles bulk solids, liquids, and slurries.
Technical Parameter
Type | Spectification (MM) | Conveying Capacity KG/H | Power KW | Filter Area m² | Material |
200 | Φ250*600 | ≤250 | 2.2KW | 0.35 | 304/316L |
300 | Φ300*1200 | ≤500 | 4KW | 0.55 | 304/316L |
400 | Φ430*1500 | ≤1000 | 5.5KW | 1.5 | 304/316L |
500 | Φ560*1800 | ≤2000 | 7.5KW | 2.5 | 304/316L |
800 | Φ800*2000 | ≤3000 | 11KW | 4.6 | 304/316L |
1200 | Φ1200*1600 | ≤5000 | 22KW | 6.9 | 304/316L |

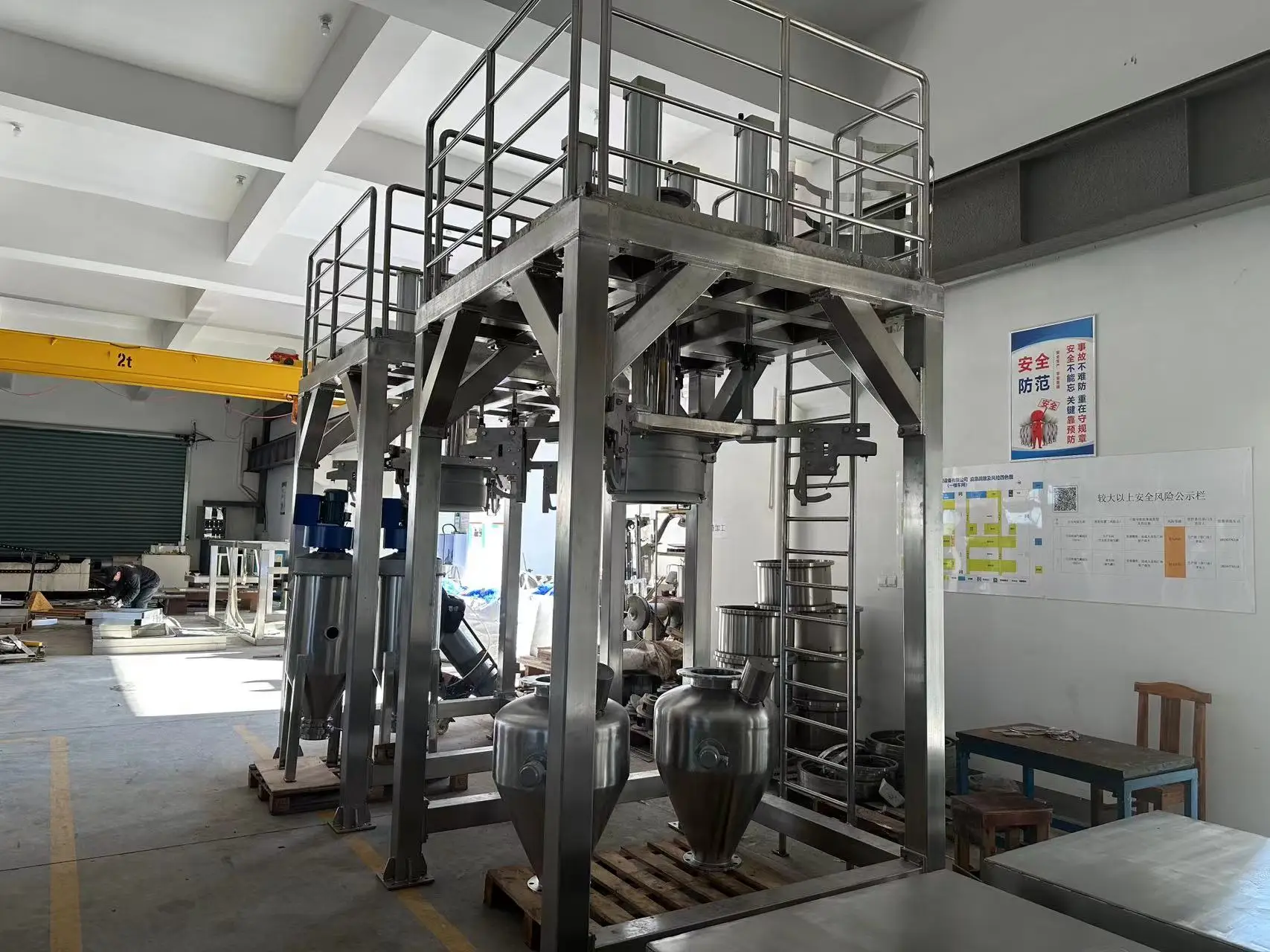

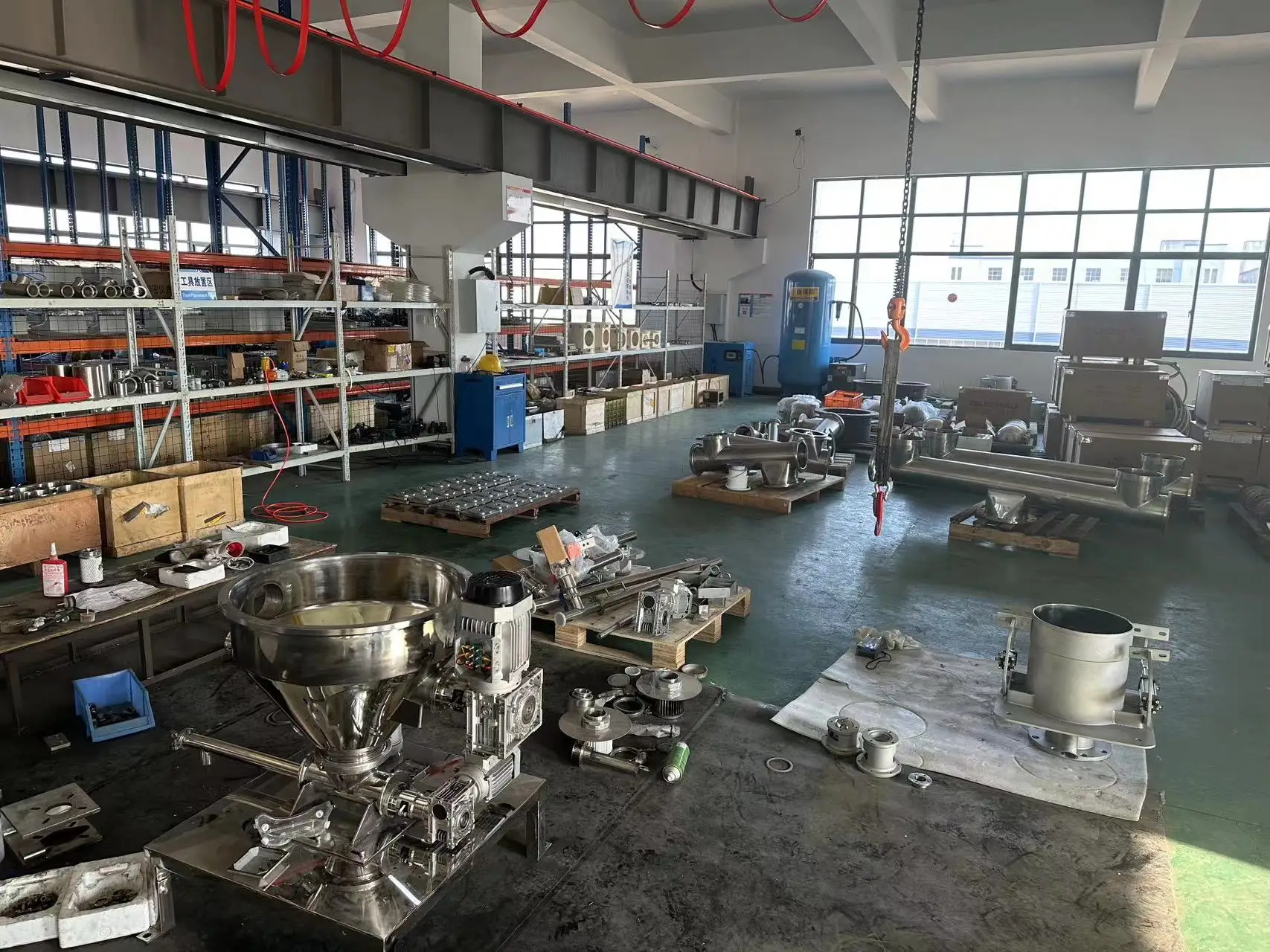

Equipment production process
Certifications
Company Information
Company Profile
Founded in 2011, Shanghai Youwei Powder Equipment Co., Ltd. is a production-oriented processing enterprise specializing in powder unpacking, conveying, weighing, metering, batching and packaging equipment manufacturing. The registered capital of the company is 12 million. The company has two processing bases in Zhangjiagang City and Qidong City, with a plant area of nearly 8,000 square meters.
For more than ten years, we have been deeply engaged in the field of material handling automation, and we have always been guided by customer needs, and have independently developed equipment such as small bag feeding station, ton bag unpacking machine, vacuum feeding machine, weighing and metering batching, ton bag packaging machine and so on. We have rich industry experience in the food ingredients industry, lithium battery cathode and anode industry, and pharmaceutical intermediates industry.
The company adheres to the spirit of integrity, pragmatism and innovation, and provides high-quality systematic solutions for all kinds of users with rich experience in technology development , and goes hand in hand with users to create a better future.
For more than ten years, we have been deeply engaged in the field of material handling automation, and we have always been guided by customer needs, and have independently developed equipment such as small bag feeding station, ton bag unpacking machine, vacuum feeding machine, weighing and metering batching, ton bag packaging machine and so on. We have rich industry experience in the food ingredients industry, lithium battery cathode and anode industry, and pharmaceutical intermediates industry.
The company adheres to the spirit of integrity, pragmatism and innovation, and provides high-quality systematic solutions for all kinds of users with rich experience in technology development , and goes hand in hand with users to create a better future.
Why Choose Us
What we need to know
The proper selection of the industrial vacuum conveyor system depends on the material, conveying distance, output required,charaterristics of the material etc:
2. Moisture:_____%
3. Capacity:________kg/ hour
4. Voltage:______V, Frequency:______HZ, 3 phase
5.The height and distance of the conveyor ：_____ M
6.Material characteristics ：________
7.The maximum and minimum values of the particles ：________
5.The height and distance of the conveyor ：_____ M
6.Material characteristics ：________
7.The maximum and minimum values of the particles ：________
