Satellite High Sensitivity Tracking For Car Navigation Agricultural gps module gnss rtk antenna for Automatic precision mower
- Category: >>>
- Supplier: Shenzhen Jiameishi Technology Co. Ltd
Share on (1601206406871):
Product Overview
Description

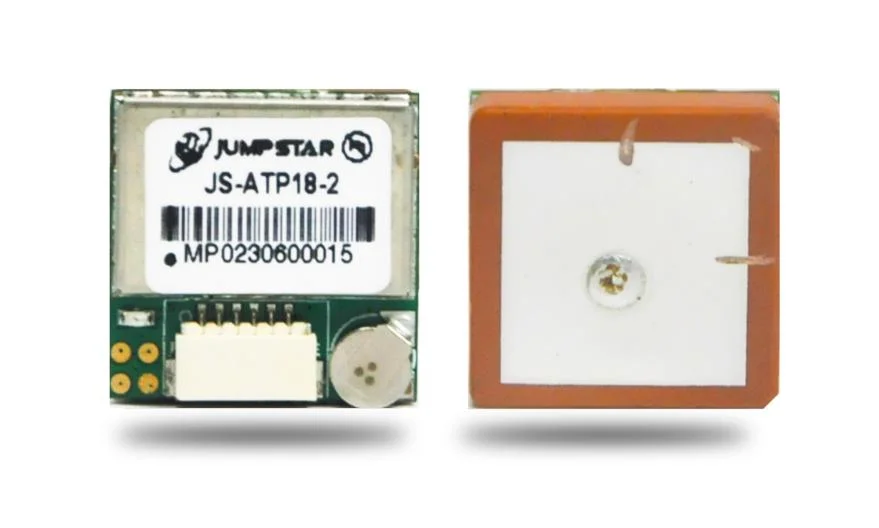

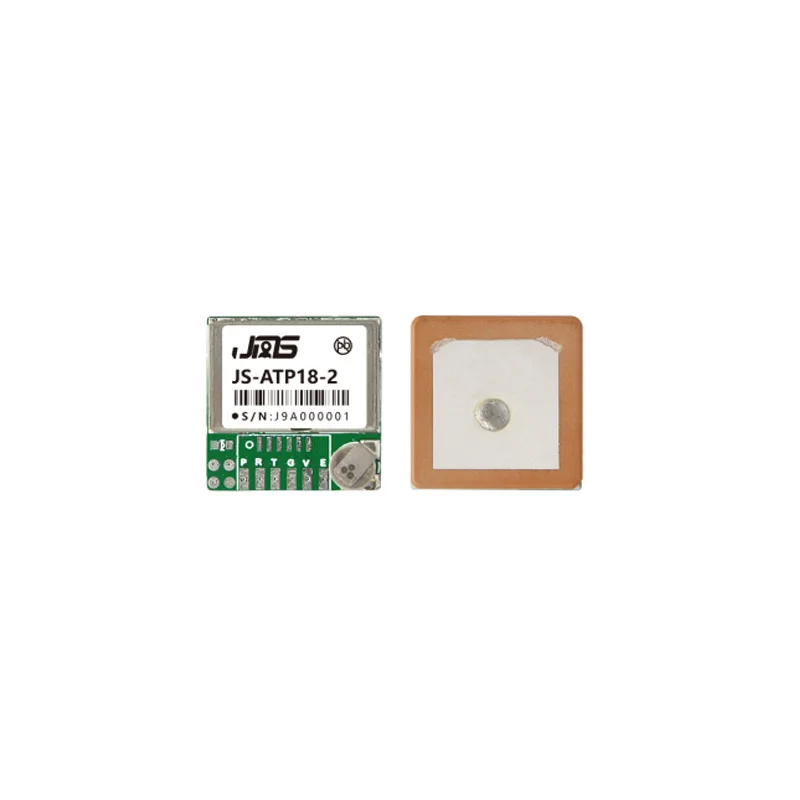

JS-ATP18-2
Satellite High Sensitivity Tracking For Car Navigation Agricultural gps module gnss rtk antenna for Automatic precision mower
• Based on high-performance GNSS SOC series
• 47channelsnumber
• Cold start acquisition sensitivity of -148dBm, tracking sensitivity of -165dBm
• Up to10Hz navigation update rate
• Supports GPS, BDS, GLONASS, Galileo, QZSS, and SBAS
• Supports AGPS
• Indoor and outdoor multipath detection and compensation
• Integrated 12-tone active interference canceller
• Integrated TCXO, LNA, SAW, and RTC
• Compact size (18.0 mm x 18 .0mm x 6.7mm±0.3mm), suitable for space-sensitive applications
• Supports standard NMEA 0183 V 3.01 /V4.10
• Supports 1PPS output
• 47channelsnumber
• Cold start acquisition sensitivity of -148dBm, tracking sensitivity of -165dBm
• Up to10Hz navigation update rate
• Supports GPS, BDS, GLONASS, Galileo, QZSS, and SBAS
• Supports AGPS
• Indoor and outdoor multipath detection and compensation
• Integrated 12-tone active interference canceller
• Integrated TCXO, LNA, SAW, and RTC
• Compact size (18.0 mm x 18 .0mm x 6.7mm±0.3mm), suitable for space-sensitive applications
• Supports standard NMEA 0183 V 3.01 /V4.10
• Supports 1PPS output
Parameters | Specifications |
Constellation Frequency | ■GPS/QZSS L1C L1C/A ■GLONASS L1 ■BDS B1I B1C ■Galileo E1 ■SBAS WAAS/EGNOS/MSAS/GAGAN |
Sensitivity | Tracking and Navigation -165dBm Cold Start -148dBm |
First Fix Time1 | Cold Start 24s Hot Start 1s |
GNSS Positioning Accuracy² | Horizontal 1.5m Vertical 2.25m |
Time Pulse Signal Accuracy | 1PPS 10ns |
Speed Accuracy3 | GNSS 0.1m/s SBAS 0.05m/s |
Operational Limits4 | Acceleration 4g Altitude Limit 10000m Speed Limit 100m/s |
Time Pulse Signal Frequency | 1Hz |
Baud Rate | 4800-921600 bps (default 115200 bps)5 |
Maximum Navigation Update Rate | 10Hz (default is 1Hz) |
