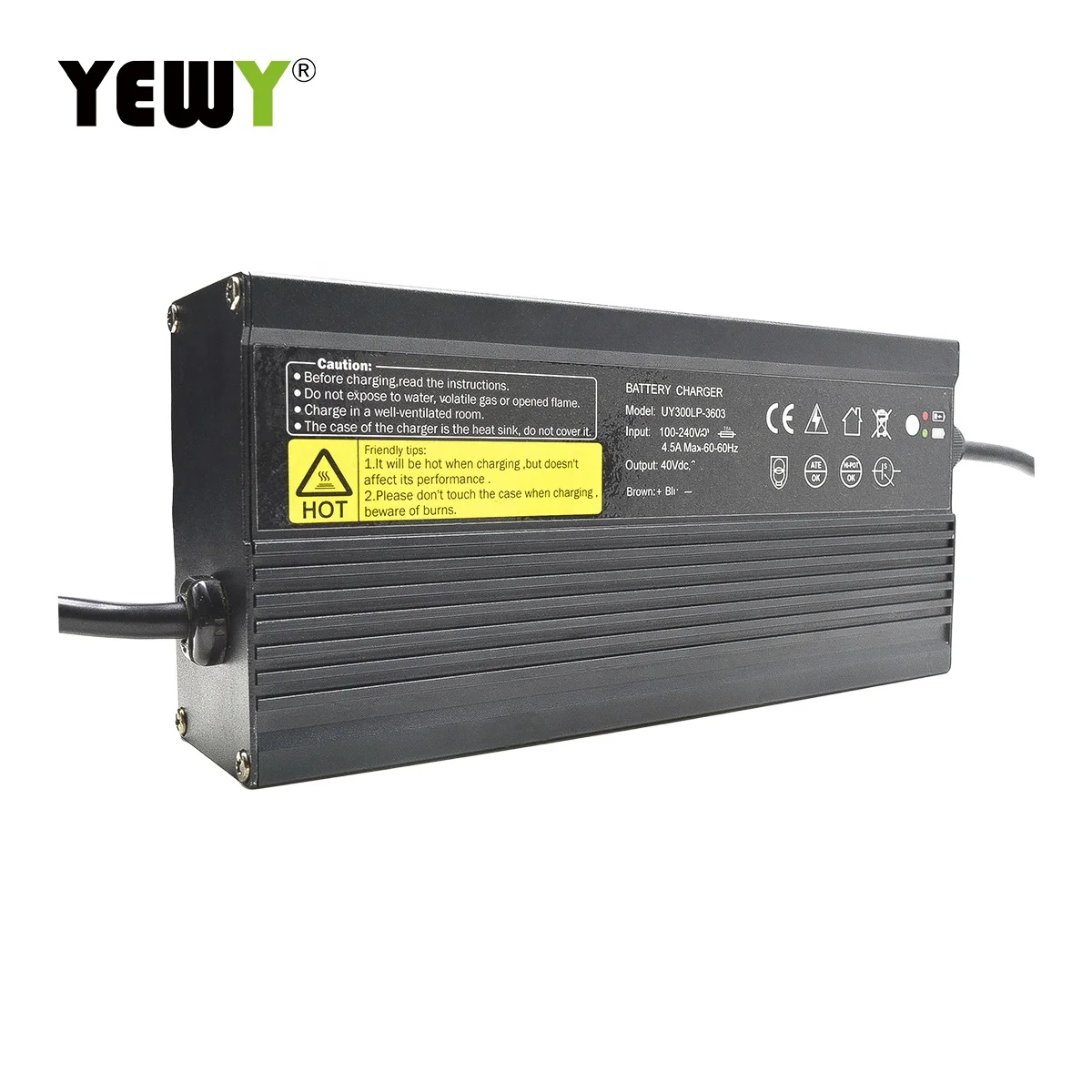

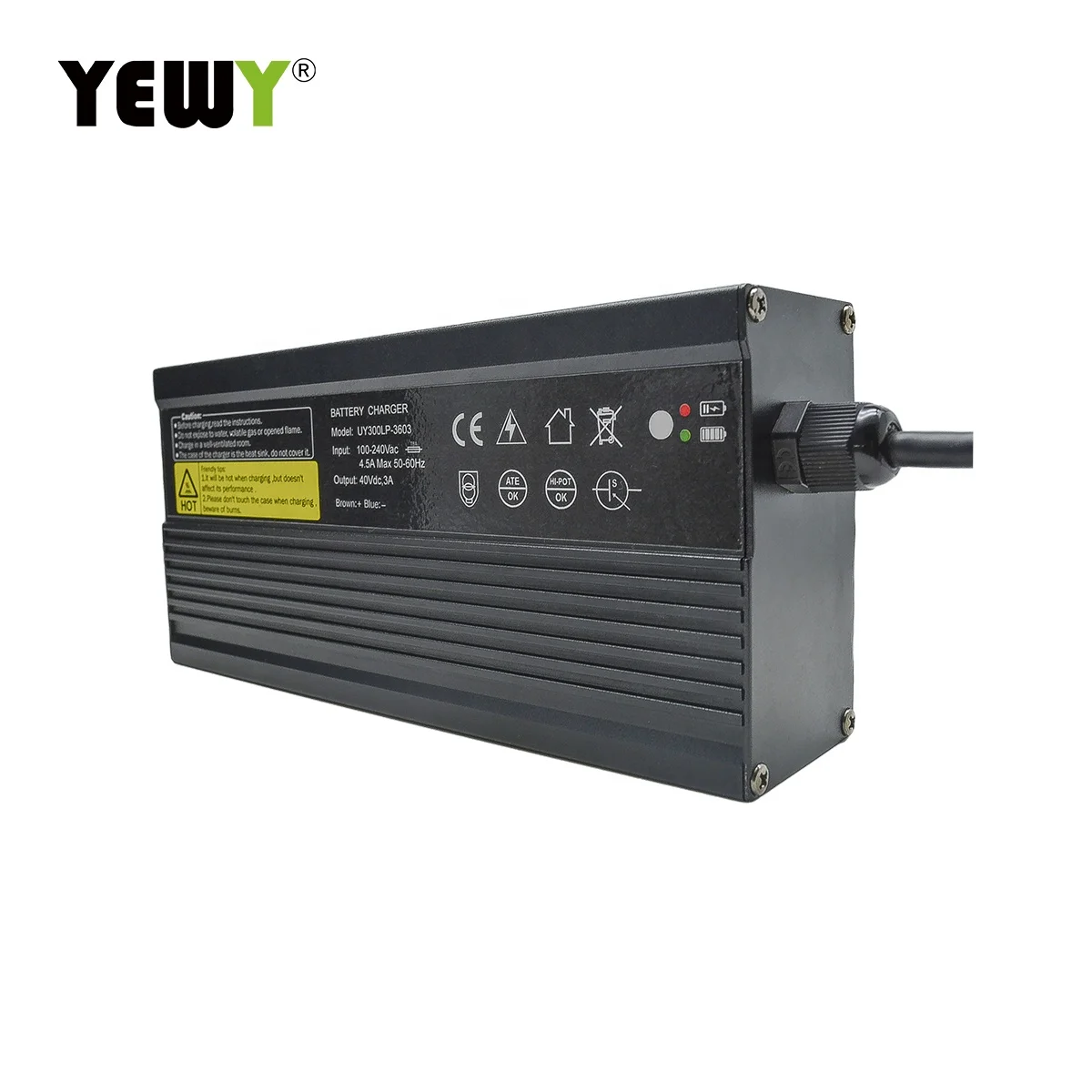

Uy300LP 24 Volt 10A Lithium Battery Charger 12V 16A Lifepo4 Adjustable Battery Charger
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. ltd.
Share on (1601206435587):
Product Overview
Description
OEM/ODM Battery Charger Manufacturer
We support complete One-Stop Battery Charger customization solutions
Product Details
Charger Model: | UY300LP |
Housing: | Aluminium Alloy |
Max Power: | 300W |

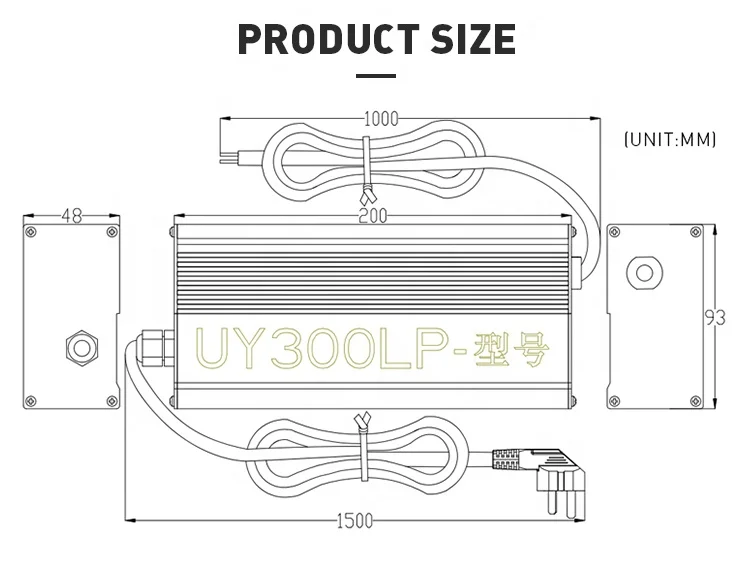

Dimensions: | 200x93x49mm |
Frequency: | 47~63 Hz |
AC Input: | 100-240Vac |
Communication: | CAN, RS485 |

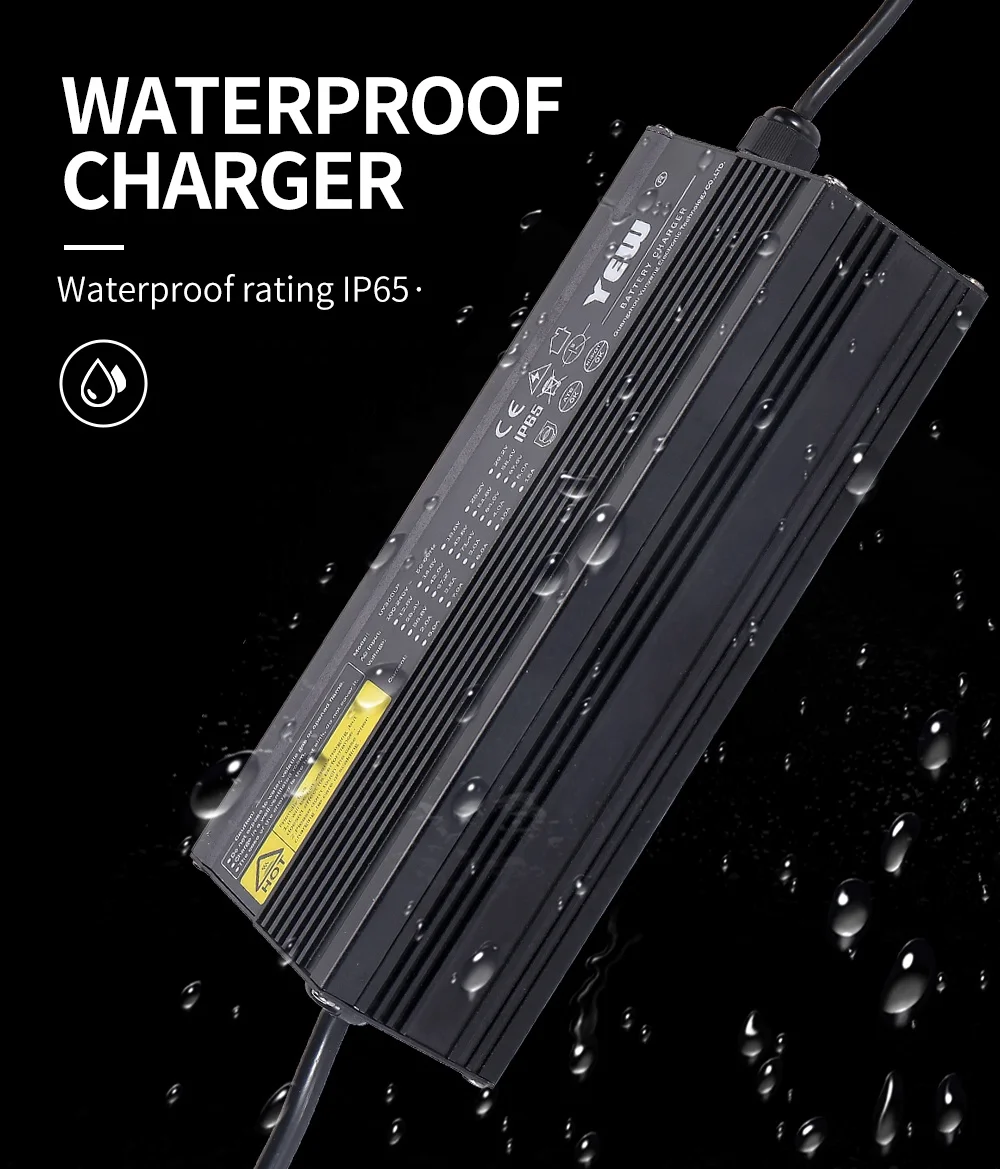

Waterproof: | IP65 |
Max Efficiency: | >=92% |
Noise: | <=40dB |
Operating Temperature: | -20 to 40℃ |
Storage Temperature: | -40 to 70℃ |
Certification: | CE,CB,FCC,C-TUV-US,LVD |
Cooling: | without Fan |
Protection: | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge |

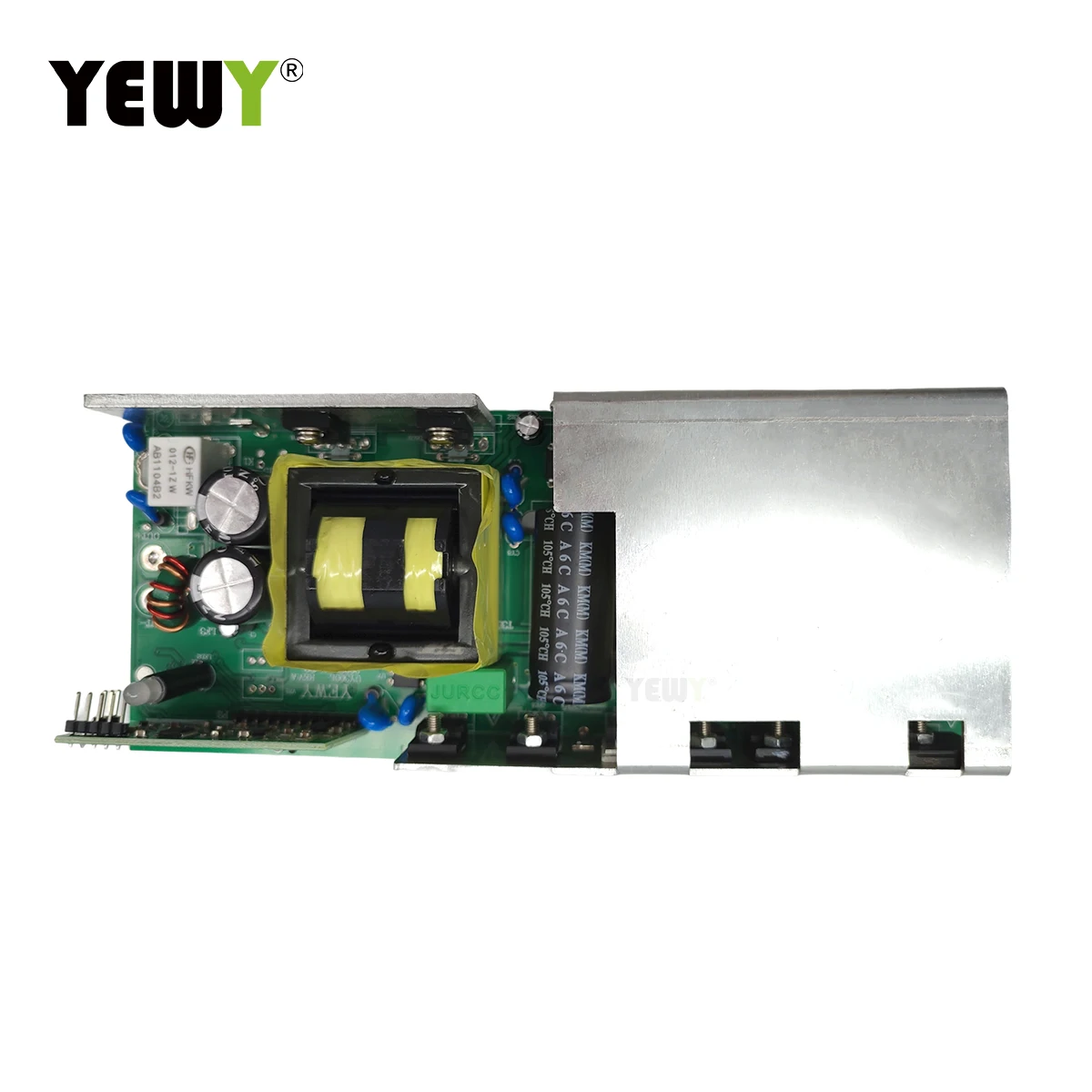

UY300LP PCB board
1.CCM PFC+LLC topology.
(i):APFC, high power factor.
(ii):LLC resonance + SR, high efficiency of the whole machine, more than 92%.
(iii):With MCU, better protection function, and customisable charging curves.
2.Intelligent full-automatic charging, multi-stage automatic charging curve, obtaining battery status, switching charging modes
Select Charging Parameters: The charger is versatile and can charge different types of batteries like Lithium and Lead-acid.
Select the appropriate charging parameters based on the battery type you are charging. Make sure to follow the manufacturers recommendations for charging current and voltage to avoid any damage to the battery.
Select the appropriate charging parameters based on the battery type you are charging. Make sure to follow the manufacturers recommendations for charging current and voltage to avoid any damage to the battery.
UY300LP | ||||||||||||
DC Voltage(Max) | (CC:A) Charging current | Light Turning(A) | ||||||||||
Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | ||||||||
12V 16A | 12.6V/16.8V | 14.6V | 14.7V | 16A | 8%CC | 25%CC | ||||||
24V 10A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 10A | ||||||||
36V 7A | 42V/46.2V | 43.8V | 44.1V | 7A | ||||||||
48V 5A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 5A | ||||||||
60V 4A | 63V/67.2V | 73V | 73.5V | 4A | ||||||||
72V 3A | 84V/88.2V | 83.95V/87.6V | 88.2V | 3A | ||||||||
Charging mode：6 stage
Pre-Charge, CC mode, CV mode ,Battery Full, Recharge
Charging mode：5 stage
Pre-Charge, CC mode, CV mode ,Battery Full&Float Charge

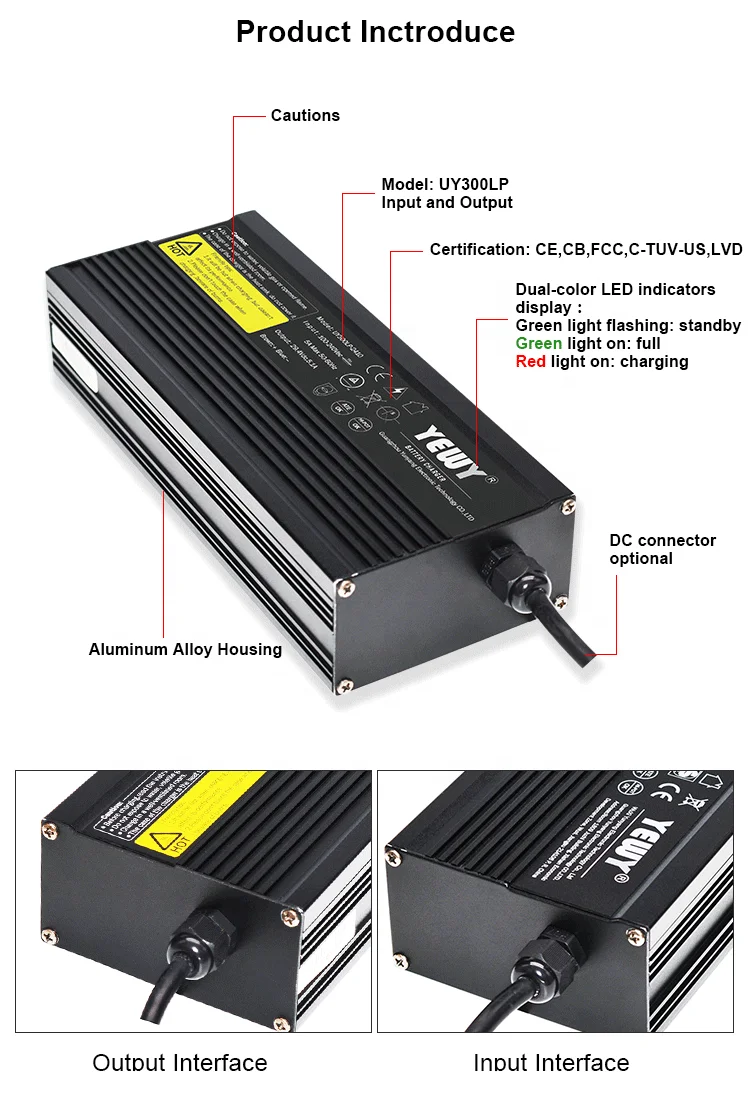

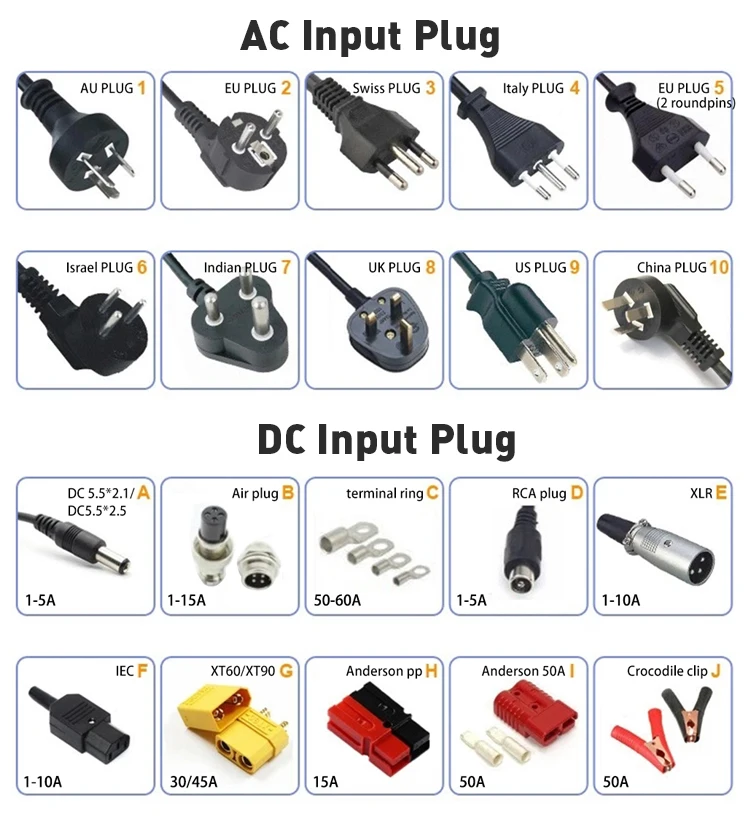

Input&Output Plug
Company Profile
we are totally reliable with all certification shown below:
IOS 9001:2015,CE,CB,LVD,C-TUV-US,ROHS,FCC,UL,CQC,GS,KC,KCC,RCM
Shipping & Payment
FAQ
Q:Are you a manufacturer or a trading company?
A:We are a professional manufacturer of battery chargers with more than 15 years of experience and "Hi-Tech Enterprise" in China.
We hold certifications in accordance with ISO 9001:2015 and ISO 14001:2015. To uphold these standards, we have implemented a robust management system that not only supports our certification but also ensures our adherence to the stringent requirements set by these standards.
We hold certifications in accordance with ISO 9001:2015 and ISO 14001:2015. To uphold these standards, we have implemented a robust management system that not only supports our certification but also ensures our adherence to the stringent requirements set by these standards.
Q:What custom services can you provide?
A:We can provide services such as product customization(current/voltage, electric circuit and function), appearance, label, package box, and other packaging design and shipping agency.
A:We can provide services such as product customization(current/voltage, electric circuit and function), appearance, label, package box, and other packaging design and shipping agency.
Q: Why choose us?
A :There are several reasons why choosing us is advantageous:
A :There are several reasons why choosing us is advantageous:
* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.If product is broken in warranty, we will provide free replacment.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC, UL,GS for series products.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.If product is broken in warranty, we will provide free replacment.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC, UL,GS for series products.
Q: Can I request a sample order?
A: Absolutely! We welcome sample orders to cater to your specific requirements.
