ETH01 EVO ESP32 C3 Development Board 3 in 1 IoT Gateway with Ethernet Wifi Bluetooth POE Module 5G Access

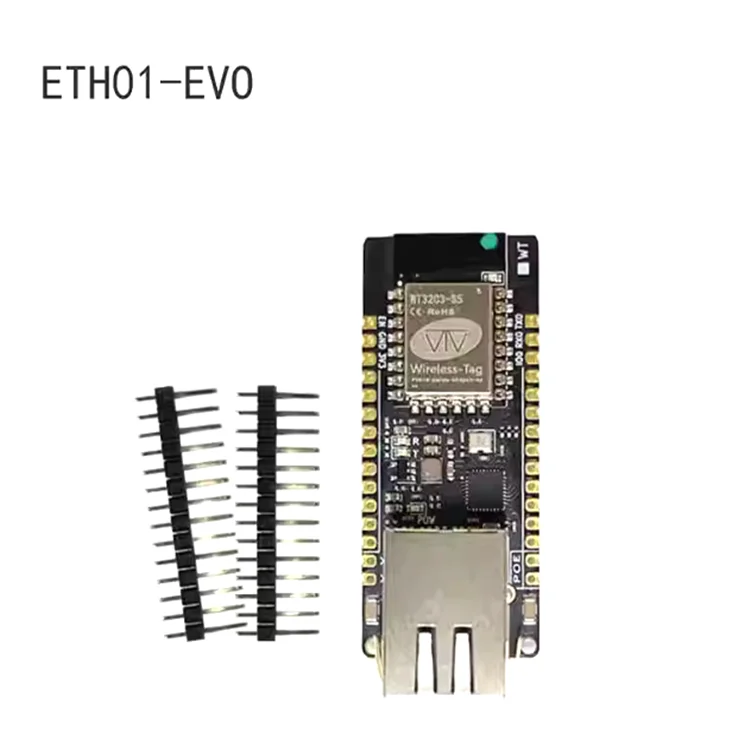

ETH01-EVO is an upgraded version of ETH01, which has the following advantages:
1. ETH01-EVO is upgrading its application AT firmware to AT version 2.4.2.0

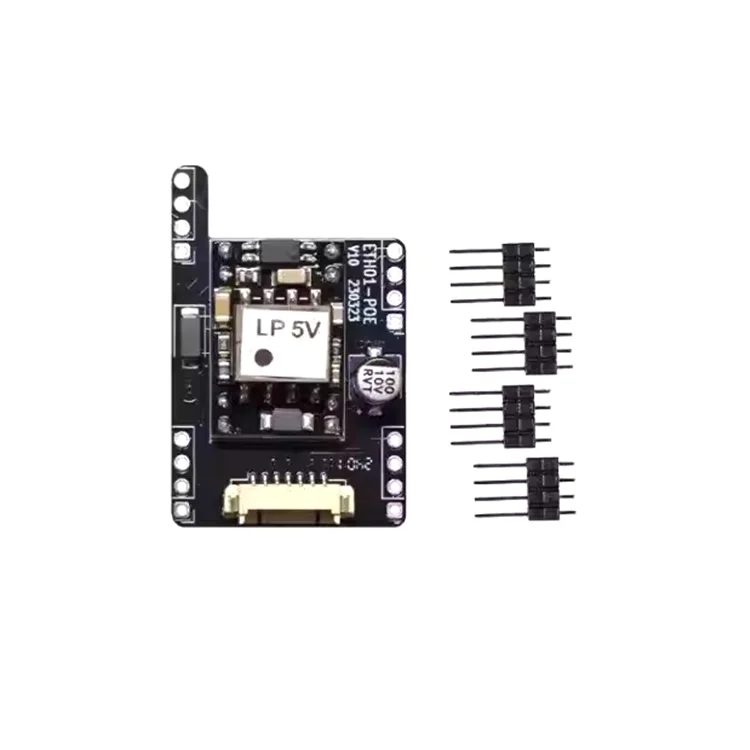

2.ETH01-EVO supports POE ingress for Ethernet connections and provides a reserved POE slot for various application scenarios.
3.ETH01-EVO communicates with the controller through the SPI bus and converts the data into RJ45 signals for output via the SPI interface. On the other hand, WT32 ETH01 communicates with the controller through a PHY (Ethernet physical layer) transceiver and converts the data into RJ45 signals for output using the PHY transceiver.

ETH01-EVO is a three-in-one Internet of Things communication gateway based on the ESP32-C3 chip, supporting WIFI, Bluetooth, and Ethernet. It supports a complete TCP/IP protocol stack and AT commands, making it easy for users to achieve network connectivity for embedded devices and significantly reducing development time and cost.

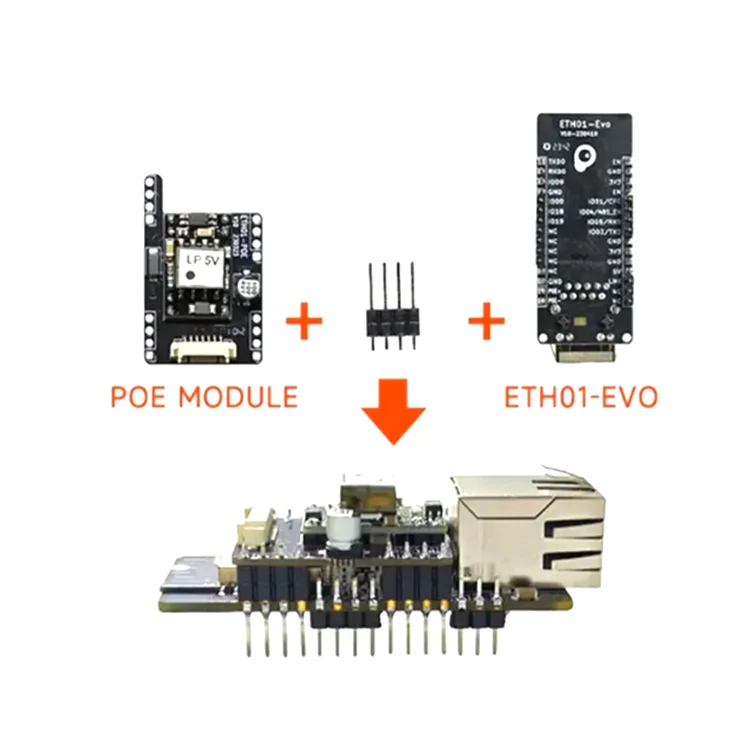

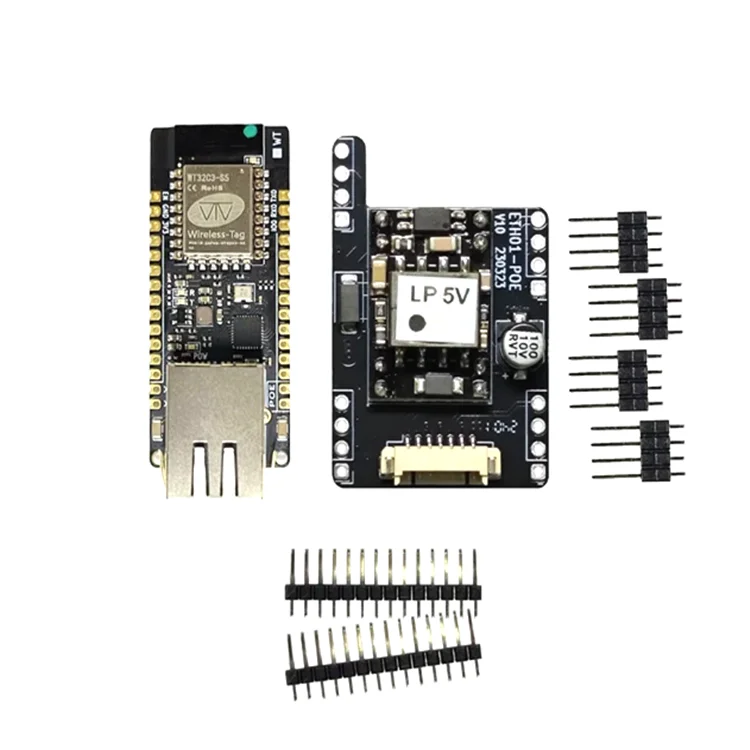

The module is compatible with both surface mount and through-hole connector designs, allowing it to be soldered directly onto PCBs or used on breadboards. Additionally, it has a reserved POE position, making it suitable for various scenarios.
Due to different product batches, the appearance may be different, but it does not affect use.
Features:
1.Highly integrated ESP32-C3 module with low power consumption
2.Wireless connectivity with Wi-Fi and BLE and Ethernet
3.Supports AT instructions
4.Supports a complete TCP/IP protocol stack
5.Reserved POE location
