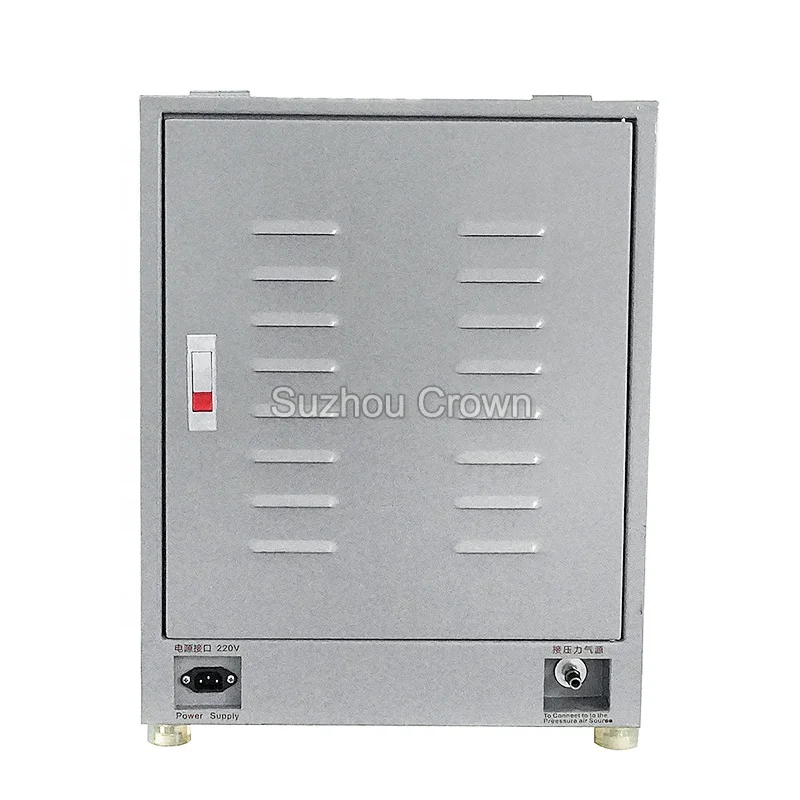

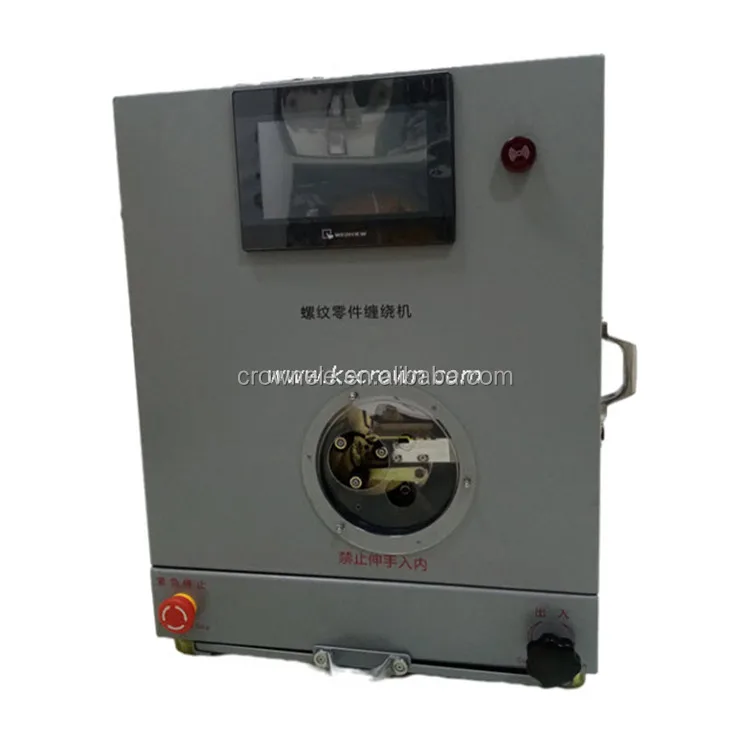

WL 1309 Factory Price ptfe thread sealing tape winding wrapping machine
- Category: >>>
- Supplier: Suzhou Crown Electronic Technology Co. Ltd.
Share on (1601206465799):
Product Overview
Description
Parameter
Model | WL-1309 |
Tape width | 5mm, 7mm, 10mm, 14mm (min.3mm, max.16mm customizable) |
Fitting diameter | 1/8-2 inches (2.5 inches can be customized) |
Working speed | 3-5 seconds/pcs (wrap 2-3 circles) |
Type | electric and automatic with air source |
Voltage | 220/110VAC; 50/60Hz |
Pressure | 0.45-0.6Mpa |
PLC | H1U-0806MT-XP |
Motor | IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor |

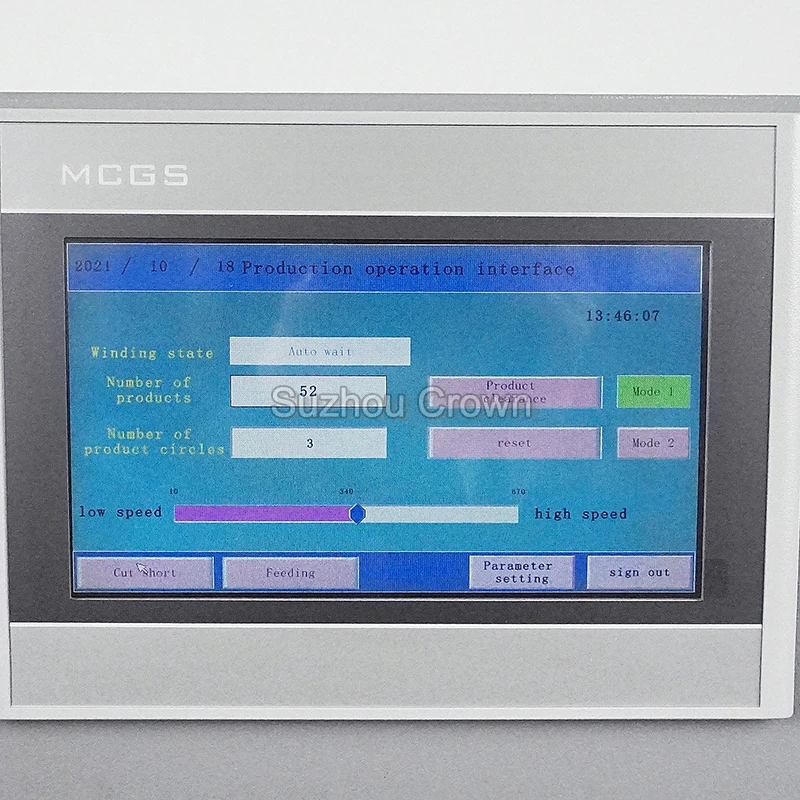

Touch screen | TK6071P |
Weight | 78KG |
Size | 72*52*52cm |
Feature

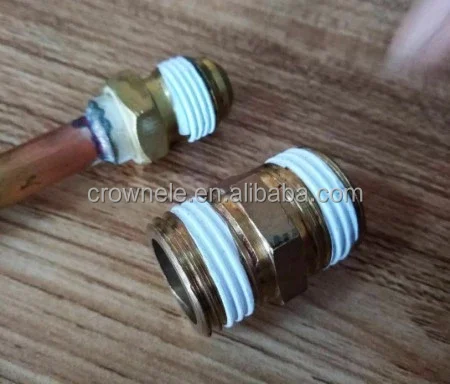

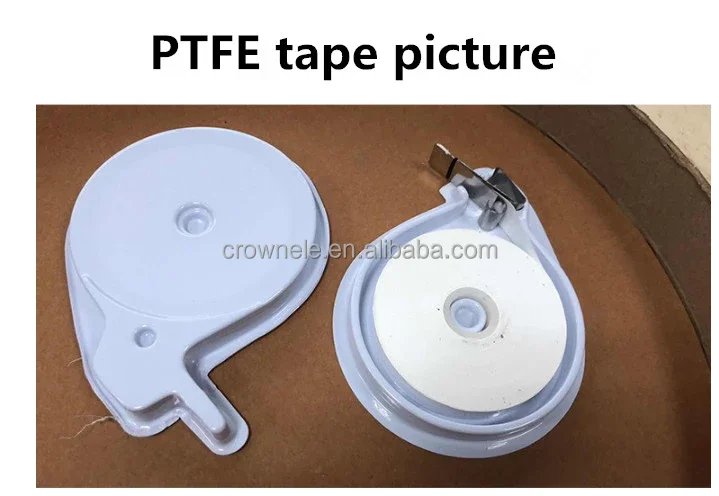

This automatic PTFE tape application machine for fittings is suitable for wrapping Teflon/PTFE tape for all screwed joints,including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal jointsand so on. It highly improves production efficiency.
Semi-automatic Tape Rewinding Machine PTFE Thread Sealing Tape Machine Function:

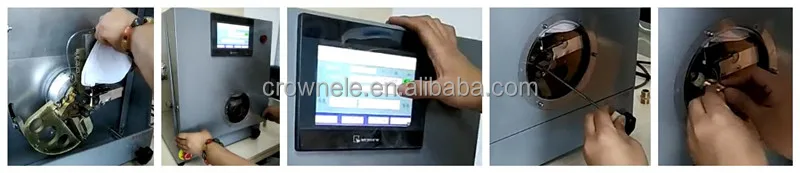

No need for a dedicated master, the number of turns and winding speed can be set by intuitive operation.
High efficiency and high quality, an average of 3 seconds to complete a complete process, the normal operation without any rework and loss, it is 5 times the efficiency of the traditional skilled manual operation, raw material tape winding closely, not easy to fall off.Servo drive data is accurate, reliable and stable performance.1 hour to produce 600-800 valves.
This machine is suitable for all raw tape wrapping equipment for all threaded joints,especially for raw tape ZG1/8-1 inch half-threaded joint
Specification:
* Easy to operate, no need for skilled workers, the number of turns and winding speed can be set
* High efficiency and high quality, no rework and loss
* Finishing a complete process in an average of 3 seconds
* 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces

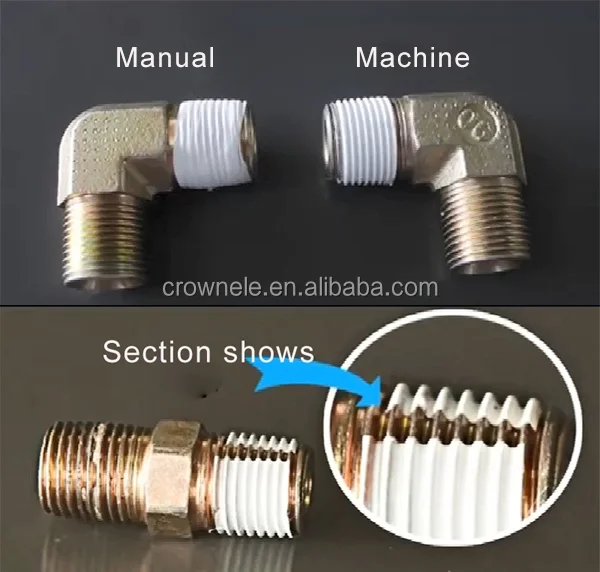

* Winding closely and tightly, not easy to fall off
* The data of servo drive is accurate, reliable and stable
No need for a dedicated master, the number of turns and winding speed can be set by intuitive operation.
High efficiency and high quality, an average of 3 seconds to complete a complete process, the normal operation without any rework and loss, it is 5 times the efficiency of the traditional skilled manual operation, raw material tape winding closely, not easy to fall off.Servo drive data is accurate, reliable and stable performance.1 hour to produce 600-800 valves.
This machine is suitable for all raw tape wrapping equipment for all threaded joints,especially for raw tape ZG1/8-1 inch half-threaded joint
Specification:
* Easy to operate, no need for skilled workers, the number of turns and winding speed can be set
* High efficiency and high quality, no rework and loss
* Finishing a complete process in an average of 3 seconds
* 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces
* Winding closely and tightly, not easy to fall off
* The data of servo drive is accurate, reliable and stable

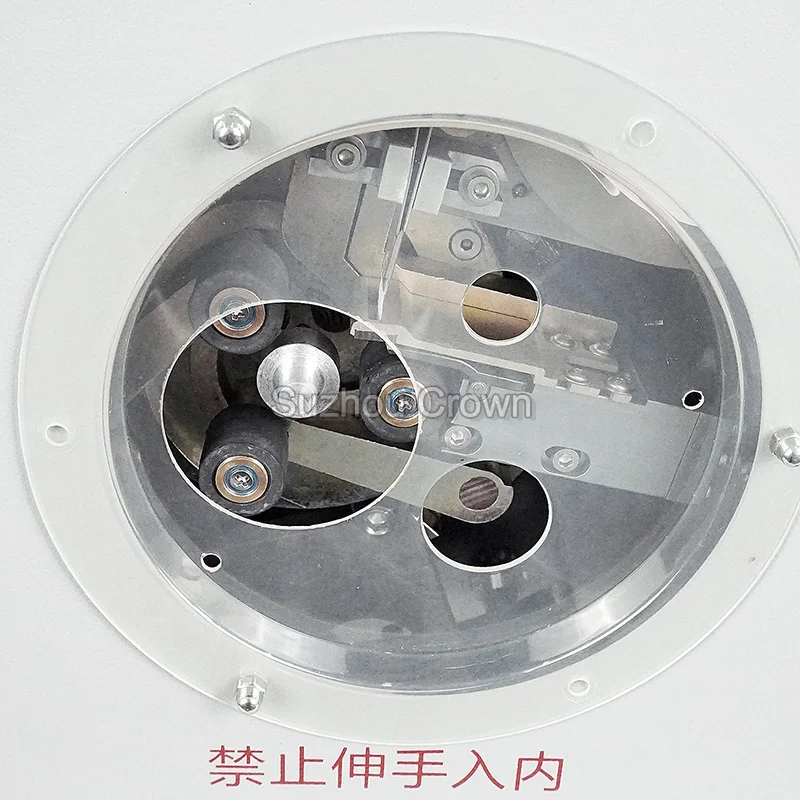

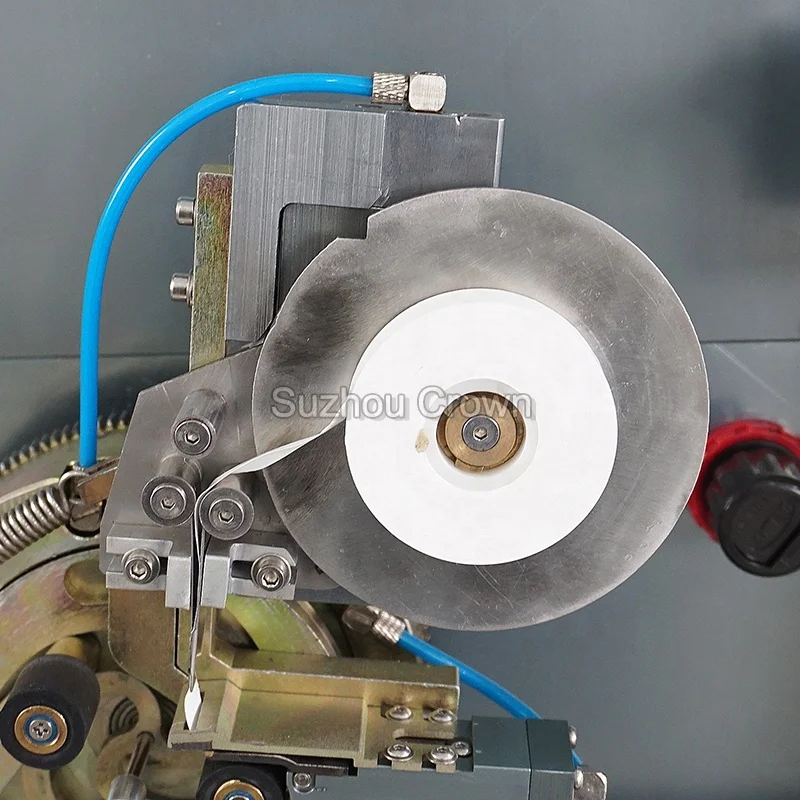

Inner structure

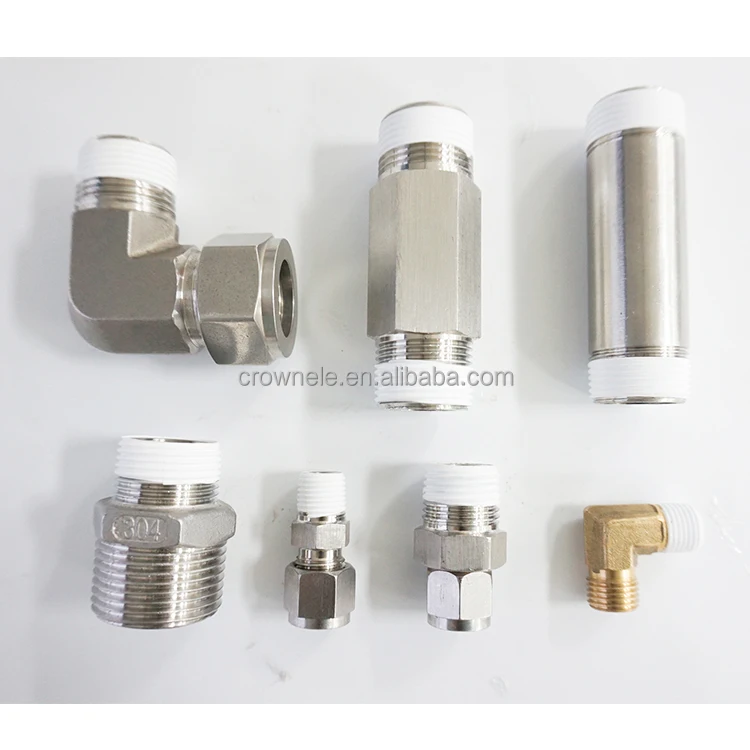

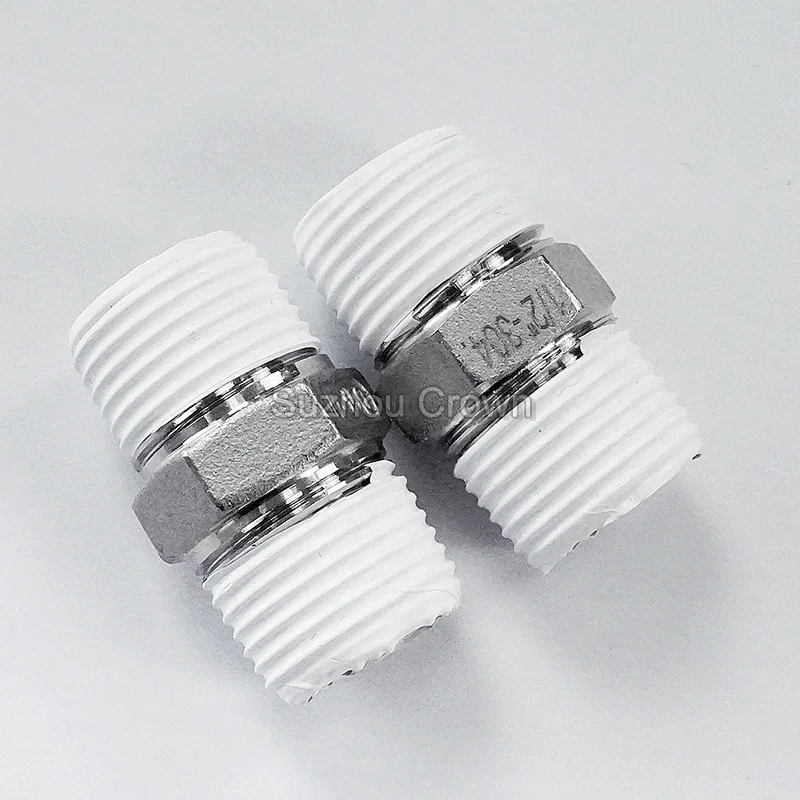

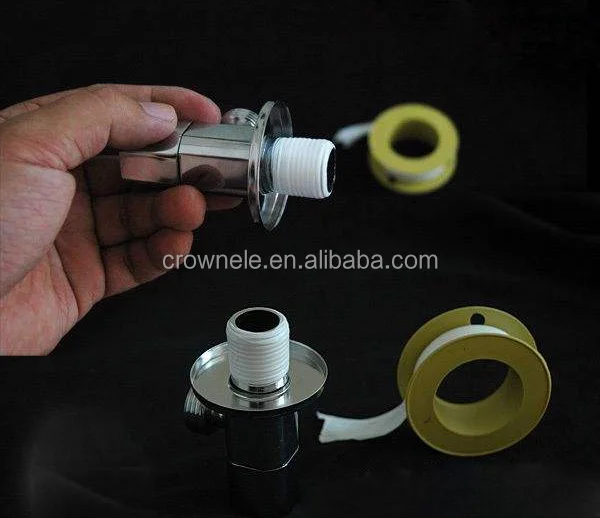

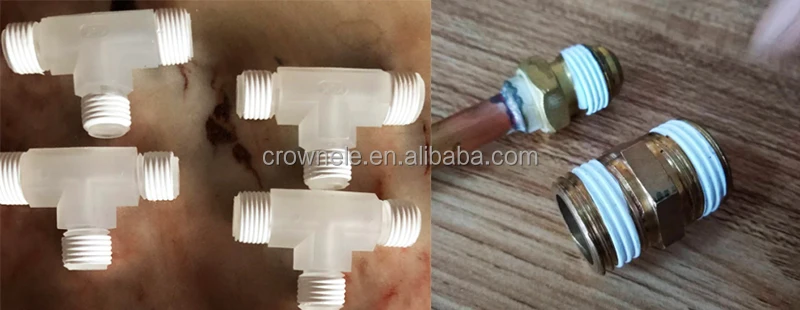

Application scope
Package
Certifications
