1 500g Baby Milk Powder Goat Milk Powder Jar Filling Capping Sealing Production Line Milk Tea Powder Filling Machine
- Category: >>>
- Supplier: Foshan Ostar Intelligent Equipment Co. Ltd.
Share on (1601206677653):
Product Overview
Description
Products Description

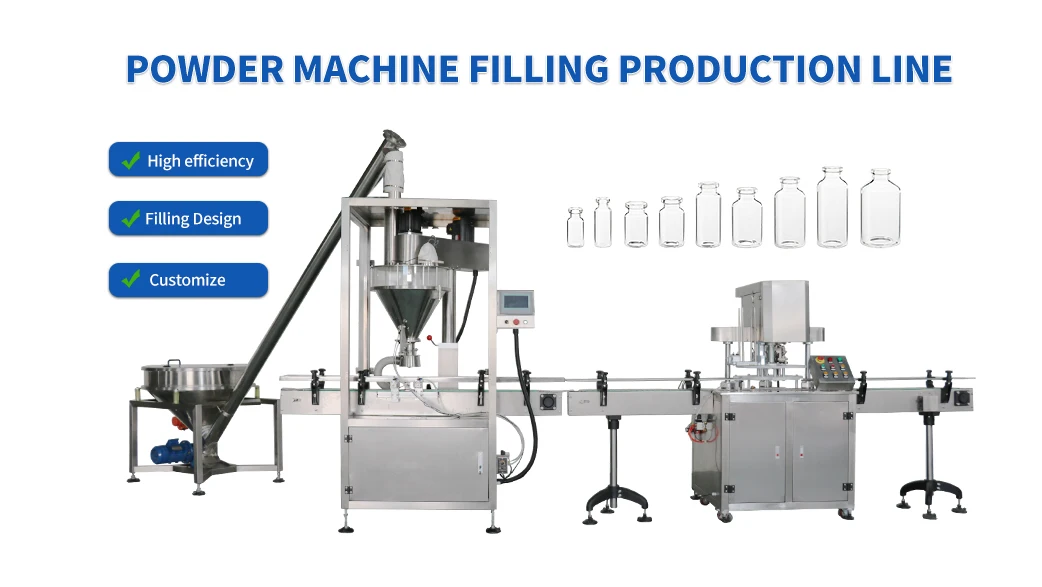

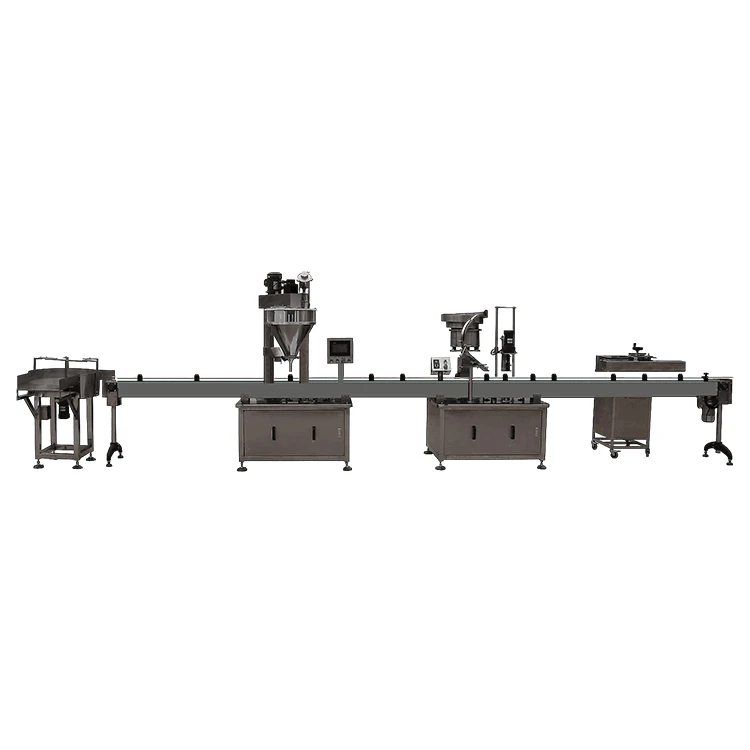

OS-FP009 POWDER MACHINE FILLING PRODUCTION LINE
2. The contact with materials are made of 304 stainless steel, which can be used for packaging of general corrosive chemical products.
3.FPLC-touch screen control system, stable work, strong anti-interference, high weighing accuracy, convenient operation of human-machine interface.
4. Packing weight is adjustable steplessly at any time, and the working status can be changed at any time. It can store 10 sets of formula parameters.
5. The filling screw is driven by servo motor, which has the advantages of accurate positioning, high precision, high speed, large torque, long service life, settable speed and good stability.
5. Stirring adopts Taiwan-made maintenance-free gear motor: low noise, long life, life-long maintenance-free.
6. Designed as weighing feedback specific gravity tracking type, changing materials can automatically adjust the packing weight.
7. Stainless steel side-opening composite material box, material movement at a glance, dust is not leaked, the box is equipped with dust filtration device, filling accessories are equipped with dust removal system to protect the workshop environment.
8. Replacement of screw attachment is fast, which can adapt to the canning needs of various materials from ultra-fine powder to small particles.
9. Chain conveyor belt transfers the packing containers, and the screw distributes and positions the containers, with high degree of automation.
1. It meets the national GMP standard and can pass the national food hygiene certification.
2. The contact with materials are made of 304 stainless steel, which can be used for packaging of general corrosive chemical products.
3.FPLC-touch screen control system, stable work, strong anti-interference, high weighing accuracy, convenient operation of human-machine interface.
4. Packing weight is adjustable steplessly at any time, and the working status can be changed at any time. It can store 10 sets of formula parameters.
5. The filling screw is driven by servo motor, which has the advantages of accurate positioning, high precision, high speed, large torque, long service life, settable speed and good stability.
5. Stirring adopts Taiwan-made maintenance-free gear motor: low noise, long life, life-long maintenance-free.
6. Designed as weighing feedback specific gravity tracking type, changing materials can automatically adjust the packing weight.
7. Stainless steel side-opening composite material box, material movement at a glance, dust is not leaked, the box is equipped with dust filtration device, filling accessories are equipped with dust removal system to protect the workshop environment.
8. Replacement of screw attachment is fast, which can adapt to the canning needs of various materials from ultra-fine powder to small particles.
9. Chain conveyor belt transfers the packing containers, and the screw distributes and positions the containers, with high degree of automation.
Technical Parameters | ||
MODEL | OS-FP009 | |
Applicable bottle height | 30mm-300mm | |
Bottle Diameter | 20-200mm | |
production speed | 10g/bottle Hourly/6000 bottles | |
Measurement accuracy | <±1% | |
power | 2KW | |
input voltage | 220V | |
Filling volume (Standard) | 0.1-1g 1-500g 10-5000g | |
Number of filling heads | Single, double, 3, 4, 5, 6 heads | |
size | 2400*900*1750(mm) | |
Packaging effects

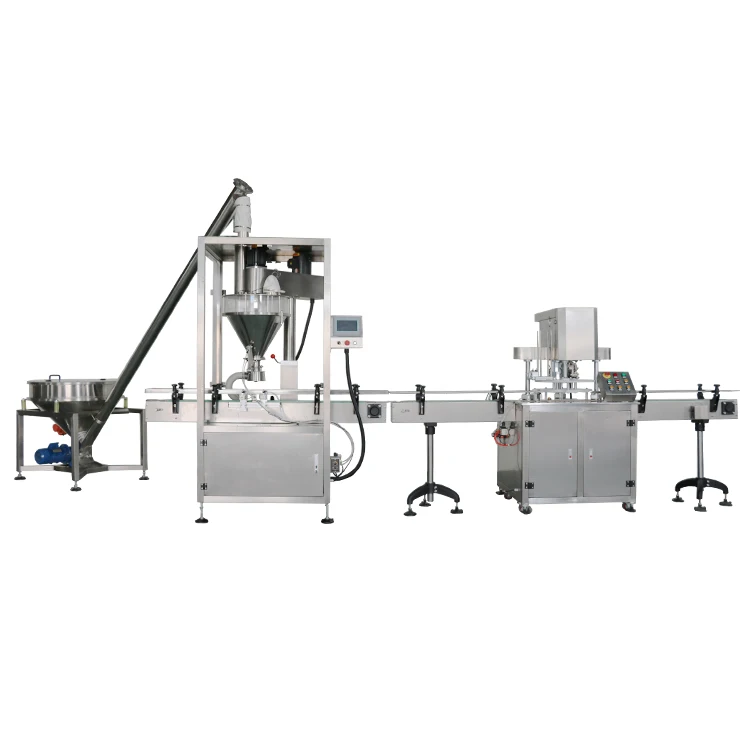

Machine Display

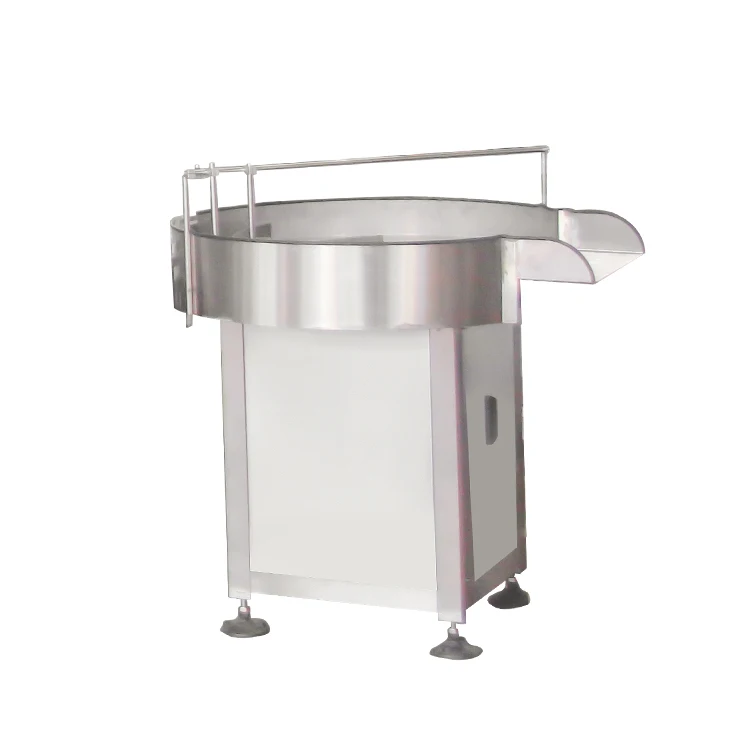

Used for front-end empty can unscramble bottle
intelligent control

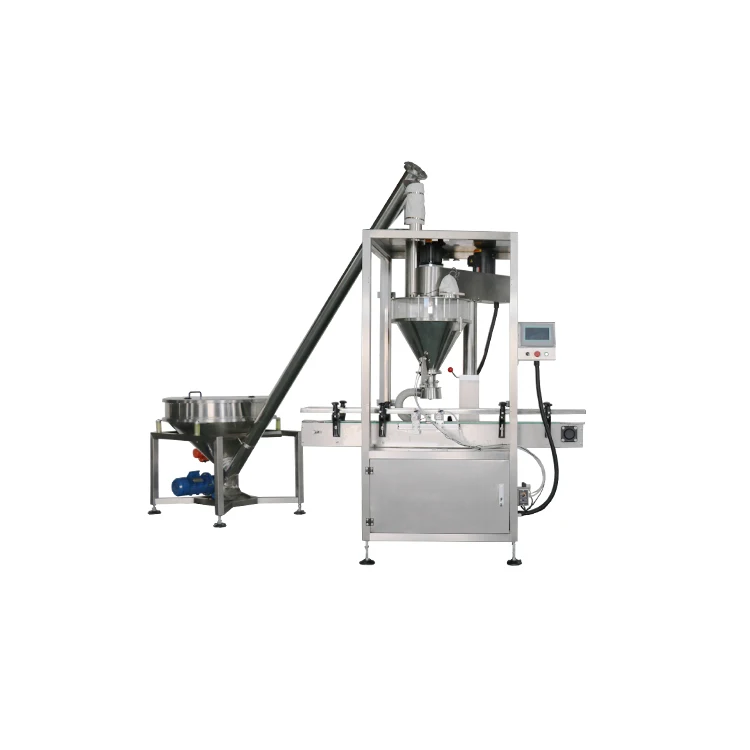

Servo motor controls screw feeding, high filling accuracy.

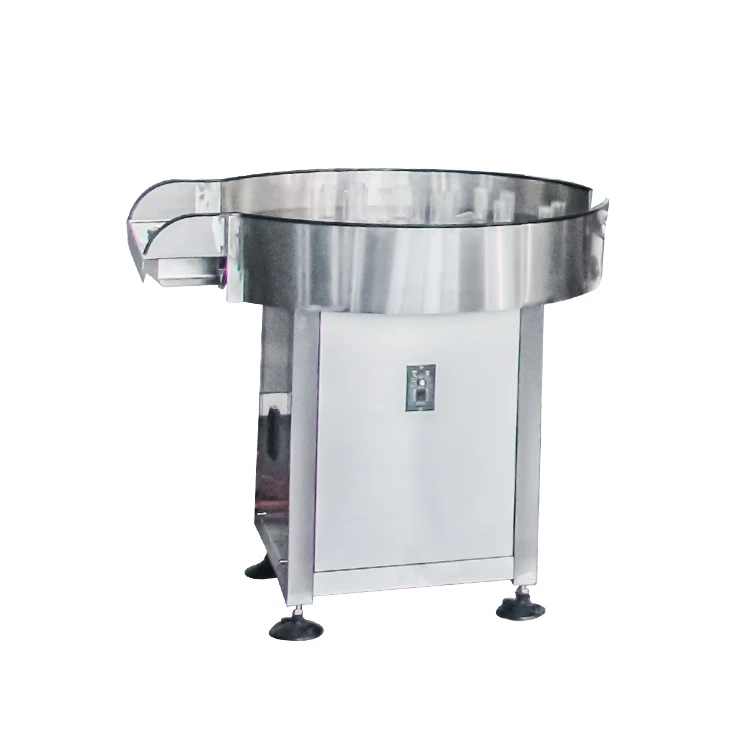

BOTTLE COLLECTOR
Finished product collection at the back end
Company Profile
Transaction Customer
Certifications
Why Choose Us
1. Professional and Strong Team
Ospack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
Ospack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
3. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service. 1. When the machine is delivered, we will
attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
Choosing us is not only buying a machine, but also our professional and timely service. 1. When the machine is delivered, we will
attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
FAQ
1. How to find a Packing machine suitable for my product?
Tell me about your product details. 1. What kind of product you have. 2.The size of your product( the length, width, and height).
2. Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing equipments. We have engaged in the packing R&D and production for over 10 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
