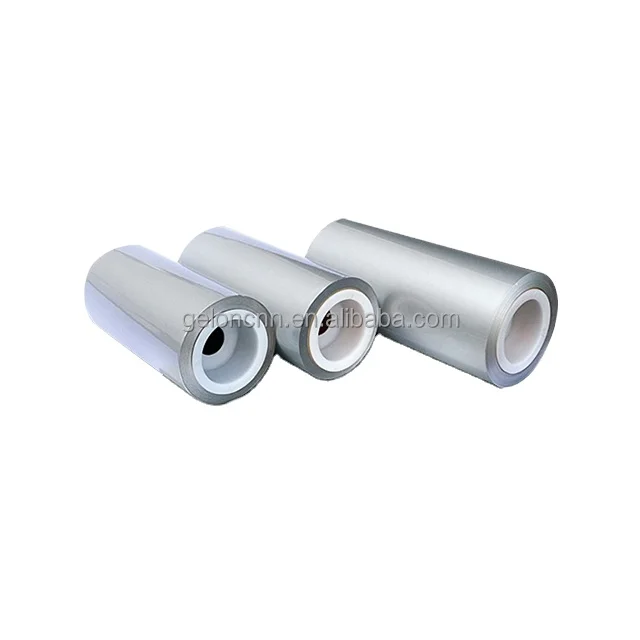

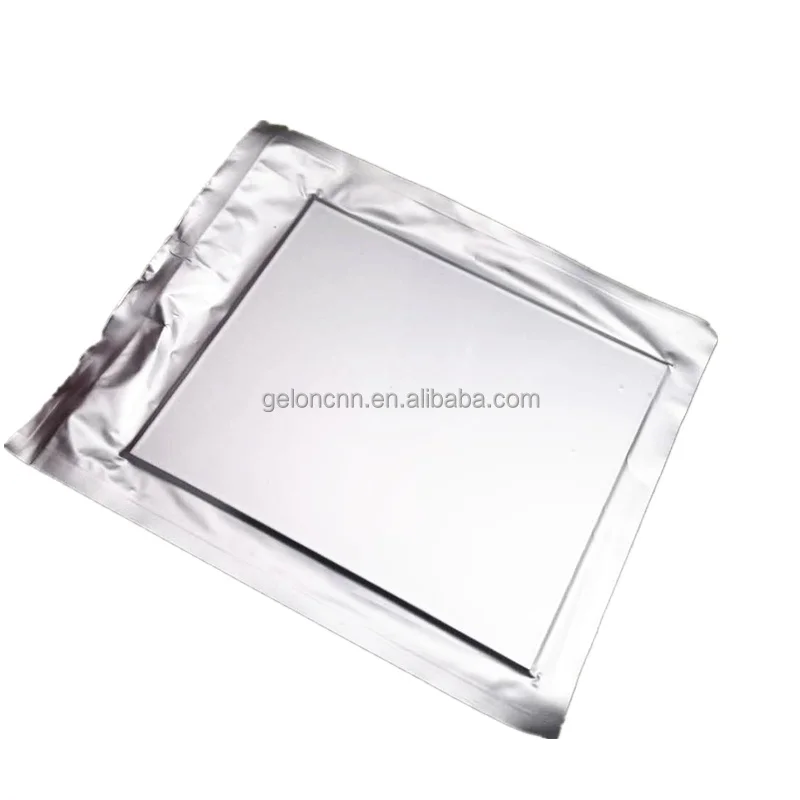

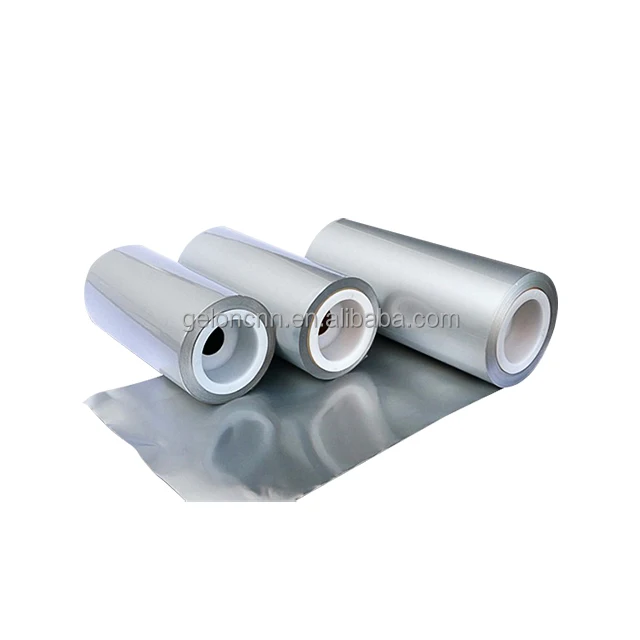

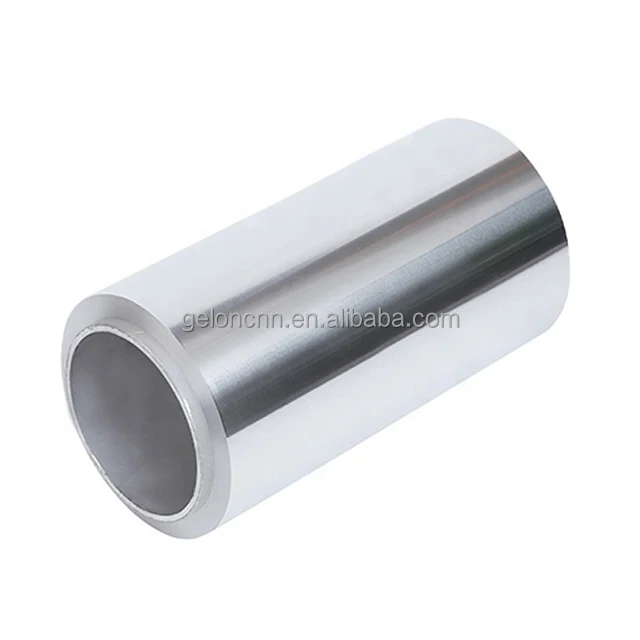

12Micron 18Micron Aluminum Foil For Li ion Cathode Electrode Collector
- Category: >>>
- Supplier: Linyi Gelin New Energy Co. Ltd.
Share on (1601206829682):
Product Overview
Description
Product Description
12Micron 18Micron Aluminum Foil For Li-ion Cathode Electrode Collector
This aluminum foil (16 um) is used as substrate (Al current collectors) for coating cathode materials in Li-Ion rechargeable battery research. (Sold per roll only).
Specifications :
1. Material: Aluminum , Purity > 99.3%
2. Resistivity: 2.7 x 10-8 Ohm-metre
3. Length: 350 m
4. Width: 280 mm
5. Thickness: 16um
6. Density: 3.741 g·cm−3
7.Tensile Strength: ≥150N/m3
8. Alloy no. A1235
6. Density: 3.741 g·cm−3
7.Tensile Strength: ≥150N/m3
8. Alloy no. A1235
Application | Lithium ion battery | Polymer battery | Aluminium strip | ||
Alloy | 1145 1235 1235A 8021 8150 1070 | 1235A 8021 8150 | 1145 1060 1100 1070 1200 | ||
Temper | H18 | 0 H22 H18 | 0 H18 | ||
Thickness( mm) | 0.01-0.02 | 0.012-0.06 | 0.08-0.15 | ||
Mechanical Performance | U.T.S (Mpa) | ≥40Mpa | ≥40-150 | ≥75 | |
Elongation(%) | ≥1 | ≥1 | ≥20 | ||
Core (ID) mm | 76.2 | 76.2 | 76.2 | ||
Wettability | ≥B grade | ≥B grade | ≥B grade | ||
Company Profile
Project View
We can supply:
1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.

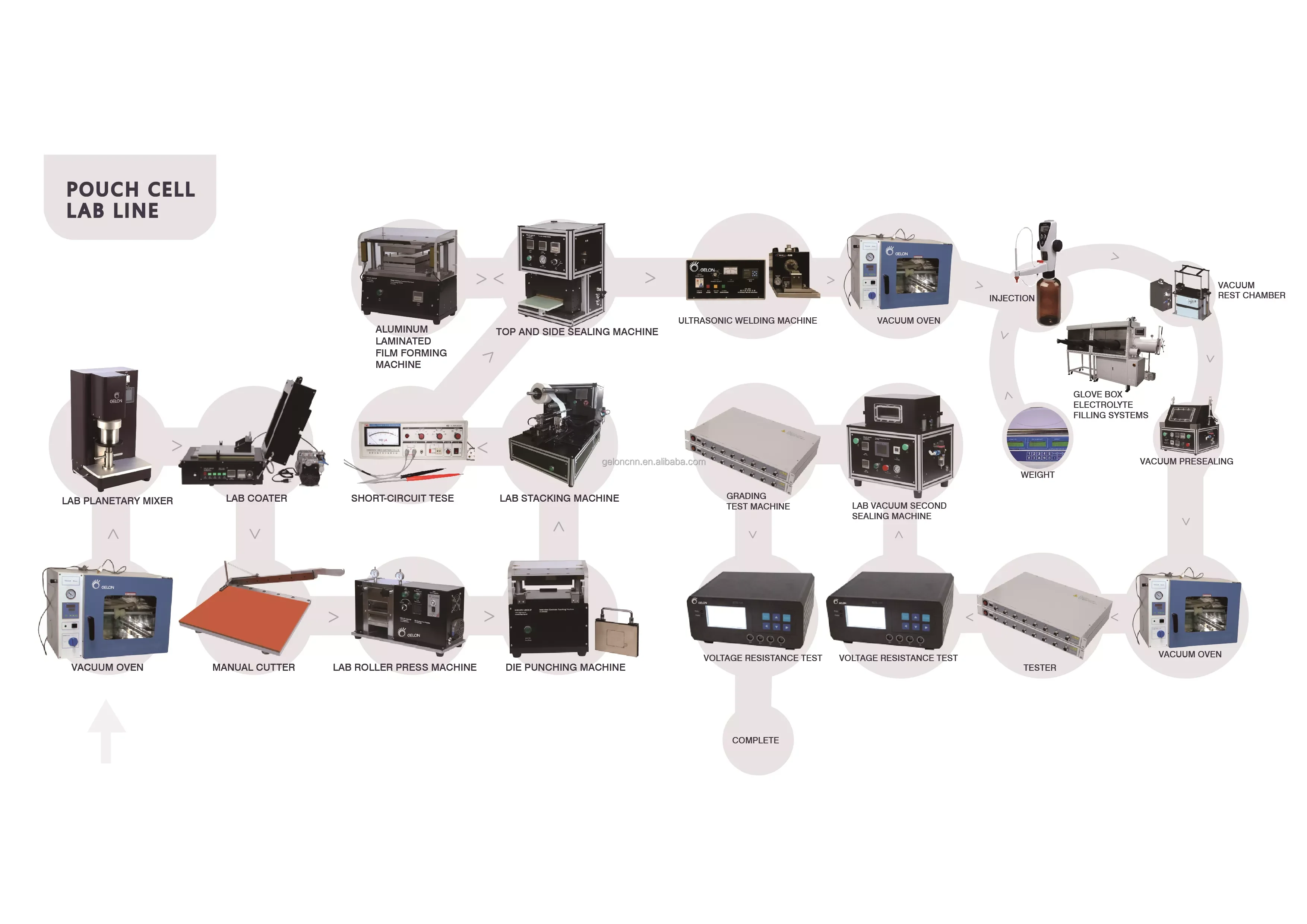

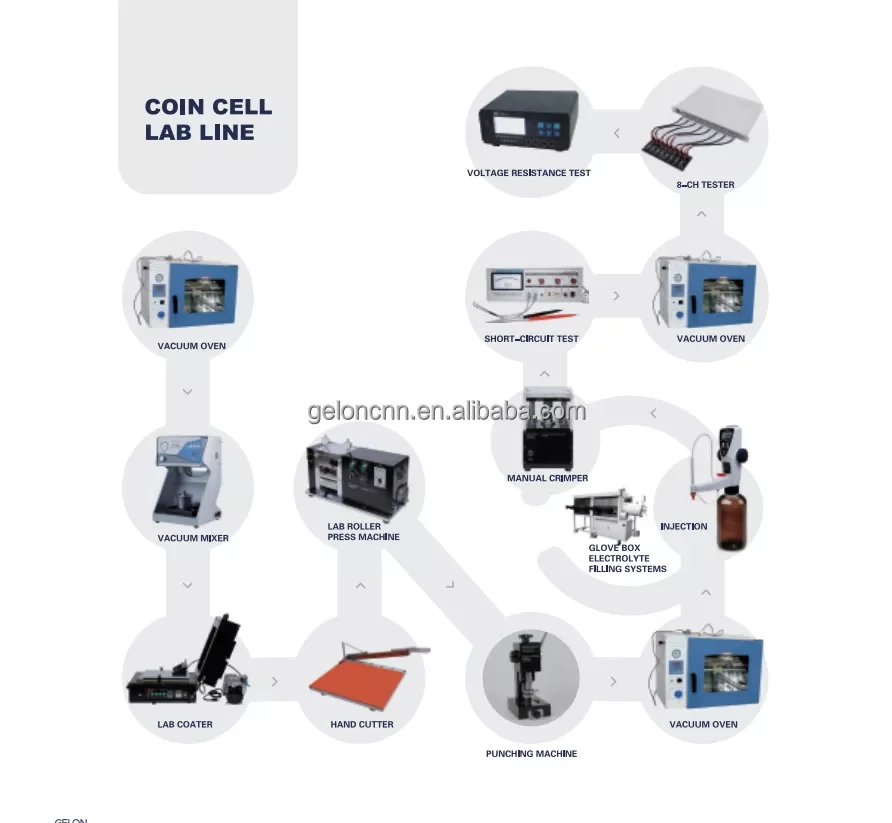

2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.
2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
