XIDLY PA System 32 Zone Audio Matrix with LCD Screen for All Zone Group Zone Paging
XIDLY-PA System 32 Zone Audio Matrix with LCD Screen for All Zone Group Zone Paging

XIDLY PA System 32 Zone Audio Matrix with LCD Screen for All Zone Group Zone Paging

Share on (1601206856714):


Price:$100.00-120.00

Quantity:


Product Overview

Description










XIDLY-PA System 32 Zone Audio Matrix with LCD Screen for All Zone Group Zone Paging



The 16x16 Digital Audio Matrix offers an easy operation of collecting different music


programme from different audio sources,and can play a same audio to all the speaker zones,


also can play diferent audio to different speaker zone,and easily achieve zone paging


function
working with the 16x16 remote paging microphone.




Features

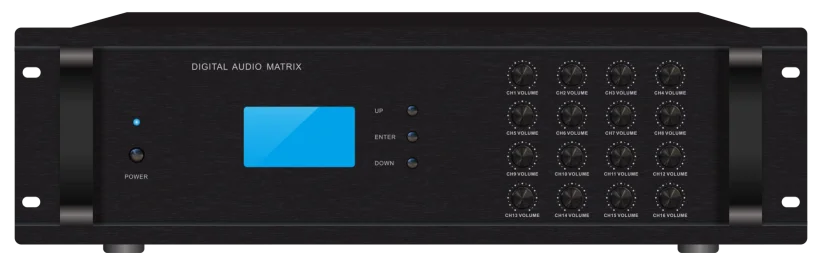

16X16 Digital Audio Matrix (3U panel).


With LCD screen in English menu.


With volume control for each zone.


This control unit integrates 16 source inputs, 16 amplifier outputs and a priority bus
interface. it can mute background music when ever it has received priority input
signals for zone paging and emergency alarms.


LCD display and for convenient operation program schedules.


Priority bus for zone paging and emergency alarms.


Several paging modes (all zones, group zones, or individual zone) could be achieved through this paging console.




Specification
















































































Model

2816S

Line Input

16 channels:EMC2 for emergency alarm

Paging Mic. Input

RMIC1~RMIC5:10k ohms(Ω) 10V ,balanced

Line Output

16 channels:(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 available)

EMC1 Input

10k ohms(Ω) 330mV ,unbalanced

Line Input

10k ohms(Ω) 330mV ,unbalanced

Line Output

10k ohms(Ω) 0.775V (0 dB) ,unbalanced

Mute functions

RMIC1 overrides Input B, RMIC2 overrides Input C;RMIC3 overrides input D;

RMIC4 overrides input E;RMIC5 overrides input F; EMC1 overrides EMC2.

Fre. Resp.

60 Hz ~ 16k Hz (± 3 dB)

Alarm Activation Input

(0V)Shortcut signal   ALARM IN:CH1~CH16

Alarm Activation Output

(0V)Shortcut signal   ALARM OUT:CH1~CH16

Indicator

POWER

Protection

AC FUSE×0.5A×1

Power Cable

(3×0.5 mm2)×1.5M  (standard)

Power Supply

AC 220V ± 10% 50-60Hz

Power Consumption

15~20W

Dimension

133(H)×483(W)×390(D)

Net Weight

7.1Kg
