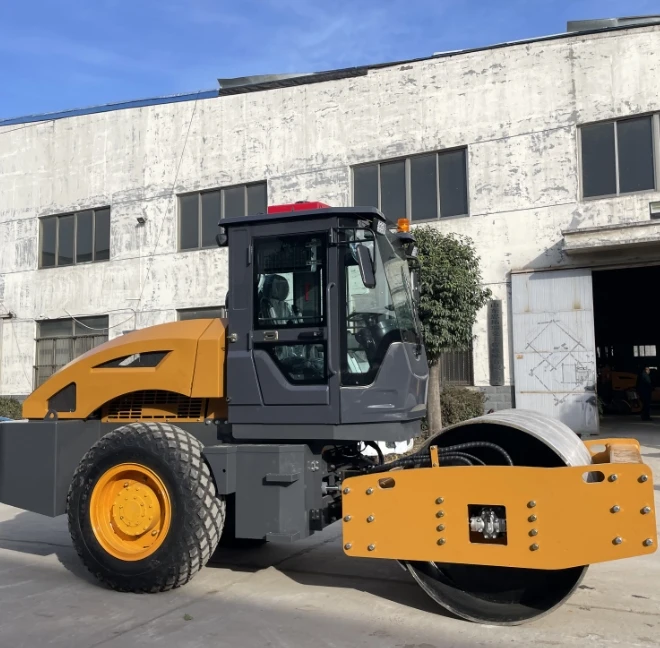

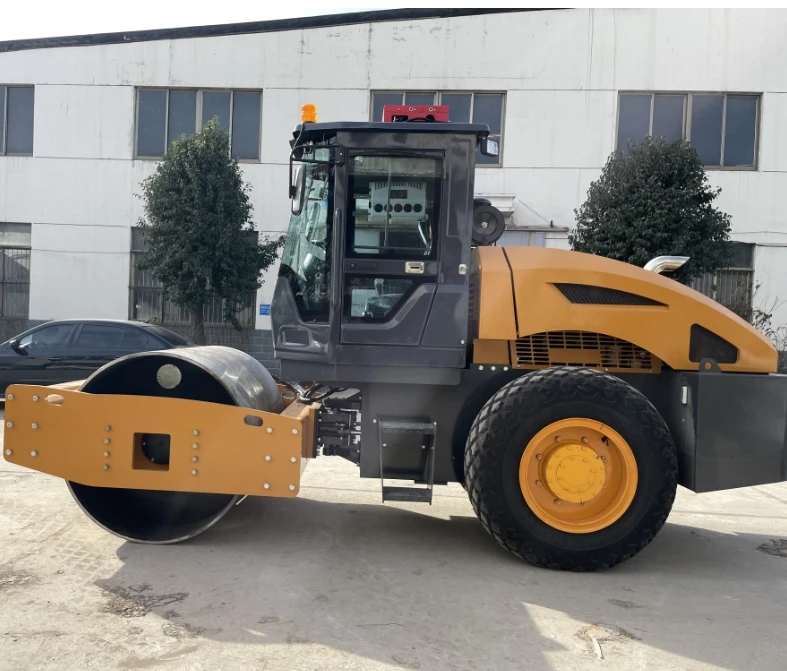

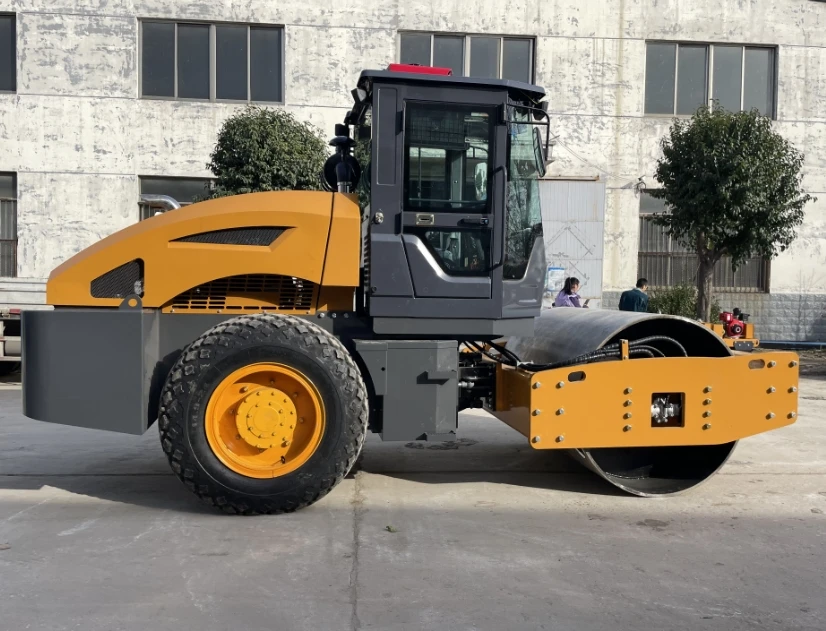

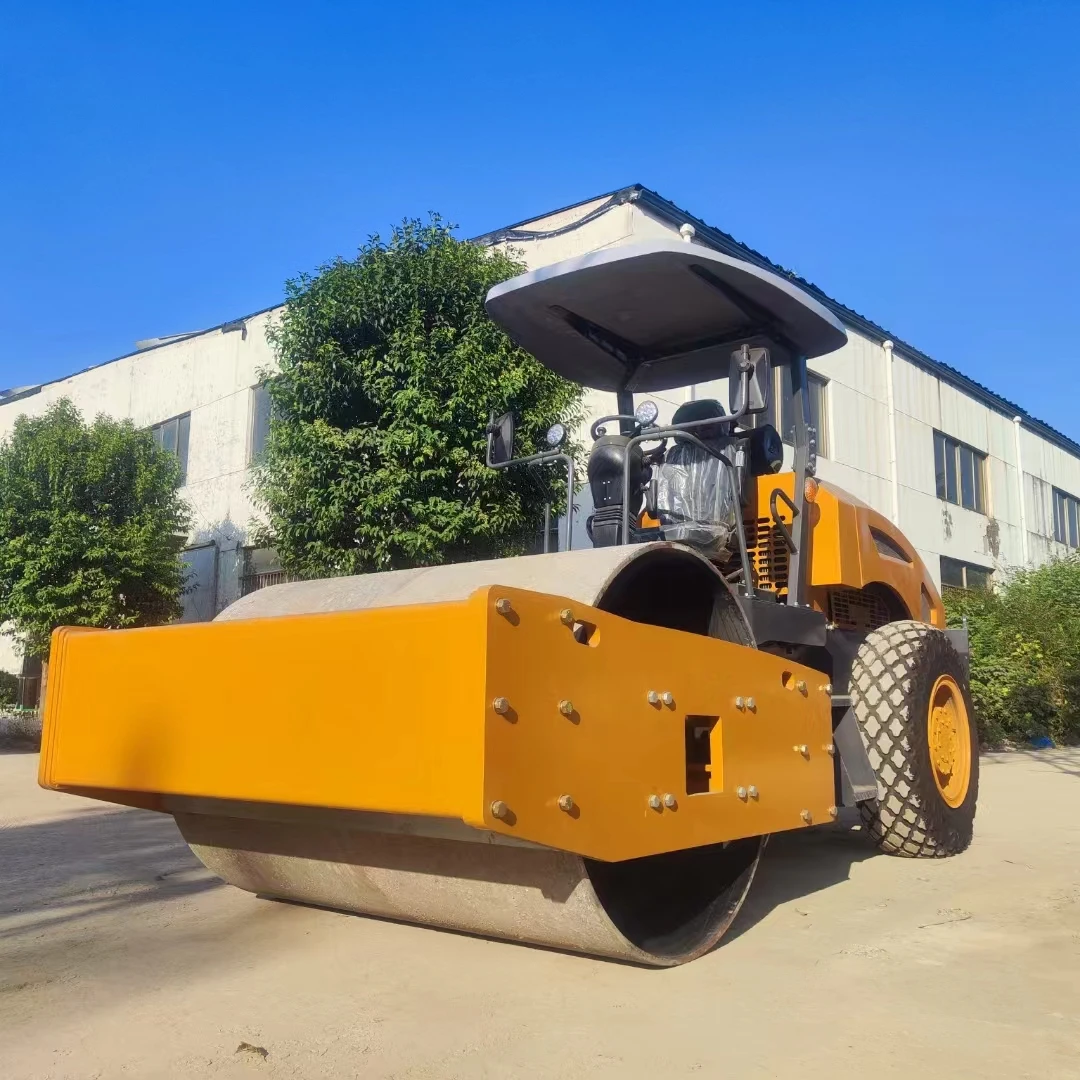

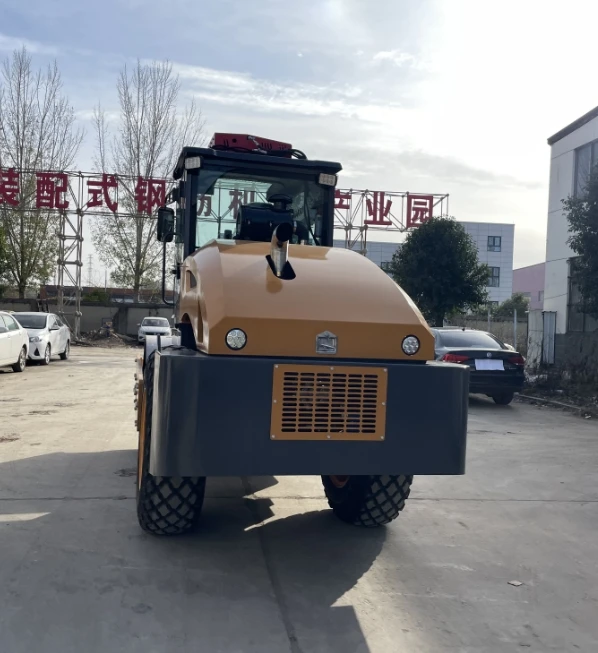

  • Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features
Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features

Compact Road Roller Weight with 8 Ton Capacity and Vibratory Features

Share on (1601207053569):


Price:$10,000.00 - $20,000.00

Quantity:


Product Overview

Description



Durable 6 Ton 8 Ton Single Drum Road Roller with Hydraulic Features for Sale


Product Description




Specification


Model
ST3000
ST4000
ST5000
ST8000
Operating Weight
3000 kg
4000 kg
5000 kg
8000 kg
Static linear load
106/94 N/cm
135/120 N/cm
155/140 N/cm
225 N/cm
Dimensions
Size
2400*1355*2630 mm
2480*1370*2630 mm
2850*1580*2680 mm
4795*1765*2645 mm
Turning radius
2405/3760mm
2405/3760 mm
4380 mm
5510 mm
Drum size
630*1200 mm*2
720*1200 mm*2
900*1400mm*2
1200*1600 mm
Wheel base
1650 mm
1650 mm
1950 mm
2540 mm
Engine
Model
Changchai/Yanmar/Kubota
Changchai/Yanmar/Kubota
Changchai/Yanmar/Kubota
Cummins/Yanmar
Power
28.5/33KW
28.5/33KW
36/34.5/33.6 KW
74 kw
Rating speed
3600 rpm
3600 rpm
3600 rpm
2400 rpm
Driving Characteristics
Walking speed
0-10 Km/h
0-10 Km/h
0-12 Km/h
0-12 Km/h
Climbing ability
35 %
40 %
40 %
40%
Steering
Steering mode
Hydraulic steering
Hydraulic cylinder, articulated steering
Hydraulic cylinder, articulated steering
Hydraulic steering
Steering system
Swing articulated
Swing articulated
Swing articulated
Swing articulated
Exciter System
Vibrating drum
Front+Rear
Front+Rear
Front+Rear
Front
Driving Form
Hydraulic motors
Hydraulic motors
Hydraulic motors
Hydraulic motors
Frequency
65 HZ
65 HZ
65 HZ
45 HZ
Amplitude
0.5 mm
0.5 mm
0.5 mm
0.5 mm
Centrifugal force
35 KN*2
40 KN*2
45 KN*2
95 KN


Packing & Delivery




Company Profile




Shandong Storike Engineering Machinery Co., Ltd. was one of the top three small road roller manufacturer in China, located in Jining city, Chinese construction machinery production base. Our company was established in 2011, covered an area of 6,000 square meters with 100,000 units annual output, had rich experience in production and sales. We have 5 major categories: compaction machinery, mobile lighting machinery, concrete machinery, pavement maintenance machinery and hydraulic machinery. Road roller, mobile lighting tower, concrete scarifier, and hydraulic equipment was our hot-selling product. Our company has passed ISO9001 and SGS certification, and some products got CE certificate. Products were exported to more than 50 countries and regions such as USA,Canada, Columbia, Philippines, India and etc. For the domestic market, we have distributors in every area of China. "Integrity,tolerance, innovation, service" is our philosophy. STORIKE believed that Integrity is the foundation of all cooperation. Tolerance is the prerequisite for solving problems. Innovation is the tool for development. Service is the foundation for creating value. We also do ODM and OEM for trading companies. Welcome friends from all over the world to our company for visiting and cooperation.
