200m 300m Borehole plumbing Inspection Camera System Deep well inspection camera borehole video camera system
- Category: >>>
- Supplier: Shenzhen Vicam Mechatronics Co. Ltd.
Share on (1601207053669):
Product Overview
Description

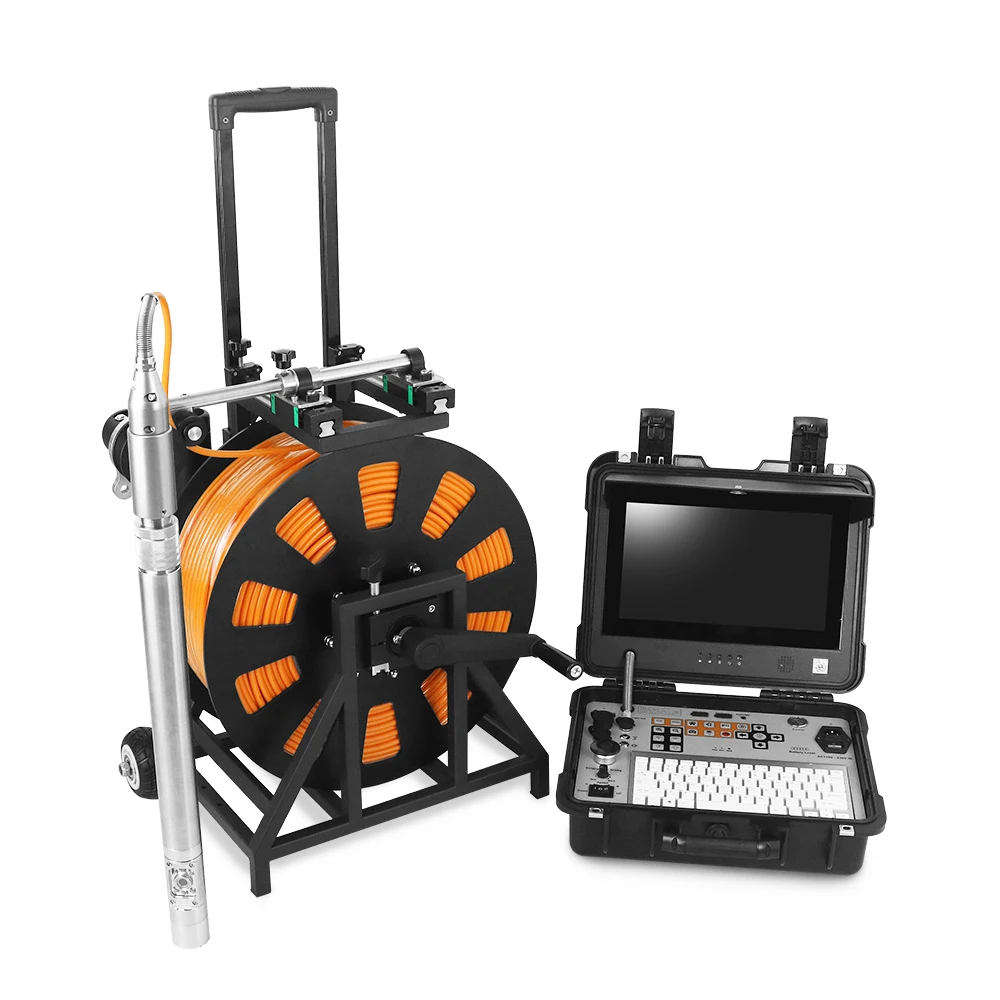

200m 300m Borehole Inspection Camera System Deep well inspection camera borehole video camera system
1. Dia.45mm dual view(side/down) rotation camera head
2. Pan 360° rotation, Wateproof 50bars 3. 1/3 CMOS,1.3MP pixel HD camera sensor 4.13inch IPS LCD screen, 1280*720 resolution
5. DVR control box with audio, video recording and photography function 6. 200m to 500m Dia.8mm Kevlar cable 7. USB wireless keyboard to typewrite the words
8. Camera video resolution is 720P
9. Built in 8800mA li-ion battery, support uint working about 5hours. 10. Digital meter counter,compass and temperature are displayed on the screen 11. Side Camera with manual Focus function
12. Digital Zoom function
13. 128G USB flash disk for saving video /Audio/photo files
Product Show
Products Description

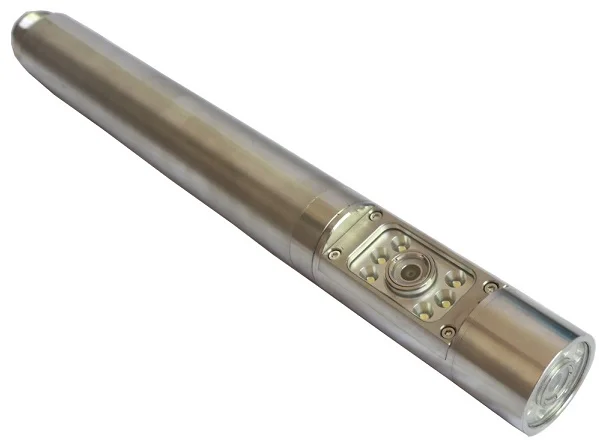

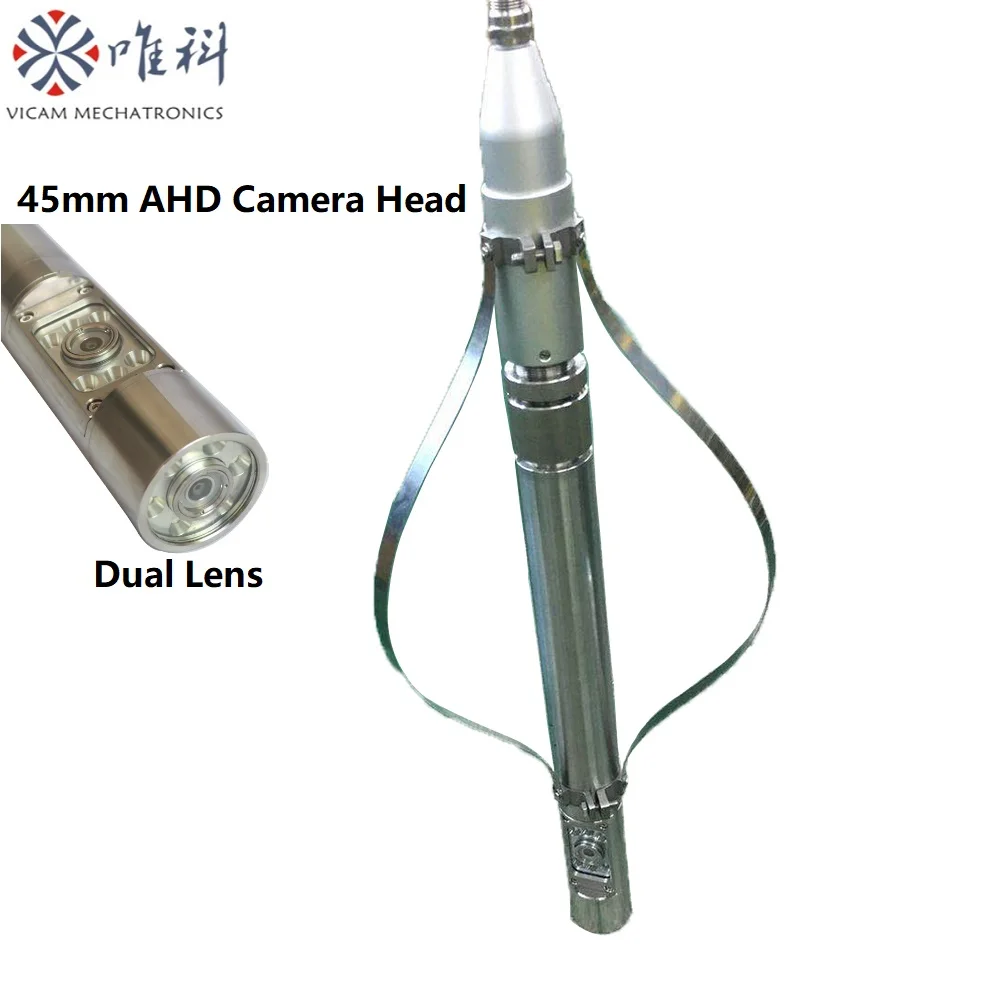

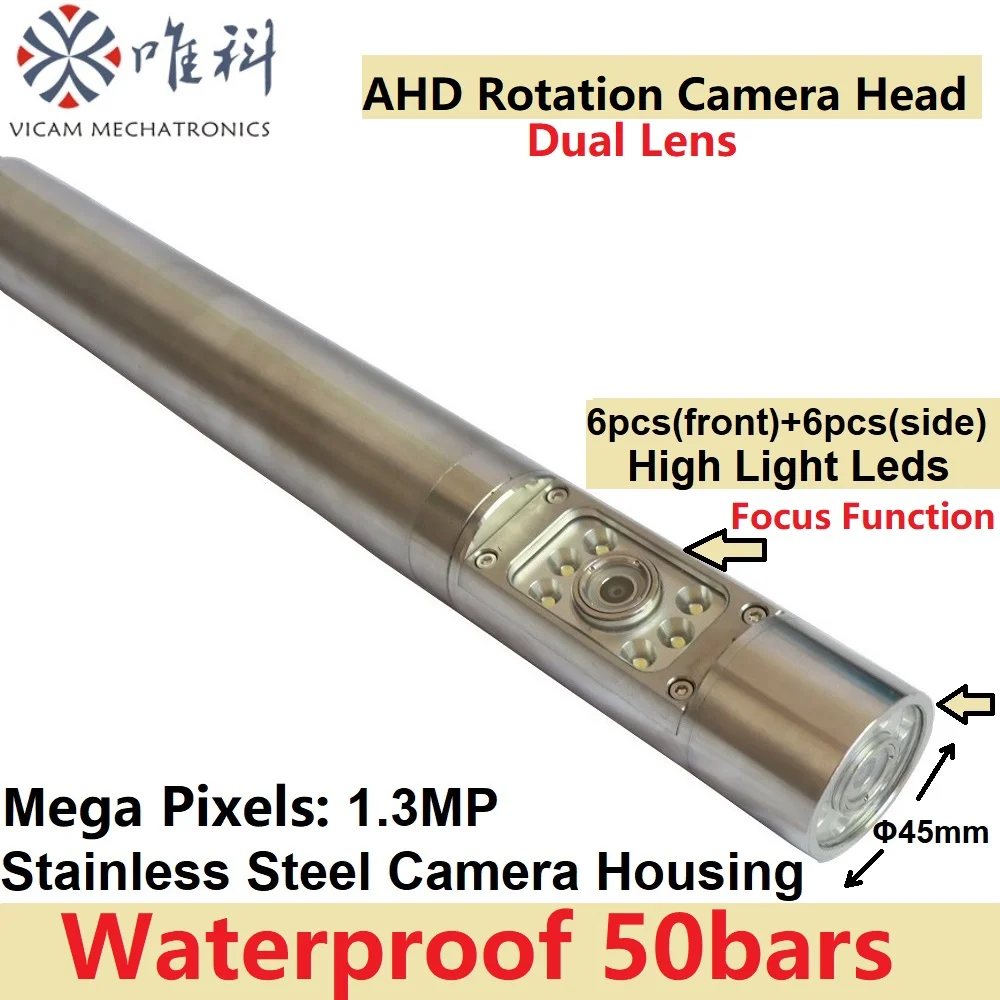

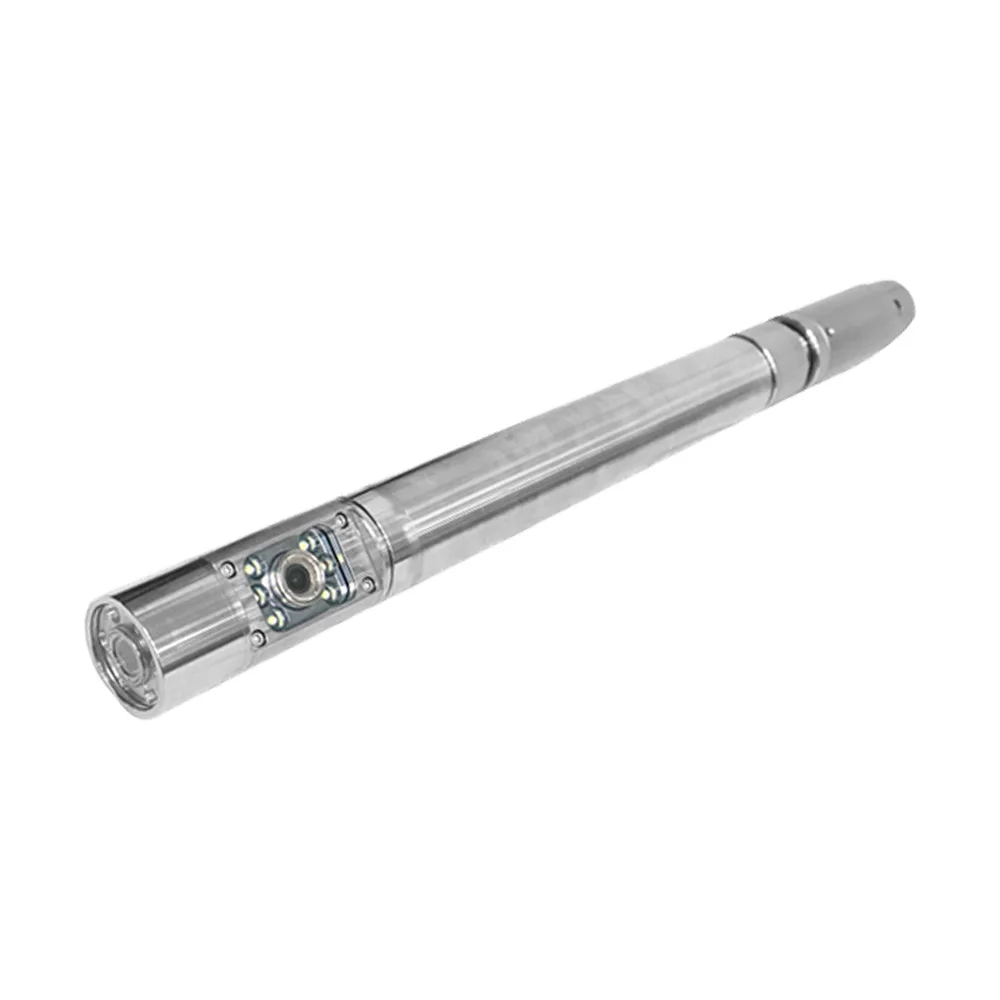

AHD PTZ Dual Viewing Rotation Camera Head
* Ø45mm x 422mm dual view (side/down) rotation camera head * Pan 360° rotation, Wateproof 50bars * 1/3 CMOS,1.3MP pixel HD camera sensor * Side camera with manual focus function
* Stainless steel camera housing
* PC LED light cover
* Total weight is 2.4KG
* 6pcs high light LED for side camera
* 6pcs high light LED for down camera
* Lens window sapphire glass
* Stainless steel camera housing
* PC LED light cover
* Total weight is 2.4KG
* 6pcs high light LED for side camera
* 6pcs high light LED for down camera
* Lens window sapphire glass

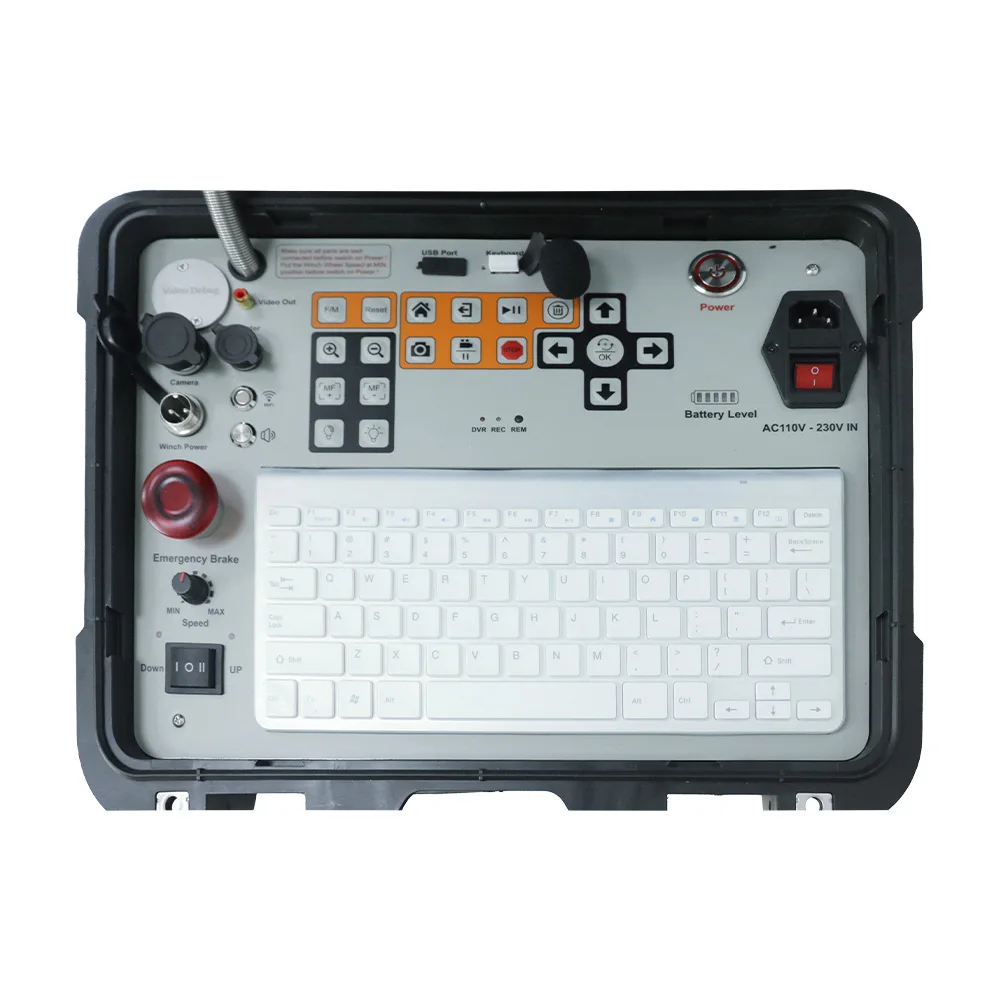

HD DVR Control Panel

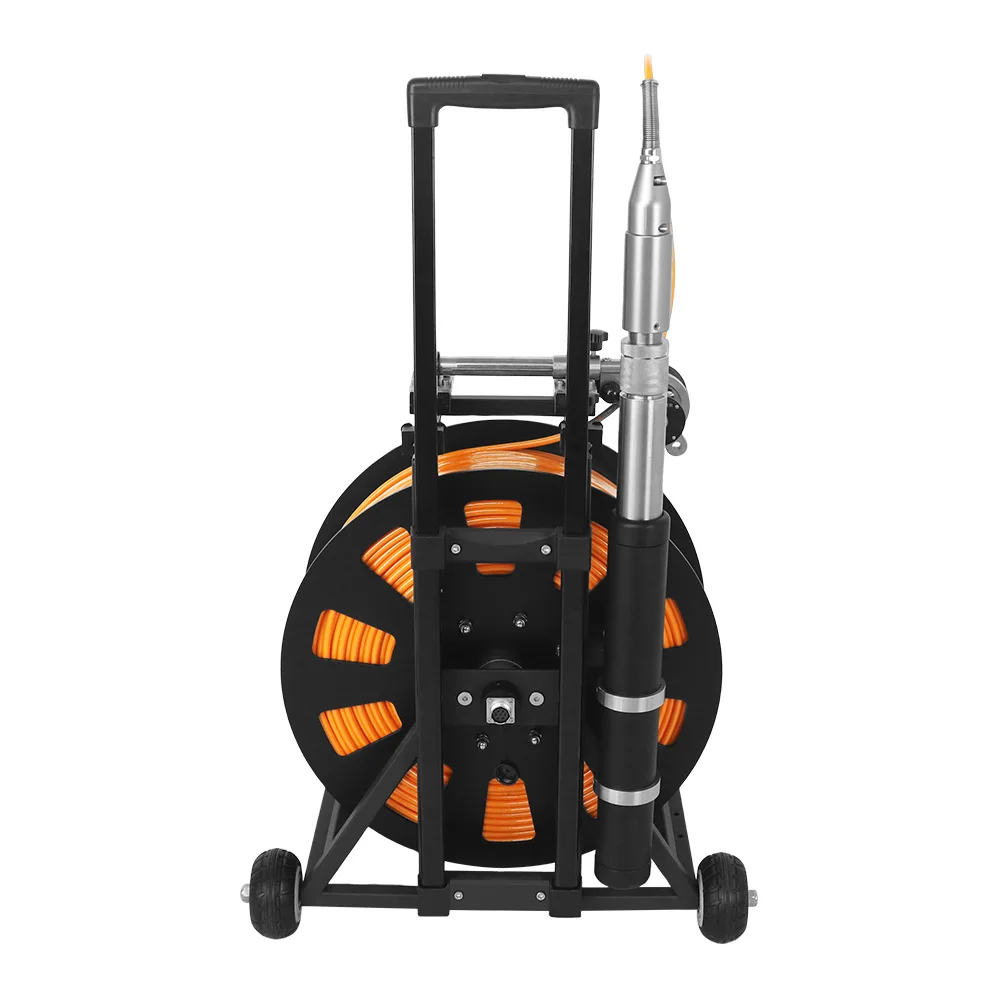

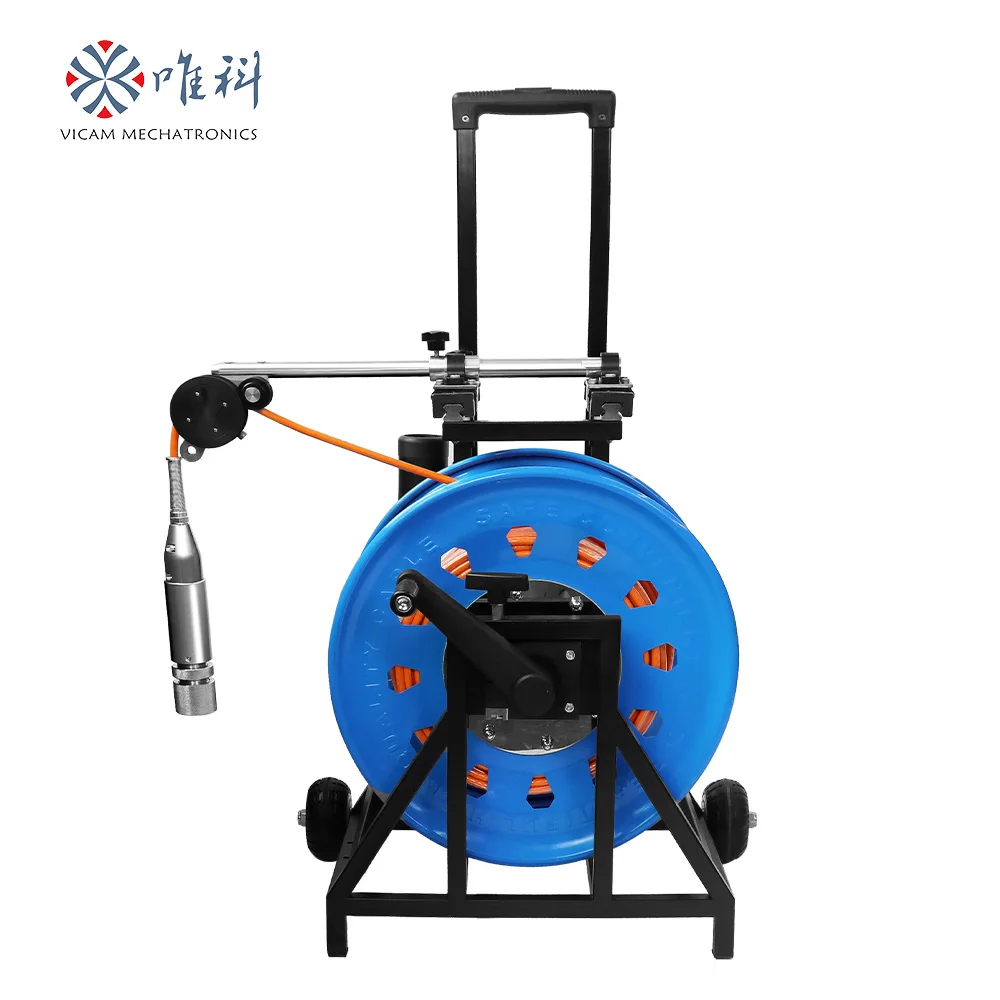

Cable Reel
*Winding speed：0~20m/min
*Cable speed adjustable
*Φ8mm Kevlar cable
*Cable speed adjustable
*Φ8mm Kevlar cable
(300m-600m option)
*Power supply AC 110V to AC230V,

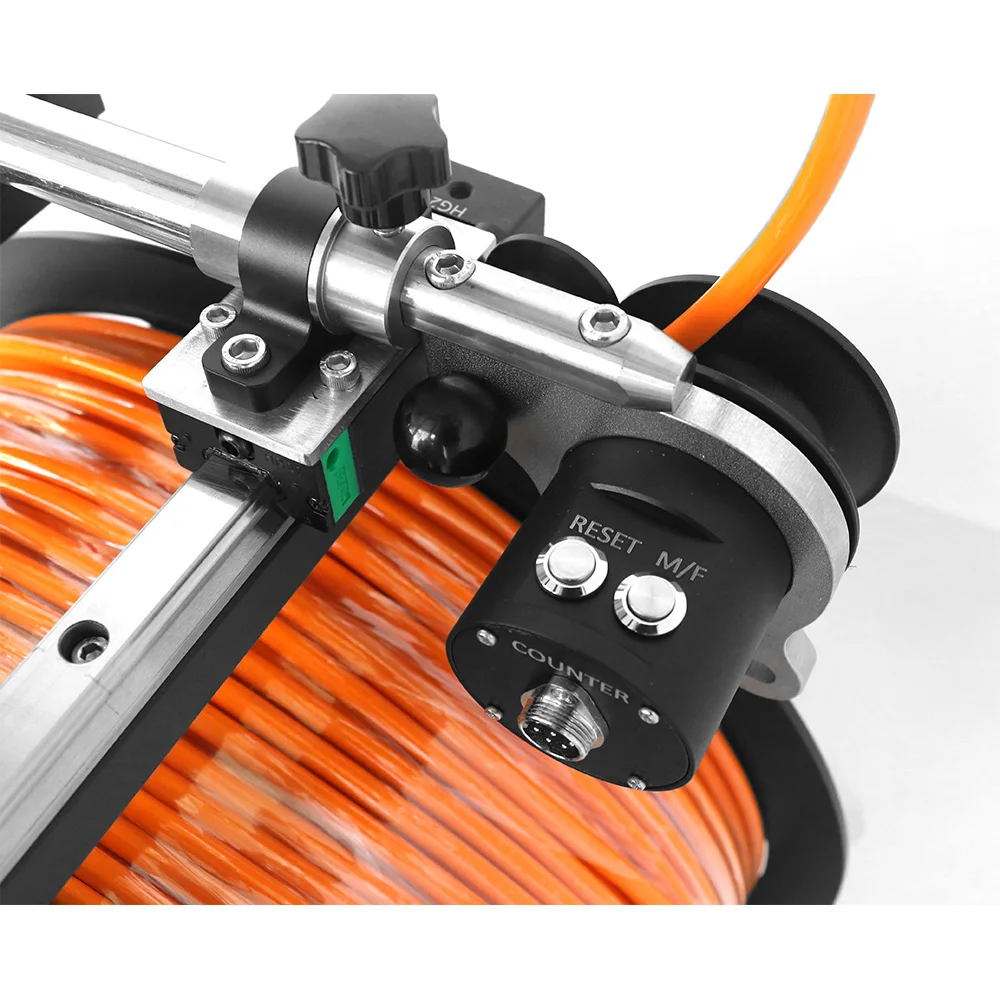

*On screen depth counter *Automatic wiring function
*Power supply AC 110V to AC230V,
*On screen depth counter *Automatic wiring function

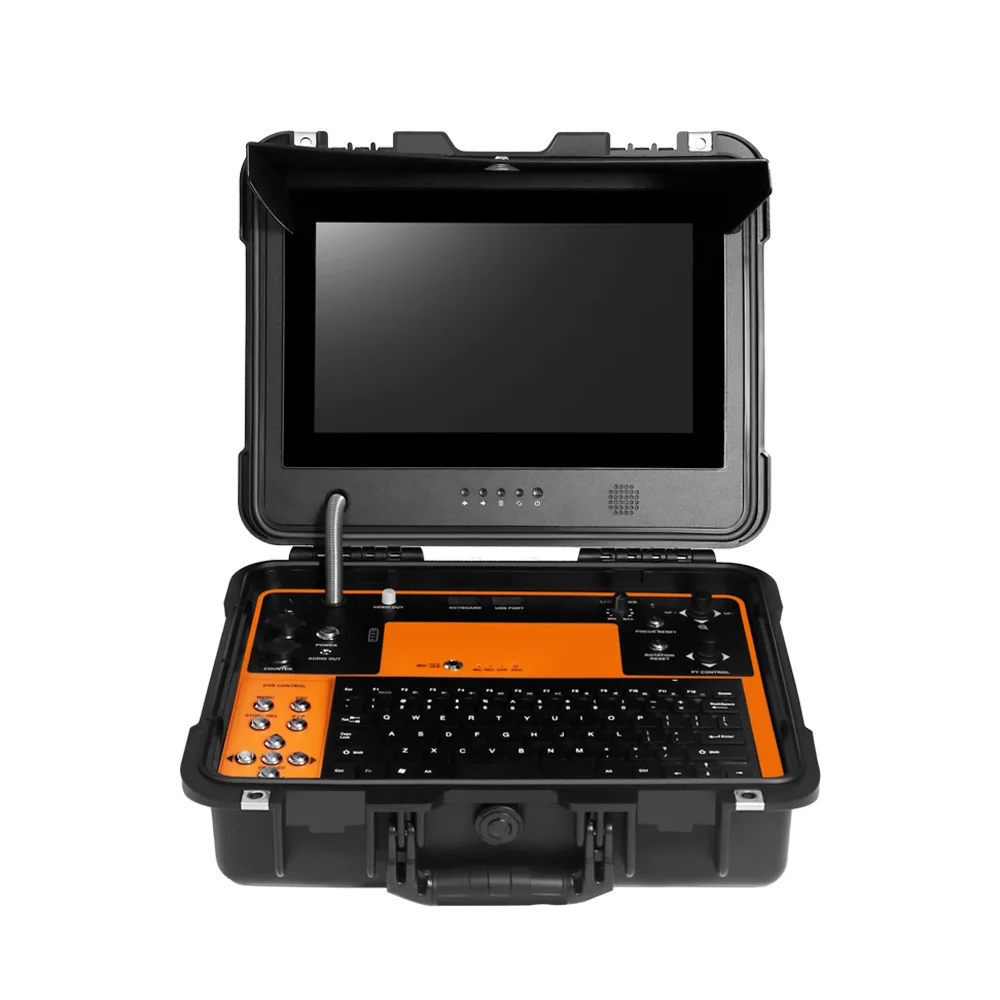

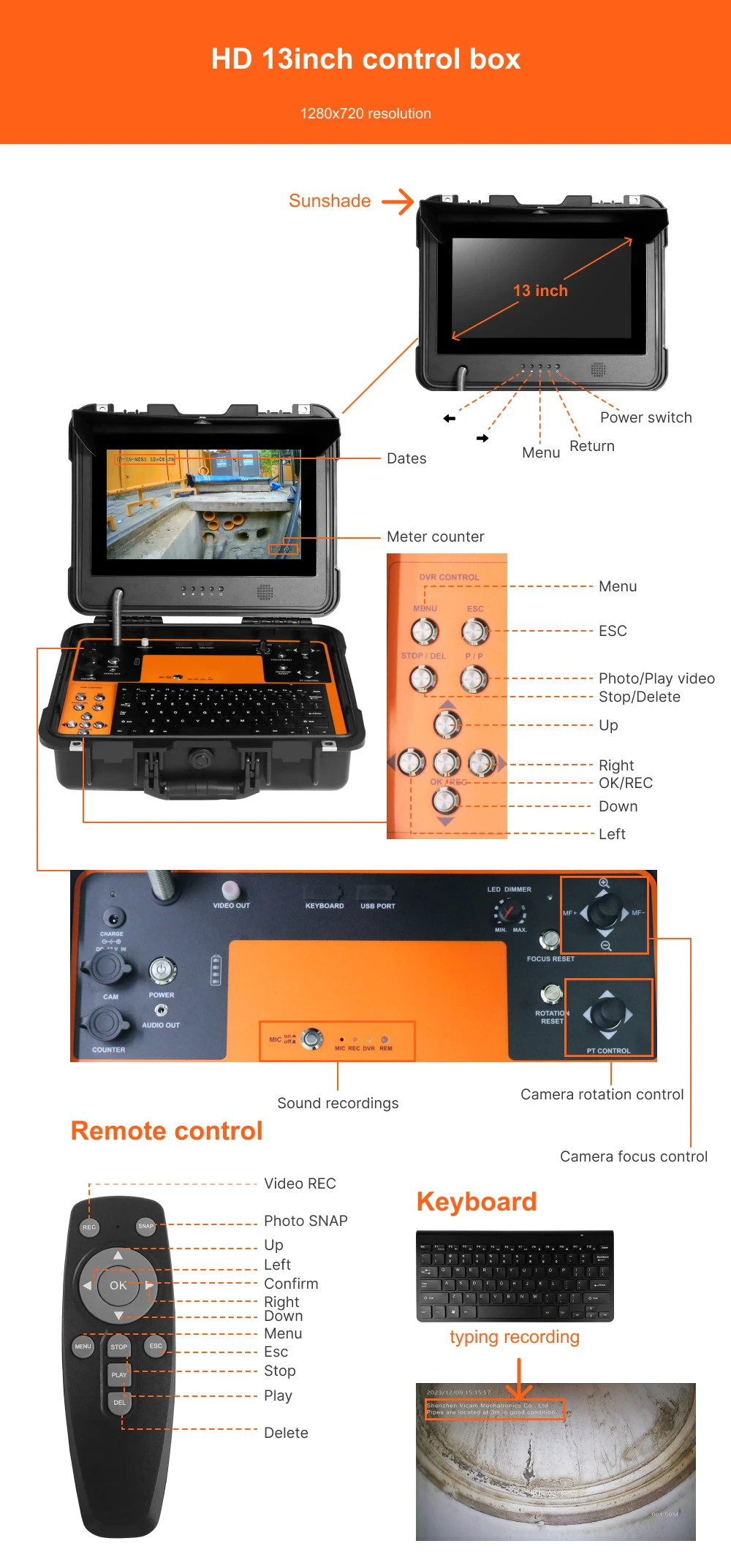

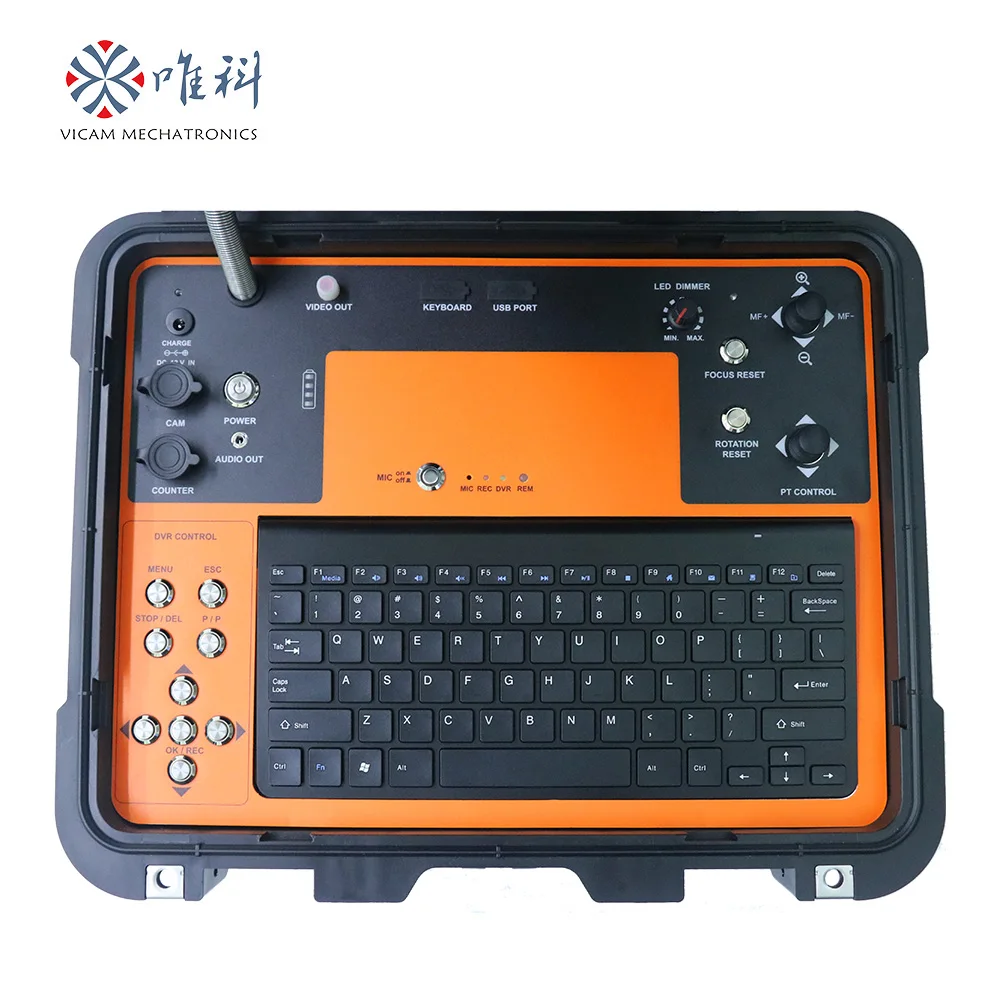

HD DVR Control box
*13" HD IPS LCD Screen, 1280X720 resolution
*Big Sunshade, clear image in outdoor
* HD DVR SYSTEM with recording 720P video, auido and photography function
* USB wireless Keyboard real time typewriting
* 6pin port for video input; 8pin port for depth counter
* Digital meter counter display on screen
* 8800mA rechargeable Li-ion Battery Pack
* Joystick for camera rotation * Joystick for focus manually
*Big Sunshade, clear image in outdoor
* HD DVR SYSTEM with recording 720P video, auido and photography function
* USB wireless Keyboard real time typewriting
* 6pin port for video input; 8pin port for depth counter
* Digital meter counter display on screen
* 8800mA rechargeable Li-ion Battery Pack
* Joystick for camera rotation * Joystick for focus manually
Certifications
Packing＆Delivery
Packing: | 1set /plywood carton+1 carton box |
Carton Size： | 75*44*60cm&42*32*33cm |
Volumen Weight： | 80kgs(300m Manual winch) 155kgs-175kgs(300M-600M electric winch) |
Delivery: | about 10-15 days after receiving 100% payment |
Warranty: 1year of warranty, lifetime maintenance
