Basic paramenters | ||||||

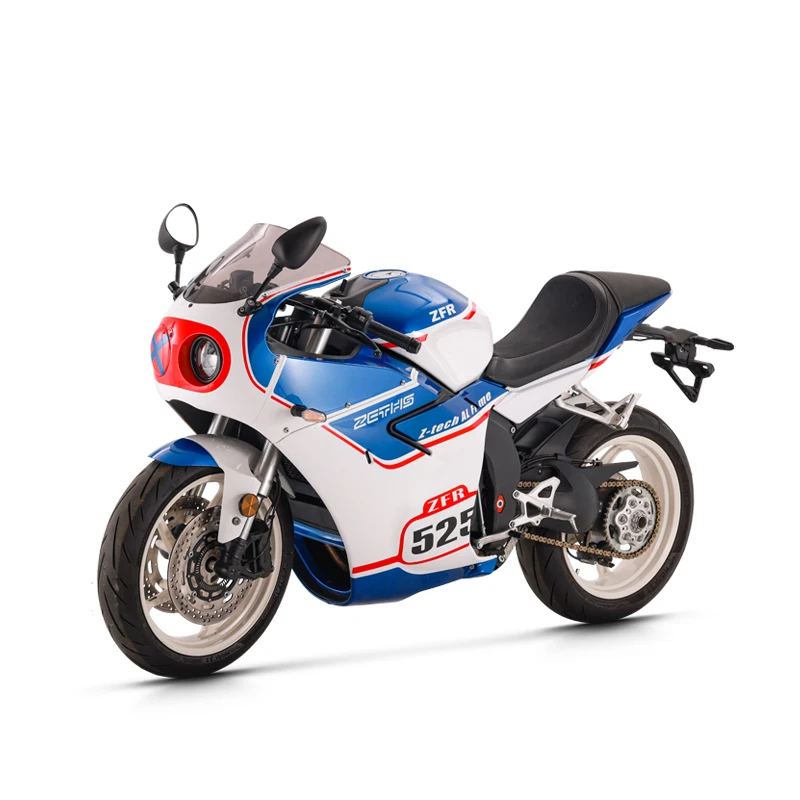

Model* | ZFR525C | Transmission* | International 6-speed | |||
Max speed(km/h)* | 190 | Clutch* | Wet multi-plate slip clutch" | |||
Length*Width*Height (mm)* | 2050*800*1150 | Transmission mode* | Chain drive | |||
Seat height (mm)* | 810/830 | Transmission system* | DID 520 | |||
Wheelbase (mm)* | 1440 | Slip clutch* | YES | |||
Min ground clearance (mm)* | 142 | Tyre specification* | Front:120/70-17,Rear:160/60-17 | |||
Frame type* | Double-spar aluminum alloy frame | Tyre type* | Tubeless tires | |||
Rear swingarm* | Aluminum alloy rear single swing arm | Rim* | Cast aluminum | |||
Front suspension system* | Inverted shock absorber with adjustable preload | Front brake system* | Dual discs with four-piston radial calipers | |||
Rear suspension system* | Multi-link with adjustable preload | Rear brake system* | Opposed dual-piston calipers | |||
Fuel tank capacity (L)* | 15L | ABS* | YES | |||
Curb weight (kg)* | 185 | Throttle configuration* | Dual cable throttle | |||
Displacement (cc)* | 500 | Ignition mode* | ECU | |||
Exact displacement (cc)* | 493.9 | Instrument panel* | TFT color display | |||
Engine structure* | Vertical | Mobile phone connection function (Bluetooth/WIFI, etc.)* | YES | |||
Number of engine cylinders* | Double cylinder | Navigation screen projection function* | YES | |||
Diameter × stroke (mm)* | 68*68 | Gear position display* | YES | |||
Engine stroke* | Four-stroke | USB charging port* | YES | |||
Compression ratio* | 11.5:1 | Headlight | LED | |||
Cooling method* | Water Cooling | Rearlight | LED | |||
Max power (kw)* | 39 | Turn signal | LED | |||
Max power speed (rpm)* | 8500 | Hazard warning light (double flash) | YES | |||
Max torque (N·m)* | 50 | |||||
Max torque speed (rpm)* | 6500 | |||||
Energy type* | Gasoline | |||||
Fuel supply method* | EFI | |||||
Official average fuel consumption (L/100km)* | 3.6 |
