olt gpon 16 ports 10G XG PON CGUF Fiber Device MA5800 OLT Board H901CGUF for MA5800 X2 X7 X15 X17
- Category: >>>
- Supplier: Zhengzhou Wangmai Trading Co. Ltd.
Share on (1601207104682):
Product Overview
Description
Product Paramenters
Technical Specifications
MA5800-x2 | |
This board is applicable to | MA5800-x7 |
MA5800-x15 | |
MA5800-x17 |
Item | Specification |
Dimensions without packaging (H x W x D) [mm] | 23.30 mm * 257.90 mm * 399.20 mm |
Weight without packaging [kg] | 1.24 kg |
Operating temperature [°C] | -40°C to +65°C |
GPON Port | 16 |
Port rate mode | Asymmetric rate |
Supported ONU rates | GPON: 2.5G/1.25G (downstream rate/upstream rate) XG-PON: 10G/2.5G (downstream rate/upstream rate) |
Optical Connector Type | SC |
Extinction Ratio | 8.2 dB |
Forwarding capability | 200Gbit/s |
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km] | 40 km |
Power Consumption | Static: 48 W Maximum: 78 W |

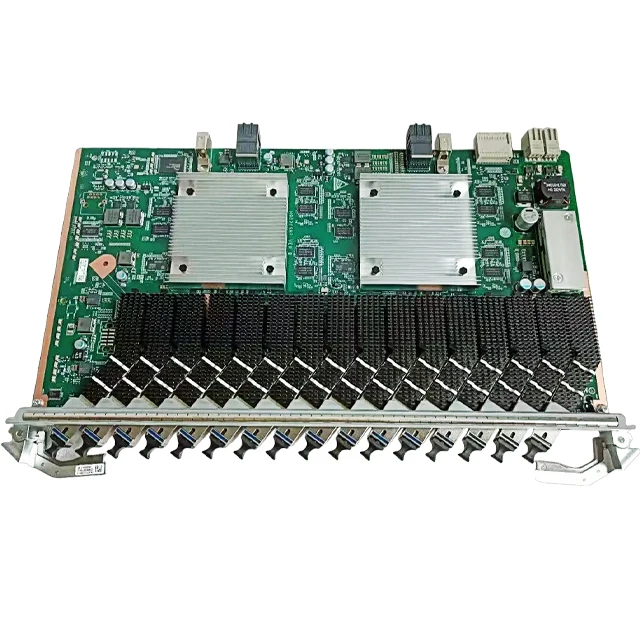

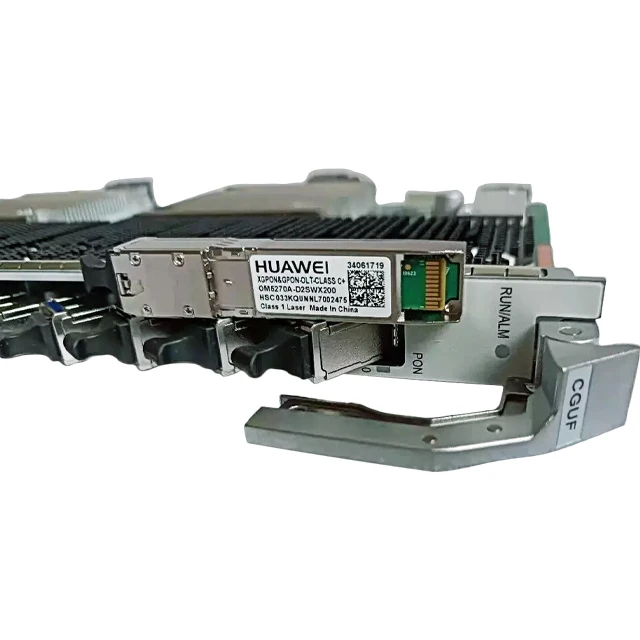

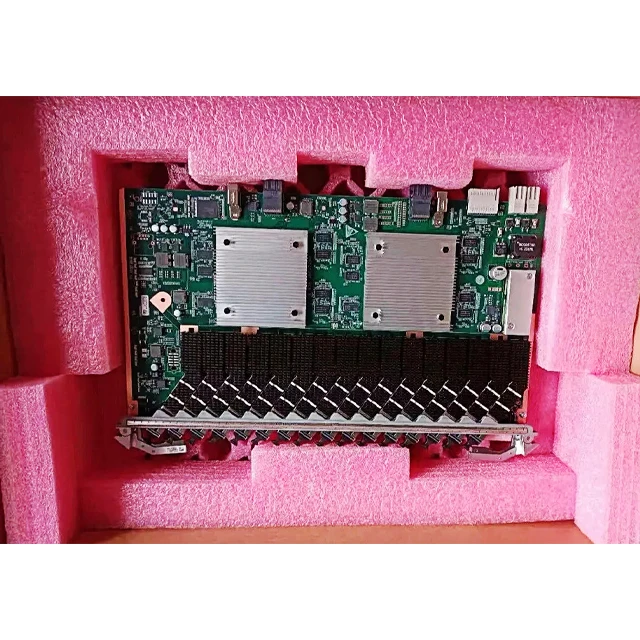

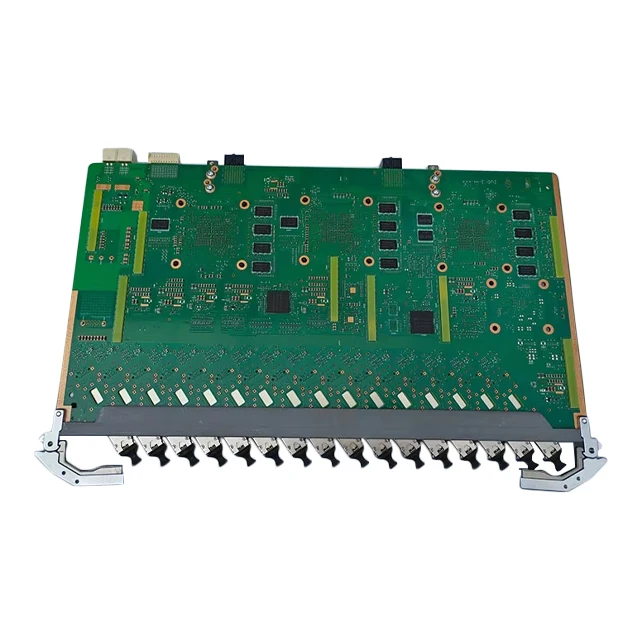

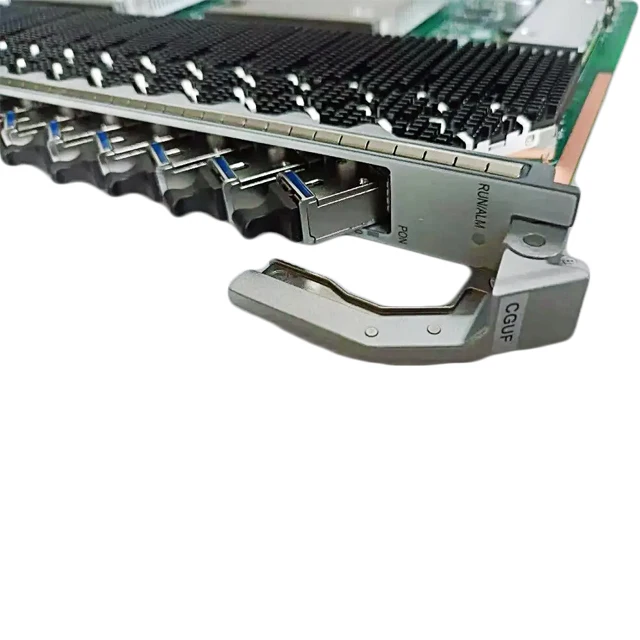

Product Picture
Typical Networking Diagram
Functions and Features
Huawei CGUF Service Board is 16-port XG-PON and GPON Combo interface board for MA5800 Series. MA5800 Series. MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2 and they support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP.
Huawei MA5800 series are the industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX
MA5800 employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.
Huawei MA5800 series are the industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX
MA5800 employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.
Functions and Features | Description |
Brand | Huawei |
Port quantity | 16 |
Port rate | GPON upstream: 1.244 Gbit/s |
GPON downstream: 2.488 Gbit/s | |
XG-PON upstream: 2.488 Gbit/s | |
XG-PON downstream: 9.953 Gbit/s | |
Forwarding capability | 200Gbit/s |
Maximum number of MAC addresses | 16384 |
Maximum distance difference between two ONUs under the same PON port | 40km |
Rate mode | Asymmetric rate |
Maximum number of MAC addresses | 131072 |
Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
Power Consumption | Static: 48 W Maximum: 78 W |
GEM ports per board | 16384 |
GEM ports per port | 3872 |
Operating temperature | -40°C to +65°C |
1588v2 Synchronization | Y |
9216-byte jumbo frames | Y |
Bidirectional FEC | Y |
Type B protection (single-homing) | Y |
Type B protection (dual-homing) | Y |
Type C protection (single-homing) | Y |
Type C protection (dual-homing) | Y |
HQoS | Y |
NTP | Y |
ONU-based shaping | Y |
PON ISSU | Y |
Y.1731 PM | Y |
Security (Anti-DoS, Anti-MAC/IP Spoofing) | Y |
Controlled optical signal transmission of the optical module | Y |
Rogue ONU detection and isolation | Y |
Automatic shutdown at high temperature | Y |
Temperature query and high-temperature alarm | Y |
Energy conservation for service boards | Y |
