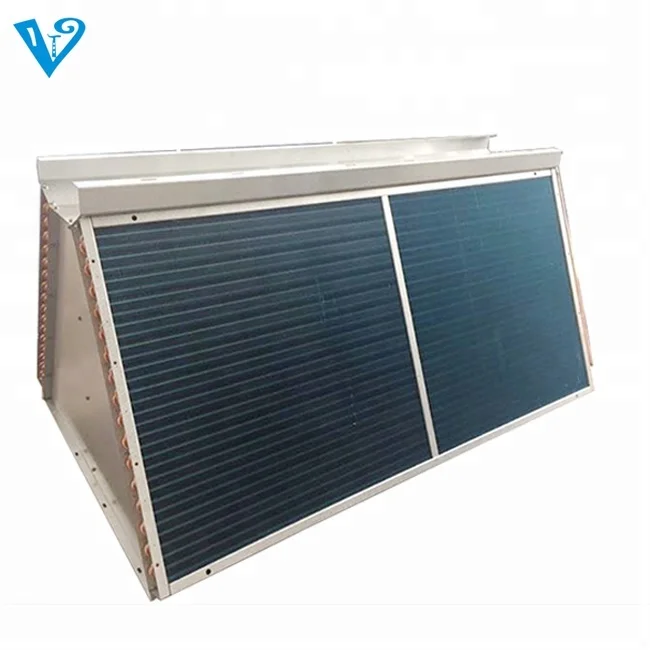

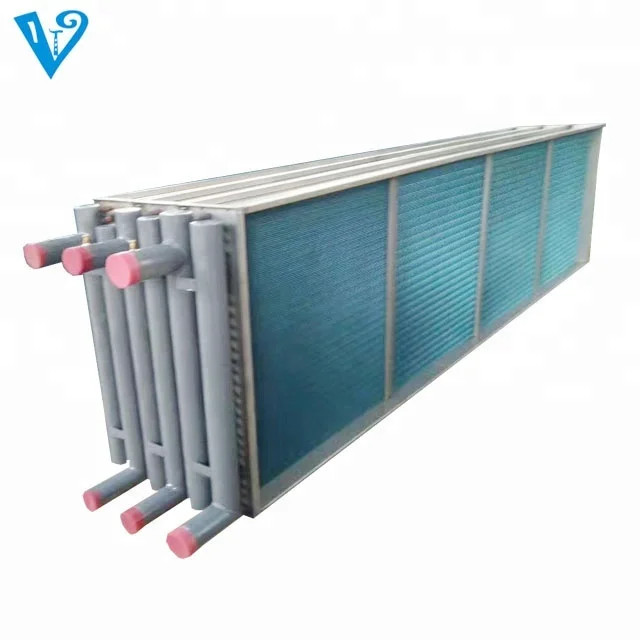

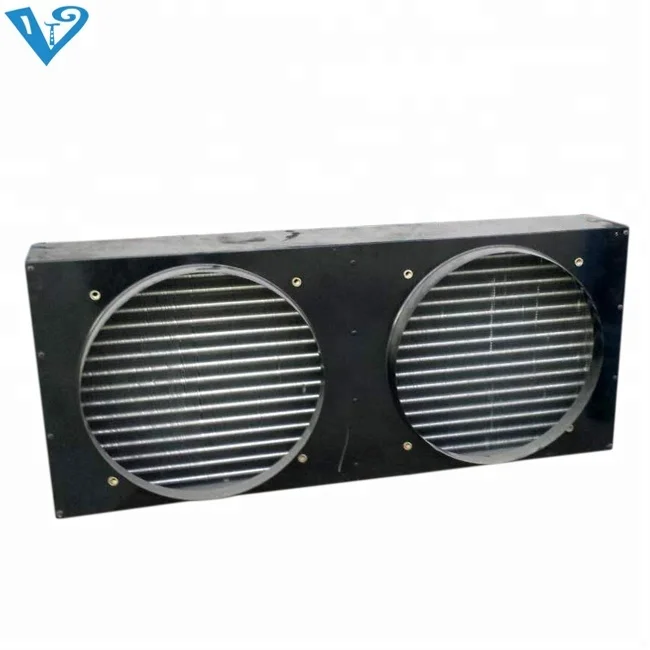

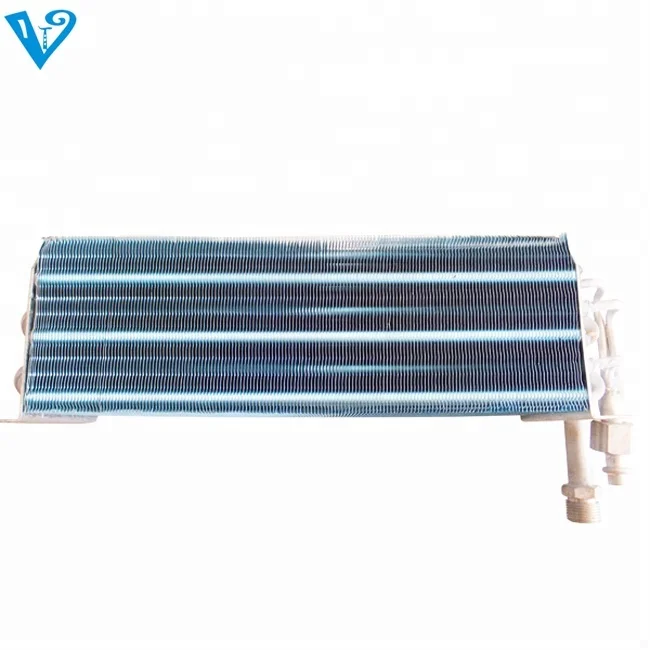

Sustainable development copper tube brine evaporator
- Category: >>>
- Supplier: Shanghai Venttech Refrigeration Equipment Co. Ltd.
Share on (1601207124580):
Product Overview
Description
Company Information
Shanghai Venttech is a professional manufacturer and designer, specializing in manufacturing heat exchangers for over 17 years, including air dryer cooler, compressor cooler, intercooler, radiator and oil cooler, etc.
- Our products are well received in various countries and regions, including UAE, USA, Russia, Poland Europe, Middle East, and Southeast Asia
- To ensure professional quality, we have advanced production equipment, testing equipment, strong technical research and development team, and a complete quality management system
- We also have independent research and development capabilities for automotive air conditioning systems and have established a huge sales network
- Our products come directly from the factory, and we will give you the most favorable price
- The core members are always ready to provide you with caring, professional, and reliable services
- We can design the heat exchangers according to your specific requirements, and print the logo according to buyers' requirement
Products advantage
- Can have CE, ROHS certificates
- 100% of the products pass the helium or water leak inspection before delivery
- Offer customized product. E-coating, Dacromet, Epoxy, Powder Spraying, and Painting surface treatment are available
- Products capacity simulation and drawings design service

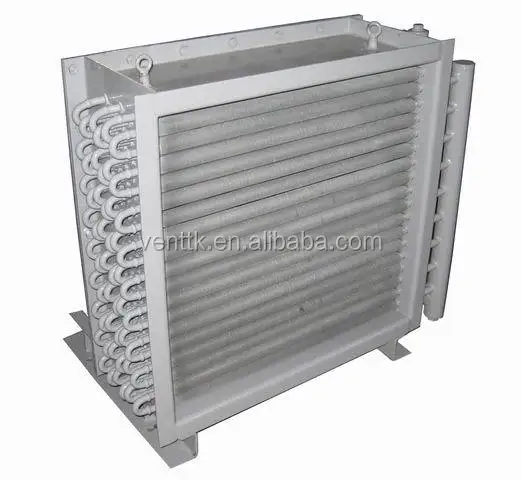

Air cooling machine, with the environment air as the cooling medium, is the equipment to cool or condensate the process fluid with high temperature in the tube. It is called "air cooler" for short, and is also called "air cooling heat exchanger". Air cooler can be also called as fin blower that is often used to replace the cooling medium of water-cooling shell-tube heat exchanger.
Types of air cooler:
Sorted according to ventilation mode:
1. Blowing-type: Tube banks lie in the exhaust side of the blower
2. Draught fan: Tube banks lie in the inlet side of the blower
Sorted according to the installation and placing modes of the tube banks:
1. Horizontal type: Horizontally place the tube banks
2. Inclined type: Inclinedly place the two tube banks with the horizontal plane in 60°dip angle
3. Vertical type: The tube banks are vertically placed on both sides of the structure. It is often used by the driving blower of the natural gas engine.
Fins in Aluminum,copper.
Tube in Steel,Aluminum or copper.
Shell in stainless steel,carbon steel.
We also can design for you, please offer the following specification:
Heat exchanger(water in it)
Heat transfer KW
Inlet air temperature(dry bulb) °C
Outlet air temperature(wet bulb) °C
Inlet water temperature °C
Outlet water temperature °C
Any requirements about mounting space?
PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
Fin Height Max 16mmH | |||||
L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
(Wrap On Type) | Fin Height Max 16mmH | ||||
G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 |
| |||
High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
Alloy Steel Material | Alloy Steel Material |
| |||
Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
Max 12mm. H | |||||
Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
Stainless Steel Tube | Stainless Steel Tube | ||||
Alloy Steel Material | Alloy Steel Material | ||||
Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
Turbo-C Tube | |||||
Turbo-E Tube | |||||
Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
FIN TUBE REFERENCE | |||||||
TYPE | NAME | BARE TUBE MATERIAL | FIN TUBE MATERIAL | BARE TUBE DIAMETER (MM) | FIN SPECIFICATION (MM) | ||
FIN PITCH | FIN HEIGHT | FIN THICK | |||||
EMBEDDED | G-TYPE FIN TUEB | CARBON STEEL COPPER,STAINLESS STEEL,ALLOY | ALUMINUM | 16-63 | 2.1-5 | <17 | ~0.4 |
EXTRUDED | SINGLE METAL | CARBON STEEL, COPPER | COPPER | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
LOW FIN TUBE | CARBON STEEL, COPPER | / | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
BAMBOOTUBE | CARBON STEEL,COPPER | / | 16-51 | 8-30 | <2.5 | / | |
WOUND | L/KL/LL TYPE | CARBON STEEL, COPPER | COPPER | 16-63 | 2.1-5 | <17 | ~0.4 |
STRING | STRING FIN TUBE | ALUMINUM,COPPER | ALUMINUM,COPPER | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
U-TYPE | U-TYPE TUBE | CARBON STEEL,COPPER | / | 16-38 | / | / | / |
WELDING | HF-WELDING | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 16-219 | 3-25 | 5-30 | 0.8-3 |
H/HH TYPE | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 25-63 | 8-30 | <200 | 1.5-3.5 | |
STUDED FIN TUBE | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 25-219 | 8-30 | 5-35 | φ5-20 | |
