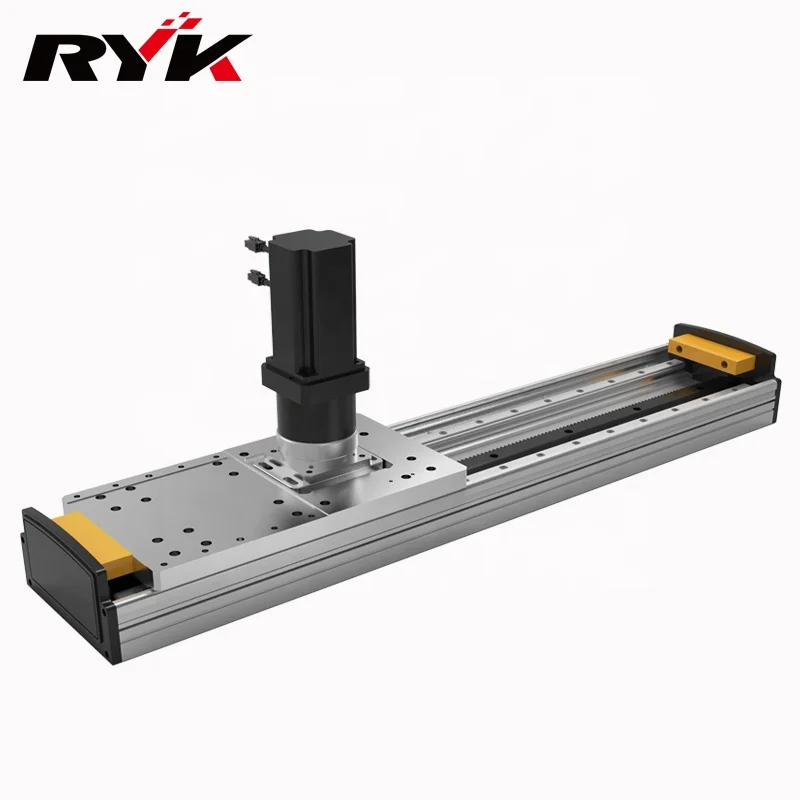

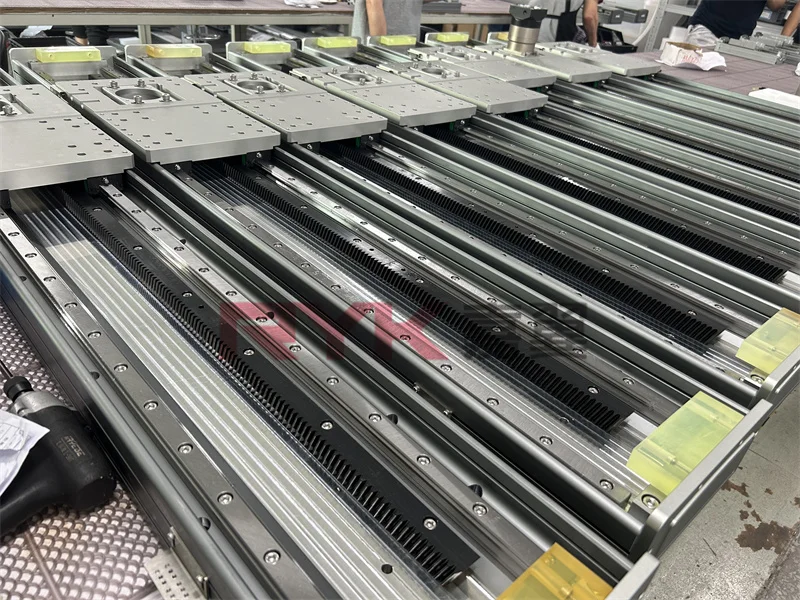

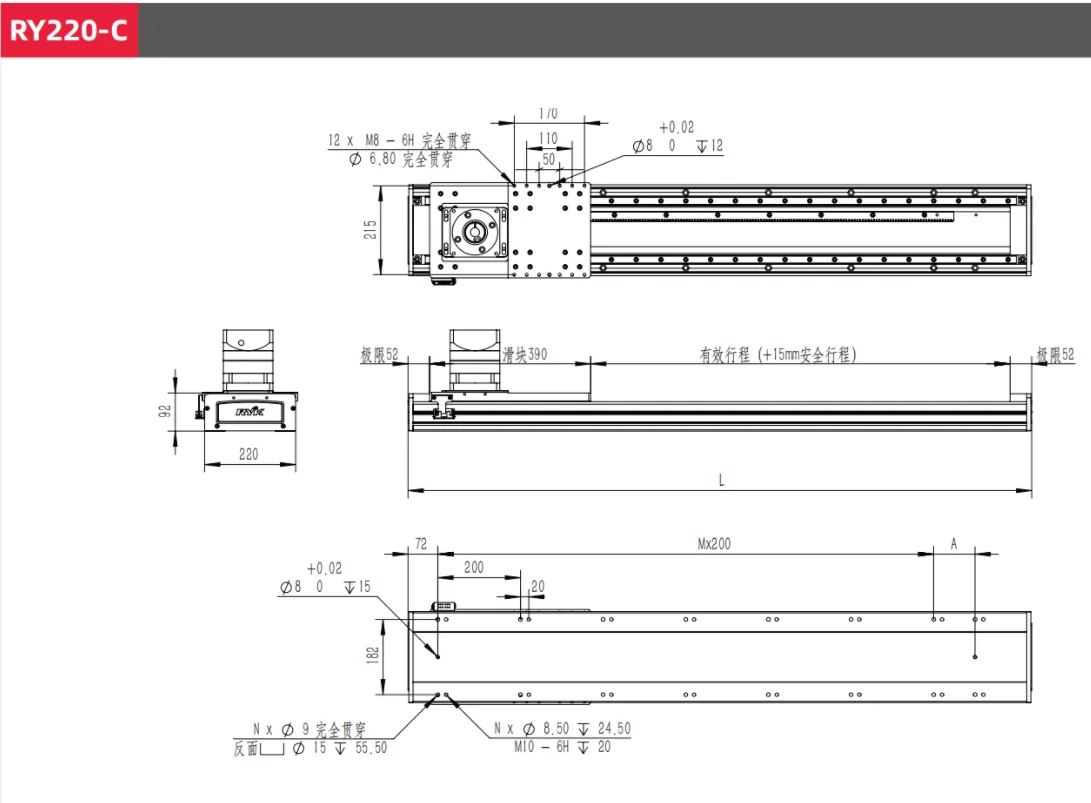

220 Wide Rack And Pinion Linear Sliding Table Module Gantry Cross Linear Guide, Manipulator Xyz Heavy Sliding Table
- Category: >>>
- Supplier: Dongguan Jiayi Intelligent Equipment Co. Ltd.
Share on (1601207154100):
Product Overview
Description
Application
Widely used in automated production equipment, dispensing, painting, welding, packaging, handling, inkjet, laser, engraving machine, robot, photographic slide, electric slide, scientific research, functional demonstration, etc.,

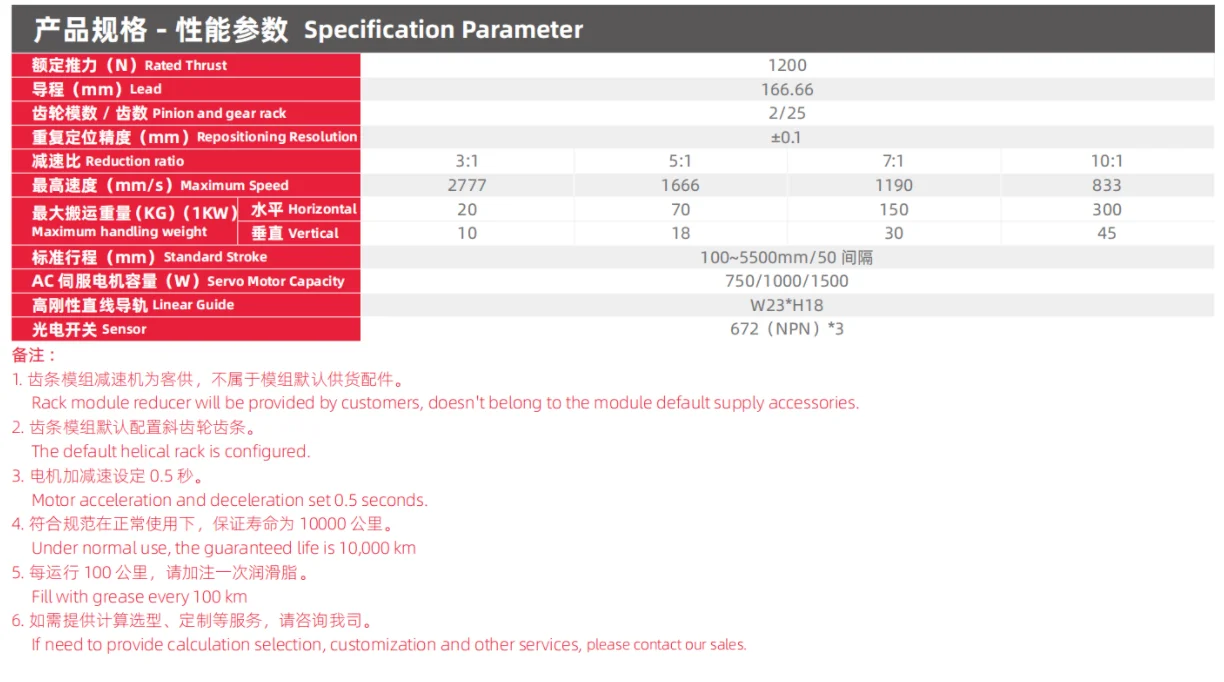

Product Parameter

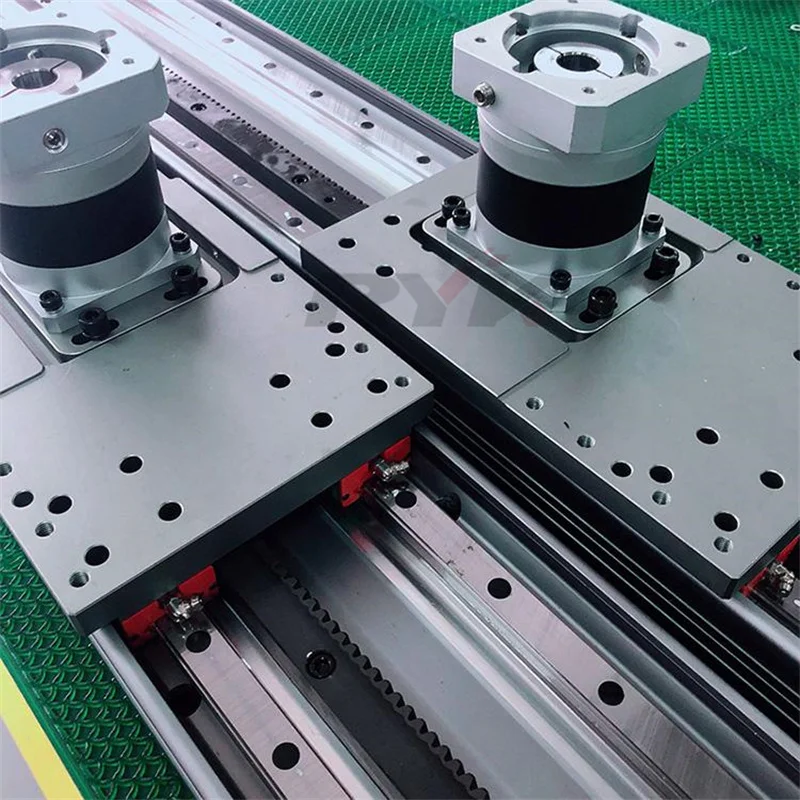

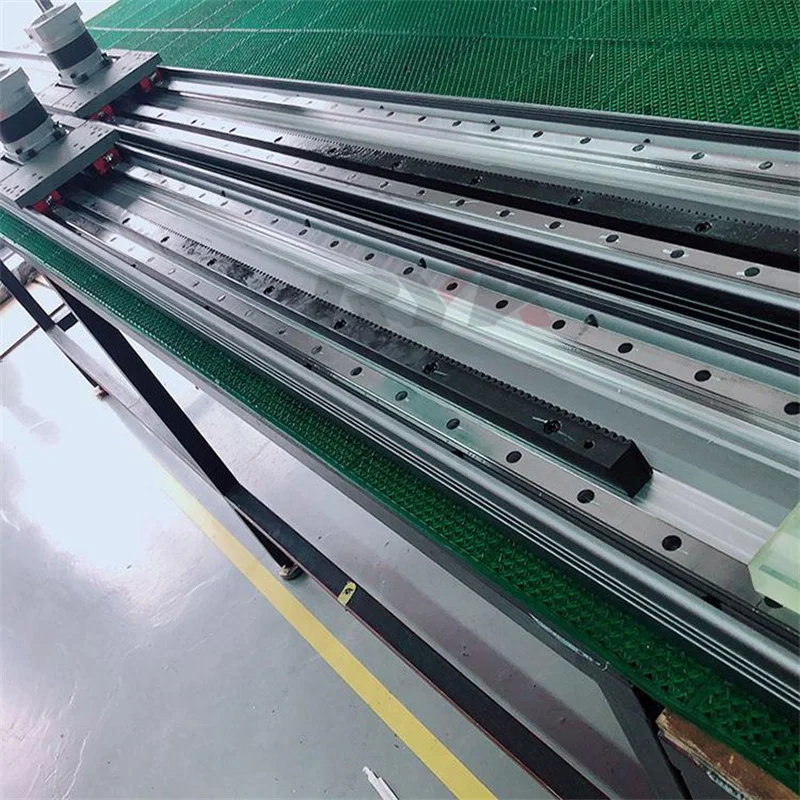

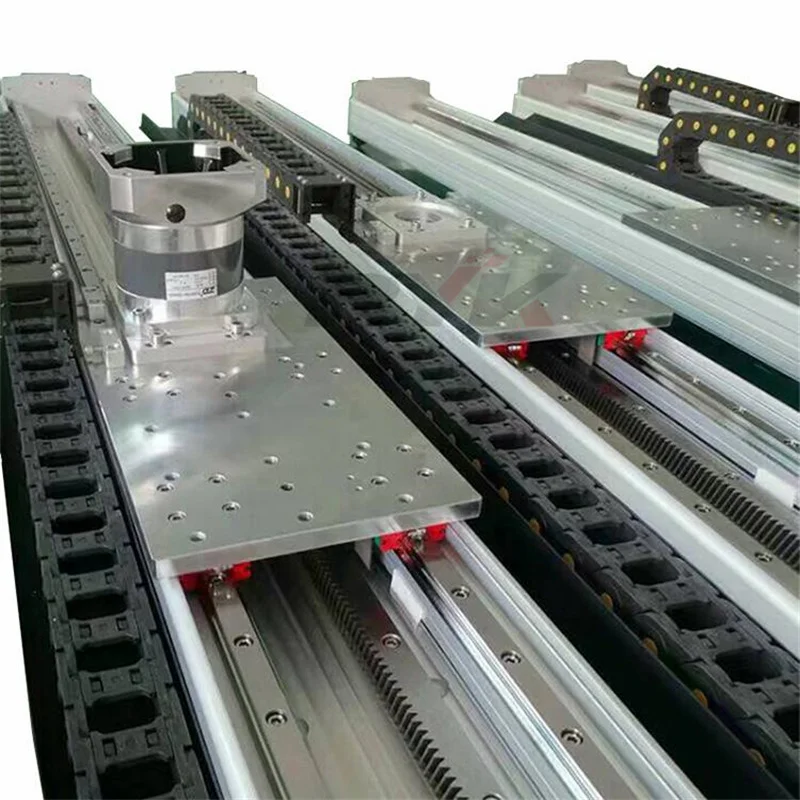

Product Name | Rack and Pinion Linear Sliding Table |
Model No. | RY140/RY170/RY200/RY250 |
Width | 140mm//170mm/200mm/250mm |
Material | Aluminum 6061 |
Maximum Stroke | 1500mm/3500mm/5500mm/5500mm |
Maximum Speed | 1500mm/s,2000mm/s,2000mm/s.2000mm/s |
Drive Type | Belt driven |
Repeatability | ±0.02mm |
HIWIN Linear Guide And Block | 12/20/25/30/35/45mm |
Maximum Output | Servo Motor: 400W/750W/1KW/1.5KW, 60/90/120 Motor Reducer |
Rack Rail Lead | 100/146.7/166.7/250mm |
Features
1. New aviation aluminum, more rigid and lighter.
2. The rack and guide rail are all imported from Taiwan, with guaranteed quality.
3. Simple structure, the space occupied is small, and it is more suitable for various installations.
4. Large load, high speed, long service life, applicable speed, and large power transmission range.
5. Long stroke, aluminum, guide rails, and racks all support splicing, and the effective stroke can reach up to 12m.
2. The rack and guide rail are all imported from Taiwan, with guaranteed quality.
3. Simple structure, the space occupied is small, and it is more suitable for various installations.
4. Large load, high speed, long service life, applicable speed, and large power transmission range.
5. Long stroke, aluminum, guide rails, and racks all support splicing, and the effective stroke can reach up to 12m.
Product Overview
Company Profile
RYK
Jiayi Intelligent Equipment Co.,Ltd.
RYK is a high-tech enterprise that integrates intelligent equipment design, development, production, sales and service. The company is in Dongguan City with 10,000 square meters factory. It mainly produces industrial robots, linear modules, ball screws, linear guides and linear motor, which suitable for the field of high-precision instruments and equipment.
Since establishment, RYK has been a long-term strategic partnership with a number of universities and scientific research institutions. Our company provides customers with one-stop solutions and creates higher returns through professional R&D teams and high-quality service business has covered the domestic and foreign markets. No only bring better returns to customers by virtue of leading technology and high-quality service, but also create a harmonious working environment for employees.
RYK dedicates to become an excellent intelligent equipment enterprise.
CNC Machining Center

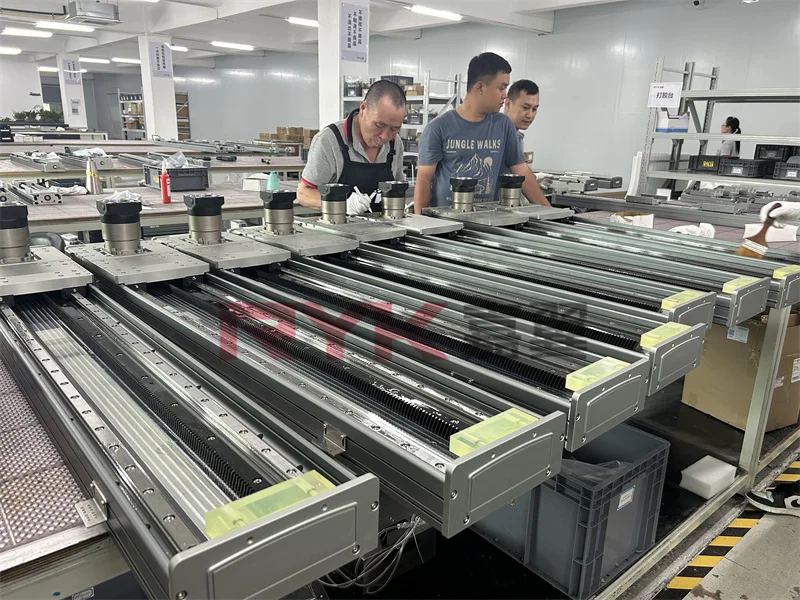

Assembly Workshop
Accessories Workshop
Ultrasonic Cleaning Machine
3D Image Measuring Instrument
Hardness Tester&Height Detector
Office Environment
Our Team
Product Introduction Contest
Exhibition
Certifications
FAQ
Q: Are you a trading company or manufacturer?
A: We are manufacturer with over 10 year’s experience in this field.
Q: What’s the product range?
A: Our leading products include linear module, industrial robot, ball screw, linear guide, ball spline, support unit, motor, etc.
Q: What payment method do you accept?
A: T/T, L/C and Western Union are available for us.
Q: What's the delivery time?
A: RTS products:usually 3-5 days. Non-standards product: 7-15 days after the payment confirmed. It's up to quantity of the order and our production schedule.
Q: Can you strictly follow the instructions of the tolerance and precision?
A: Yes, we strictly design and produce according to the drawing from customer.
Q: What's your guarantee period?
A: We provide 12 months` quality guarantee for the products you purchased from us, except for the artificial damage.
