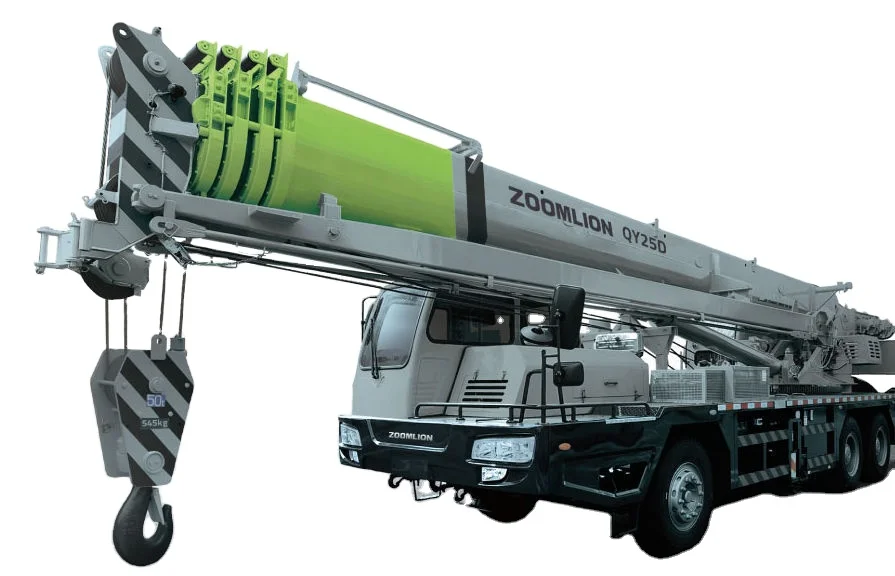

China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R
China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R

China Manufacturer lifting crane 25 Ton portability truck Crane QY25D531R

Share on (1601207190141):


Price:$70,000.00-90,000.00

Quantity:


Product Overview

Description





Contact


Sales Manager: Ryann Huang
WhatsApp/WeChat/mobile: +86 19858195297
E-mail: ryann@liebty.com

Company: Liebty Machinery Technology (Hangzhou) Co.,Ltd
Address: Room 208, Building 3, No.1866, Binxing Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China




Product Description



* Continuously overall promotion makes our lifting capacity of crane be improved once and once again.

* Jib length 8.0m,Main boom length(10.6 – 40.0m).

* Optimized central slewing position increases the lifting capacity of the crane over rear.

* Large outrigger span improves the working stability of the crane greatly.

* Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.

* Leading boom manufacturing process in trade.


Product Parameters


Working performance
Max. rated lifting capacity
kg
25000
Max. load moment of basic boom
kN.m
1029
Max. load moment of main boom(fully extended)
kN.m
564
Max. load moment of basic boom
m
11.1
Max. lifting height of main boom
m
40.5
These parameters do not include deflection of main boom and jib
Max. lifting height of jib
m
48.5
Working speeds
Max. hoist rope speed(Main winch)
m/min
120
At the 4th layer
Max. hoist rope speed(Auxiliary winch)
m/min
100
At the 2nd layer
Boom demrricking up time
s
40
Boom demrricking up time
s
80
Slewing speed
r/min
0 -2.2
Driving parameters
Max. driving speed
km/h
78
Max. gradeability
%
37
Turning diameter
m
≤22
Min. ground clearance
mm
235
Oil consumption per hundred kilometers
L
35
Mass
Deadweight in driving condition
kg
32400
Complete vehicle kerb mass
kg
32270
Front axle load
kg
6500
Rear axle load
kg
25900
Dimensions
Overall dimensions(L×W×H)
mm
13000×2550×3500
Outrigger spread(L)
m
5.36
Outrigger spread(W)
m
Fully extended:6.1,
Intermediately extended:4.2
Tail slewing radius
mm
3385
Main boom length
m
10.6 - 40.0
Boom angle
°
-2 - 80
jib length
m
8.0
Offset
°
5,17,30

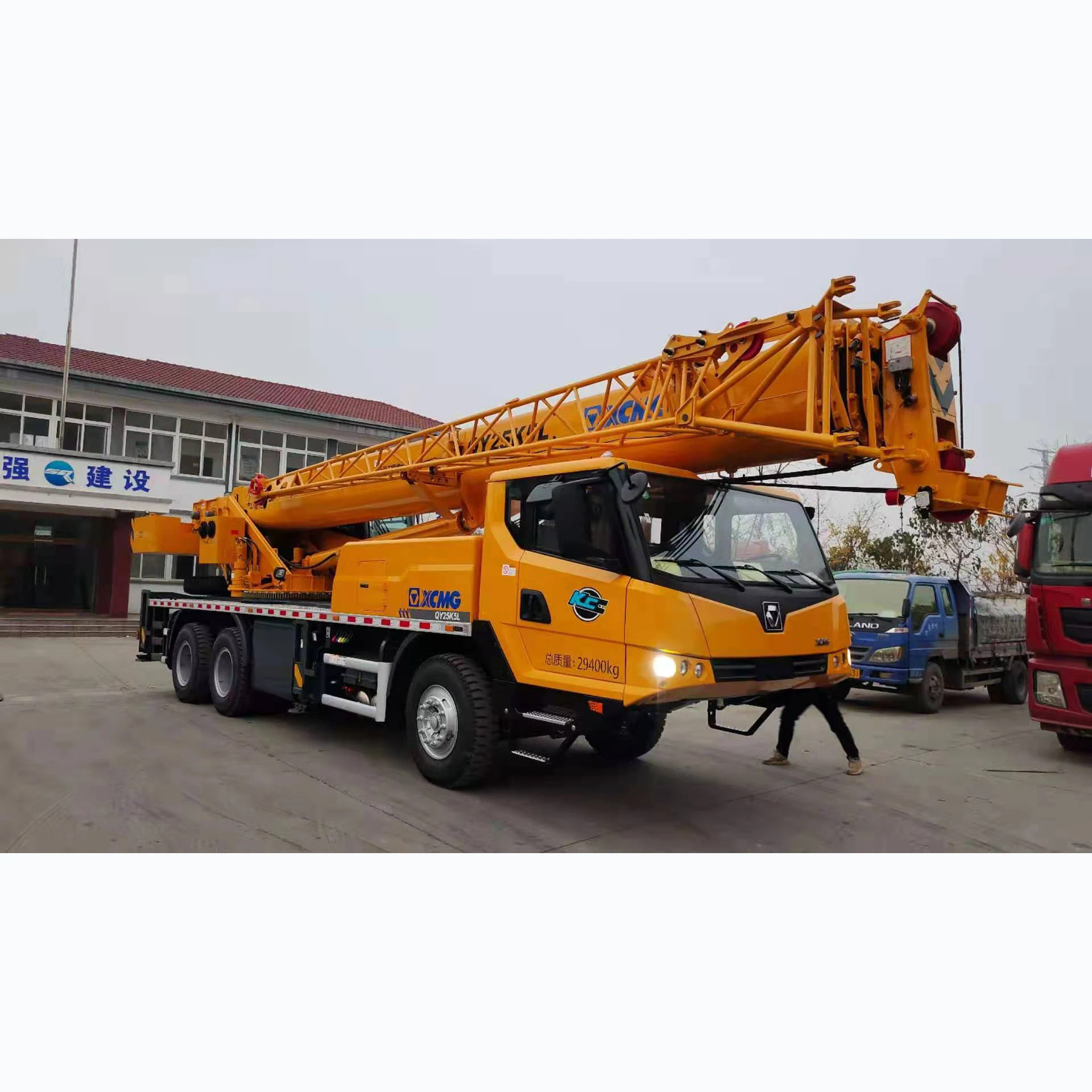

Details Images
