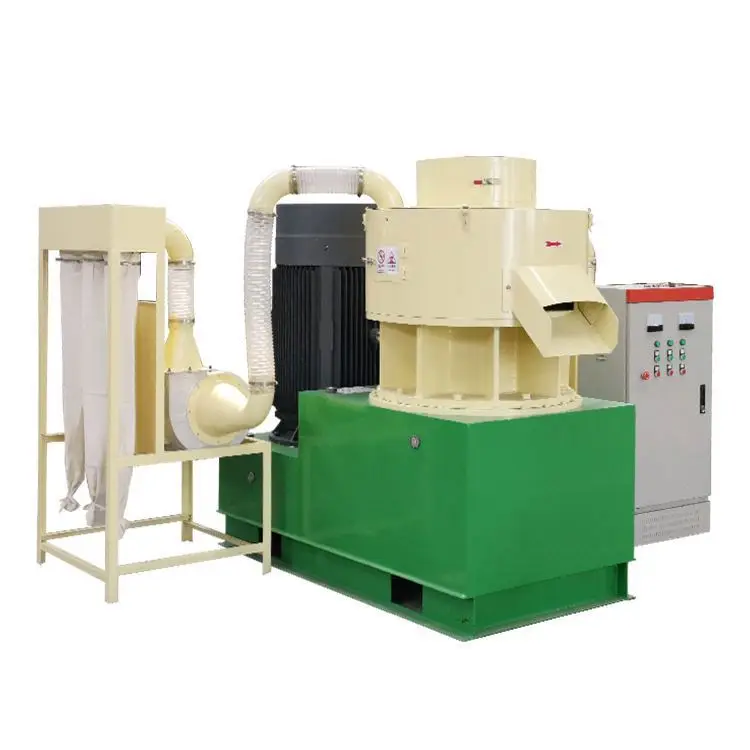

Durable ring die wood pellet press mill/agricultural waste rice husk pellet granulator
- Category: >>>
- Supplier: Zhengzhou Furui Machinery Co. Ltd.
Share on (1601207191802):
Product Overview
Description
Durable ring die wood pellet press mill/agricultural waste rice husk pellet granulator
Product Description
1.Pellet machine is widely used for wood waste sawdust, straw, plant waste, bamboo powder, grass, peanut shell, rice husk, palm waste, coconut shell, agricultural waste, corn stalk, wheat straw, cow dung, alfalfa, sunflower waste, tree bark etc into fuel pellets.
2.Our machine can press powder raw material into fuel pellets or feed pellets. Fuel pellet diameter mainly used 6mm, 8mm, 10mm etc. It can according to customer’s requirements to produce different hole of flat die. It also can produce animal feed pellets, pellet size can be choose 2.5mm, 3mm, 4mm or others.
Technical date

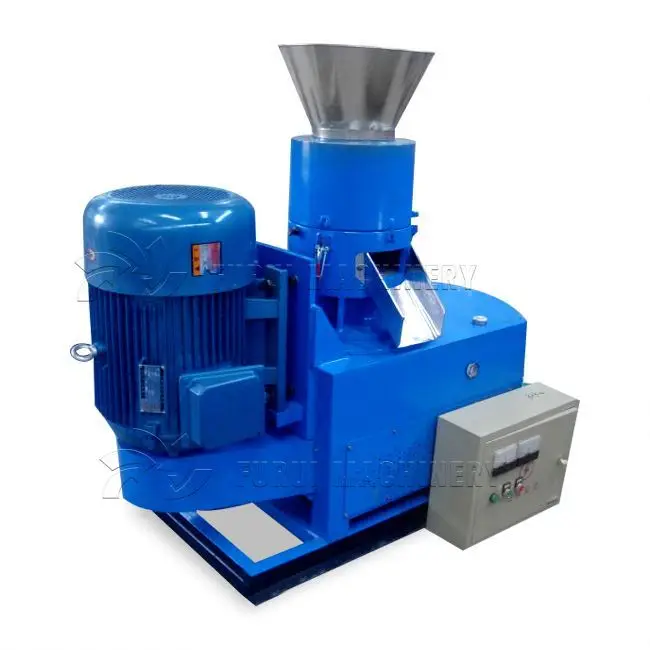

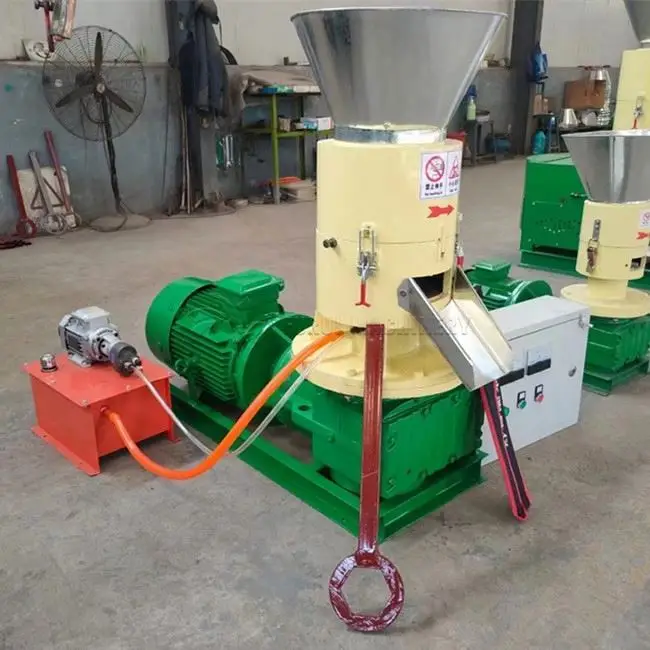

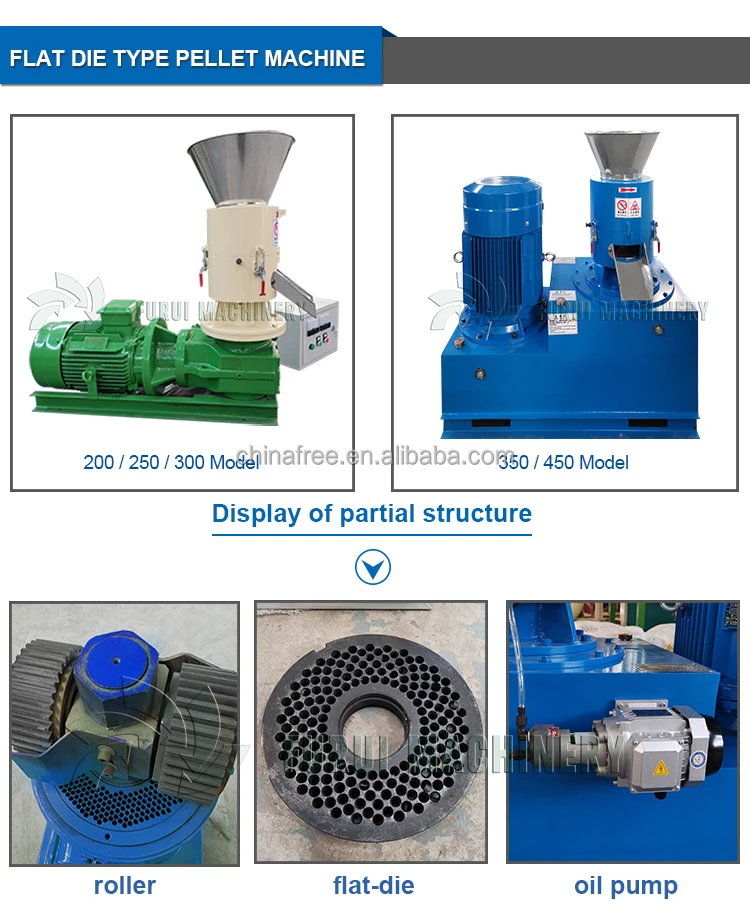

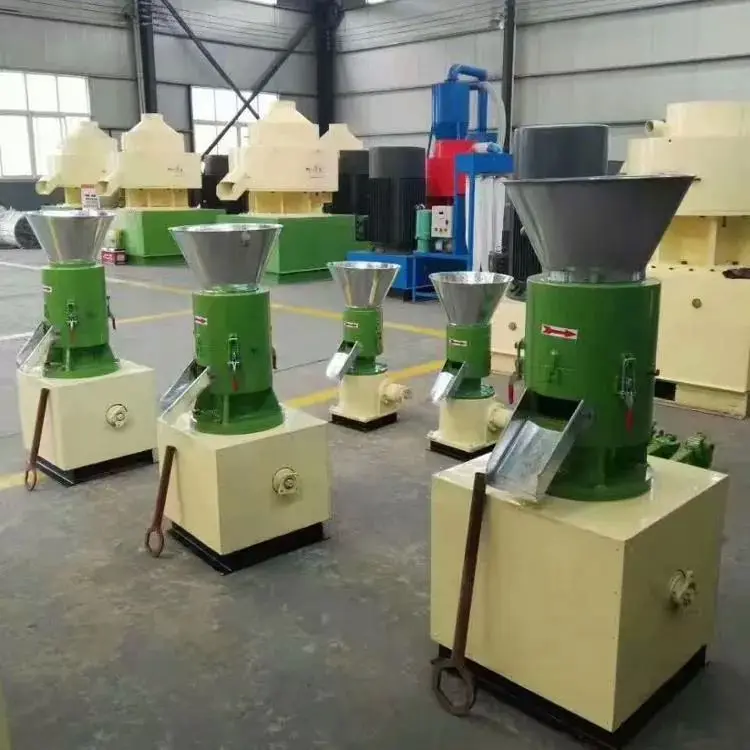

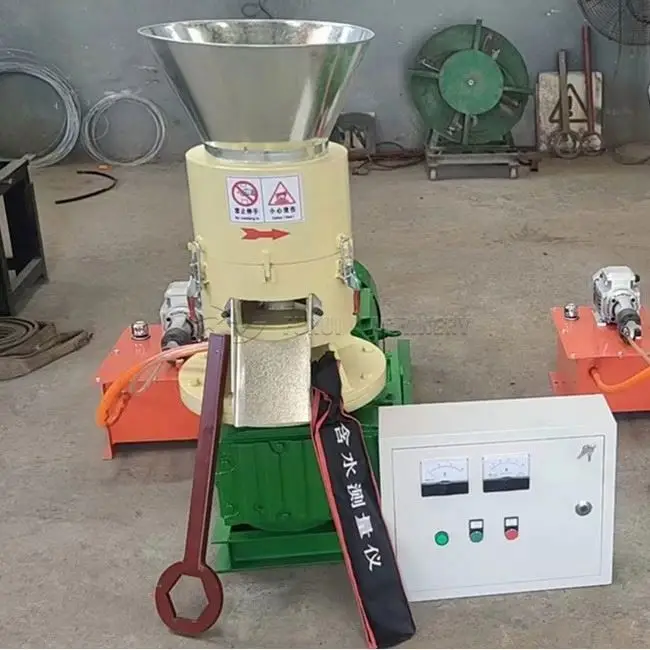

flat die wood pellet machine includes electric driven(FR200, FR250, FR300, FR350 and FR450), diesel driven (FR200D, FR250D, FR300D)and tractor driven(FR200T, FR250T, FR300T, FR350T) type.
Model | Power | Pellet dia. (mm) | Capacity (kg/h) | Dimension (mm) | Weight (kg) |
FR200 | 7.5 | 6-8 | 100-120 | 1000*450*850 | 350 |
FR250 | 15 | 6-8 | 200-250 | 1200*550*1050 | 550 |
FR300 | 22 | 6-10 | 250-300 | 1250*600*1100 | 750 |
FR350 | 30 | 6-10 | 400-500 | 1650*700*1300 | 1000 |
FR450 | 37 | 6-12 | 600-700 | 1300*700*1500 | 1450 |

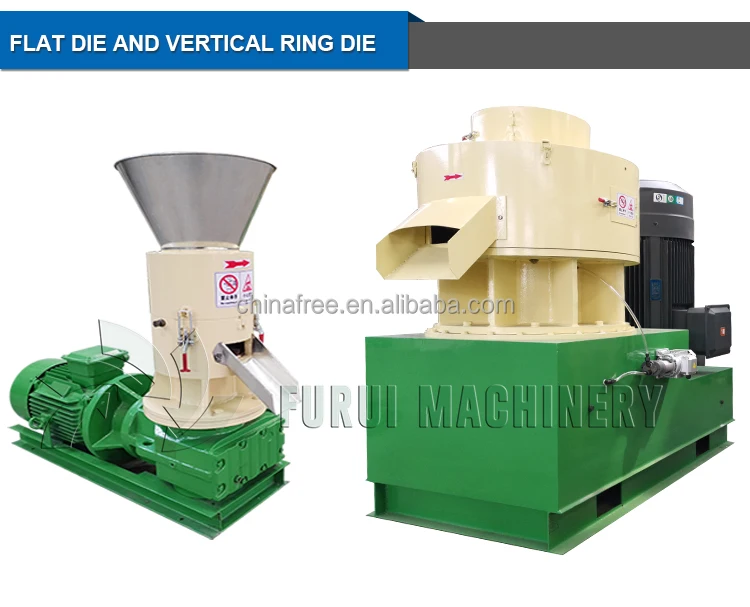

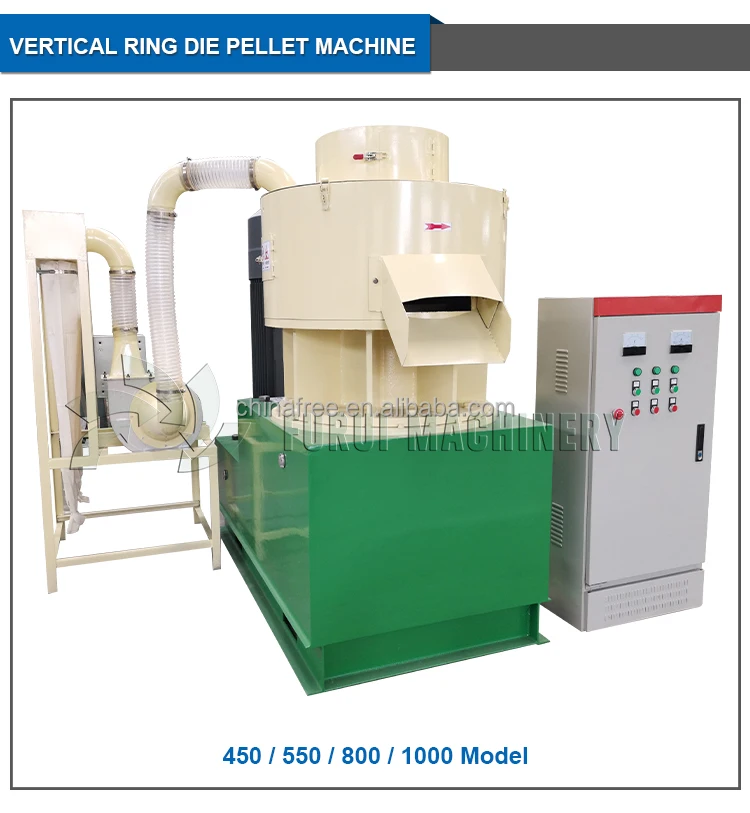

Vertical ring die wood pellet machine
Model | Power | Pellet dia. (mm) | Capacity (t/h) | Dimension (m) | Weight (kg) |
FD 450 | 55KW | 6-10 | 0.8-1.2 | 1.4*0.75*1.55 | 2200 |
FD 550 | 90KW | 6-10 | 1.5-2 | 1.9*0.95*1.8 | 4000 |
FD 800 | 160KW | 6-10 | 2-3 | 2.5*1.35*2.1 | 6500 |
FD1000 | 200KW | 6-10 | 3-4 | 2.65*1.45*2.1 | 8000 |

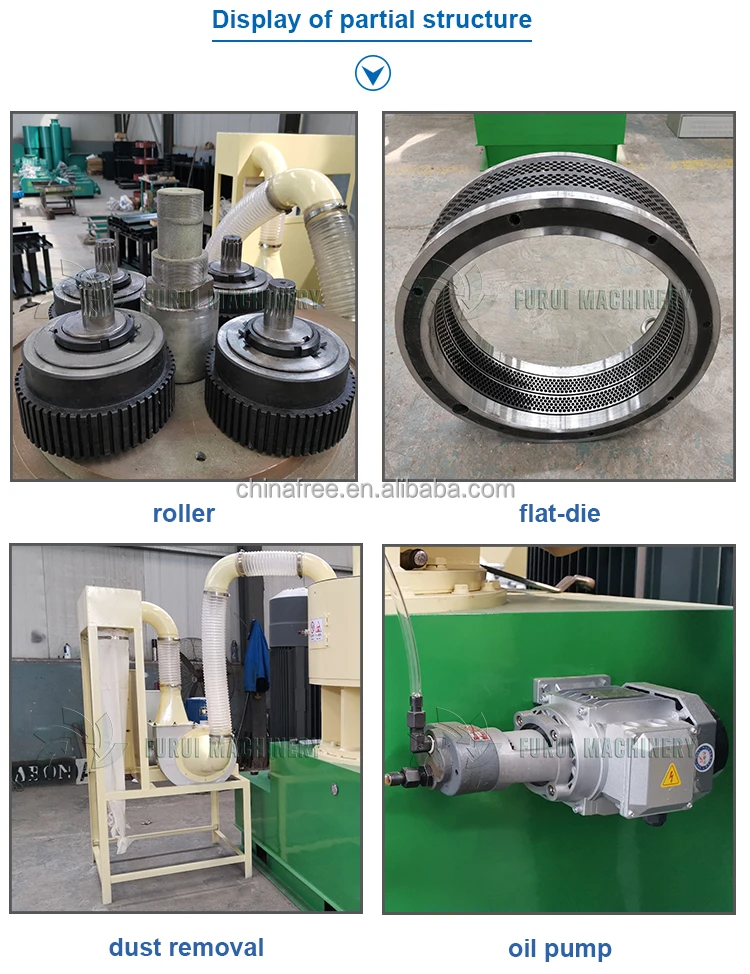

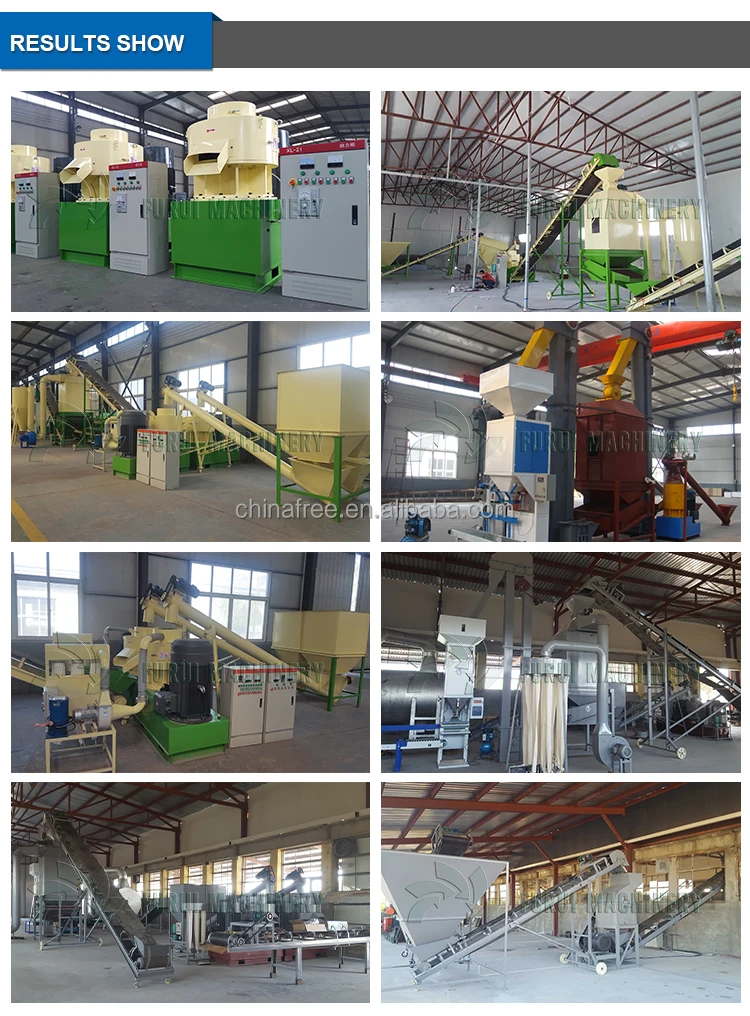

Detailed Images
Contact details
If you want to get more information, pls contact with us feel free.
