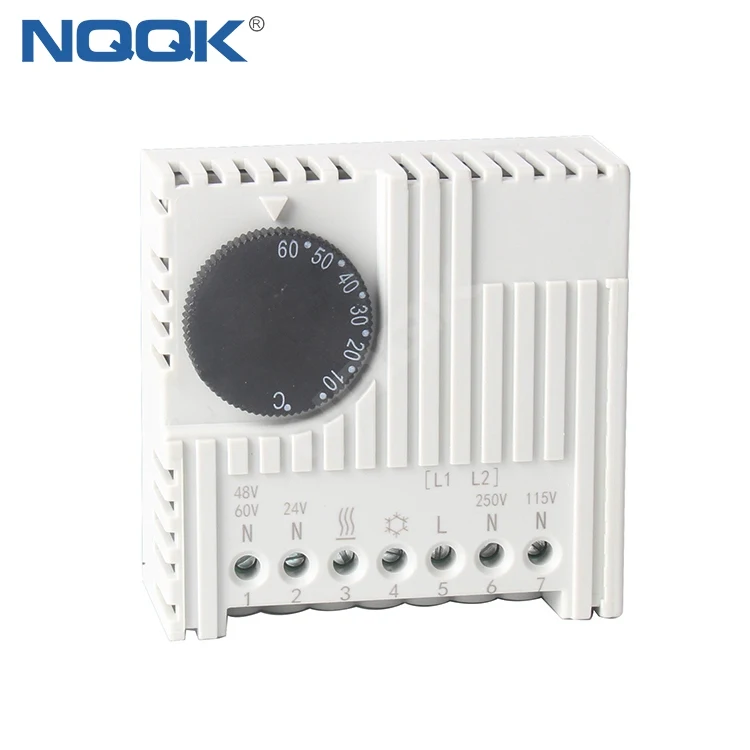

SK3110 24V 48V 60V Electronic mechanical Thermostat
- Category: >>>
- Supplier: Yueqing Nqqk Electric Factory
Share on (1601207193329):
Product Overview
Description
SK3110 24V 48V 60V Electronic Thermostat for controlling
fan filter , heater and exchange
Product Description
Inner temperature controller for switchgear cabinet
Especially used for controlling fan filter, heater and exchanger, also could be monitoring the electric
cabinetinner temperature when working as signal arcuser.
Technical Data:
Make bimetal sensor as heat sensitivity set to feedback of heat.
Contact point scheme: single switch over contact point as instant switch component

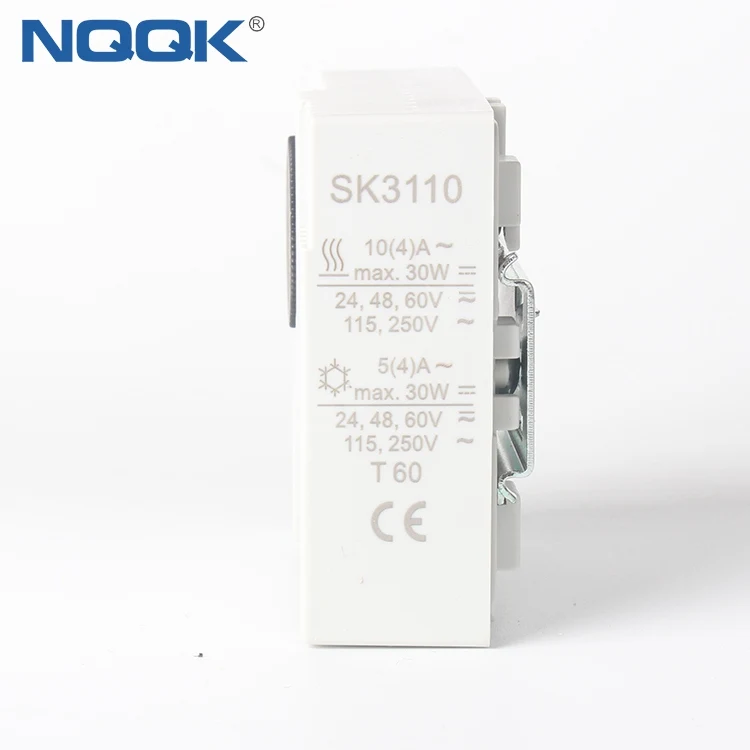

allowed load of contact point
K L 5-3 AC10(4)A
DC=30W KL5-4(Cooling)
AC5(4)DA DC=30W
(D)=sensitivity load at cos Φ=0.6

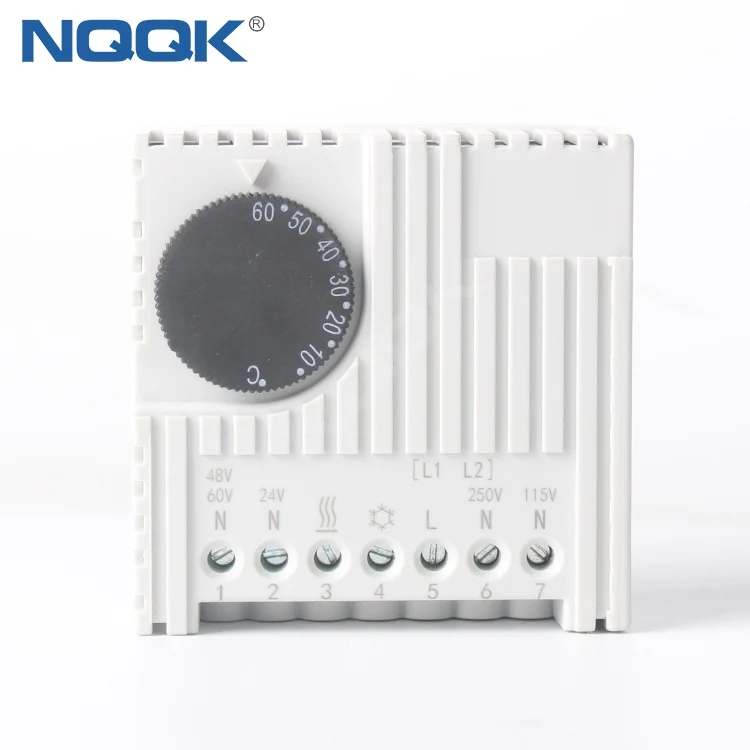

Adjusting range:-20°C to +60°C

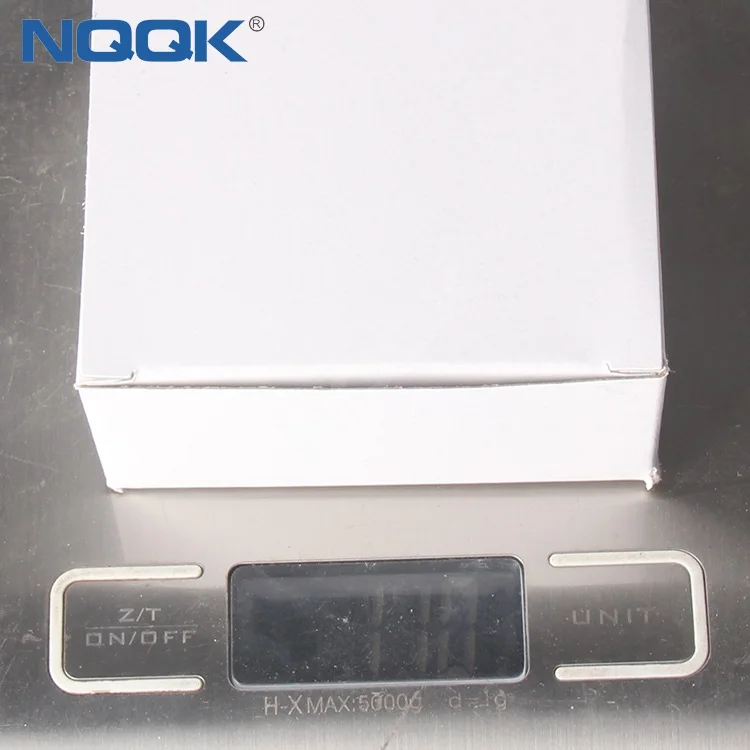

Weight:105 gappr
Size :70×70×33.5mm
Switch discrepancy"1K±0.8K
Voltage scope is wide , any type could be used from 24V to 230V

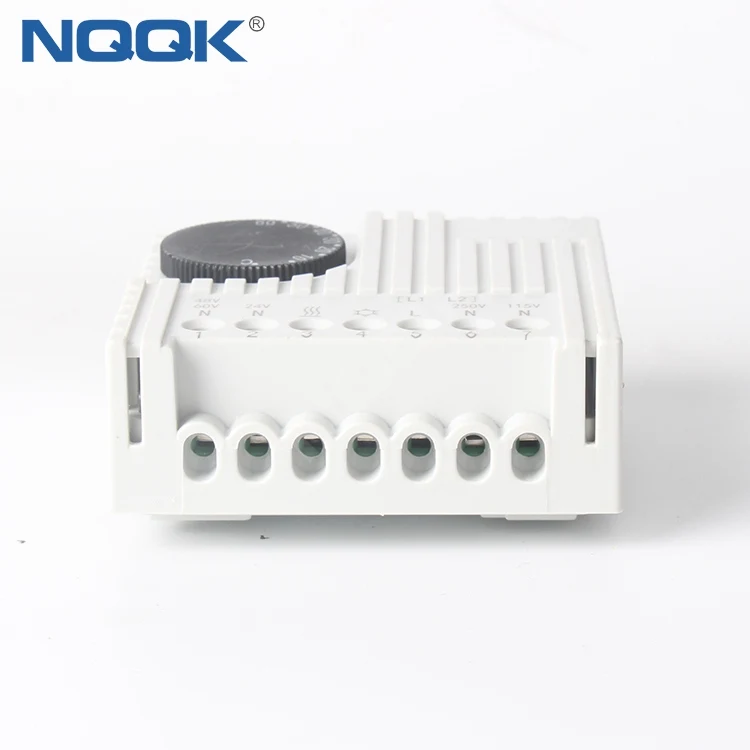

Time-saving connection , terminal block could be installed with screw from outside

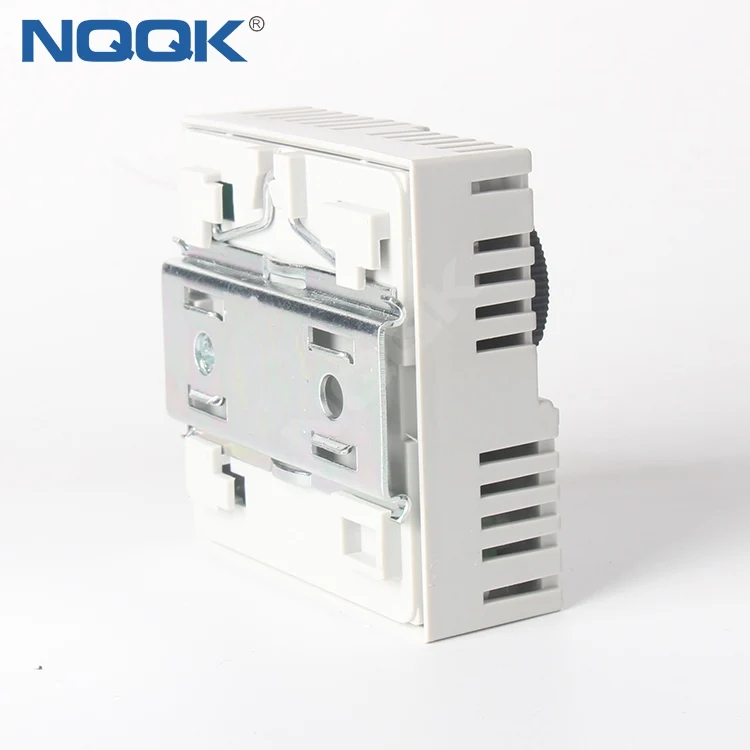

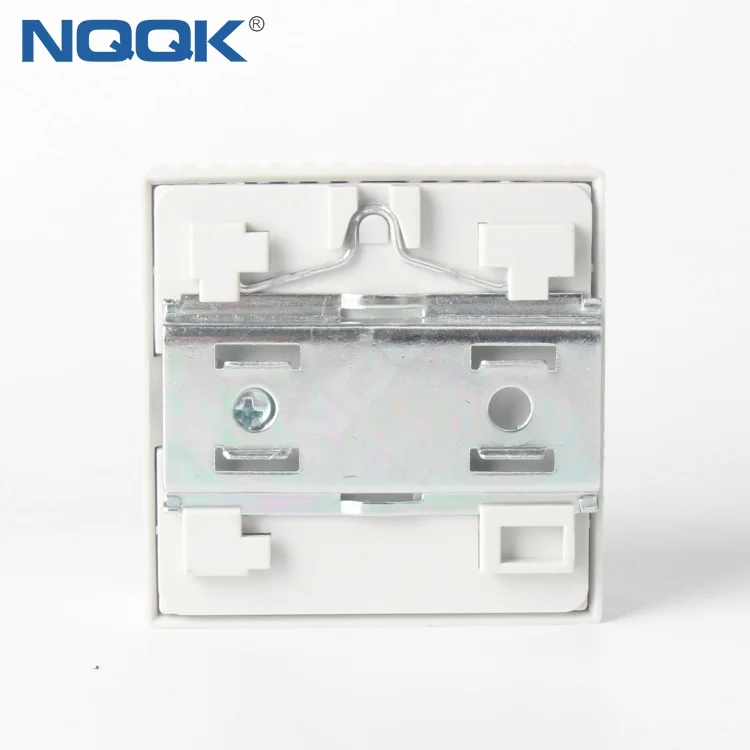

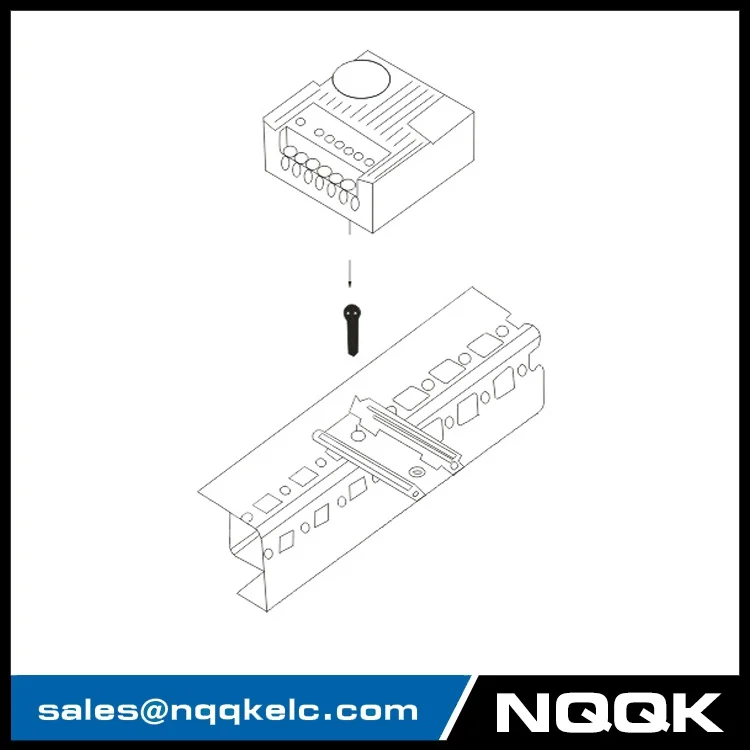

Easy installation ,could be installed to 35mm din rail vertically or horizontally.according
to EN50022,it could be clipped to NS/35-ES cabinet profile with its accessory adapter.
| Model | Adjusting range | Weight | Size |
| SK3110 | +5°C to +60°C | 105 gappr | 70*70*33.5mm |
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
