AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router
AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router

AC1200 4ge 1pots 2.4g 5g dual band FTTH ont gpon onu fiber router

Share on (1601207195570):


Price:$21.00 - $23.00

Quantity:


Product Overview

Description



Products Description



FD614GD-R460 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16 series GPON OLT or FD11 / 12 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI and VOIP services based on GPON and EPON technology.

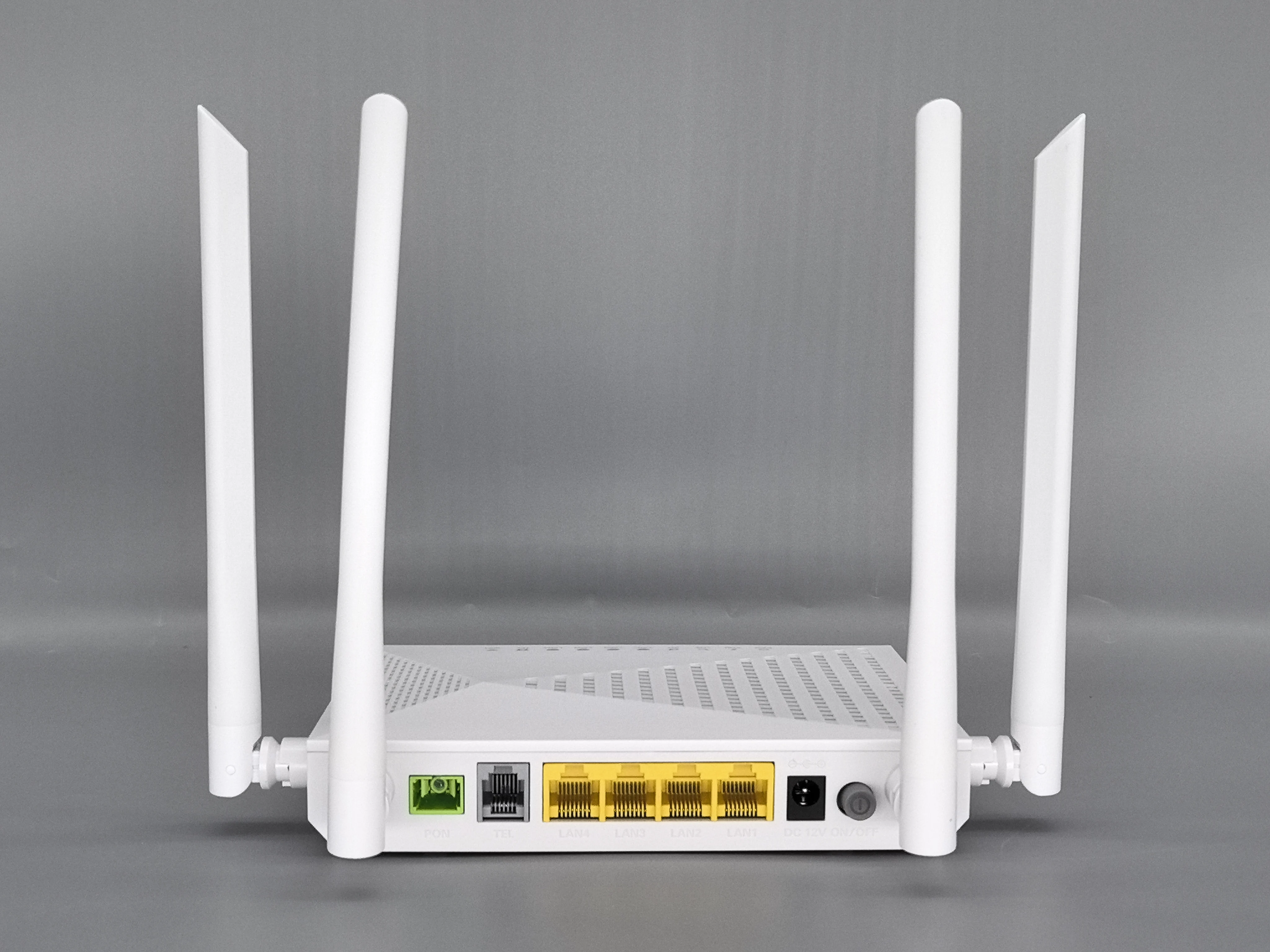

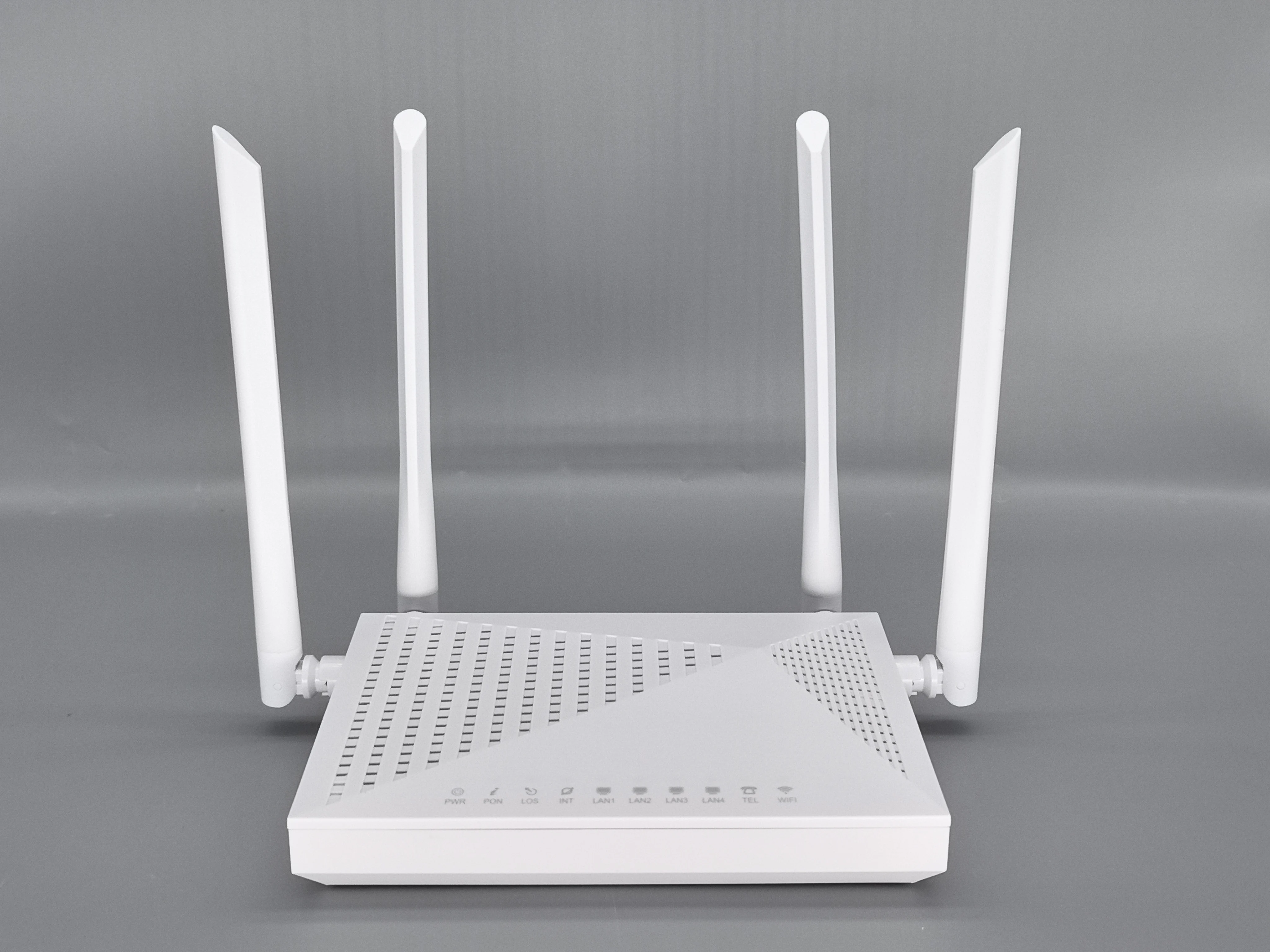

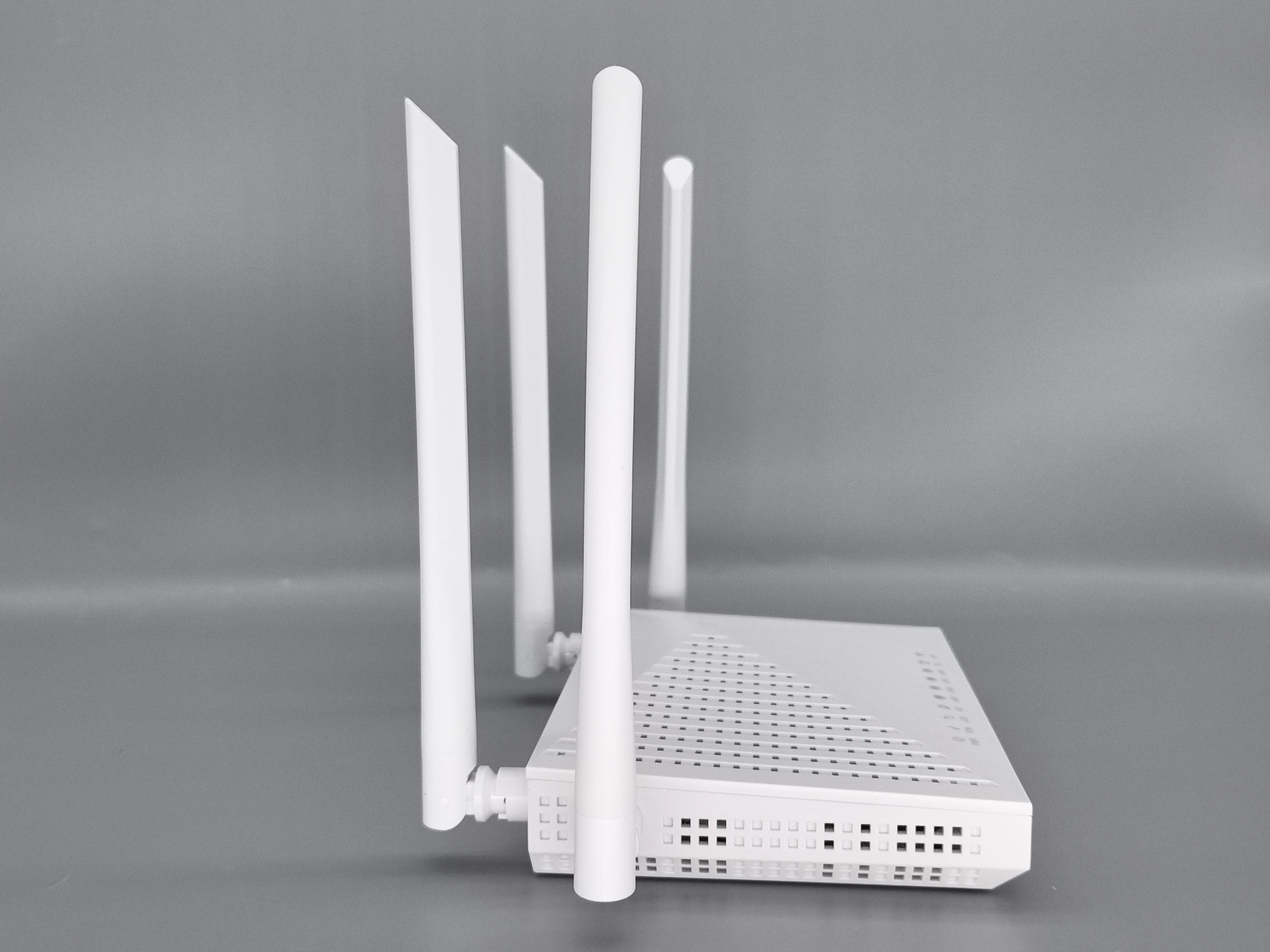

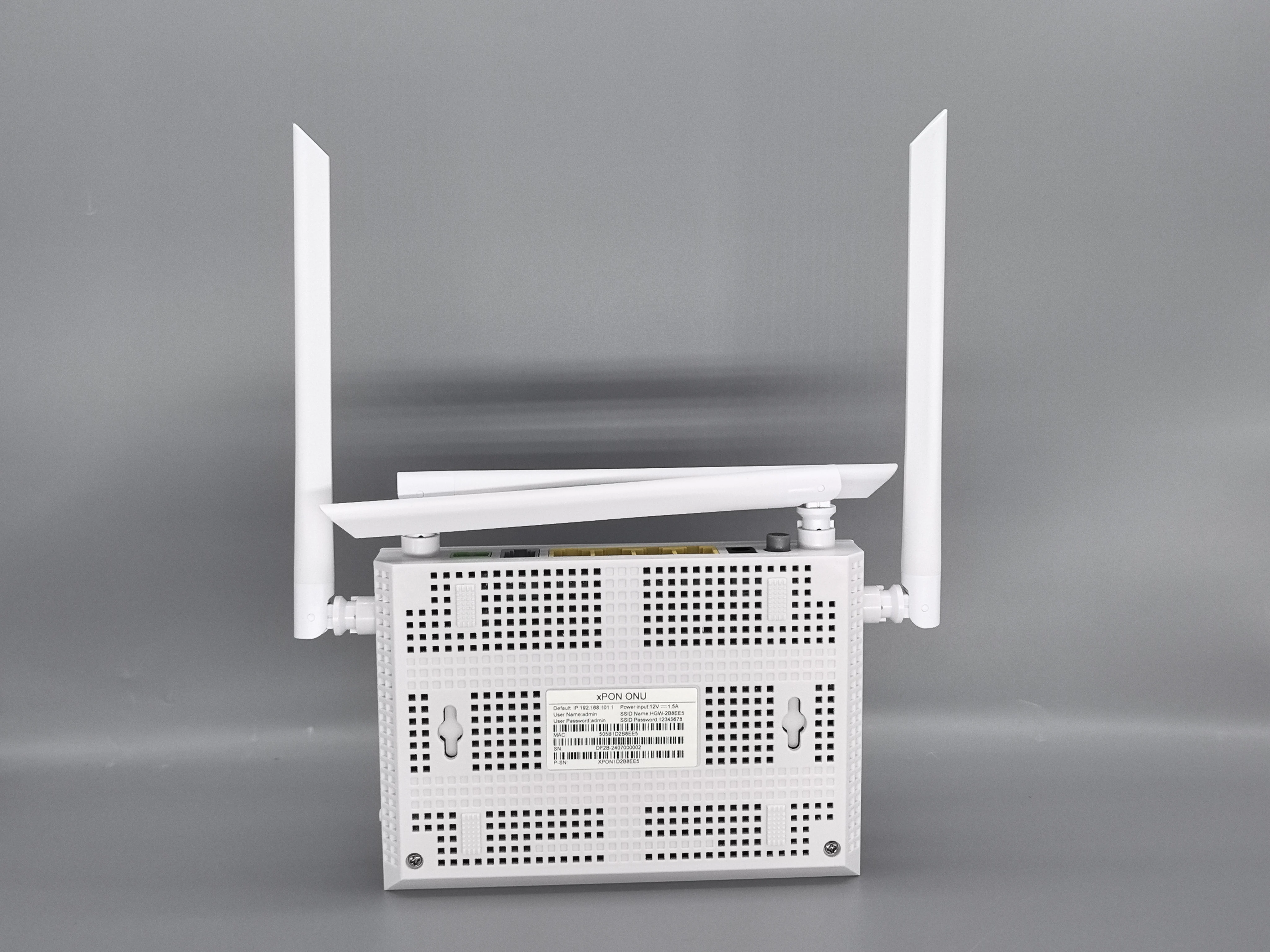

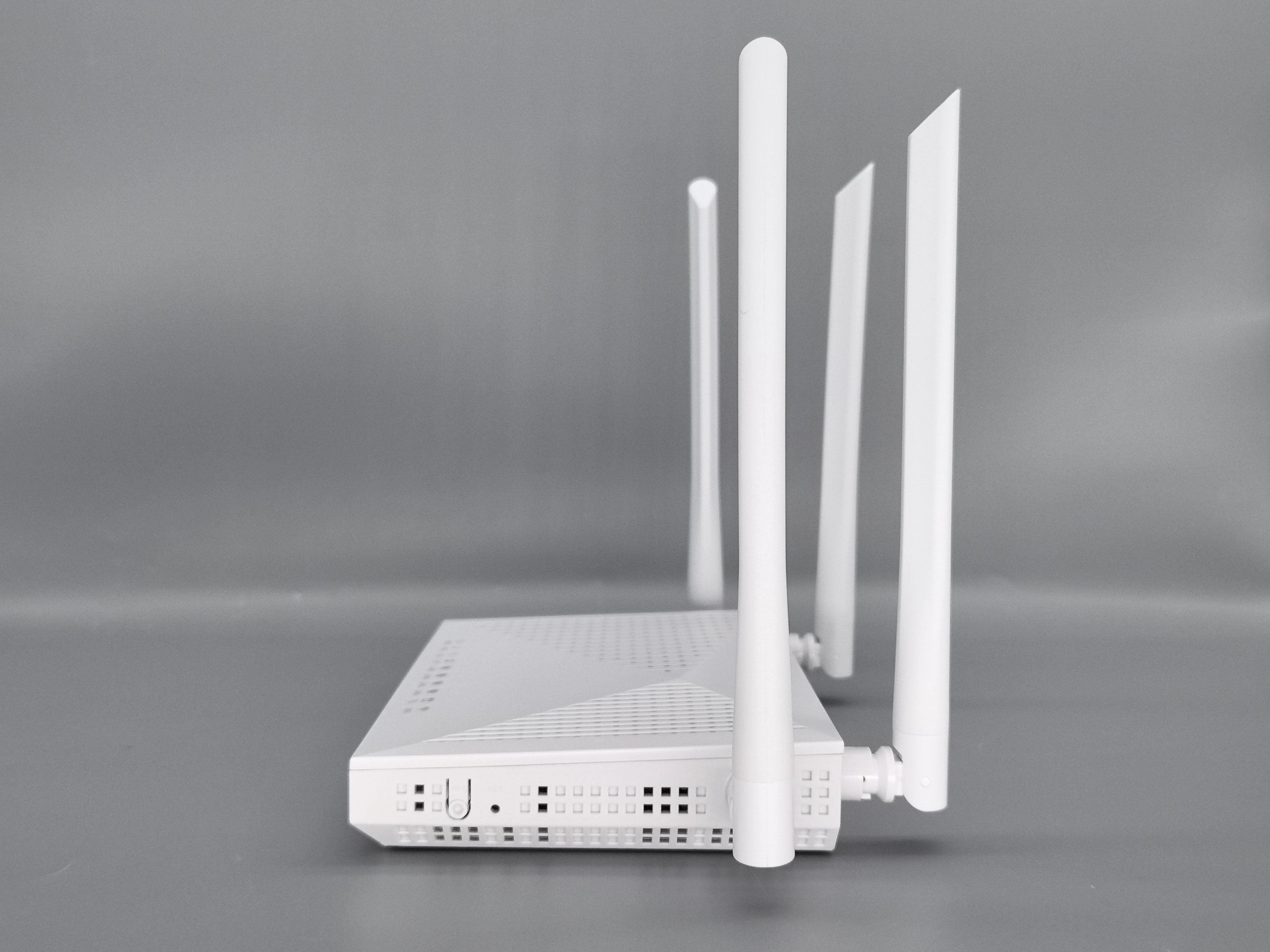

Details Images




Specification


Hardware


User Port (LAN)
RJ-45 connector
4 *10/ 100/ 1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/ MDI-X
Indicators
PWR / PON / LOS / LAN / INT / TEL / WIFI





PON Port
PON Mode
EPON：1000BASE-PX20+ symmetric
GPON：FSAN G.984.2 standard,Class B+
PON Rate
EPON：1.25Gbps downstream/upstream
GPON：2.488Gbps/1.244Gbps downstream/upstream
Wavelength
Transmit: 1310nm
Receiver: 1490nm
Receiving sensitivity
EPON：-27dBm GPON：-28dBm
Saturated power
EPON：-3dBm GPON：-8dBm
Transmitting power
EPON:0～4dBm GPON：0.5～5dBm
WIFI performance
IEEE802. 11b/g/n(2.4G)
IEEE802. 11a/n/ac(5G)

Max rate: 300M(2.4G)
Max rate: 867Mbps(5G)

MAX TX power 2.4G:17dBm MAX TX power 5G:17dBm


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Environment
Working temperature
0 to 40ºC
Operating humidity
10% ~ 90% (Non-condensing)


Power
External 12VDC/ 1.5A power supply adapter
Power consumption
≤9.7W


Company Profile


Shenzhen Zexing Zhiyun Technology Co., Ltd. was founded in 2018. Following the rapid expansion of the world's Internet industry, the company is committed to building a reliable and good network for the world, and continues to grow and grow into a leading network equipment provider in China. Technological innovation is the soul of Zexing Zhiyun. The company has a R&D team of nearly 100 people, and has established dual R&D bases in Shenzhen and Chengdu, with a production center of more than 500 people.
The company's products cover: home wireless, commercial wireless, switches, access terminals, PLC power grids, etc., with more than 20 product series. Their common features are: strong performance, stable signal, easy deployment, easy installation, high quality and low price. Zexing is based in China, serves the world, and extends its tentacles to every corner of the world. The company has set up branches in Beijing and Chengdu, and has set up multiple offices in various places. It has established offices in the United States, Brazil, Australia, Russia, India, Indonesia, South Africa and other countries, and established cooperative relations with many agents around the world. Tenda products are exported to more than 10 countries and regions around the world. As of the fourth quarter of 2021, the total sales volume of our products has exceeded 50 million units.




Exhibition




Certifications




Manufacturing Technique






FAQ


1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM

4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
