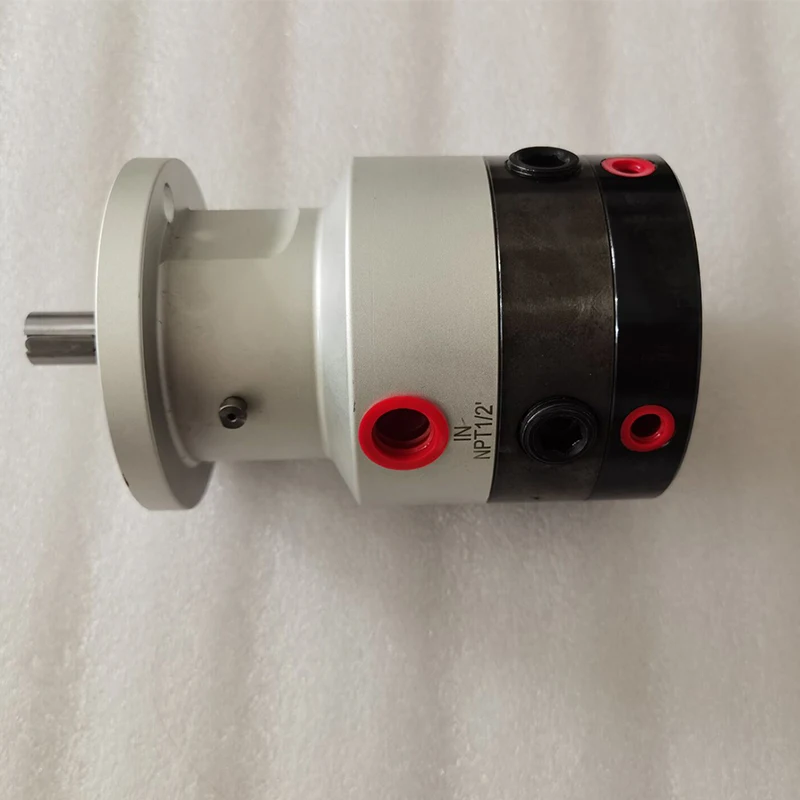

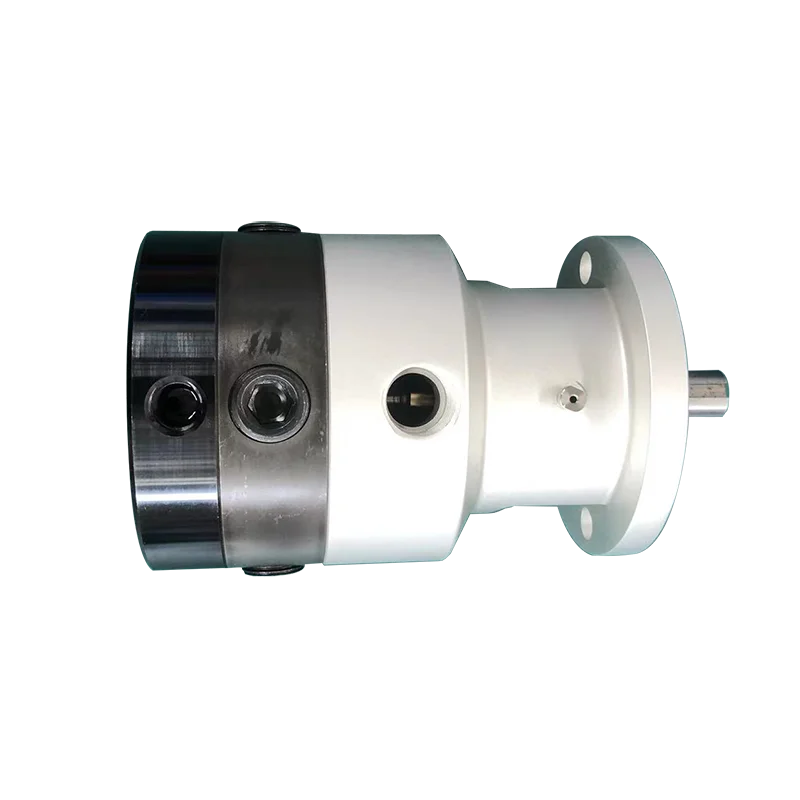

USUN Model: ELP 10501 Similar Dynex PF510 Fixed Displacement 10K Psi High Pressure Checkball Piston Oil Pump
- Category: >>>
- Supplier: DongGuan Usun Fluid Control Equipment Co Ltd
Share on (1601207208792):
Product Overview
Description
Hot seller USUN Model : ELP10501 Stainless steel 10000Psi
High pressure checkball piston Electrical pump for wellhead control panels
Product Description
Product features
Choice of 0.64l/min, 0.79L/min
High-strength alloy steel pump body, and stainless steel shell optional. Standard Buna N seals for -29~120°C service, other seals available
Output pressures up to 15000 psi (1034 bar). Large Flow, and very low noise.
Pump can rotate clockwise and counterclockwise
Product description:
The checkball Piston pump is a plunger pump, it needs to be driven by a motor and recommend using electric motor.
These pumps can be used on wellhead control panel systems, Power packs on high-
torque service tools. The pump application medium is
hydraulic oil and it needs to be installed at a lower position than the tank. Before starting the pump, you must vent the
air in the pump chamber.
Fixed displacement checkball pumps, with bidirectional shaft rotation, provide constant direction of output flow regardless of the directi
on of drive shaft rotatio.
Operating Adavantages :
Inlet and outlet check valves in each piston pumping chamber give checkball design pumps unique advantages.
The positive seating action provides greater volumetric efficiency, especially at higher pressures.
The check valves take the place of a valveplate used in other pump designs. With no metal-to-metal rotating surface,
checkball pumps are resistant to wearing and scoring, providing longer life with lower lubricity and contaminated fluids.

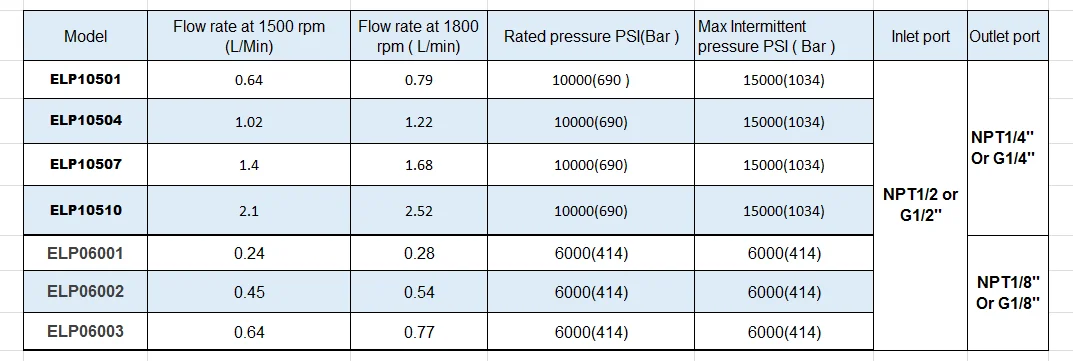

Model selection with technical specifications:

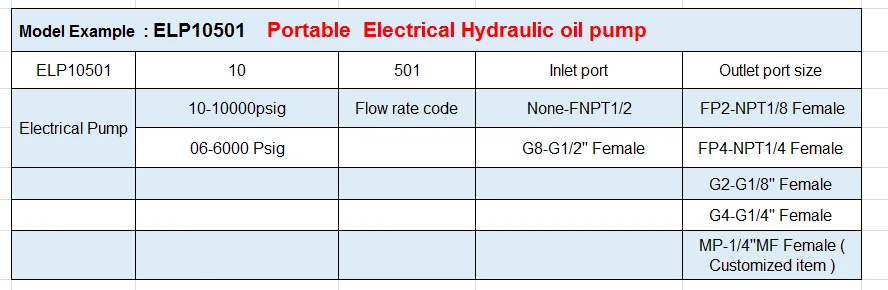

Ordering code information:
1)Ordering these pumps requires a complete model code specifying seal and port options .
2)Output flows are based on typical performance using 100 SUS (20 cSt) hydraulic oil at rated pressure with pressurized inlet where required
3)MF means 20000psi female medium pressure connection,
Ordering codes listed are standard.Other materials and types are available upon request. For Special Requirements ,please contact us

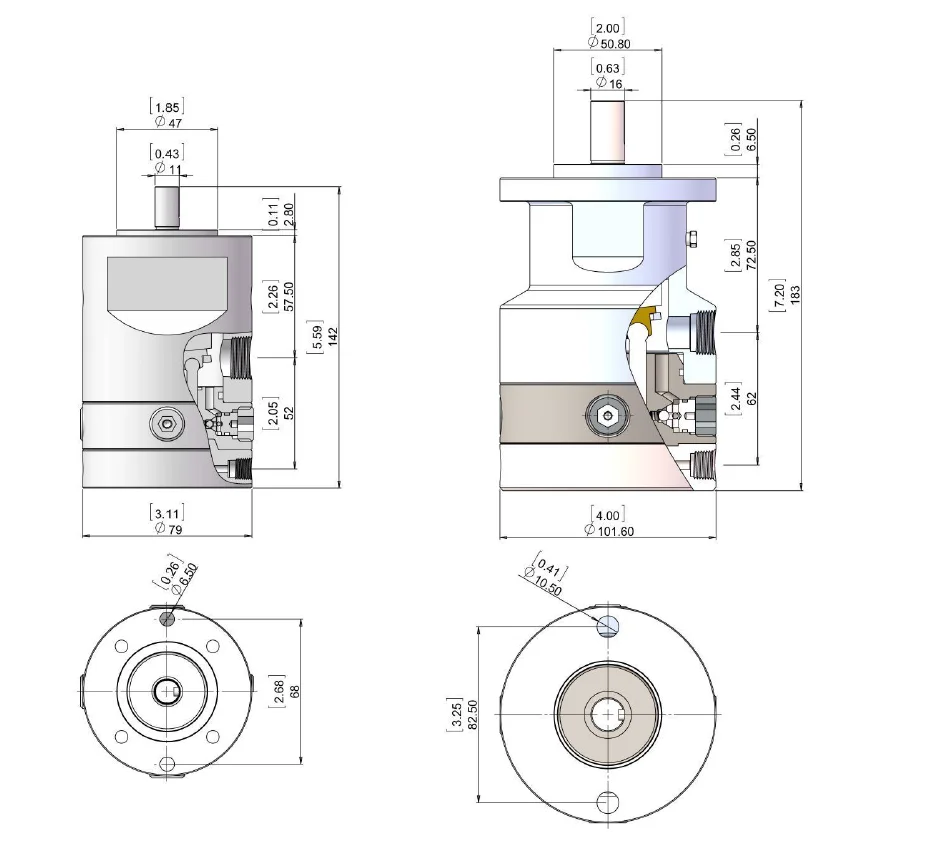

Technical drawing

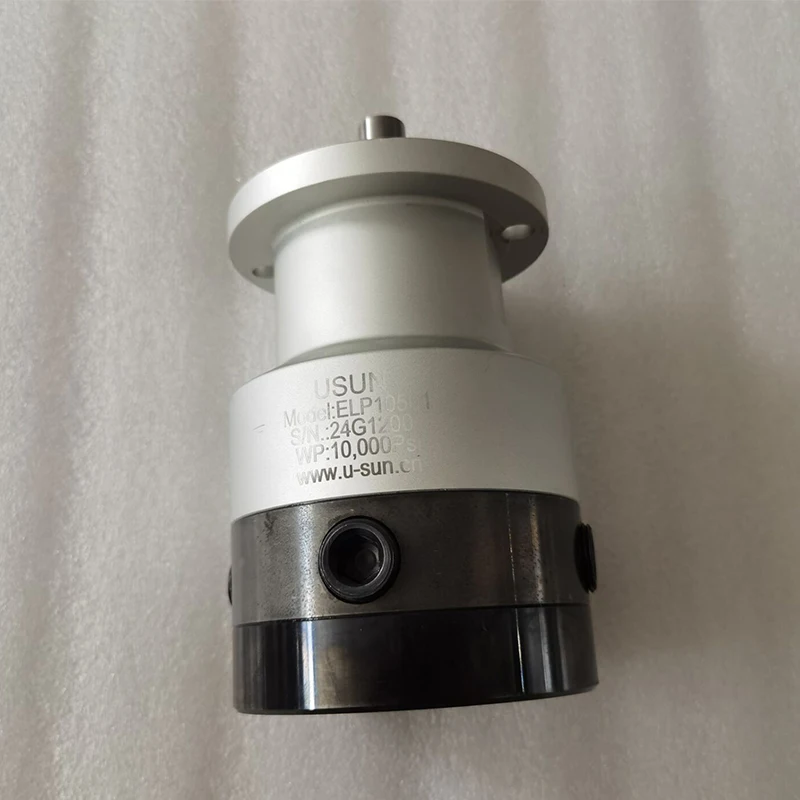

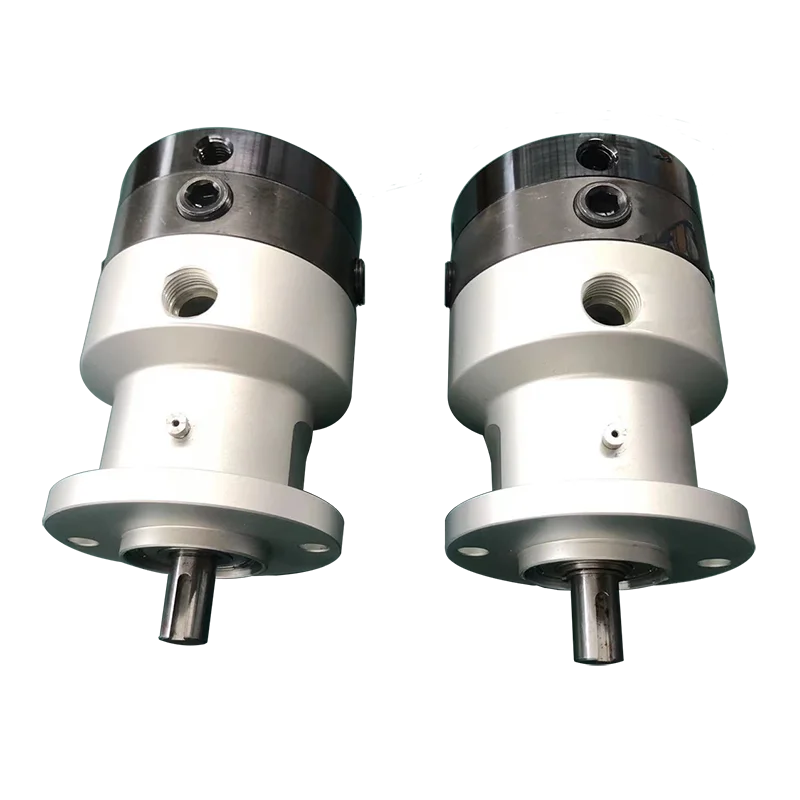

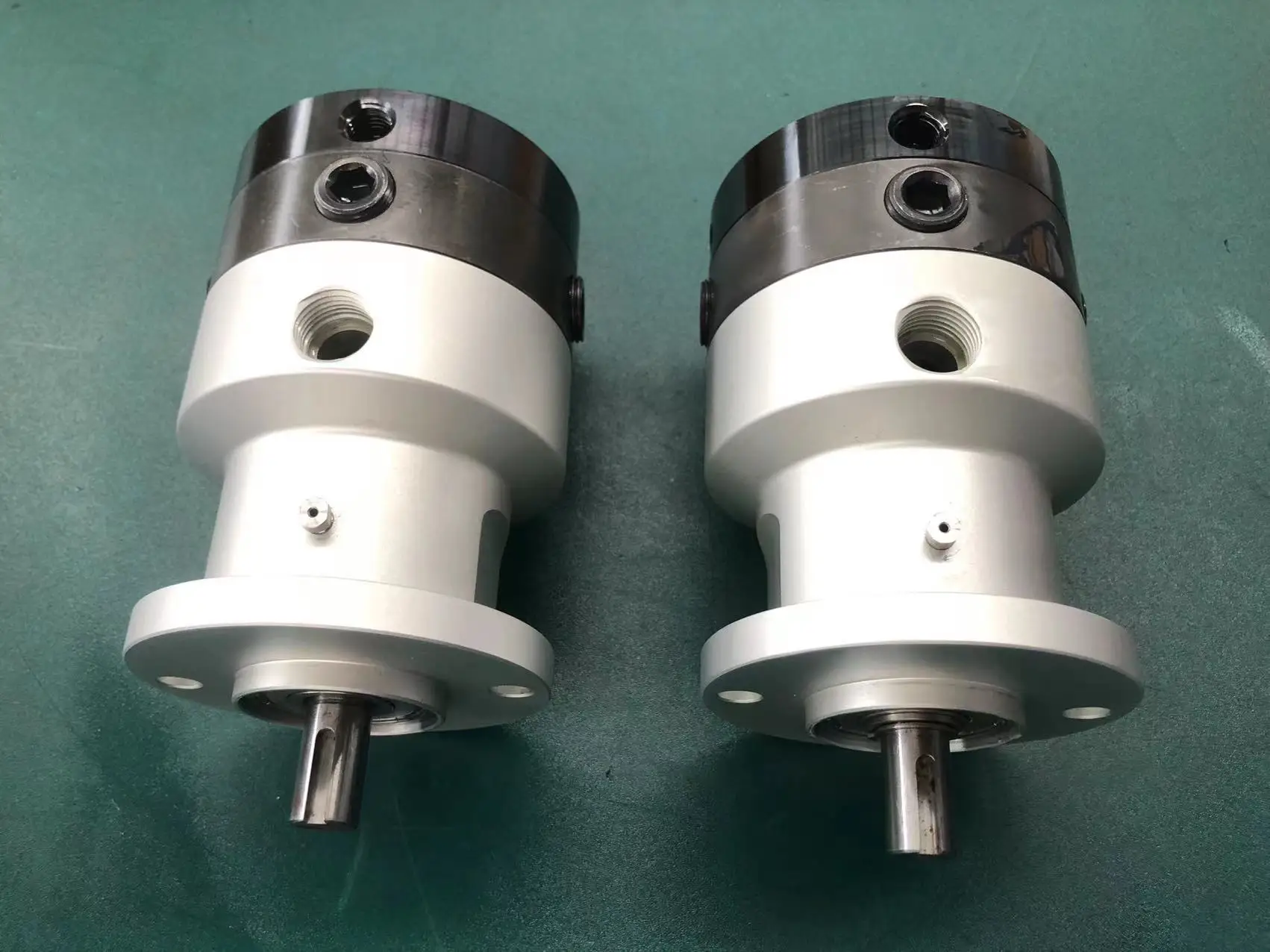

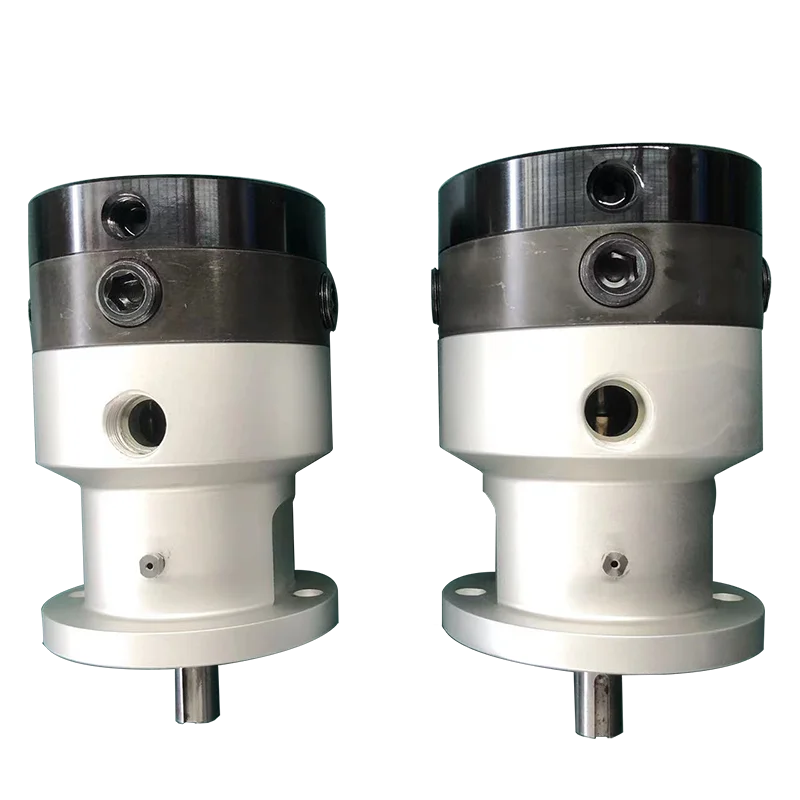

Real pictures of checkball hydraulic Oil pump
