S beam load cell weight sensor force transducer for in line applications materials test machines hoppertank weighing systems

Product Overview

Description

Model	YGX-I
Type	S type compression tension force sensor
Material	Alloy steel
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,China
Payment	T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



5kg 10kg 20kg 50kg100kg 200kg 500kg 1ton 2ton 3 ton 5 ton S beam load cell weight sensor force transducer for in-line applications materials test machines hoppertank weighing systems



Features & Applications:

Using S type beam structure, pull, pressure can be used. High measuring accuracy, good stability, good output symmetry.

It  is widely used in belt scale, hopper scale, electro-mechanic scale, universal material testing machine, hook scales and various engineering devices etc. force measuring system



Capacity:    5~5000KG



Specification

Rated Output	2.0  ± 0.05%  mV / V
Non-linearity	0.03% F.S.
Hysteresis	0.03 % F.S.
Creep(30min)	0.03 % F.S.
Repeatability	0.03 % F.S.
Temperature Effect On Output	± 1% F.S. / 10ºC
Temperature Effect On Zero	0.03 % F.S. / 10ºC
Input Impedance	350 ± 20Ω
Output impedance	350 ±  5Ω
Insulation	≥ 5000MΩ/50VDC
Recommended Excitation	10~15V
Operation Temperature Range	- 20 ~ 80 ºC
Safe Overload	150 % F.S.
Ultimate Overload	200 % F.S.
Cable Color Code	Input: Red(+) Black(-);    Output: Green(+) White(-);
Protection Class	IP65

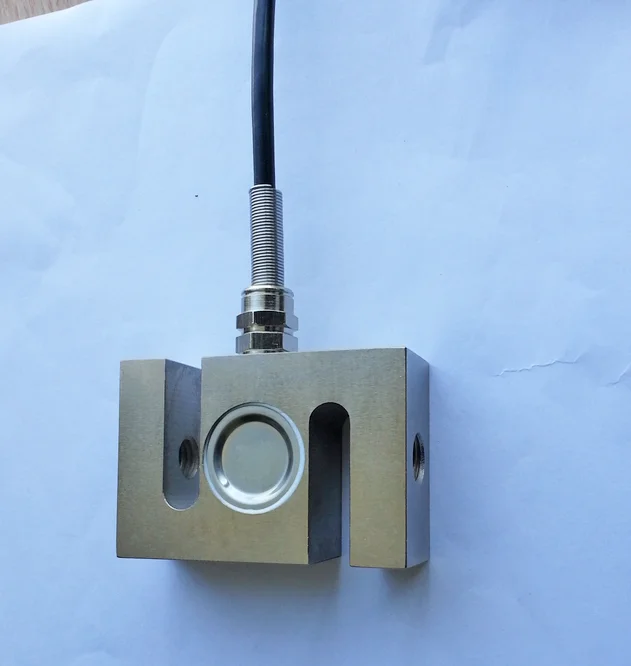

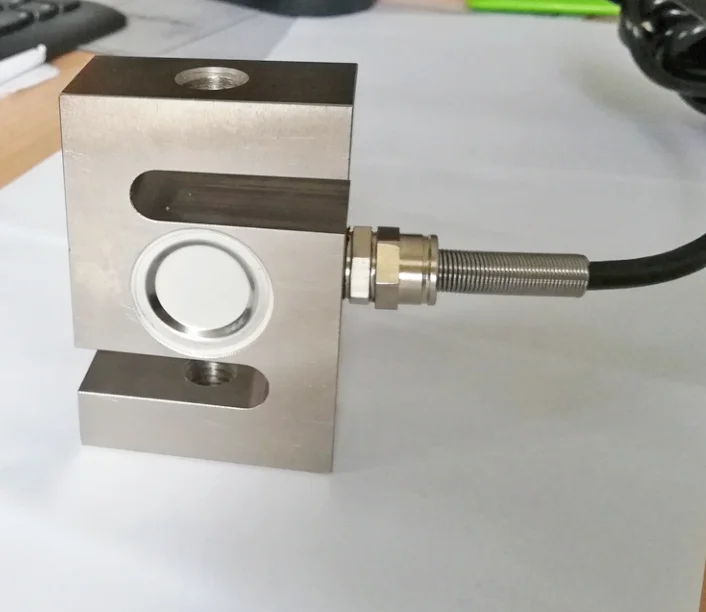

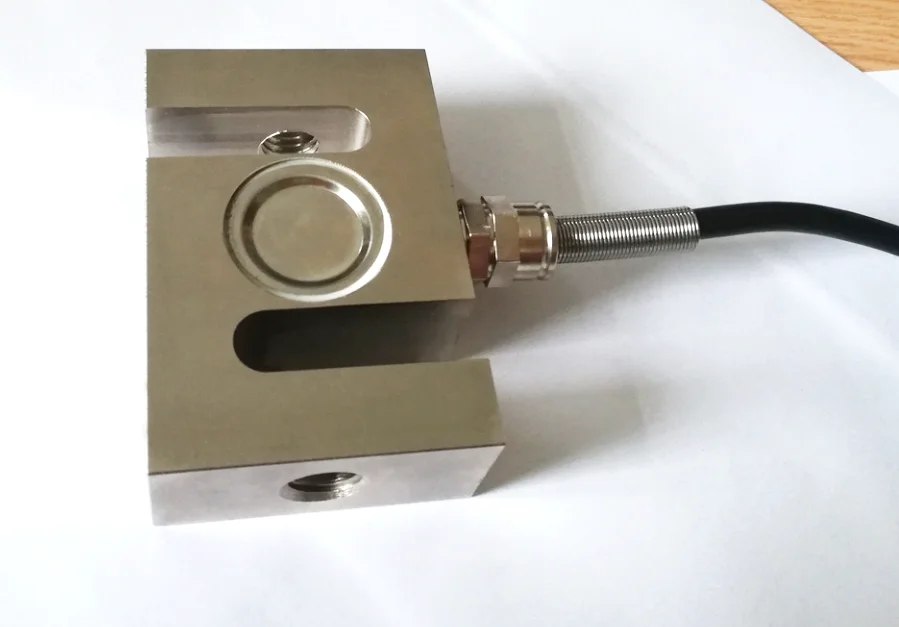

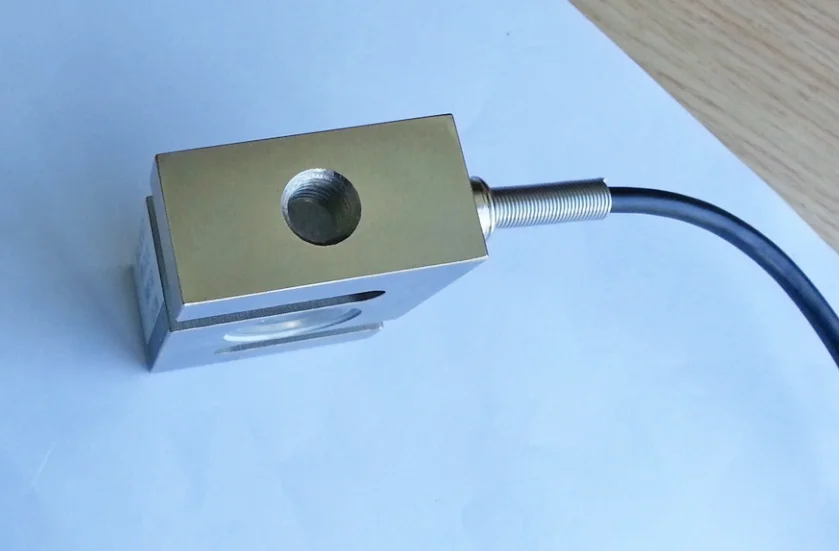

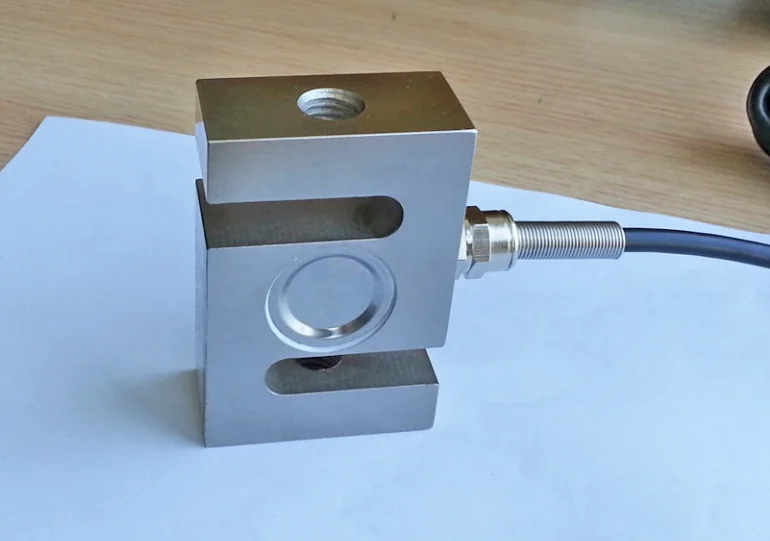

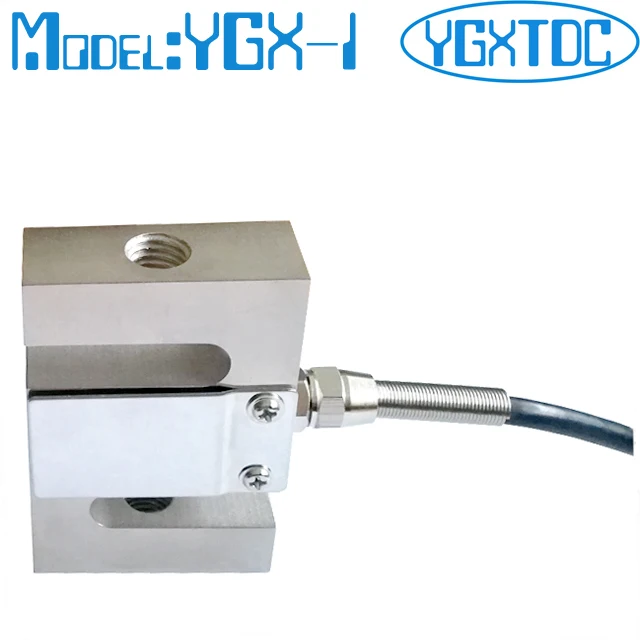

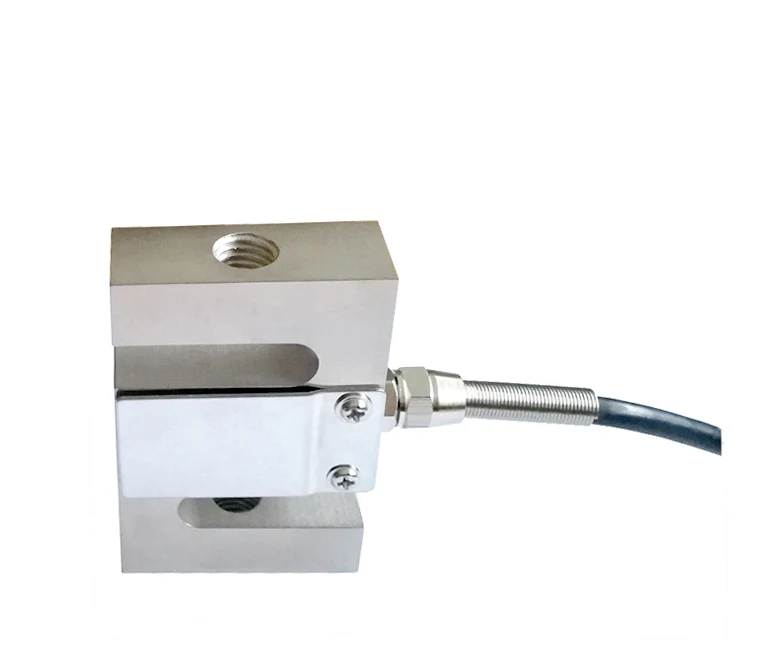

YGX-I    Product picture

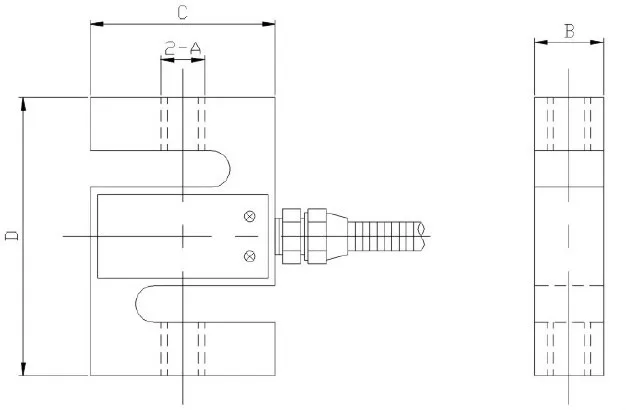

Dimensions:





Size(mm) Capacity	A	B	C	D
5-50kg	M8×1.25	12.7	50.8	63.5
100-300kg	M12×1.75	19	50.8	76.2
500kg-1t	M12×1.75	25.4	50.8	76.2
2-5t	M18×1.5	25.4	76.2	108







Custom made is available.

We can produce the products according your requirements.













































FAQ:



1. What is the MOQ?

 If we don’t have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.



2. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don’t have it in stock, the lead time will be 10-30 days.



3. What is the payment terms?

T/T, Western Union, L/C, Alipay  is acceptable.

Alipay  is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods.

If we don’t make the shipment, you still can take back your money.



4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

 We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.



5. What is the quality guarantee?

Quality guarantee:  12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.



6. Is there any after-sale service?

 After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone and QQ etc.
