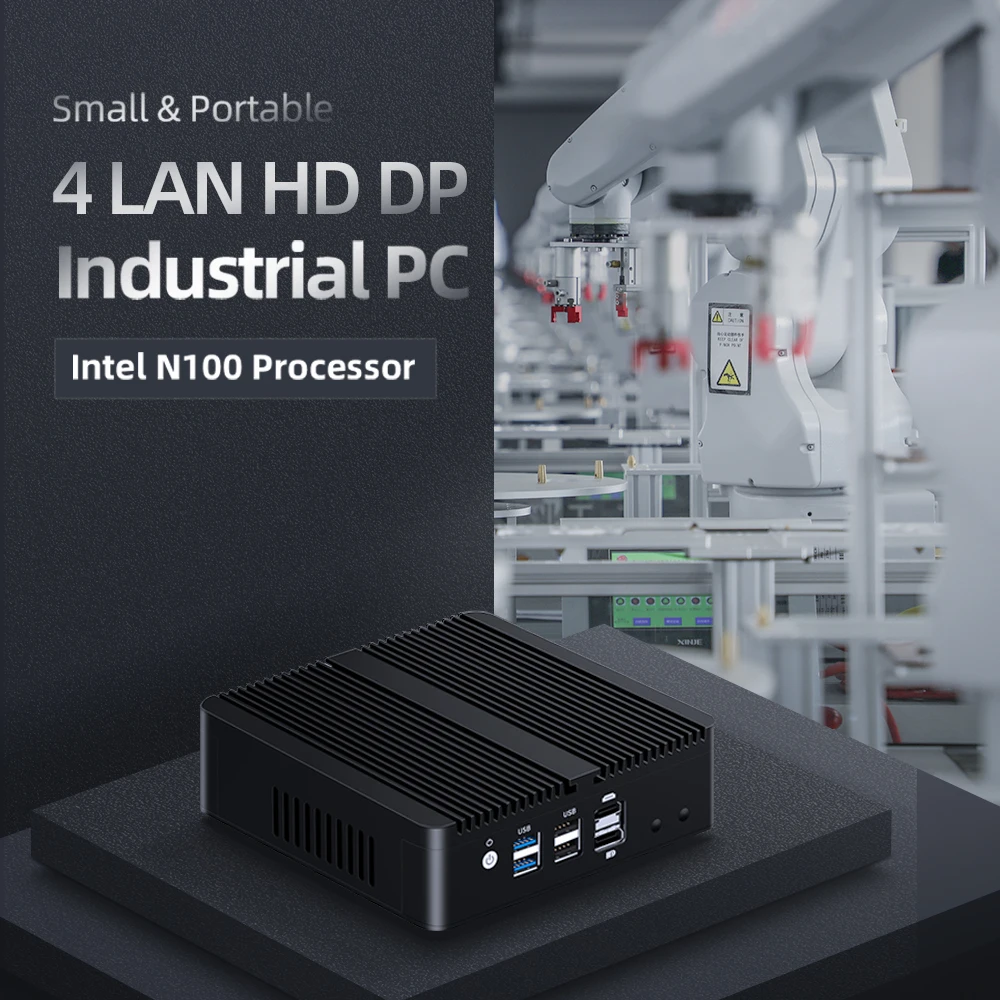

12V Mini PC Intel N100 DDR5 RAM 2.5G RJ45 I225V NIC Ethernet Network Server Computer Fanless Firewall Pfsense Soft Router
- Category: >>>
- Supplier: Shenzhen Innovative Cloud Computer Co. Ltd.
Share on (1601207298013):
Product Overview
Description
Related Products
Product Description
Processor | Intel N100 (4 core4 threads,6M Cache,up to3.40GHz, TDP: 6W) |
Graphics Card | Intel UHD Graphics |
Memory(RAM) | 1x DDR5 SODIMM，Max Up to 16GB |
Hard Disk(SSD) | 128GB/256GB/512GB/1TB/2TB 1x M.2 NVME SSD support 1* M.2 NVME SSD + 1*2.5" inch SATA 3.0 |
Support OS | Win11/Win10, Linux, Ubuntu, Pfsense, OPNsense, etc. |

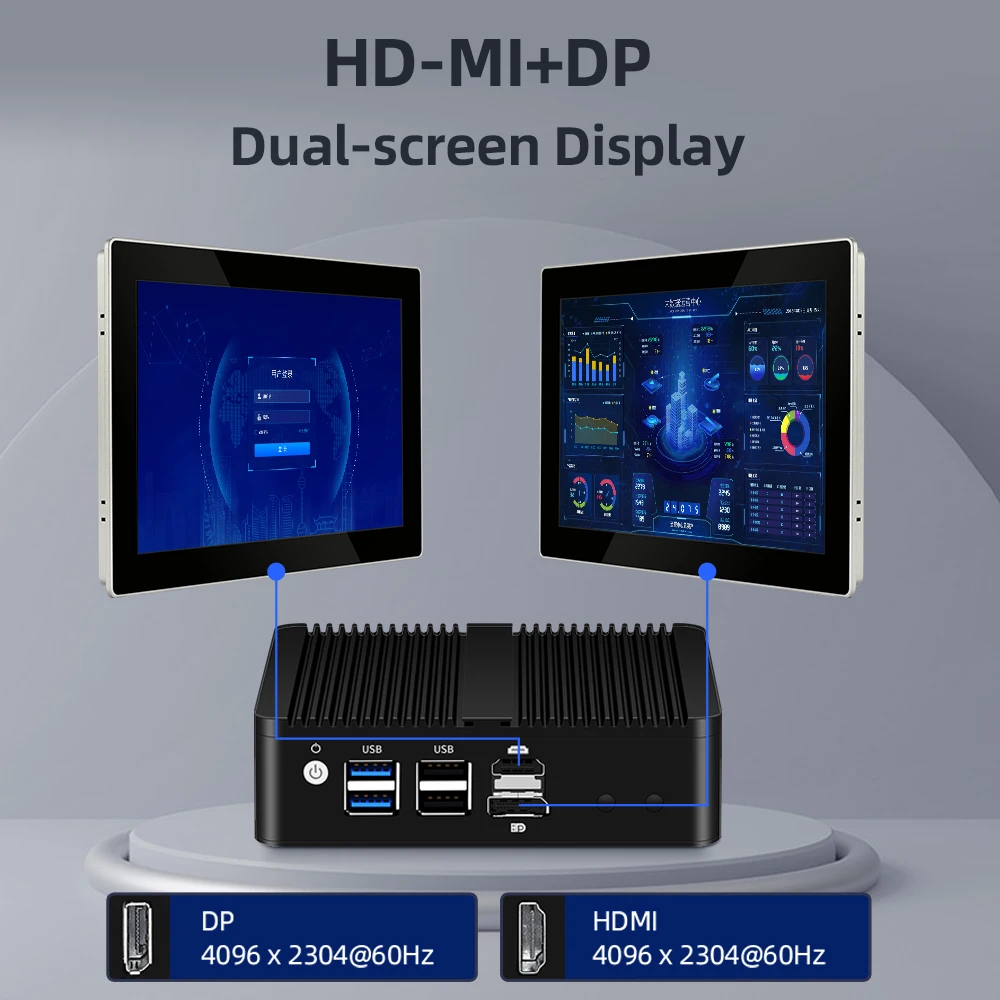

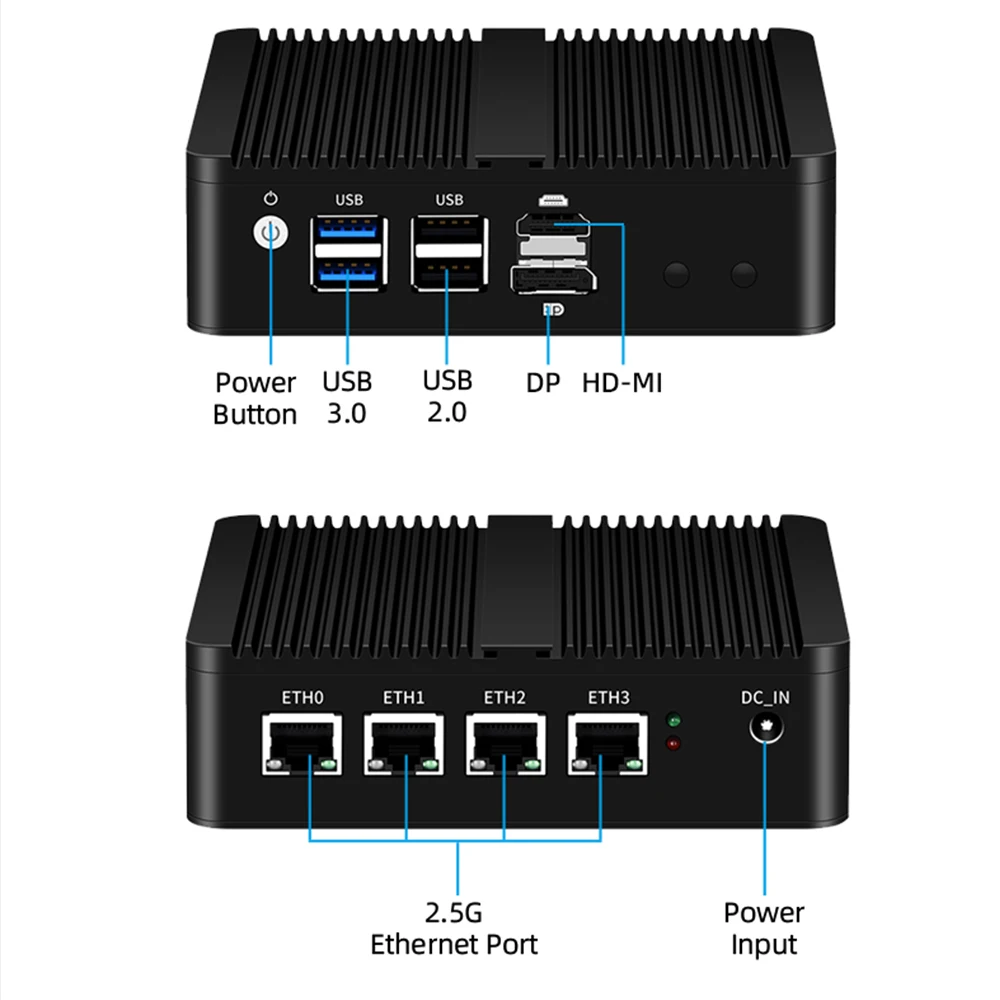

Front-Panel Connectors | Power on/off, 2 x USB 3.0, 2* USB 2.0, 1 x H-DMI 2.0, 1x DP 1.4 |
Rear-Panel Connectors | 4 × LAN (RJ45 Ports 2.5GbE Adaptive), 1x DC-IN 12V |

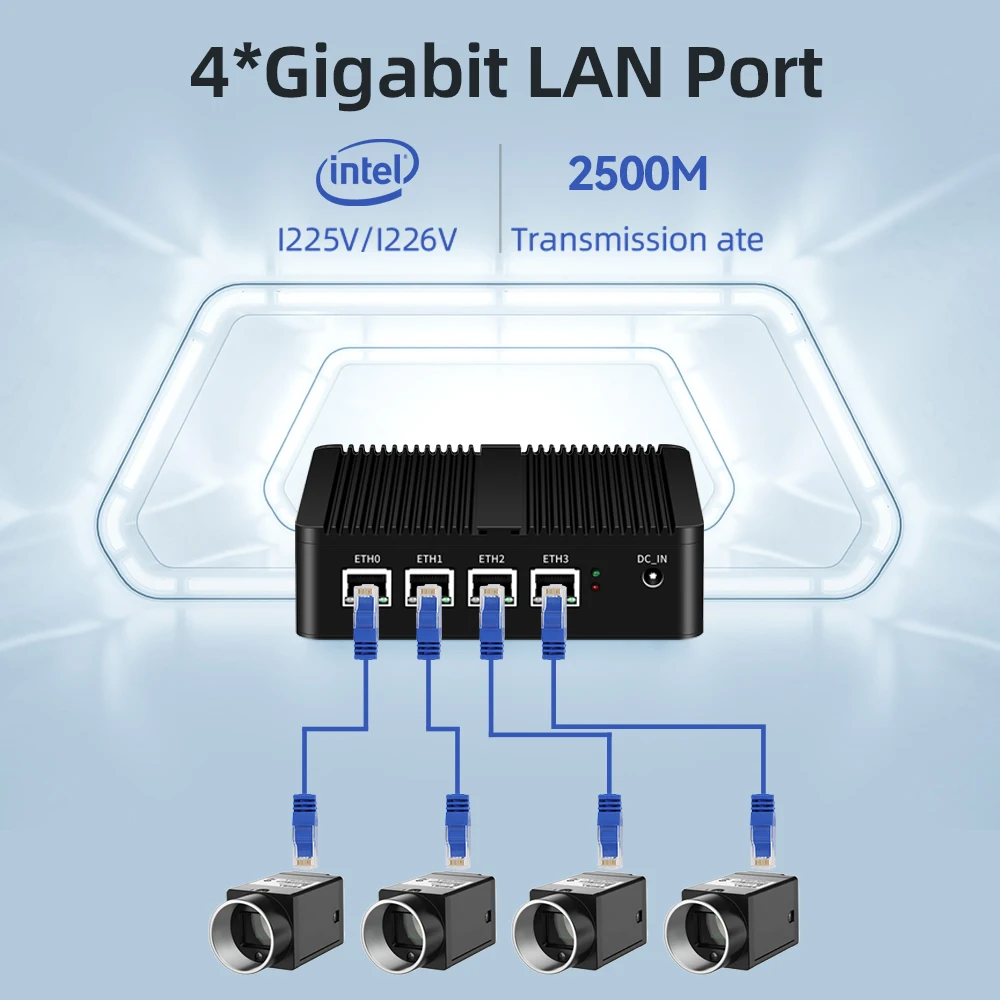

Ethernet port | 4x RJ45 2.5GbE Intel i225-V Gigabits Ethernet |
Extention | 1* mini-PCIE, support 3G/4G/WiFi; 1* USB 2.0 |
Support Custom | Watchdog Timer, TPM 2.0 built-in, DC24V, Din-Rail, etc. |
Power | Input: AC 100-240V /50-60Hz, Output: DC 12V/5A 60W |
Features | Wake UP on LAN, PXE Boot, S5 RTC Wake Settings, Restore AC power loss(Auto Power On). |

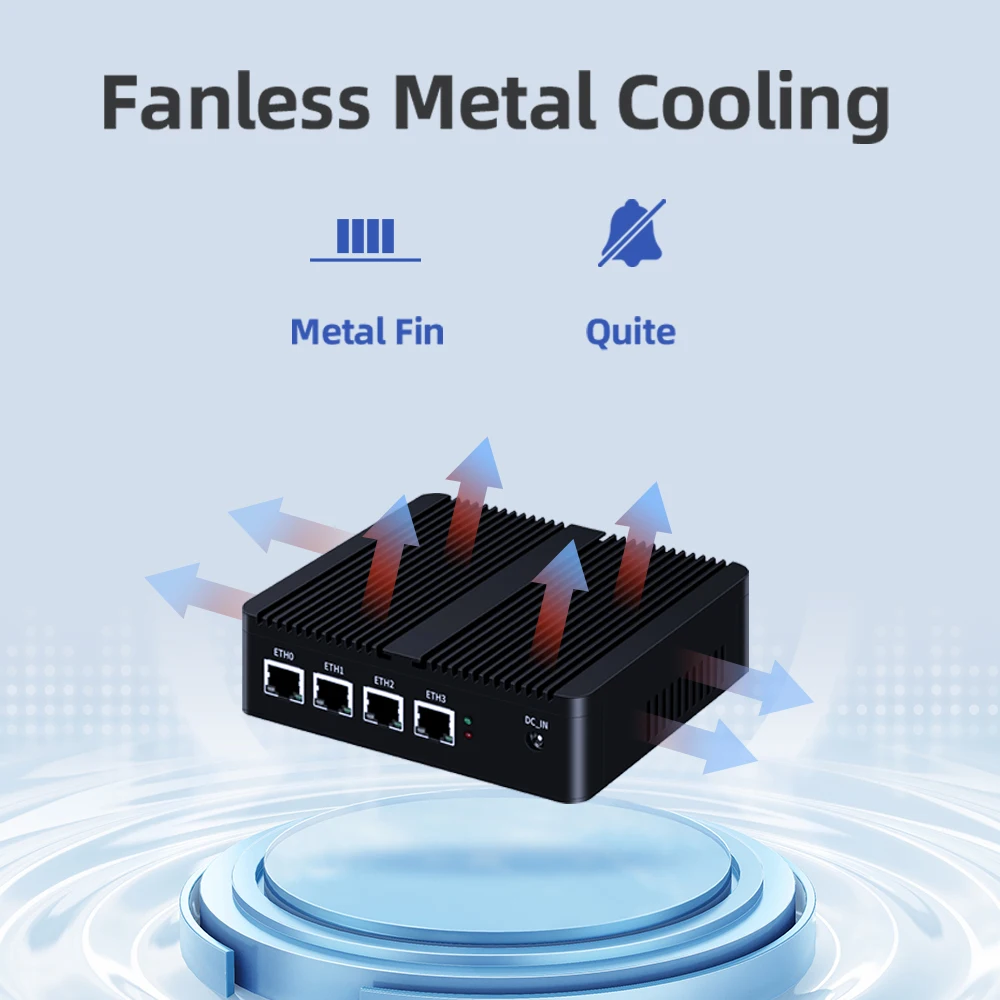

Cooling System | Fanless passive Cooling with heat sink |
Chassis Material | Aluminum Alloy |
Operating Temperature | -20-60℃ |
Storage Temperature | -20℃~ 70℃(15- 35℃ recommended) |
Relative Humidity | 5%~95% (non-condensing) |
Dimension | 136*126*40mm |
Company Introduction
Shenzhen Innovative Cloud Computer Co.,Ltd ,established in 2011,is a professional manufacturer which specializes in high quality mini PC,all-in-one PC ,computer motherboards. All along constantly developing new products,so far we have owned more than 40 kinds of independent research products and many patented technology. we have our own R & D department, strong engineer team with rich experience of PCBA, ODM case involved case/ color/ LOGO etc.80% products are exported to Europe/US/south America with strict quality control system from IQC to PQC to QA.
Certifications
The technical expertise of our highly knowledgeable and dedicated staff forms the backbone of our company. From the design stage to installation to our unsurpassed warranty, XCY clients are assured of the highest level of quality and service.
XCY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling XCY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.
Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
XCY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling XCY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.
Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.

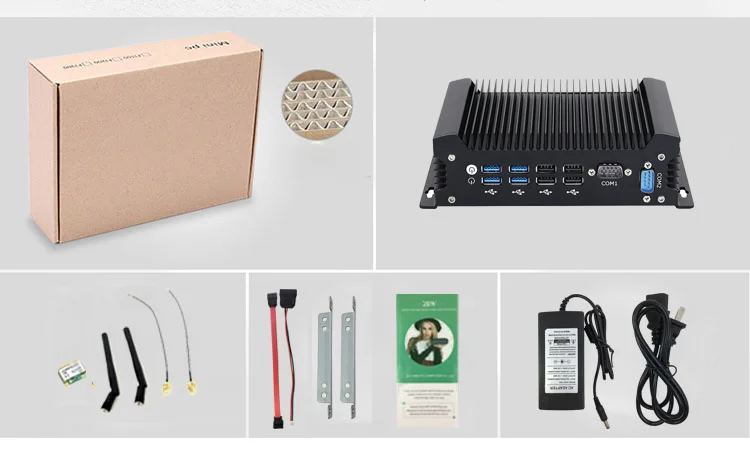

Packing&Shipping
1x Mini PC
1x 12V power Adapter with US/EU/AU/UK/Bazillian Plug
1x WiFi modlue with dual antennas(If you buy Barebone PC without RAM and SSD, there will be no WIFI)
1x User Manual
Payment & Delivery
We accept "L/C, DA, DP, T/T, Western Union, and Paypal. "But it depends on the contract and which country.
Normally, we ship packages via DHL,EMS,UPS,FEDEX. It usually takes 3-7 working days to most countries.We will choose the right logistics according to your country.
Plug Type
We Mainly provide 4 type Power adapter(No.1=UL/ No.2=EU/ No.3=UK/ No.4=AU)for you choice. If you need other type, please contact the Bingxin.
No.1 is mainly used in the USA, Canada, Mexico& Japan
No.2 used almost everywhere in Europe& Russia, except for the UK & Ireland
No.3 mainly used in the United Kingdom, Ireland, Malta, Malaysia & Singapore
No.4 mainly used in Australia, New Zealand, China & Argentina.
Our Services & Strength
Our Promise
1. Warranty: 1-year warranty.In the second and the third year, we can repair it for free, but we will charge for the parts that need to change.
2. We can sell one sample for your test.
3. We can provide OEM/ODM services.
4. We ensure great products, services and favorable prices for you. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
2. We can sell one sample for your test.
3. We can provide OEM/ODM services.
4. We ensure great products, services and favorable prices for you. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
Q. Why choose a mini PC?
A: Mini PC is small and compact, and works with lower power draw than the average desktop computer. Mini pc is definitely a good choice to be your office assistant and home entertainment device, as well as is widely used for industrial automation, educational multimedia, shopping malls, hotels, parking lots, digital signage, ATMs, vending machines, KIOSK, robots, medical care, textile yarn winding machine, etc. What is more, it can be with a high performance.
A: Our mini PC use new generation architecture Intel CPU with M.2 SSD. It takes seconds to open office software, design
software, net surfing, audio and video entertainment, run smoothly small and medium computer games.
Q: What about its performance? Can I play games on this computer?
A: The CPU is from the latest 9th Gen Intel technology with low power draw, but its performance is quite good. It' s widely used in home, business & office, education & student, industrial automation, and so on. It works perfectly in WIN10,WIN11, bule-ray, 3D H-D videos, and it also support some 3D games.
Q: Is it too hot when it works? Can it work for 7*24hrs, zero noise attracts me,but I am worried about this.
A: The CPU is Intel latest lower saved CPU, rated power of CPU is only 6W~5W, the working temperature is only about 60℃ in agingtesting.As you may know, the laptop CPU temperature is about 78℃ or more. Each computer will have a 3*24hrs testing before factory. If you need the PC without noise, fanless PC is your best choice.
Q: Why do I feel the casing so hot when it' s working?
A: The computer' heat dissipation is relying on the internal heat sink and external chassis. The CPU almost touches the back chassis to expand the heats,its temperature is almost the same as that of CPU. The metal chassis is for heat expanding more easily,this is one of the reasons to use metal materials ; 2nd, there is thermal paste with silver material imported from Japan in the CPU plug of motherboard; 3rd, there is free bracket mount attached to computer, you can make it stand in the bracket mount for cooling. Fins on top and the full metal body of the computer permit fast heat dissipation to keep the inside components cool. So it is normal that if the chassis touches very hot.
Q: How long can this mini computer used?
A: XCY mini PC comes with full -newly low-power hardware compared to traditional computer. And a mini PC itself works with more energy saving and environmental protection, less radiation, so XCY mini PC can be used 5~ 10years or more.
Q: What about the warranty?
A: Products can be replaced free within one(1) year after sale if they cannot be used due to quality problems, in the precondition of non-artificial damage. The warranty period is 1 year. Within the Warranty period, in the precondition of non-artificial damage, if any product is broken or damaged, we will offer the repair service for free or replacement for free. Even out of the warranty period, we still can provide free technical support and maintenance for a long time, but the replacement will charge a certain fee. The supplier shall not accept claims related to negligent or improper installation or use.
