Digital AC Voltmeter Ammeter AC 80 300V 100A Amp Volt Panel Meter Voltage Current Amp Monitor 110V 220V LCD Dual Display

Features:

AC80-300V 110V 220V 100A Volt Ampere Power Monitor, Dual display - measuring AC voltage and AC current in the same time

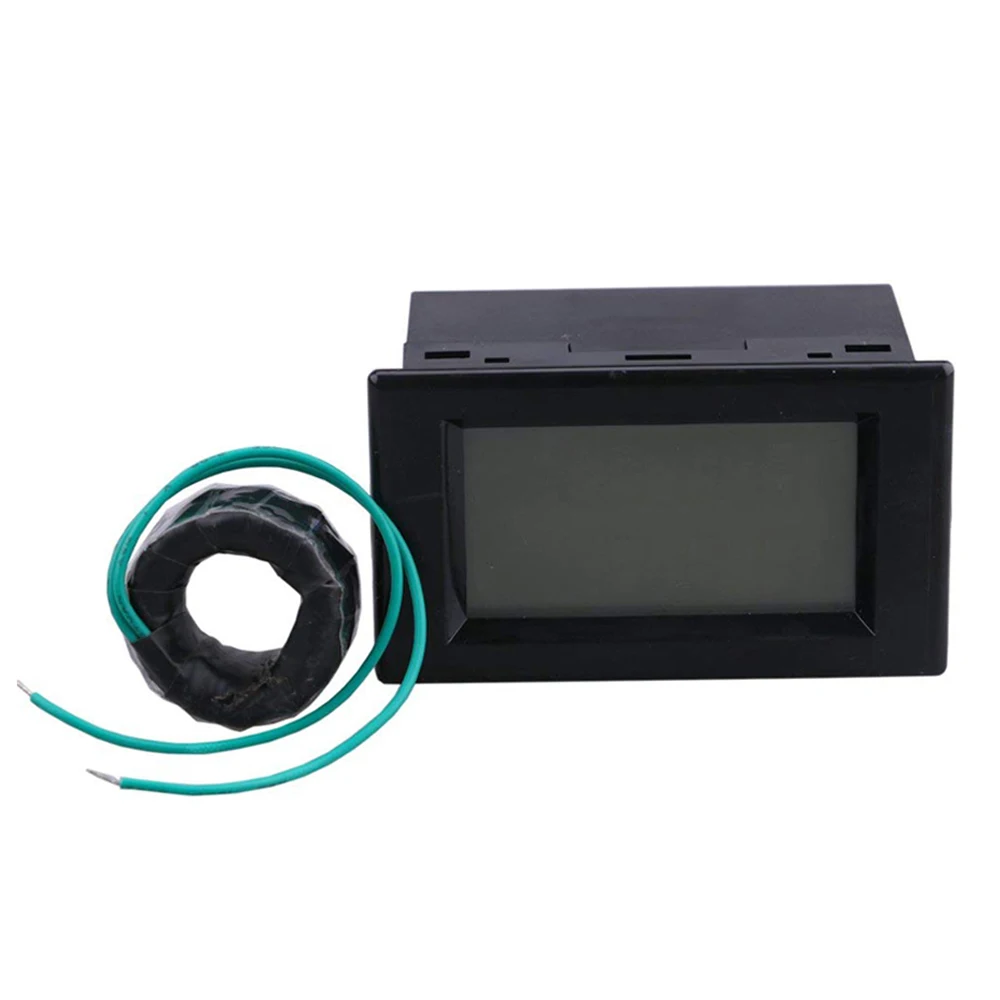

Package includes AC Sensor Transformer which is separated with the multimeter, so its wires can be lengthened to the ideal location

Application for the multimeter: used with power distribution box, distribution cabinet, voltage regulators and etc

With Blue backlight on the LCD display which can easily helps you to get a clear vision of the reading even at dim atmosphere

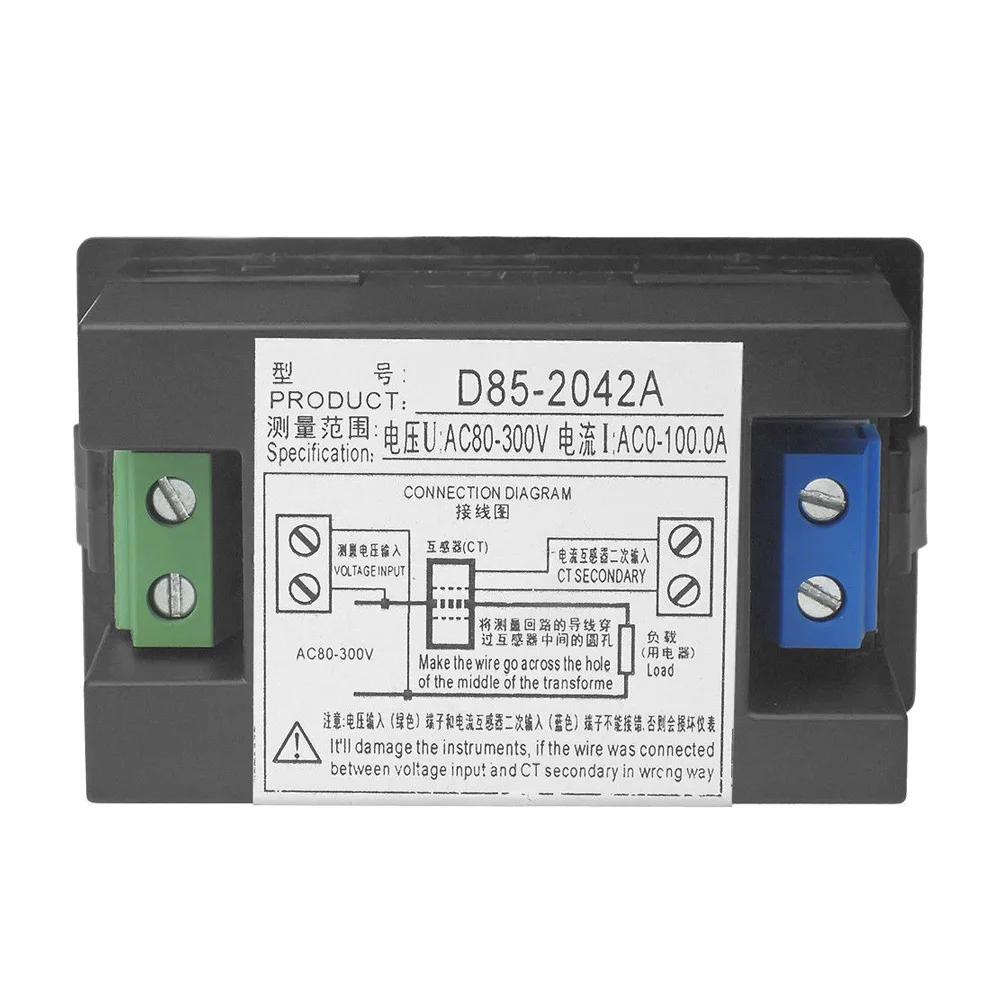

Wiring order: First connect the circuit of the current loop and power up with 220V at last. After powering up, do not touch any components at the meter's back

Main Technical Indicators

1. Measurement accuracy: 1%

2. Measuring range: AC voltage: AC80-300V, AC current: 0.1-100A

3. Power consumption: 0.2VA

4. Measuring speed: about 2 times per second

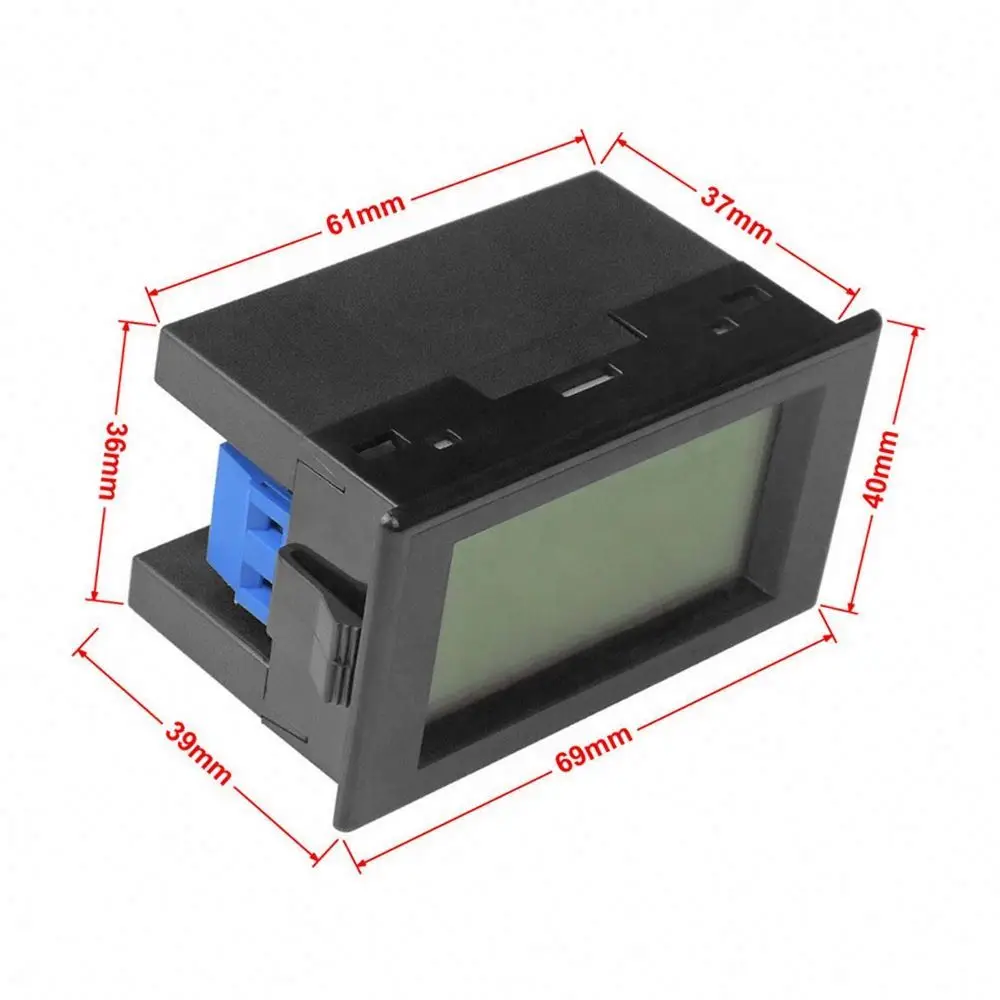

5. Overall dimensions: 70 * 40 * 39mm

6. Installation size: 68 * 38mm (embedded installation)

7. The instrument is only suitable for pure AC 50-60HZ of the mains power, can not be used for square wave, inverter output and the measurement on sine wave circuit of modifying sine wave. Otherwise the instrument will be permanently damaged!

8. Model Description: D85-2042A type: This meter has a protective cover (use more secure); The transformer is also separated from the meter, the transformer can be mounted according to the actual location of equipment. (it means that the wires can be arbitrarily lengthened to the ideal location where the equipment is installed)

Package included:

1x Digital AC Volt Amp Meter

1x Sensor Transformer

Option Models:

For this meter there are some Option Models, you can choose and contact our sales manager.

Measurement range as following:

(Model 1)Black with back cover AC 80-300V 100A, (CT divided)

(Model 2)Black with back cover AC 80-300V 200A, (CT divided)

(Model 3)Black with back cover AC 200-450V 100A, (CT divided)

(Model 4)Black with back cover AC 200-450V 200A, (CT divided)

(Model 5)White with back cover AC 80-300V 100A, (CT divided)

(Model 6)White with back cover AC 80-300V 200A, (CT divided)

(Model 7)White with back cover AC 200-450V 100A, (CT divided)

(Model 8)White with back cover AC 200-450V 200A, (CT divided)

(Model 9)White without back cover AC 80-300V 50A, (CT divided)

(Model 10)White without back cover AC 80-300V 100A, (CT divided)

(Model 11)White without back cover AC 80-300V 50A, (CT fixed)

(Model 12)White without back cover AC 200-450V 50A, (CT fixed)
