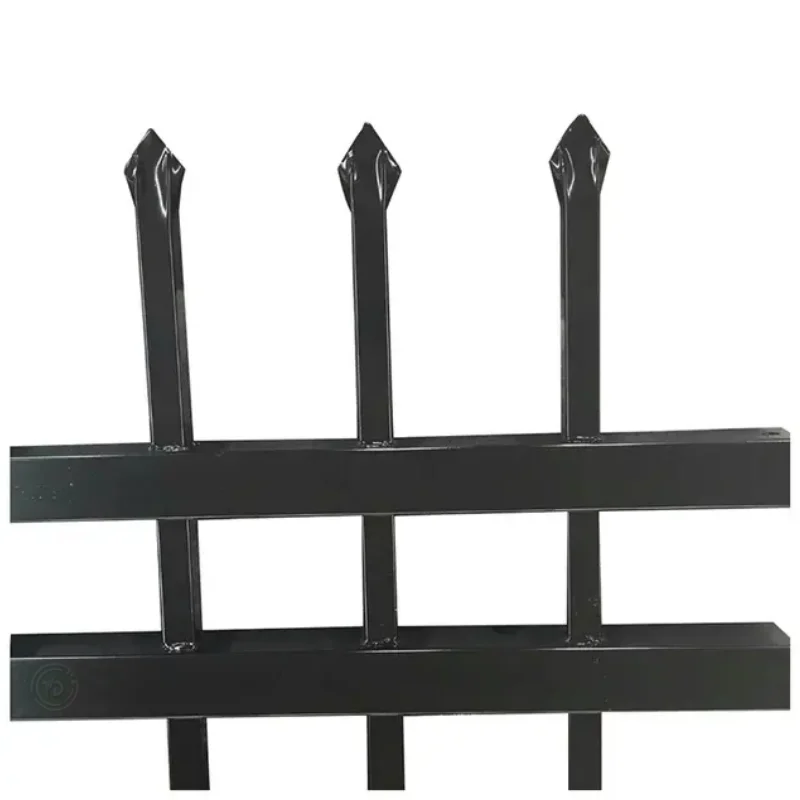

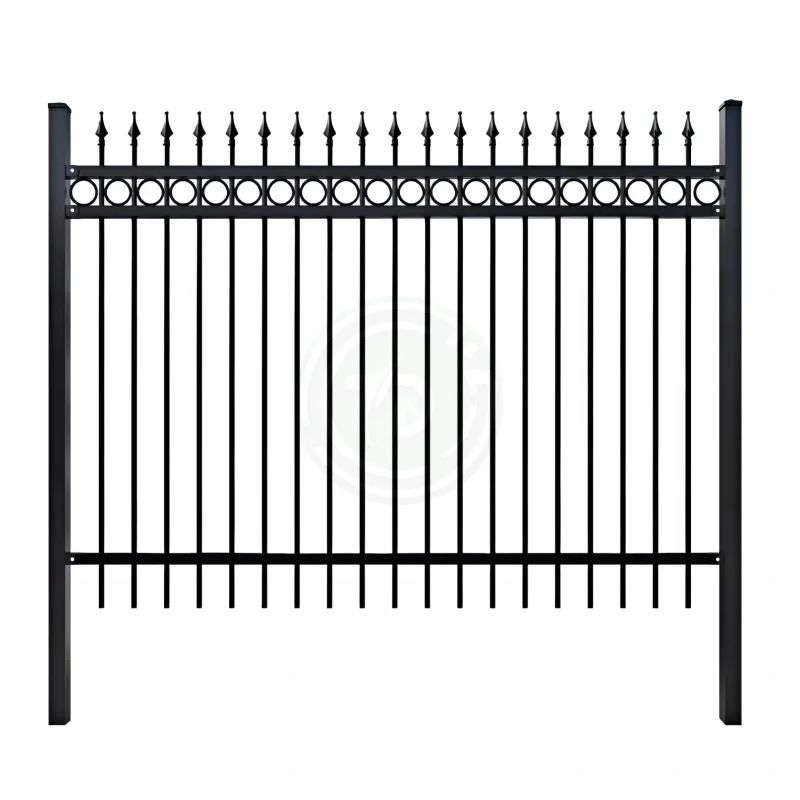

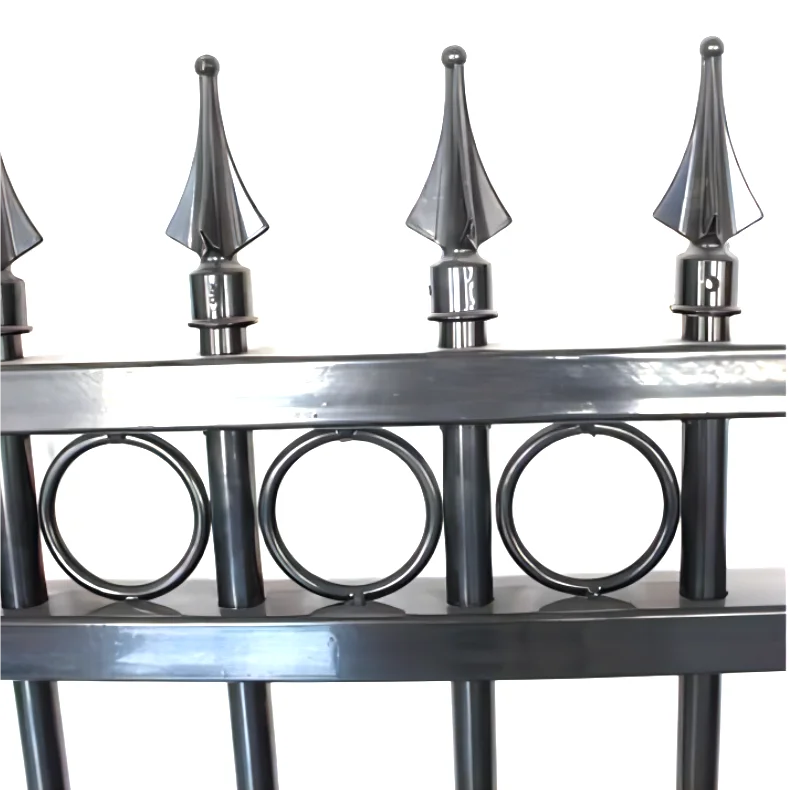

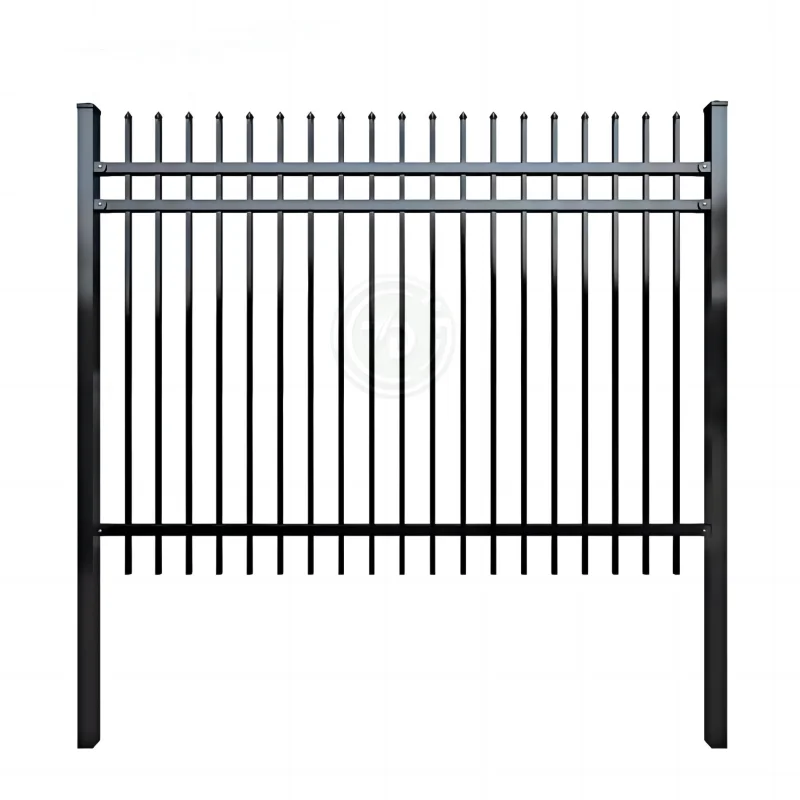

Outdoor Garden Security Powder Coated Steel Tubular Fence Wrought Iron Fence Panels Wrought Black Steel Picket Fence
- Category: >>>
- Supplier: Hebei Tiedi International Trade Co. Ltd.
Share on (1601207367295):
Product Overview
Description
Picket & Spear Fence
Steel Fence Specification
Material | Galvanized steel Q195 or Q235 | ||||||
Fence thickness | 0.8mm, 1.0mm, 1.2mm,1.5mm,2.0mm | ||||||
Panel Height | 1.2m, 1.5m, 1.8m, 2.1m, 2.4m, etc | ||||||
Panel Width | 2.4m, 3.0m | ||||||
Popular Size | 1.8x2.4m (6x8ft), 2.1x2.4m (7x8ft), 2.4x2.4m (8x8ft), etc. | ||||||
Rail Size | 30x30mm, 40x40mm, 50x50mm, etc. | ||||||
Horizontal Rail | 2 rails, 3 rails, 4 rails | ||||||
Picket Size | 19x19mm, 20x20mm, 25x25mm, etc. | ||||||
Post Size | 50x50mm, 60x60mm, 70x70mm, 75x75mm, etc. | ||||||
Color | Black, Other RAL color can be customized. | ||||||
Surface treatment | Hot dipped galvanized + powder coated,Hot dip galvanized | ||||||

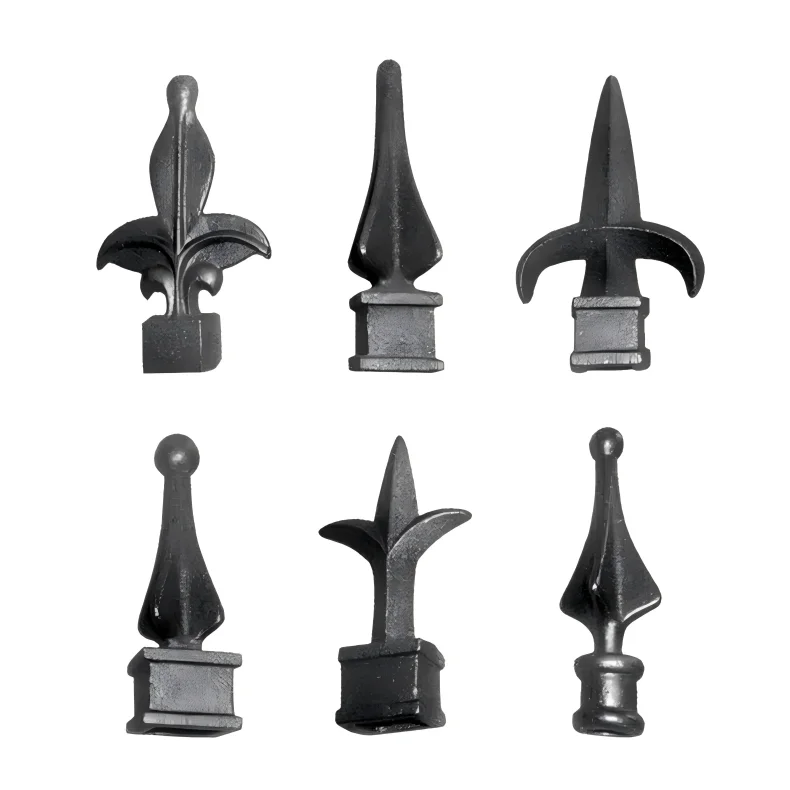

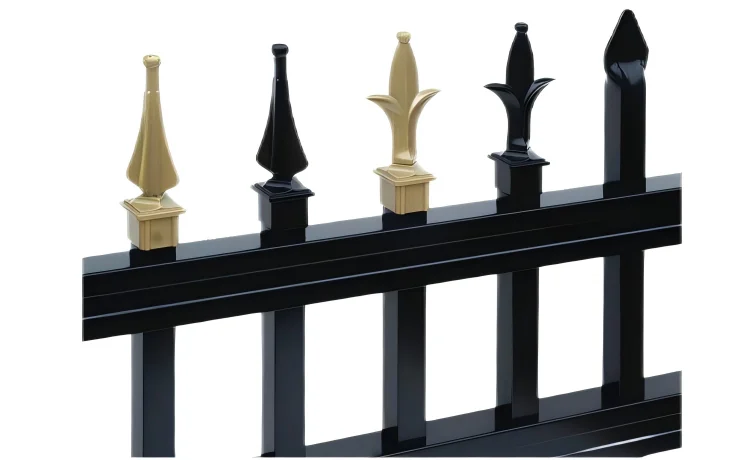

Picket Style | Pressed top, Spear top, Flat top, Rod top, Bend top, etc. | ||||||
1 Fence Set | 1 fence panel + 1 fence post + accessories | ||||||
Accessories | Bolts&nuts, screws | ||||||
Gate | Single swing, Double swing, Sliding gates. | ||||||

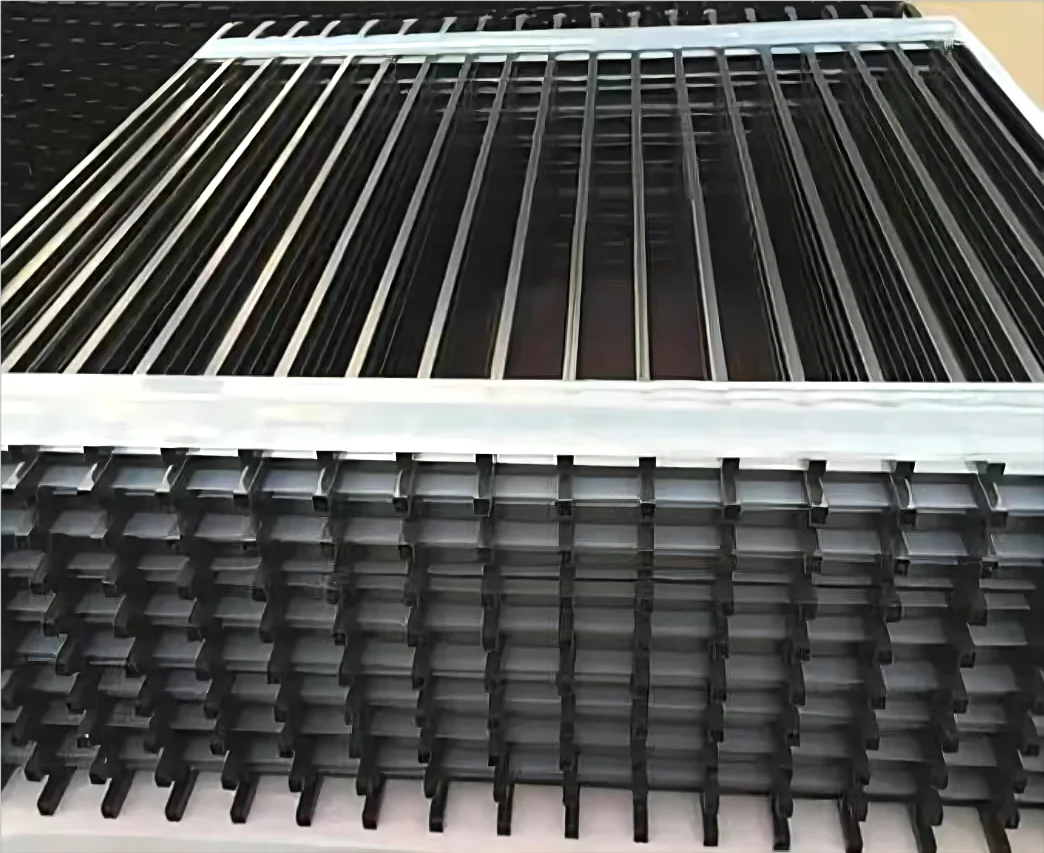

Assembled Fence
The picket is assembled on the panel with screws. Easy to assemble,Easy to install

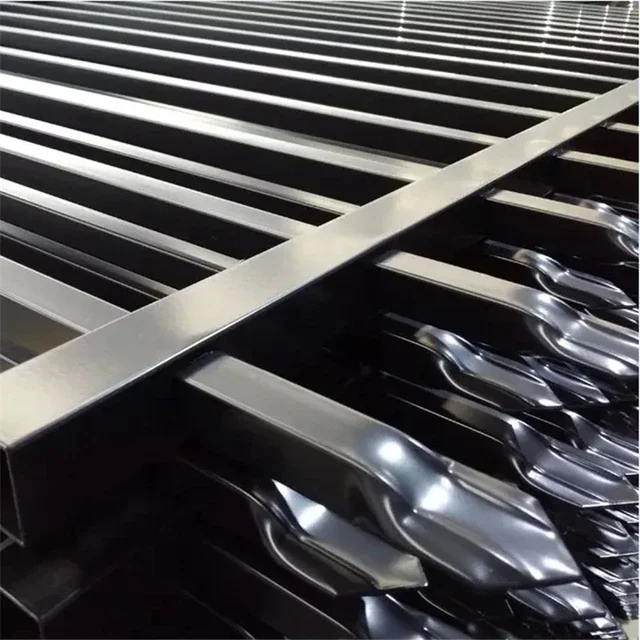

Fully Welded Fence
All fencing is fully welded to ensure a quality long-lasting, secure product.

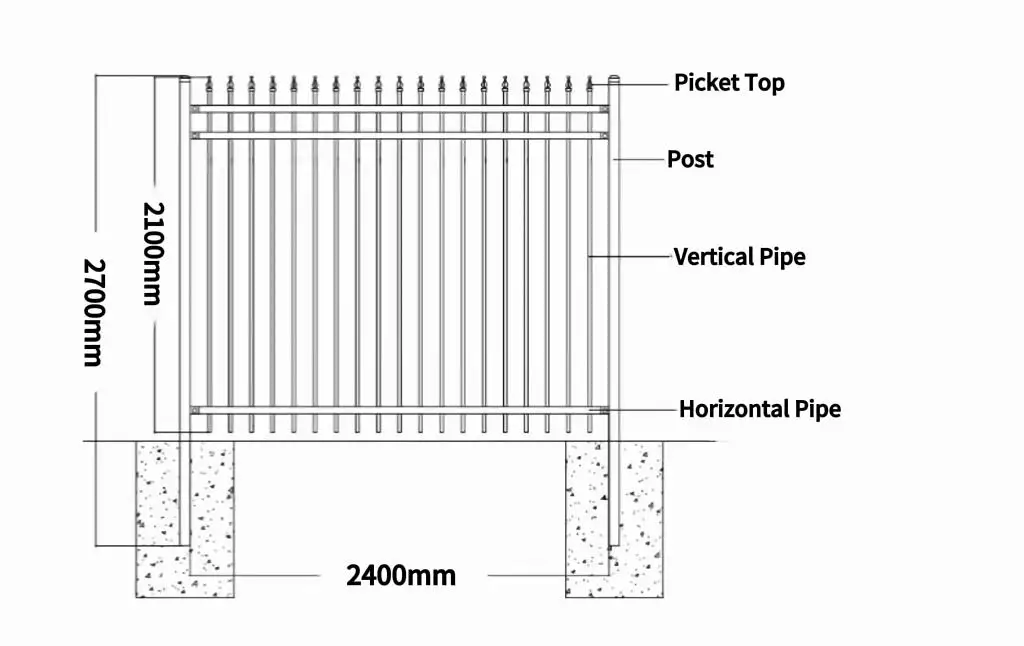

Product structure
1 fence panel + 1 fence post + accessories
Fence panel
Fence post

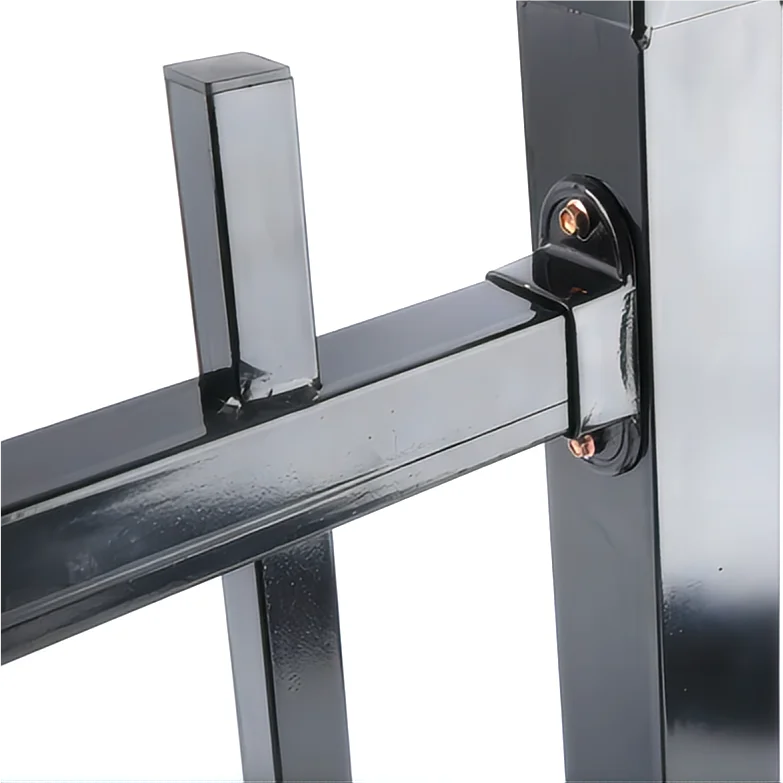

Accessories

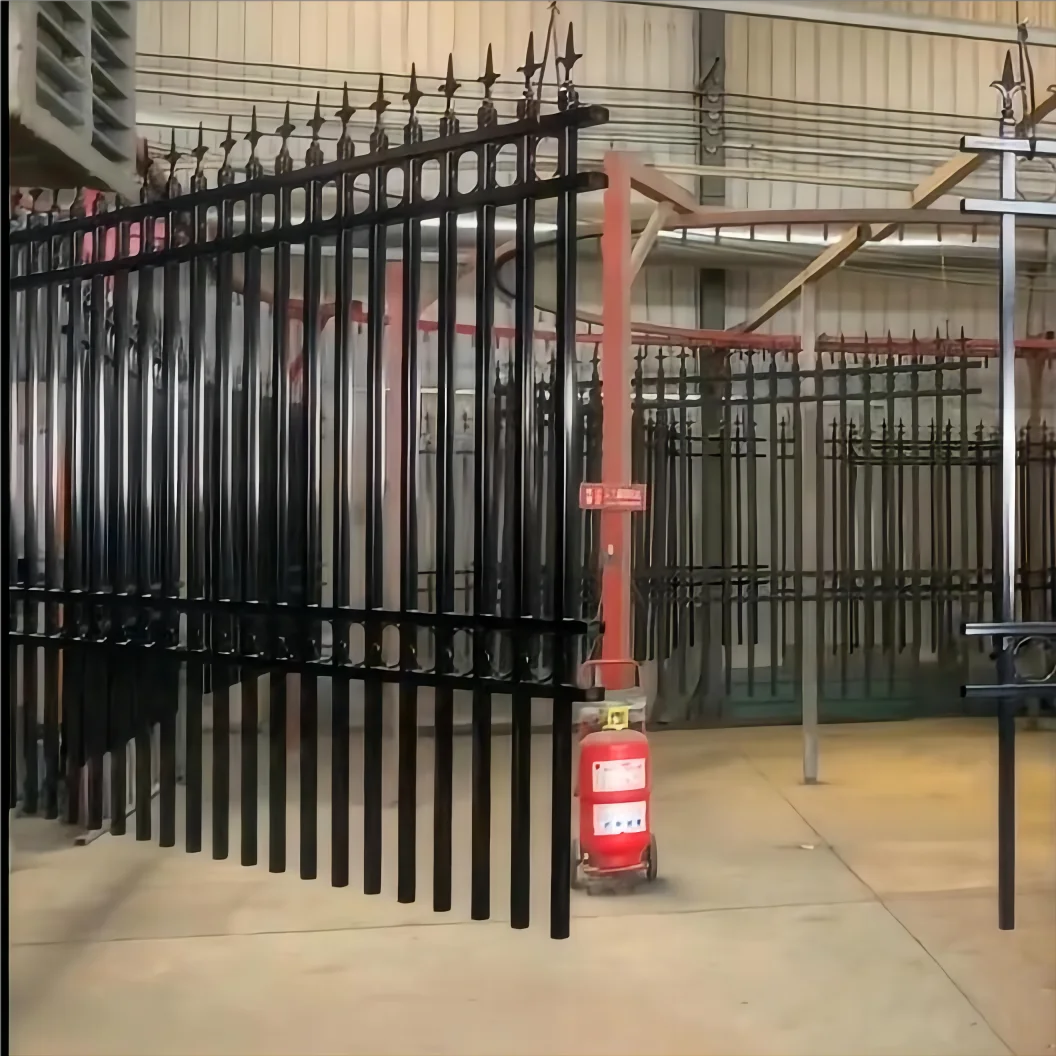

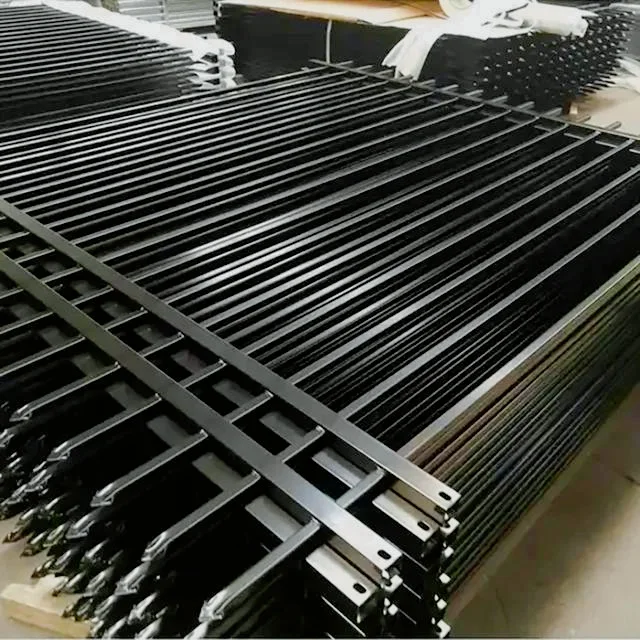

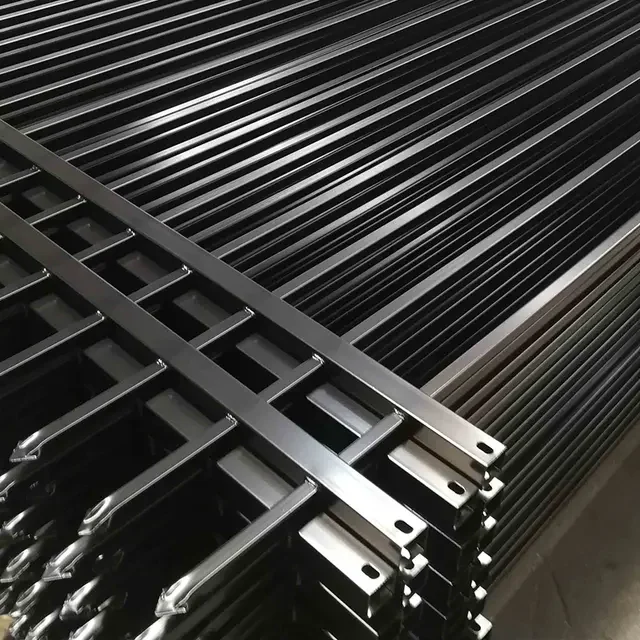

Product Show
Tiedi Metal offers many different patterns and styles of Steel Fence.If you want to know more information,please see the product description below.
Fence Designs
Press Picket Steel Fence SF-001

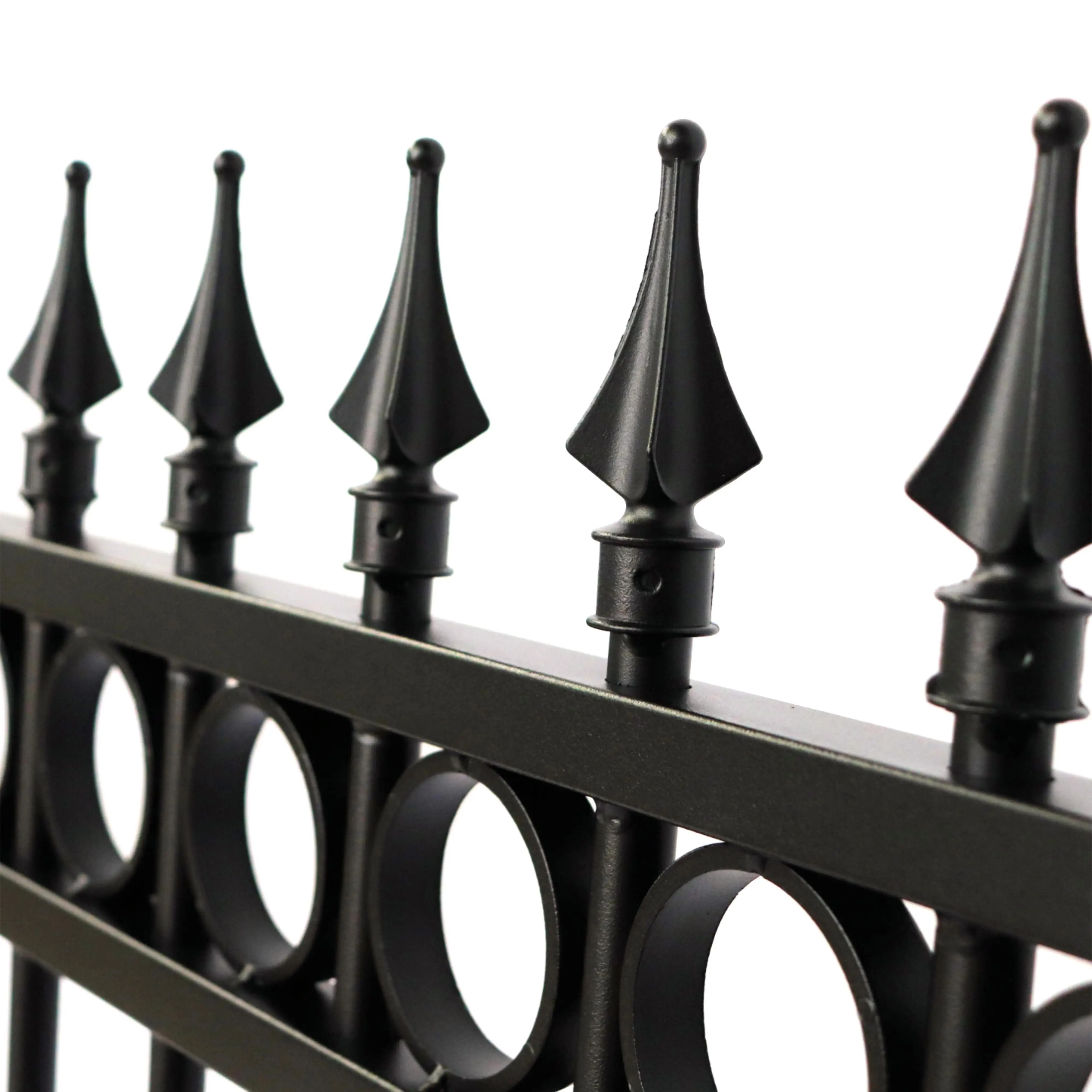

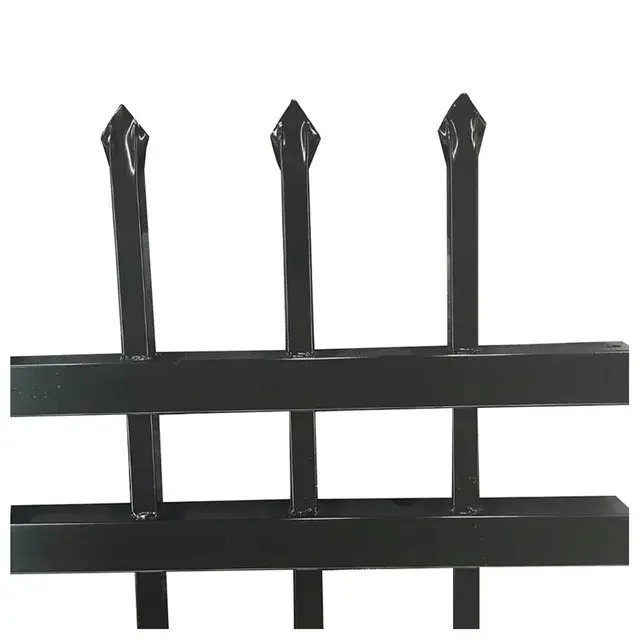

Arrow Top Steel Fence SF-002
Flush Top Steel Fence SF-003
Flat Top Steel Fence SF-004

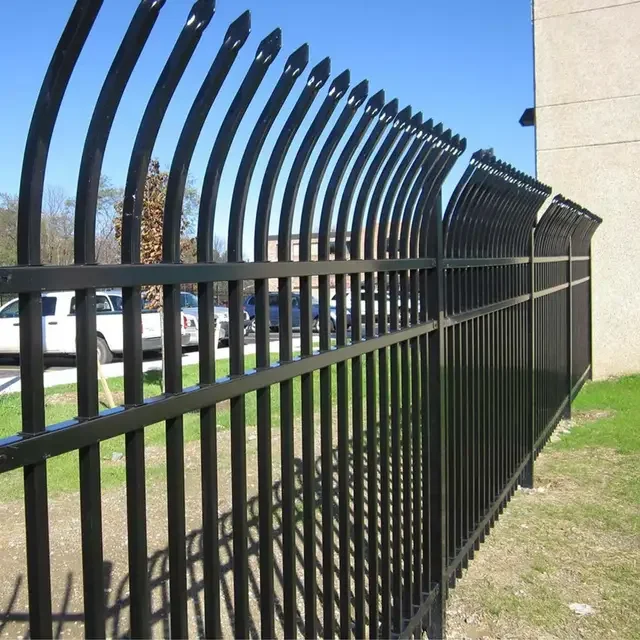

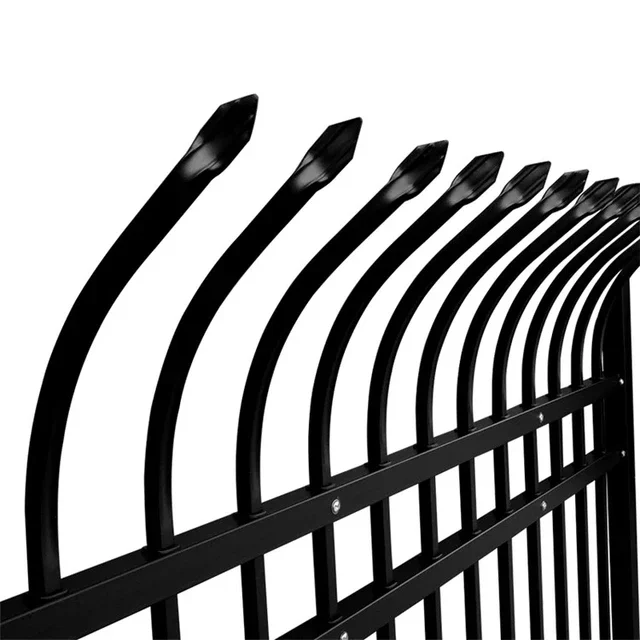

Bend Top Steel Fence SF-005

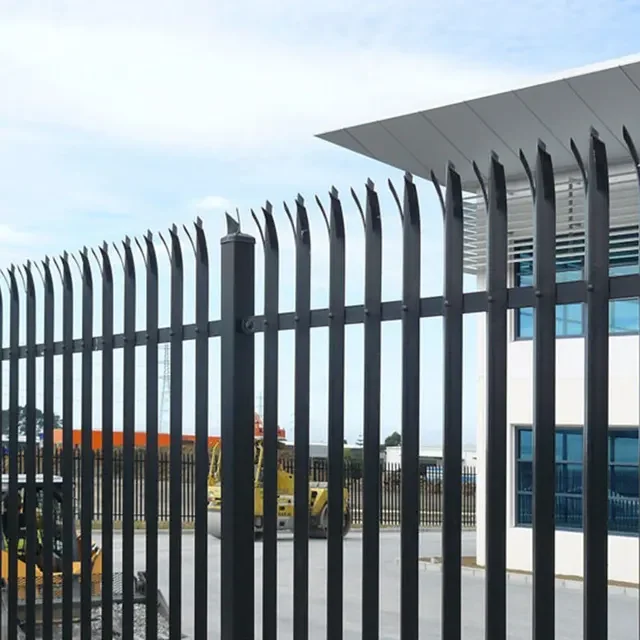

Palisade Fence
SF-006

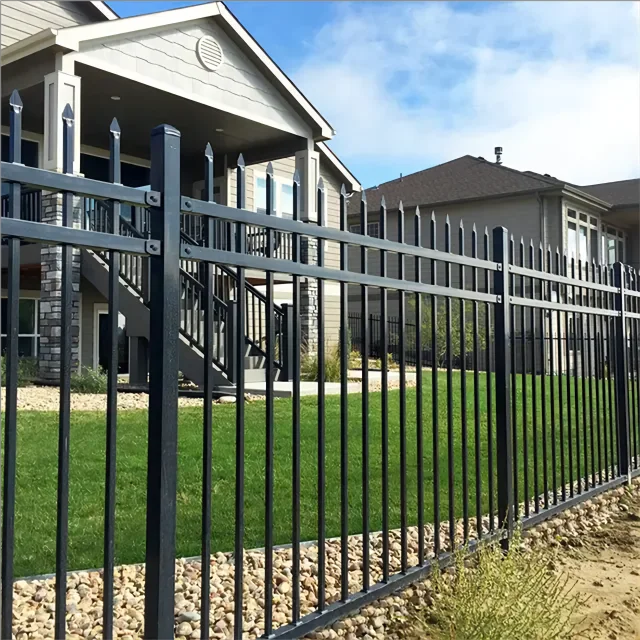

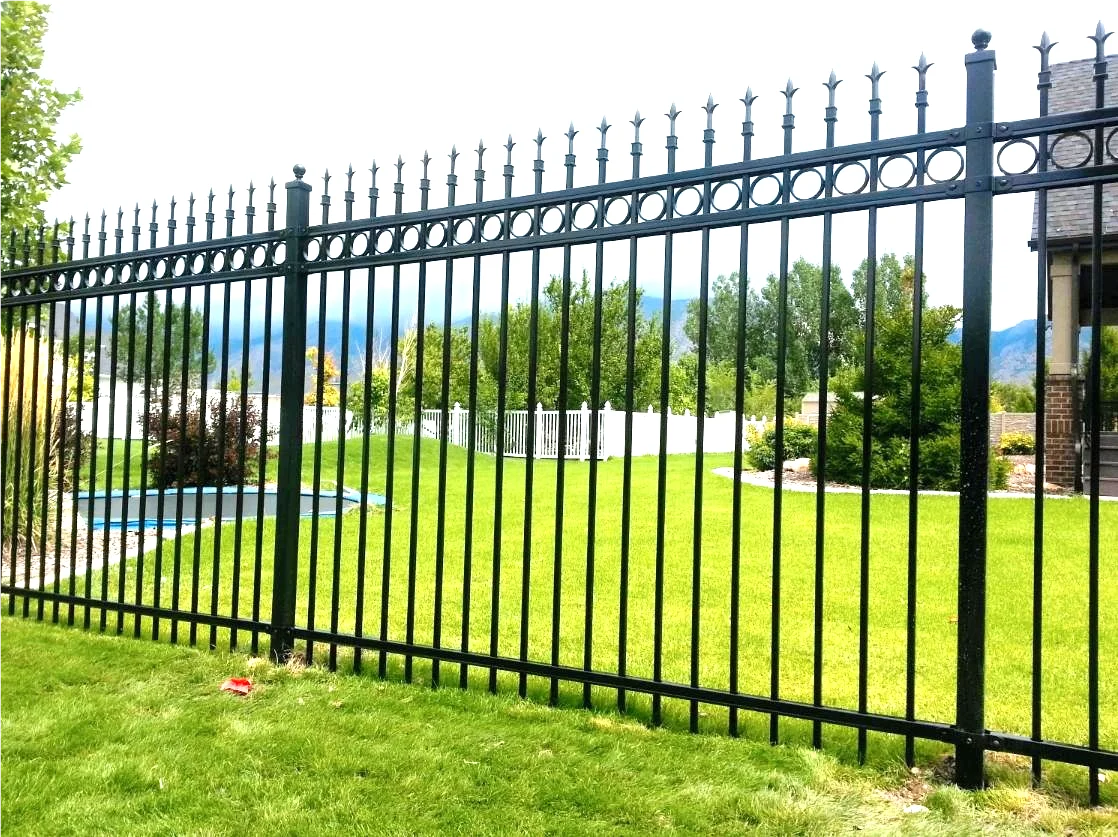

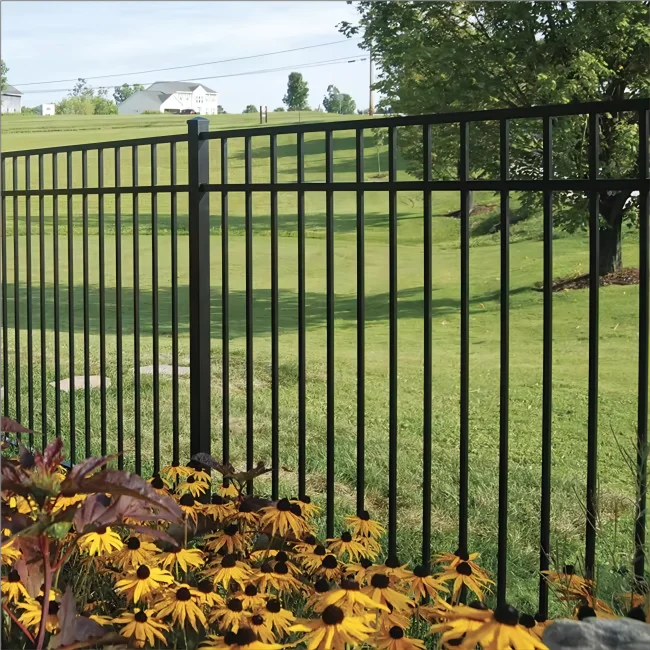

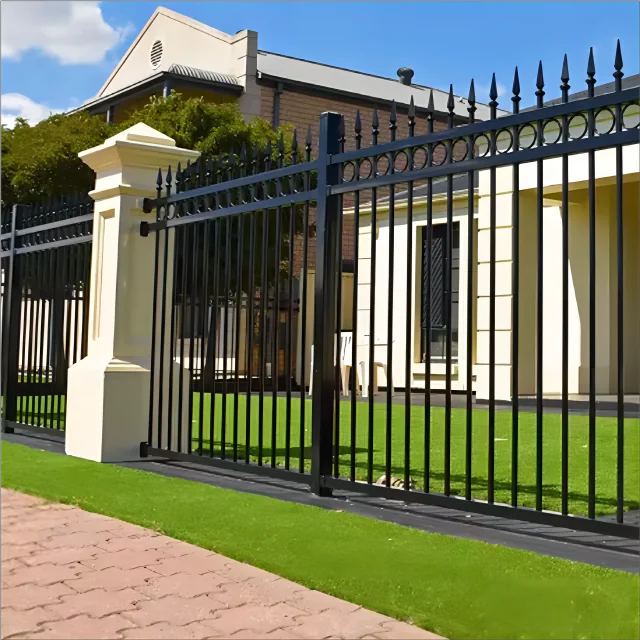

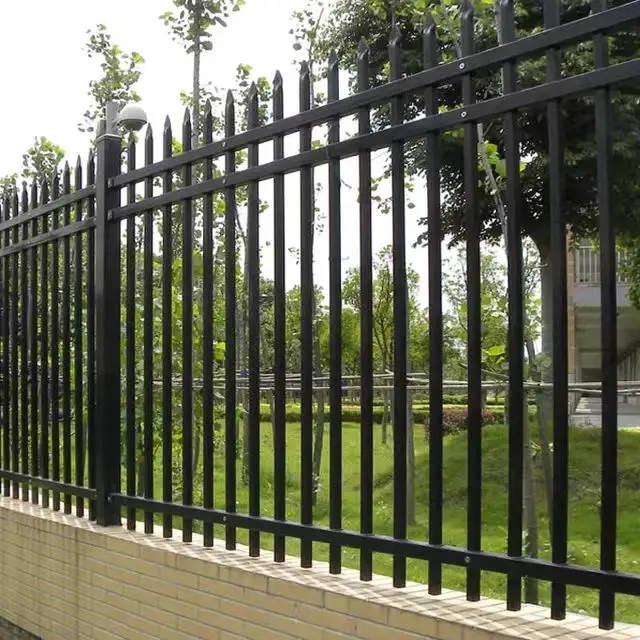

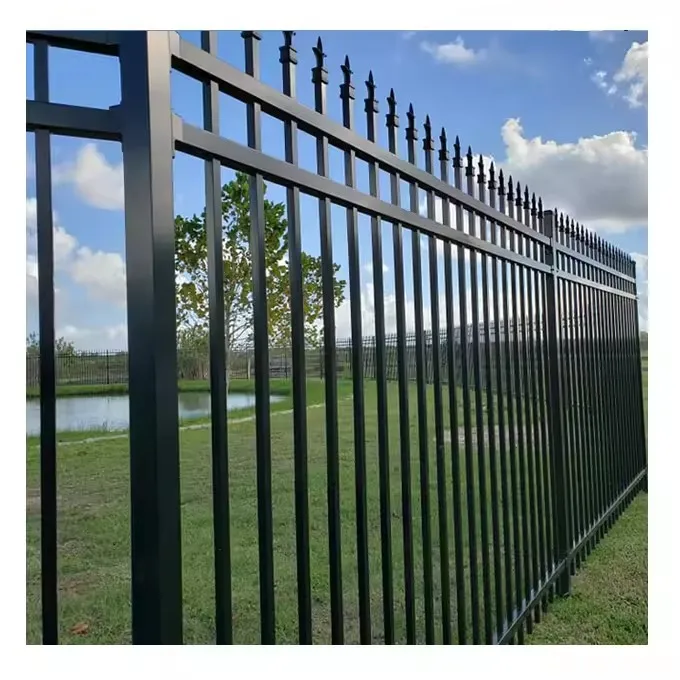

Applications
Installation Instructions
1.Before installation, the construction department should be familiar with the location of the various pipes buried in the underground to prevent the underground facilities from damaging.
2. During the construction, the burial of the posts should be carried out in stages. Firstly buried end posts, and then buried the middle post.3. If you want to put the posts into concrete, firstly you should drill holes on concrete surface, and then put the posts into it, finally pour the liquid concrete into the hole. During this time, remember to set up temporary cable or support to hold the posts in suitable place until the concrete is hardened.
4. The posts buried in the ground for a minimum of 0.6 m.
Packing&Shipping
Package

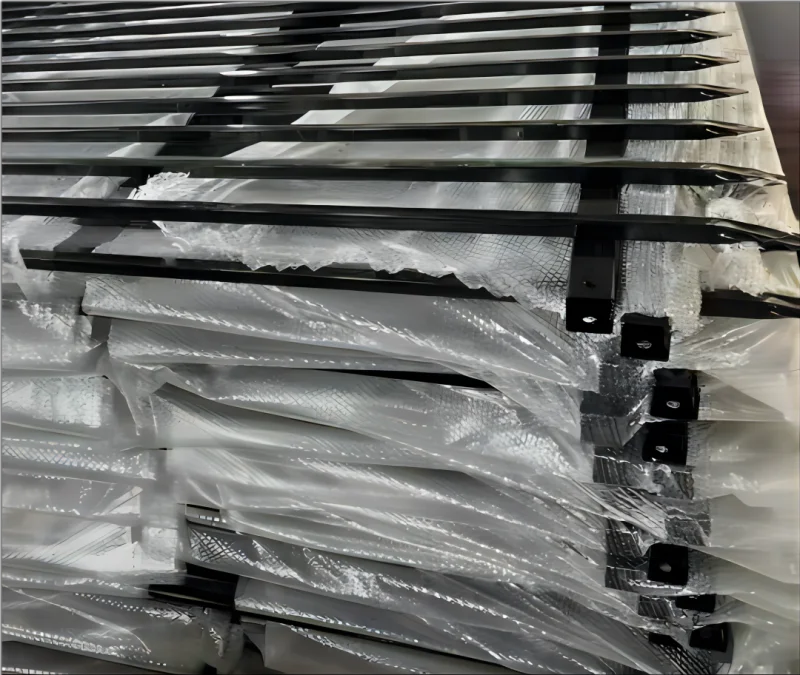

1.Panel:wrapped with plastic film in carton box and then put on metal/wooden pallet.
2.Post:wrapped with plastic strip and in bulk or on metal/wooden pallet.
3.Accessories:placed in carton box.
2.Post:wrapped with plastic strip and in bulk or on metal/wooden pallet.
3.Accessories:placed in carton box.

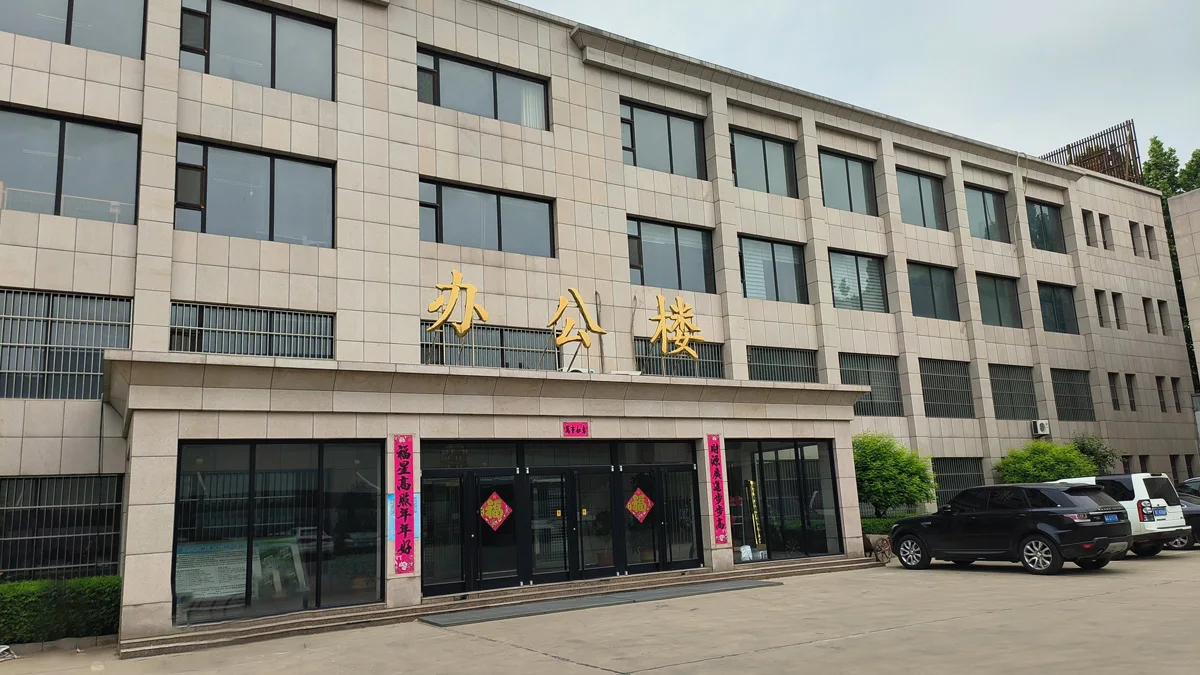

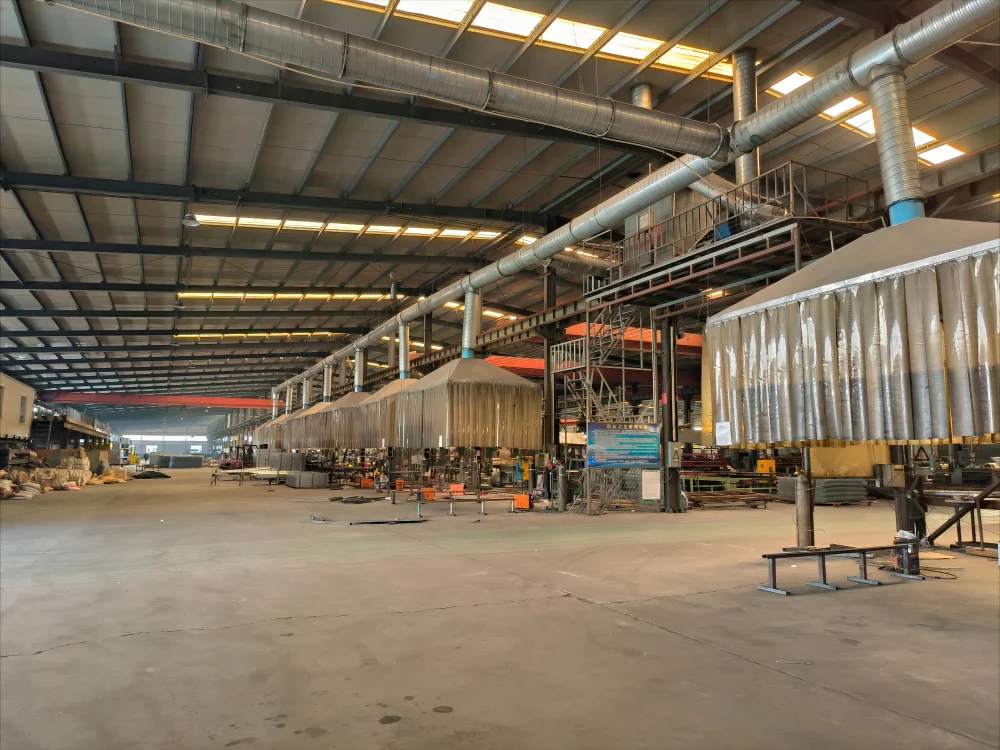

Company Profile

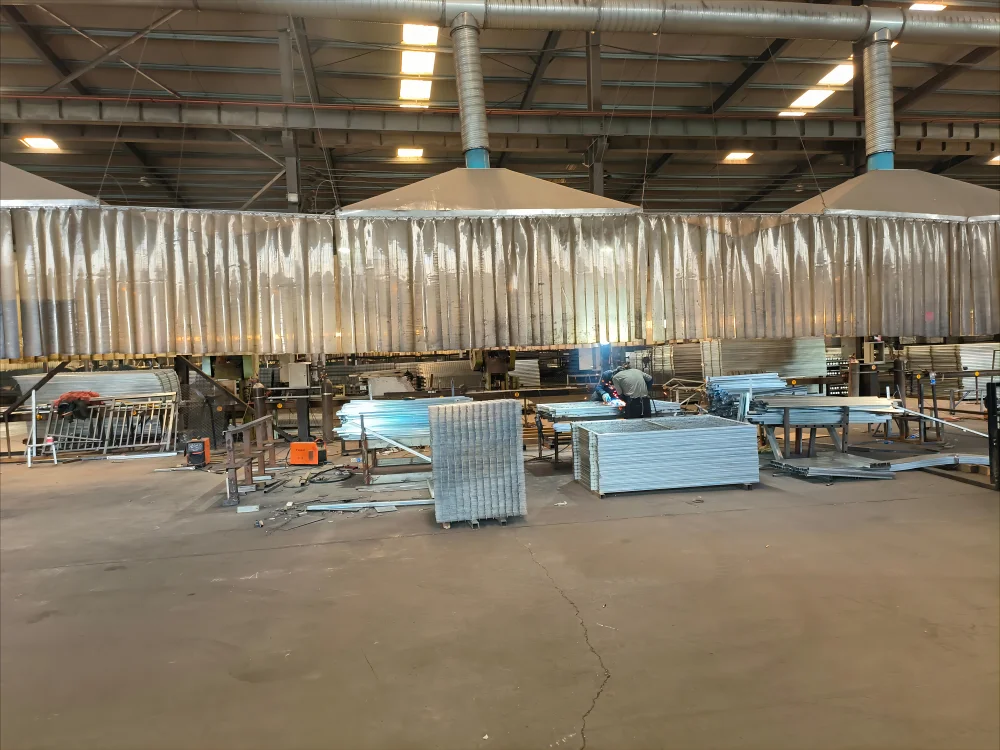

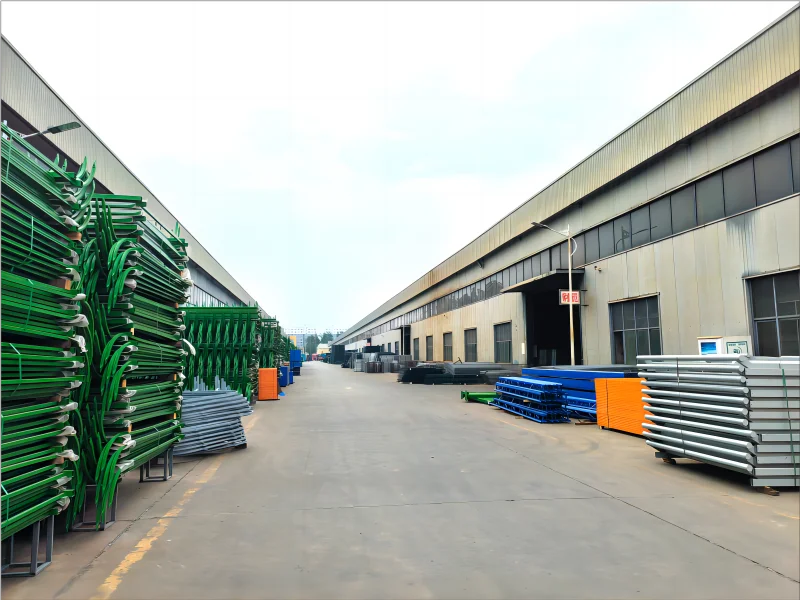

Hebei Tiedi Metal Products Co., Ltd is a professional manufacturer and supplier of wire mesh products, We have rich experience in the metal mesh industry. Our factory has been a leading manufacturer of metal wire mesh since 2000.We committed to providing high-quality products at competitive prices, and excellent customer service. Equipped with 50 sets of modern machinery that have advanced technology, we use certified raw materials from reputable manufacturers to produce a wide range of wire mesh products,including Welded wire mesh panels and rolls,Metal fence, Reinforcing mesh,Gabion,Chain link fence,Stainless steel wire mesh, Hexagonal wire netting, Barbed wire,Razor wire, Expanded and perforated metal mesh, and other quality products. We are committed to building long-term relationships with our customers. Our commitment to quality and customer satisfaction has led to our success.We invite you to experience the difference that comes from working with a dedicated and experienced supplier.
FAQ
Q1: Who are we?
For 23 years, our company has been dedicated to manufacture wire mesh products, which brings about rich experience.
Q2: What are your advantages compared with others?
1.With our own factory to manufacture the products, we can ensure timely products delivery.
2.Owned factory, the same quality product, the best price.
3.We have Professional staffs, let you enjoy comfortable and effective communication.
4.More efficient management in every process.
5.We never cheat customers.
Q3: How to order your products?
In order to quote you accurate price, please inform us the detail specification such as Mesh size, wire diameter, width and length, quantity, packing, delivery time and place....
Q4: How do you control your quality?
1.Selecting good steel material and producing follow the standard
2.100% finished product test.
3.ISO Quality Management System
4.We accept inspection of products
Q5: How do you deal with product quality?
Your products will be tested for quality before delivery. We will be responsible for the loss of our customers due to product quality problems.
For 23 years, our company has been dedicated to manufacture wire mesh products, which brings about rich experience.
Q2: What are your advantages compared with others?
1.With our own factory to manufacture the products, we can ensure timely products delivery.
2.Owned factory, the same quality product, the best price.
3.We have Professional staffs, let you enjoy comfortable and effective communication.
4.More efficient management in every process.
5.We never cheat customers.
Q3: How to order your products?
In order to quote you accurate price, please inform us the detail specification such as Mesh size, wire diameter, width and length, quantity, packing, delivery time and place....
Q4: How do you control your quality?
1.Selecting good steel material and producing follow the standard
2.100% finished product test.
3.ISO Quality Management System
4.We accept inspection of products
Q5: How do you deal with product quality?
Your products will be tested for quality before delivery. We will be responsible for the loss of our customers due to product quality problems.
