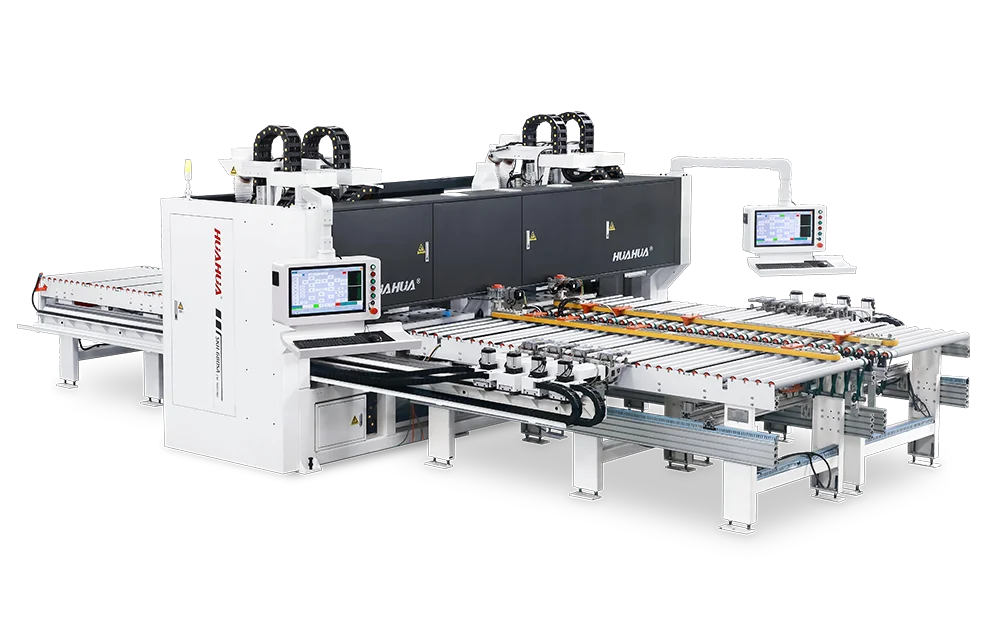

HUAHUA SKH680SAZ Easy Control Double Workable Six Drilling Heads Full Automatic 6 Sides Wood Boring Machine
- Category: >>>
- Supplier: Guangdong Shunde Changsheng Machinery Manufacturing Co. Ltd.
Share on (1601207435962):
Product Overview
Description
Products Description
Machine Details
products details
6 Drilling Heads

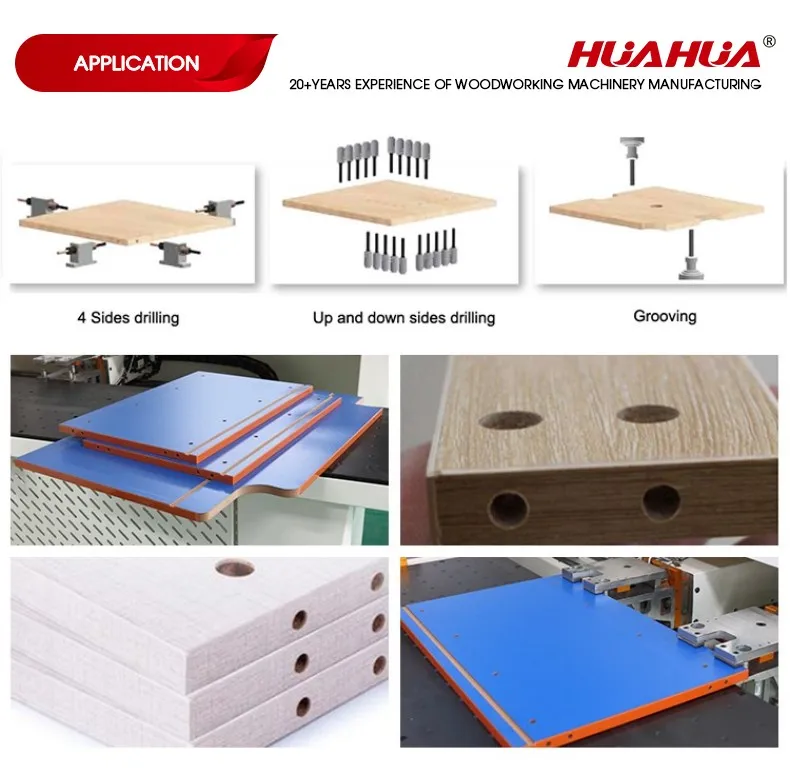

SKH-680SAZ machine with 4 upper drilling heads + 2 bottom drilling heads plus 4 pcs 3.5kw milling spindles, can do panel 6 sides
drilling and 2 sides grooving and milling for greater efficiency.
The machining efficiency is 20% higher than 4 sets drilling heads double working tables cnc drilling machines.
drilling and 2 sides grooving and milling for greater efficiency.
The machining efficiency is 20% higher than 4 sets drilling heads double working tables cnc drilling machines.
Double worktables with rollers
Single machine double worktables independent control, each station equip with 3m loading and 3m unloading conveyor rollers, can
process different panels at the same time, and both station can pass through panel maximum width of 800mm.
The rollers transmission speed reach to 60m/min.
process different panels at the same time, and both station can pass through panel maximum width of 800mm.
The rollers transmission speed reach to 60m/min.
Processing range
Max. processing size: 800*2800mm
Min. processing size: 50*250mm
Suit for mixed orders mass production and connect with automatic production line production.
Min. processing size: 50*250mm
Suit for mixed orders mass production and connect with automatic production line production.

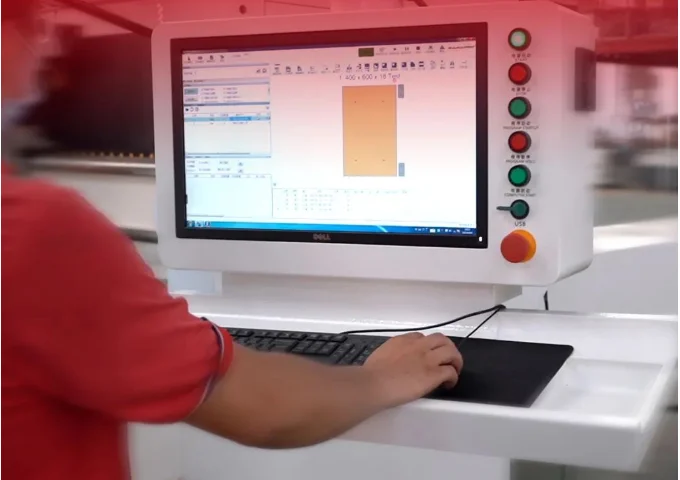

Two computers linked control
Single machine and two computers linked control, the operator does not need to run left and right to operation. Save time.
Both computers with industrial PC, can connect with internet or wifi, convenient for transfer production data and make remote control service.
Both computers with industrial PC, can connect with internet or wifi, convenient for transfer production data and make remote control service.

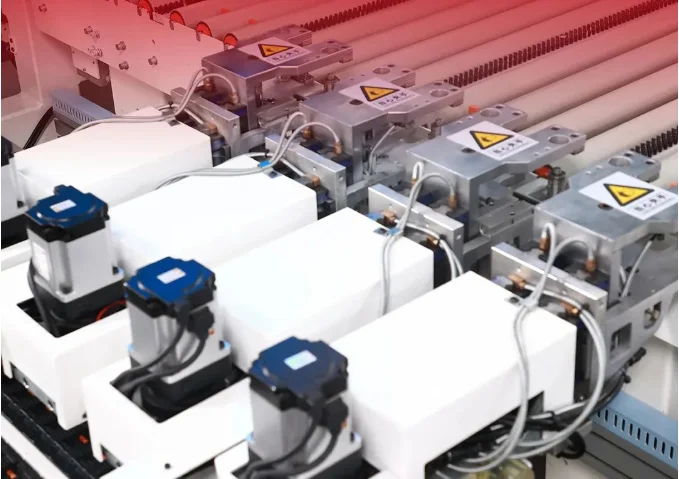

Eight Clamps
HUAHUA’s exclusive and pioneering technology
Each working station with 4 clamps, continuous feeding and processing.
Each working station with 4 clamps, continuous feeding and processing.
Servo drive system
All functions of the aligning, clamping, transmission, and processing are moved according to the instructions of the servo drive
system, which can respond quickly, and have high processing accuracy and good stability
system, which can respond quickly, and have high processing accuracy and good stability
Panel pre-positioning device
The integrated design of the Panel pre-positioning device and the roller, auxiliary panel quick positioning, fast feeding, saving space, and the rubber roller will ensure the plate not damage when conveying.

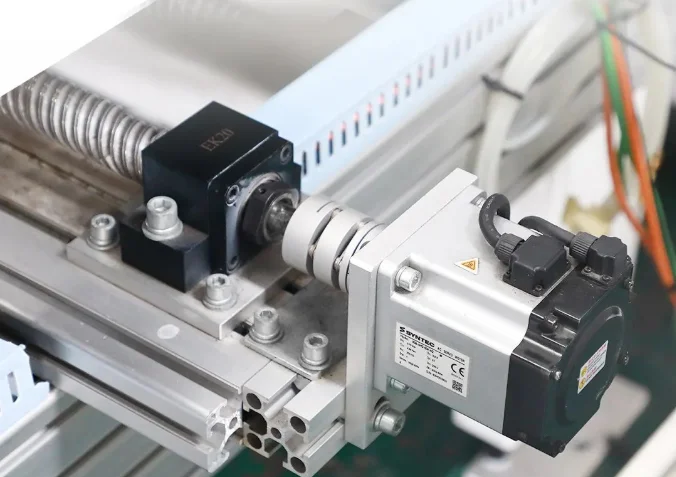

Ball Screw Driving + Servo Motor Control
Panel pre-positioning device ball screw driving + servo motor control, accurate positioning and aligning.

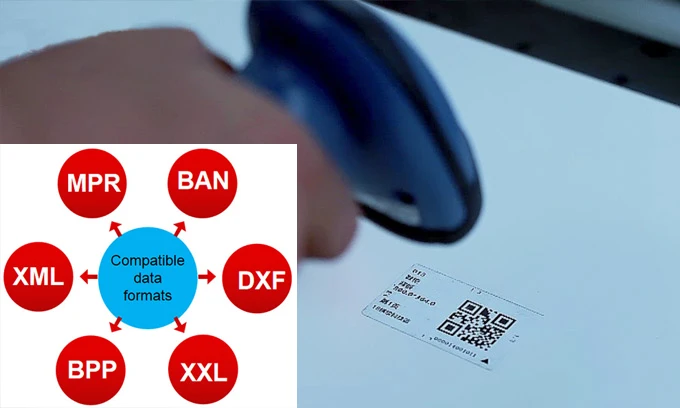

Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically
generate NC program processing
Compatible with Multiple Data Formats
Convenient and efficient opertion
generate NC program processing
Compatible with Multiple Data Formats
Convenient and efficient opertion

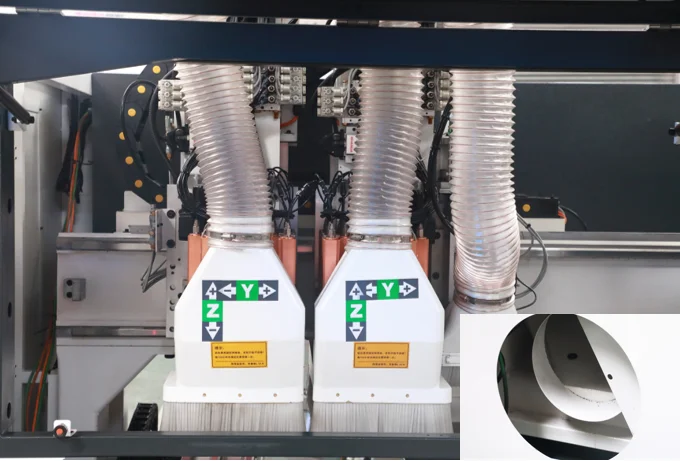

Efficient Dust Collection
Machine top drilling heads and machine bottom have different vacuuming ports, combinating blowing and vabuuming, the effect of removing dust is strong, reducing the failure rate and maintenance costs.
Optional

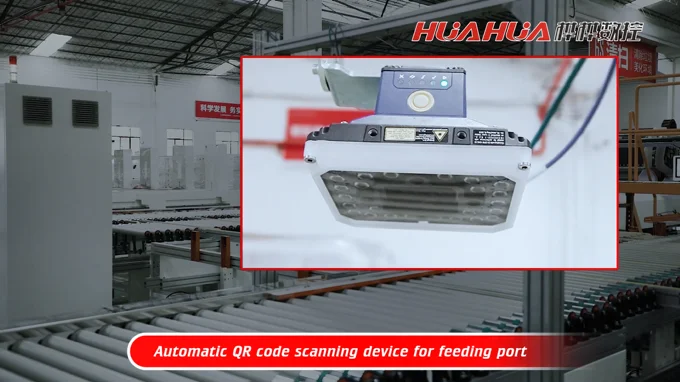

SKH-680SAZ machine can option Automatic QR code camera scanning device continuous feeding panels, please contact our sales for more details
Working Stoke & Max. Position Speed: | X1/X2/X3/X4 axis | 5410mm & 130m/min |
Y1/Y2/Y3/Y4 axis | 1450mm & 80m/min | |
Z1/Z2/Z3/Z4 axis | 130mm & 30m/min | |
U1/U2/U3/U4 axis | 5410mm & 130m/min | |
V1/V2 axis | 965mm & 80m/min | |
W1/W2 axis | 110mm & 30m/min | |
A1/A2 axis | 810mm & 30m/min | |
Drilling unit: | Vertical drilling bits | Top drilling 12*4 groups， Bottom drilling 9*2 groups |
Horizontal drilling bits | 8pcs*4 groups | |
Drilling head motor speed | 2800rpm(r/min) | |
Drilling head motor power | 2.2KW*6 | |
Spindle unit: | Spindle power | 3.5KW*4 |
Tool holder diameter | 1/2′ | |
Spindle | ER25 | |
Spindle rotate speed | 18000rpm | |
Range: | Panel length | 50-5000mm |
Panel width of double worktable | 50-800mm | |
Min. processing size | 250*50mm | |
Panel thickness | 10-50mm | |
Other Data: | Working table height | 960mm |
Total Power | 46.82kw | |
380V/50Hz-3Phase | 380V/50Hz | |
working air pressure | 0.7-0.8Mpa | |
Weight | 5750KG | |
Overall size | 6180X4390X2270mm |
* Welcome to our official website
https://www.huahuacnc.com/
Company Profile
Our Customer
Packing＆Delivery
FAQ
Q1. Are your trading company or factory?
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
