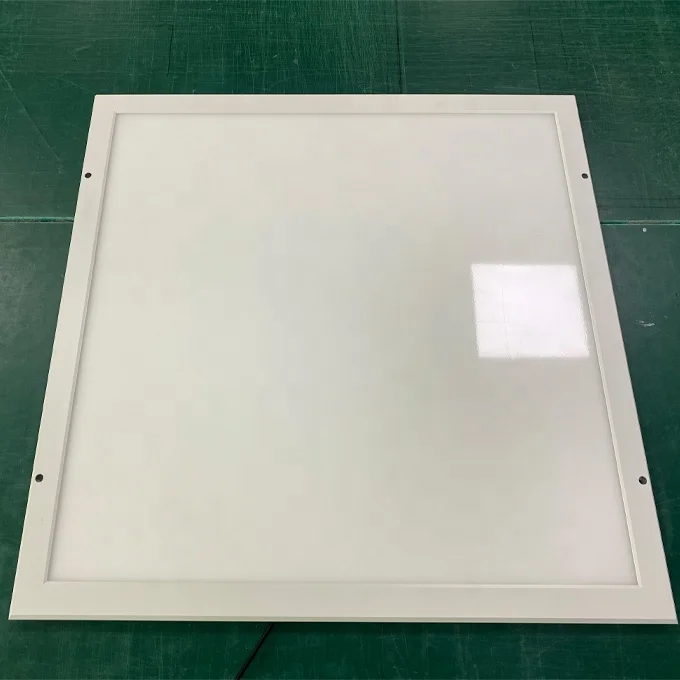

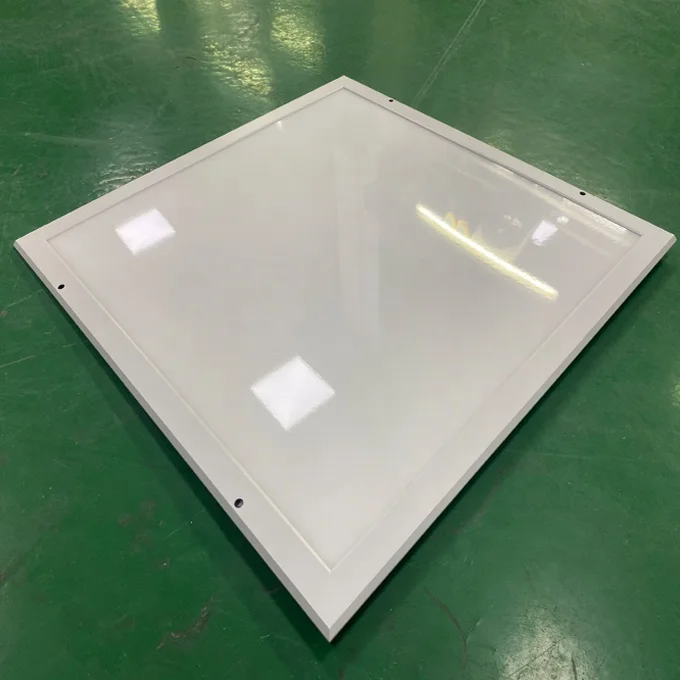

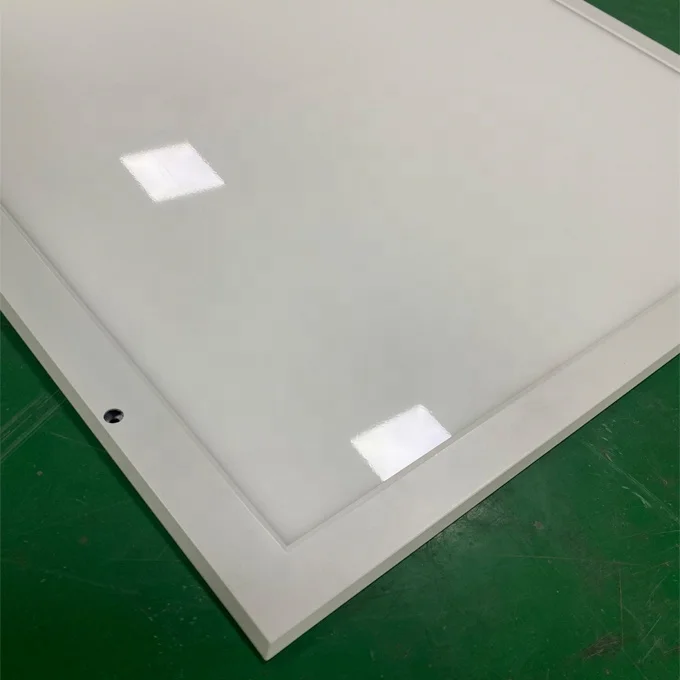

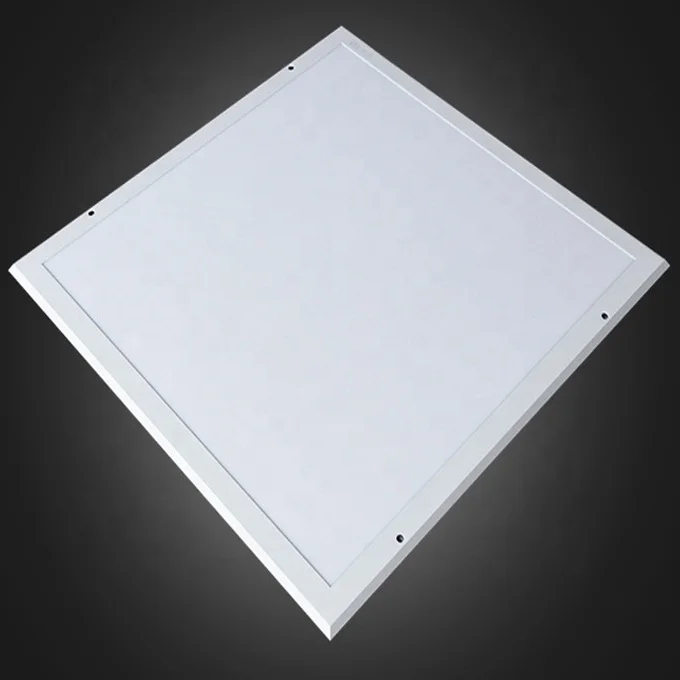

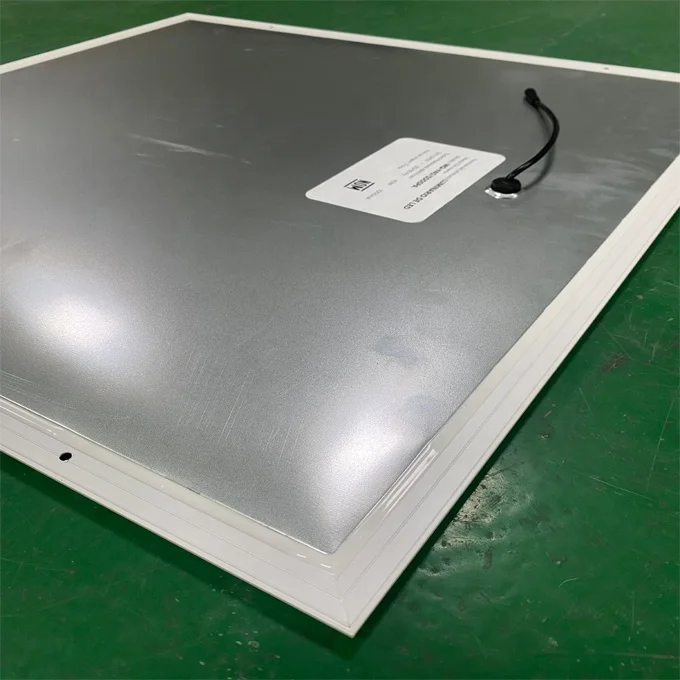

LED Clean Room Panel Cleaning Panel 60x60 600x600 40W 60W Modular Panels Clean Room
- Category: >>>
- Supplier: Suzhou Licco Lighting Co. ltd
Share on (1601207458082):
Product Overview
Description

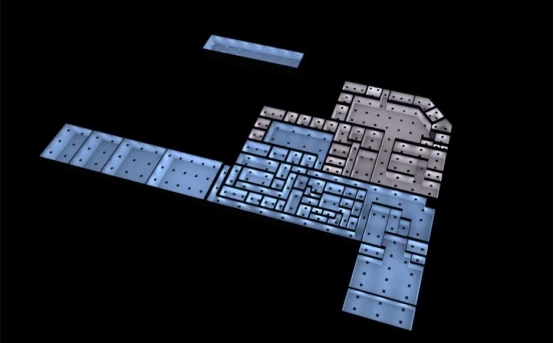

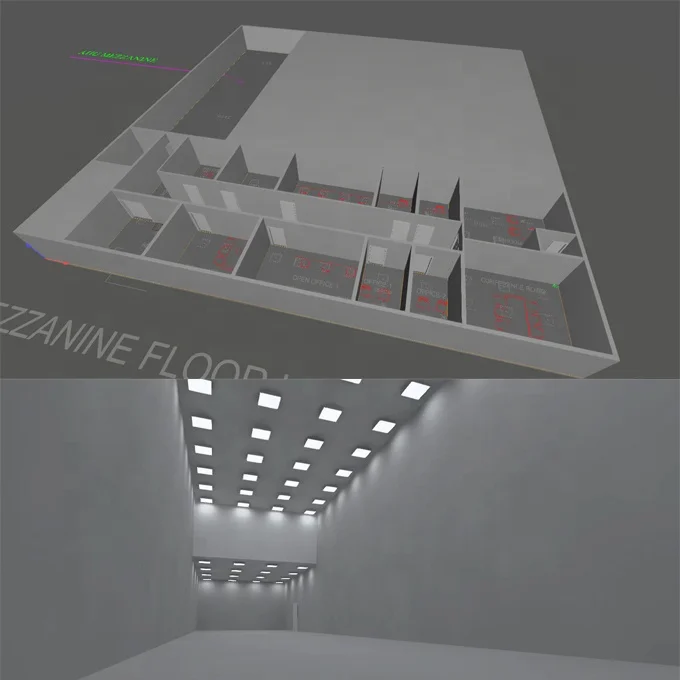

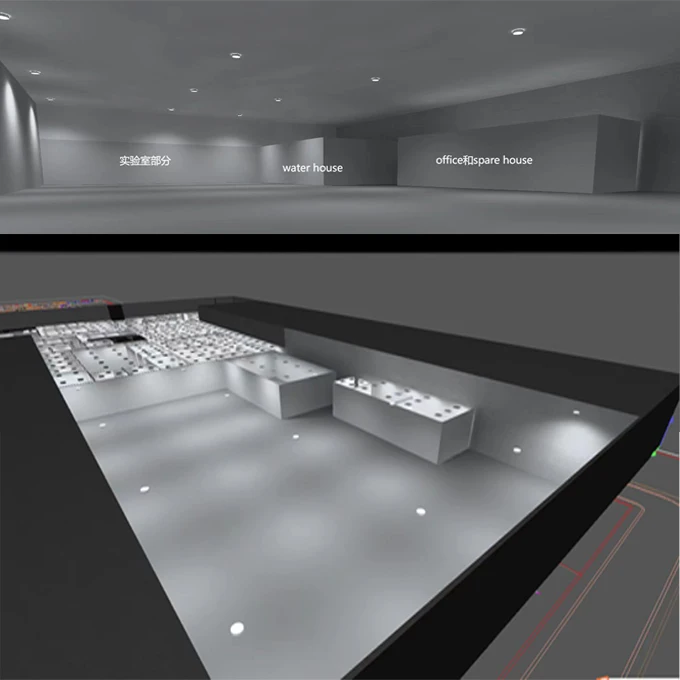

Project Lighting Design and Simulation
Products Description
Model | Watt. | Dimen.(mm) | Lumen | CCT | RA | IP Level |
CR20B LED60 | 60W | L1200*W600*H10 | 6000lm | 3000K-6500K | ≥80 | IP65/IP54/IP20 |
CR20B LED40 | 40W | L1200*W300*H10 | 4000lm | 3000K-6500K | ≥80 | IP65/IP54/IP20 |
CR20B LED40 | 40W | L600*W600*H10 | 4000lm | 3000K-6500K | ≥80 | IP65/IP54/IP20 |
CR20B LED24 | 24W | L600*W300*H10 | 2400lm | 3000K-6500K | ≥80 | IP65/IP54/IP20 |
CR20B LED12 | 12W | L300*W300*H10 | 1200lm | 3000K-6500K | ≥80 | IP65/IP54/IP20 |
Name | LED Panel Light(Cleanroom) | ||||||
Model | CR20B LED40 | CR20B LED40 | |||||
Dimen.(mm) | L600*W600*H10 | L1200*W300*H10 | |||||
Watt. | 40W | 40W | |||||
Lumen | 4000lm | 4000lm | |||||
Efficiency | 100lm/w | 100lm/w | |||||
Profile | opal white aluminum lampbody | ||||||
LGP | PMMA Acrylic light guide plate 2.0mm | ||||||
Diffuser | Smooth/frosted surface PC/PS filter 1.0mm in opal white color | ||||||
LED Type | LED SANAN SMD2835 LM80 | ||||||
RA | ≥80/90 | ||||||
CCT | 3000K-6500K | ||||||
SDCM | ≤6(5/3 for option) | ||||||
Beam Way | Edgelit | ||||||
Beam Angle | 120° | ||||||
Driver | Isolated constant current LED modules driver with 5 years warranty | ||||||
PF | 0.95@230VAC full load | ||||||
Input | 220-240VAC 50/60Hz | ||||||
Dimmable | Available to ON/OFF, 0/1-10V/DALI dim. | ||||||
Flicker | Free | ||||||
THD | ≤20% | ||||||

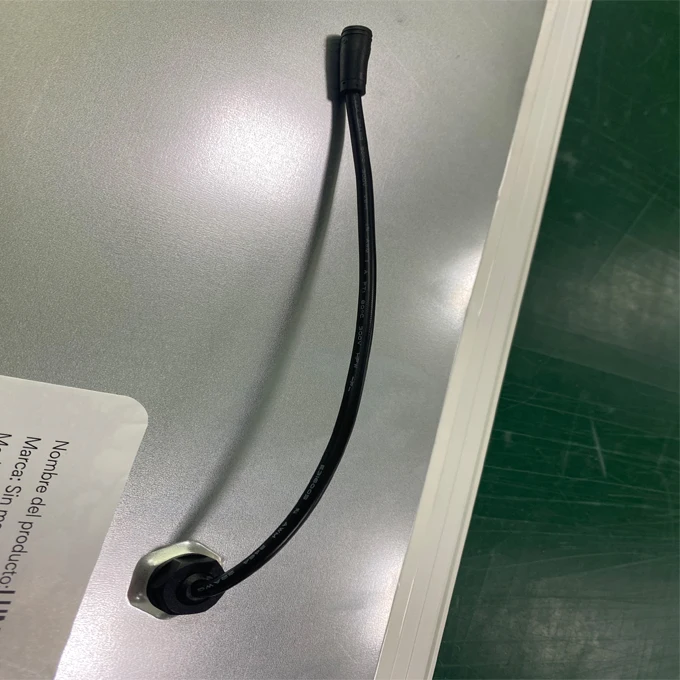

Connecting Way | Waterproof Male&female pins | ||||||
Working Temp. | -10 ℃~+45 ℃ | ||||||
Storage Temp. | -25 ℃~+60 ℃ | ||||||
Installation | Surface Mount | ||||||
UGR Index | UGR<19/16 for option | ||||||
Ingress Protection Level | IP65/IP54/IP20 | ||||||
Impact Resistant Level | IK03 | ||||||
Electrical Class | II | ||||||
Application Area | Labortary / Pharmaceutical Industry / Chemical Industry / Hospital | ||||||
Working Lifespan | 50,000hrs | ||||||
Warranty | 5 Years | ||||||

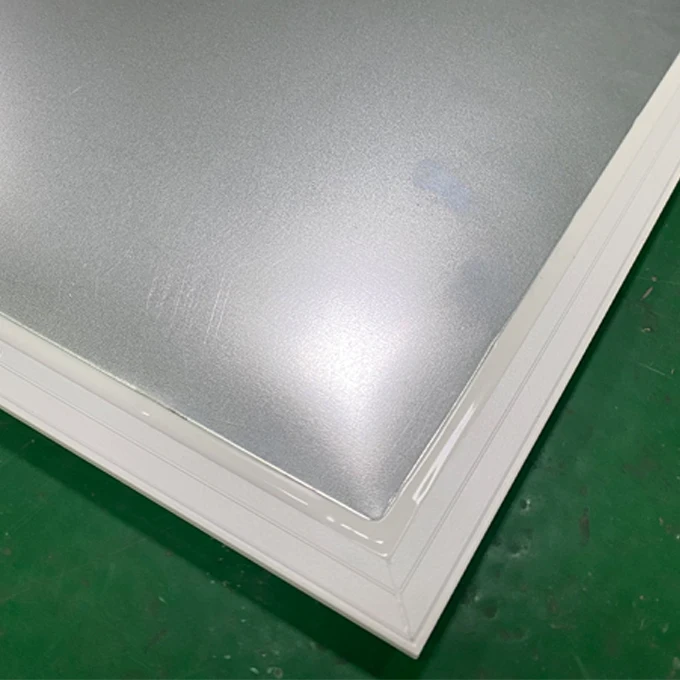

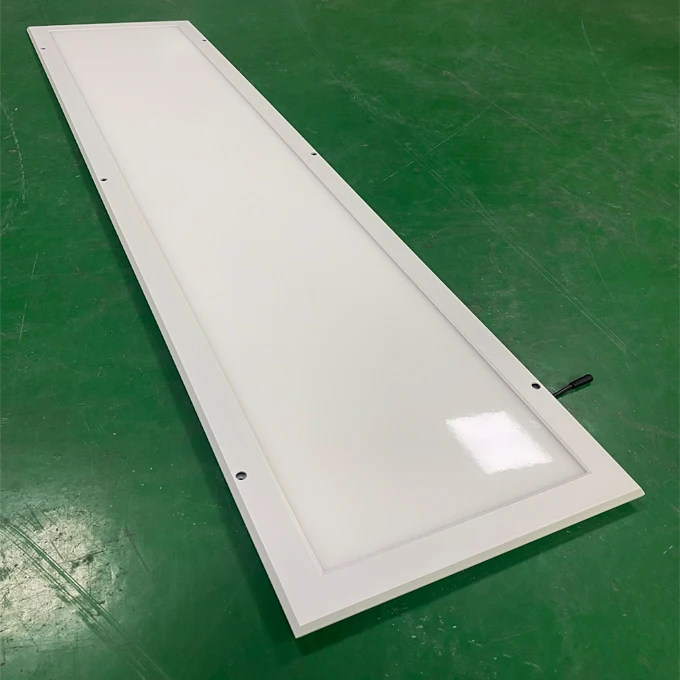

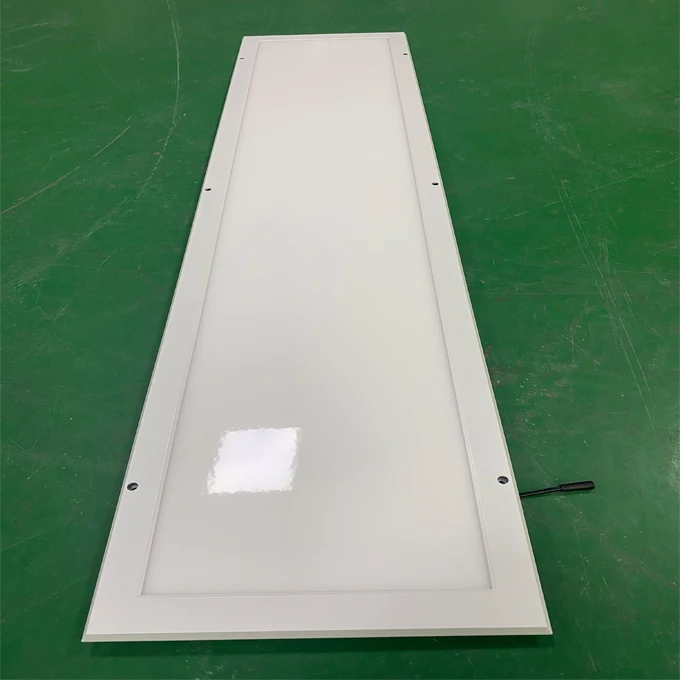

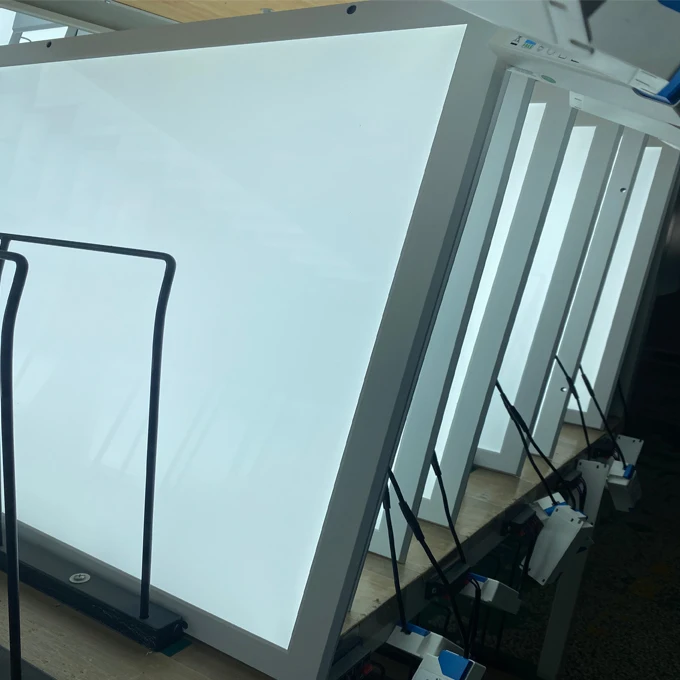

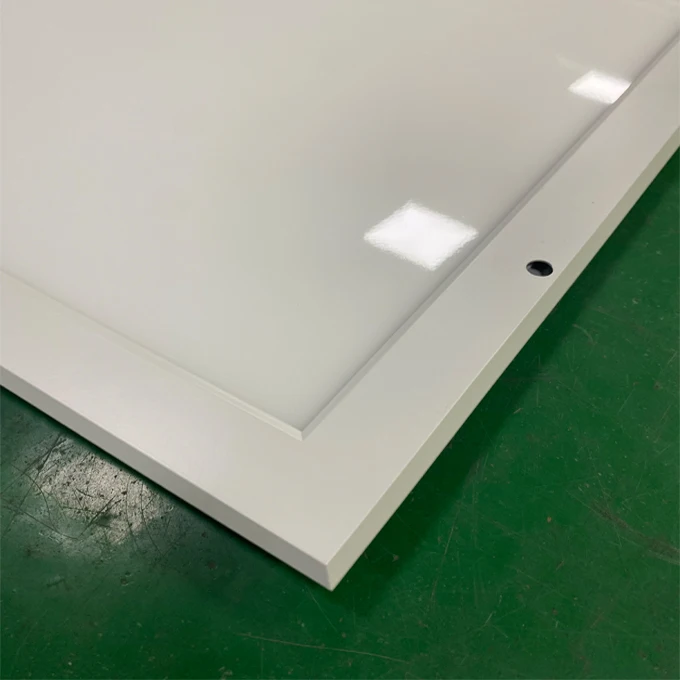

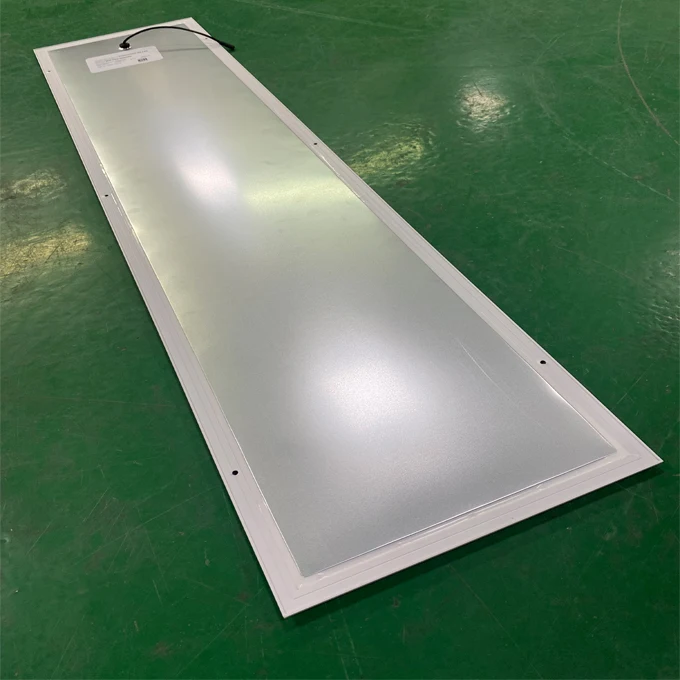

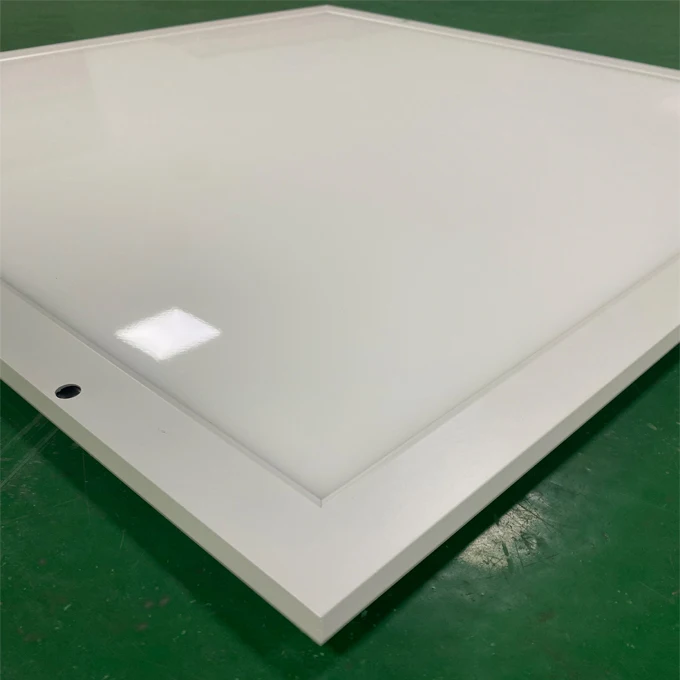

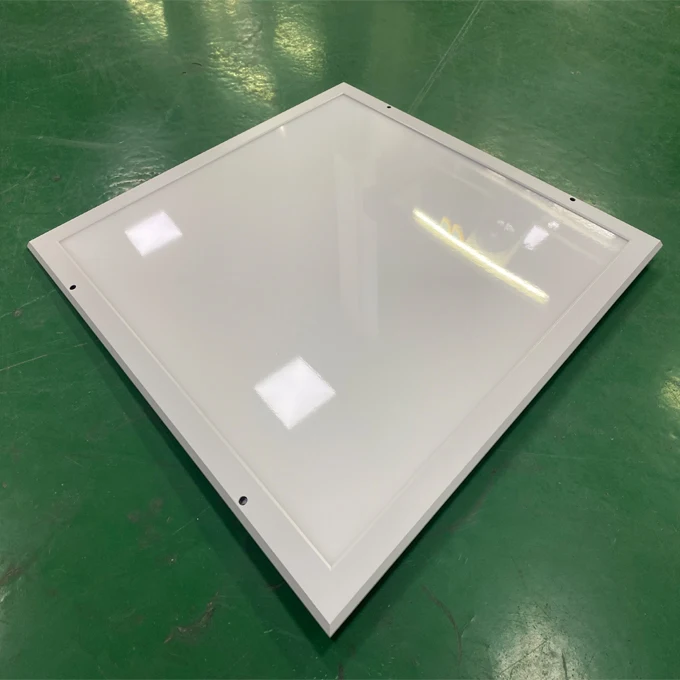

Details Images

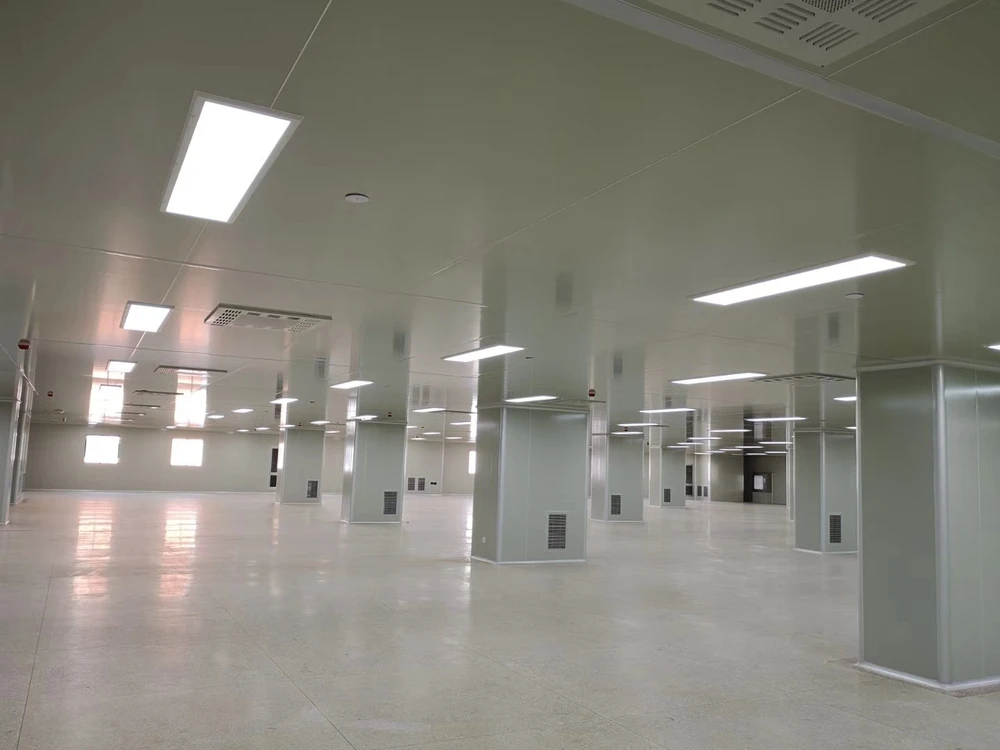

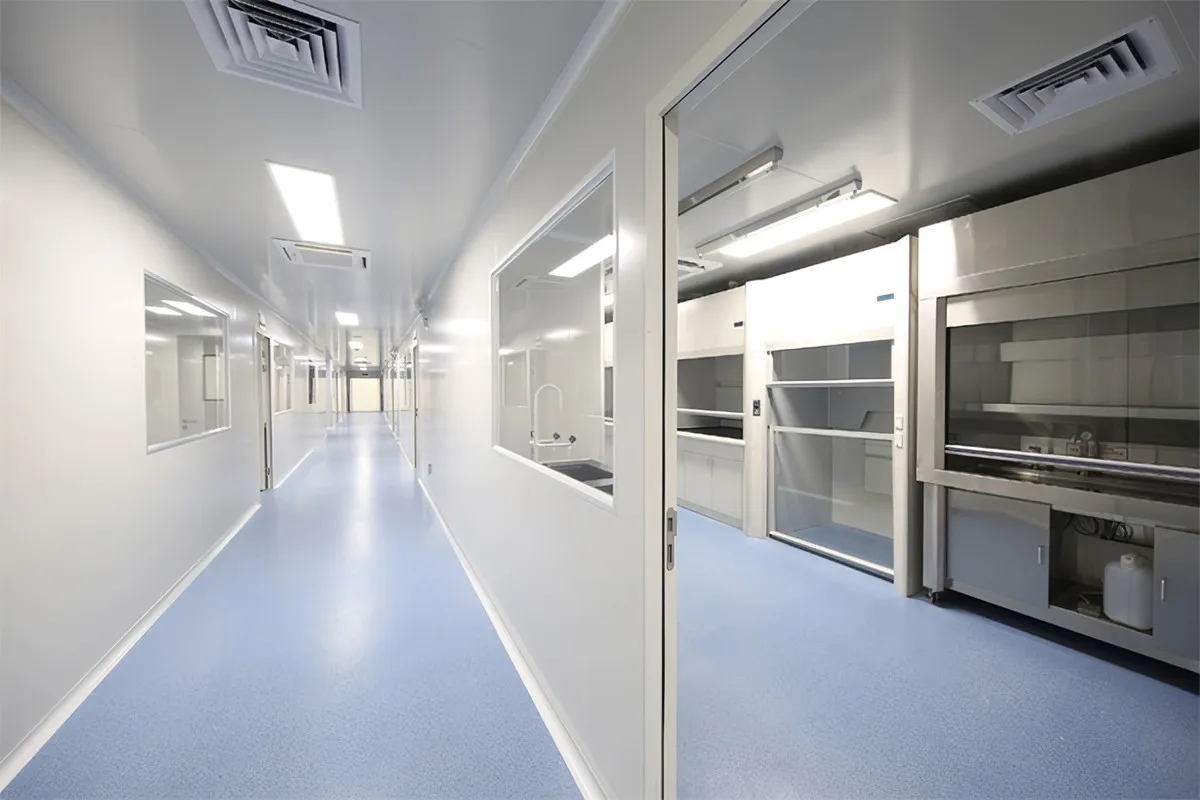

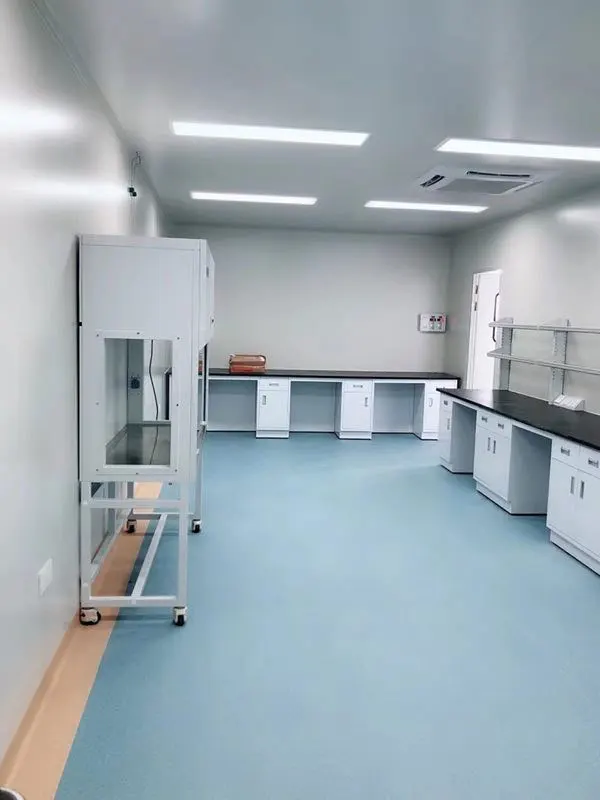

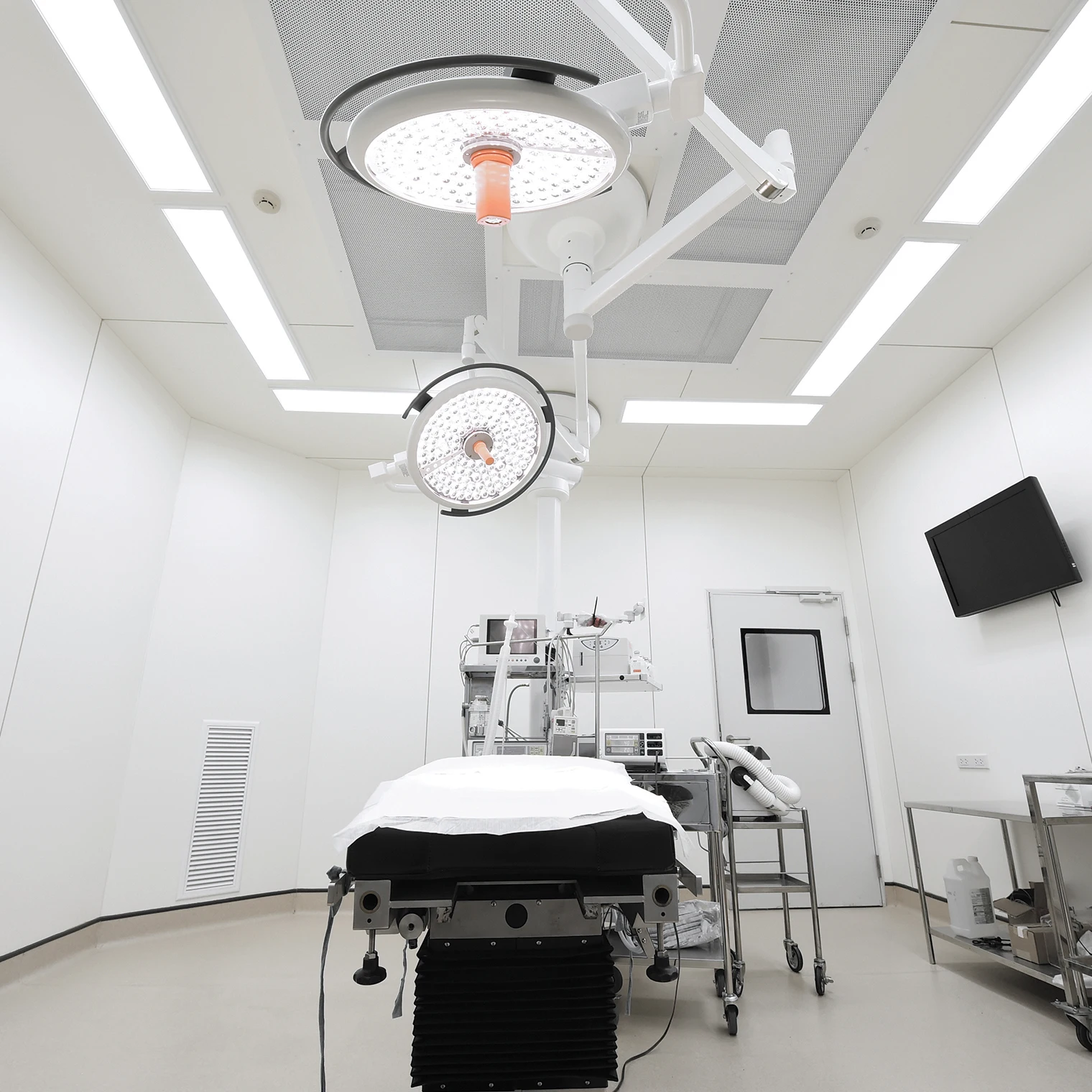

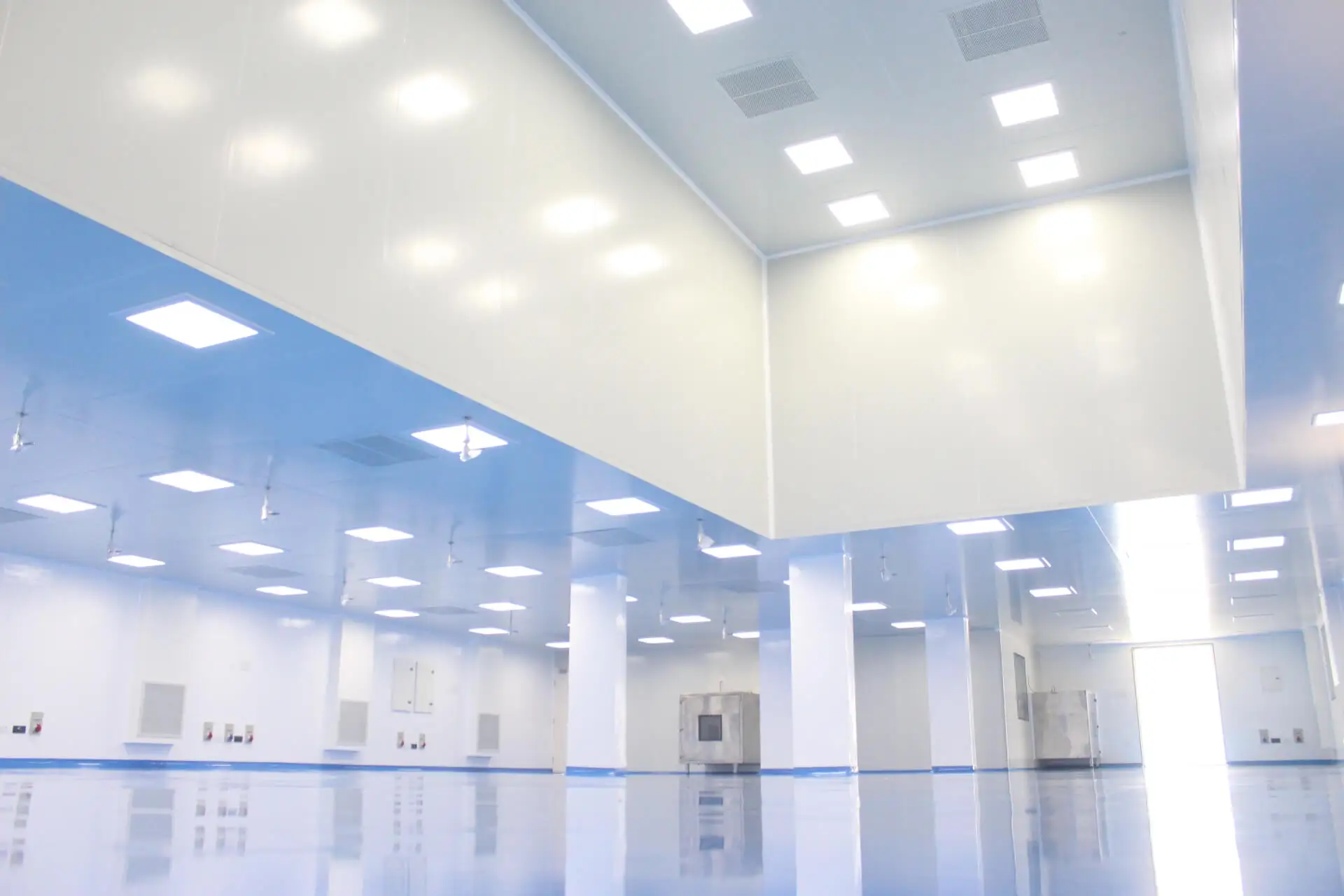

Application

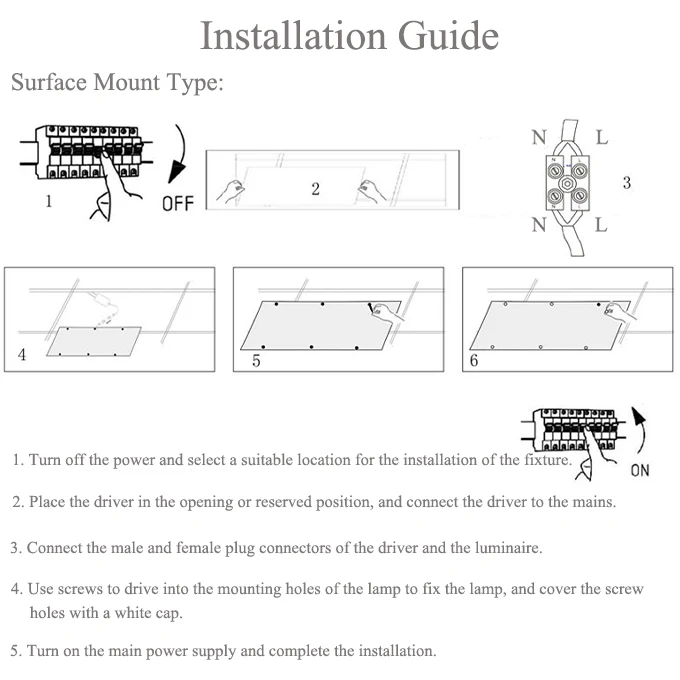

Product Installation
Product packaging
Company Profile
Suzhou Licco Lighting Co., Ltd, Located in Suzhou, China, is a professional lighting supplier of LED lighting and mainly dedicates to the research development of LED lighting. With professional industry knowledge and a willing research attitude, we ensure to provide the market with reliable, stable and cost-effective products as well as professional pre-sales and after-sales consulting services.
Licco mainly includes a series of lighting products, such as a variety of LED panel light(beam angle: Edgelit or Backlit), light fixtures in top openable and down openable, Triproof light, Downlight, Highbay Light and Flood Light etc. With the concept of innovation development, high quality, high efficiency and energy saving and focusing on the development and research of high-efficiency, smart and comfortable lighting, as well as a pollution-free and healthy lighting environment, Licco breaks the traditional concept to provides its products high efficiency, safe and friendly to environment and human beings.
Licco can offer lighting solution, such as lighting simulation by Dialux and figure out light quantities according to Lux request and offer suitable plan to industry lighting, OEM/ODM is available to Licco Lighting. We hope to collaborate with customers and kindred spirits to develop and create friendly and safe lighting products and environment in the world.
Licco mainly includes a series of lighting products, such as a variety of LED panel light(beam angle: Edgelit or Backlit), light fixtures in top openable and down openable, Triproof light, Downlight, Highbay Light and Flood Light etc. With the concept of innovation development, high quality, high efficiency and energy saving and focusing on the development and research of high-efficiency, smart and comfortable lighting, as well as a pollution-free and healthy lighting environment, Licco breaks the traditional concept to provides its products high efficiency, safe and friendly to environment and human beings.
Licco can offer lighting solution, such as lighting simulation by Dialux and figure out light quantities according to Lux request and offer suitable plan to industry lighting, OEM/ODM is available to Licco Lighting. We hope to collaborate with customers and kindred spirits to develop and create friendly and safe lighting products and environment in the world.
FAQ
Q1. Can we customize led lamp as our request?
A1.Yes, you can. We have completed production lines to provide complete services of lighting customization or simulation on Dialux according to project request. OEM&ODM services are also available to us.
Q2. What's your main products?
A2.Industrial Lighting of office led panel light, triproof light, highbay light, flood light and explosive-proof light.
Q3. What certificate do you have?
A3: EN CE EMC LVD RoHs certificates are available to us.
Q4. How do you insure the product quality?
A4: Experienced engineering team, professional quality inspection team and to provide 5 years warranty for each product and to improve products and create new products.
Q5. Is there cheap shipping cost to import to our country?
A5: Air Express or Railway transportation, Ocean shipment are available to small order and bulk order.
Q6. What about lead time?
A6: Sample needs 3-5 days, mass production time needs 25-30 days for order quantity( 500 sets at least)
Q7. Is it OK to print my logo on led light product?
A7: Yes. As long as you mail us formally an authorization letter to allow us to print your logo on our products before you confirm the samples.
Q8. How to deal with the faulty?
A8: During the guarantee period, we will take responsibility to our products if occurs any quality problems, except products
deformation and artificial damage and incorrect installation.
A1.Yes, you can. We have completed production lines to provide complete services of lighting customization or simulation on Dialux according to project request. OEM&ODM services are also available to us.
Q2. What's your main products?
A2.Industrial Lighting of office led panel light, triproof light, highbay light, flood light and explosive-proof light.
Q3. What certificate do you have?
A3: EN CE EMC LVD RoHs certificates are available to us.
Q4. How do you insure the product quality?
A4: Experienced engineering team, professional quality inspection team and to provide 5 years warranty for each product and to improve products and create new products.
Q5. Is there cheap shipping cost to import to our country?
A5: Air Express or Railway transportation, Ocean shipment are available to small order and bulk order.
Q6. What about lead time?
A6: Sample needs 3-5 days, mass production time needs 25-30 days for order quantity( 500 sets at least)
Q7. Is it OK to print my logo on led light product?
A7: Yes. As long as you mail us formally an authorization letter to allow us to print your logo on our products before you confirm the samples.
Q8. How to deal with the faulty?
A8: During the guarantee period, we will take responsibility to our products if occurs any quality problems, except products
deformation and artificial damage and incorrect installation.
