Many Kinds Tractor Agriculture Machinery 100 HP Tractor auto steering system agriculture tractor gps
- Category: >>>
- Supplier: Jiangsu Jitian International Trade Co. Ltd.
Share on (1601207458930):
Product Overview
Description
Products Description
Details Images

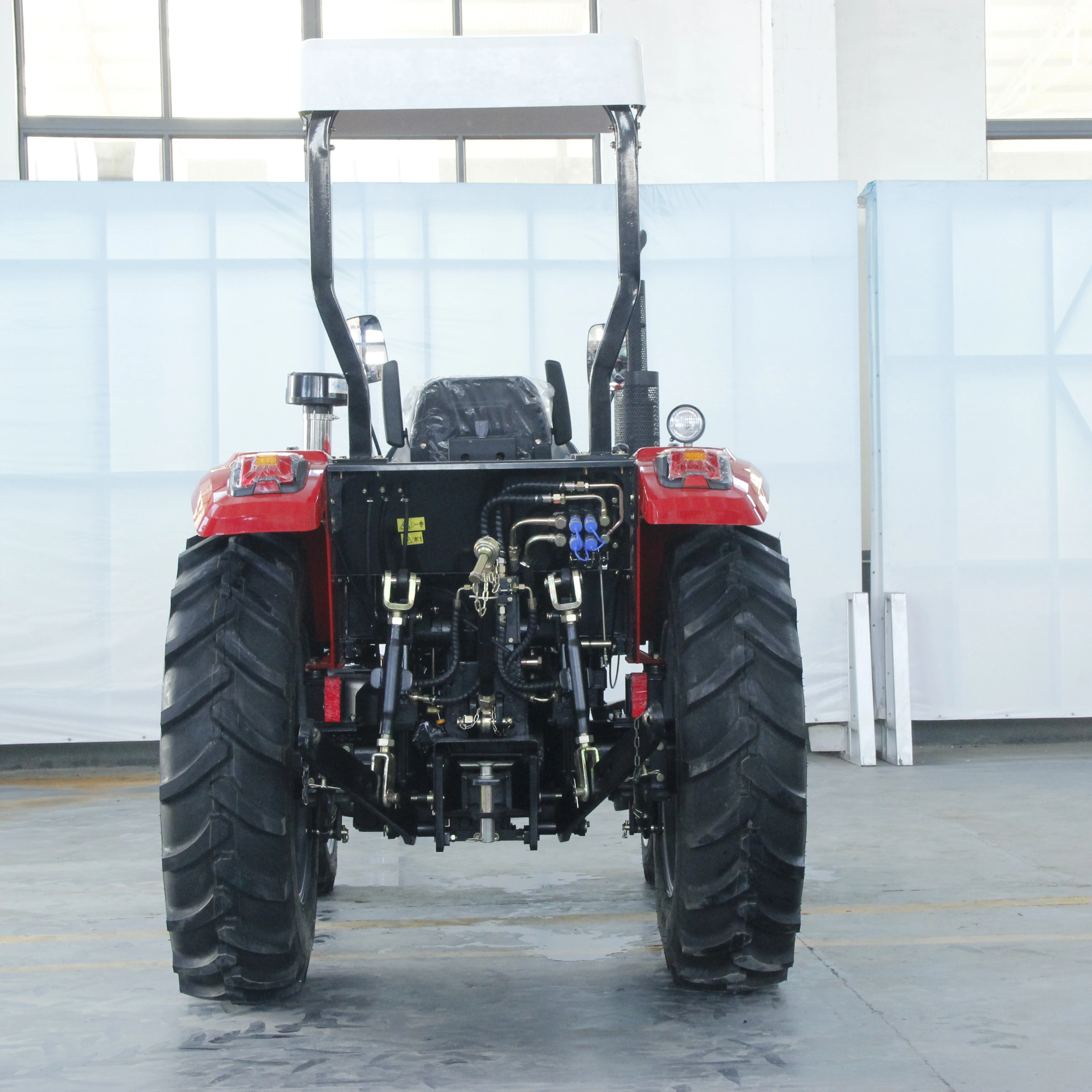

Rear suspension system
The rear is equipped with three-point suspension. There are two groups of hydraulic outputs in total, and one group can also be selected. The hydraulic system of strong lift and strong drop can accurately control the position control and floating
control.
control.
Engine
The three- or four-cylinder engine in Yunnei is used, and the speed can reach 2400 rpm.
Seat
The seats are comfortable, the necessary seat belts, safety first, the indoor space is sufficient, and the ventilation system is perfect.
Gear
4WD, TB12F+12R Gear box, ROP, forced hydrualic,2 group hyduralic valve
Manufacturing Technique
Model | Unit | TT504 | TT604 | TT704 | TT804 | TT904 | TT1004 | TT1004-D | |||||||
Dimensions of tractor | Type | / | Drive type (4x4) | ||||||||||||
Power | kW | 36.8 | 44.1 | 51.5 | 58.8 | 66.2 | 74 | 74 | |||||||
Dimension(L x w x H) | mm | 3945x1860x2730 | |||||||||||||
Wheel base | mm | 2050 | 2110 | ||||||||||||
Min.ground clearance | mm | 360 | |||||||||||||
Weight | kg | SaftyROP) 3000(Cabin) | 2900 (Safty ROP) 3050 (Safty ROP) | 3250 (Safty ROP) | |||||||||||
Tread | mm | 1400(1300-160( Front tread: 1400( 1200'160 Rear tread: 1620( 1200-160 | adjustable | ||||||||||||
Power | Cluth | / | Dry-type,double-acting | ||||||||||||
Engine | / | YUNNEI4 Cylinder | |||||||||||||
Rated speed | r/min | 2400 | 2300 | 2300 | 2400 | 2300 | 2400 | 2400 | |||||||
Working part | Gear | / | 12F+12R | ||||||||||||
PTO Type | / | 8 Pin、①38、I lype(Option: 6 Pin) | |||||||||||||
PTO Rated power | kW | >31.3 | m37.5 | >43.8 | &50.2 | >56.3 | m63 | >63 | |||||||
PTO Speed | r/min | 540/720、540/1000 | |||||||||||||
Hydrualic system | Three point linkage | / | Rear,three-point suspension,cat 2 | ||||||||||||
Hydrualic output | / | 2-Way valve | |||||||||||||
Hydrualic adjustment type | / | Forced hydrualic system,position control,floating control | |||||||||||||
Max.lifting force at frame center | kN | N8.9 | 3>10.6 | 2-12.4 | N14.3 | >15.9 | N20.2 | 320.2 | |||||||
Tyre | Tyre (Front/Tear) | / | 8.3-24/14.9-30 | ||||||||||||
Optional tyre (1) | / | 9.5-24/16.9-30 | |||||||||||||
Optional tyre (II) | 9.5-20/11-32 | ||||||||||||||
Optional tyre (II) | / | 8.3-20/12.4-28 | |||||||||||||
Other options | CABIN | / | Fan cabin , Warm cabin, Air cabin | ||||||||||||
Outer Parts | / | Sunroof, Safty ROP | |||||||||||||
Product packaging
Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees. At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute ofTechnology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.
Certifications
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(30.00%),Eastern Asia(15.00%),NorthAmerica(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
3.What can you buy from us?
Tractor,Generator Set,Diesel Engine,Feed Machinery,Reel Irrigation
4. Why should you buy from us not from other suppliers?
Member of China Agricultural Machinery Circulation Association, Member of Jiangsu Agricultural Machinery Circulation Association,
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
