Organic fertilizer compost machine animal manure disc granules making machine
- Category: >>>
- Supplier: Zhengzhou Huaqiang Heavy Industry Technology Co. Ltd
Share on (1601207459101):
Product Overview
Description
Fertilizer pan granulator machine
Fertilizer disc granulator machine
Fertilizer granulation equipment

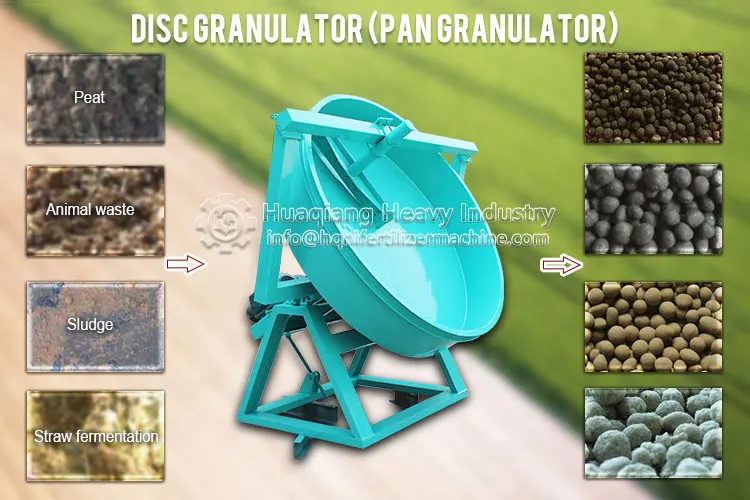

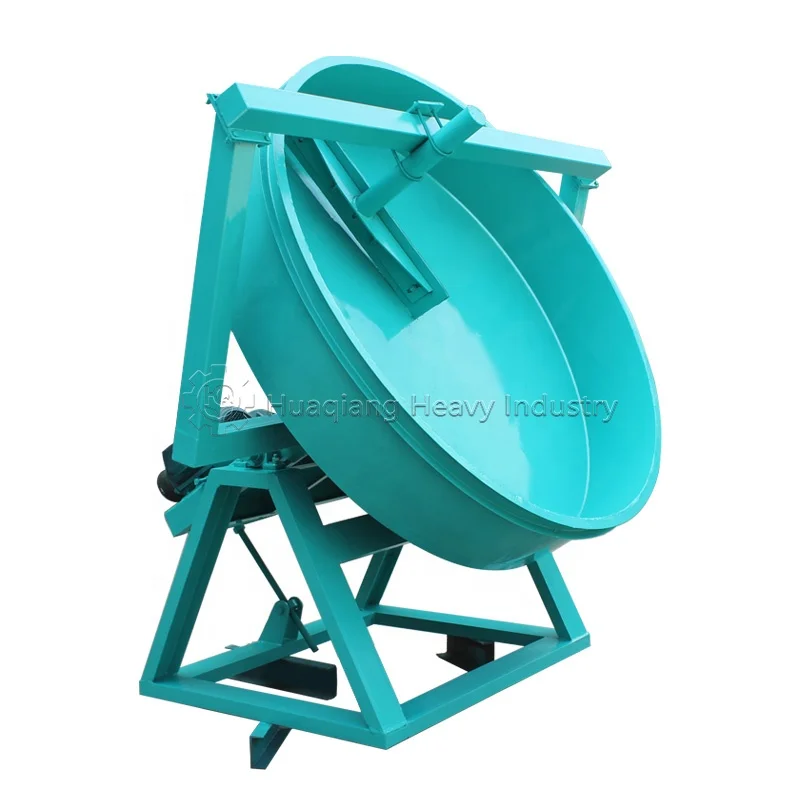

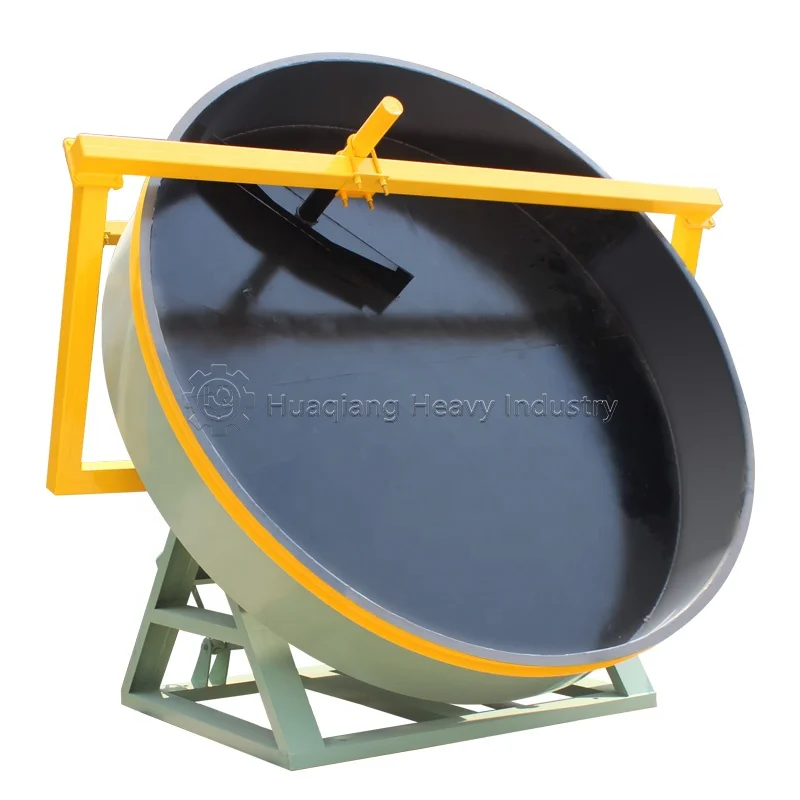

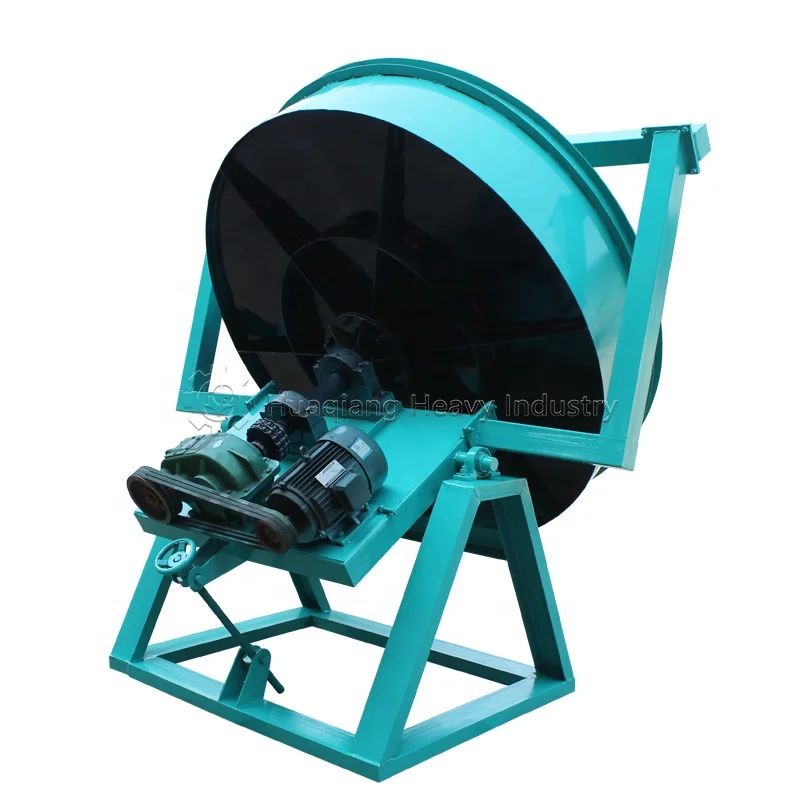

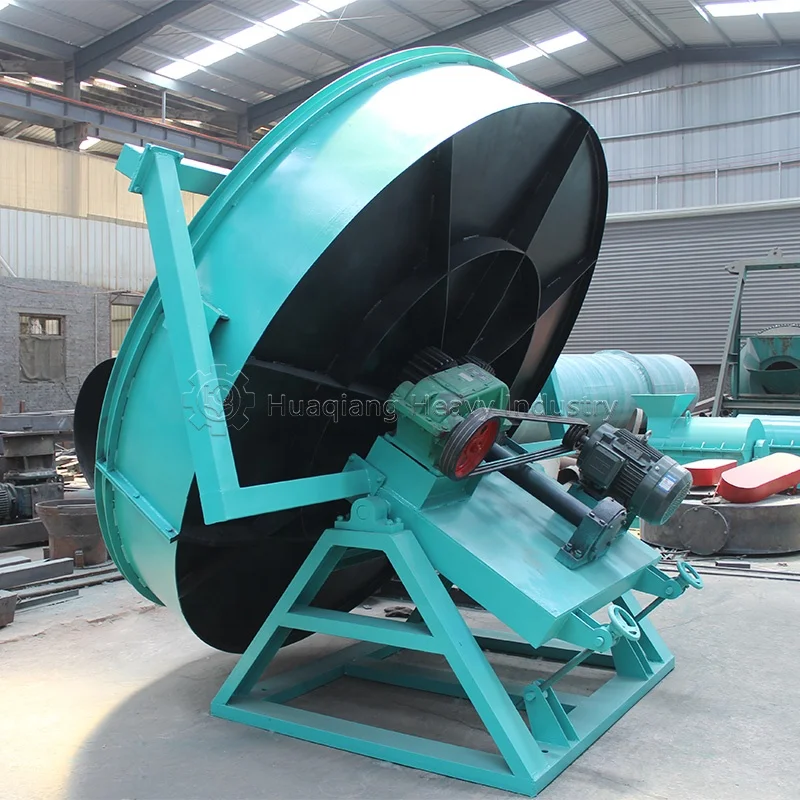

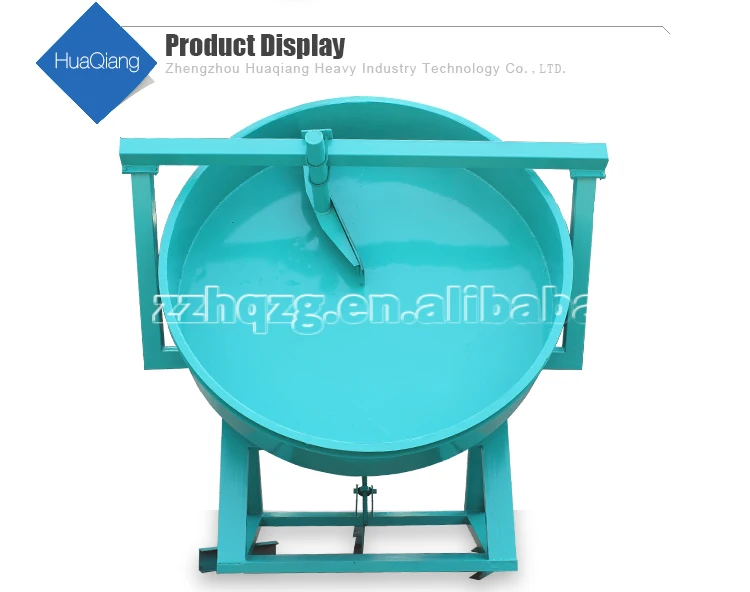

Introduction of organic fertilizer compost machine animal manure disc granules making machine
This disc granules making machine is a new type of tilting disc granules making equipment, its granulation rate can reach more than 95%. The main gear of granulator is using high frequency quenching, so that its working life is doubled. The disc of the machine has a circular arc structure, which is lined with high strength glass steel, and the bottom of the disc is strengthened by a number of radiated steel plates. It is durable and never deformed. The thickened, heavier and stronger base does not need to be fixed with anchor bolts, and operates smoothly. The reducer and motor are driven by flexible belt, starting smoothly, slowing down the impact force and improving the operation life of the equipment.
Working principle of organic fertilizer compost machine animal manure disc granules making machine

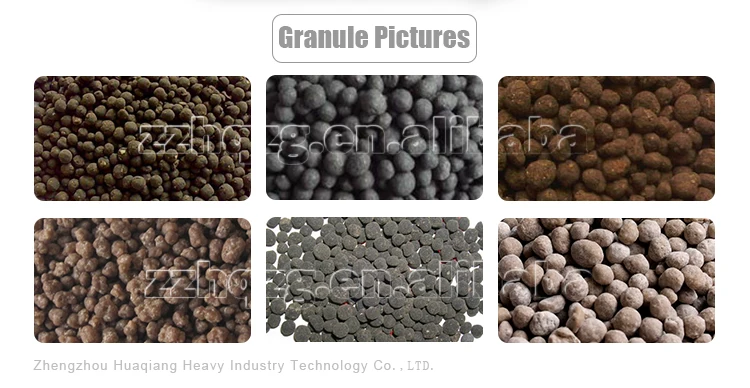

The main motor of disc granules making machine drives the pulley and the belt to drive the pinion through the reducer, and the pinion is mutually engaged with the large gear fixed on the bottom of the disc, and works in opposite directions. The big gear are specially designed to fit on the spindle mounted on the rack adjustment disc to support the work of the entire granulator (used in conjunction with the sprayer). After entering the granulation tray, the material is continuously rotated and sprayed by the granulation plate to make the material stick together to form spherical pellets. We have designed an automatic cleaning device in the upper part of the pilling disc to prevent the material sticking to the wall, thus greatly improve the service life of the disc granulator. With the continuous rotation of motor and continuous entry of materials, mass production is can be achieved.
Specifications of organic fertilizer compost machine animal manure disc granules making machine
Model | Inner diameter (mm) | Side height (mm) | Volume(m3) | Rotation speed (r/min) | Motor power(KW) | Production Capacity (T/h) |
ZL08 | 800 | 200 | 0.25 | 25 | 1.5 | 0.1-0.2 |
ZL10 | 1000 | 220 | 0.4 | 21 | 2.2 | 0.3-0.5 |
ZL15 | 1500 | 300 | 1.1 | 17 | 5.5 | 0.5-0.8 |
ZL25 | 2500 | 500 | 2.5 | 13.6 | 7.5 | 1-1.5 |
ZL28 | 2800 | 550 | 3.7 | 13.6 | 11 | 1-2.5 |
ZL30 | 3000 | 550 | 4.2 | 11 | 11 | 2-3 |
ZL32 | 3200 | 600 | 4.8 | 10 | 11 | 2-3.5 |
ZL36 | 3600 | 600 | 6.1 | 10 | 15 | 3-5 |
Pre-sale Service
1.As the professional fertilizer machine manufacturer,we are not only design the fertilizer equipment,we also design the complete fertilizer production line for different customers' production requirements.We can supply the suitable fertilizer machines for you.
2.We have professional engineers and we can supply the comprehensive technical severices;
3.For designing and choosing the best suitable fertilizer machine for different production line and customers' producing requirement.
After-sales Services
1.Supply professional fertilizer packing service and fast delivery of the disc granulator machine.
2.Supply the professional technical construction for customers.
3.Dispatching professional engineers to install and test the equipment.
4.24 hours online servrice for you.
Our Advantages
1.Main products: Pan granulator, mixer machine, compost turning machine,belt conveyor,dewatering machine,crusher machine,packaging machine etc.
2.Designated production enterprise by Agriculture Department.
3.We account for 80% market shares in compound and organic fertilizer machine manufacturing filed in China.
4.Professional research and development team.
5.Strict quality control system.
6.We provide competitive price, reliable quality products and swift delivery.
7.Exported to more than 30 countries in Africa, South America, Middle East, Central America and other areas, such as Malaysia, Indonesia, Australia etc.
Packing Service
1.Large quantity of fertilizer disc granulator machine is shipped in containers.
2.Spare parts are packed in wooden case.
3.If you have any special requirement, we will pack as request.
FAQ
1.Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines and related machines,such as fertilizer pan granulator,crusher, mixer, packing machine,compost turning machine and conveyor belt etc.
2.How about the delivery time?
It can be shipped immediately for the machines in stock,and 5-7days for the machines out of stock.
3.How long is the guarantee period?
Warranty for 12 months without artificial and deliberate damage.
4.What should you do if meet some troubles while using?
The English manual book and video will be provided for showing how to solve the problems, if necessary, the engineer will be dispatched to your factory.
5. Do you provide installation service after ordering your machines?
As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing,and arrange the engineer to guide the user install the machines and help to train the workers.
6.Can we visit your factory for machine testing?
We warmly welcome the clients to visit our factory for testing machines.
7.Can we visit some fertilizer plants with your machines?
We can take the customers to the fertilizer plants with our equipment.
