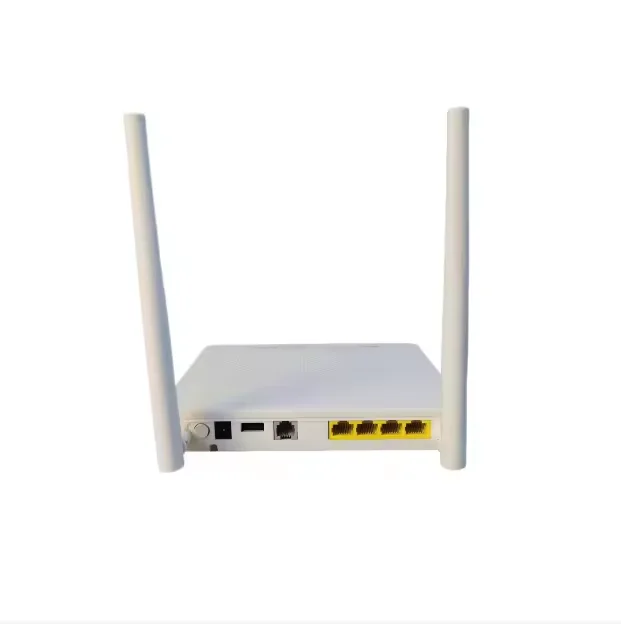

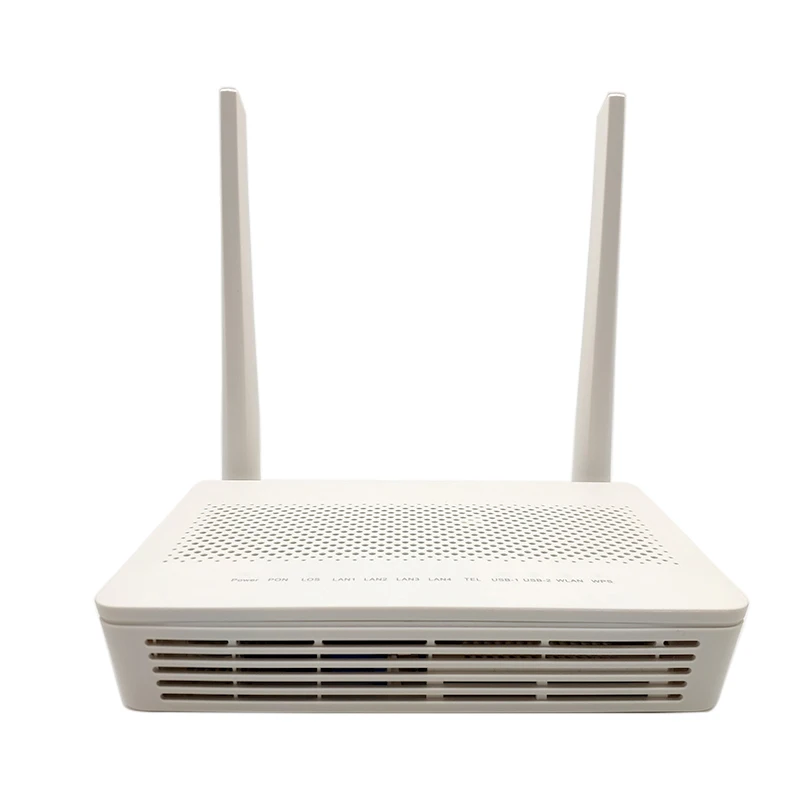

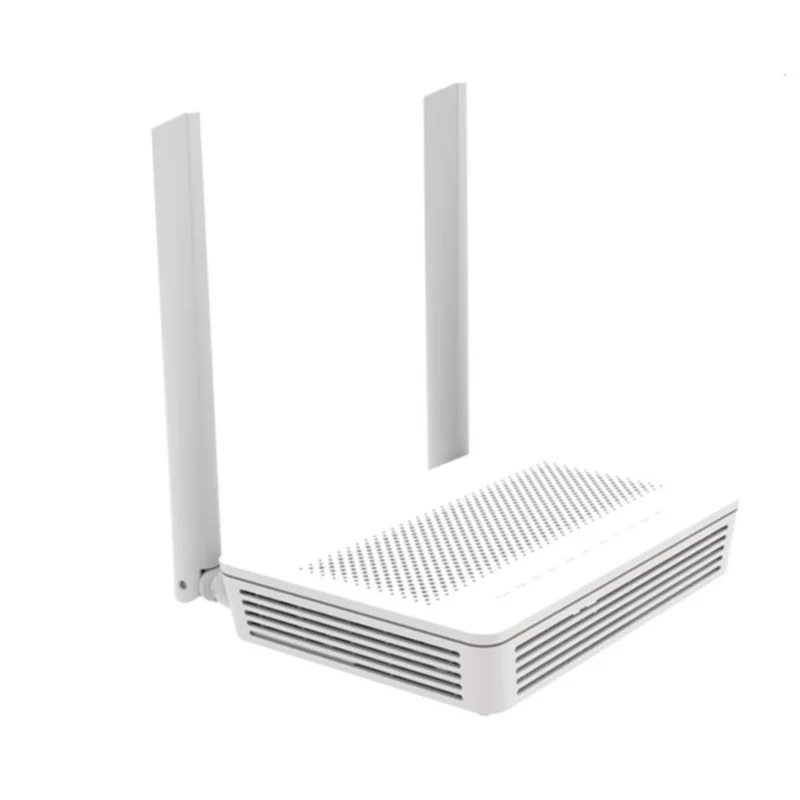

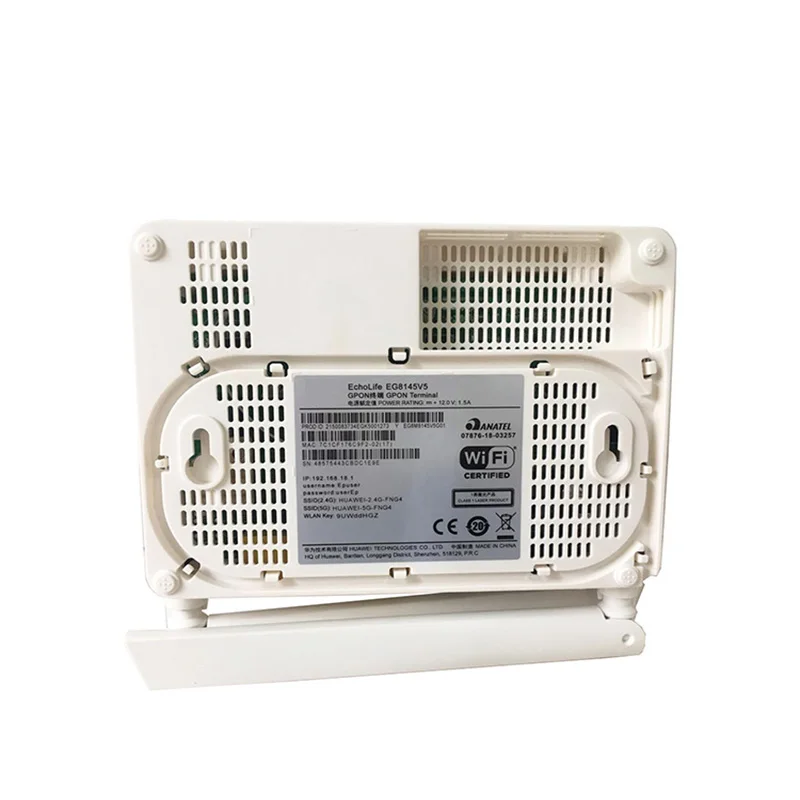

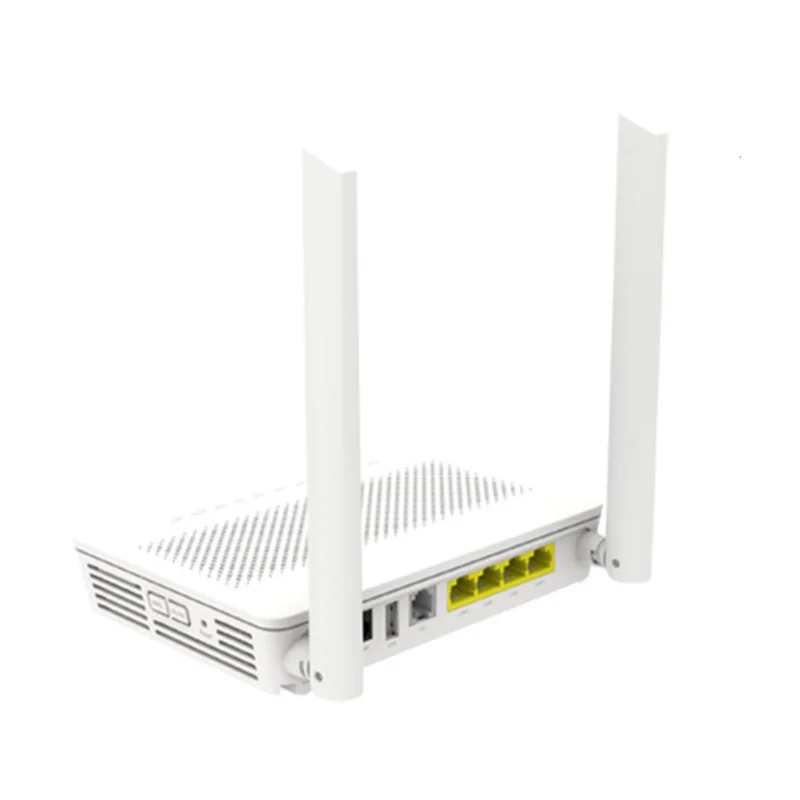

EG8145v5/EG8546V5 GPON ONU 4GE USB TEL 2.4G&5G dual band WIFI Epon ONT dual band Router Compatible with Hua wei OLT
- Category: >>>
- Supplier: Henan DK Fiber Communication Co. Ltd.
Share on (1601207461527):
Product Overview
Description
ONU EG8145V5
Products Description
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems,please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much！！
Features
1,GPON features
①.Class B+ optical module
②.authentication mode: SN,password or SN+password
③.Upstream/downstream FEC
④.GEM port mapping mode: VLAN,802.1p, VLAN+ 802.1p, IPToS,physical port
2, Multicast features
①.IGMP V2&V3 snooping
3, Ethernet features
①.VLAN filtering and VLAN transparent transmission
②.VLAN N:1 aggregation and VLAN 1:1 translation
4,Maintenance features
①.Local management using Web and remote management using OMCI
②.Optical power monitoring
③.802.1ag Ethernet OAM
5,Reliability features
①.Dual systems for software Protection
②.Type B protection and rogue ONT detection
6,Green engery-saving features
①.Dynamic power consumpt ion adjustment
①.Class B+ optical module
②.authentication mode: SN,password or SN+password
③.Upstream/downstream FEC
④.GEM port mapping mode: VLAN,802.1p, VLAN+ 802.1p, IPToS,physical port
2, Multicast features
①.IGMP V2&V3 snooping
3, Ethernet features
①.VLAN filtering and VLAN transparent transmission
②.VLAN N:1 aggregation and VLAN 1:1 translation
4,Maintenance features
①.Local management using Web and remote management using OMCI
②.Optical power monitoring
③.802.1ag Ethernet OAM
5,Reliability features
①.Dual systems for software Protection
②.Type B protection and rogue ONT detection
6,Green engery-saving features
①.Dynamic power consumpt ion adjustment
Item | Gpon ONU Dual Band |
Place of Origin | China |
WiFi standard | 2.4GHz: 2 x 2 MIMO 802.11b/g/n 5GHz: 2 x 2 MIMO 802.11a/n/ac |
Weight | 230g |
Model Number | EG8145V5 |
Dimensions(Width×Depth×Height) | 30mm x 173mm x 120mm |
Power supply | Power supply: 11–14V DC, 1.5A Input power: 100–240V AC, 50/60Hz |
Use | FTTH, FTTX |
Product name | ONU Gpon Dual Band EG8145V5 |
NNI | Gpon |
UNI | 4GE+1POTS+1USB+2.4G/5G WIFI |
Connector type | SCUPC |
Power adapter | EU,US,UK,AU |
Condition | 100% Original Brand |
Antenna Gain | 5dbi |
Warranty | 1 Year |
Compatible OLT | series |
EchoLife EG8145V5 is an intelligent routing optical network terminal (ONT) in FTTH solution. By using GPON technology, it provides
ultra-broadband access for home users. EG8145V5 supports 802.11ac dual-band and has high-performance forwarding functions to
ensure an excellent experience of voice, Internet and high-definition video services. These features make EG8145V5 an ideal choice
for broadband access.
ultra-broadband access for home users. EG8145V5 supports 802.11ac dual-band and has high-performance forwarding functions to
ensure an excellent experience of voice, Internet and high-definition video services. These features make EG8145V5 an ideal choice
for broadband access.
