Product Overview

Description

Model	YGX-D302
Type	Shear beam load cell
Material	Alloy steel / Stainless steel
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,China
Payment	T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



500kg 1 ton 2 ton 3ton 5 ton 7.5 ton 10 ton 15 ton 20 ton 25 ton Beam type load cell weight sensor force transducer loadcell for filling machinery industrial floor scales tank and silo weighing





Features and Applications

The sensor elastic body was shear or bending of cantilever beam structure, one end fixed, one end bearing, shape of low height, high strength structure, it can be used for a variety of tensile and compressive force bearing and the measurement. It has: dustproof sealing, wide capacity, high precision, stable and reliable performance,it is convenient to install and use.

Apply to electronic scale, weighing apparatus etc. ,such as weighing the various measuring, weighing industrial automation measurement and control system.



Capacity:     0.5~25T



Specifications:

Rated output	2.0±0.05mV/V
Non-linearity	≤±0.03%F·S
Hysteresis	≤±0.03%F·S
Repeatability	≤±0.02%F·S
Creep(30min)	≤±0.03%F·S
Zero balance	≤±1%F·S
Temperature effect on zero	≤±0.03%F·S/10℃
Temperature effect on output	≤±0.03%F·S/10℃
Operation temperature range	-20℃~+80℃
Input impedance	350±20Ω
Output impedance	350±5Ω
Safe overload	≤150%F·S
Insulation	≥5000MΩ(50VDC)
Recommended excitation	10V-15V
Protection Class	IP67
Wiring	Red: + Excitation   Black: - Excitation Green: + Signal    White: - Signal

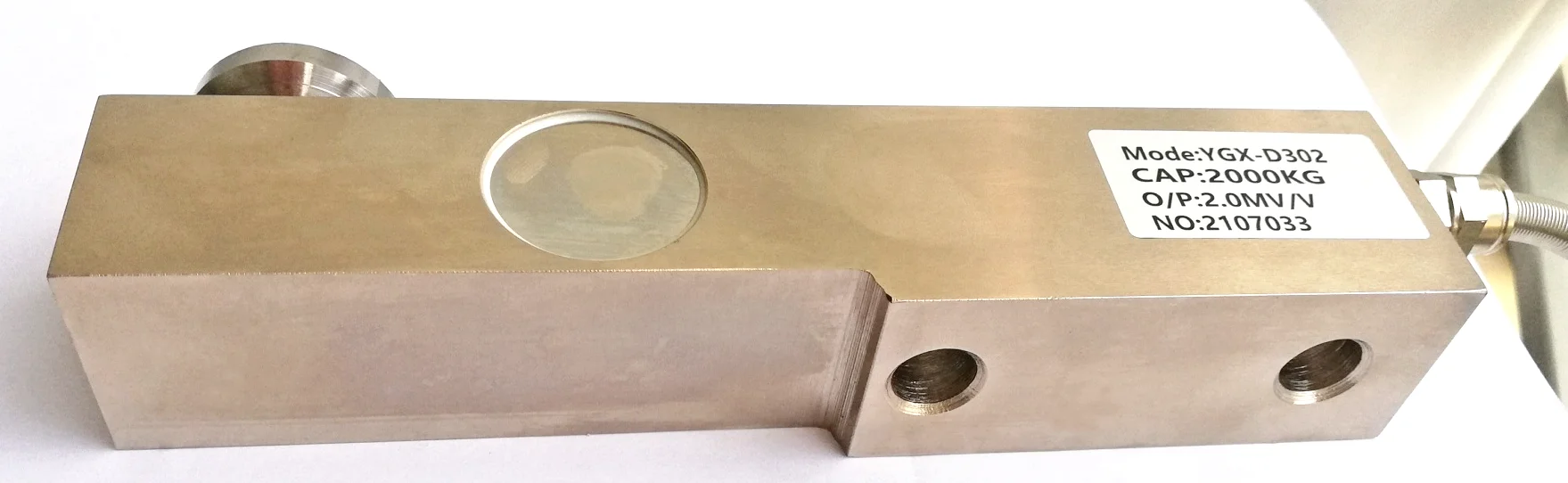

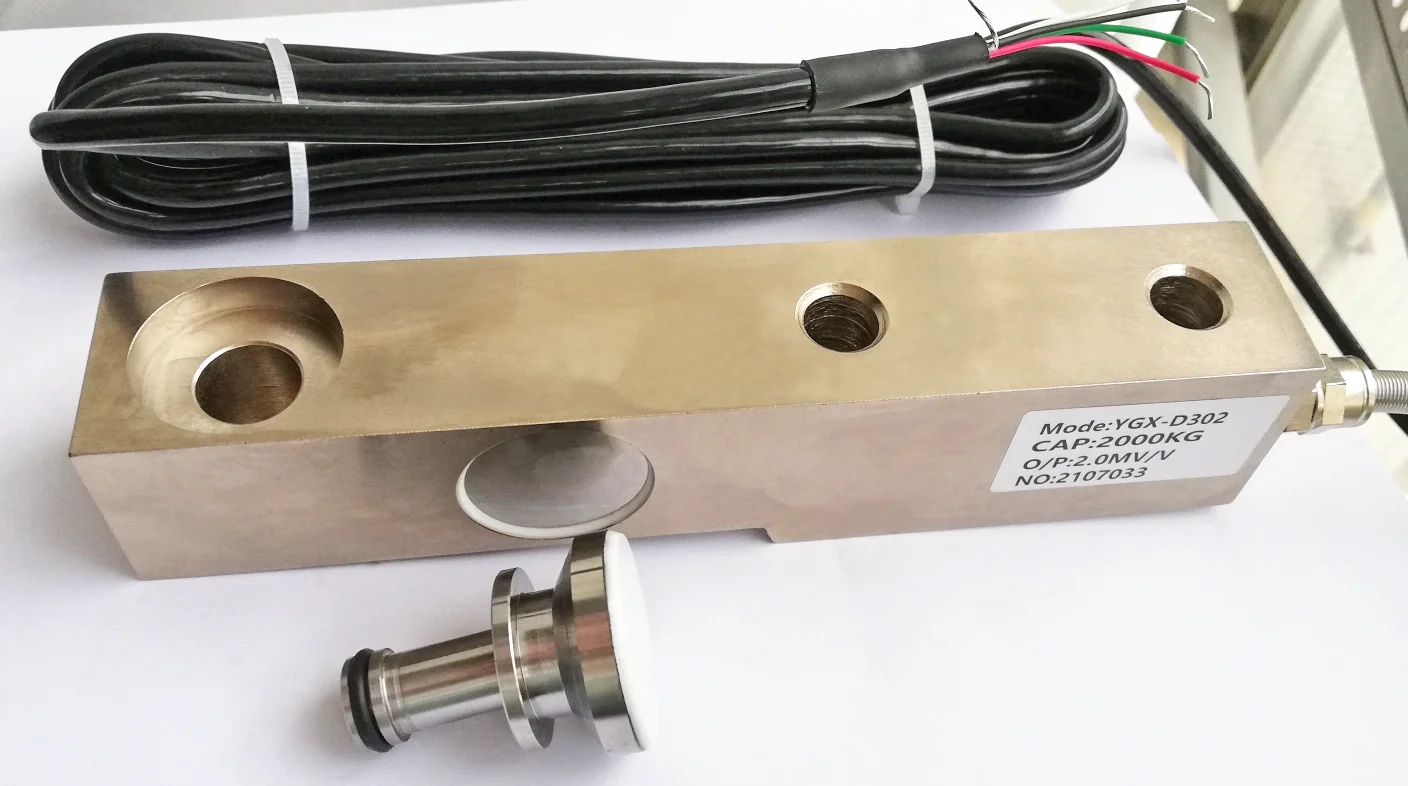

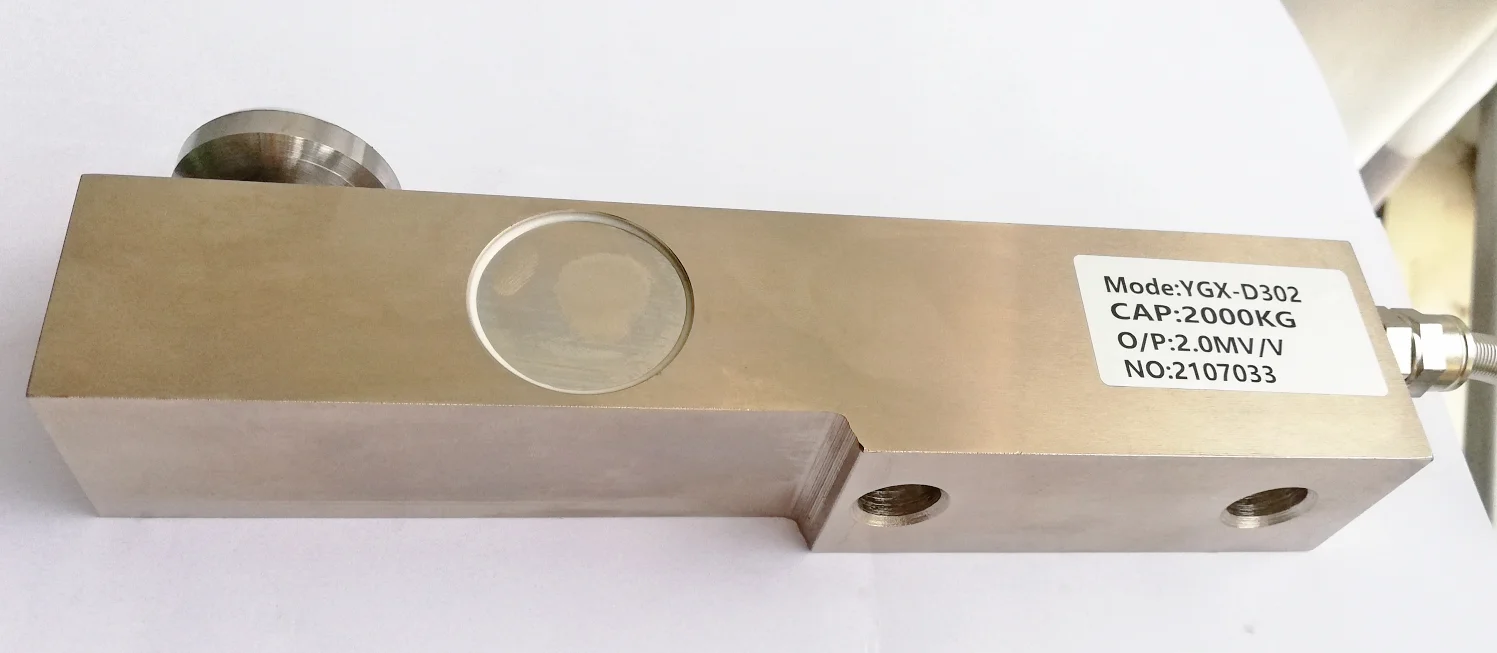

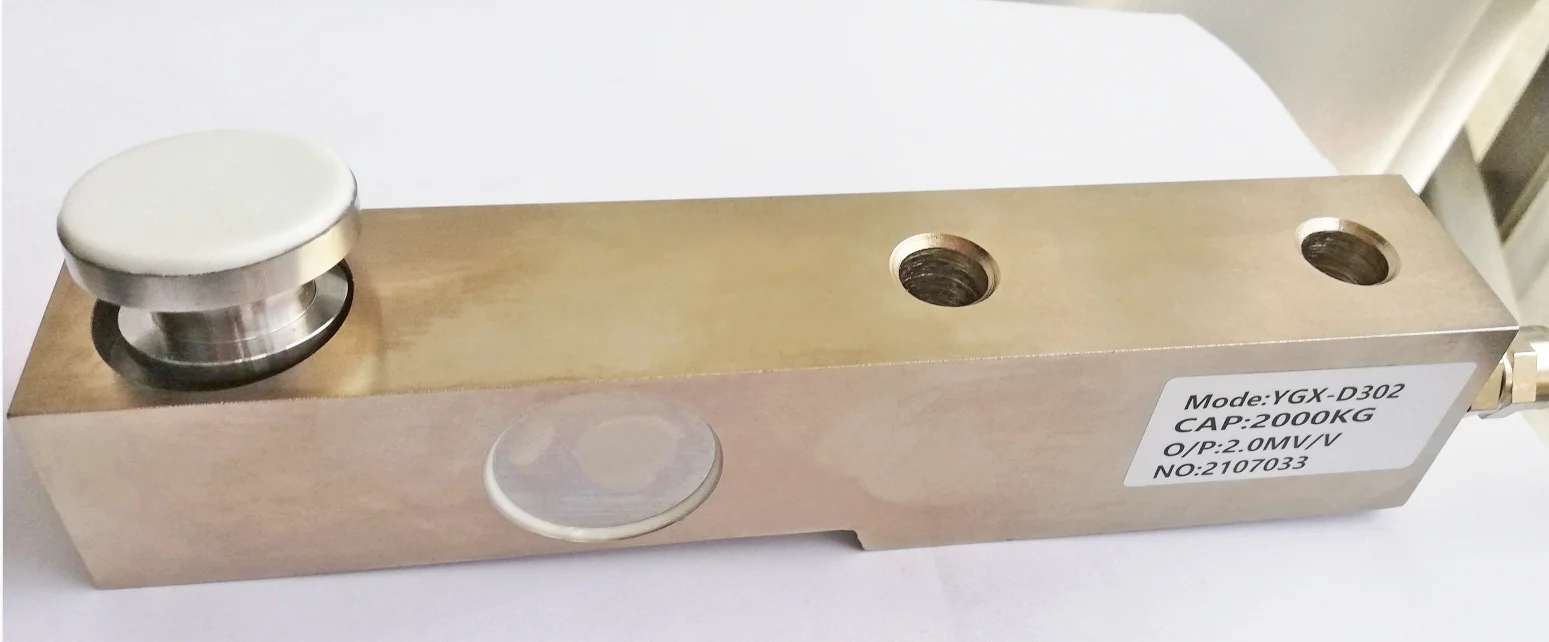

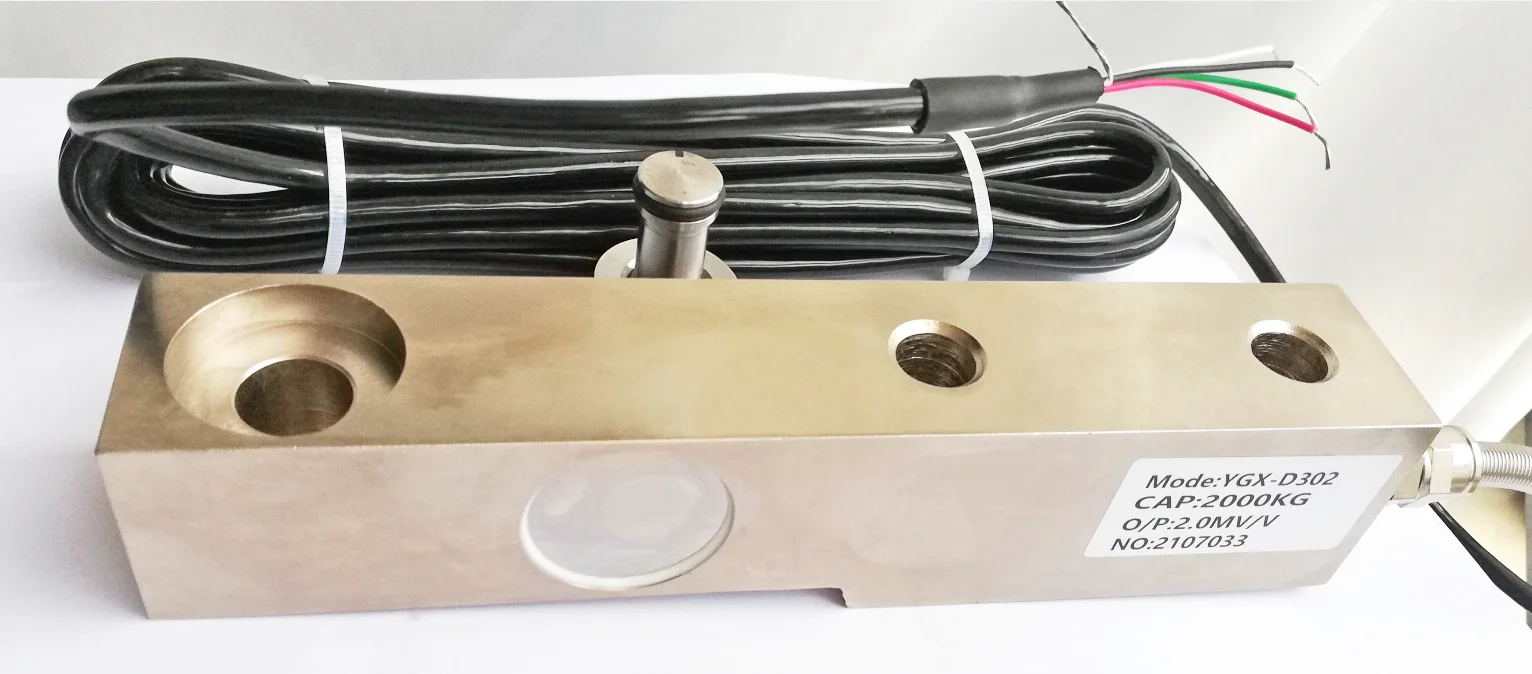

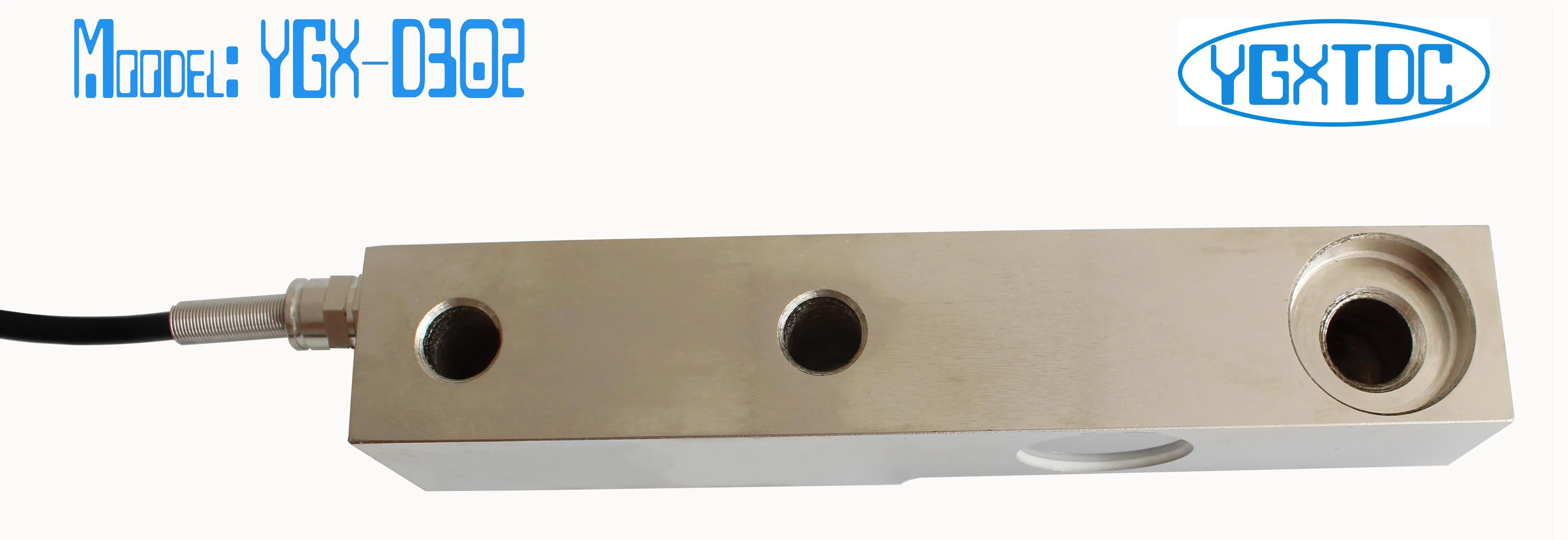

YGX-D302    Product picture

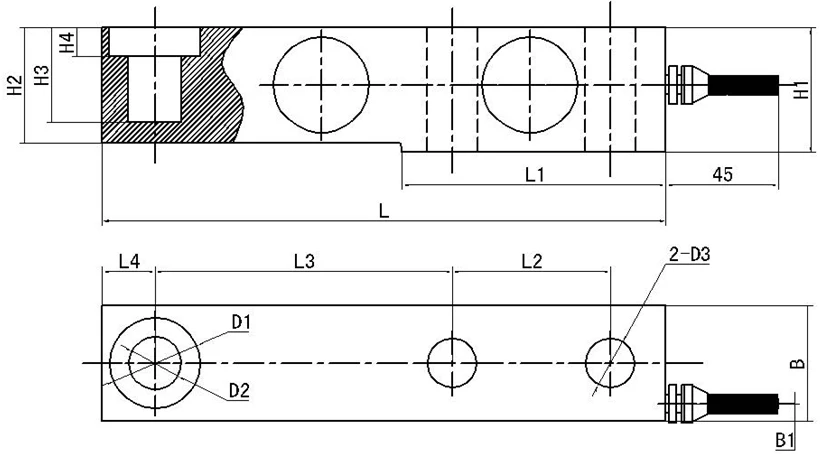

Diamensions:





Capacity	L	L1	L2	L3	L4	H1	H2/B	B1	H3	H4	D1	D2	D3
0.5,1,2,3T	203	95	64	98	22	43	36.6	7	30.5	8	φ32	φ16	φ13
5, 7.5T	235	110	66	124	22	52	48	7	30	12	φ38	φ22	φ21
10T	279	133	82	140	32	67	60	8.5	20	8.5	φ48	φ32	φ28
15,20,25T	318	153	89	159	38	82.5	70	9.5	24	9.5	φ54	φ38	φ34





Custom made is available.

We can produce the products according your requirements.
