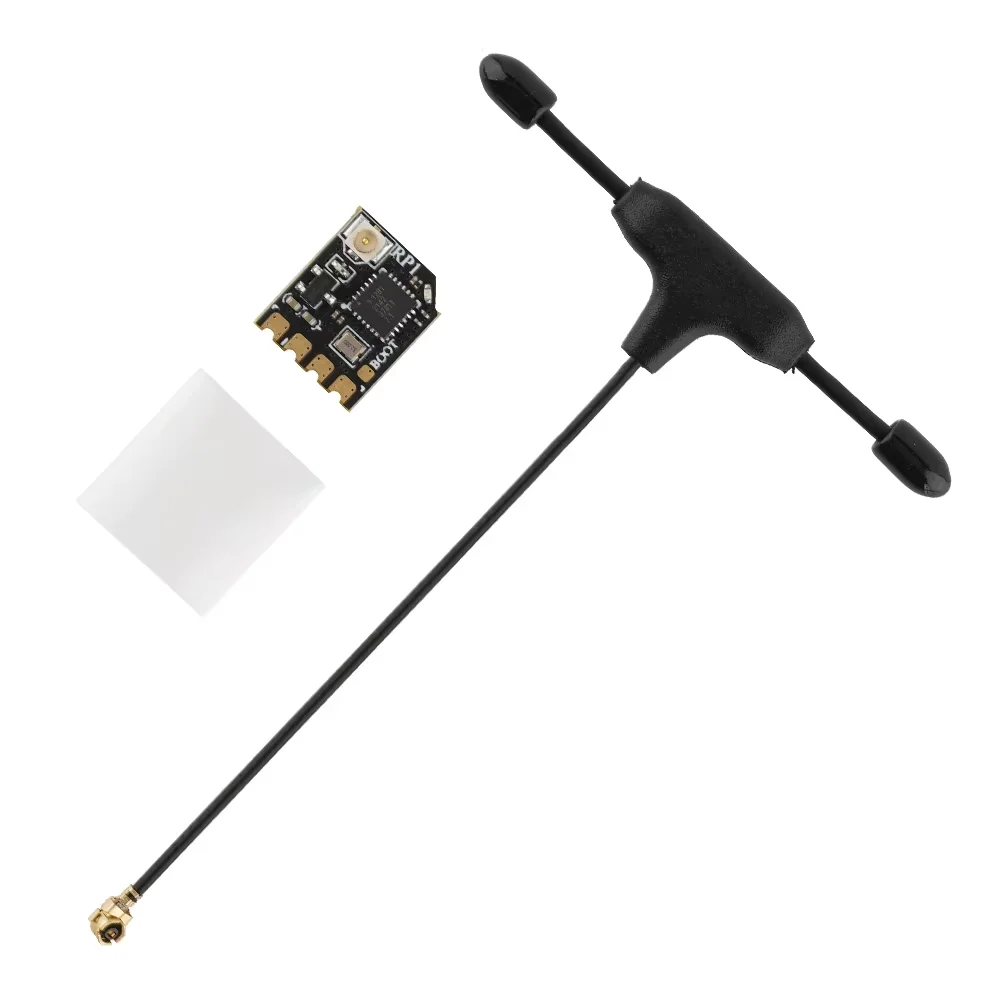

RadioMaster RP1 RP2 2.4ghz ExpressLRS ELRS Nano Receiver For TX16S TX12 ZORRO ELRS RC Radio Transmitter
- Category: >>>
- Supplier: Shenzhen Zhoukong Technology Co. Ltd.
Share on (1601207607404):
Product Overview
Description
Product Description
The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz
Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.
Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.
Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.
Tiny in size yet big on features and range the RP series of receivers have you covered.
What's new on the RP2 Improved PCB design is better for heat dissipation. Solder pads are improved and easier to solder to. LED on top side of PCB.
Specifications

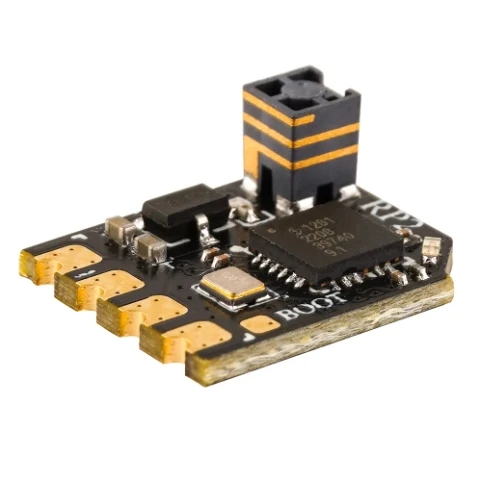

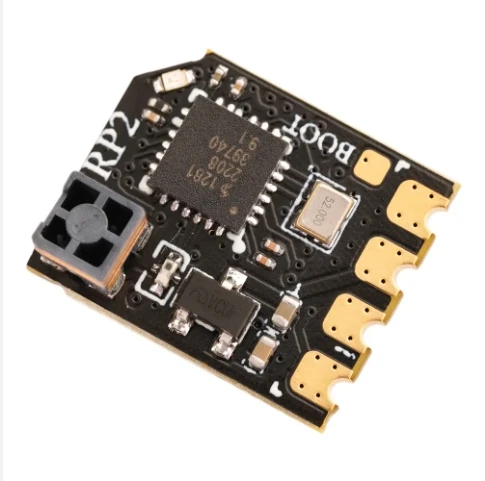

Item Name: RP2 Nano
Receiver Type: ISM ESP8285 MCU SX1280IMLTRT RF Module
Receiver Type: ISM ESP8285 MCU SX1280IMLTRT RF Module
Antenna: On Board SMT Antenna
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz /F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.55g
Dimension:13mm*11mm*7mm

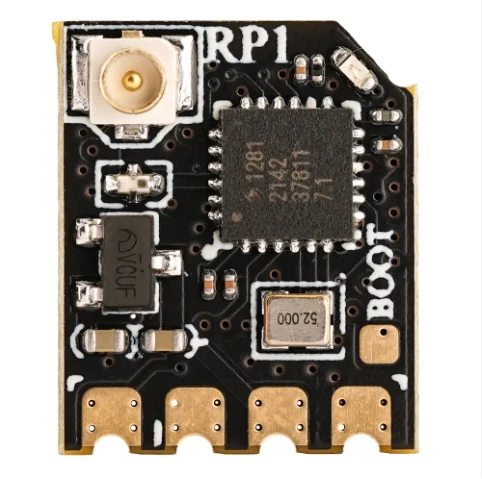

Item Name: RP1 Nano Receiver
Type: ISM ESP8285 MCU SX1280IMLTRT RF
Module Antenna: 65mm 2.4ghz T Antenna Frequency
Range: 2400 MHz to 2480 MHz
Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.53g (without antenna)
Weight: 0.53g (without antenna)
Dimension: 13mm*11mm*3mm
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | RadioMaster |
Model Number | FFMX208 FFMX209 |
Private Mold | NO |
Type | |
Type | Receiver |
Gender | Unisex |
Age Range | 14 Years & up |
