Product Overview

Description

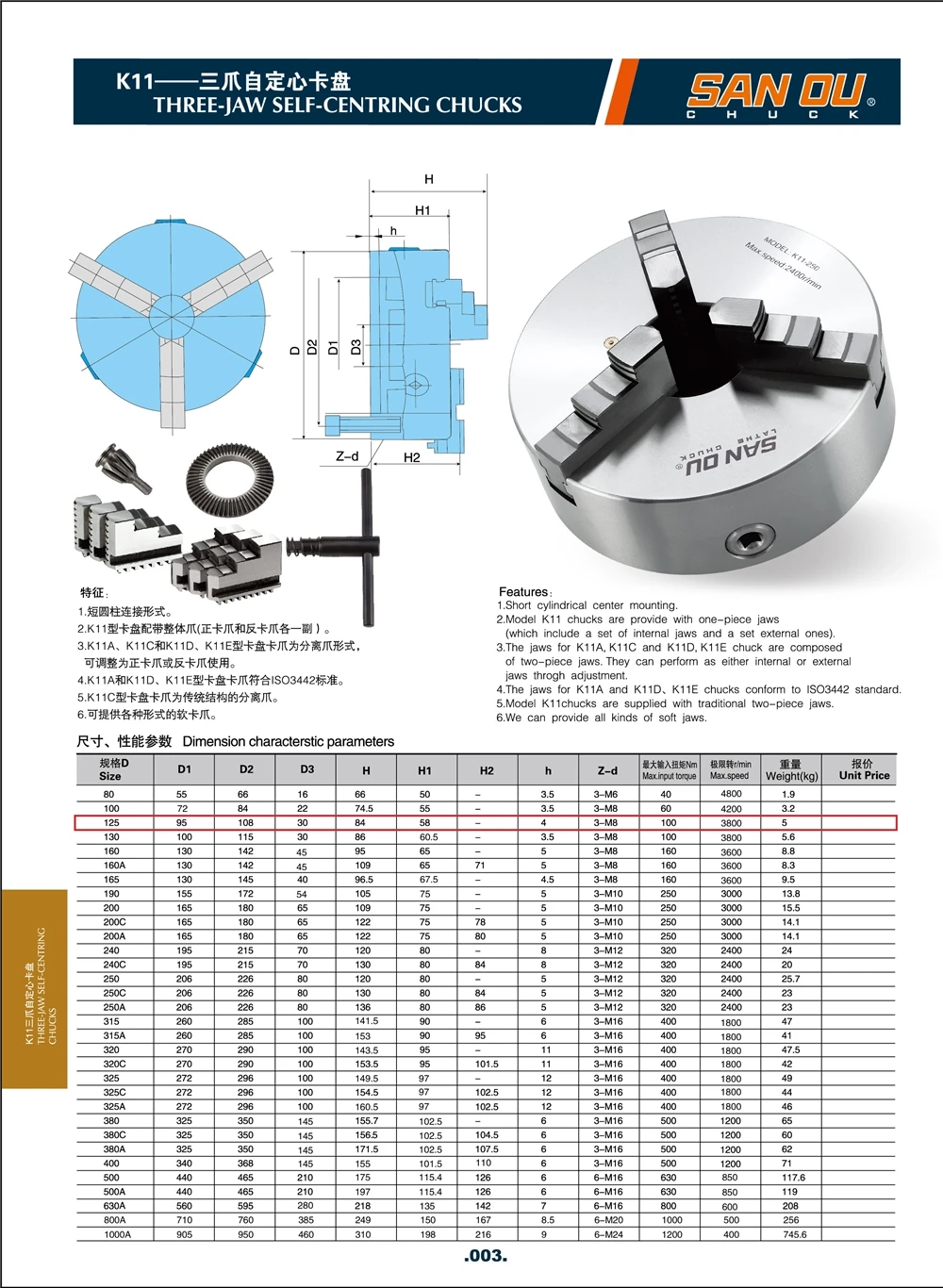

K11 125  three jaw self-centering chuck

Specifications:
Jaws material: Hardened Steel
Model: K11-125
Max RPM: 4000 r/min
Jaw: 3 Jaw
Power: Manual

Features:

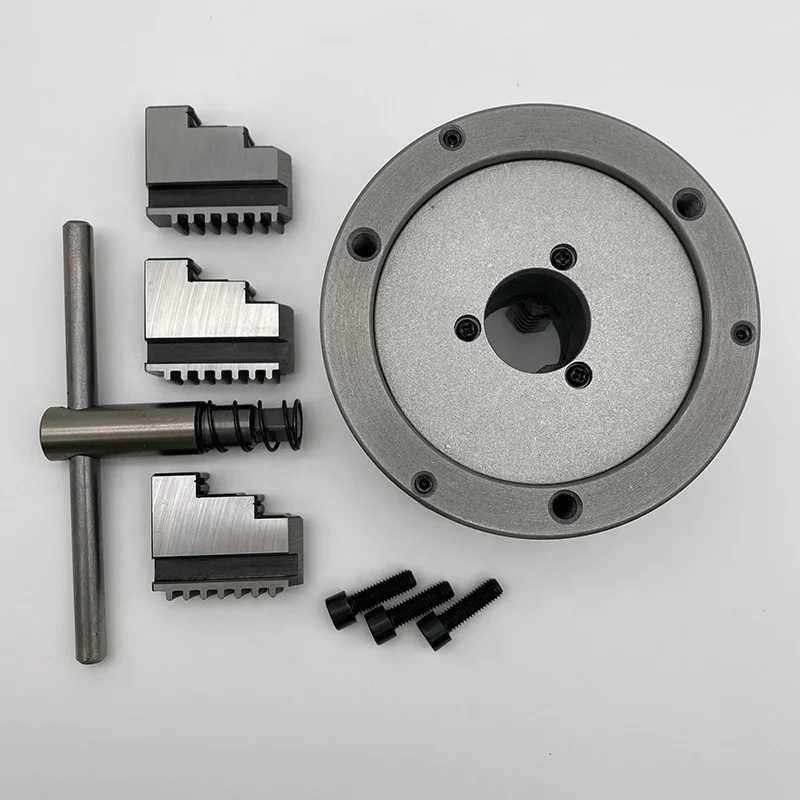

1. Short cylindrical center mounting .
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

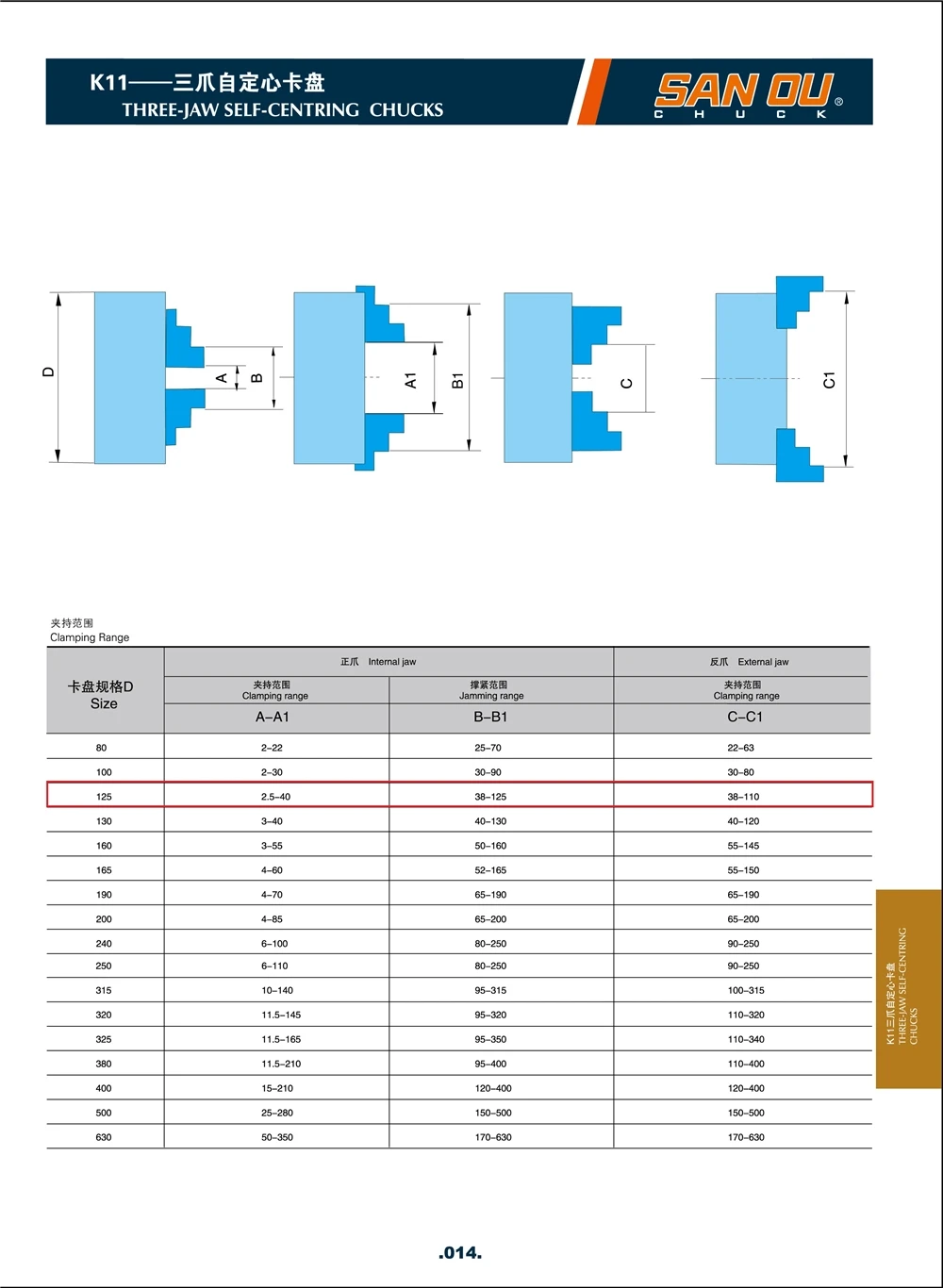

Internal Jaw:
Clamping Range A-A1: 2.5- 40mm
Jamming Range B-B1: 38- 125mm
External Jaw
Clamping Range C-C1: 38- 110mm

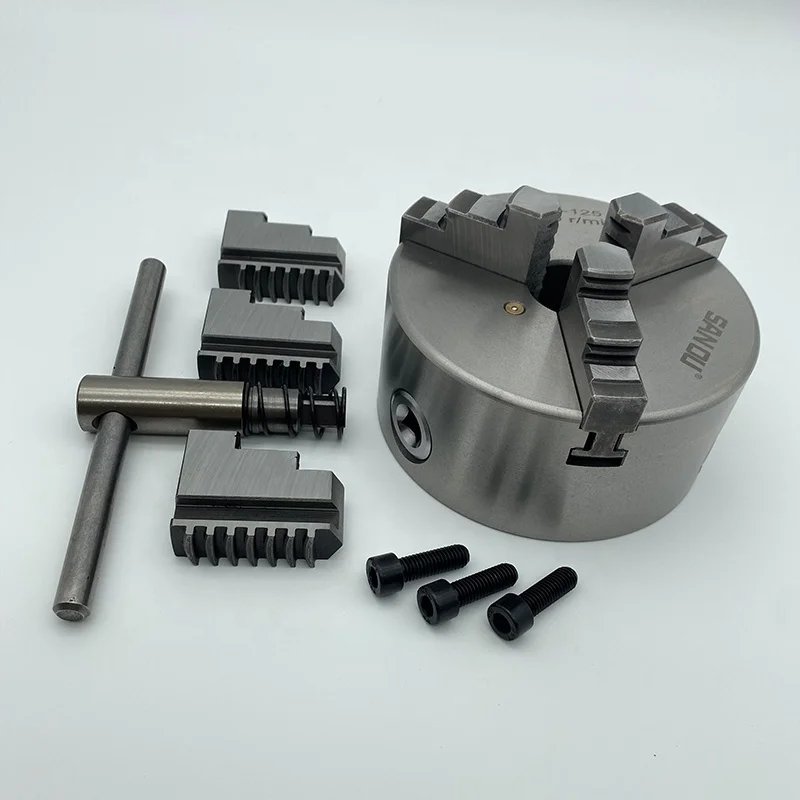

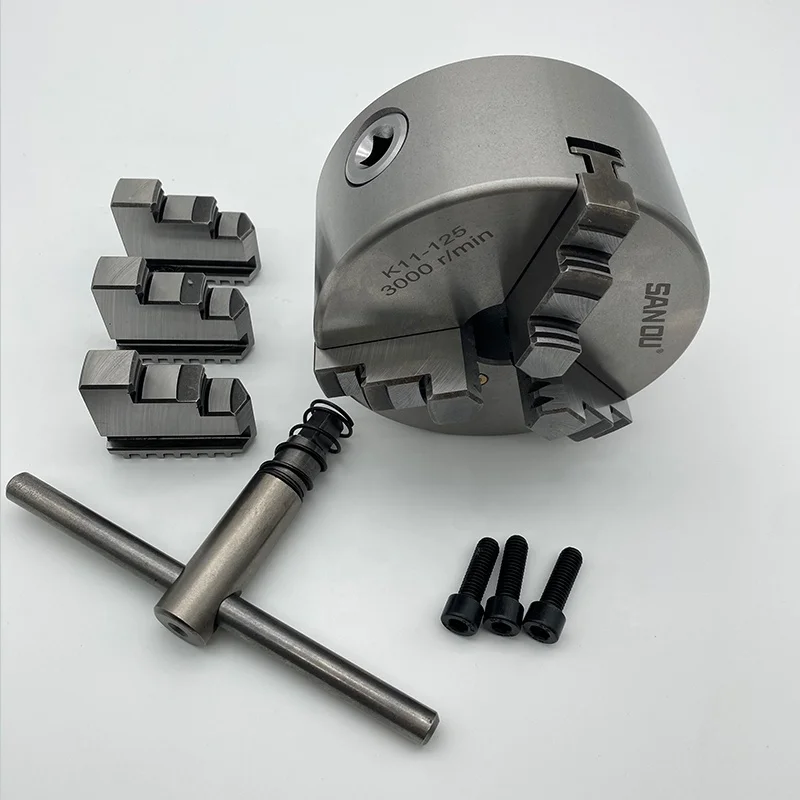

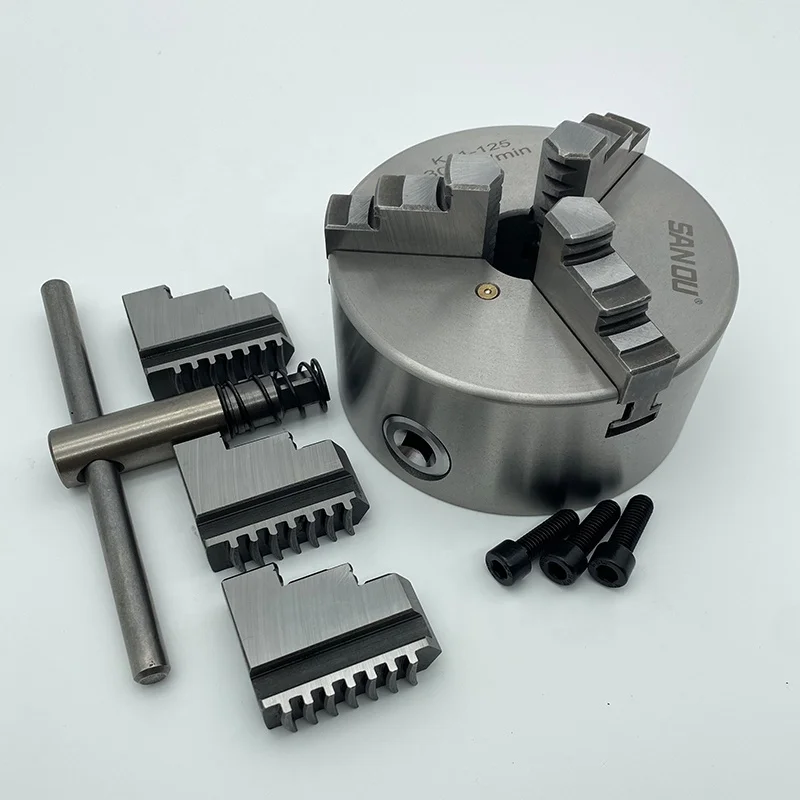

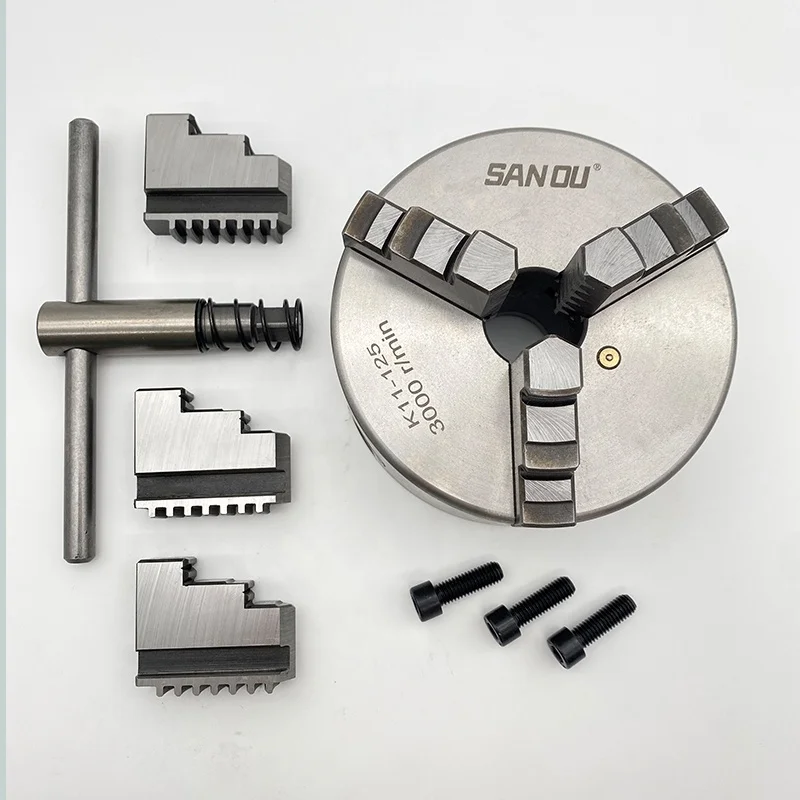

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jawslarge x 3
Safety chuck key x 1
Mounting bolts x 3
