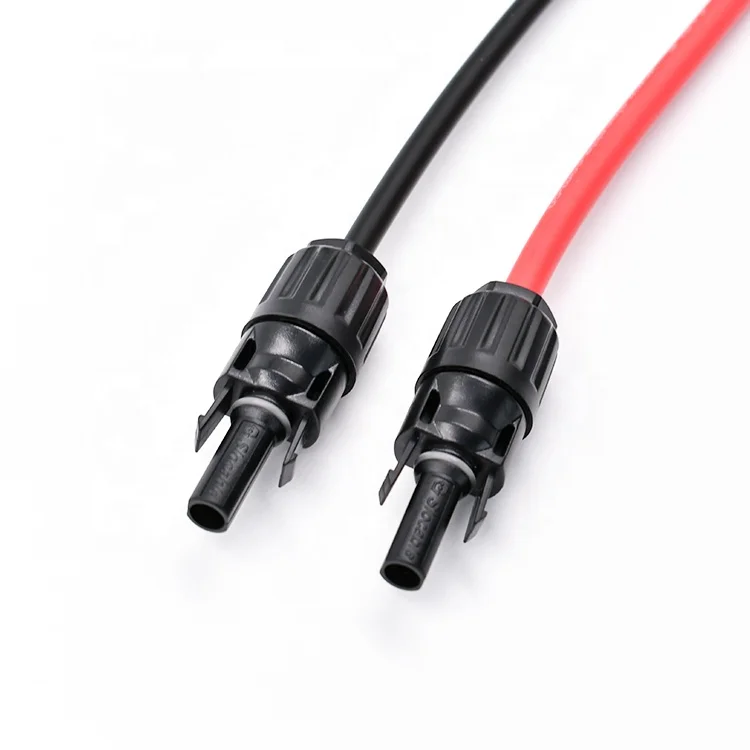

Slocable Solar PV Cable 4mm 6mm Photovoltaic Wire Stranded Tinned Copper DC Solar Cable For Solar System
- Category: >>>
- Supplier: Dongguan Slocable Photovoltaic Technology Co. Ltd.
Share on (1601207981906):
Product Overview
Description
Products Description
Description:
· Simple on-site processing
· Simple on-site processing
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· Accomodates PV cable with deferent insulation diamaters
· High Voltage and High Current carrying capacity
· TUV and CE approved
· Competitive price
· IP68 waterproof protection
Rated current | 40A(Stamped Pin)/50A(Lathed Pin) |
Insulation materials | PPE |
Degree of protection | IP2X/IP68 |
Rated voltage | 1500V DC |
Terminal material | Copper, Tinplated |
Flame dass | UL94-V0 |
Test voltage | 8kv(5Hz,1min) |
Temperature range | -40℃~85+℃(IEC) |
Safety level | Ⅱ |
Connector resistance | <0.35mΩ |
Overvoltage category pollution degree | CATII/2 |
Insertion force / withdrawal force | ≤50N/≥50N |

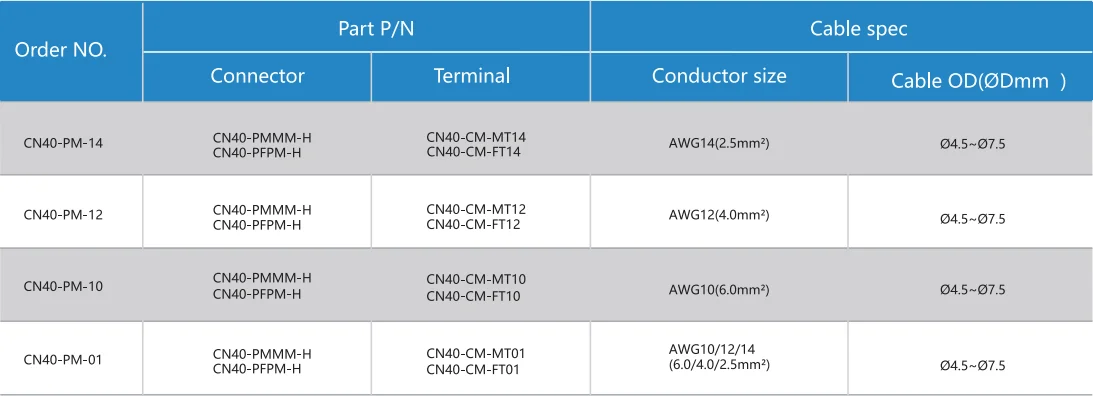

Applicable wire specifcations | CN40-PM:2.5/4.0/6.0mm2(14/12/10AWG) |
Connecting system | Crimp connection |
