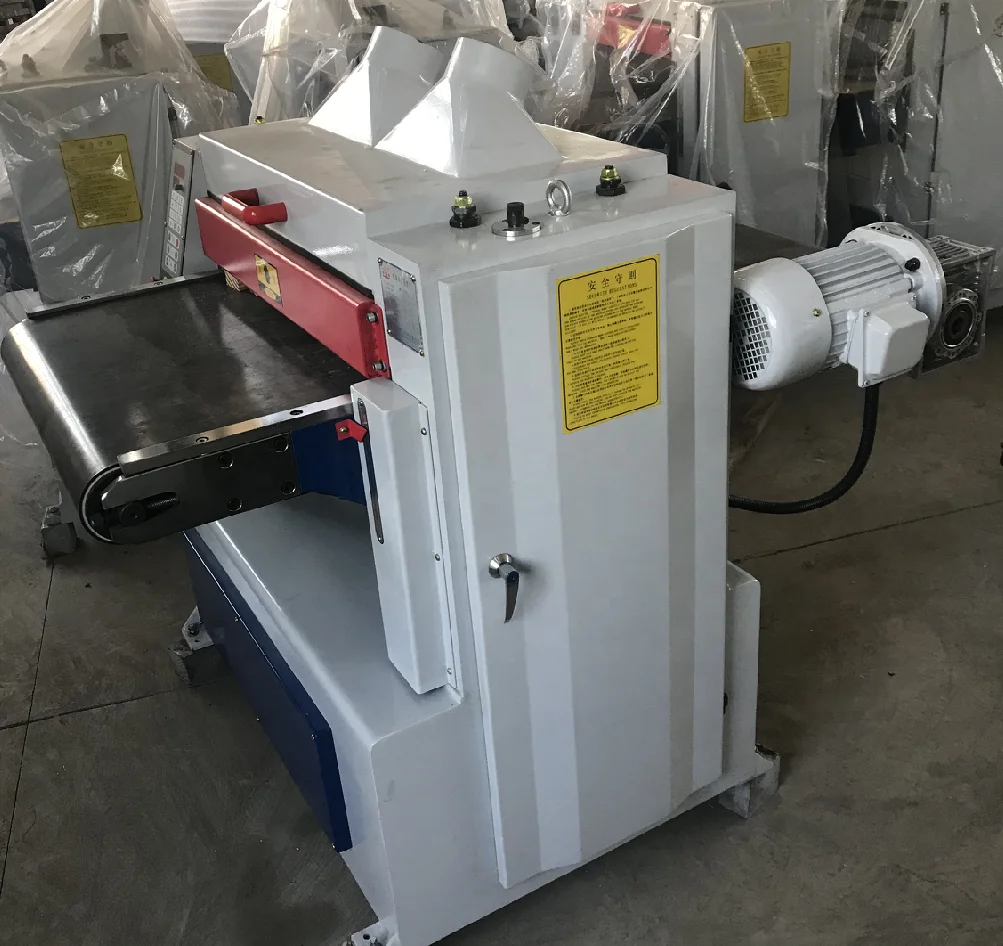

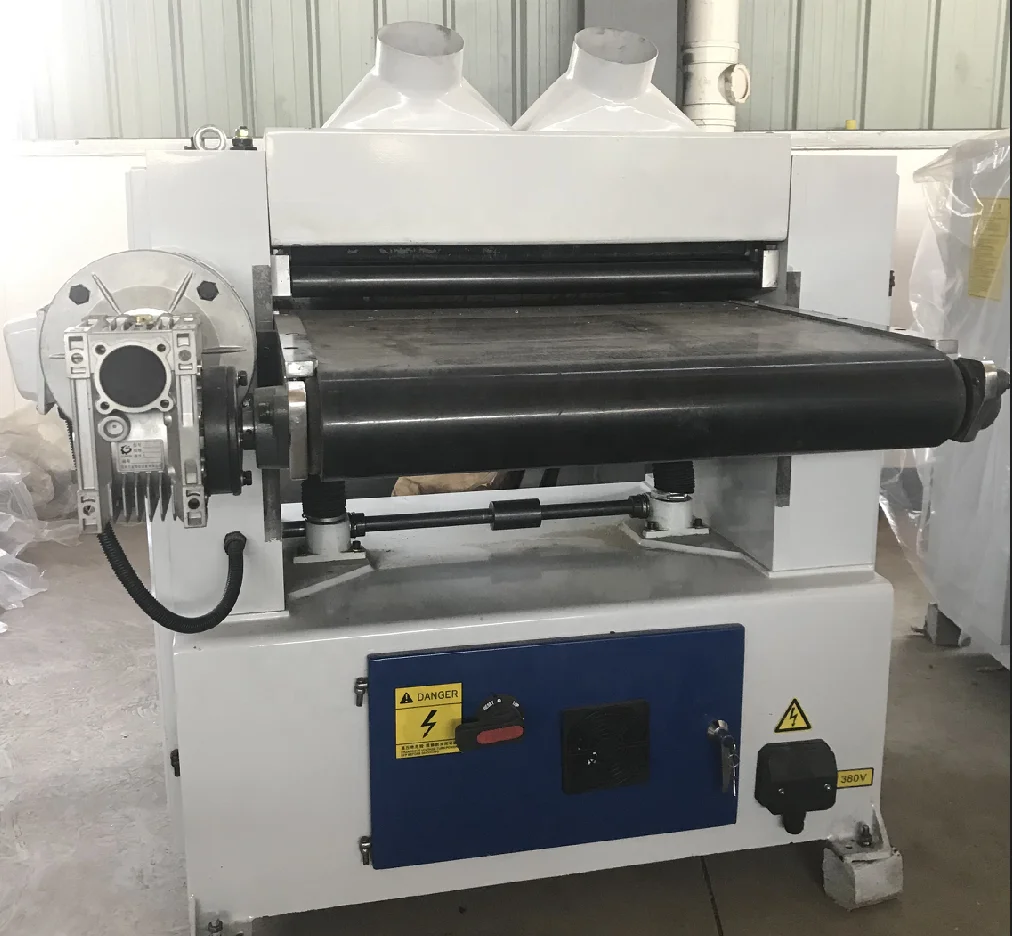

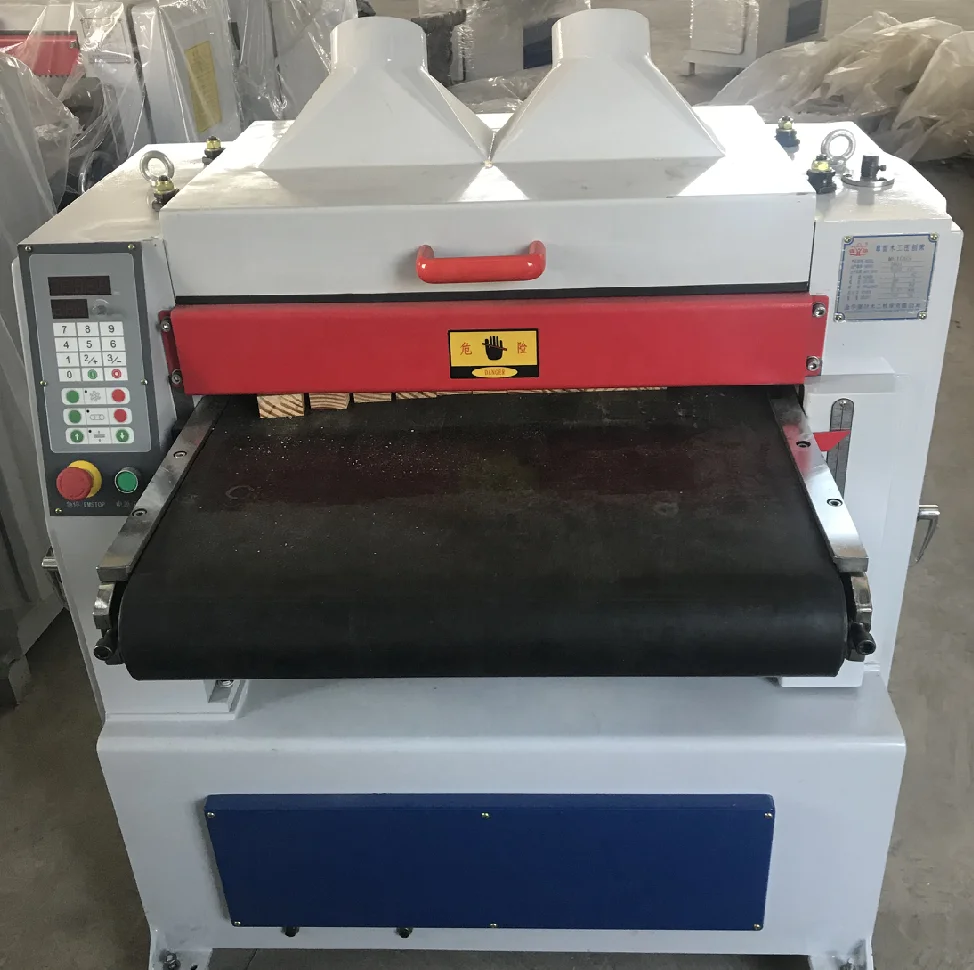

Woodworking automatic belt feeding heavy duty thickness planer
- Category: >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (1601207987652):
Product Overview
Description
Product Description
Planers
Each wood planer is manufactured according to our specifications and tough quality control standards. We build our
planers with steel frames and cast iron tables for rigidity and accuracy
Each wood planer is manufactured according to our specifications and tough quality control standards. We build our
planers with steel frames and cast iron tables for rigidity and accuracy
*24" /630mm working width
SIZE: 24"
24" Model MB106H(Equipped with straight cutter head) ; MB106HLL(Equipped with spiral helical cutter head)
Main technical data | MB106S |
Max. working width | 640mm |
Working thickness | 5-160mm |
Min. wood length | 100mm |
Cutter head speed | 6000r/min |
Feeding speed | 0-25m/min |
Main motor power | 7.5kw |
Belt feeding motor power | 1.5kw |
Working table lifting motor power | 0.37kw |
Total motor power | 9.37kw |
Machine size | 1310x1110x1210 |
Machine weight | 800kg |
Wood planer can be equipped with straight cutter head or Spiral Helical Cutter head.Spiral cutter head is much better and easy to change the blades.

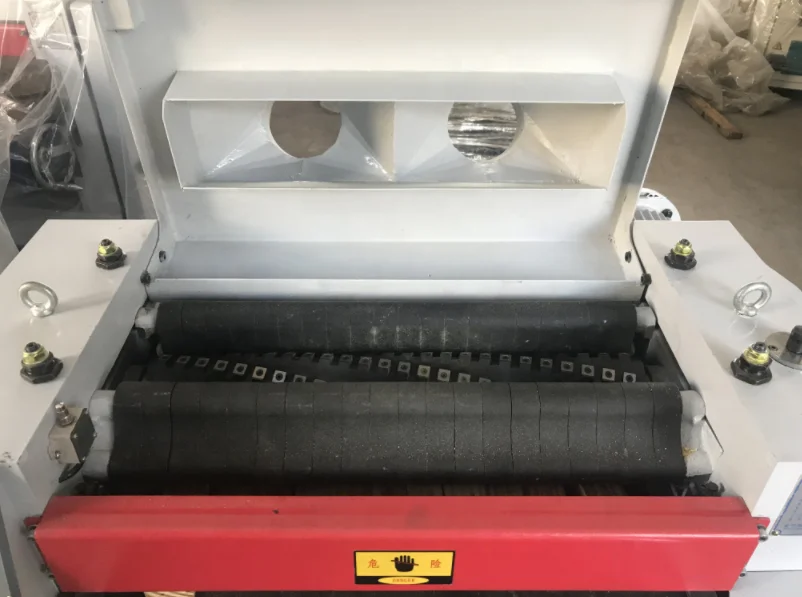

Optional Spiral Helical cutter head
Low Noisy.Easy to change the tips.
Save your time and value your wood
Save your time and value your wood
TIGRA Carbide Tips made in Germany
4 Faces TipsMade in Germany
Using longer time
Using longer time

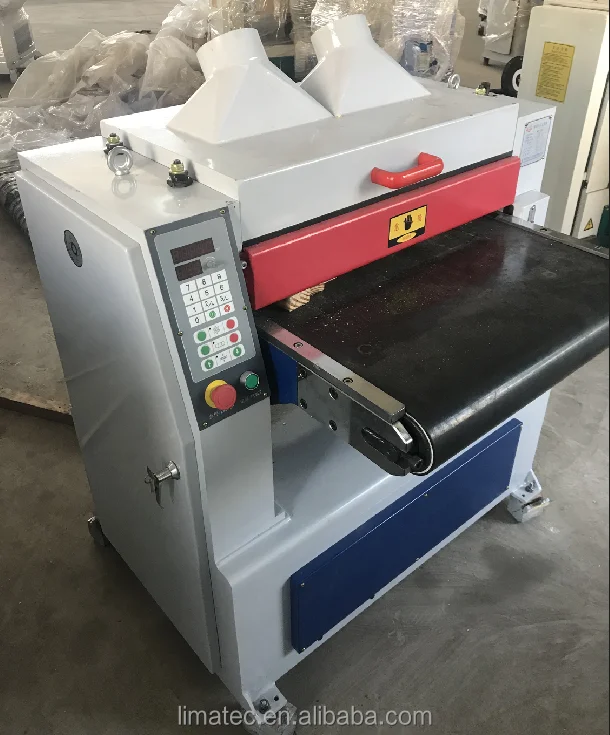

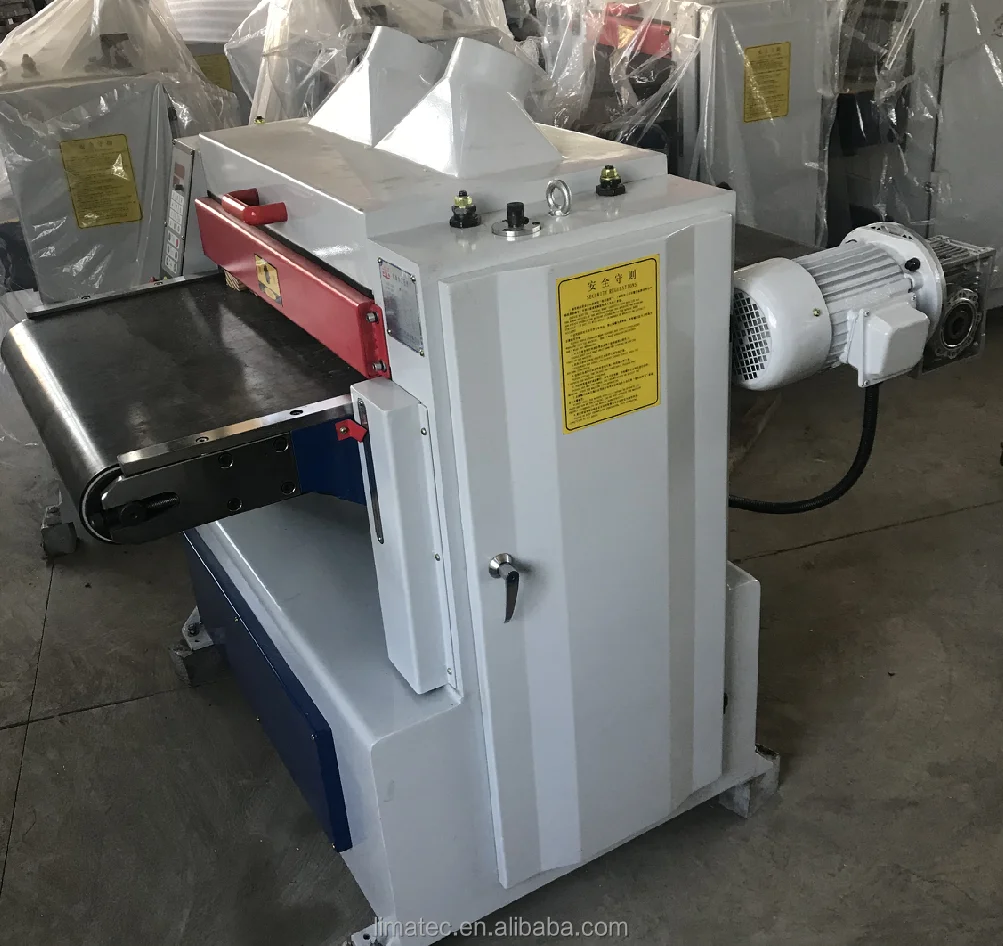

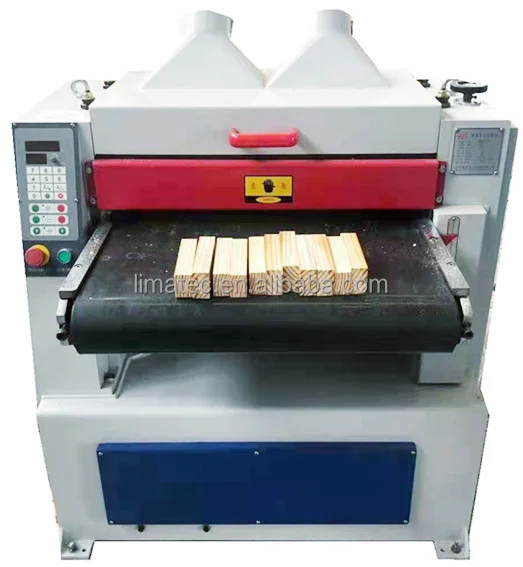

Detailed Images
MAIN FEATURES
* Heavy cast iron one-piece frame and base and keep long time stability.
• The planer equip with spiral cutter head fitted with tungsten carbide knife inserts, permitting for use on four
edges. It gives heavy duty planning capacity, low noise running and extremely fine surface of cut.
* Frequency control system, automatic belt feeding, it’s better for feeing material.
* Automatic adjusting thickness up & down, and setting thickness as you want on display to ensure planning accurate
* High quality for long period of use and heavy-duty precision ground cast iron stable.
• Fast for mass production performance.
• Anti-kickback fingers for safety protection.
• The planer equip with spiral cutter head fitted with tungsten carbide knife inserts, permitting for use on four
edges. It gives heavy duty planning capacity, low noise running and extremely fine surface of cut.
* Frequency control system, automatic belt feeding, it’s better for feeing material.
* Automatic adjusting thickness up & down, and setting thickness as you want on display to ensure planning accurate
* High quality for long period of use and heavy-duty precision ground cast iron stable.
• Fast for mass production performance.
• Anti-kickback fingers for safety protection.
